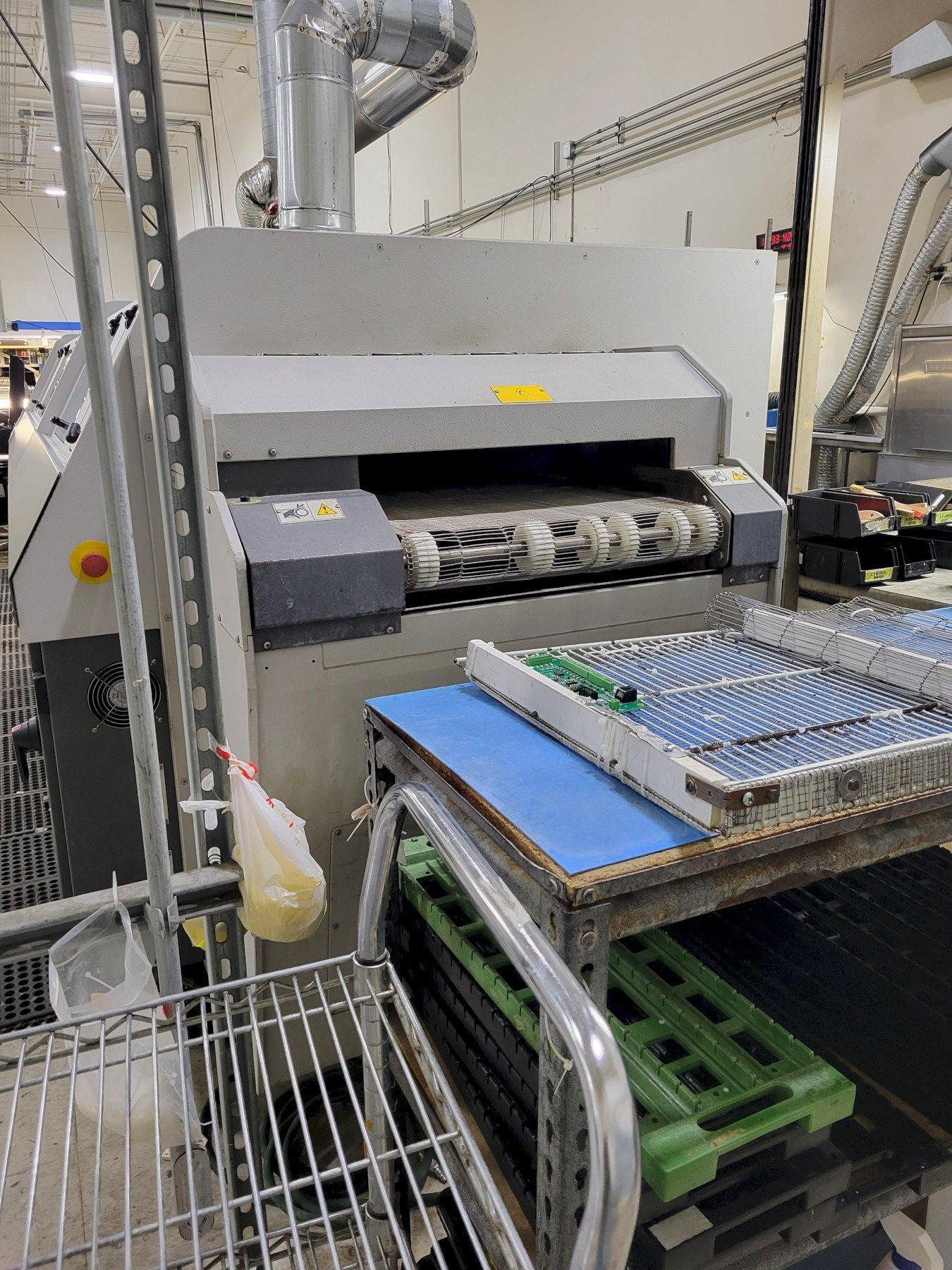

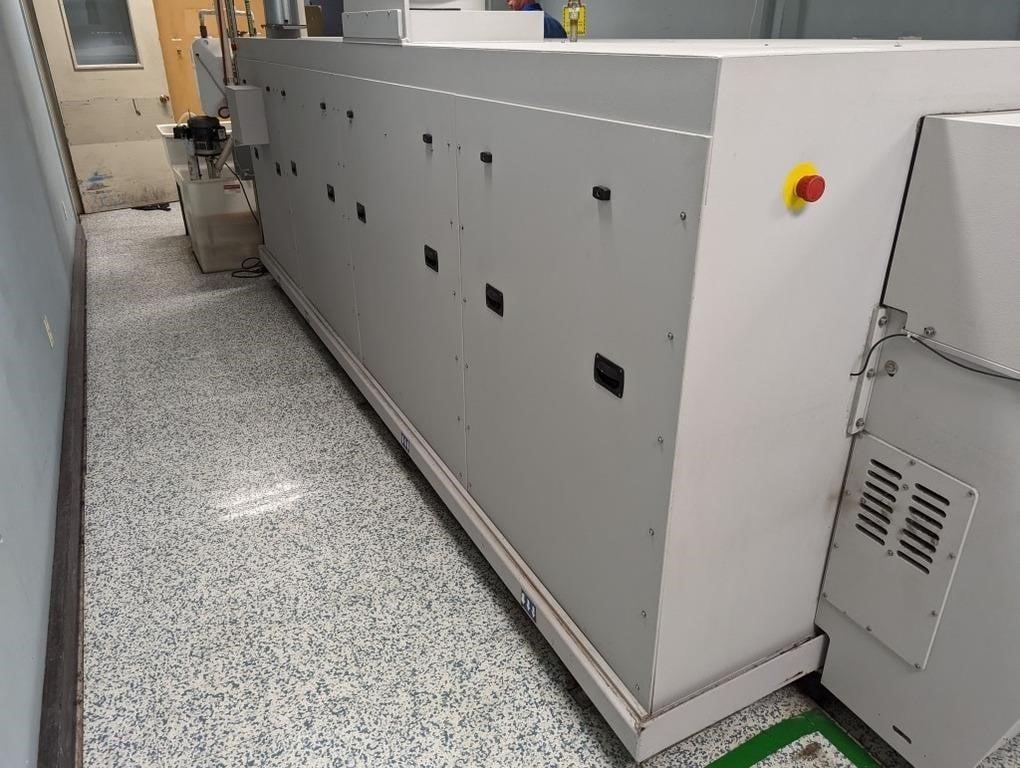

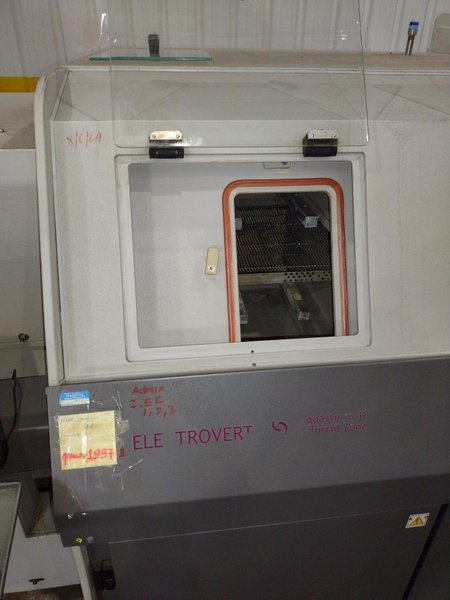

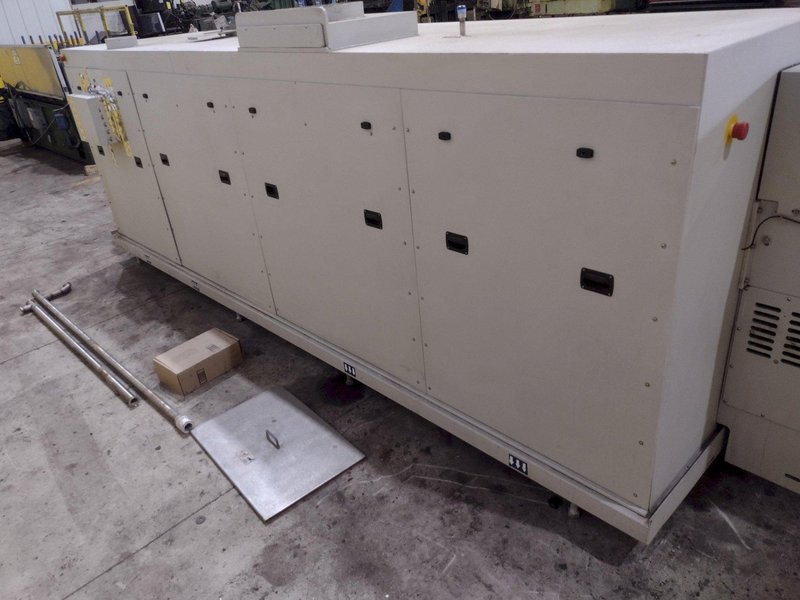

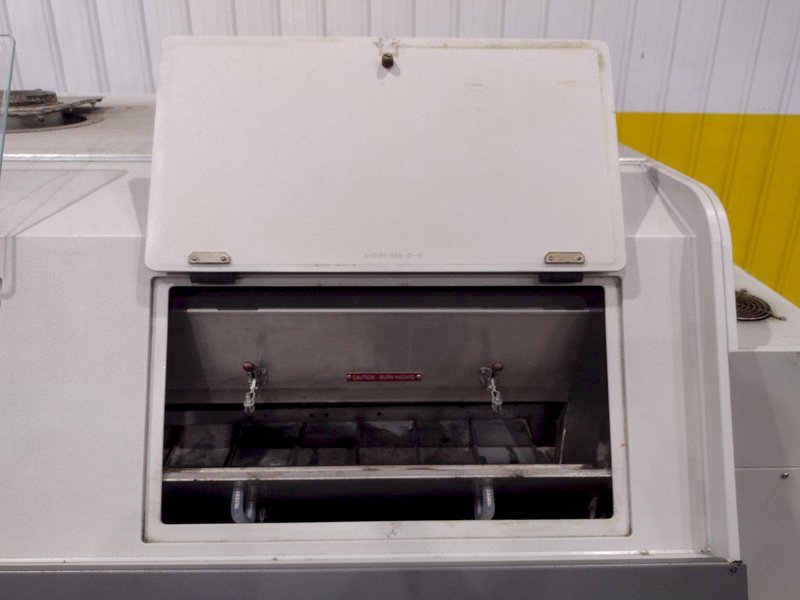

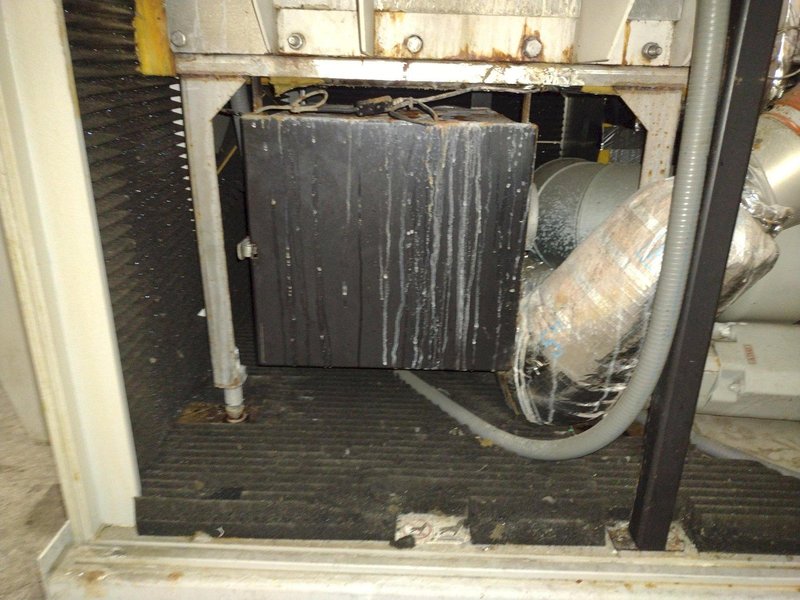

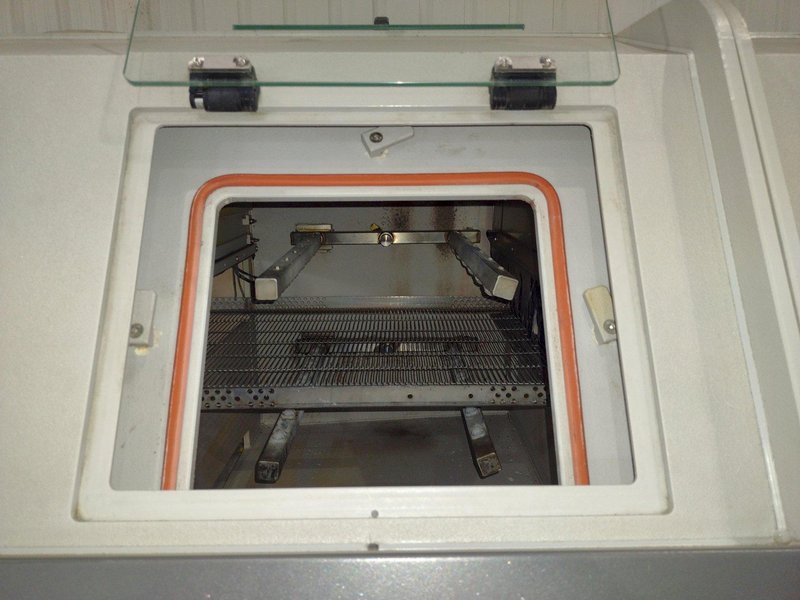

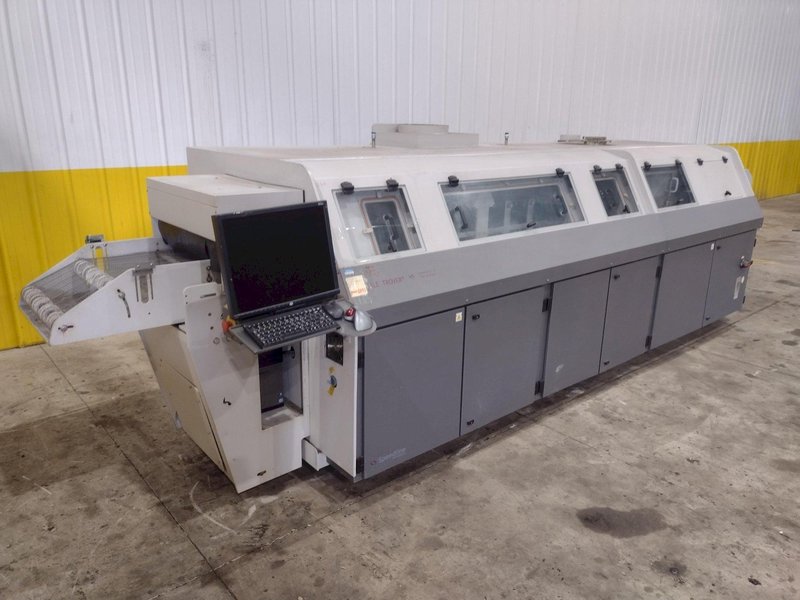

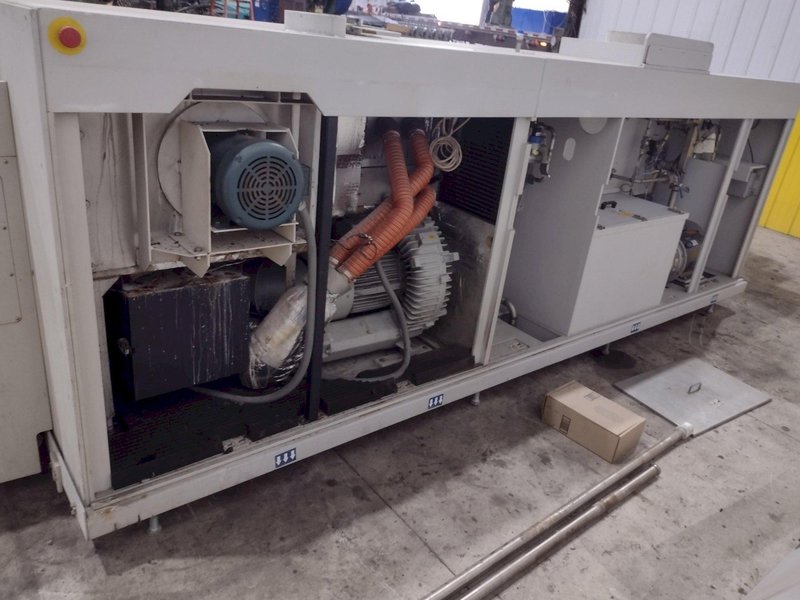

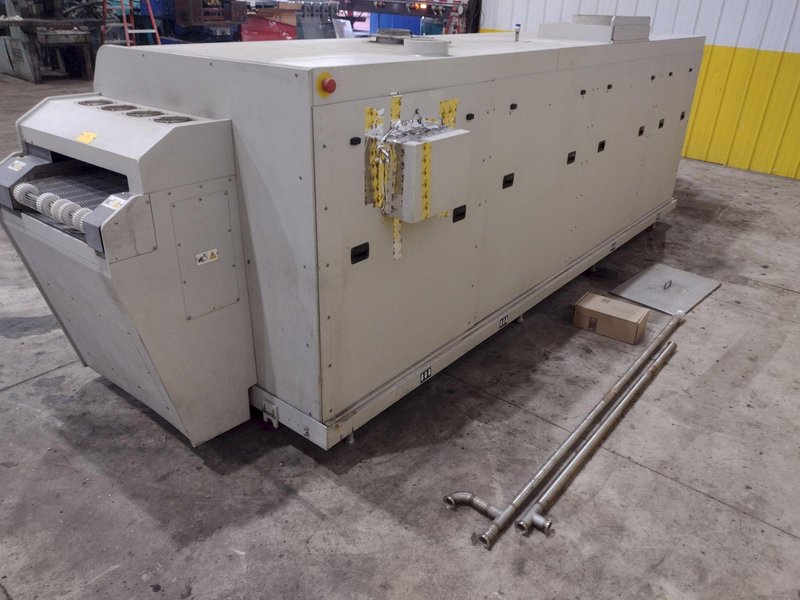

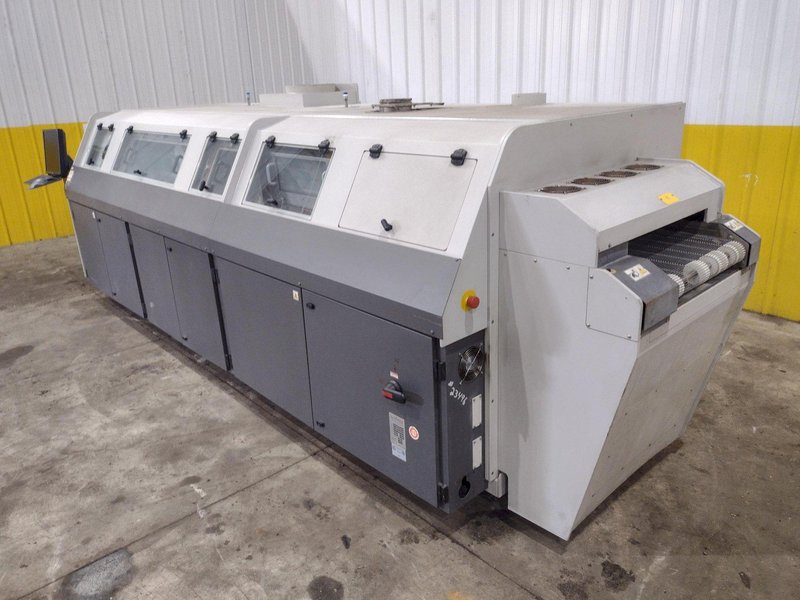

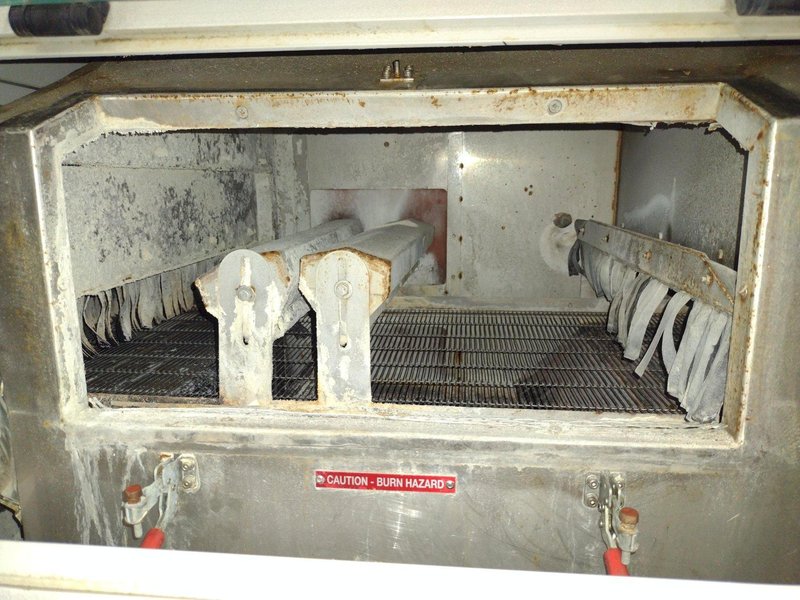

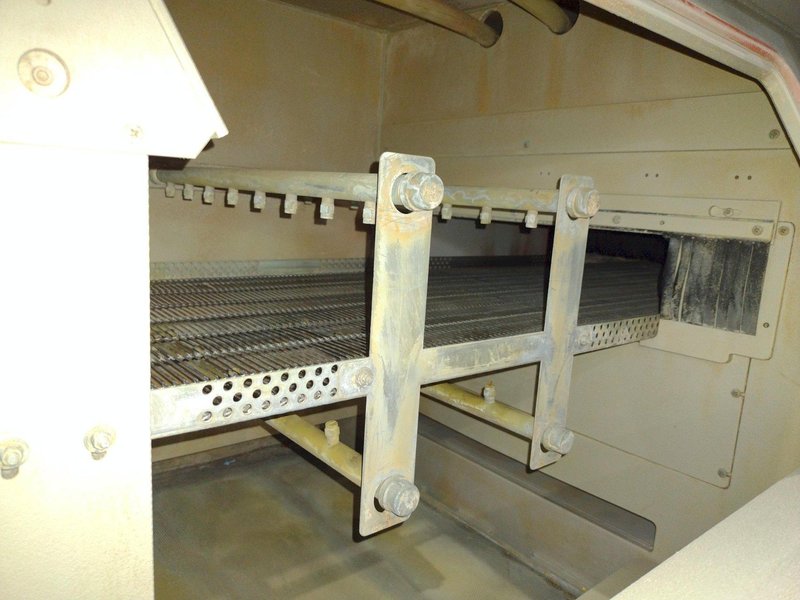

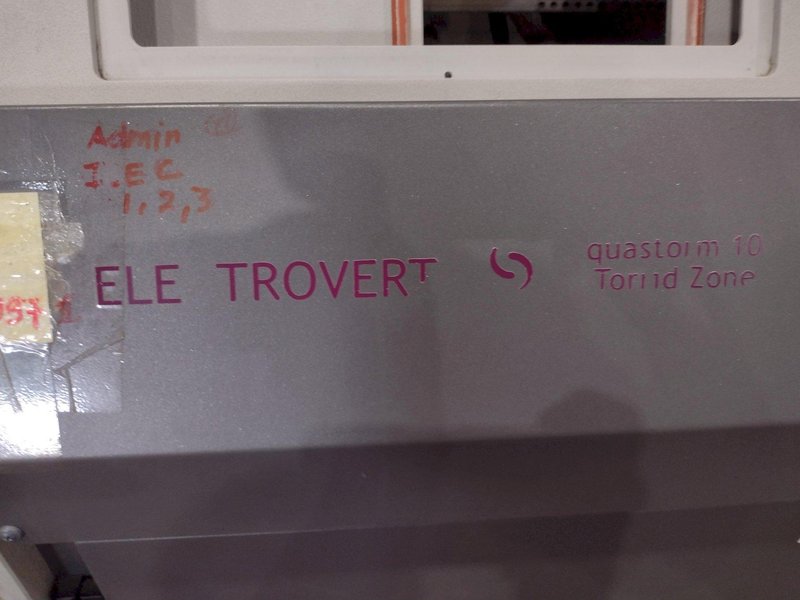

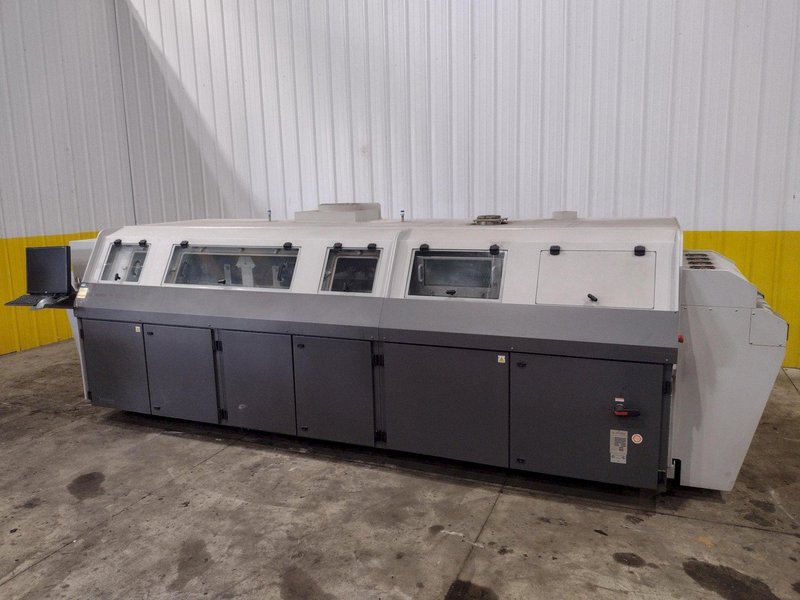

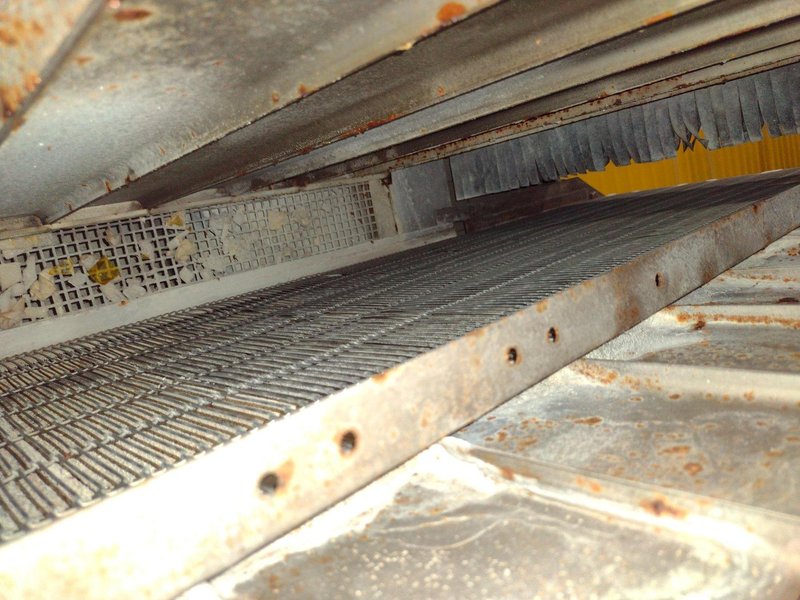

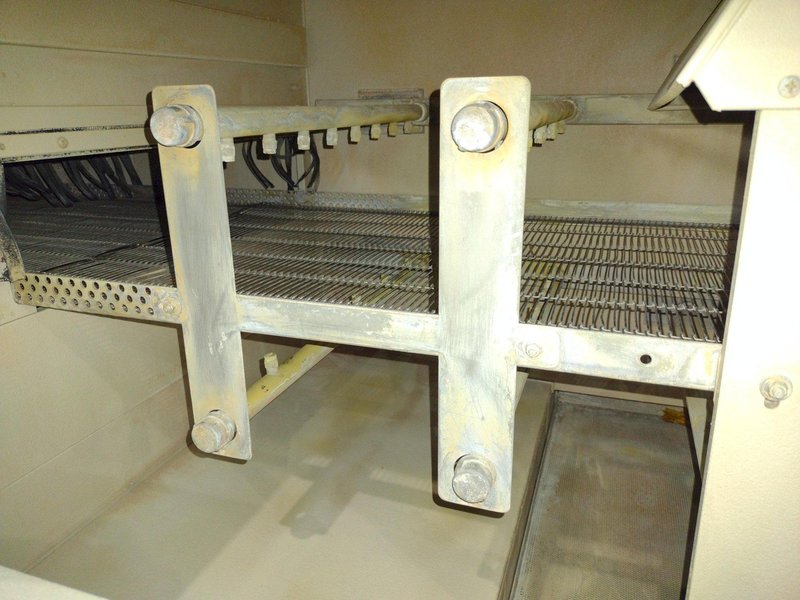

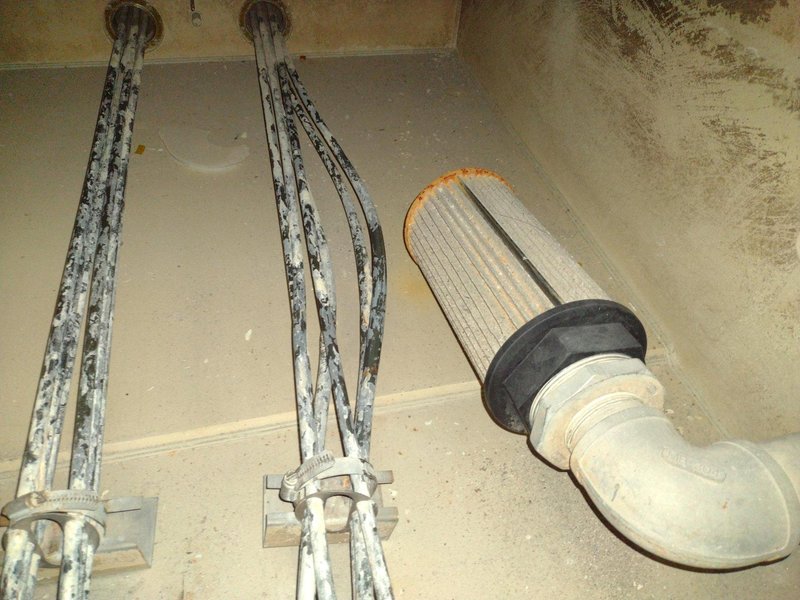

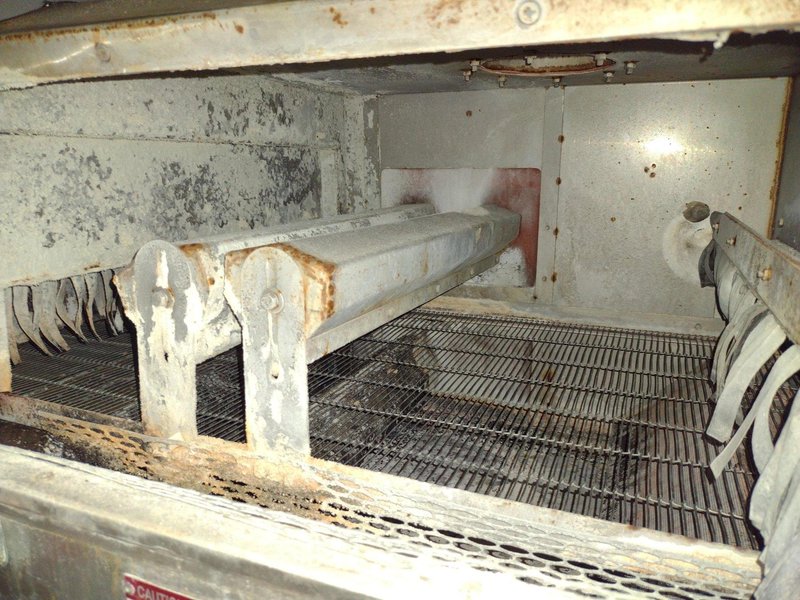

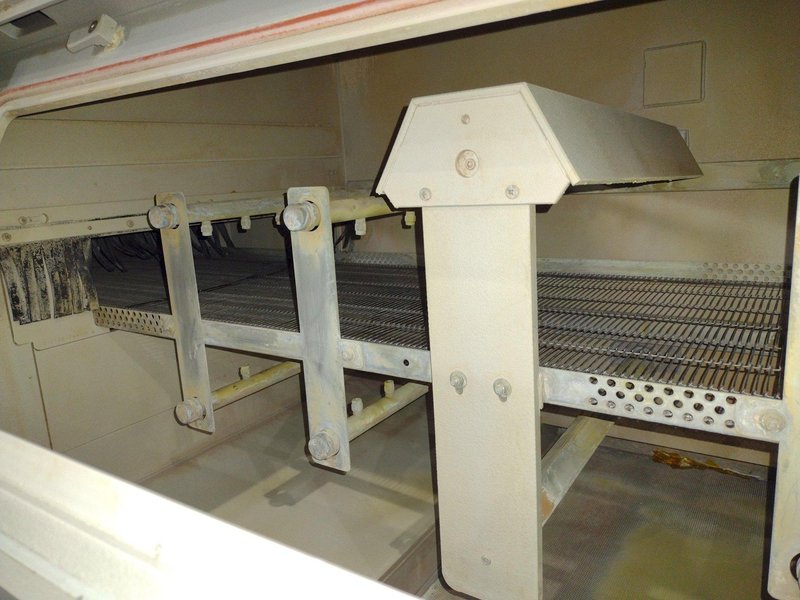

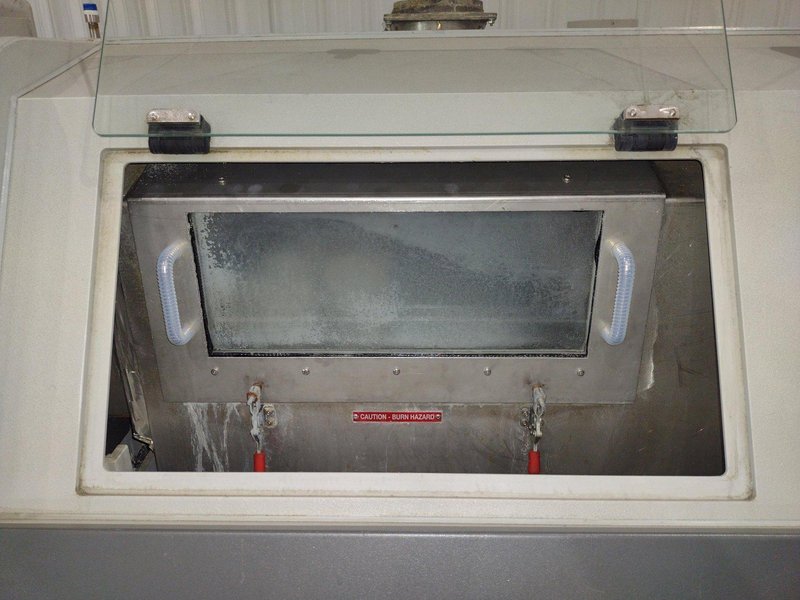

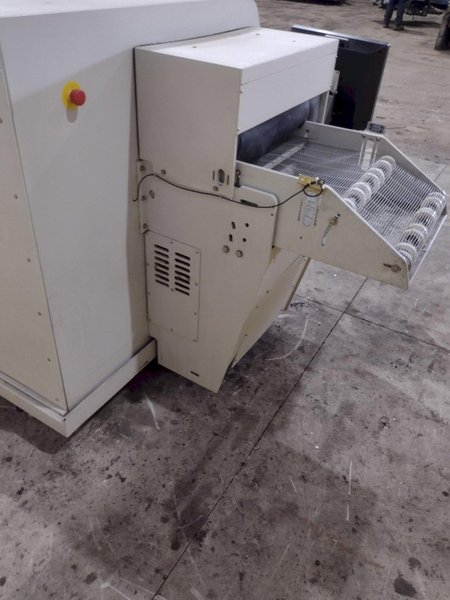

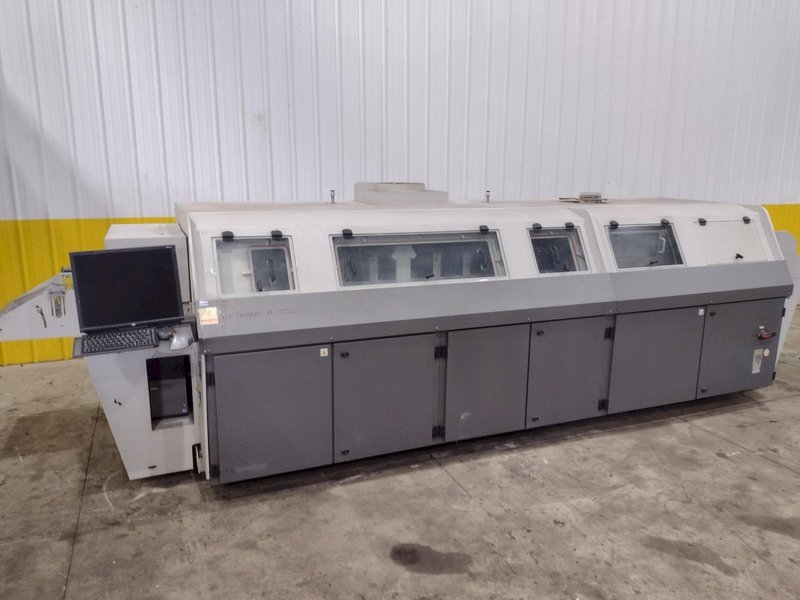

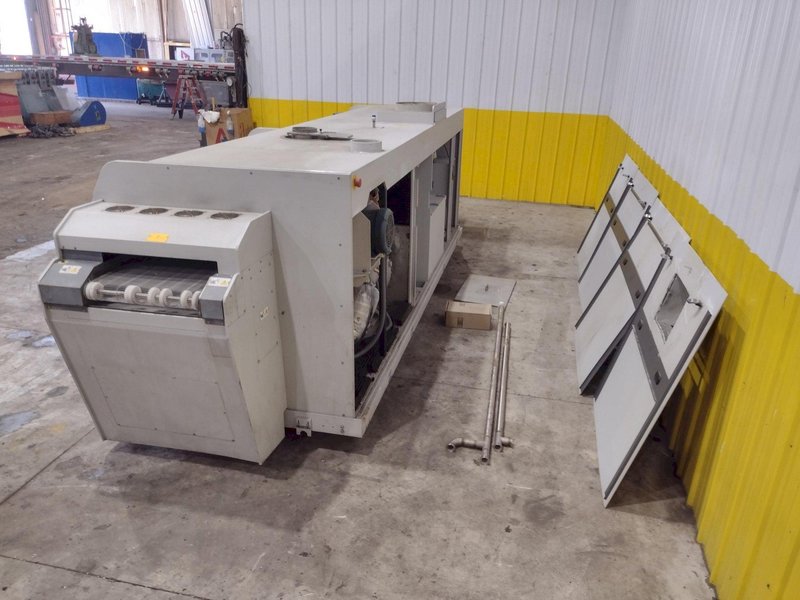

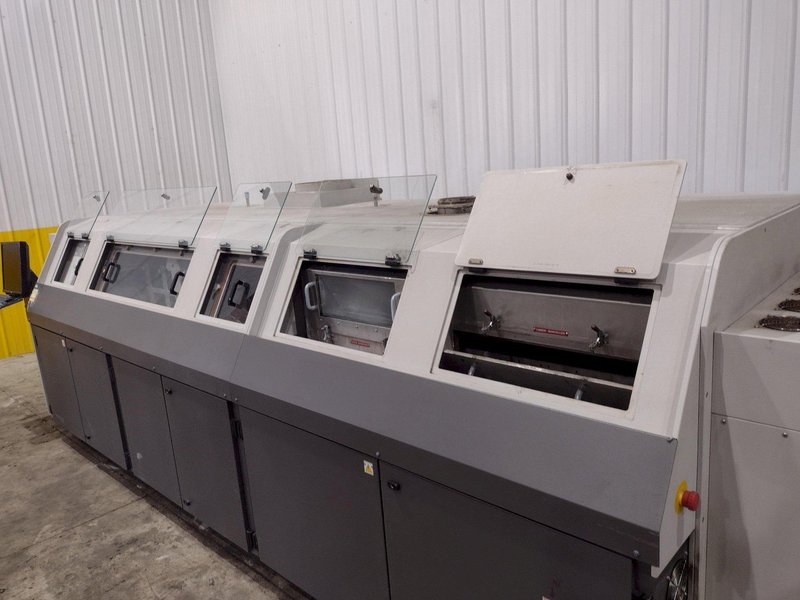

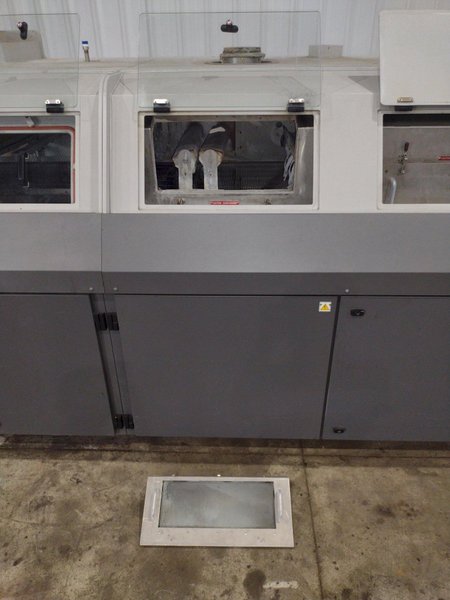

20” ELECTROVERT MODEL AQUASTORM 100 IN-LINE CLEANER WASHER: STOCK #23496
Brand
Type
Model
AQUASTORM 100
Stock #
23496
Year
Not specified
Condition
Good
Location
Ohio
| Dimensions | 18' X 7' X 6' HIGH |
| Weight | 5500 pounds |
|

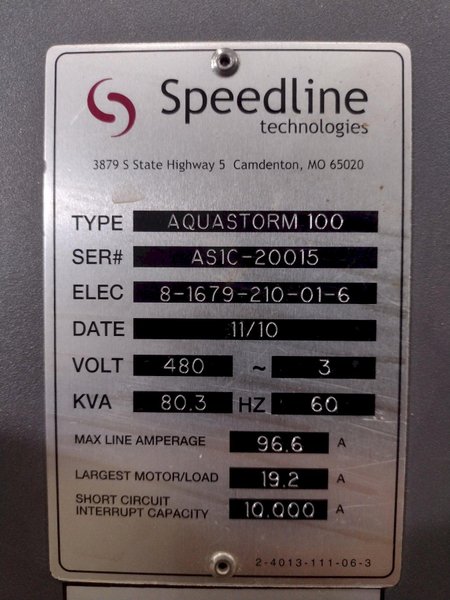

SERIAL ................ ASIC-20015

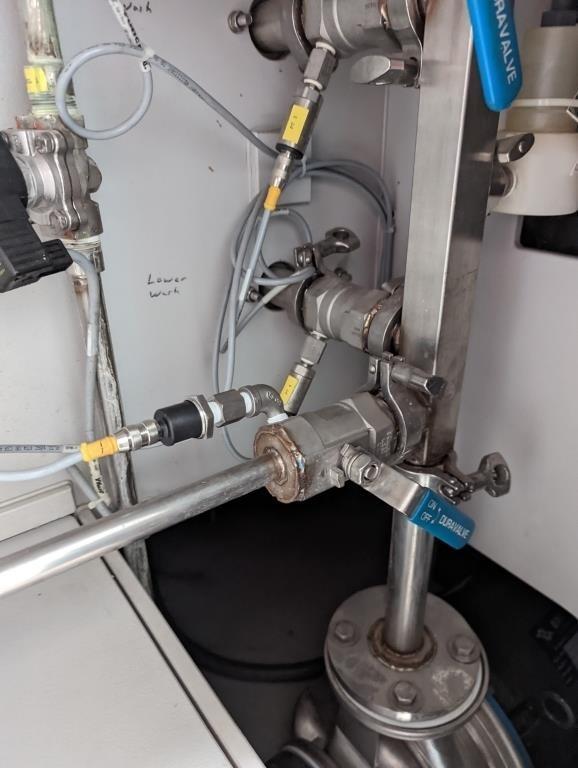

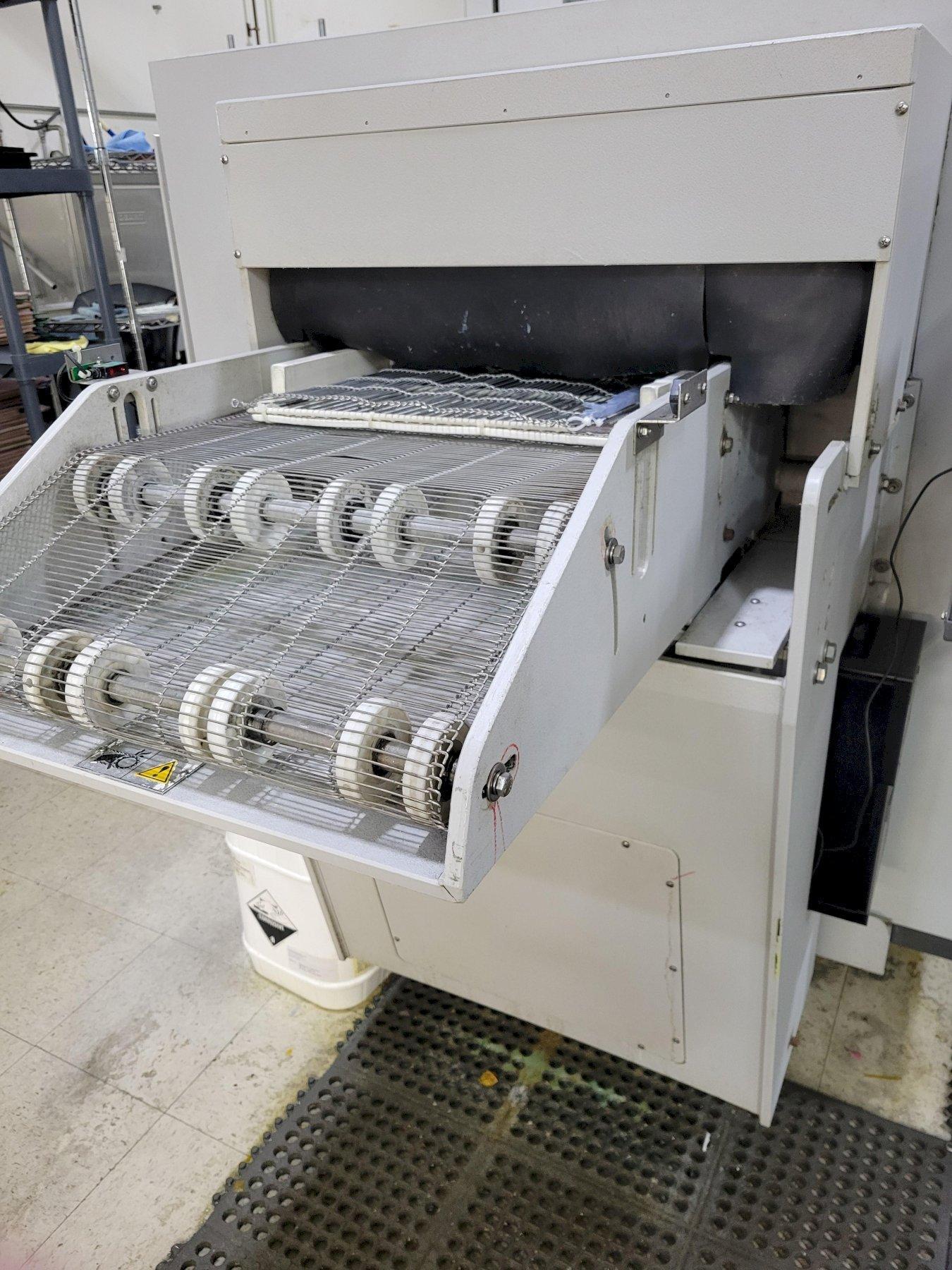

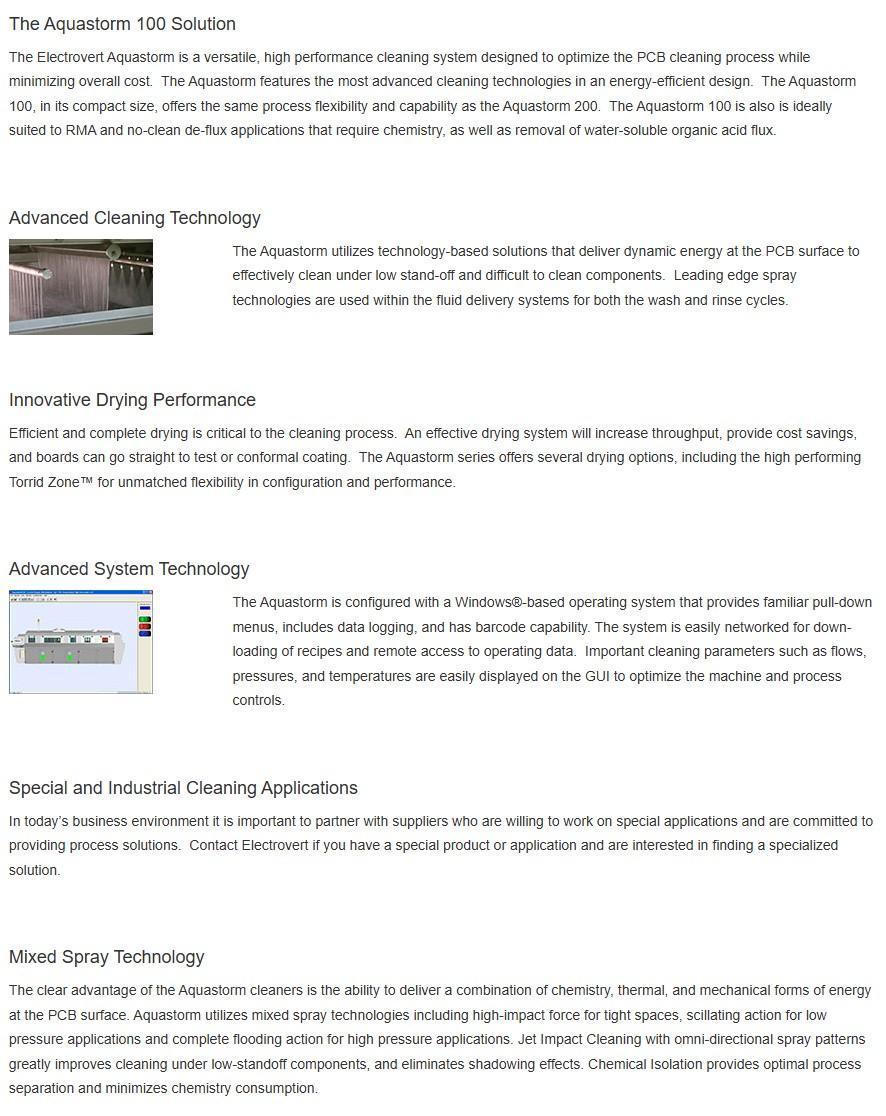

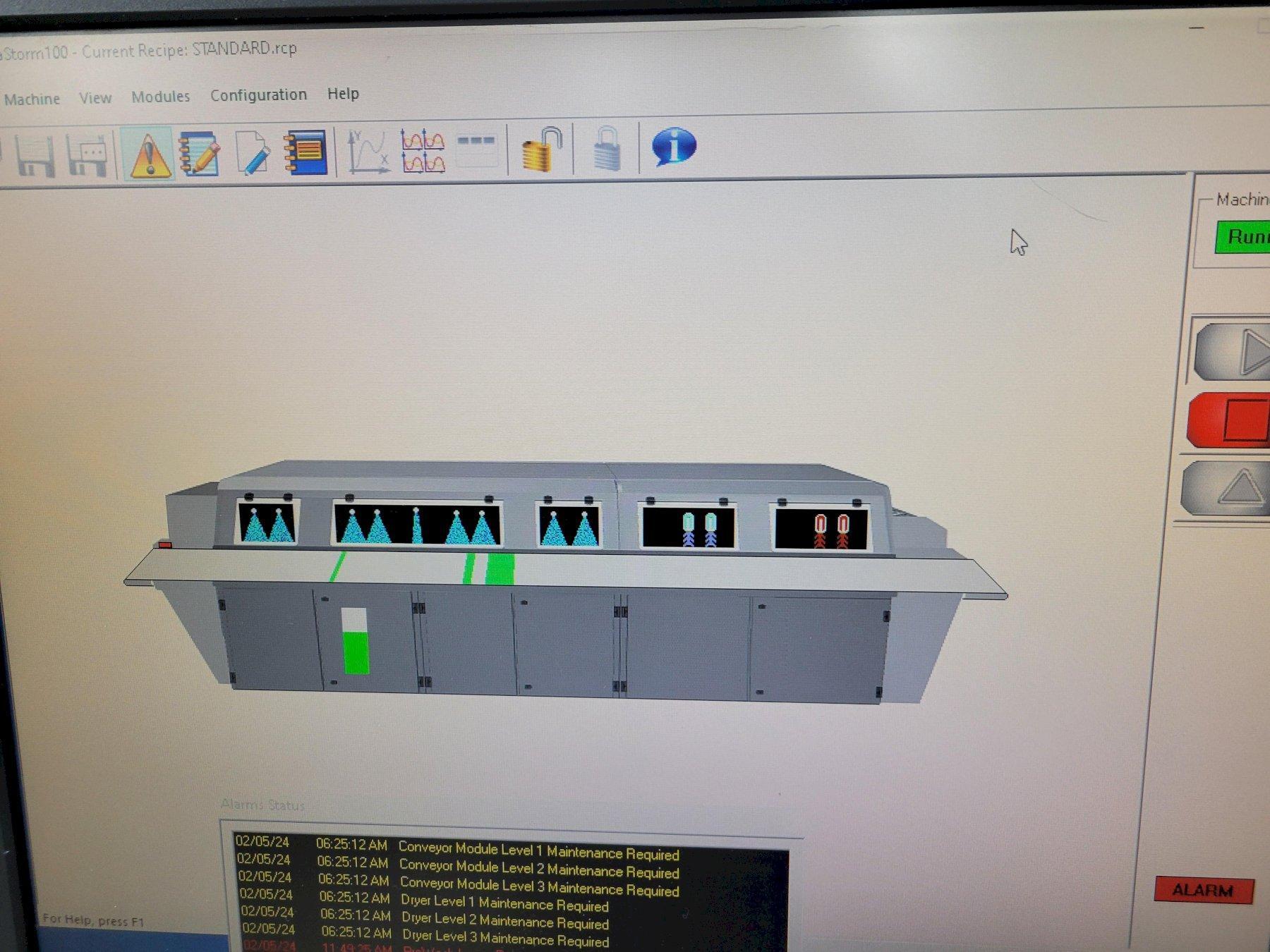

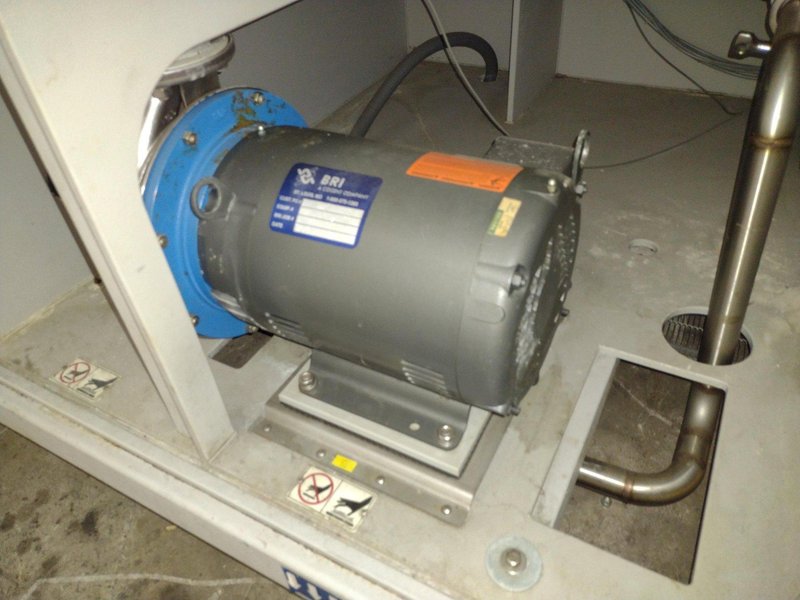

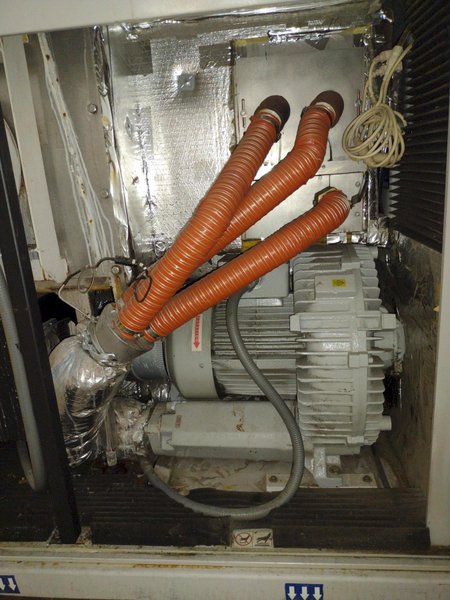

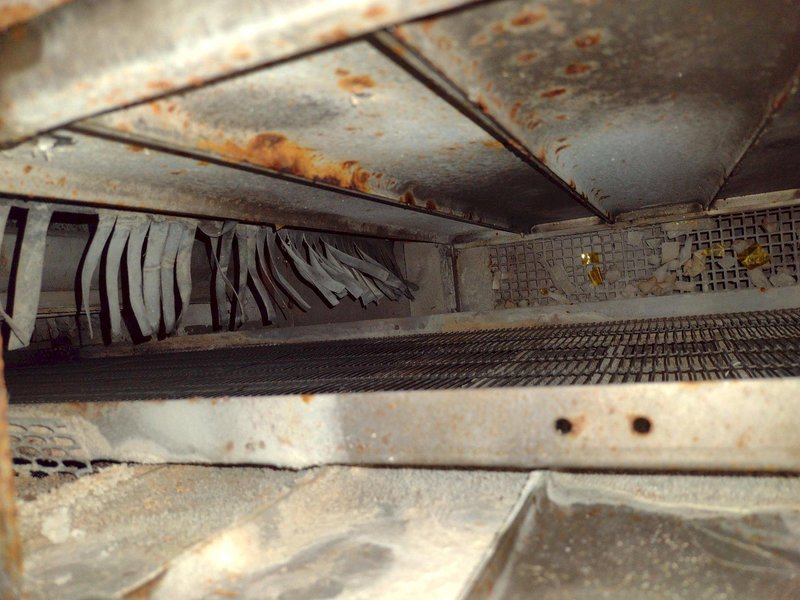

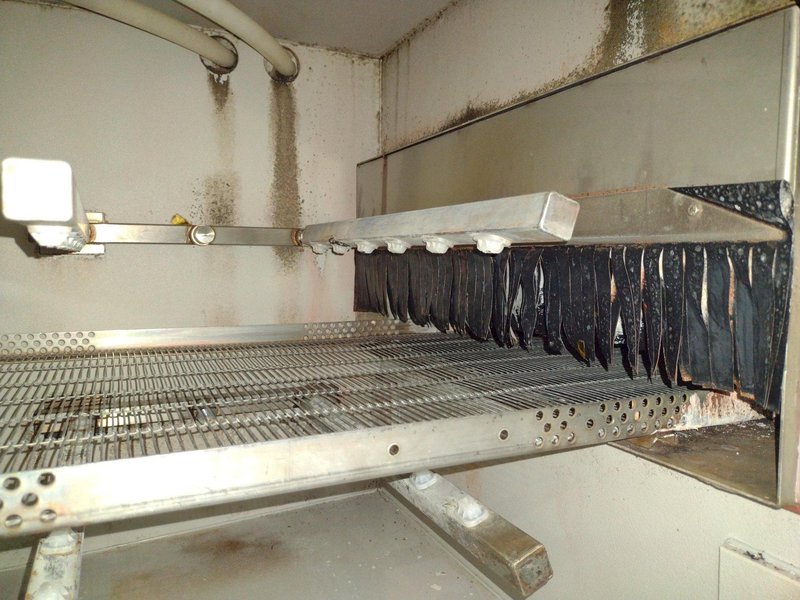

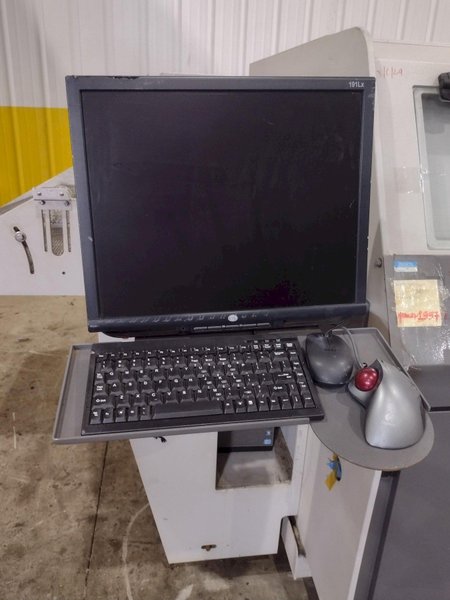

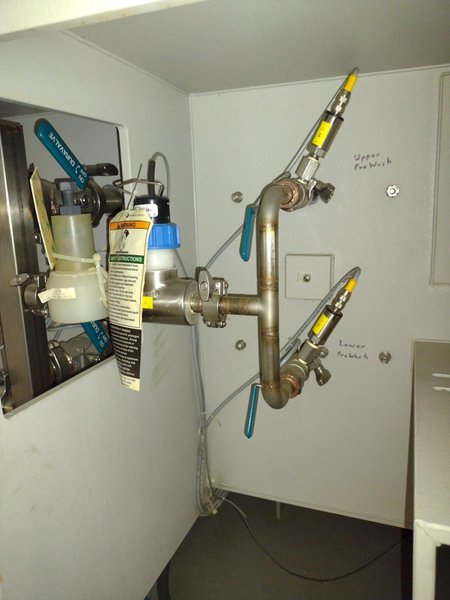

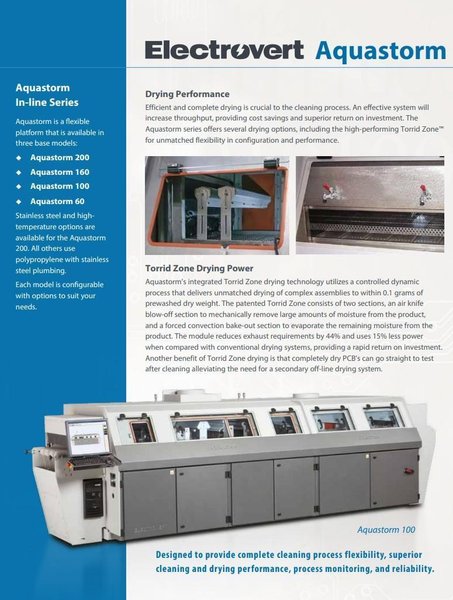

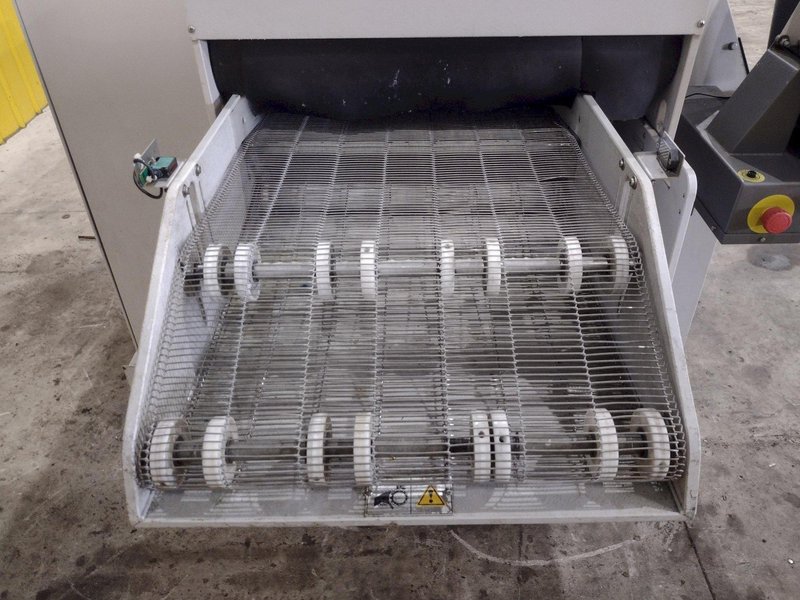

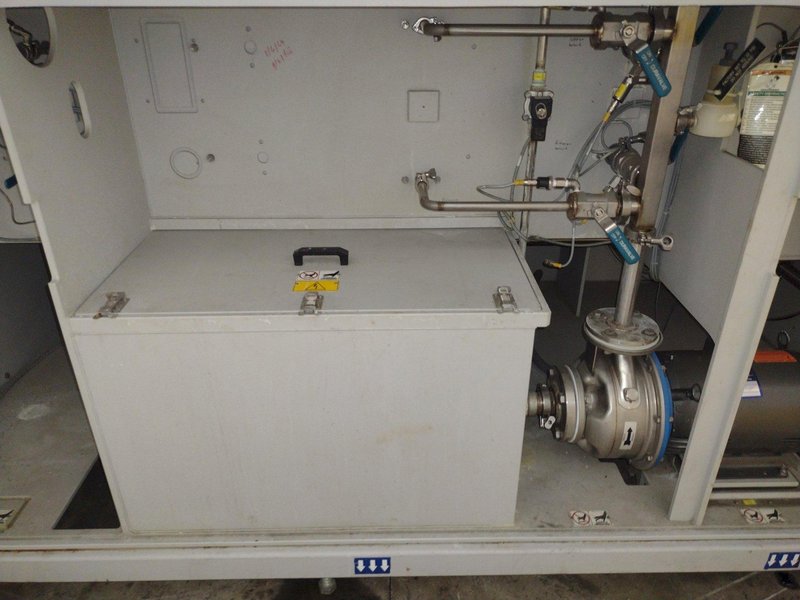

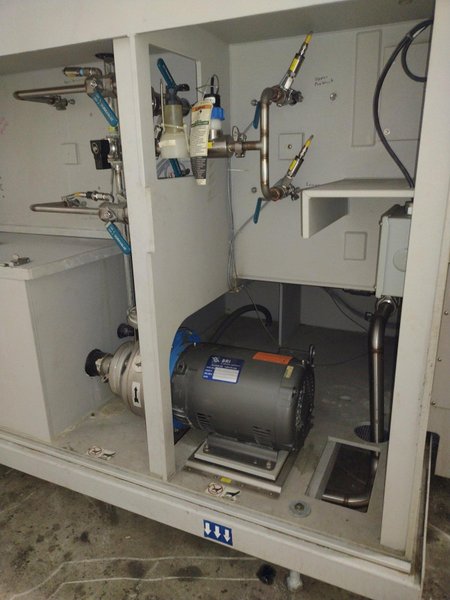

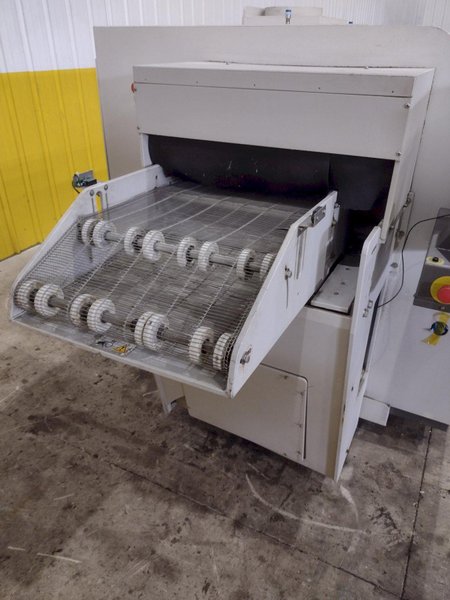

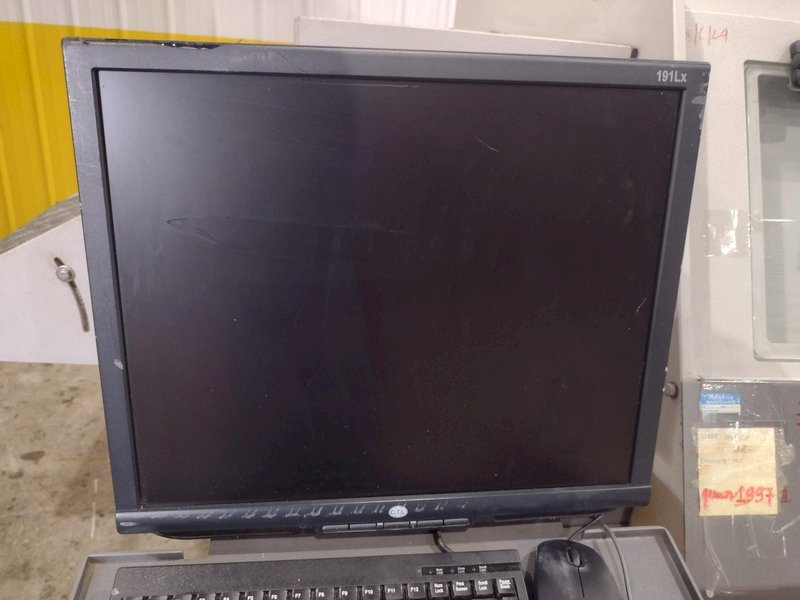

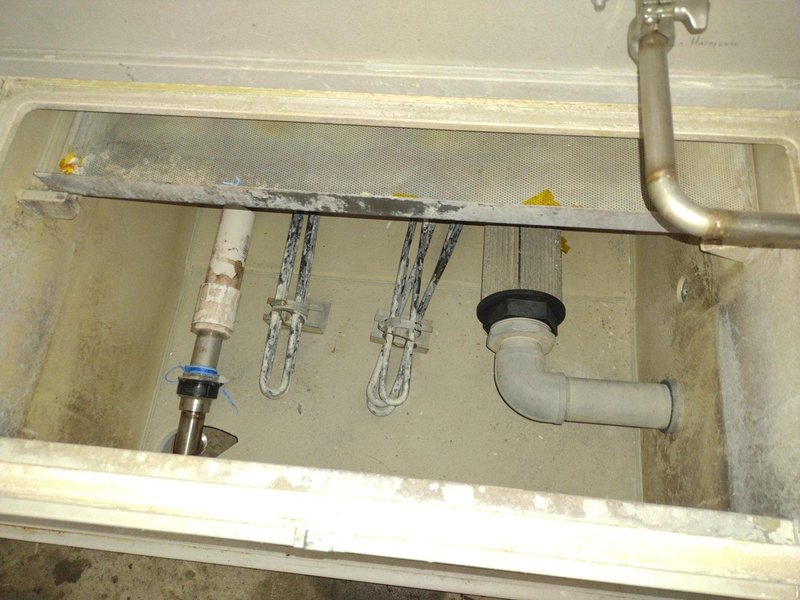

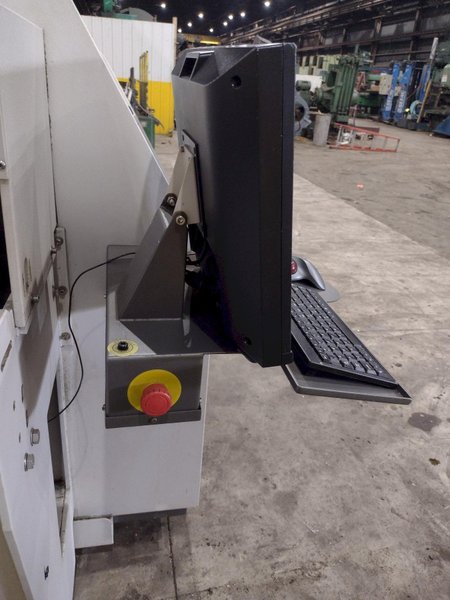

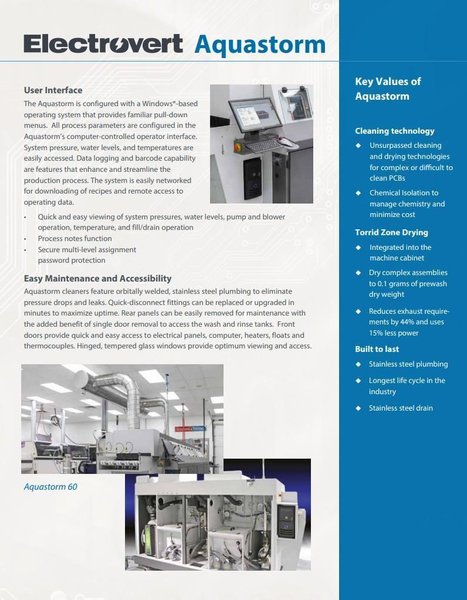

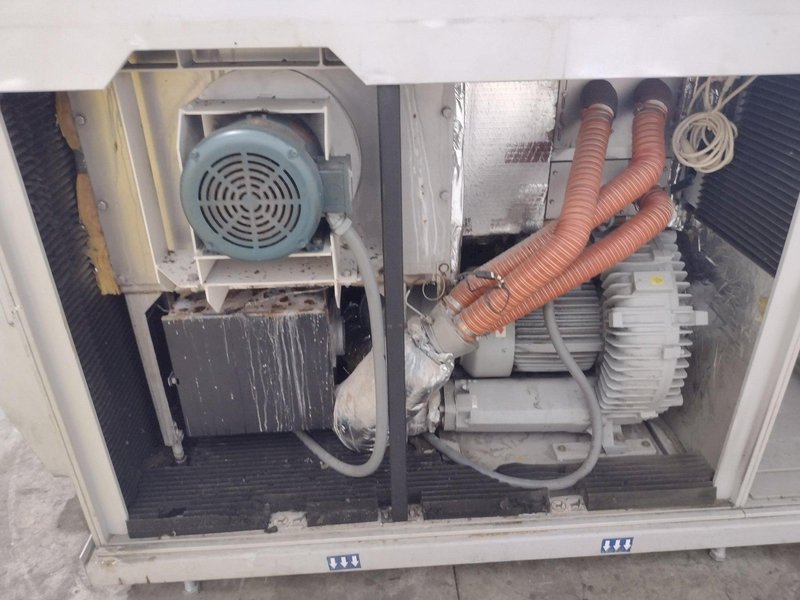

MODEL ................. AQUASTORM 100 YEAR NEW .............. 2010 WIDTH OF CONVEYOR ..... 20" JET WASH SPRAYERS ..... HURRICANE DRYING ZONE ........... TORRID TECHNOLOGY COMPUTER CONTROLLED ... YES PLUMBING .............. STAINLESS STEEL Versatile, Proven Cleaning Performance The Aquastorm is considered the industry’s best for precision cleaning, performance, quality construction and life cycle durability. Combined with innovative features and technologies, the Aquastorm continues to be the industry leader and benchmark for cleaners in the industry. The Aquastorm is ideally suited to RMA and no-clean de-flux applications that require chemistry, as well as removal of water-soluble organic acid flux. Cleaning Technology Functional sections of a cleaner are designed to accomplish different tasks in removing contamination. Some sections maximize flooding, while others maximize impact force for cleaning tight spaces. The Aquastorm uses proprietary pump and nozzle technology throughout the system to optimize performance. The Aquastorm’s appropriately sized modules and strategic manifold placement increase throughput while ensuring thorough removal of contaminants. The Aquastorm features perforated rails, curtain containment, and a cabinet designed to manage wash solution within the system for maximum conservation of costly chemistries. The wet chemical isolation module is powered by the recirculating rinse pump to ensure optimal prerinsing. Even the exhaust is separated between the wet and dry modules to minimize chemical migration through the system. Stainless Steel Plumbing Equipped with orbitally welded, stainless steel plumbing to eliminate pressure drops and leaks, all sections can be replaced or upgraded in minutes to maximize uptime and process flexibility. Plumbing sections have quickdisconnect fittings for ease of maintenance. Mixed Spray Fluid Delivery System The clear advantage of Aquastorm cleaners is the ability to deliver a dynamic combination of chemistry, thermal, and mechanical forms of energy at the surface to effectively clean under low stand-off and difficult to clean components. The key to the Aquastorm is the utilization of mixed spray technologies including high-impact force for tight spaces, oscillating action for low pressure applications and complete flooding action. A combination of spray nozzles including Jet Impact Cleaning (JIC), V-jet, Delta-Jet, and Hurricane Jet™ directs dynamic impingement to the product surface and effectively cleans under low stand-off components for difficult cleaning applications Jet Impact Cleaning with a web of omni-directional spray patterns greatly improves cleaning under low-standoff components and eliminates shadowing effects. Patented S-Jet™ nozzle technology produces large water droplets for enhanced cleaning performance when operating at a lower rate of pressure. The oscillating action of the S-Jet helps to better clean and flush flux residues in the prewash to reduce foaming in the recirculating wash. Patented Hurricane Jet™ provides a continuous curtain of water across the width of the conveyor providing flooding action and pressure that forces water under tightly mounted components. Hurricane Jet can flush contaminates out from under BGA,s/CSPs and flip chips and enables double sided PCB cleaning in a single pass. JIC nozzles provide efficient mechanical and thermal energy transfer through solid stream nozzles with high flow rates. Drying Performance Efficient and complete drying is crucial to the cleaning process. An effective system will increase throughput, providing cost savings and superior return on investment. The Aquastorm series offers several drying options, including the high-performing Torrid Zone™ for unmatched flexibility in configuration and performance. Torrid Zone Drying Power Aquastorm’s integrated Torrid Zone drying technology utilizes a controlled dynamic process that delivers unmatched drying of complex assemblies to within 0.1 grams of prewashed dry weight. The patented Torrid Zone consists of two sections, an air knife blow-off section to mechanically remove large amounts of moisture from the product, and a forced convection bake-out section to evaporate the remaining moisture from the product. The module reduces exhaust requirements by 44% and uses 15% less power when compared with conventional drying systems, providing a rapid return on investment. Another benefit of Torrid Zone drying is that completely dry PCB’s can go straight to test after cleaning alleviating the need for a secondary off-line drying system. User Interface The Aquastorm is configured with a Windows®-based operating system that provides familiar pull-down menus. All process parameters are configured in the Aquastorm’s computer-controlled operator interface. System pressure, water levels, and temperatures are easily accessed. Data logging and barcode capability are features that enhance and streamline the production process. The system is easily networked for downloading of recipes and remote access to operating data. • Quick and easy viewing of system pressures, water levels, pump and blower operation, temperature, and fill/drain operation • Process notes function • Secure multi-level assignment password protection Easy Maintenance and Accessibility Aquastorm cleaners feature orbitally welded, stainless steel plumbing to eliminate pressure drops and leaks. Quick-disconnect fittings can be replaced or upgraded in minutes to maximize uptime. Rear panels can be easily removed for maintenance with the added benefit of single door removal to access the wash and rinse tanks. Front doors provide quick and easy access to electrical panels, computer, heaters, floats and thermocouples. Hinged, tempered glass windows provide optimum viewing and access. |
|
