2021 JENFAB STAINLESS MODEL # LJ 19" ROTARY DRUM WASH / RINSE/ DRY PARTS WASHER SYSTEM: YOBRO #24682

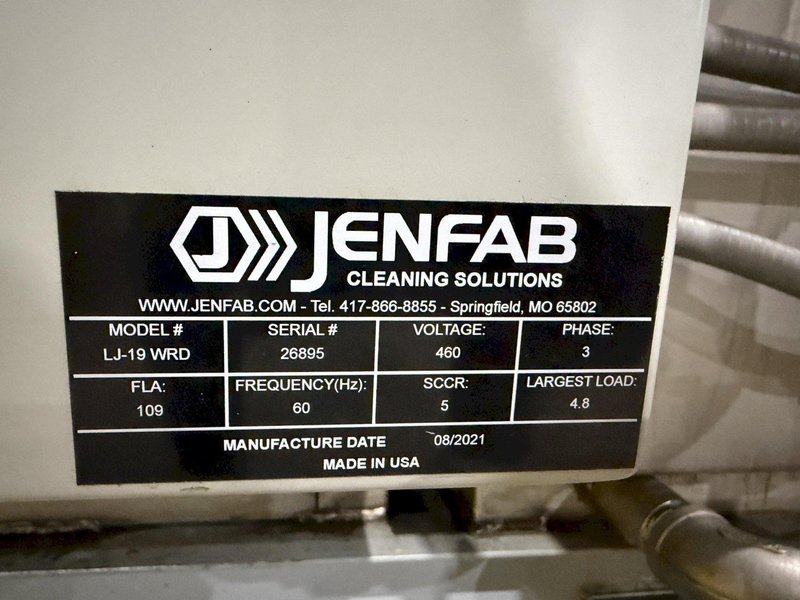

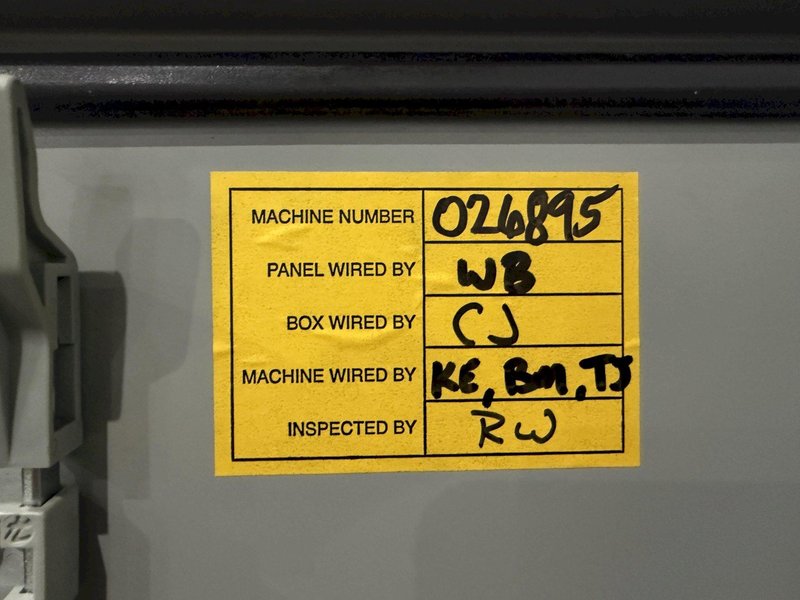

SERIAL :  026895

MODEL : LJ-19

YEAR NEW : 2021

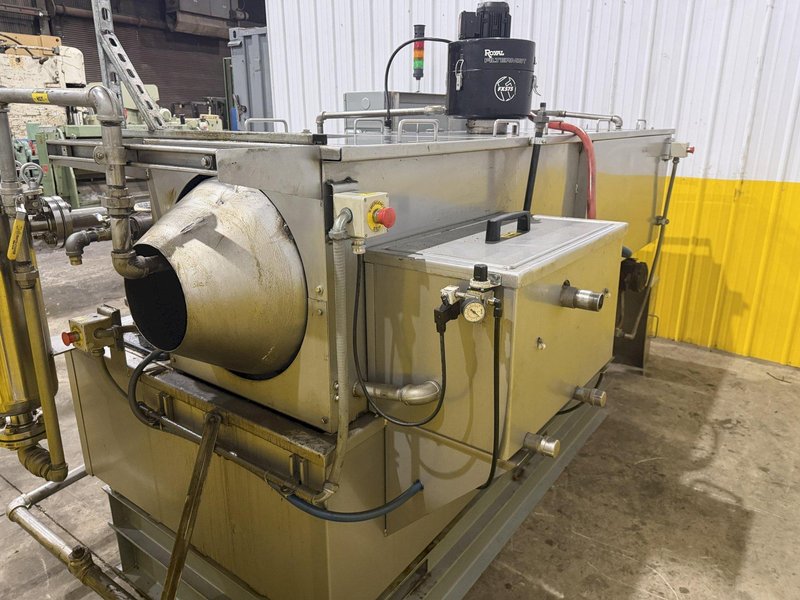

JENFAB LJ 19" Rotary Drum Washer – Wash / Rinse / Dry System

This unit features a 19" diameter, 304ss cylinder with 14 ga perforations with 0.25 holes designed to provide excellent drainage, filtration, and consistent processing performance. The cylinder incorporates a continuously welded helix with an 8" pitch and 3.5" height, ensuring smooth, controlled material movement and reliable conveying throughout the process cycle. To further enhance part exposure and process efficiency, the drum is equipped with 3/4" bent angle tumblers, 3 per revolution, delivering superior agitation, mixing, and turnover of components for more uniform results.

Built from durable stainless construction for corrosion resistance, longevity, and sanitary performance, this design is ideal for demanding industrial, washing, rinsing, tumbling, separating, or finishing applications where consistent processing and reliability matter. This is a high-quality, purpose-built parts washer designed to maximize throughput, improve processing and consistency,

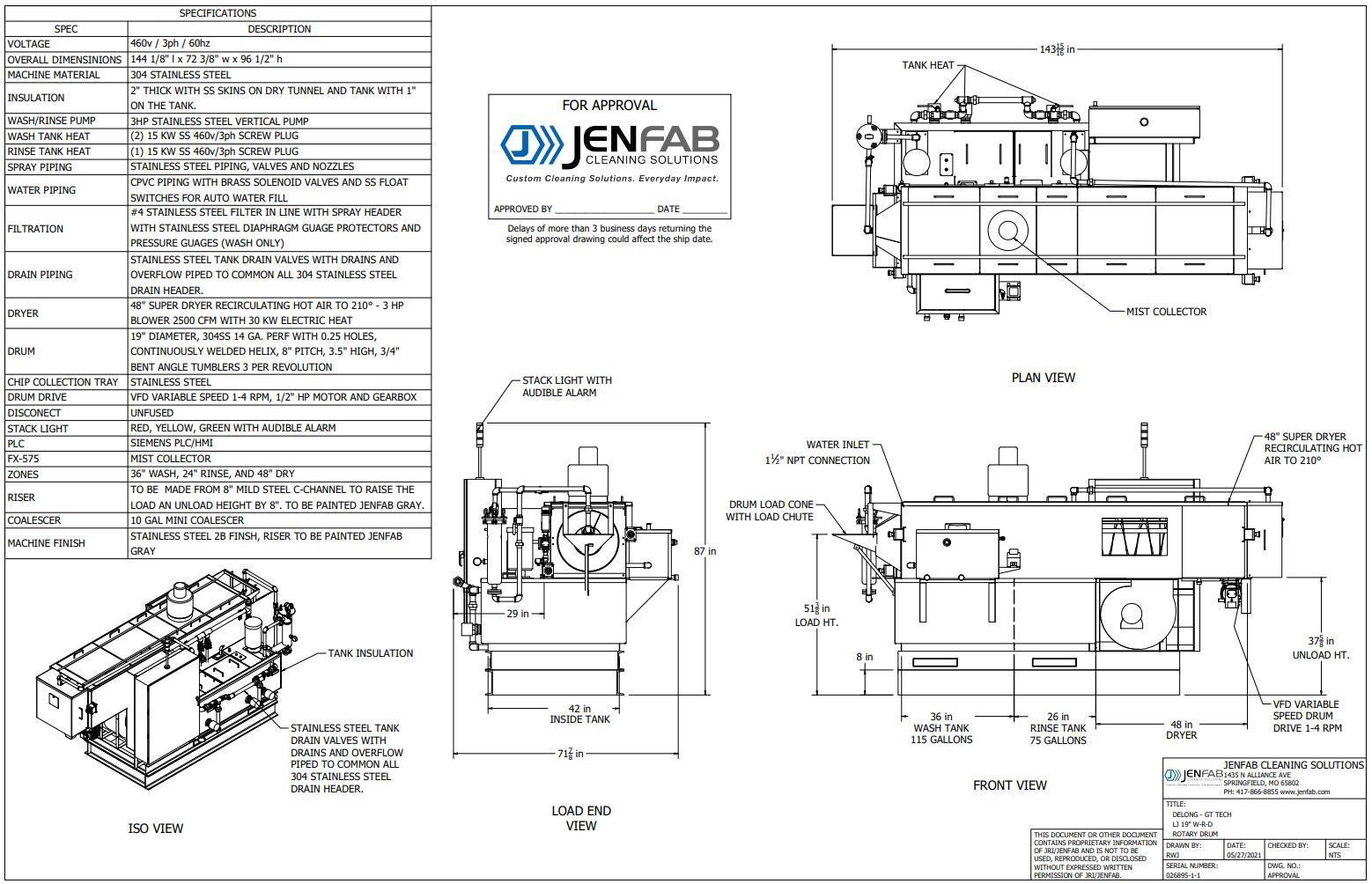

Key Machine Specifications

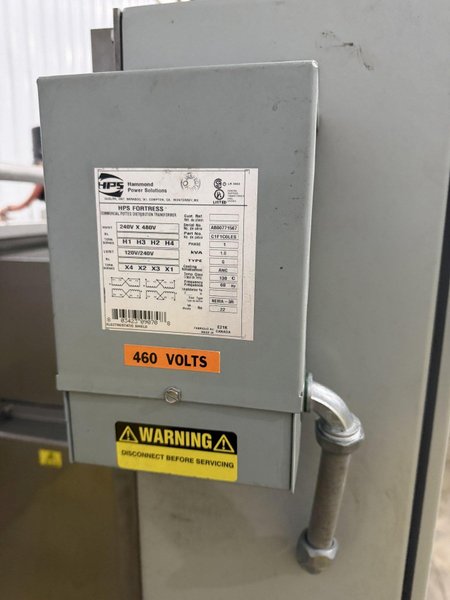

• Voltage: 460V / 3-Phase / 60Hz

• Overall Dimensions: 144 1/8" L x 72 3/8" W x 96 1/2" H

• Construction: 304 Stainless Steel

• Insulation: 2" insulated SS skin on dry tunnel & tank / 1" on tank

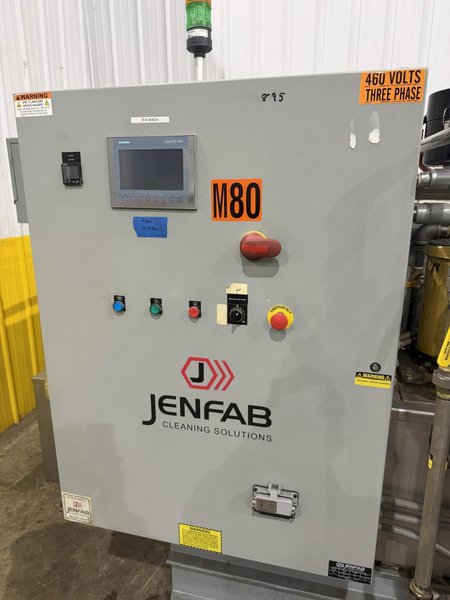

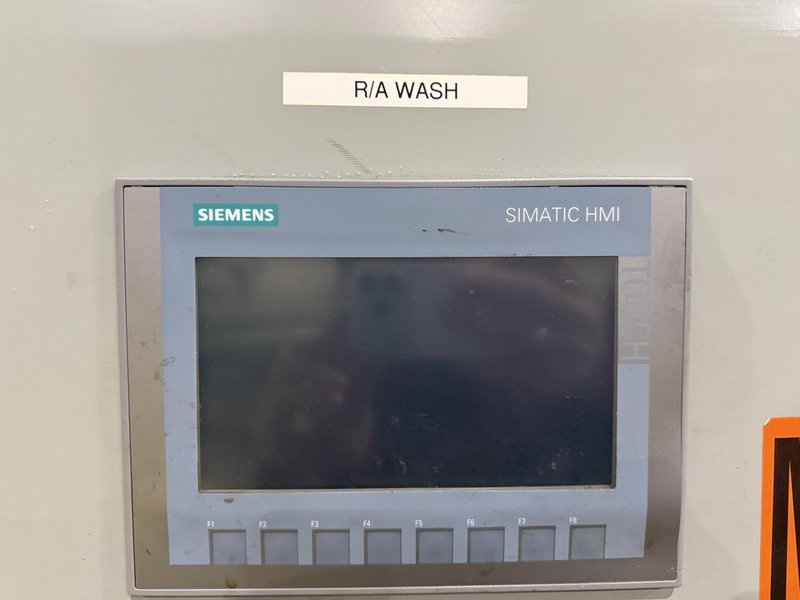

• PLC / Controls: Siemens PLC/HMI

• Stack light with audible alarm

• Unfused disconnect

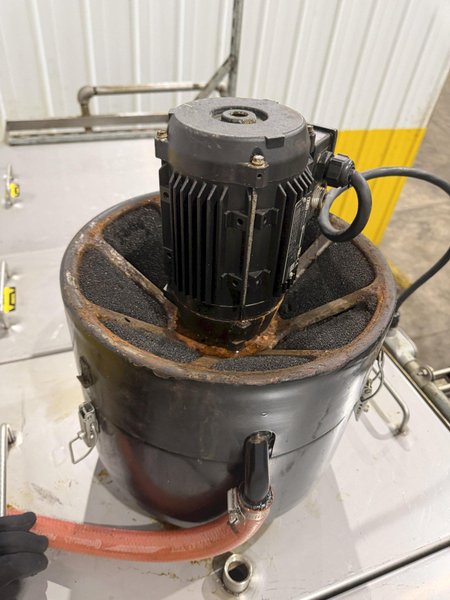

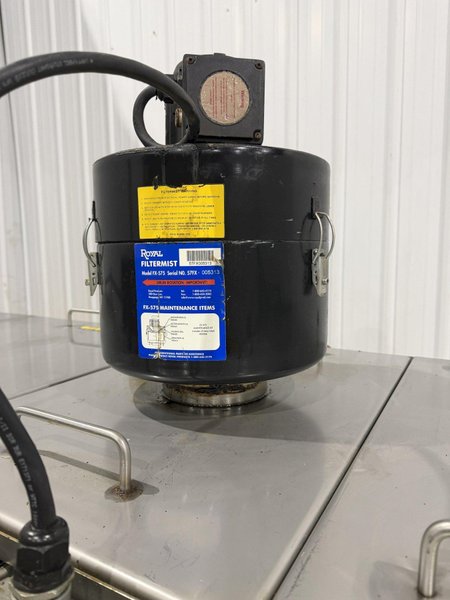

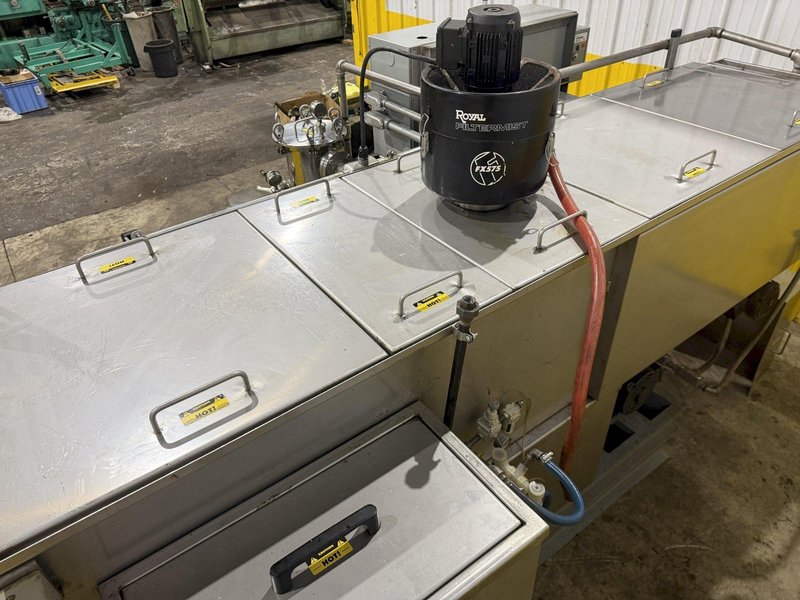

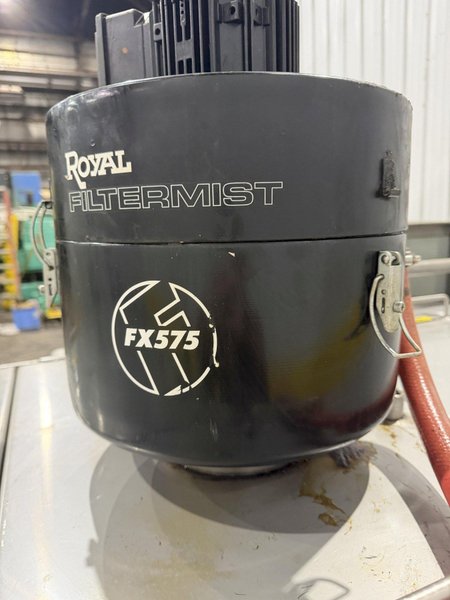

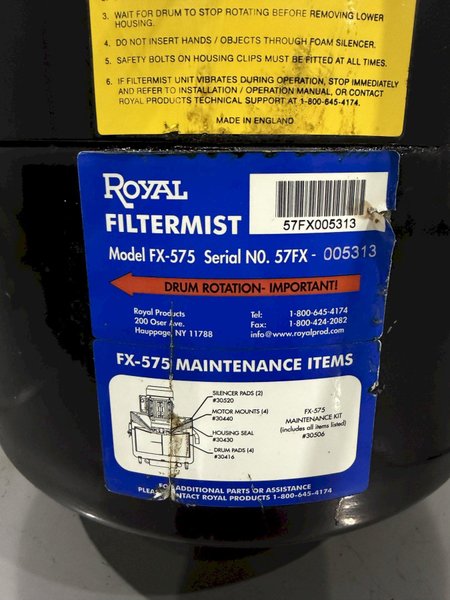

• Mounted FX-575 mist collector

• Finish: Stainless 2B finish, riser painted Jenfab gray

26895 LJ-19

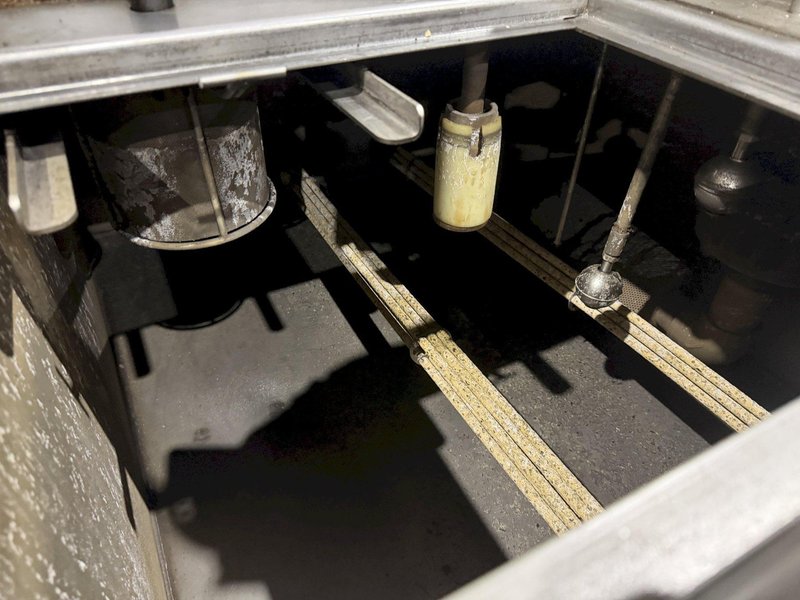

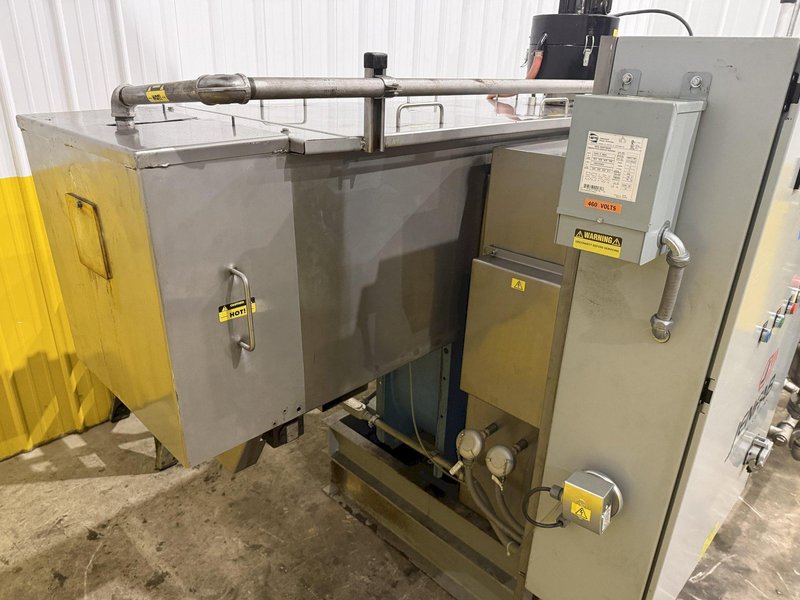

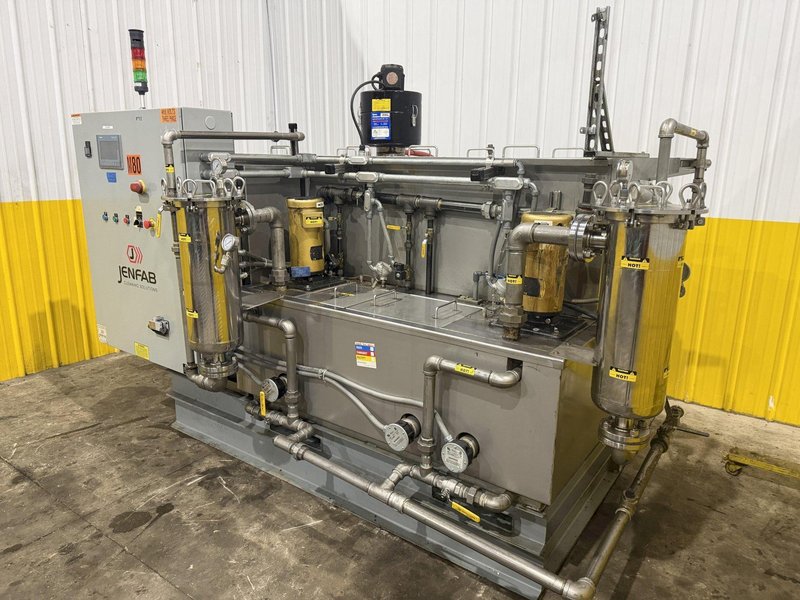

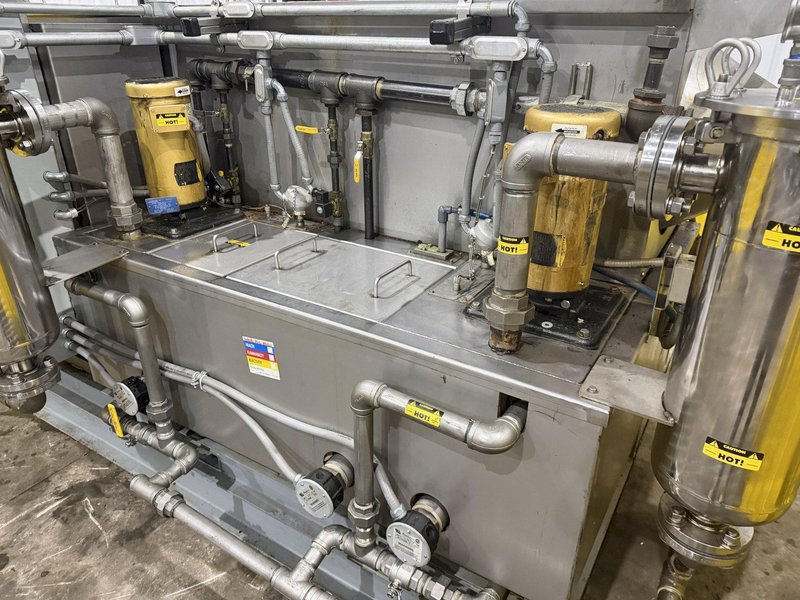

Tank & Heating System

• Wash tank: 115 gallons

• Rinse tank: 75 gallons

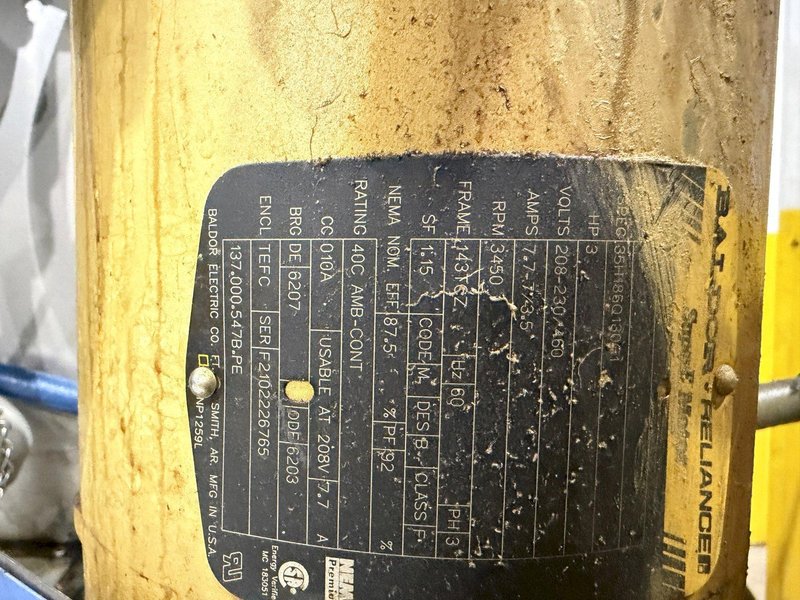

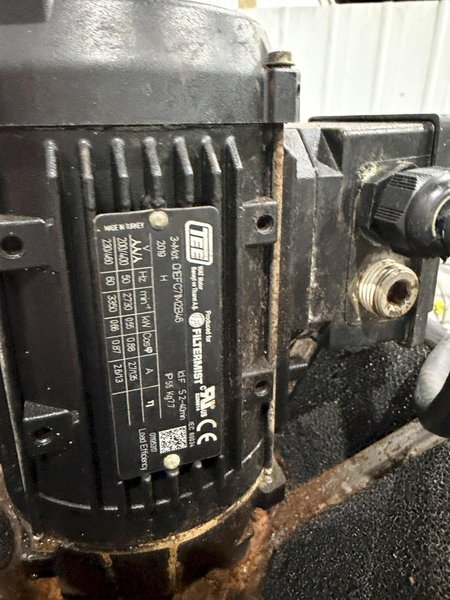

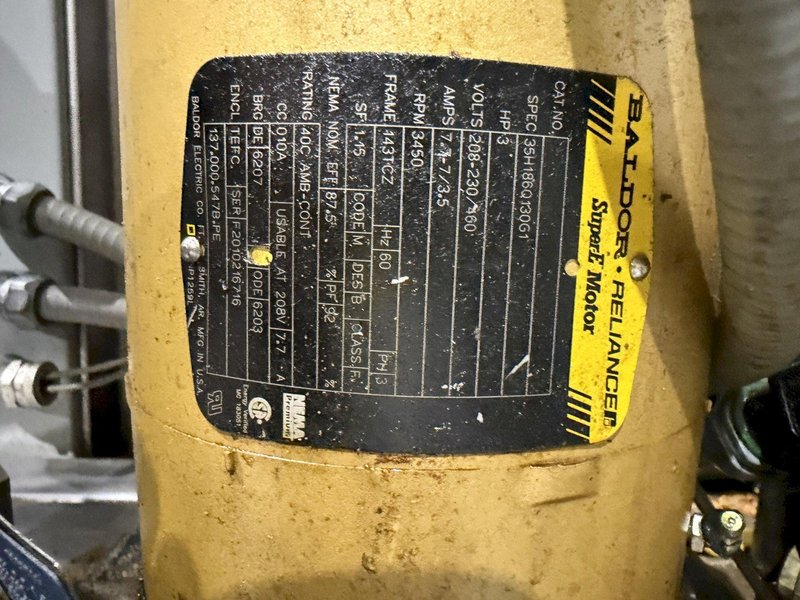

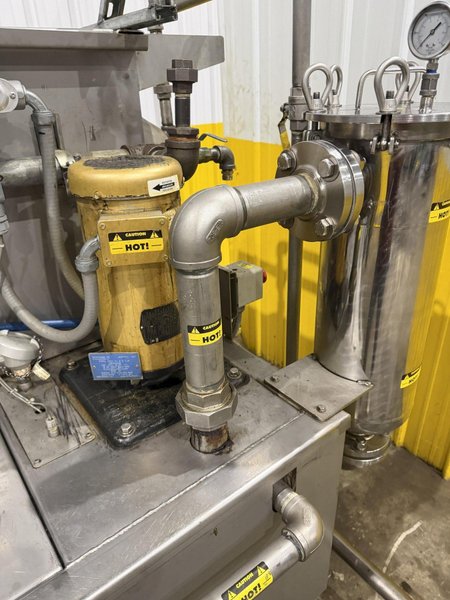

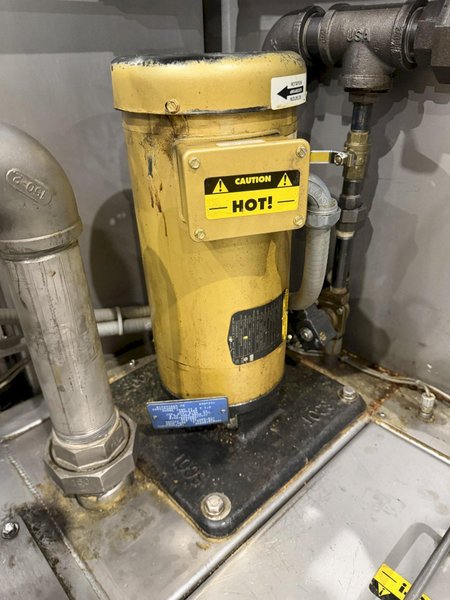

• Wash pump: 3 HP stainless vertical pump

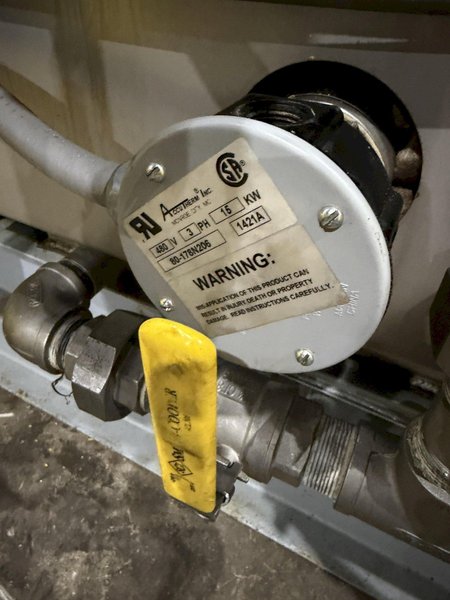

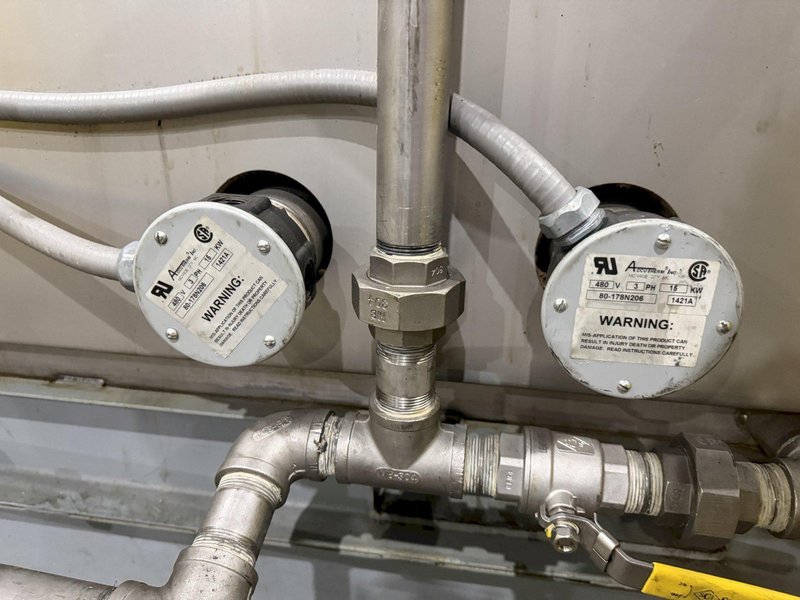

• Heating – Wash: (2) 15 kW SS screw-plug heaters

• Heating – Rinse: (1) 15 kW SS screw-plug heater

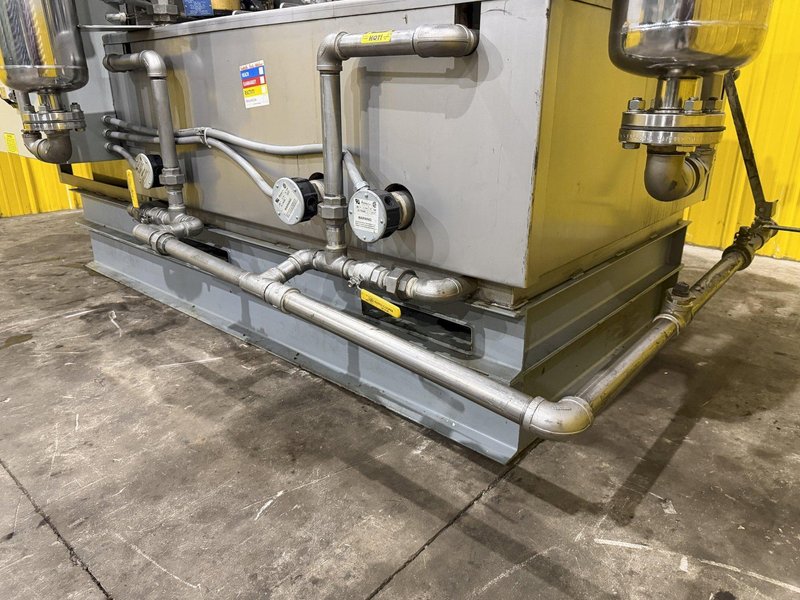

• Stainless spray piping, valves & nozzles

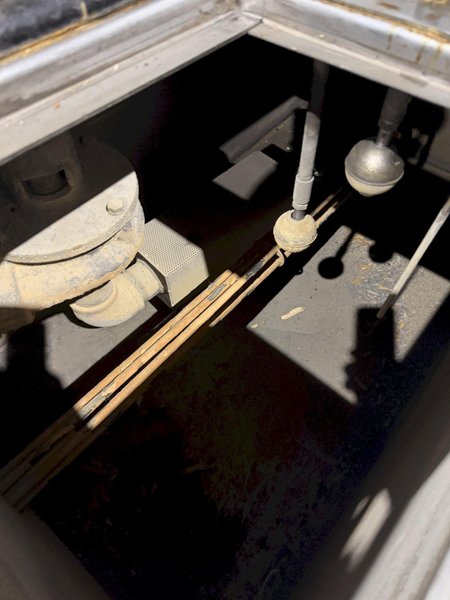

• CPVC fresh water supply with brass solenoids & SS float switches

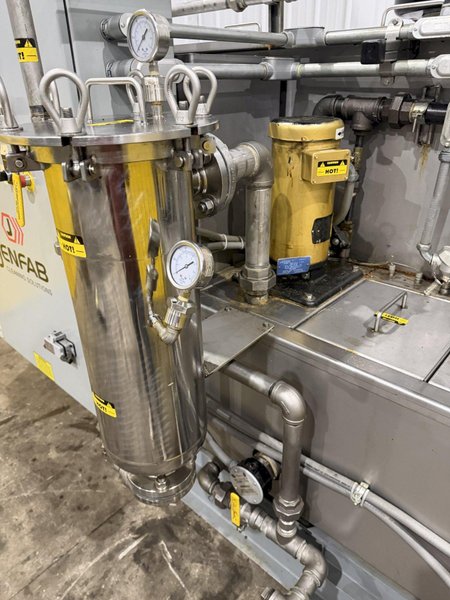

• Stainless inline filtration with gauge protection (wash circuit)

• Stainless steel drain valves & common 304SS drain header

26895 LJ-19

Drying System

• 48" “Super Dryer” recirculating hot air system

• Up to 210°F drying performance

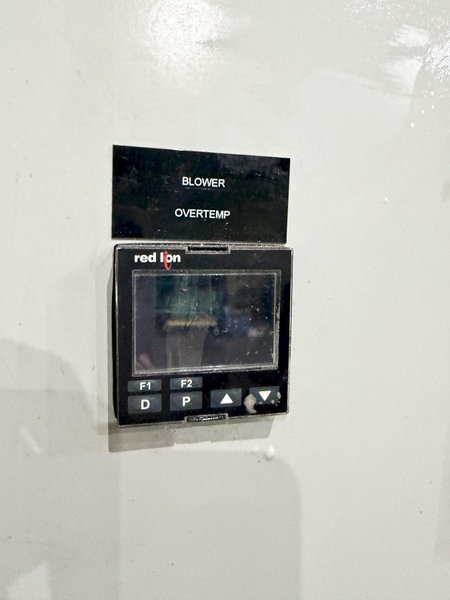

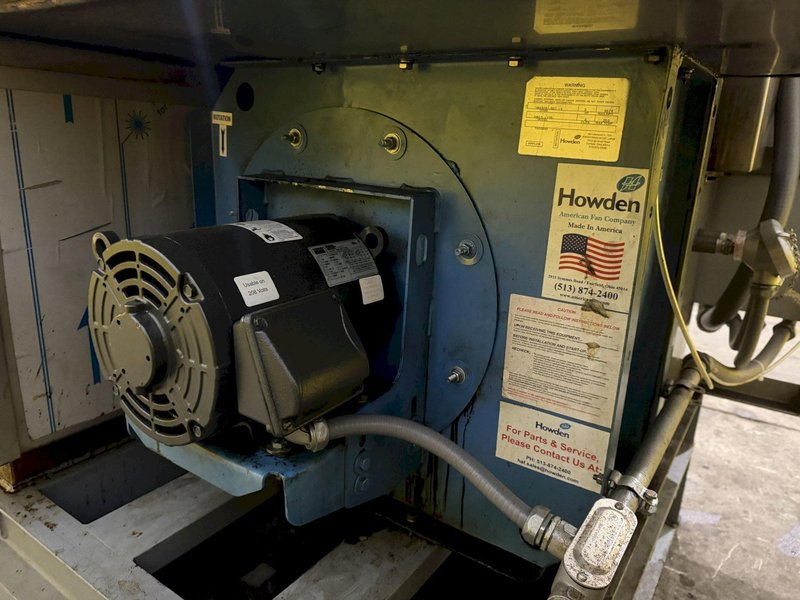

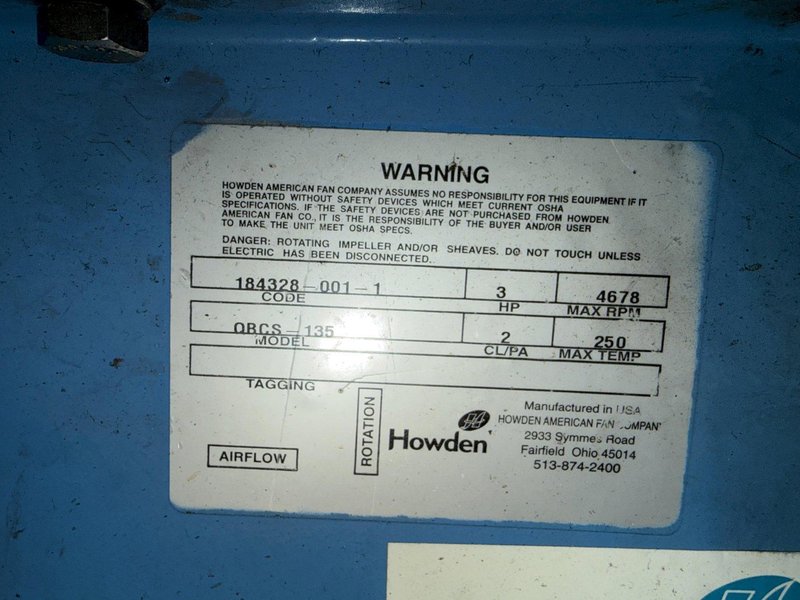

• 3 HP blower / 2500 CFM

• 30 kW electric heat

26895 LJ-19

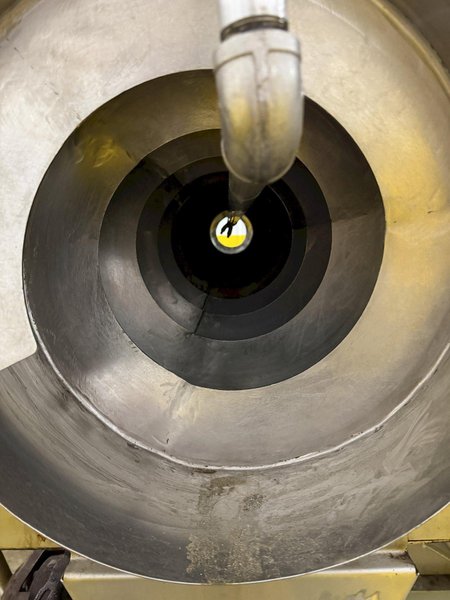

Rotary Drum Assembly

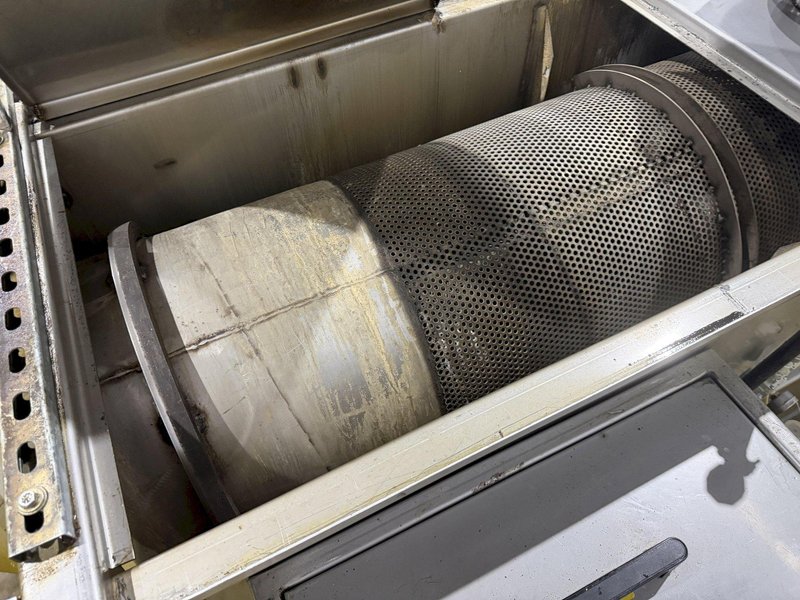

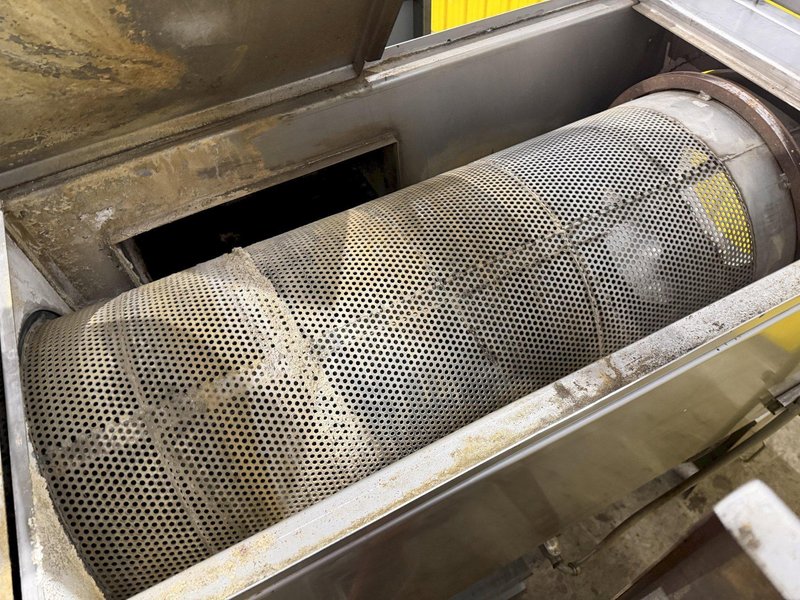

• 19" diameter 304SS cylinder

• 14 ga perforations w/ 0.25" holes

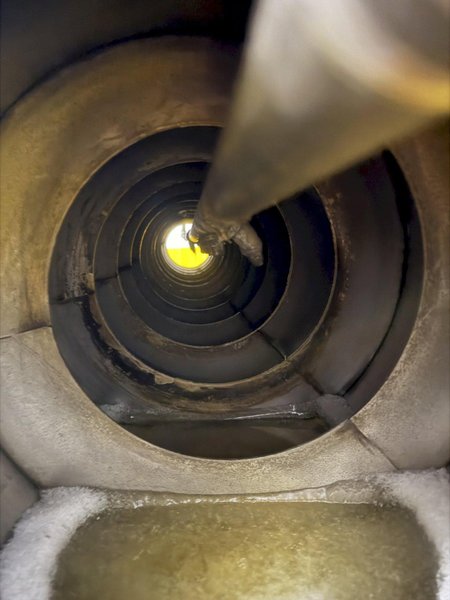

• Continuously welded helix – 8" pitch / 3.5" high

• (3) 3/4" bent-angle tumblers per revolution for superior agitation

• Stainless chip collection tray

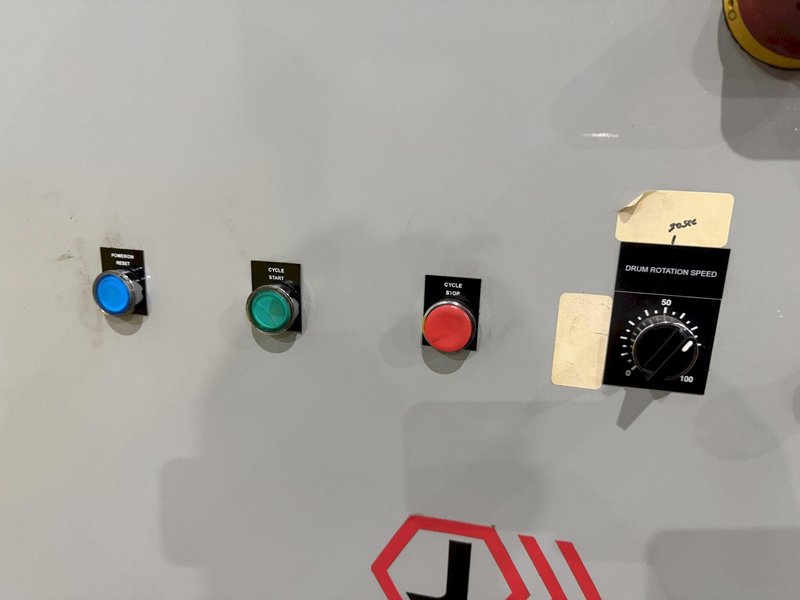

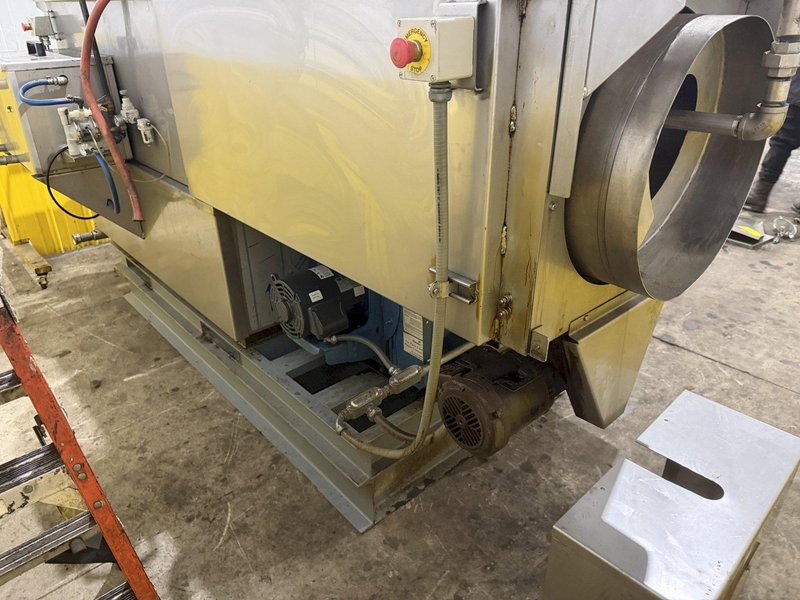

• VFD variable-speed drum drive: 1–4 RPM

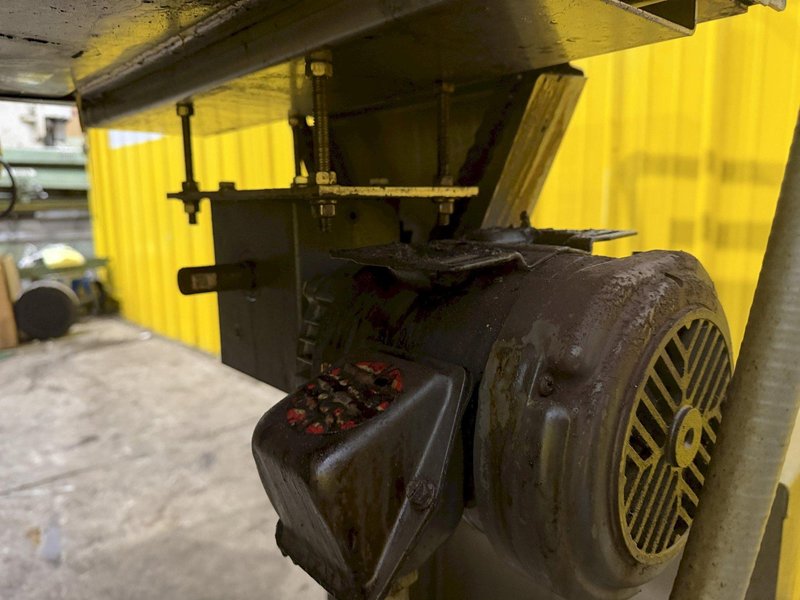

• 1/2 HP motor & gearbox

26895 LJ-19

Zone Configuration

• 36" Wash section

• 24" Rinse section

• 48" Dry section

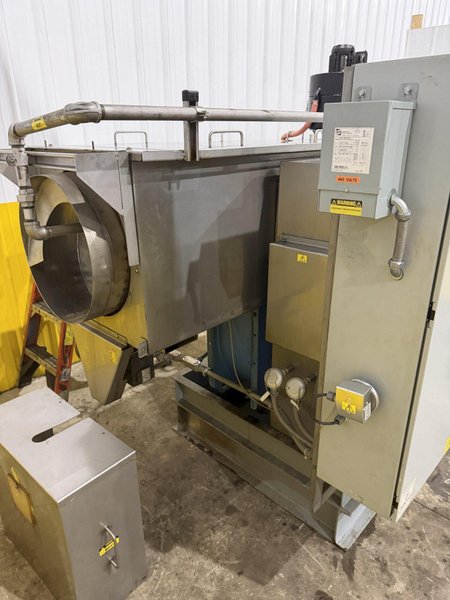

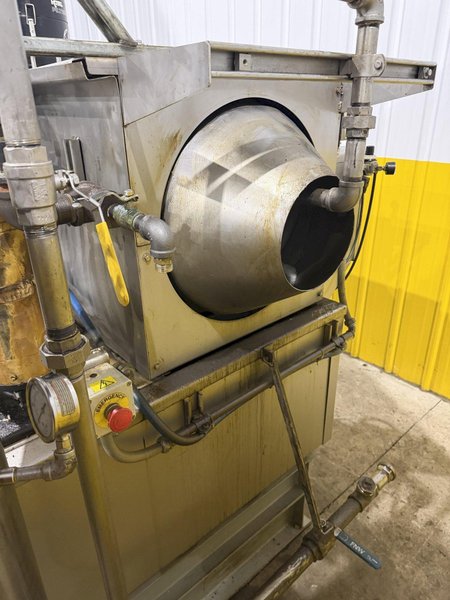

• Includes drum load cone with load chute

26895 LJ-19

Additional Features

• 8" mild-steel C-channel riser (raises load/unload height 8")

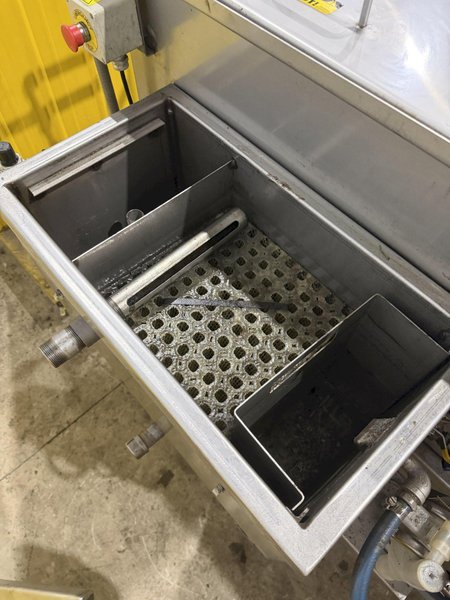

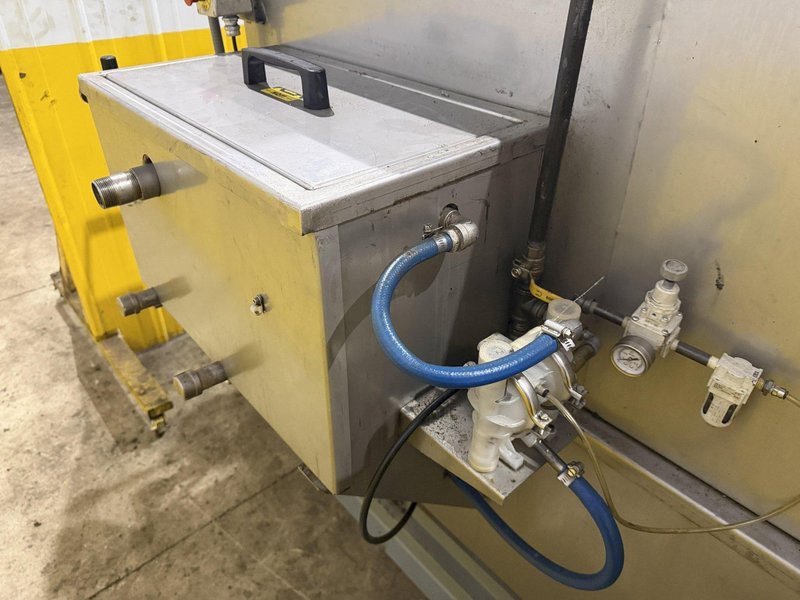

• 10-gallon oil coalescer

• Water inlet – 1-1/2" NPT

• Designed for production reliability, easy maintenance access, and long service life

26895 LJ-19

Performance & Application Advantages

• Fully stainless industrial build for durability and corrosion resistance

• Excellent chip separation and process cleanliness

• Adjustable processing speed allows tuning for various part types

• Strong, even wash coverage and consistent drying

• Ideal for small to mid-sized parts requiring reliable, repeatable cleaning
