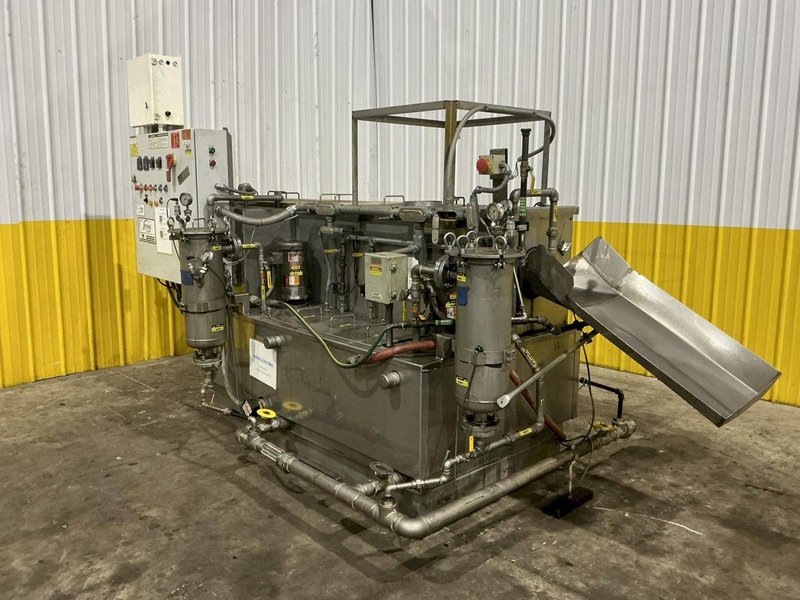

2018 JENFAB STAINLESS MODEL #LJ 19" ROTARY DRUM WASH / RINSE / DRAY PARTS WASHER SYSTEM: YOBRO #24681

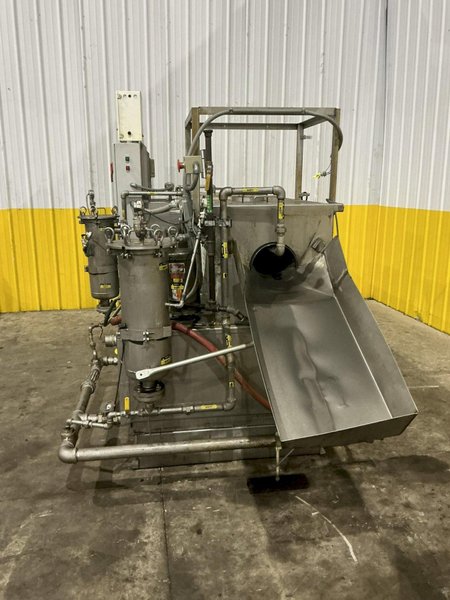

JENFAB LJ 19" Rotary Drum Washer – Wash / Rinse / Dry System

This unit features a 19" diameter, 304ss cylinder with 14 ga perforations with 0.25 holes designed to provide excellent drainage, filtration, and consistent processing performance. The cylinder incorporates a continuously welded helix with an 8" pitch and 3.5" height, ensuring smooth, controlled material movement and reliable conveying throughout the process cycle. To further enhance part exposure and process efficiency, the drum is equipped with 3/4" bent angle tumblers, 3 per revolution, delivering superior agitation, mixing, and turnover of components for more uniform results.

Built from durable stainless construction for corrosion resistance, longevity, and sanitary performance, this design is ideal for demanding industrial, washing, rinsing, tumbling, separating, or finishing applications where consistent processing and reliability matter. This is a high-quality, purpose-built parts washer designed to maximize throughput, improve processing and consistency,

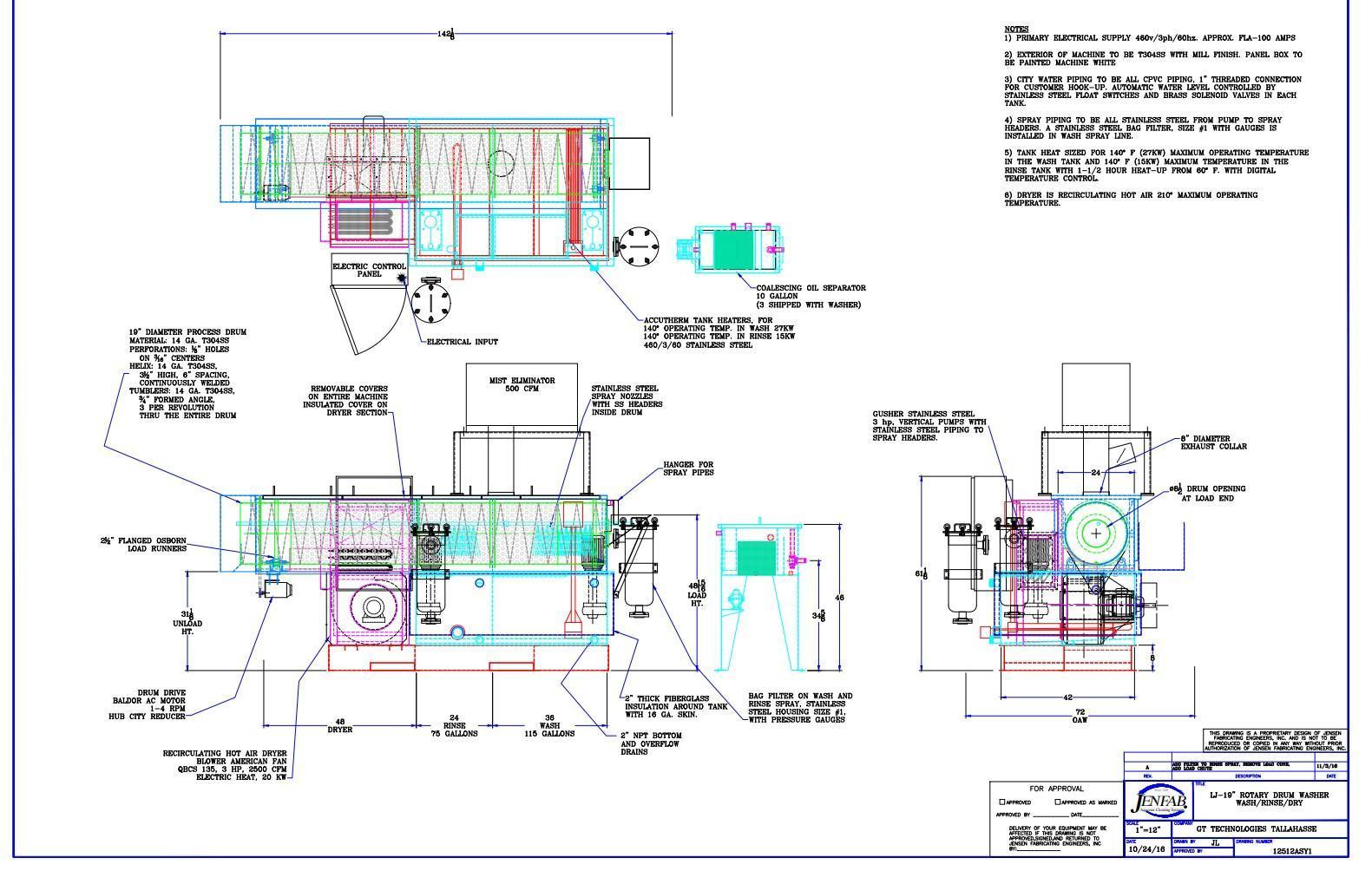

12512ASY1-A LJ19

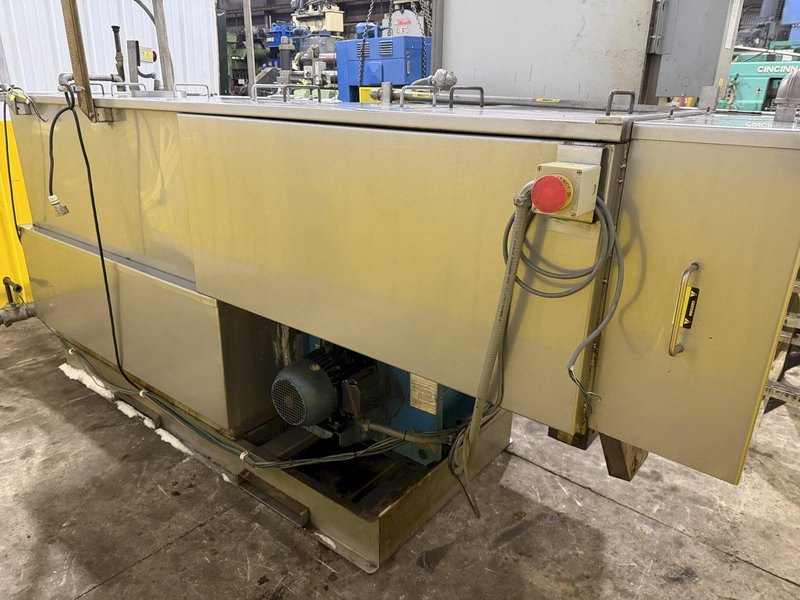

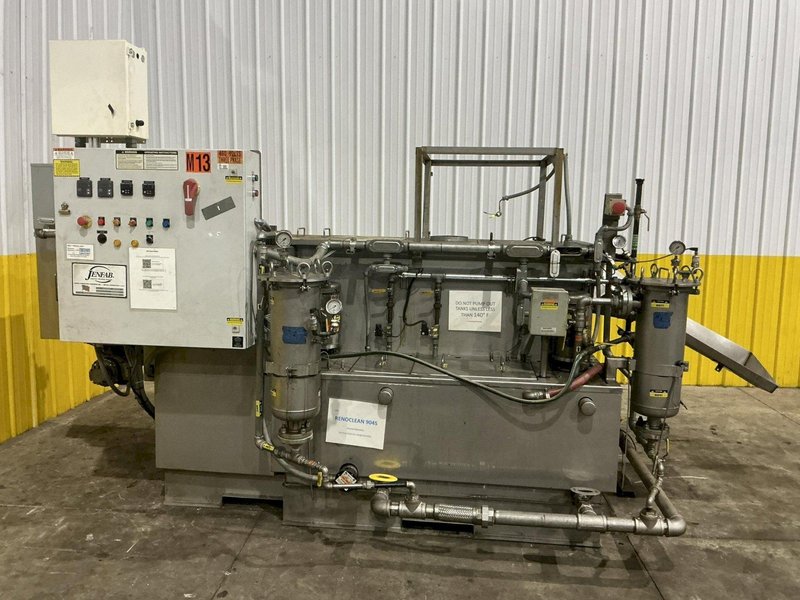

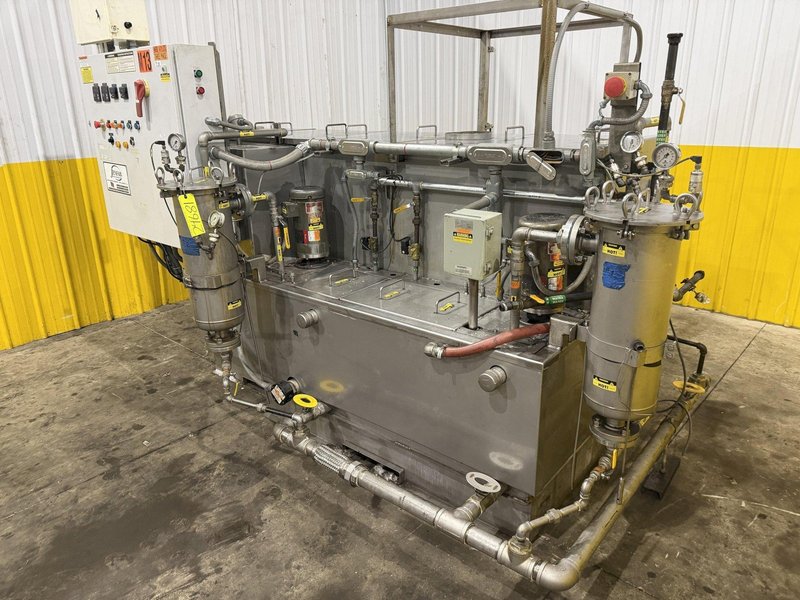

Core Machine Configuration

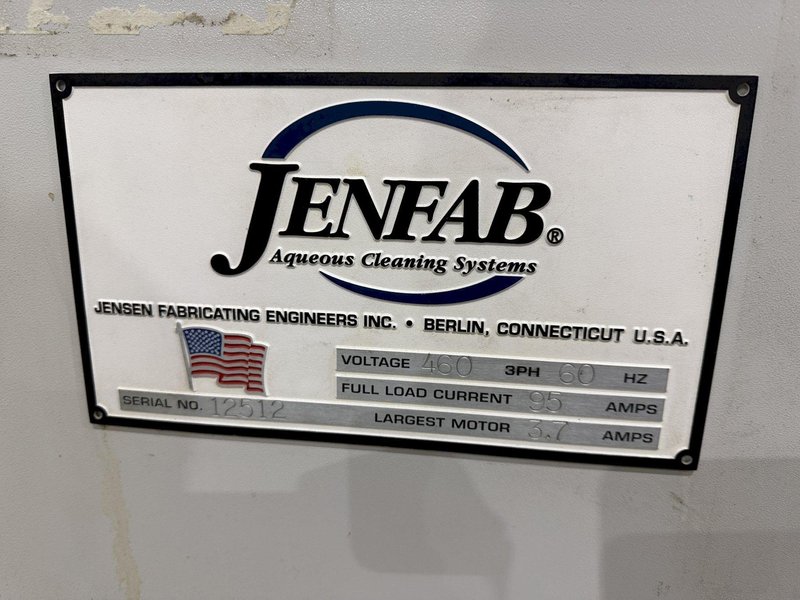

• Power: 460V / 3-phase / 60 Hz

• Heavy-duty stainless construction

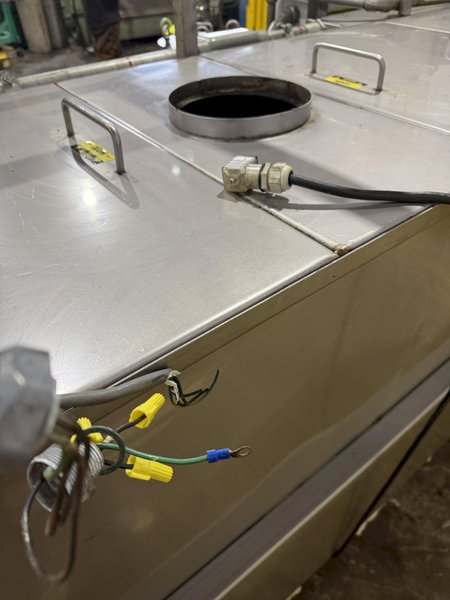

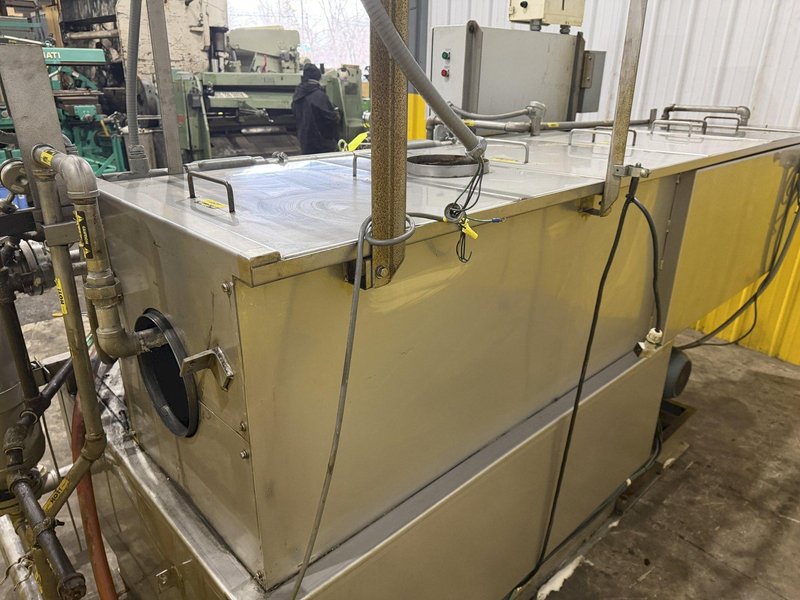

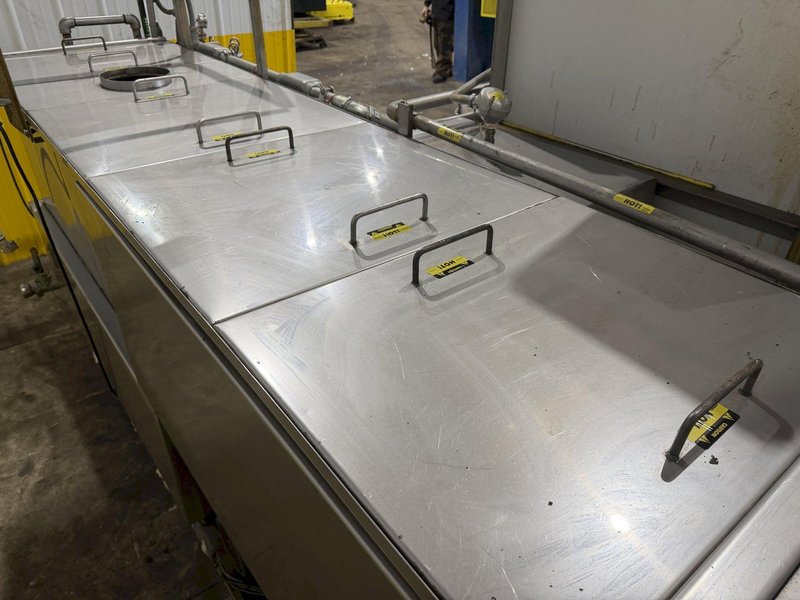

• Removable insulated covers across machine and dryer section

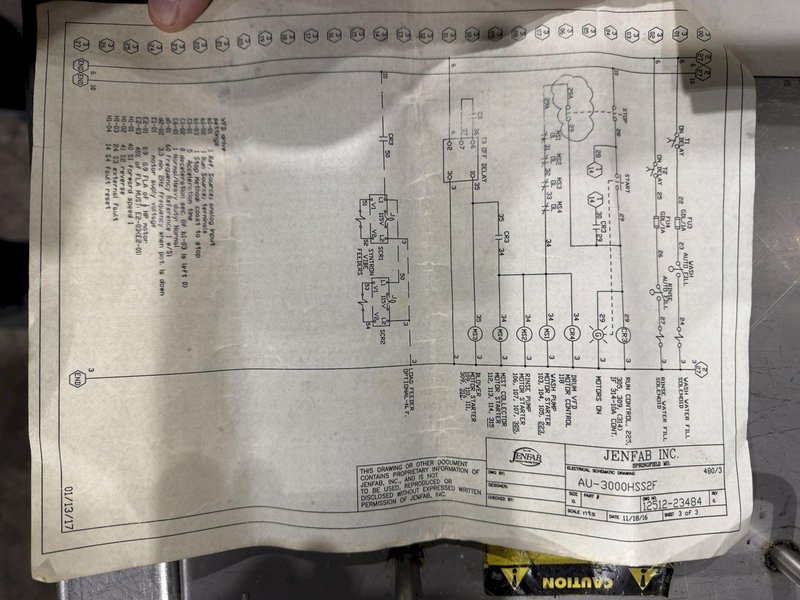

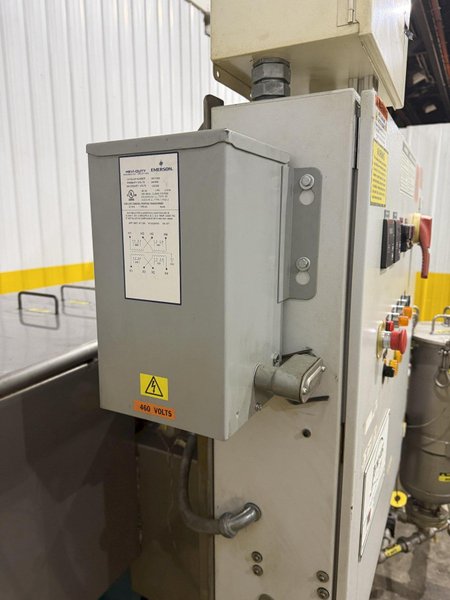

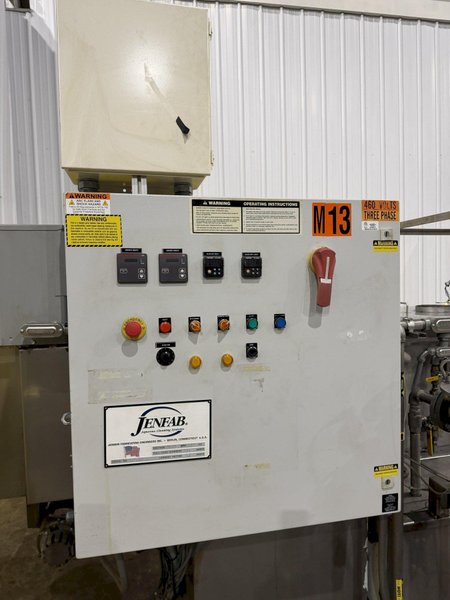

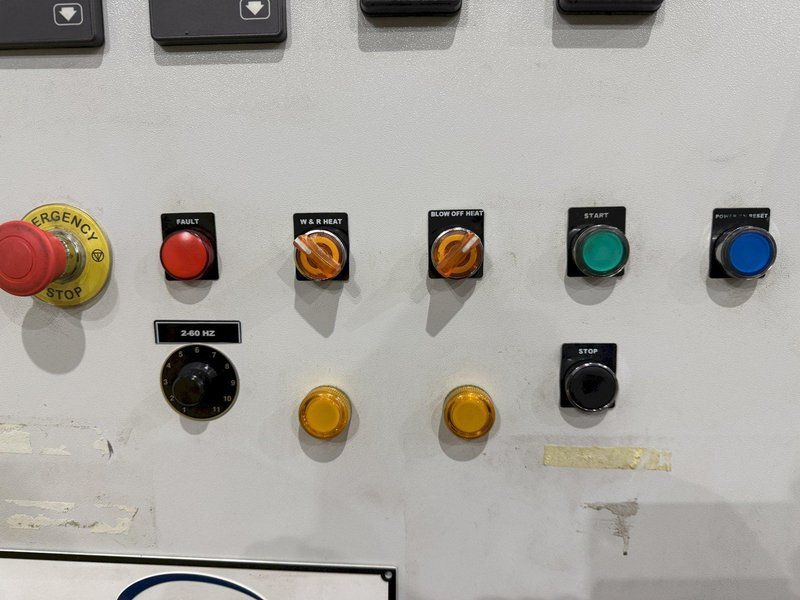

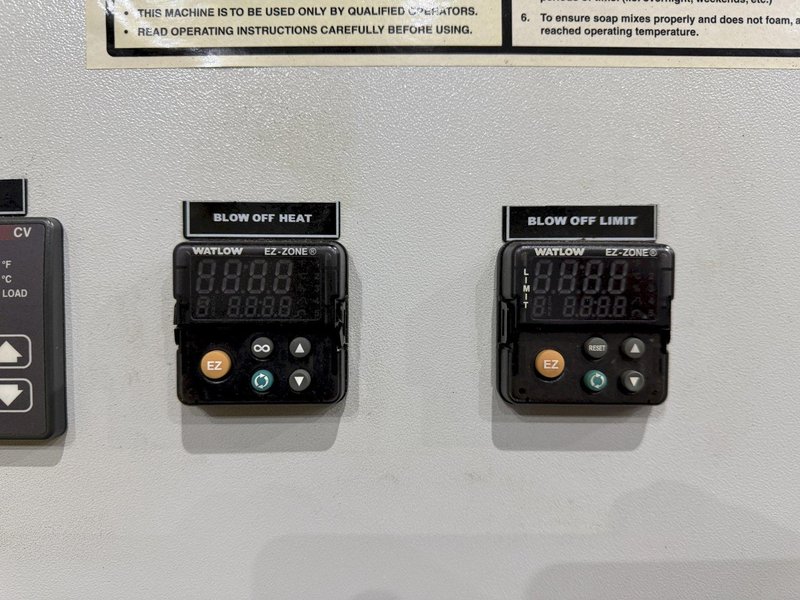

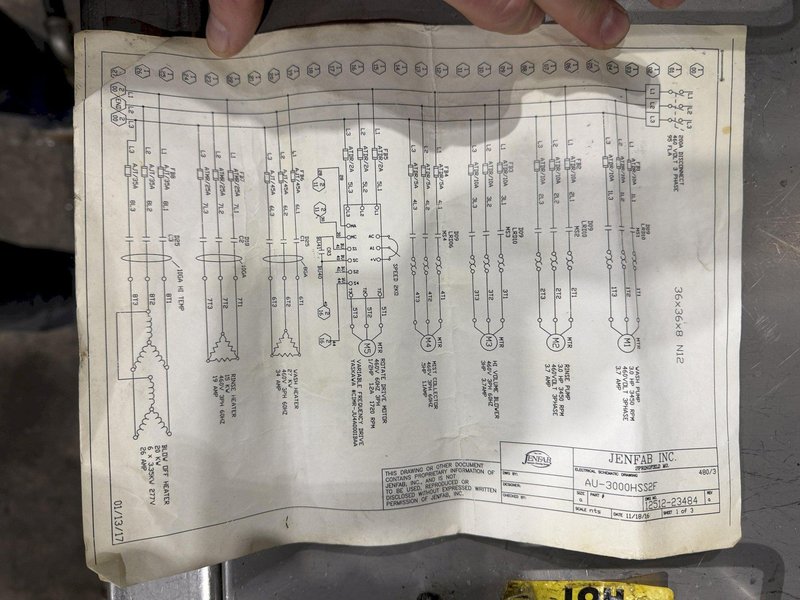

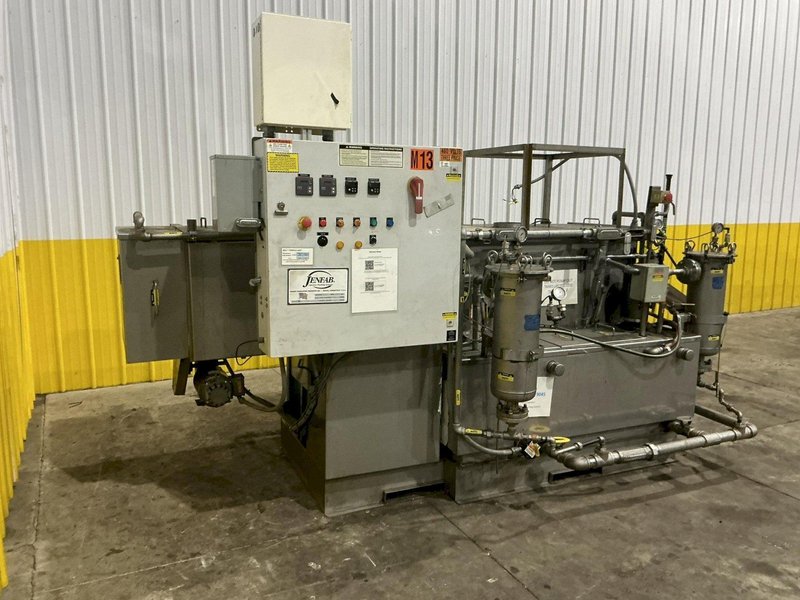

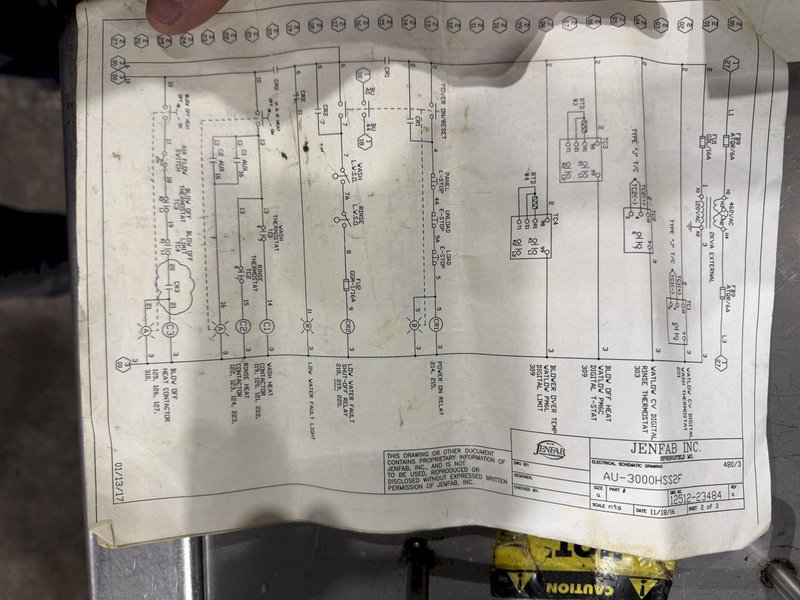

• Electrical control panel

• Integrated mist eliminator (approx. 600 CFM)

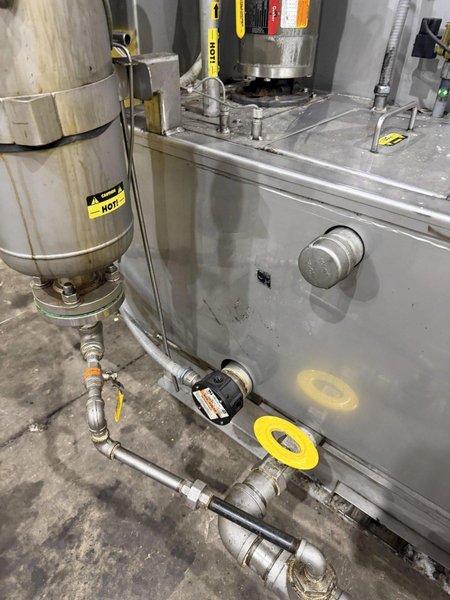

• 10-gallon coalescing oil separator

12512ASY1-A LJ19

Process Zones

This system is engineered with three dedicated processing stages:

• WASH ZONE – 36"

• RINSE ZONE – 24"

• DRY ZONE – 48" recirculating hot-air dryer

This configuration provides excellent wash exposure, effective rinsing, and powerful drying capability, ensuring consistent part conditioning and throughput efficiency.

12512ASY1-A LJ19

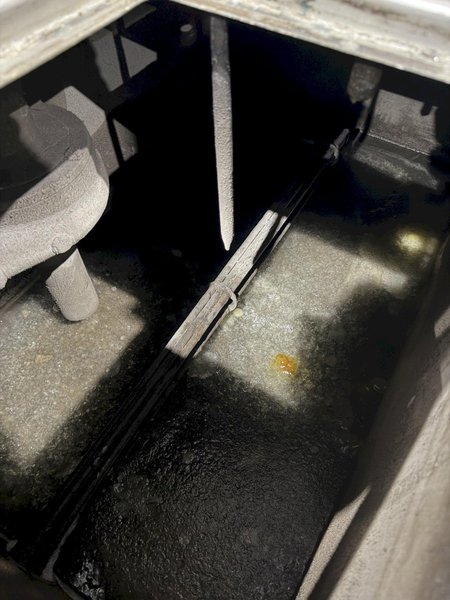

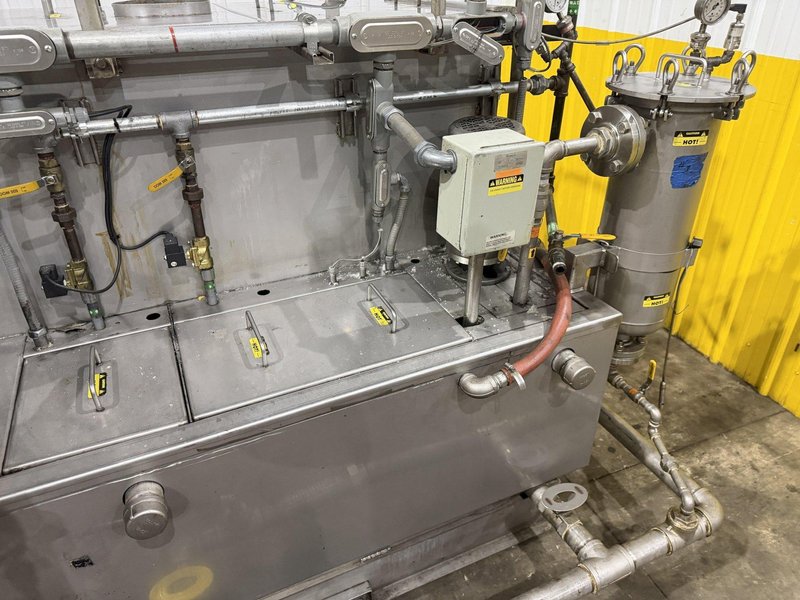

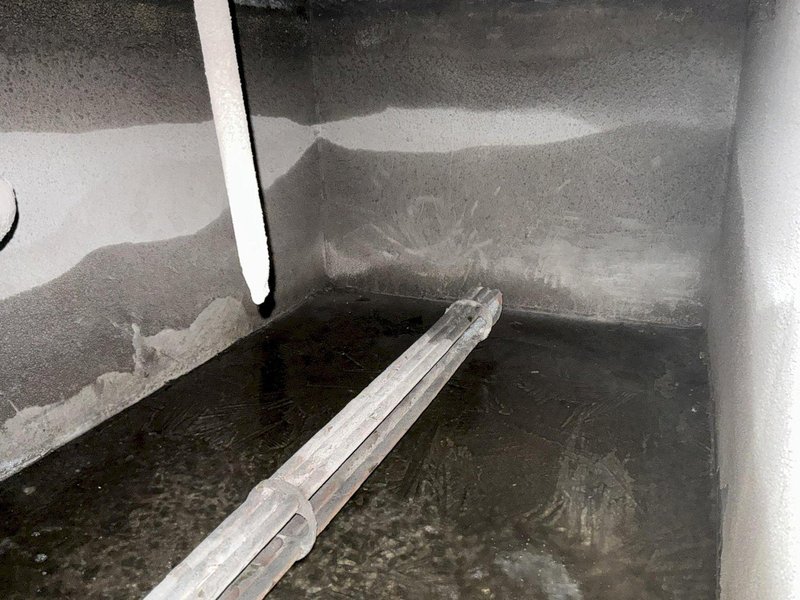

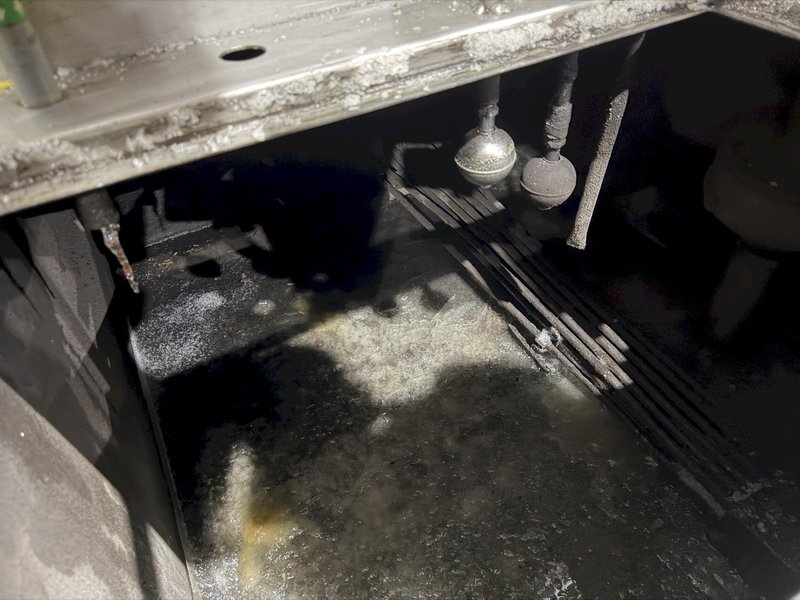

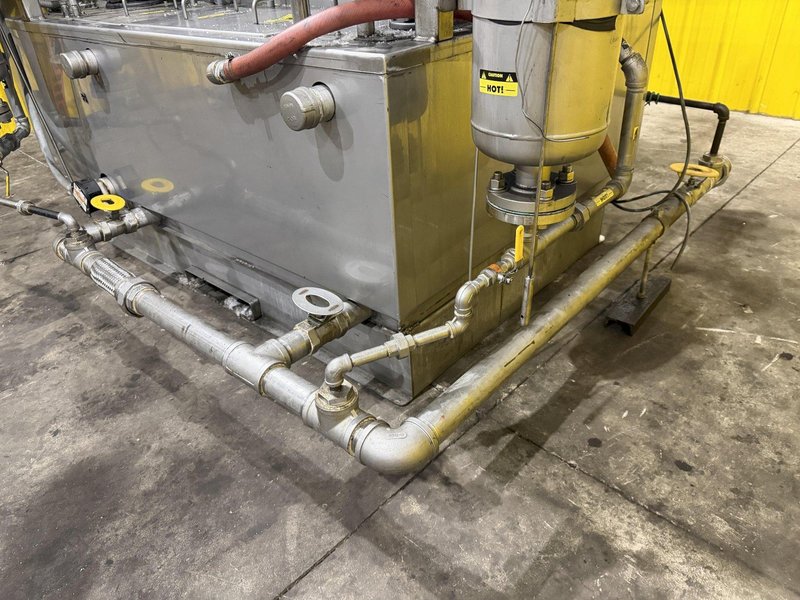

Tank & System Capacities

• Wash tank: 115 gallons

• Rinse tank: 75 gallons

• Insulated tank and enclosure structure to minimize heat loss

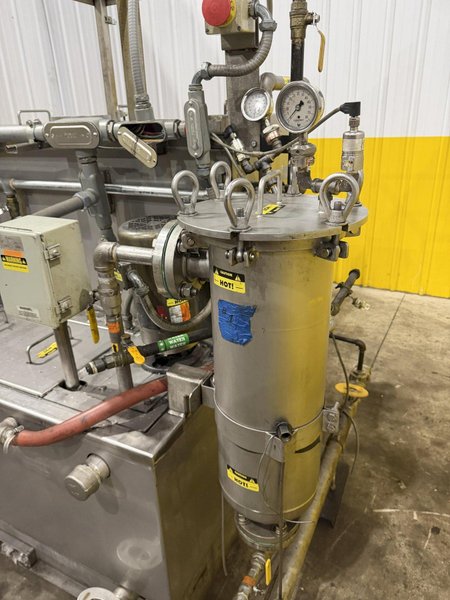

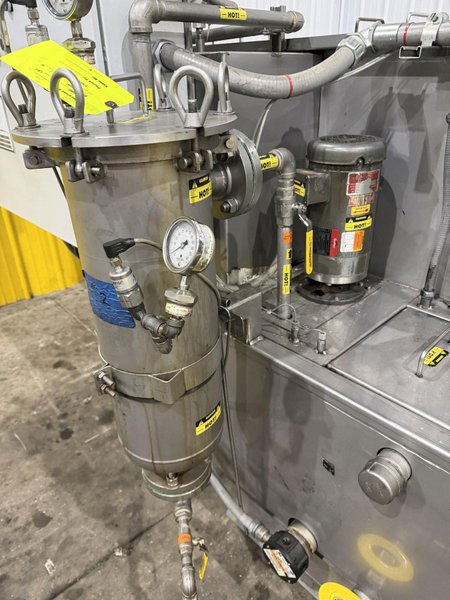

• Bag filtration on wash and rinse systems

12512ASY1-A LJ19

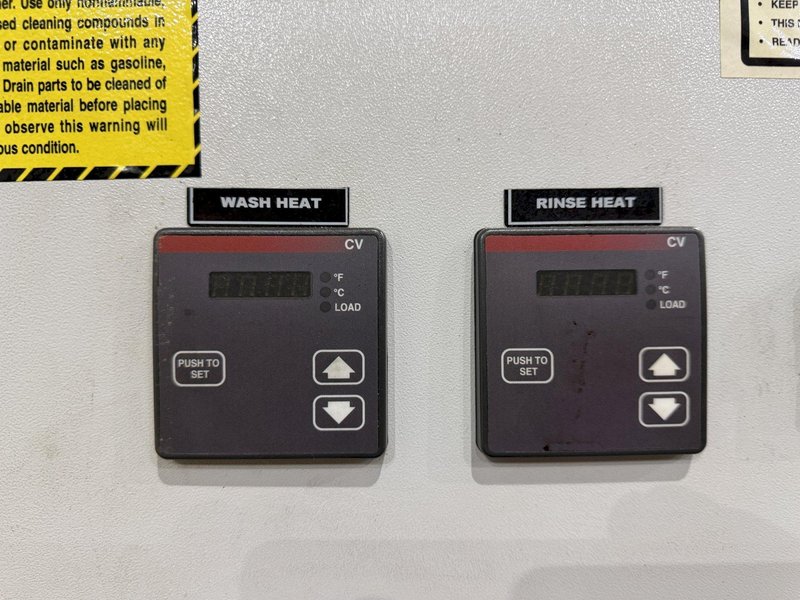

Heating & Spray System

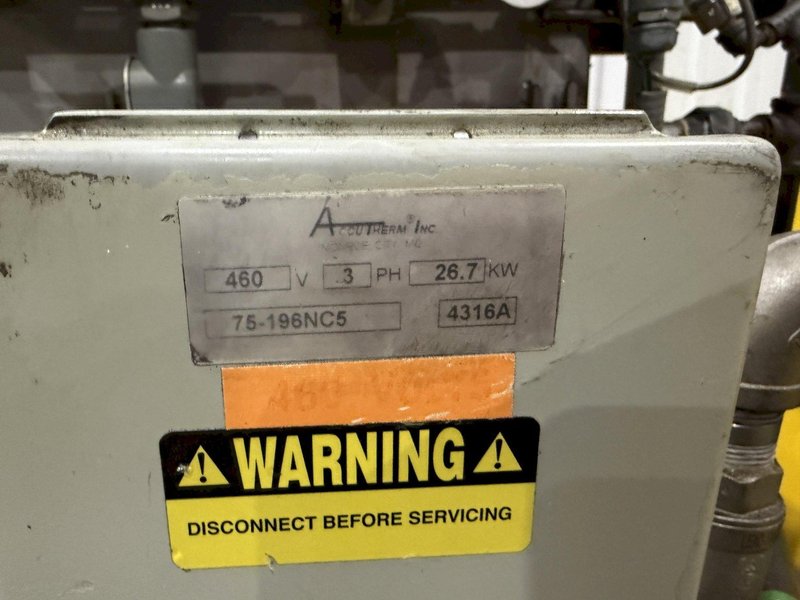

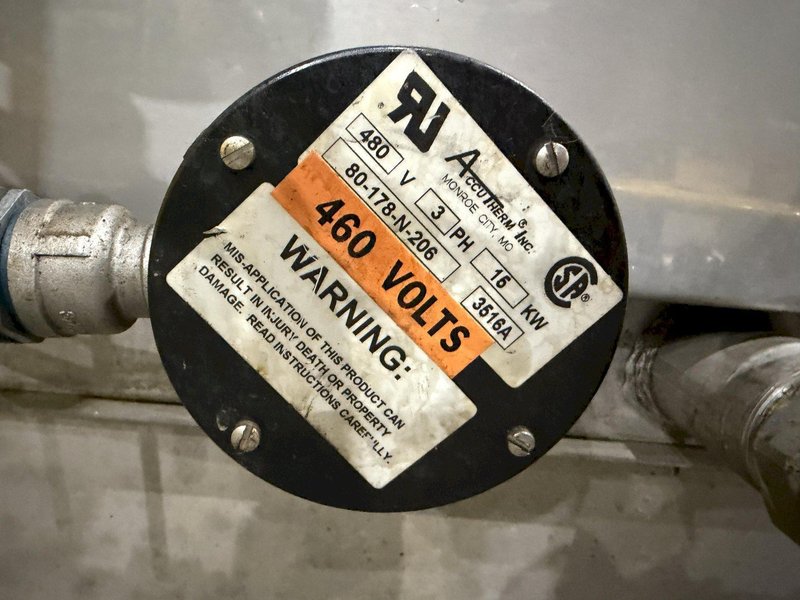

• Accutherm tank heaters

• Wash heat: ~27 kW (designed for ~140°F operation)

• Rinse heat: ~15 kW (designed for ~140°F operation)

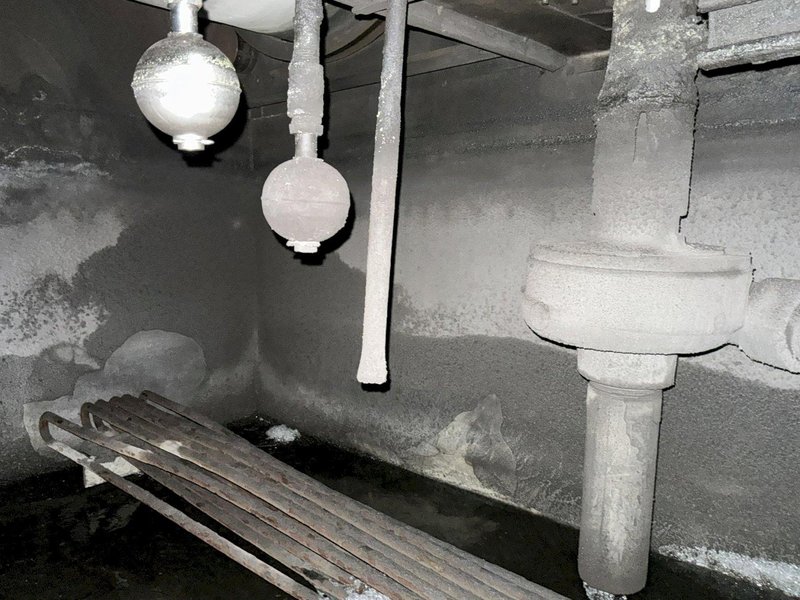

• Stainless steel spray nozzles and spray headers mounted inside drum

• Spray pipe hanger supports for stability

12512ASY1-A LJ19

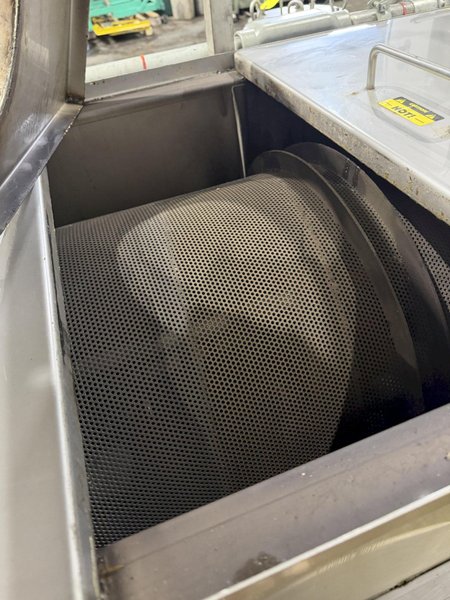

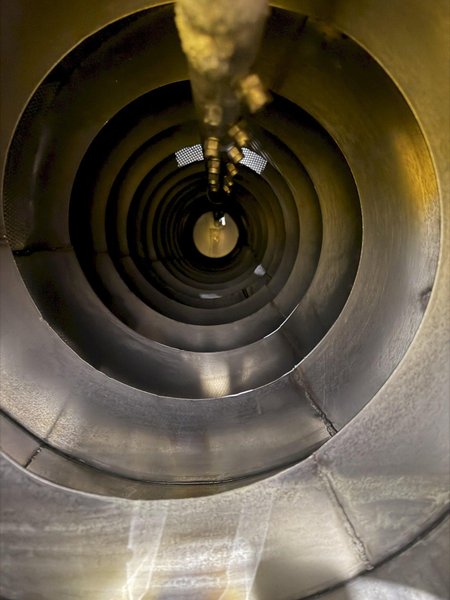

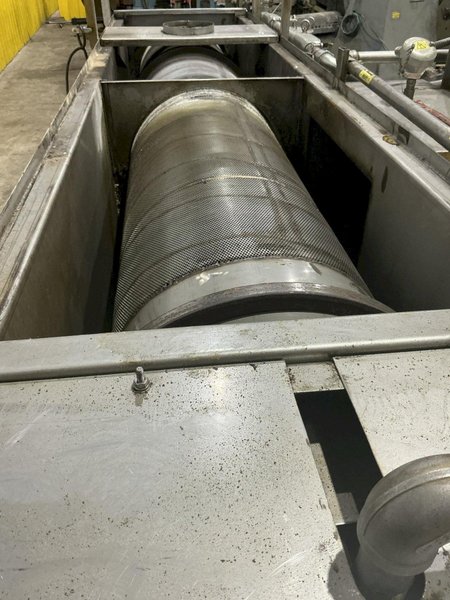

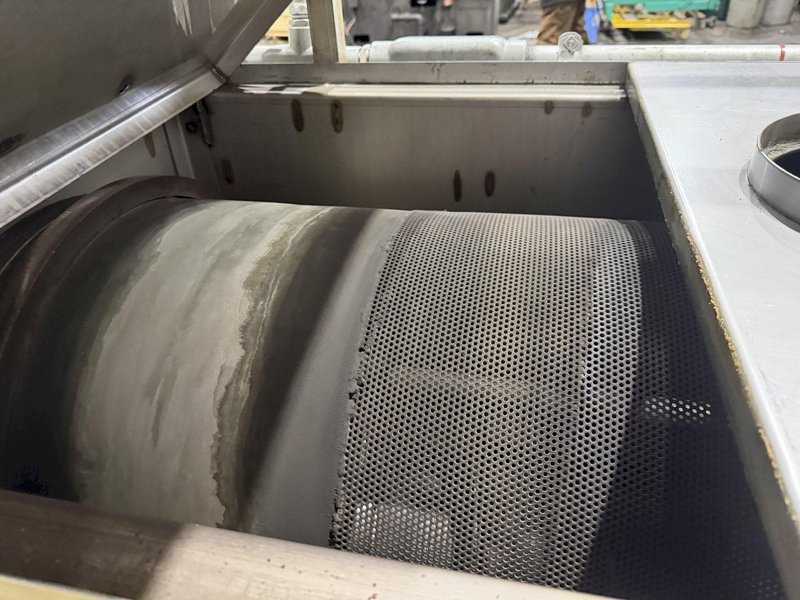

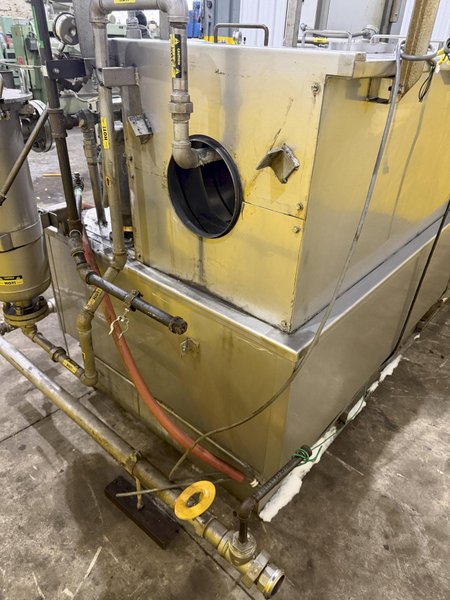

Rotary Drum Assembly

• 19" diameter stainless process drum

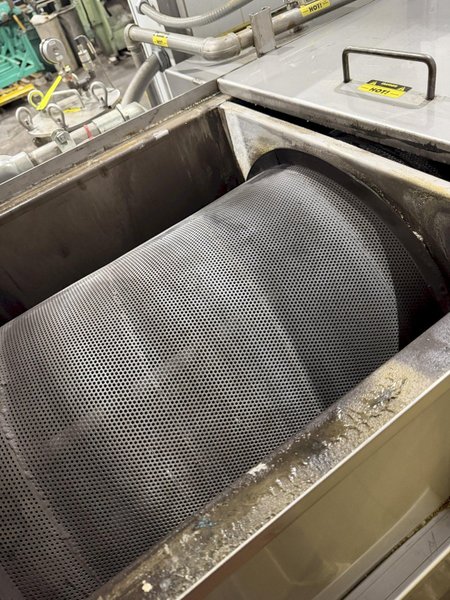

• 14-ga stainless material with 1/4" perforations on 1/4" centers

• Continuously welded helix for controlled material flow

• Helix pitch: 8" with 3.5" spacing

• 3 bent-angle tumblers per revolution for active part agitation and uniform cleaning

12512ASY1-A LJ19

Drying System

• 48" recirculating hot-air dryer

• Approximately 2500 CFM airflow

• Electric heating system (30 kW capacity)

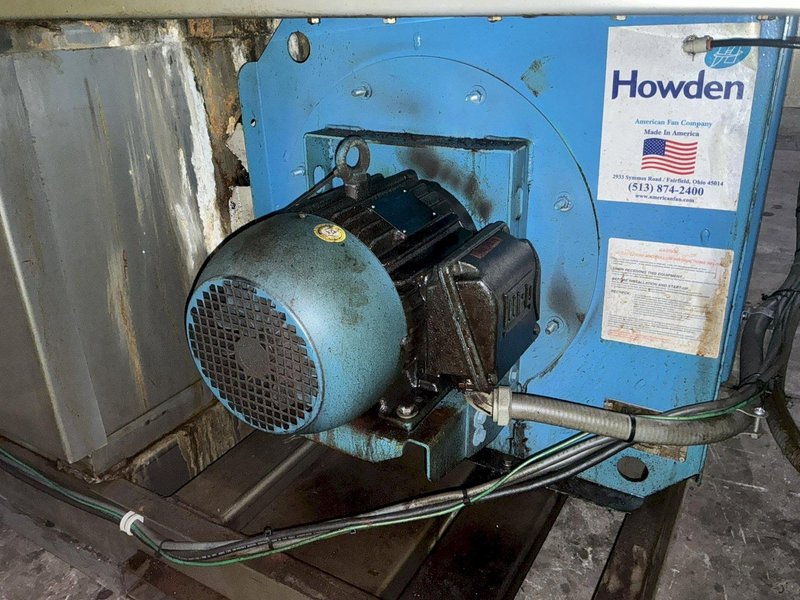

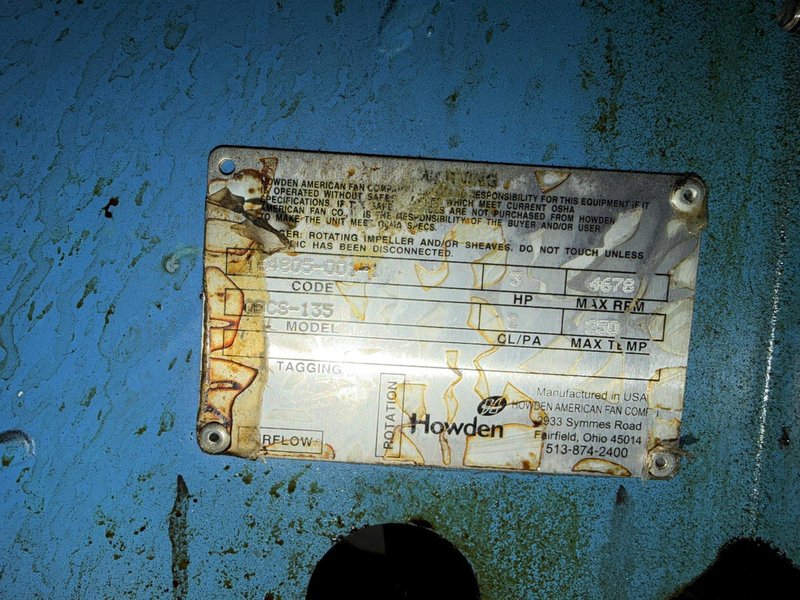

• Heavy-duty blower assembly

12512ASY1-A LJ19

Mechanical & Drive

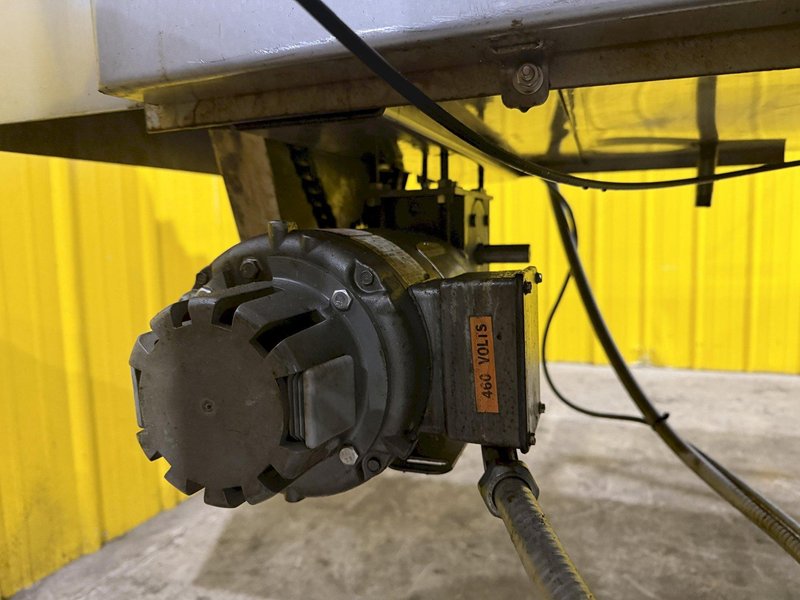

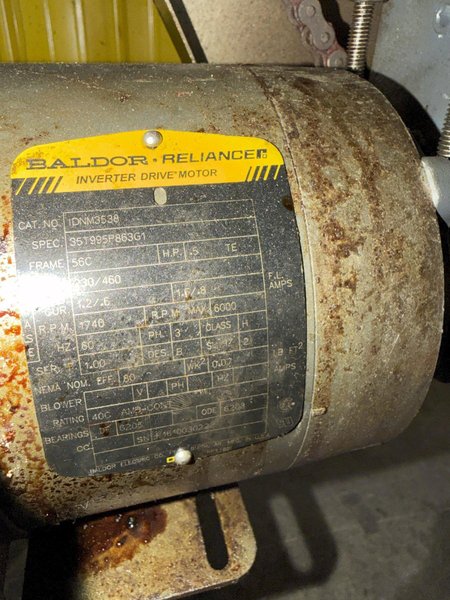

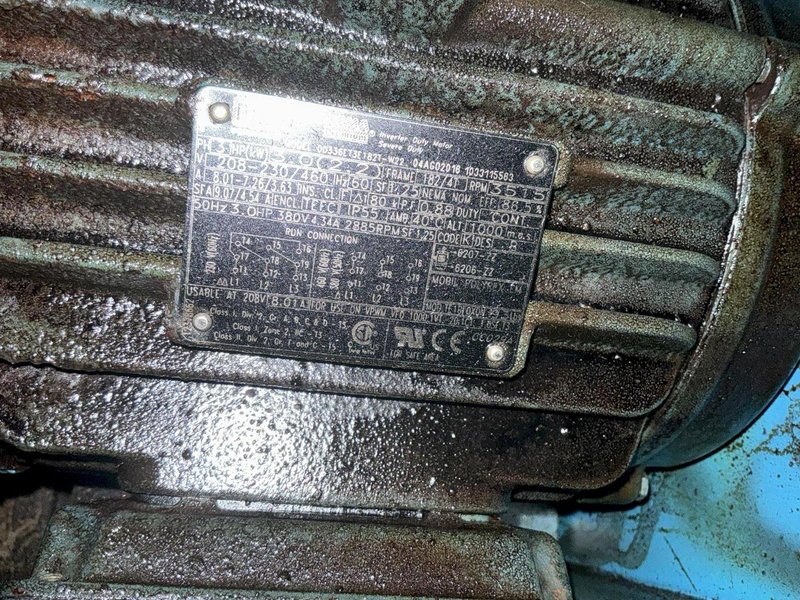

• Baldor AC drum drive motor with gearbox reducer

• Stable, smooth processing rotation

• 3-3/4" flanged Osborn load runners

• Designed for long life and service dependability

• Approximate unload height shown at ~31-1/2"

12512ASY1-A LJ19

Performance Advantages

• Fully insulated cleaning envelope retains heat and improves efficiency

• Excellent contamination control with integrated filtration and oil coalescing

• Stainless construction ensures corrosion resistance and long service life

• Strong spray coverage and controlled flow deliver consistent cleanliness

• Robust dryer section produces clean, dry, and immediately usable parts
