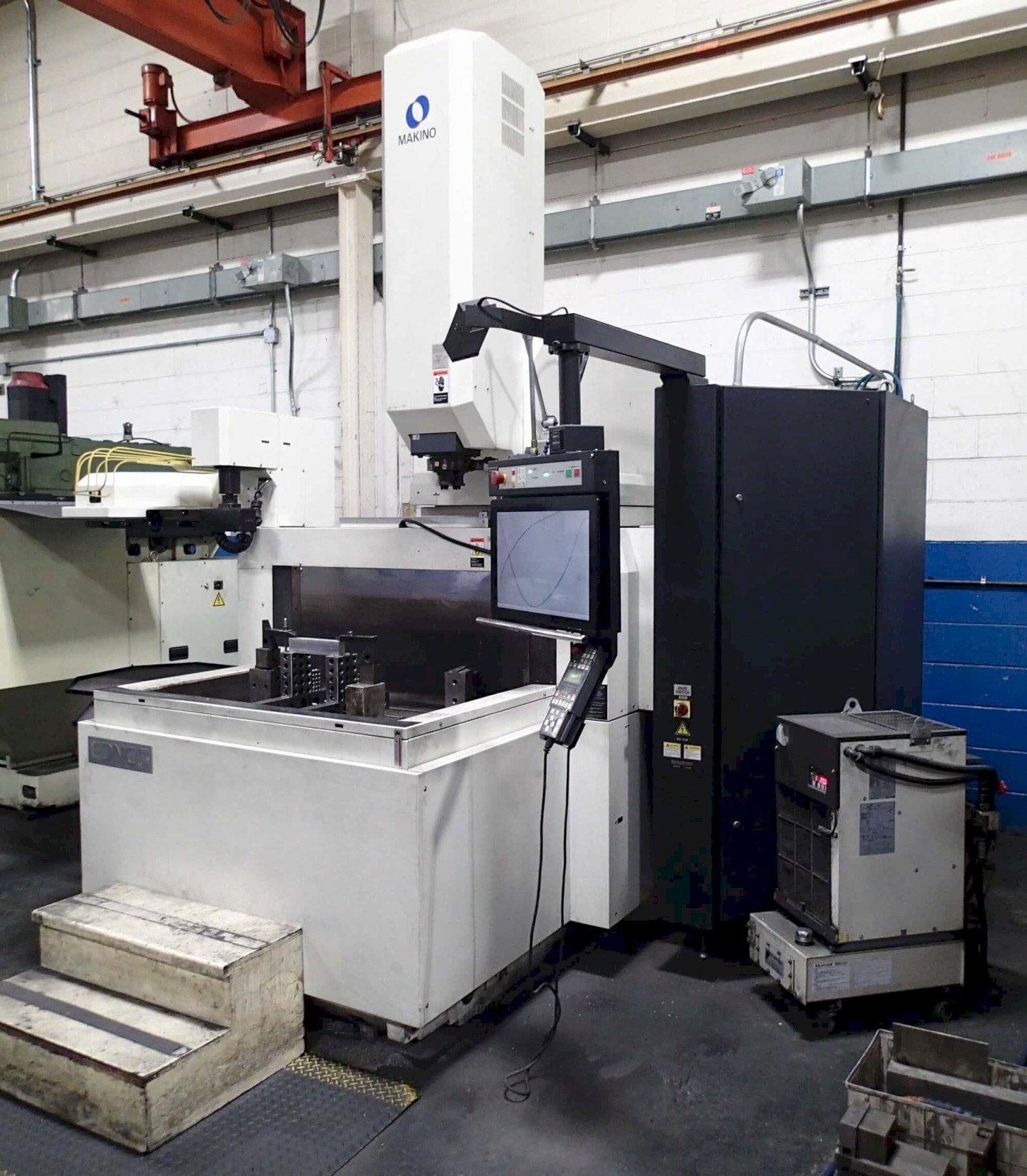

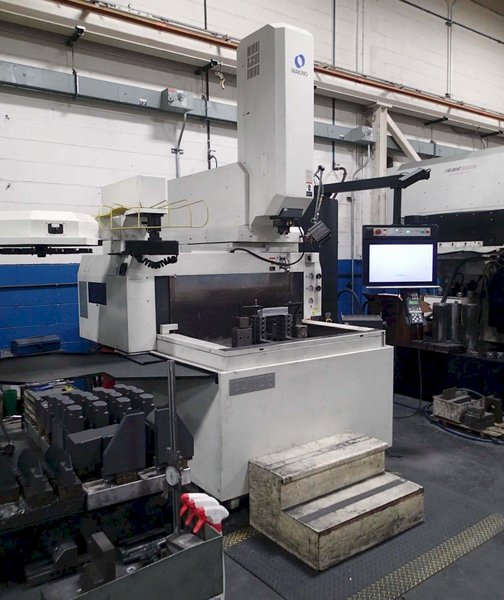

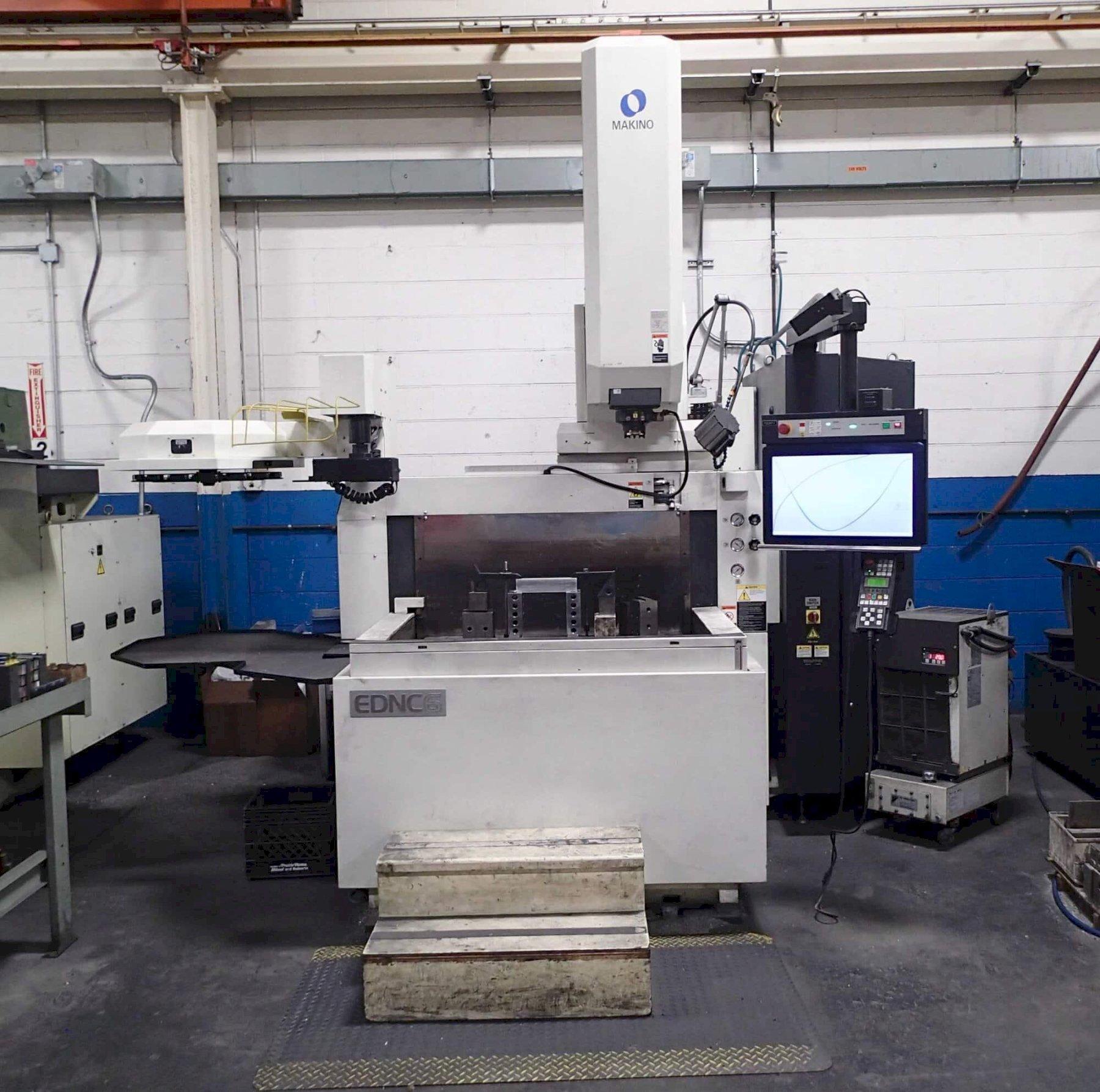

Makino EDNC6 CNC Sinker EDM, 2015 – C-Axis Head, 16 Tool Changer

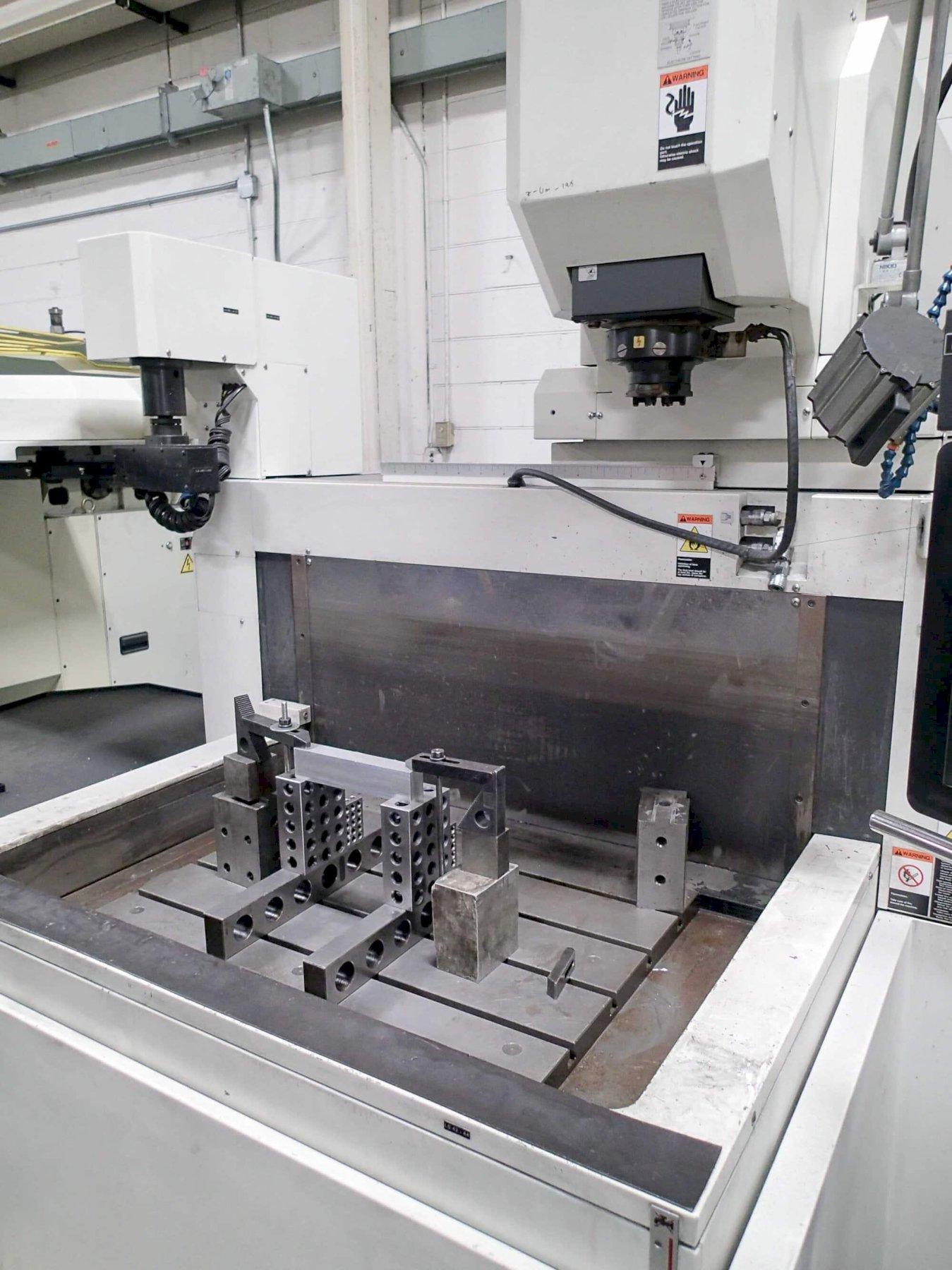

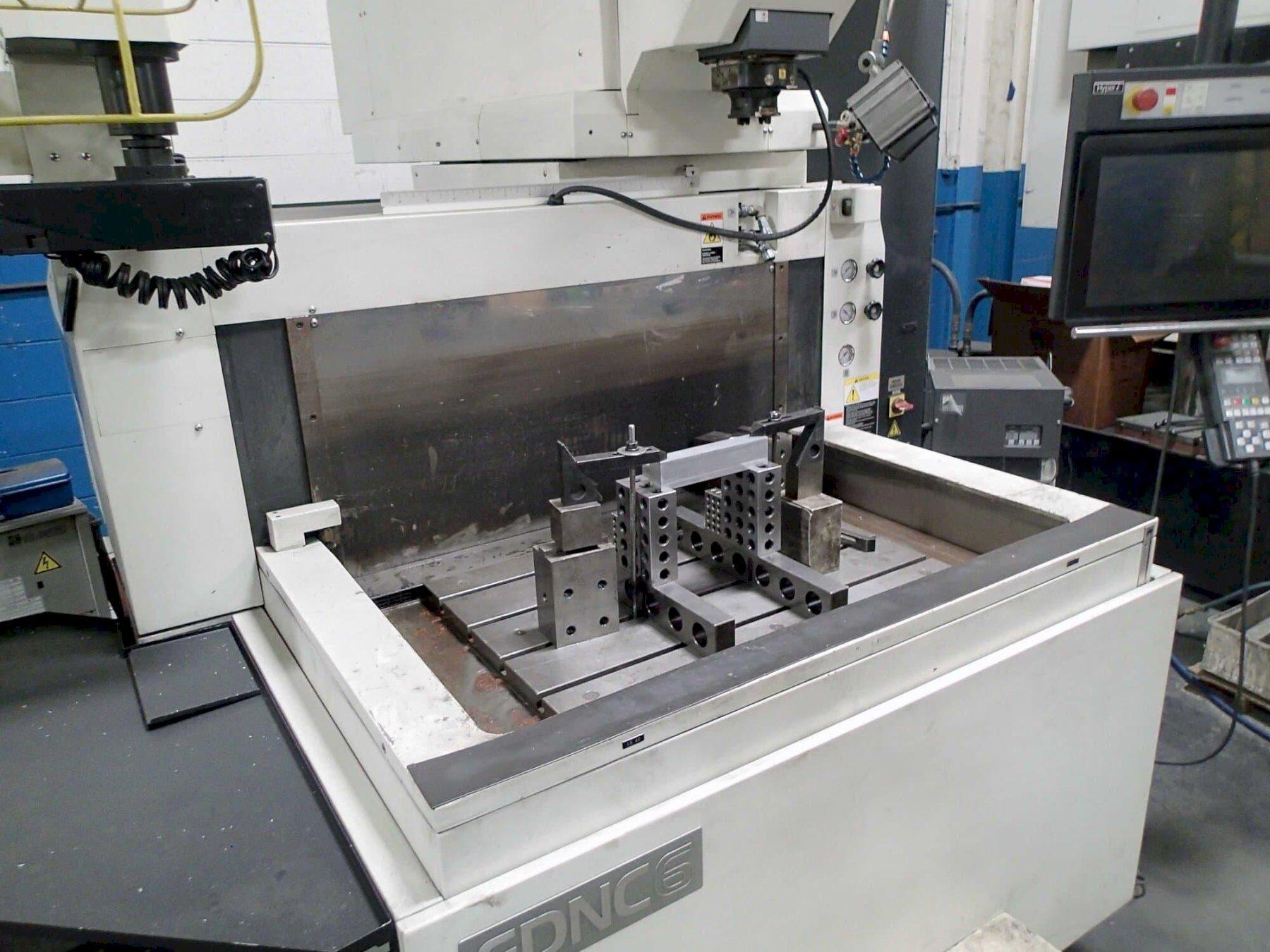

Work tank size: 43.3″ x 29.5″ x 17.7″ Table size: 31.5″ x 21.7″ X-axis Travel: 25.6″ Y-axis Travel: 17.7″ Z-axis Travel: 13.8″ Tools: 16

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Max electrode diameter: 3.15″ / 7″ Max electrode length: 10.2″ Max electrode weight: 220 lbs. Max fluid level: 15.7″ Max workpiece weight: 3300 lbs. Platen to table: 27.5″ Power supply: 60 Amps (80 Peak) Rapid traverse rates: 78 IPM

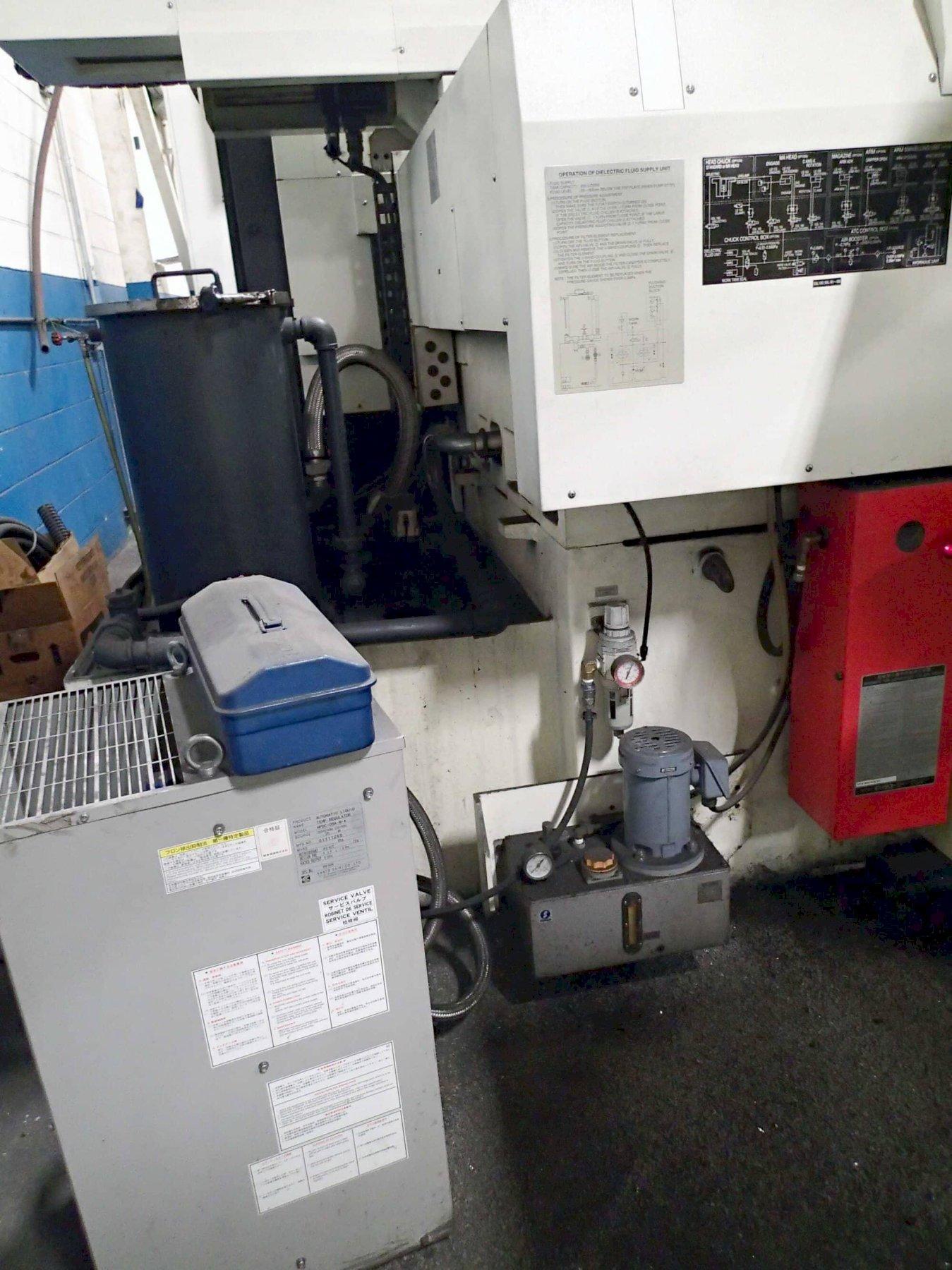

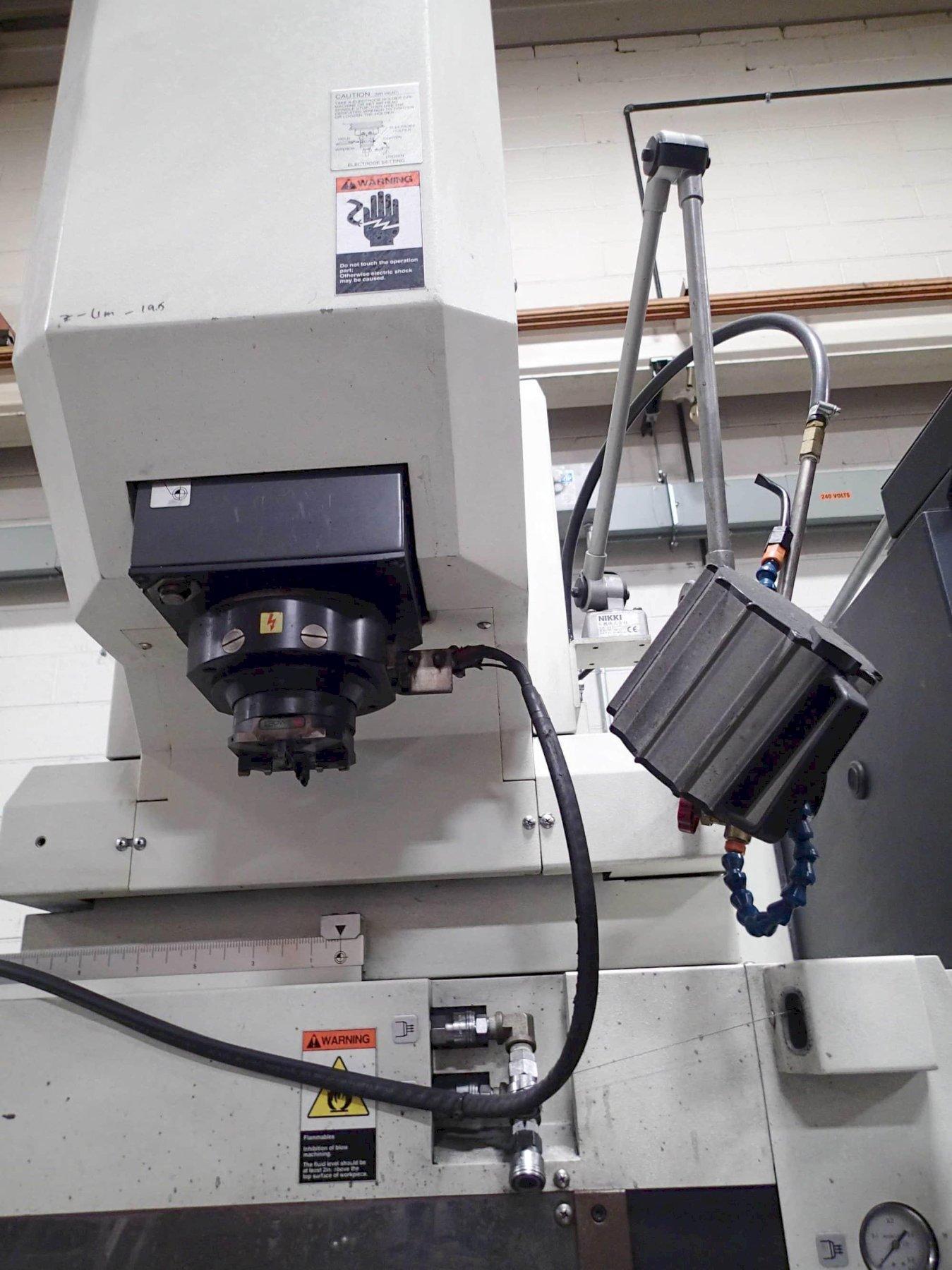

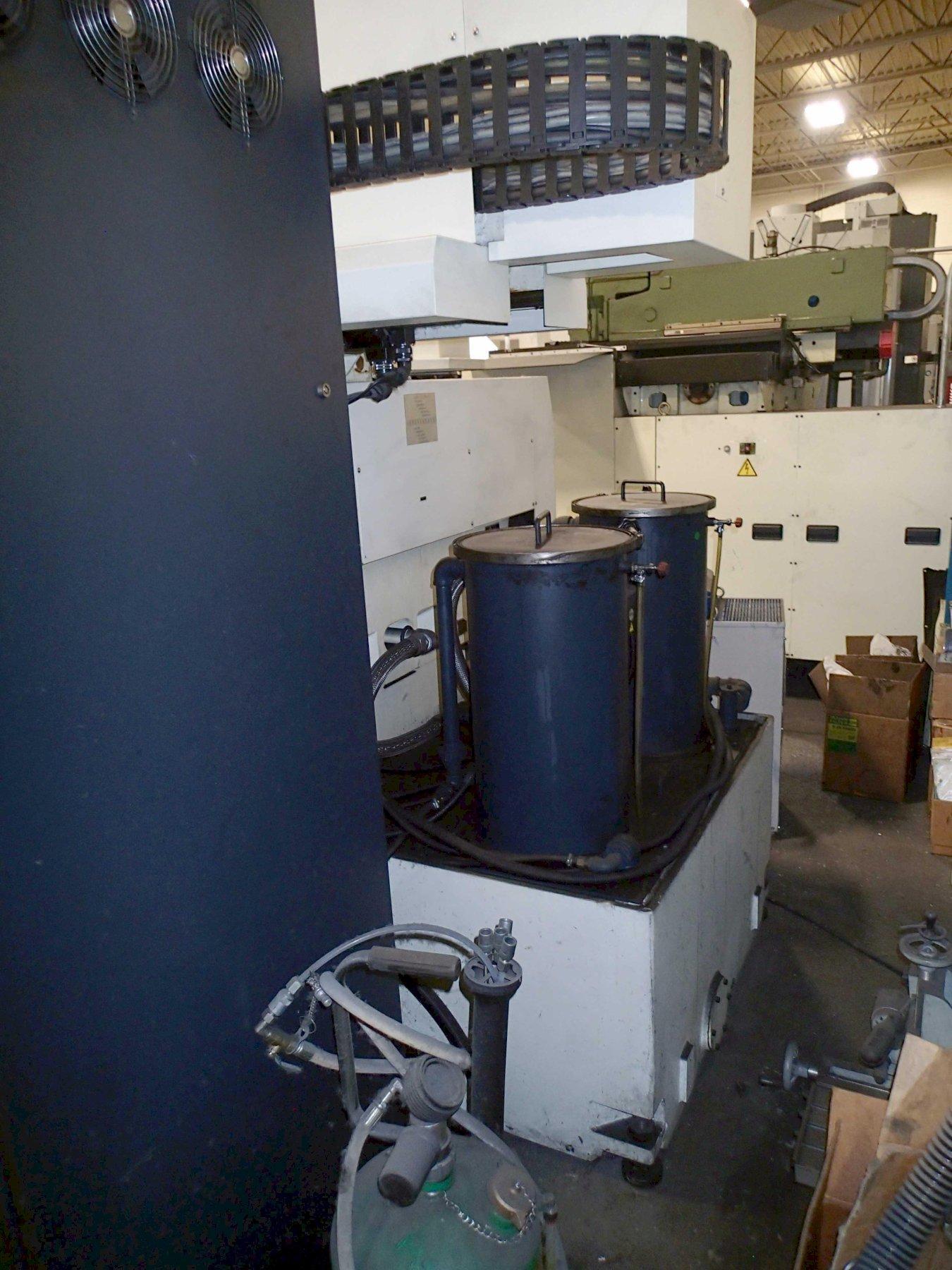

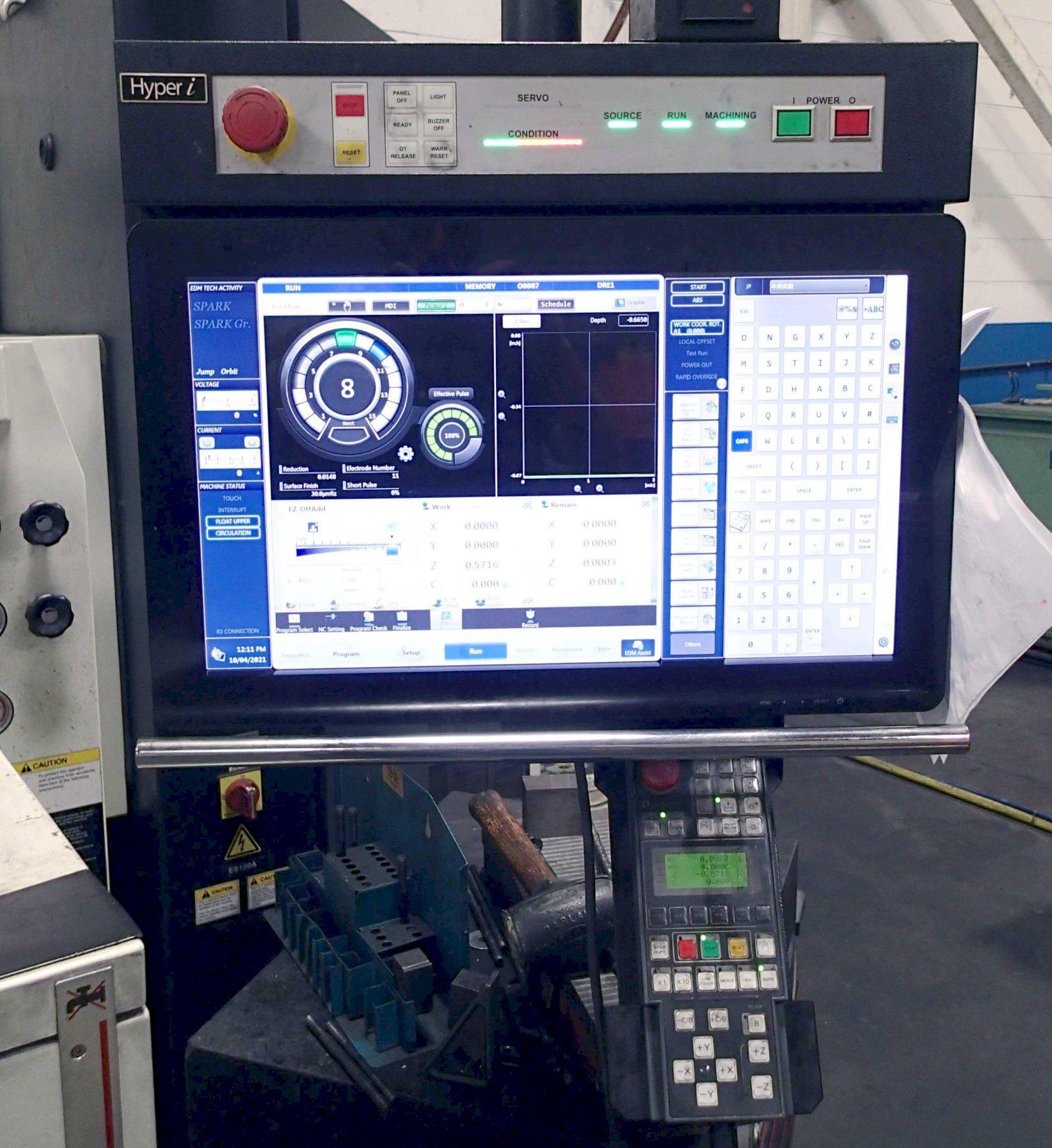

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,EQUIPPED WITH: Makino Hyper I CNC Control MR Head with Full C-Axis Erowa Auto Chuck 16 Tool Changer Remote Jog Handle Filtration System Chiller Unit Available Erowa Tooling

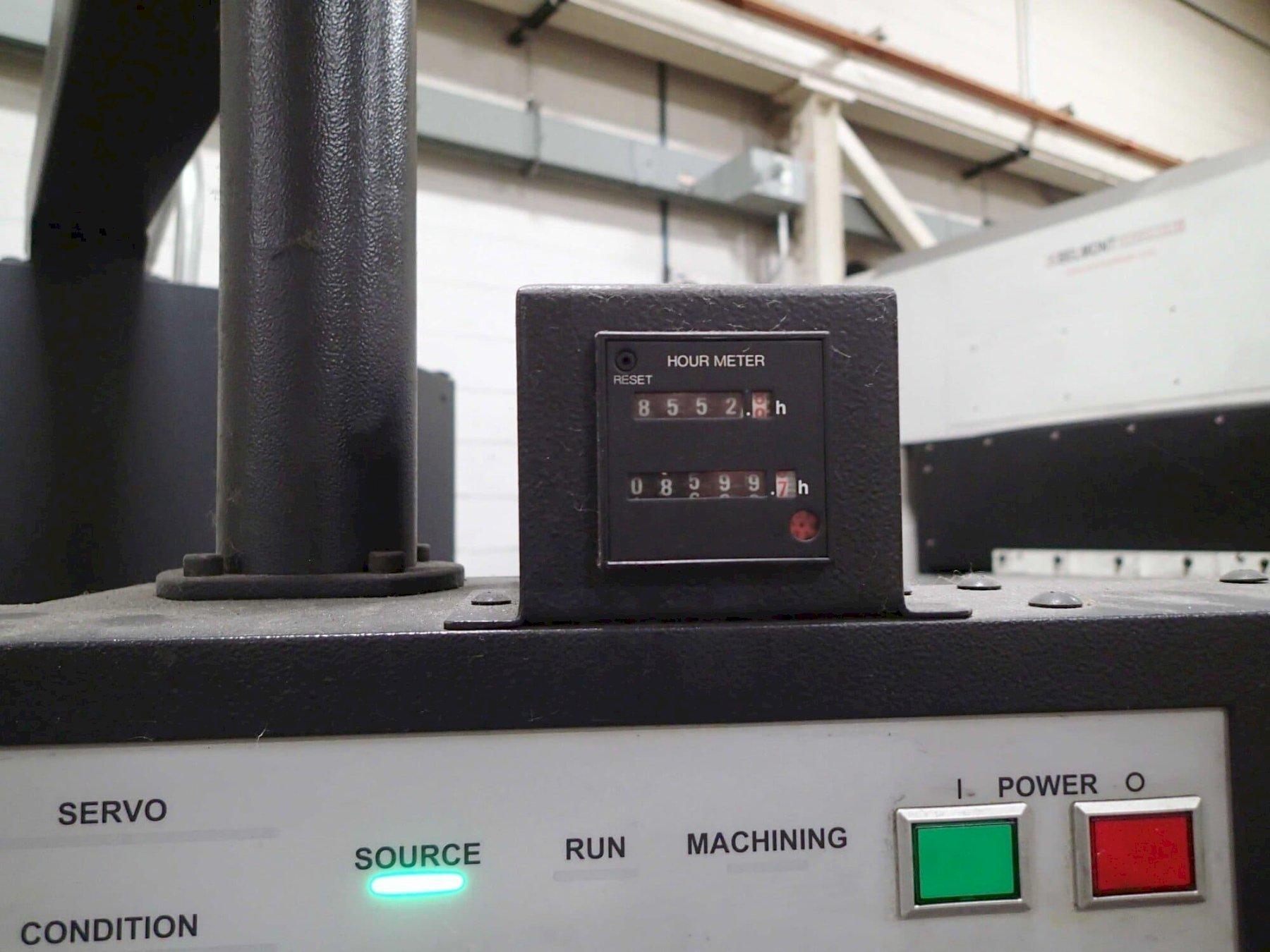

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Approx 8,600 Hours

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
