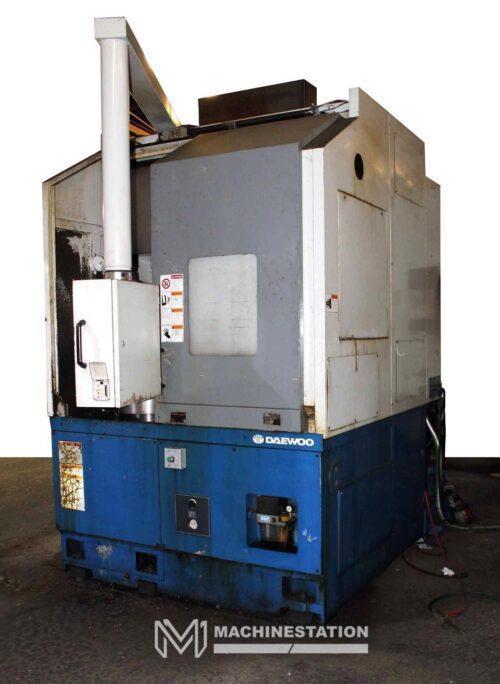

Daewoo Doosan V550 CNC Vertical Turning Center

Name: Used DOOSAN Make:DoosanModel:V550 For Sale
Brand: DOOSAN

Brand

DOOSAN

Location

California

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Doosan
Model:	V550
Year:	2005
Condition:	Used – Good

DAEWOO V550 CNC Vertical Turning Equipped With:
Fanuc 21-TB CNC Control
18″ 3 jaw Kitagawa Chuck
10 Station tool Turret
RS232 Port
Coolant System
Chip conveyor
Foot Switch

Capacity:
Max Turning Diameter: 28.7″
Max Swing Over Bed:31.5″
Max Swing Over Saddle: 19.3″
Max Turning Height: 29.5″

Travel:
X Axis Travel: 15.7″
Z Axis Travel: 30.7″
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 630 IPM

Spindle:
Spindle Nose: A2-11
Spindle Speed: 2000 RPM
Spindle Motor: 50 HP

Turret:
Turret Capacity: 10 Stations
Turret Index Time: 0.15 Second
Tool Size:1.25”
Boring Bar Size: 2.4”

General:
Power: 55 kva, 220v / 3-Phase
Overall Dimensions: 75″ X 107″ X 129” High
Weight: 20000 lbs Approx
