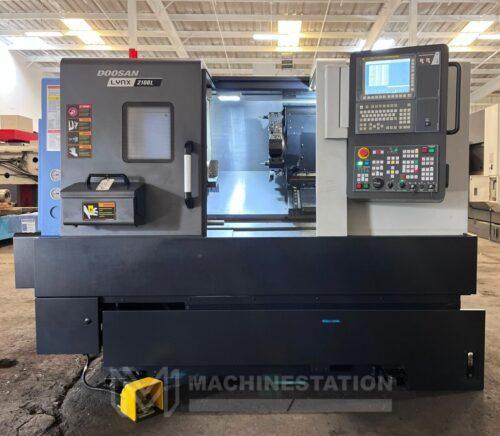

Doosan Lynx 2100LB CNC Turning Center – Lathe

Brand
DOOSAN
Category
Lathes & Turning Machines
Type
Turning Centers
Model
Make:DoosanModel:Lynx 2100LB
Stock #
Not specified
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:Doosan
Model:Lynx 2100LB
Year:2019
Condition:Used – Excellent



Equipped With:
  • Fanuc i series CNC Control
  • 8″ 3-Jaw Chuck
  • 12 Station Automatic Turret
  • Programmable Tailstock
  • Tool Presetter
  • PCMCIA Card Interface
  • USB Port
  • Foot Switch
  • Coolant System
  • Manuals
  • (5) Boring Tool Holders are Mounted on Turret (As shown in the images)



Capacity:
  • Max Turning Diameter: 13.77″
  • Max Turning Length: 21.65″
  • Max Bar Capacity: 2.55″
  • Swing Over Bed: 23.60″
  • Swing Over saddle: 15.70″



Travels:
  • X Axis Travel: 8.07″
  • Z Axis Travel: 22.04″
  • Rapid Traverse X Axis: 1181 IPM
  • Rapid Traverse Z Axis: 1417 IPM



Spindle:
  • Spindle Nose: A2-6
  • Spindle Bore: 3.0″
  • Spindle Speed: 4500 RPM
  • Spindle Motor: 20 HP



Turret:
  • Turret Capacity: 12 Stations
  • Turret Index Time: 0.15 Second
  • Max OD Tool Size: 1.0″ x 1.0″
  • Tool Holders Type: BMT



Tailstock:


  • Quill Diameter: 2.56″
  • Quill Travel: 3.15″
  • Taper Size: MT#4



General:
  • Power: 24.21 kva, 220v / 3-Phase
  • Overall Dimensions: 101″ x 63″ x 67″ High Approx.
  • Weight: 6,503 lbs. Approx.
