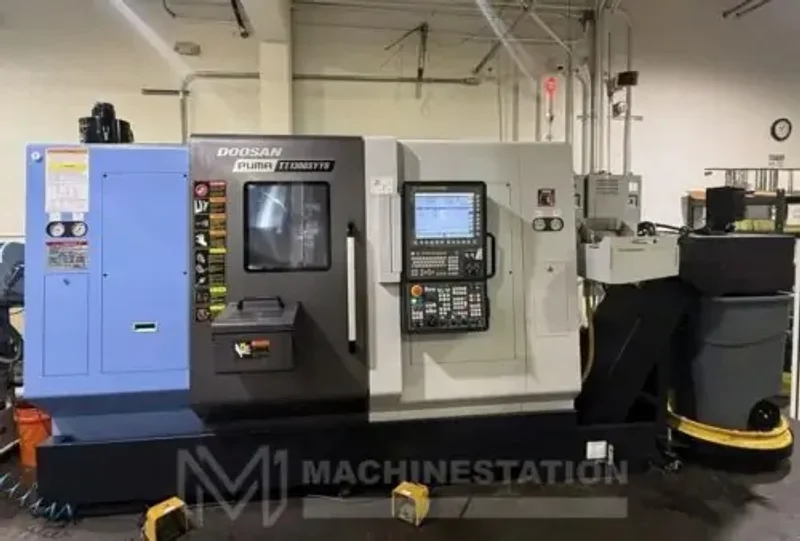

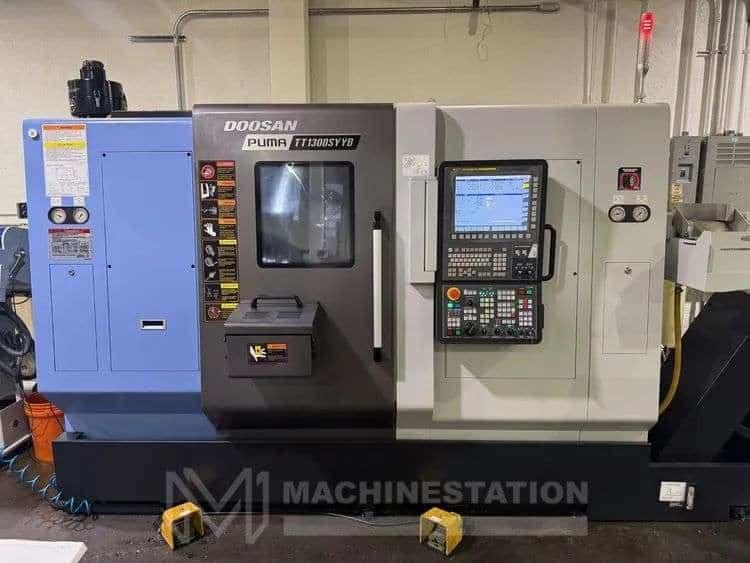

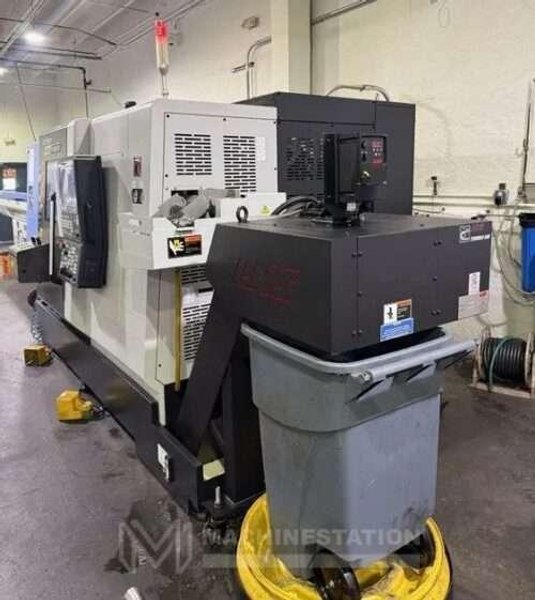

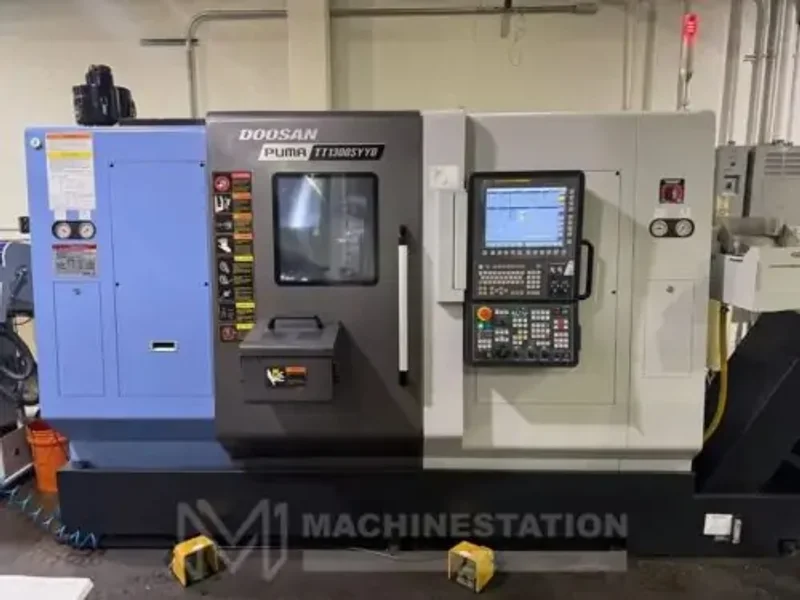

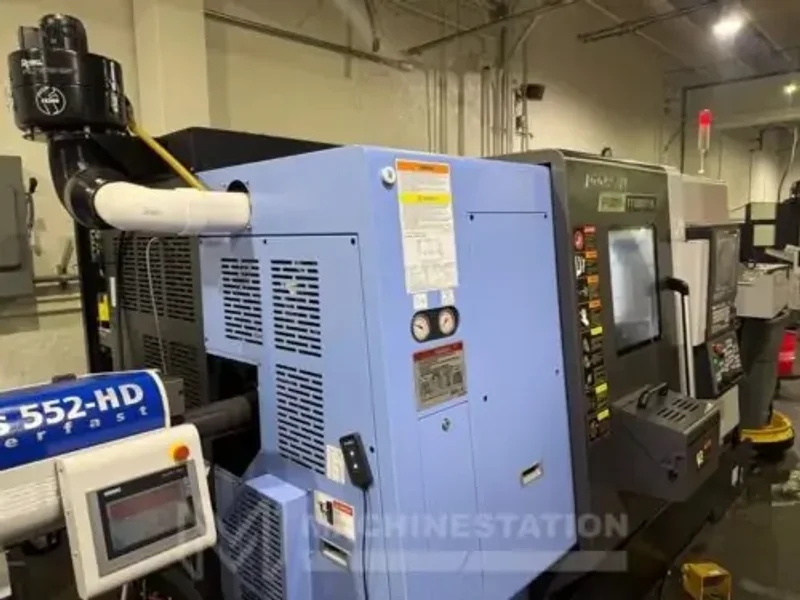

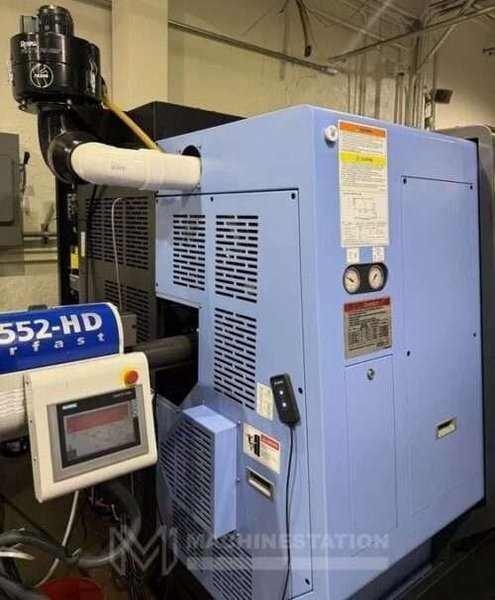

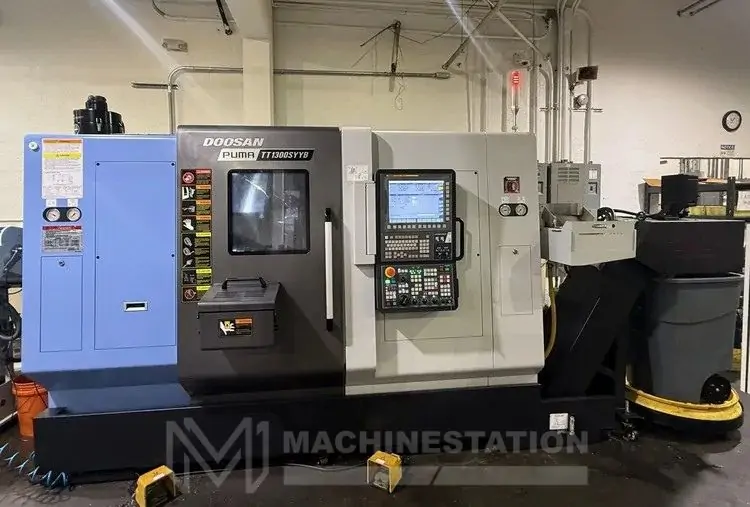

Doosan Puma TT1300SYYB CNC Lathe – Twin Spindle Twin Turret Y Axis

Brand
DOOSAN
Category
Lathes & Turning Machines
Type
Turning Centers
Model
Make:DoosanModel:Puma TT1300SYYB
Stock #
Not specified
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:Doosan
Model:Puma TT1300SYYB
Year:2021
Condition:Used – Excellent
Equipped With:

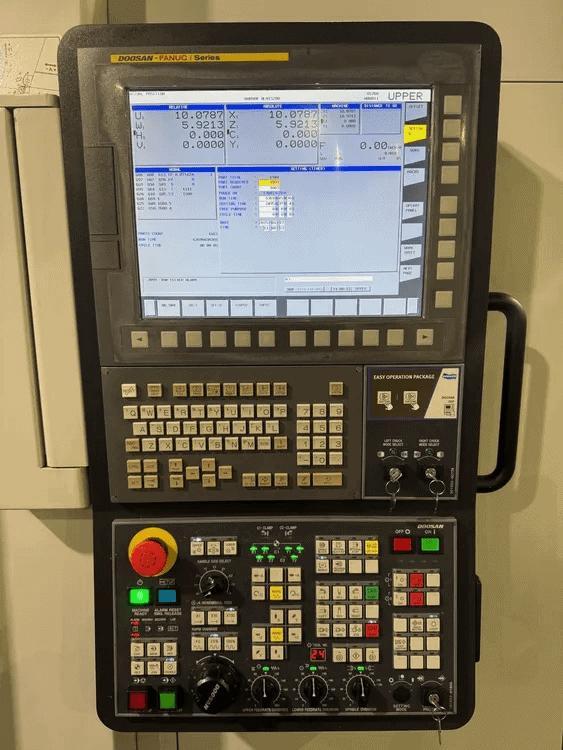

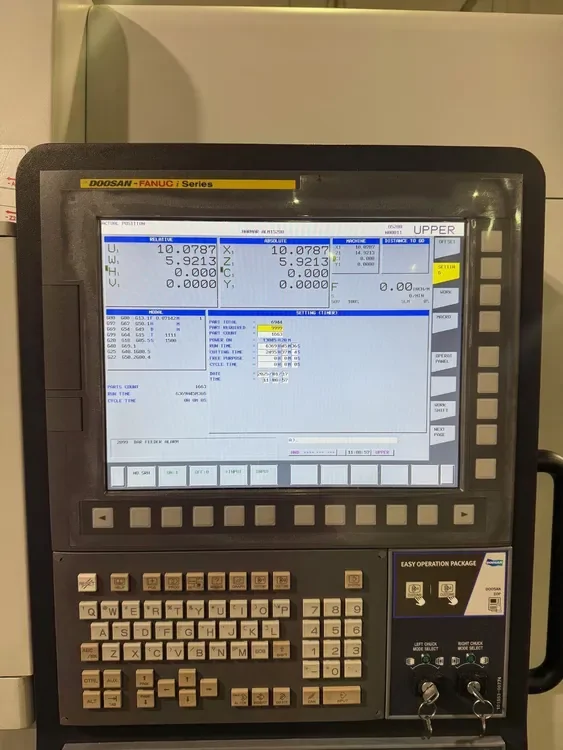

  • Fanuc i-series CNC Control

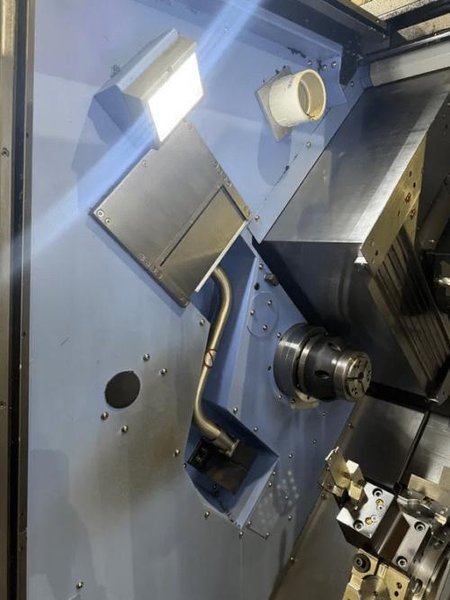

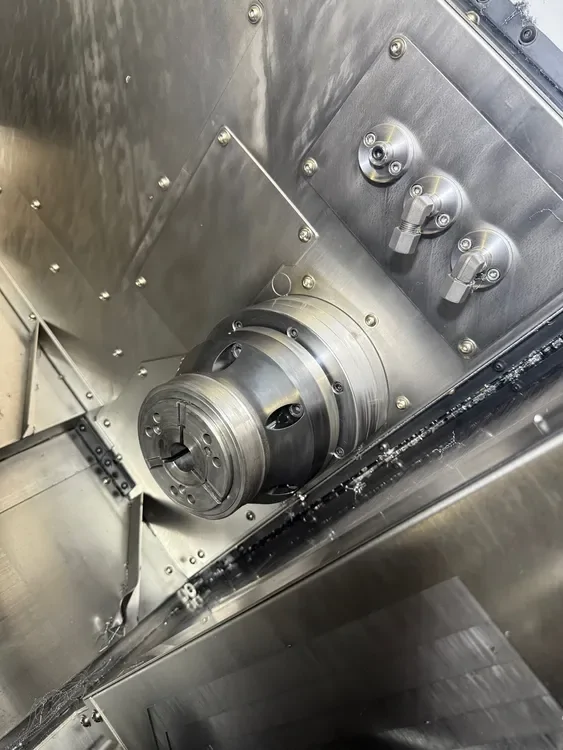

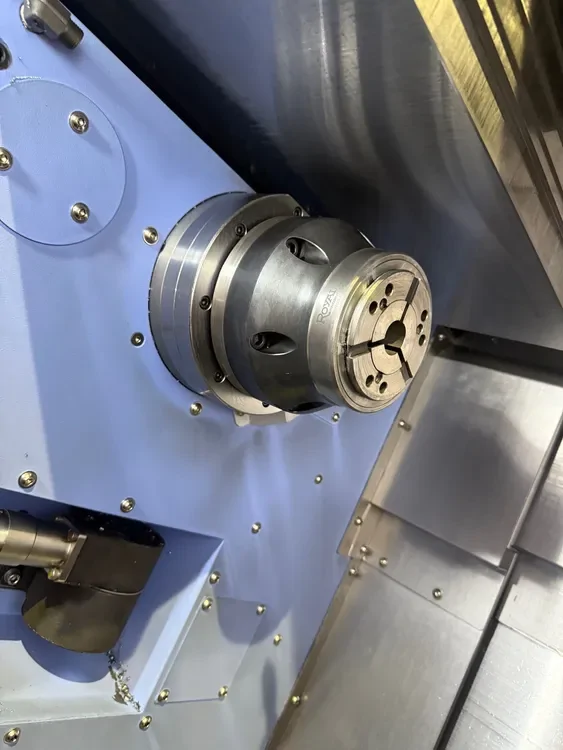

  • Royal Collet Chucks on Main & Sub spindle
  • Servo Controlled Full C-Axis on Both Spindles

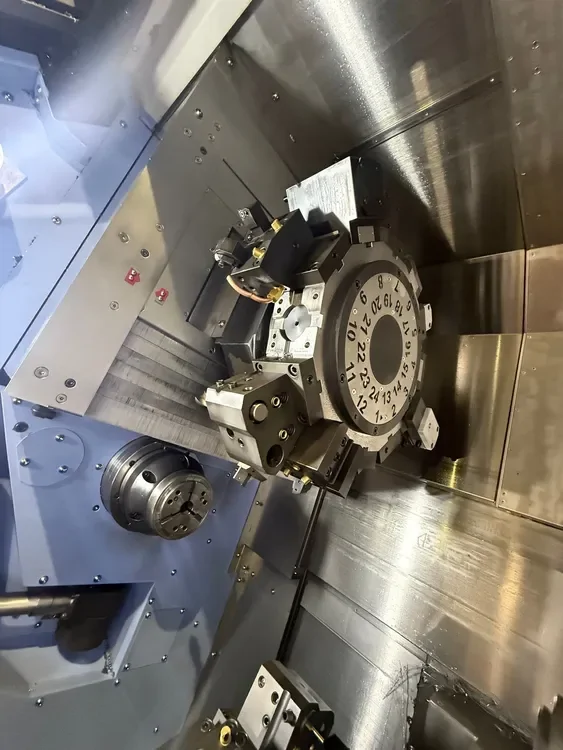

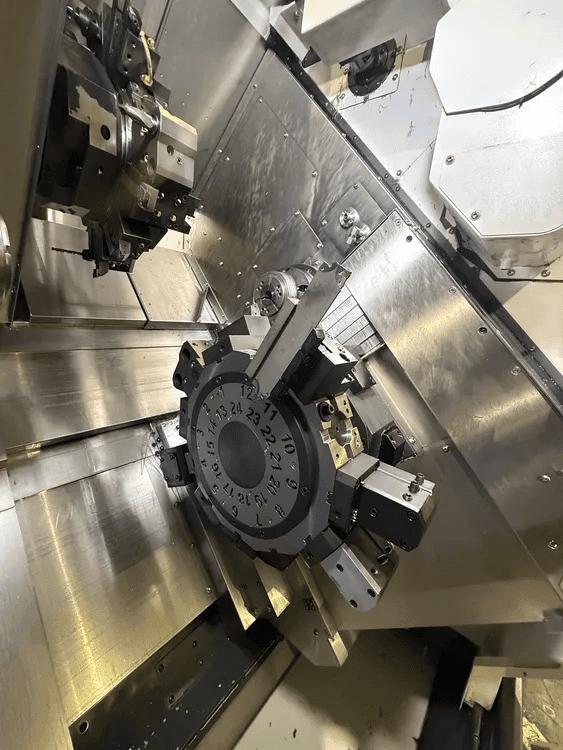

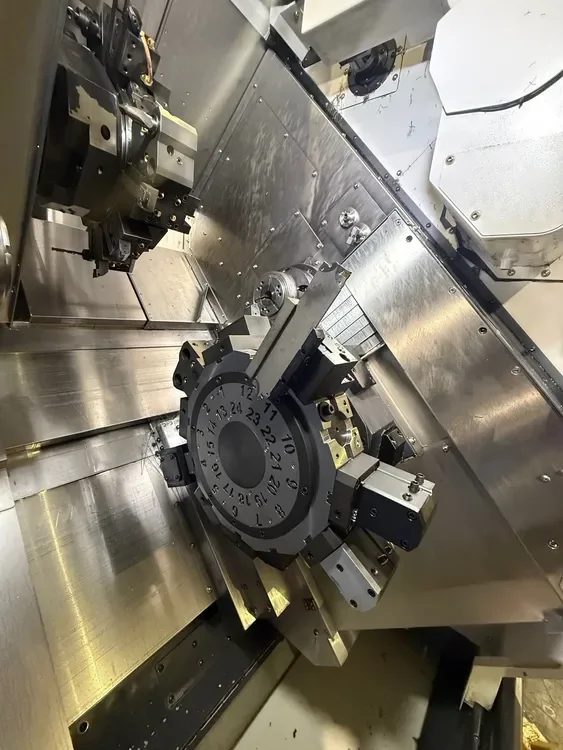

  • 24 -Positions Upper & Lower Turret – Live / Rotary Tools
  • Y Axis Upper & Lower Turret
  • Tool Presetter
  • Parts Catcher & Conveyor
  • Rigid Tapping on Both Spindles
  • (2) High Pressure Coolant Pumps
  • (2) Coolant Pumps
  • Foot Switches

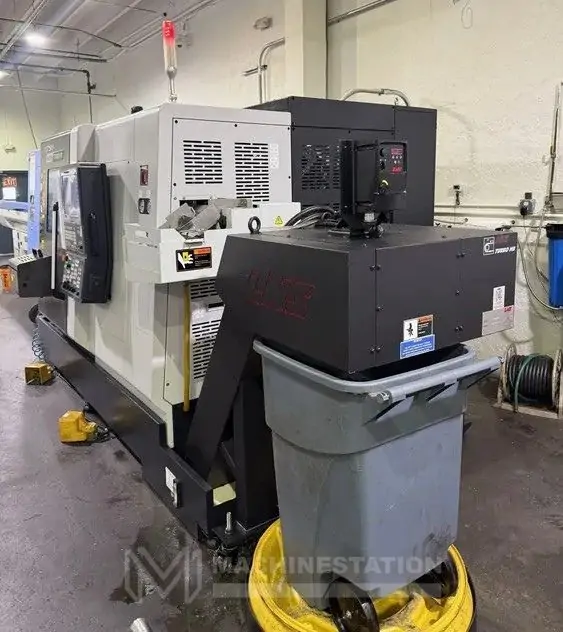

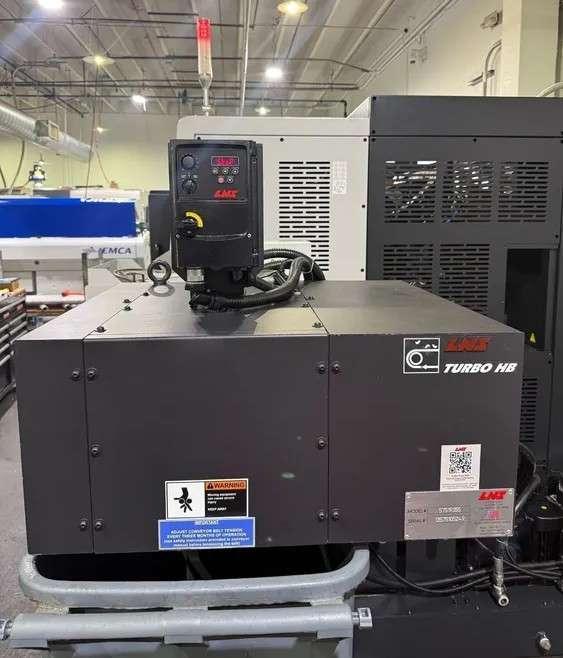

  • LNS Turbo HB Chip Conveyor
  • Books & Manuals
Capacity:
  • Max Turning Diameter: 6.9″
  • Max Turning Length: 4.7″
  • Swing Over Bed: 6.9″
  • Swing over the Saddle: 6.9″
  • Max Bar Capacity: 1.7″
Travels:
  • X1/X2 Axis Travel: 5.3″
  • Z 1/Z2 Axis Travel: 20.9″
  • Y Axis Travel: 3.1″ (+ 1.6″ – 1.6″)
  • B Axis Travel: 21.3″ (Sub Spindle)
  • C Axis: 360° (0.001°) Both Spindle
Feedrate:
  • Rapid Traverse X Axis: 1181 IPM
  • Rapid Traverse Z Axis: 1574 IPM
  • Rapid Traverse Y Axis: 590 IPM
  • Rapid Traverse B Axis: 1574 IPM
Spindle:
  • Main Spindle Nose: A2-5
  • Main Spindle Bore: 2.4″
  • Main Spindle Bar Capacity: 1.7″
  • Main Spindle Speed: 6,000 RPM
  • Main Spindle Power: 15 HP
Sub Spindle:
  • Sub Spindle Nose: A2-5
  • Sub Spindle Bore: 2.1″
  • Sub Spindle Bar Capacity: 1.4″
  • Sub Spindle Speed: 6,000 RPM
  • Sub Spindle Power: 10 HP
Turrets:
  • Turret Capacity (Upper + Lower) : 24 + 24 Positions
  • Turret Index Time: 0.12 Second
  • Live Tool Speed: 6,000 RPM
  • Live Tool Spindle Power: 5 HP
  • Tool Holders Type: BMT-45P
General:
  • Power Source:  220v / 3-Phase / 60 Hz / 52.17 kva
  • Overall Dimensions: 138.2″ x 90.6″ x 81.5″ High
  • Weight: 17,857 lbs
,Show More Show Less
