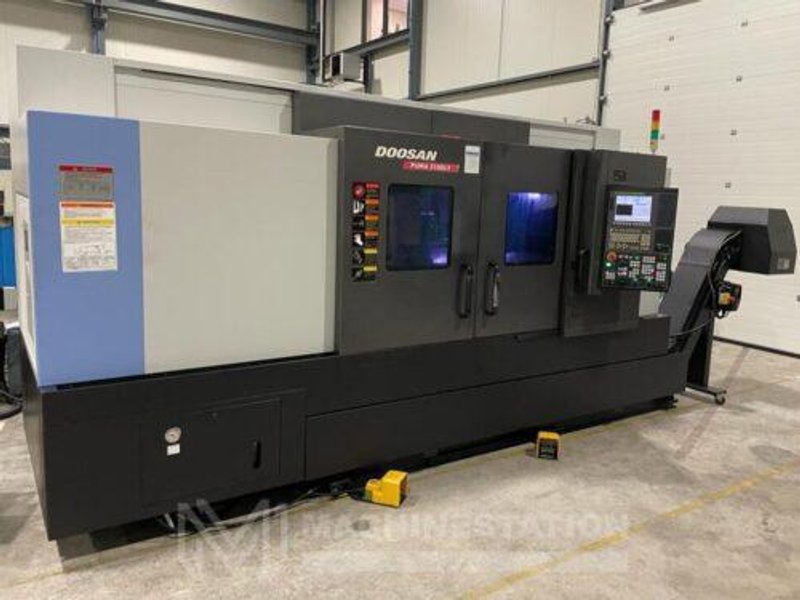

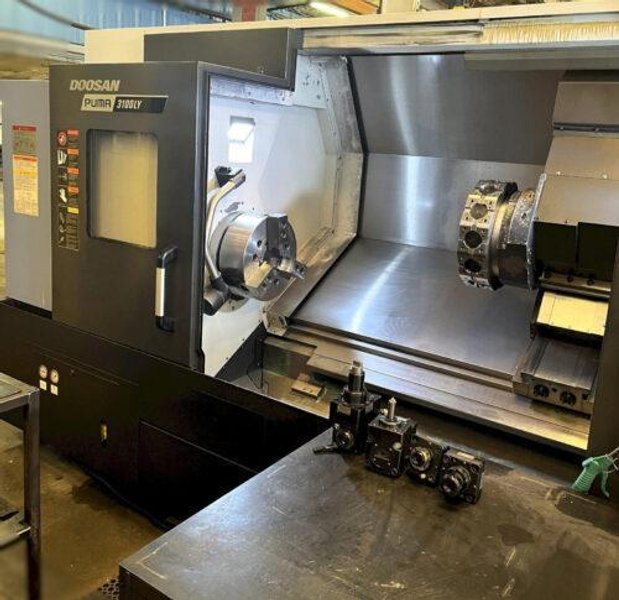

Doosan Puma 3100LY CNC Turning Center – Y Axis Lathe 2019

Brand
DOOSAN
Category
Lathes & Turning Machines
Type
Turning Centers
Model
Doosan Puma 3100LY
Stock #
115085
Year
2019
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

SKU: 115085
Make: Doosan
Model: Puma 3100LY
Year: 2019
Condition: Used – Excellent
Equipped With:

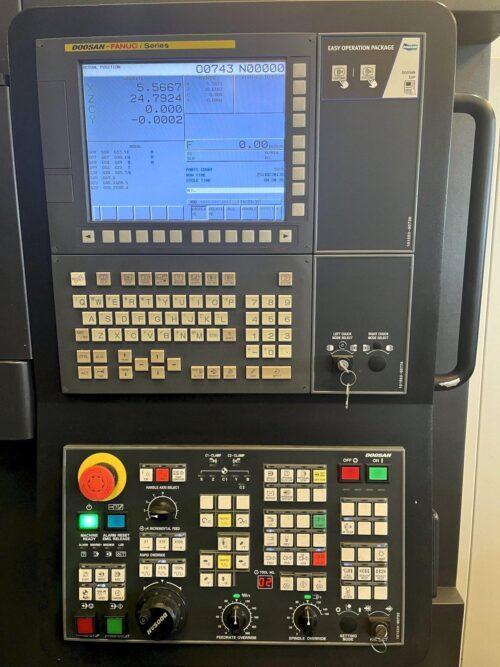

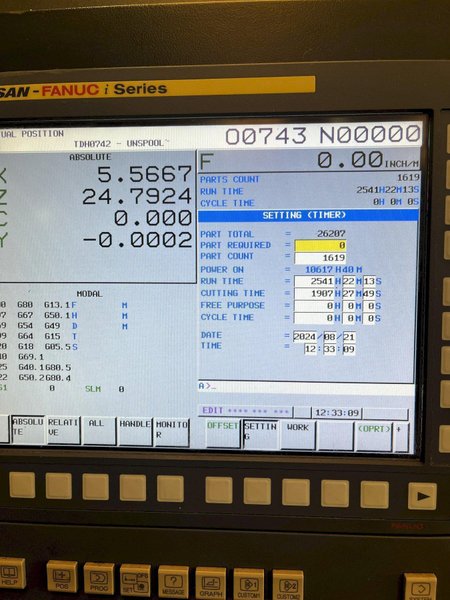

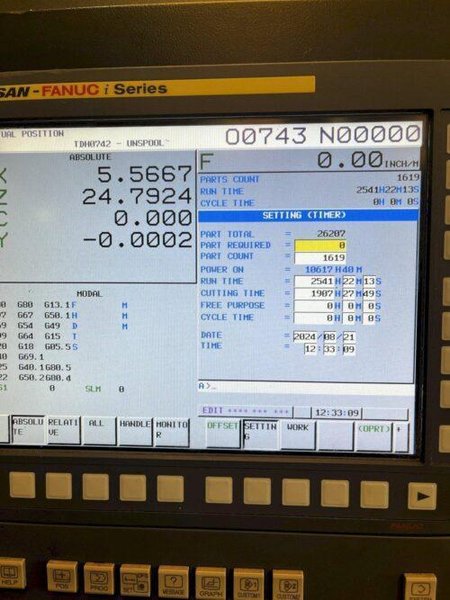

Doosan-Fanuc i-series CNC Control
Heavy Duty Box Way Construction

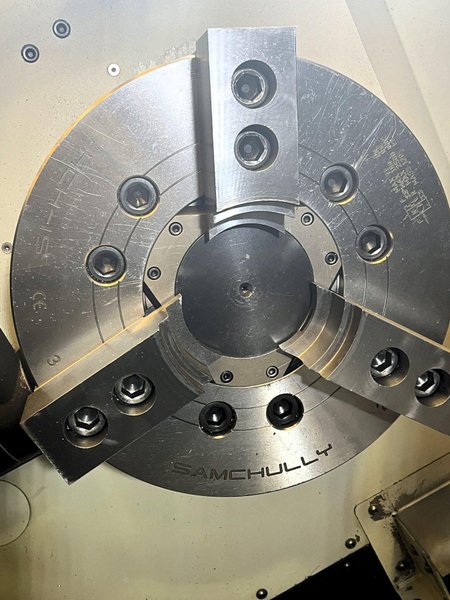

12″ 3-Jaw Samchully Hydraulic Chuck
4.5″ Big Bore Spindle
Servo Controlled C Axis on Spindle

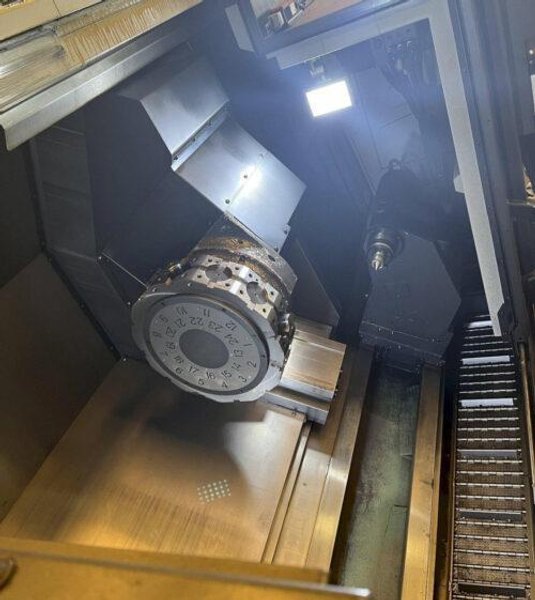

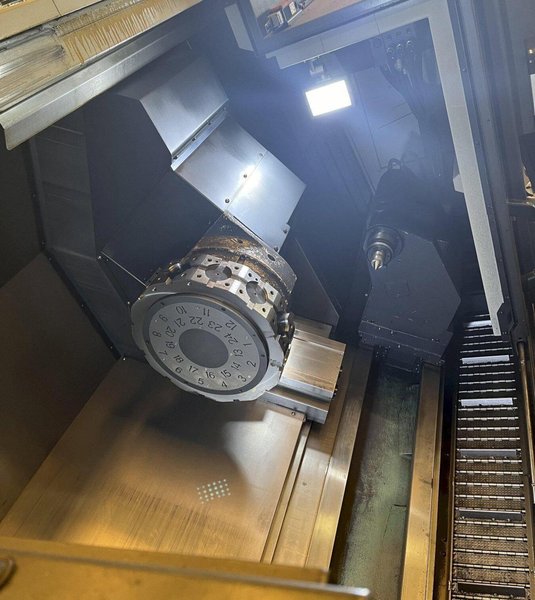

12 Station Live Tool Turret
Y Axis Capable
Tool Presetter
Tailstock
PCMCIA Card Interface
Coolant System
Chip Conveyor
Foot Switches

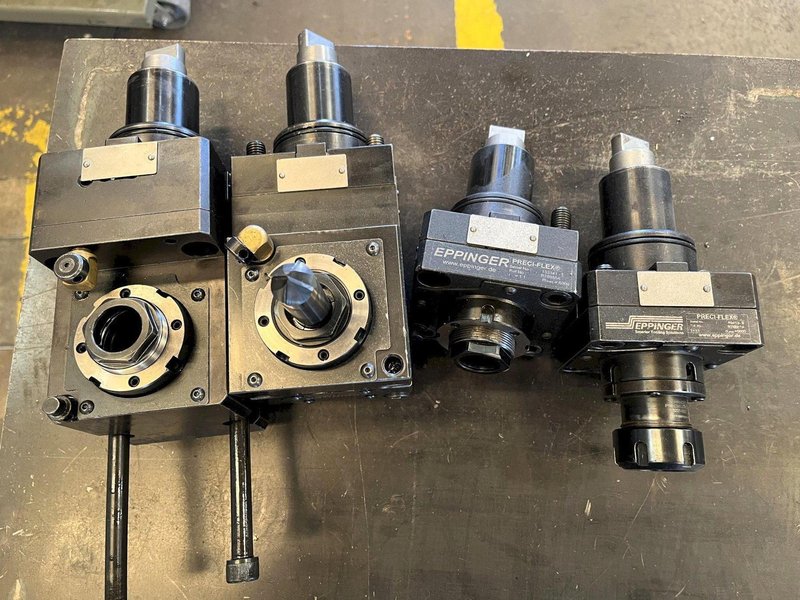

(2) Axial Live Tool Holders & (2) Radial Tool Holder (As shown in the images)
Specifications:
Max Turning Diameter: 16.5″
Max Turning Length: 50.6″
Swing Over Bed: 33.5″
Swing Over Saddle: 28.3″
Max Bar Capacity: 4.0″
Travel:
X Axis Travel: 11.5″
Z Axis Travel: 53.1″
Y Axis Travel: 5.1″ (- 2.6″ + 2.6″)
C Axis: 0.001 Degrees
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1181 IPM
Spindle:
Spindle Nose: A2-11
Spindle Bore: 4.5″
Spindle Speed: 3000 RPM
Spindle Motor: 30 HP
Turret:
Turret Capacity: 12 Stations (24 positions)
Turret Index Time: 0.15 Second
OD Tool Size: 1.0″
Boring Bar Diameter: 1.57″
Rotary Tool Speed: 5000 RPM
Rotary Tool Motor Power: 7.5 HP
Turret Type: BMT-65P
Tailstock:
Tailstock Taper: MT-5
Tailstock Quill Dia.: 3.9″
Tailstock Quill Travel: 4.72″
General:
Power:  200v – 220v / 3-Phase / 46.81 kva / 50/60 Hz
Overall Dimensions: 178″ x 82″ x 91″ High Approx.
Weight: 17,636 lbs Approx.
No files or videos to display
