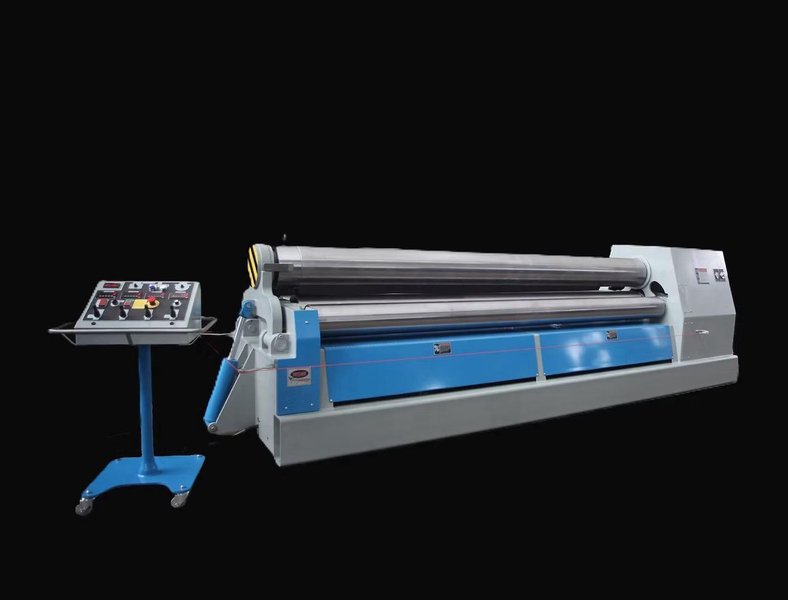

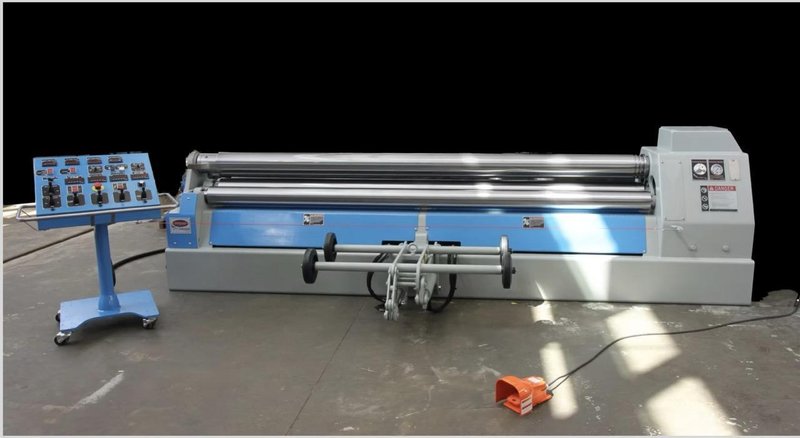

0.41″ x 8′ WDM 403-10-8 Plate Roll, 2025

Rated Capacity: 0.41″ (≈10.4 mm) mild steel, up to 8′ (2.44 m) width

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Top Roll Diameter: 10″ nominal

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Roll Material: Flame‑hardened/polished 1045 carbon steel, machined to ~63 µ″ finish

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Drive System: Hydraulic LSHT motors; 2‑roll drive with hydraulic instant start/stop/reverse

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Motor Power: 10 HP, TEFC, 230/460 V, 3‑phase

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Roll Speed: Infinitely variable, 0–22 ft/min

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Controls: Beta 4 pendant or auto 4.2 console (3 digital readouts for lower rolls)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Safety & Construction:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,NEMA 12 electrical cabinet, NFPA 79 compliance

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,SKF spherical bearings

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Safety cable perimeter, hydraulic drop‑end support

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Weight: ≈14,200 lb (6,440 kg)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Other add ons available

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
