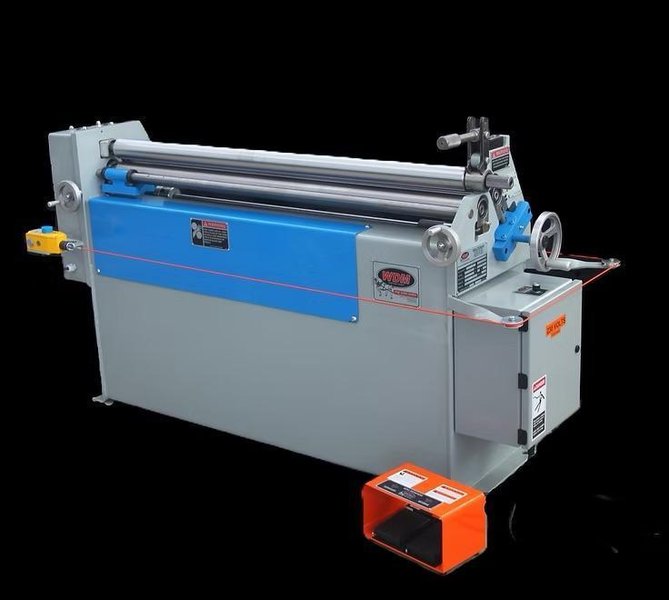

18 Gauge x 4′ 310-3-48 WDM Plate Roll, 2025

Capacity: 4′ x 18 Ga. Diameter Of Rolls: 3 Rolling Speed: 20 FPM

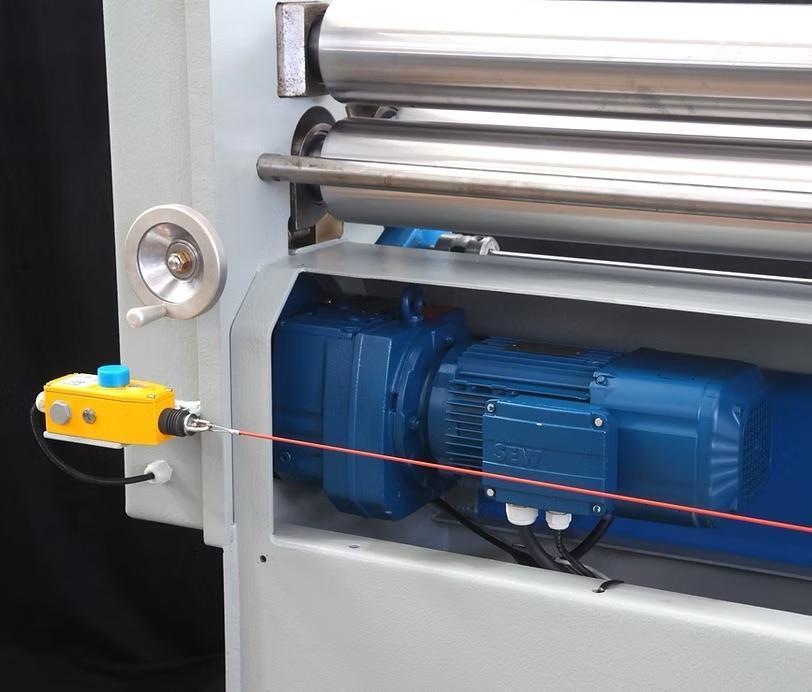

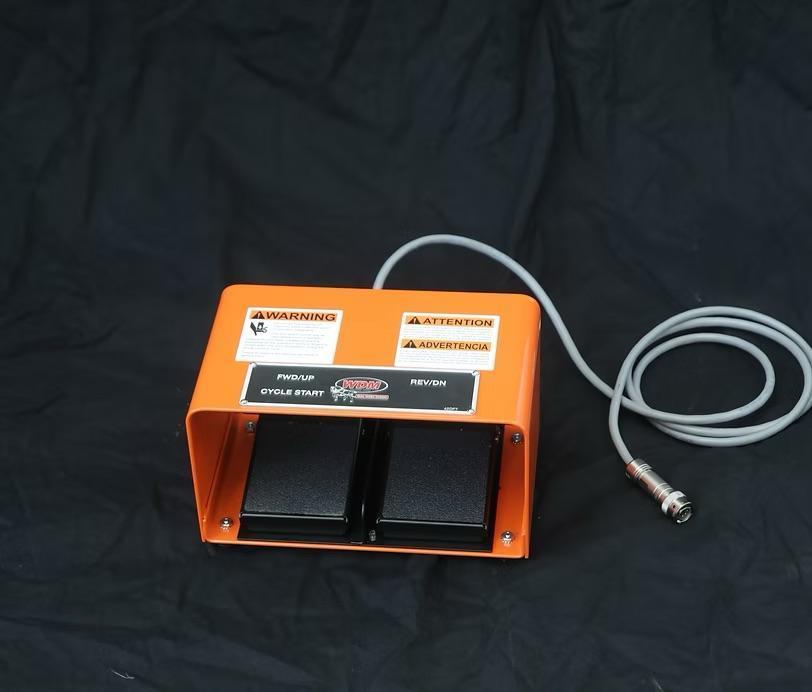

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Minimum Rolling Diameter: Approximately 14 inches – Motor: Electric helical gear motor with holding brake – Power Requirements: 230/460V, 3-phase, 60Hz – Control Circuit: 24VDC – Construction: All-welded steel frame with sealed ball bearings – Safety Features: Emergency stop cable on three sides, guarded foot switch – Rolls: 1045 steel, crowned, machined to T63 micro-inch finish

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions: 68″ L × 29″ W × 40″ H Weight: Approximately 1,000 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
