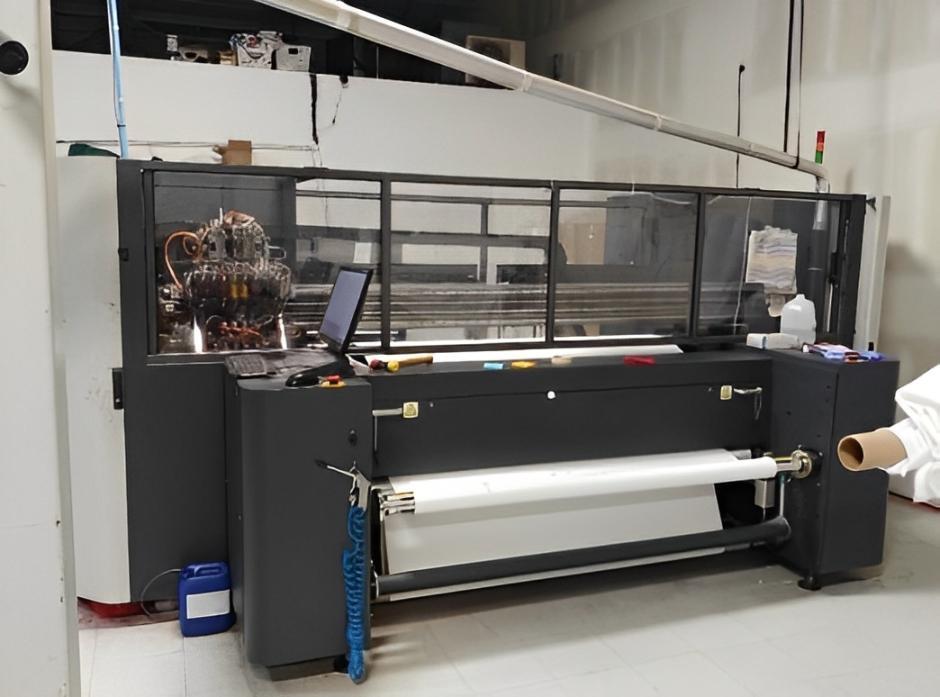

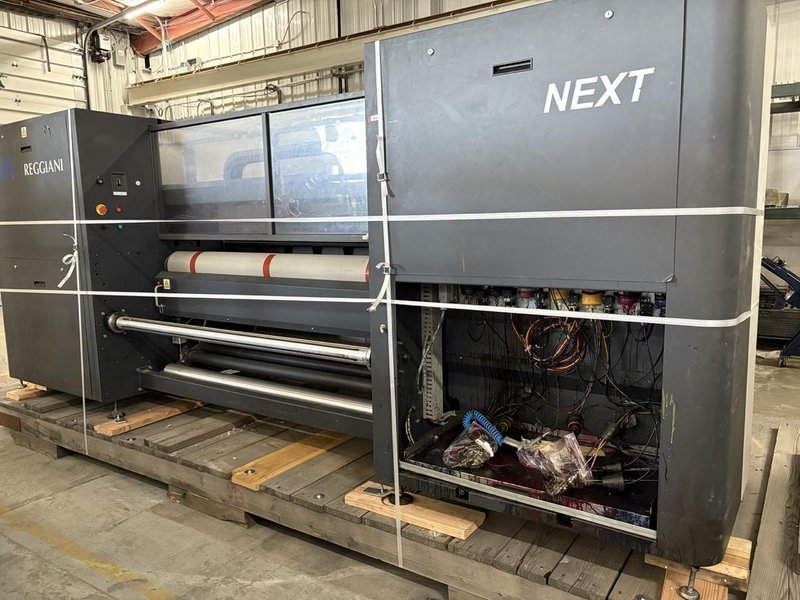

EFI Reggiani ReNoir Next 180 Digital Textile Printer, 2016

Temperature 68-75A Deg F (20-24A Deg C) Print Width Prints up to 70 in (180 cm) wide Fabric Weight From 28 to 140 gr/m2 Exit Standard roll unwinder/rewinder up to 17.5 in (450 mm) outside diameter Dryer Heated platen Entry Standard roll unwinder/rewinder up to 17.5 in (450 mm) outside diameter Maximum Resolution Up to 2,400 dpi Production Speeds Up to 4,305 ft2 (400 m2) per hour (max.) Production Image Quality 2,152 ft2 (200 m2) per hour POP Image Quality 1,420 ft2 (132 m2) per hour File Formats All popular desktop file formats, including PostScriptA 3TM, EPS, TIFF, PDF, RGB/CMYK Humidity 50-60% Weight 6,613 lbs (3000 kg) Dimensions (L x W x H) 9 90 in x 178 in x 71 in (230 cm x 454 cm x 180 cm) Printer Electrical 3 Phase, 400V, 50Hz, 35kW Water Pressure Min. 22 psi (1.5 bar); Max. 29 psi (2 bar) Water Volume 1.3 gallons (5 liters) per hour Water Temperature 68-77 A Deg F (20-25 A Deg C) Inks Water based CMYK dispersed dye inks

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
