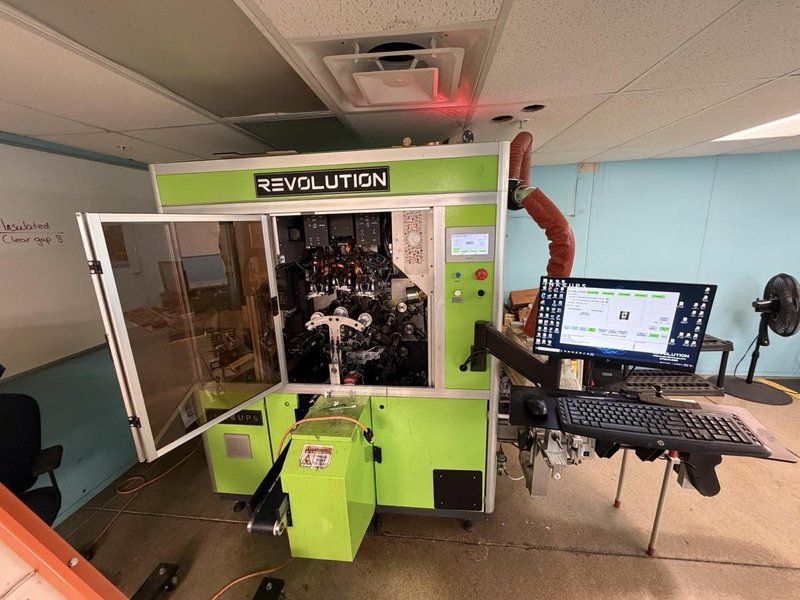

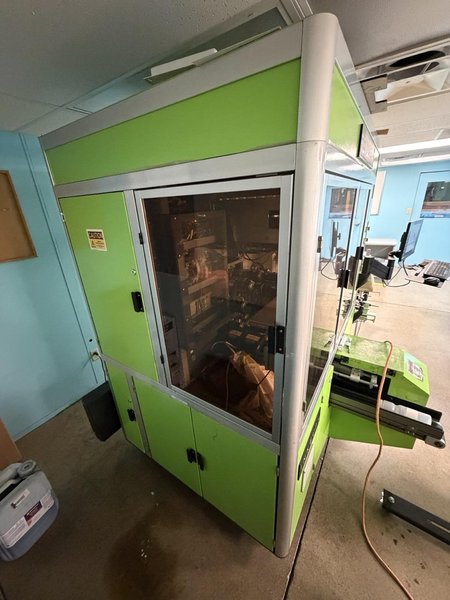

Inkcups REVOLUTION High Speed Industrial UV Ink Jet System, 2019

Print Type: Open-Ended Cylinders And Tapered Vessels Production Rate: Up To 600 Parts Per Hour Part Diameter Range: 2.0″ – 4.5″ Maximum Taper Angle: 10° Cylinder Length Range: 3.0″ – 12″ Standard Print Length: Up To 4.25″ Extended Print Length: Up To 8.66″ Curing Length: 4.33″ Maximum Resolution: 1200 DPI × 1200 DPI Ink Colors: White, Cyan, Magenta, Yellow, Black, Varnish Machine Dimensions (L × W × H): 107″ × 47.2″ × 74″ Power Requirement: 3-Phase 380/220 VAC or Single-Phase 220 VAC

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Servo-Driven Printing System Patented Helical Imaging Engine Automatic Load / Unload System Programmable Angle Adjustment Integrated Corona Treatment System Integrated Vacuum Tooling System Mechanical Turret Indexing System Mechanical Indexing Infeed Conveyor 12 Vacuum Mandrel Tooling Fixtures UV LED Pin And Final Cure System Bulk Ink System Helix / Revolution Software Package All Available Manuals

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
