ErectorBot EB12105HD 4-Axis Hybrid Multi-Head 3D Printing System, 2025 – 10′ x 5′ Gantry

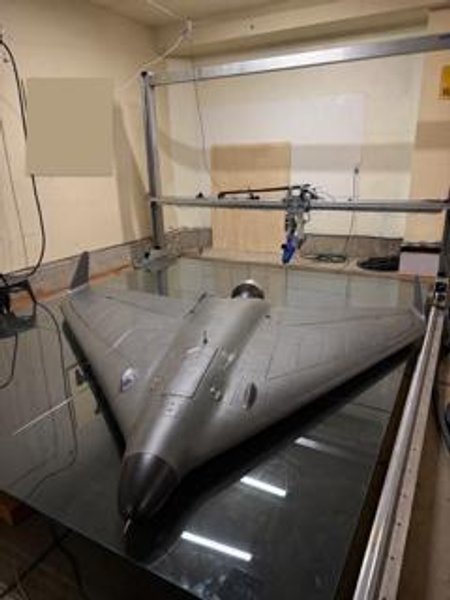

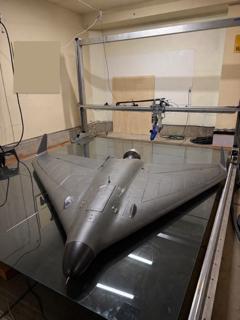

ErectorBot Model EB12105HD large-format additive manufacturing system, manufactured in 2025. This 4-axis hybrid multi-head CNC 3D printing platform features a 10′ x 5′ standard two-carriage gantry, complete 12′ X-axis rails, CNC/Arduino 9-axis control center, Blue Zircon Blaster 3/8″ pellet extruder with hot cup, and non-heated base. Includes two 75 mm brass high-flow nozzle kits, integrated pre-programmed Intel-PC server/workstation kiosk, LED HDMI monitor, and installed application-tailored software.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Manufacturer: ErectorBot, Inc.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Model: EB12105HD

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Year: 2025

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine type: Large-format gantry 3D printing / additive manufacturing system

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Motion configuration: 4-axis CNC hybrid multi-head system

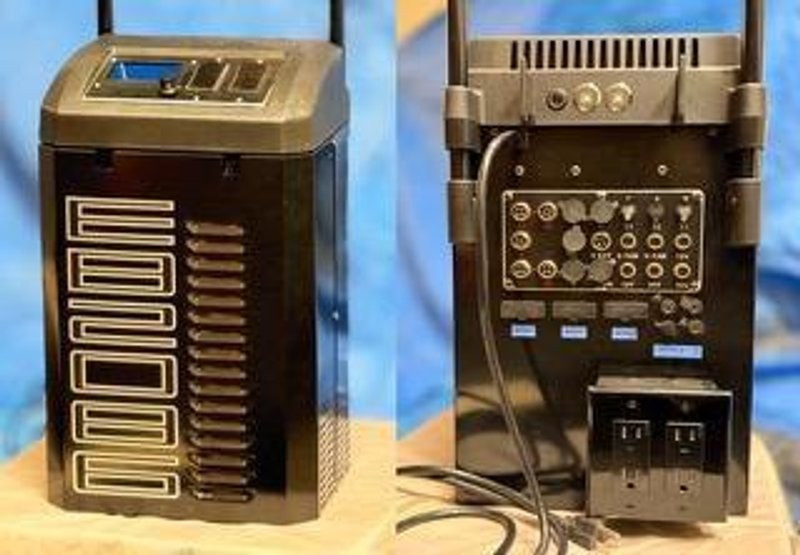

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Controls: CNC / Arduino with 9-axis control center

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Operating mode: Multi-head HD mode with legacy-mode capability

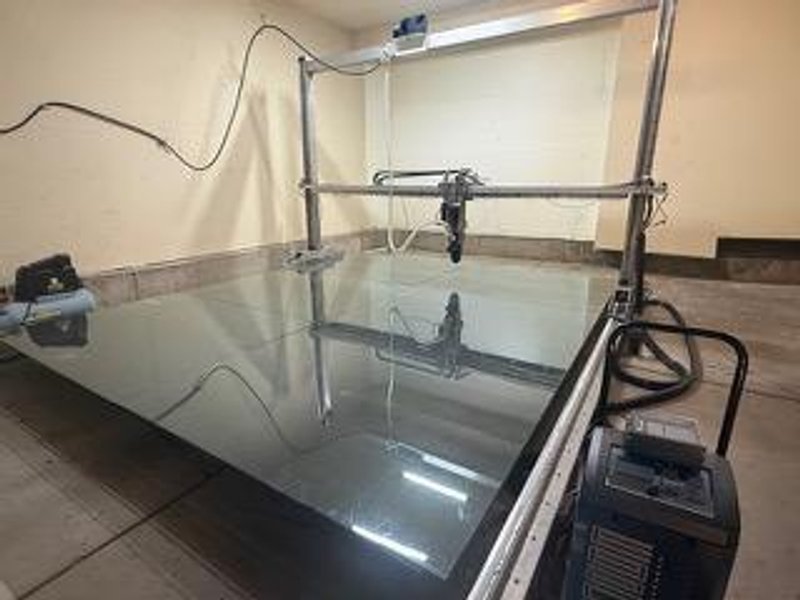

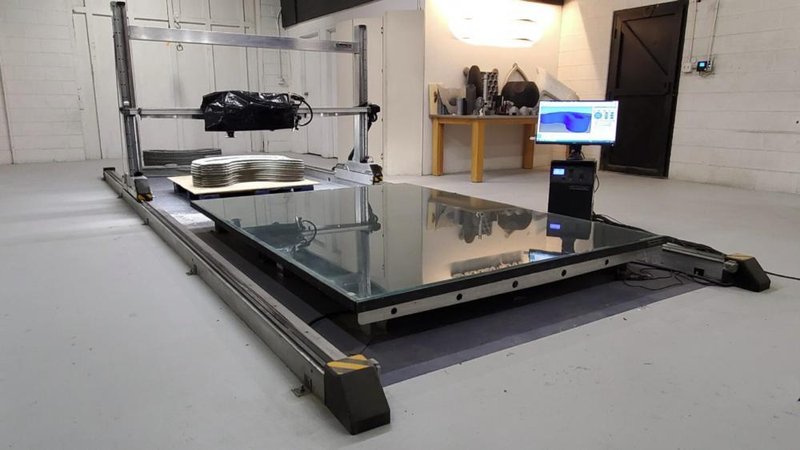

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Gantry configuration: 10′ x 5′ standard gantry with two carriages

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,X-axis rail system: 12′ complete X-axis rails

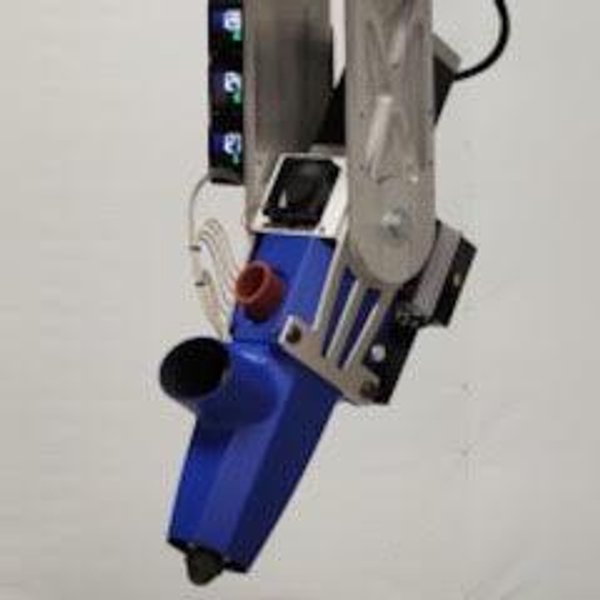

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Extruder: Blue Zircon Blaster pellet extruder

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Extruder size: 3/8″ pellet extruder with hot cup, identified as experimental

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Base: Non-heated base

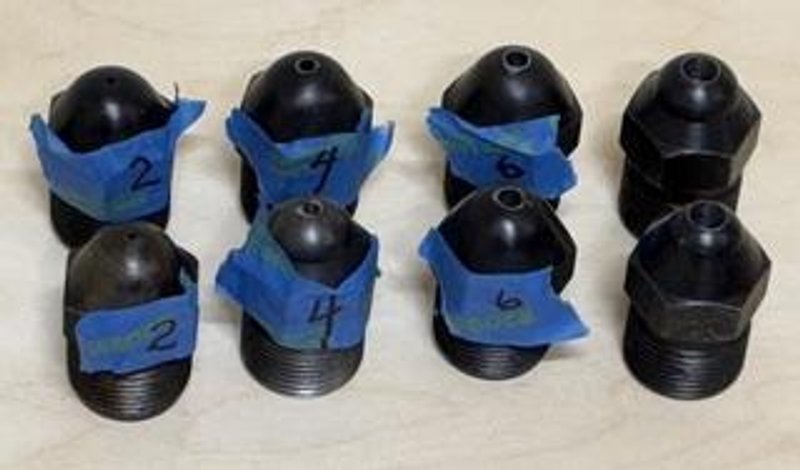

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Nozzle kits: Includes (2) high-flow nozzle kits

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Nozzle material and size: 75 mm brass nozzles

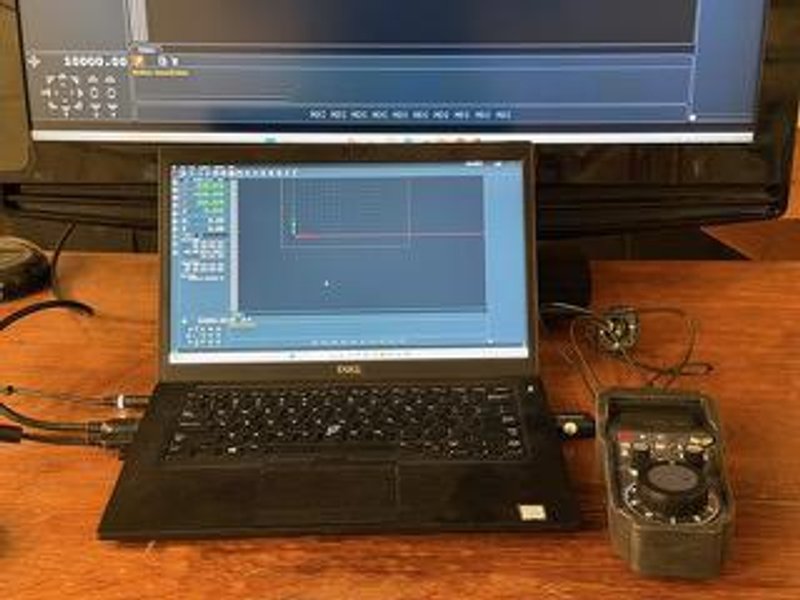

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Operator terminal: Integrated server/workstation/kiosk terminal

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Computer: Pre-programmed Intel PC

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Monitor: LED HDMI monitor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Software: Installed and tailored for the purchaser’s process/application needs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Remote capability: Remote support/server setup for customer workflow

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrical: 110 V listed for multi-head / Arduino legacy mode

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Included: Machine accessories, gantry, two carriages, complete X-axis rails, pellet extruder, two high-flow nozzle kits, control center, integrated workstation, Intel PC, and monitor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
