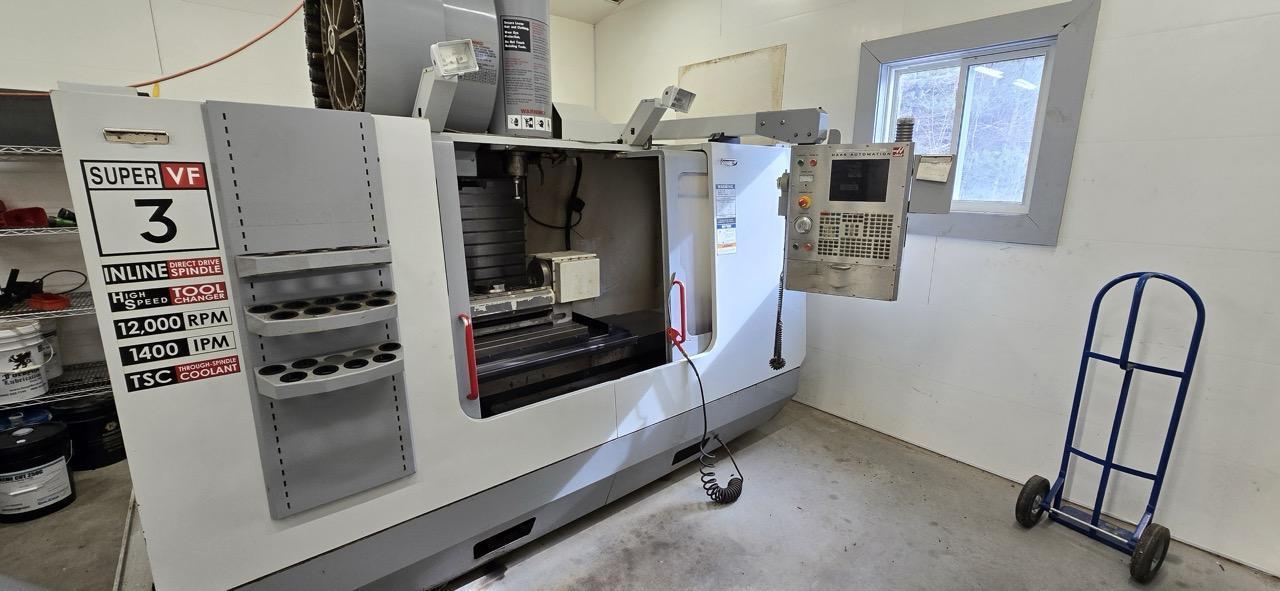

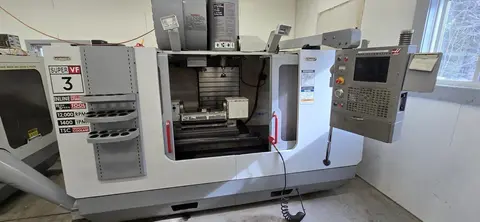

Haas VF-3SS VMC, 2005 – 5 Axis w/ Haas Rotary, TSC
Brand
Category
Model
VF-3SS
Stock #
338264
Year
2005
Condition
Not specified
Location
Not specified
|
X-Axis Travel: 40”
Y-Axis Travel: 20″
Z-Axis Travel: 25″
Tool Changer: 24 ATC
Spindle Taper: CAT 40
Max Tool Diameter: 3.0”
Tool to Tool / Chip to Chip: 1.6 sec / 2.2 sec
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Table Size: 48″ x 18”
Maximum Weight on Table: 1,750 lbs
Max Torque: 75 ft-lb @ 2,100 RPM
Feedrate Rapid on (X,Y,Z): 1400 IPM
Max Cutting Feedrate: 833 IPM
Approx. Machine Dimensions: 118” x 110” x 119.5”
Approx. Machine Weight: 12,5000 lbs

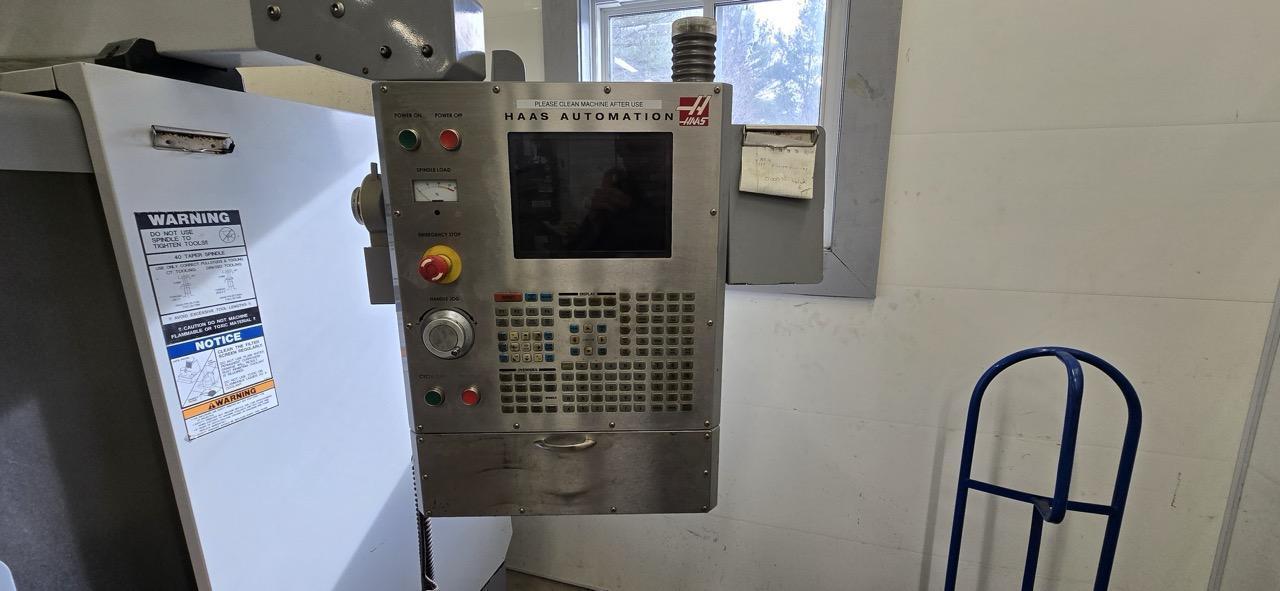

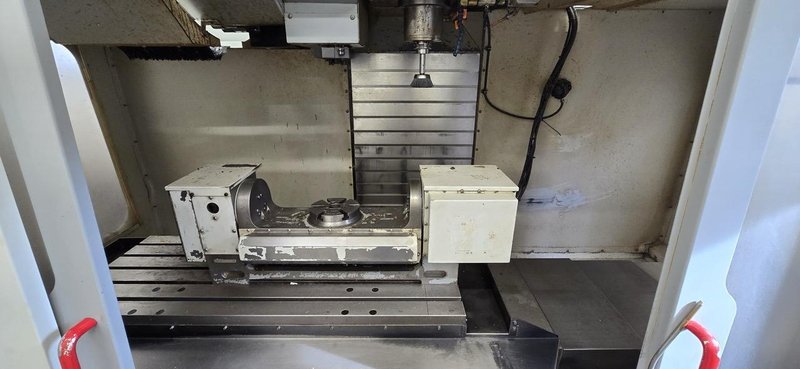

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Haas CNC Control Haas TR-160 Rotary Table Chip Auger Through Spindle Coolant All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
