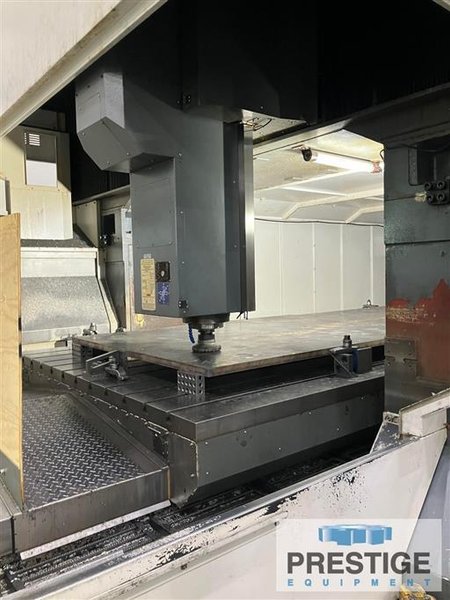

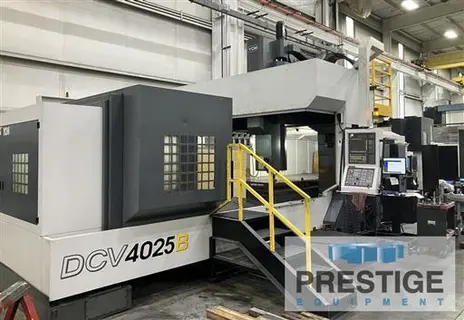

YCM DCV 4025B CNC BRIDGE TYPE MACHINING CENTER

SPECIFICATION:
Tabel Travel, X-Axis 160"
Head Cross Travel 98"
Ram Stoke, Z-Axis 40"

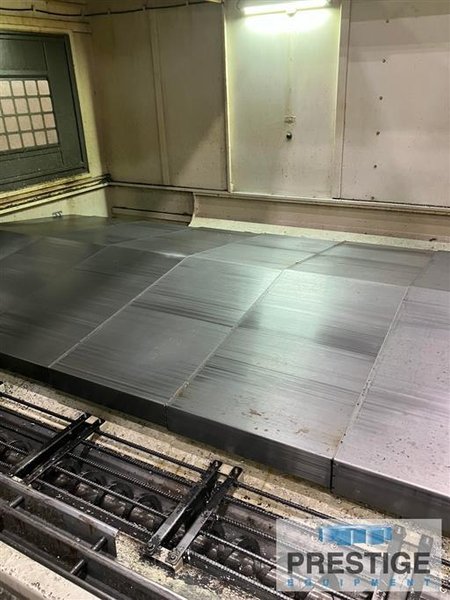

Table Size 158" x 94.5"
Table Weight Capacity 44,092 LBS.
Feed Rate, X,Y Z 472/591/591 IPM
Feed Rates, 0.04~394 IPM
Spindle Speeds, Max 4500 RPM
Spindle Drive 25/30 HP
Spindle Taper CAT 50
Automatic Tool Chnager 120 ATC
Distance Between Columns 107.9"
Max Tool Weight 44.1 Lbs.
Max Tool DImensions 4.92" x 13.78"
Spindle Nose to Table Top 7.87~47.87"
Machine Weight 101,412 Lbs.
Machine Electrics, Volts 440/220



Equipped With:

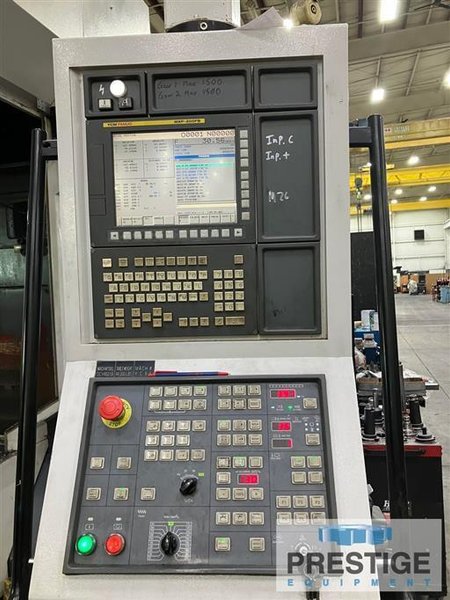

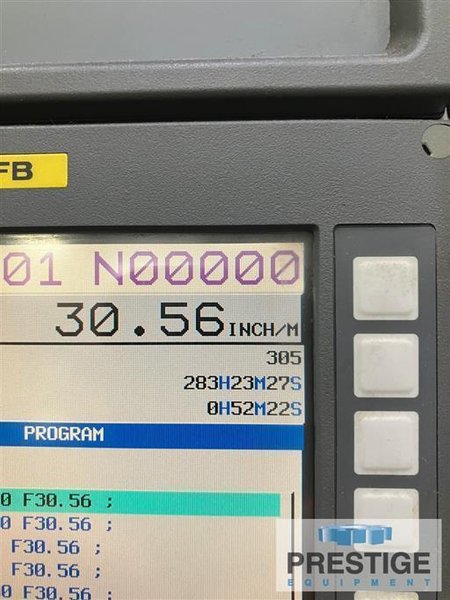

MBX 200FB (FANUC 31i)CNC Control

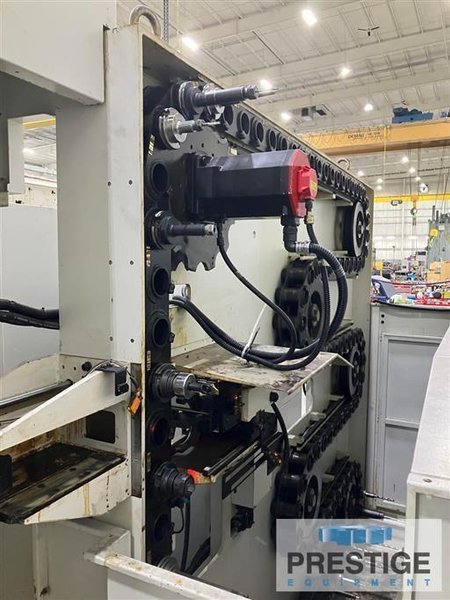

120-Station Automatic Tool Changer
Through Spindle Coolant
Ethernet
High Speed Machining
Data Server
Spindle Chiller
Spindle Thermal Compensation
Random Method Tool Selection on ATC
Chip Conveyor
