2012 YCM DCV 4025B | Machining Centers, Gantry (incld. Bridge & Double Column)

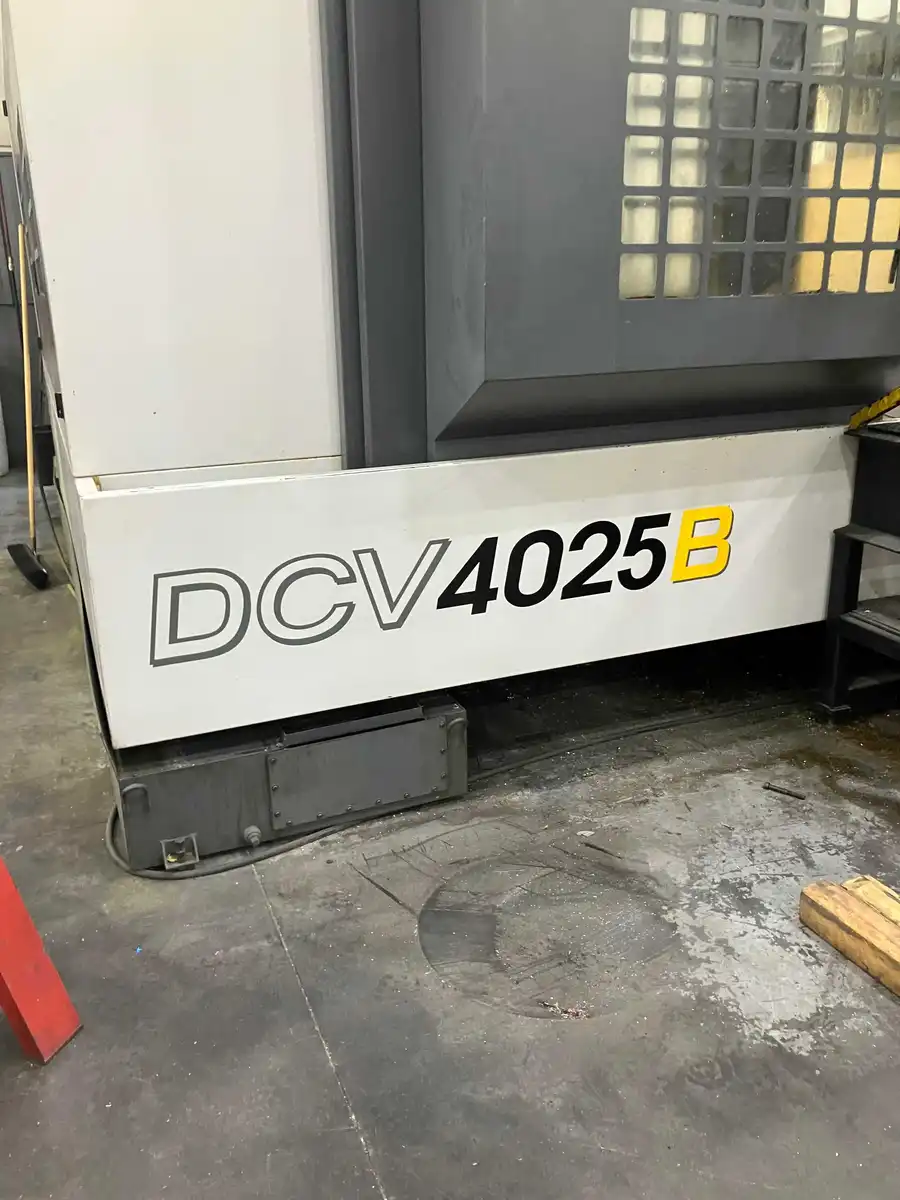

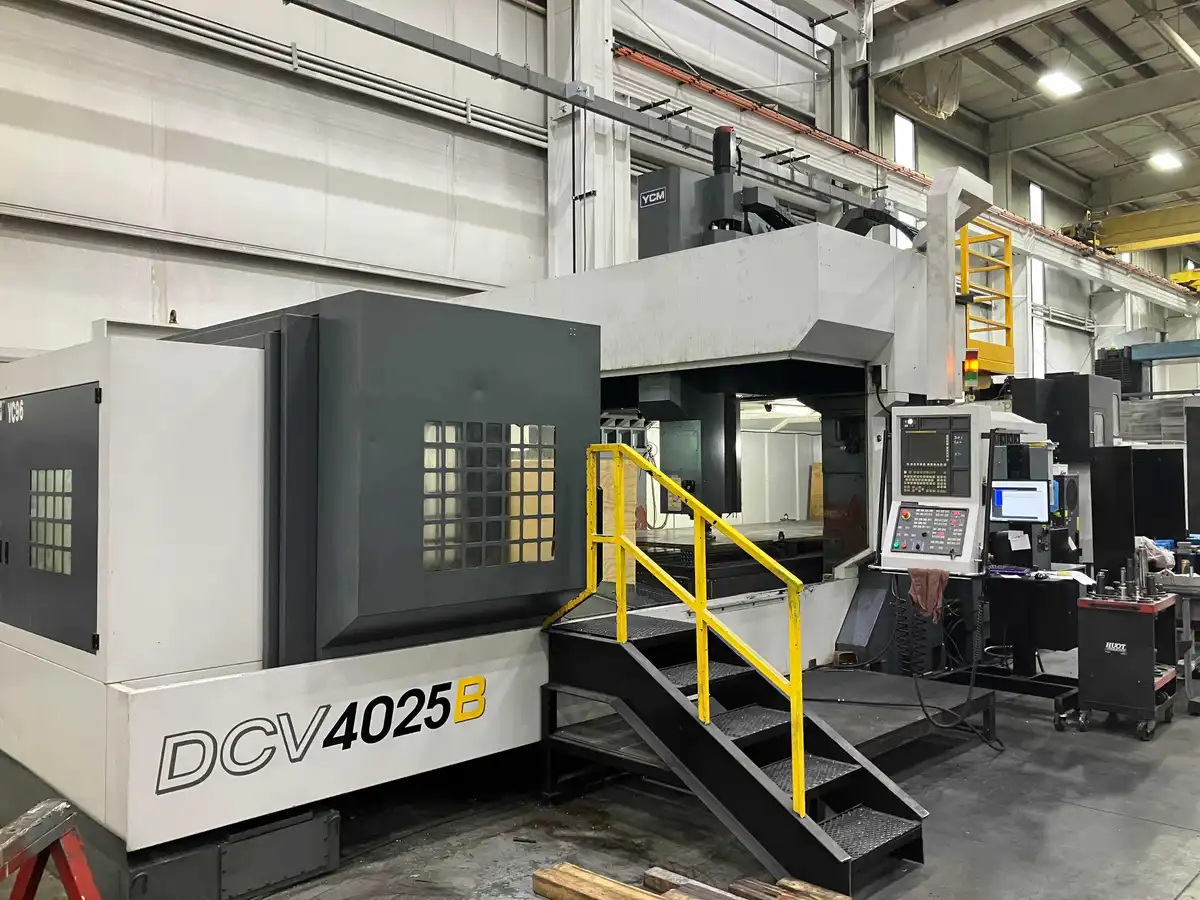

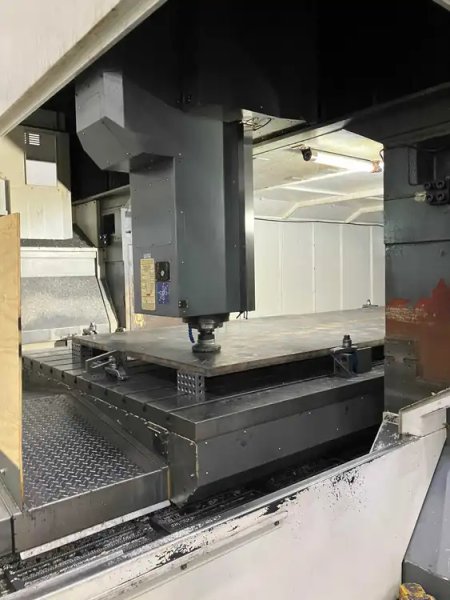

YCM DCV 4025B CNC BRIDGE TYPE MACHINING CENTER
NEW-2012

SPECIFICATIONS:

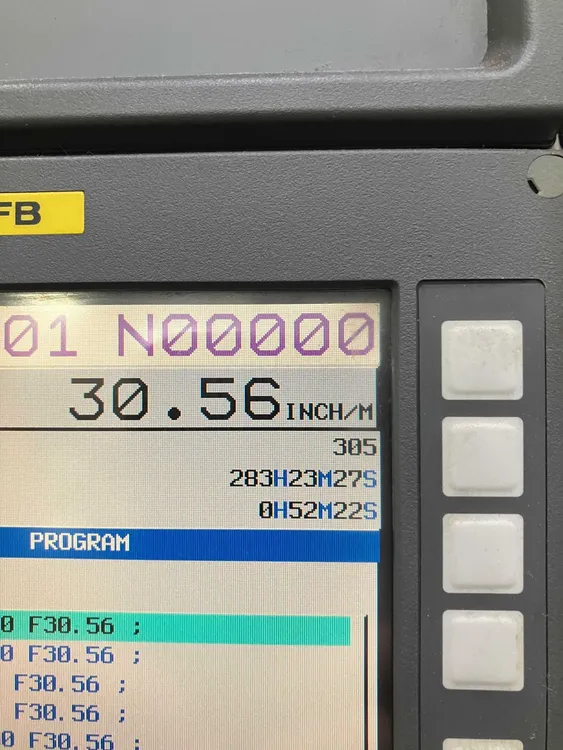

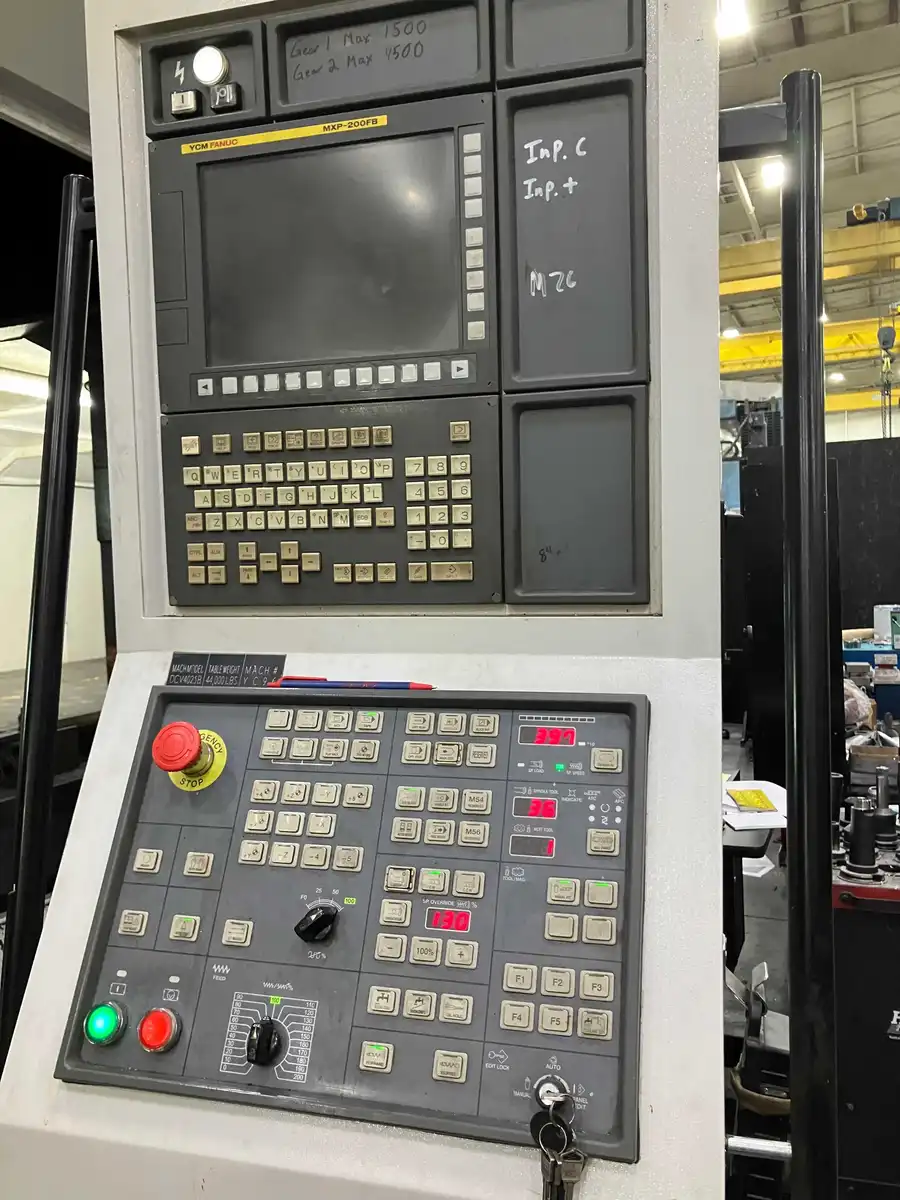

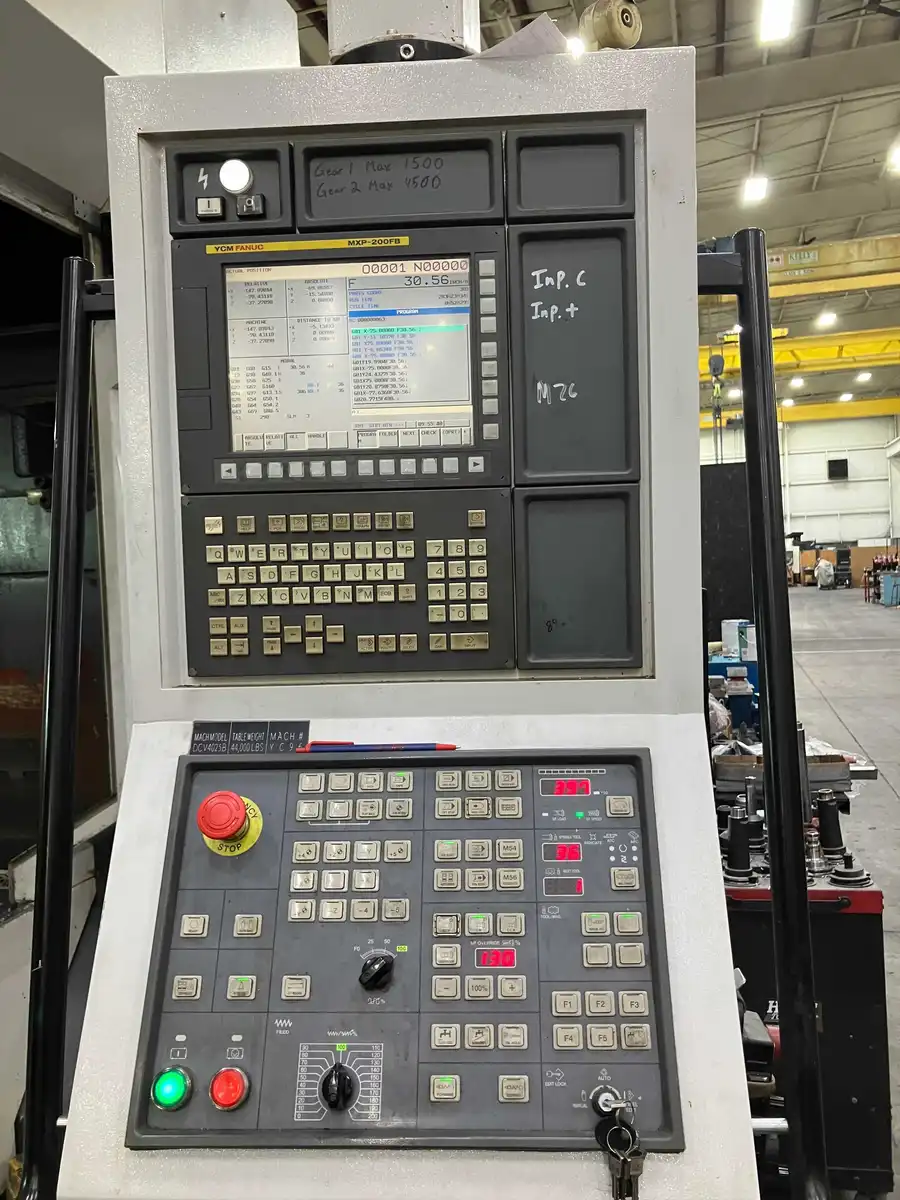

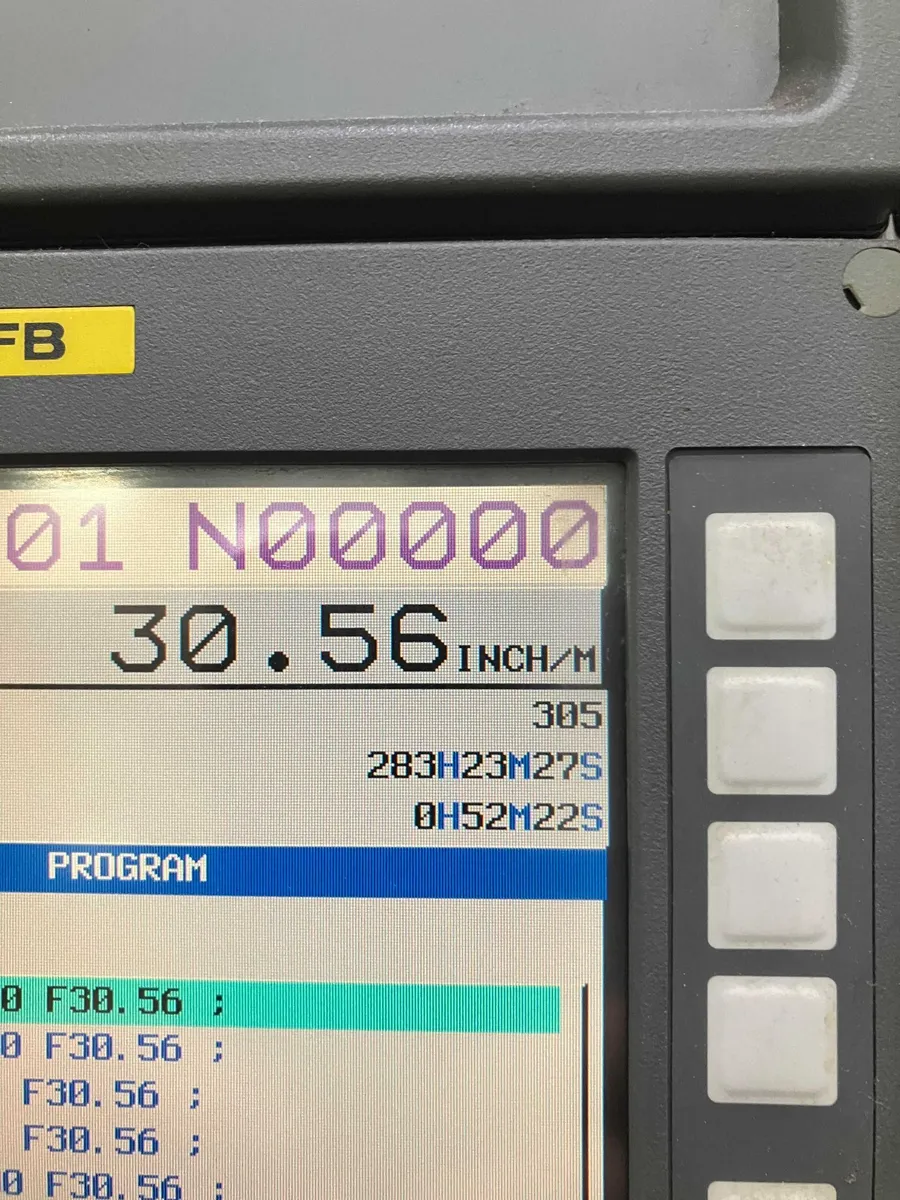

CONTROL: MBX 200FB (FANUC 31i)

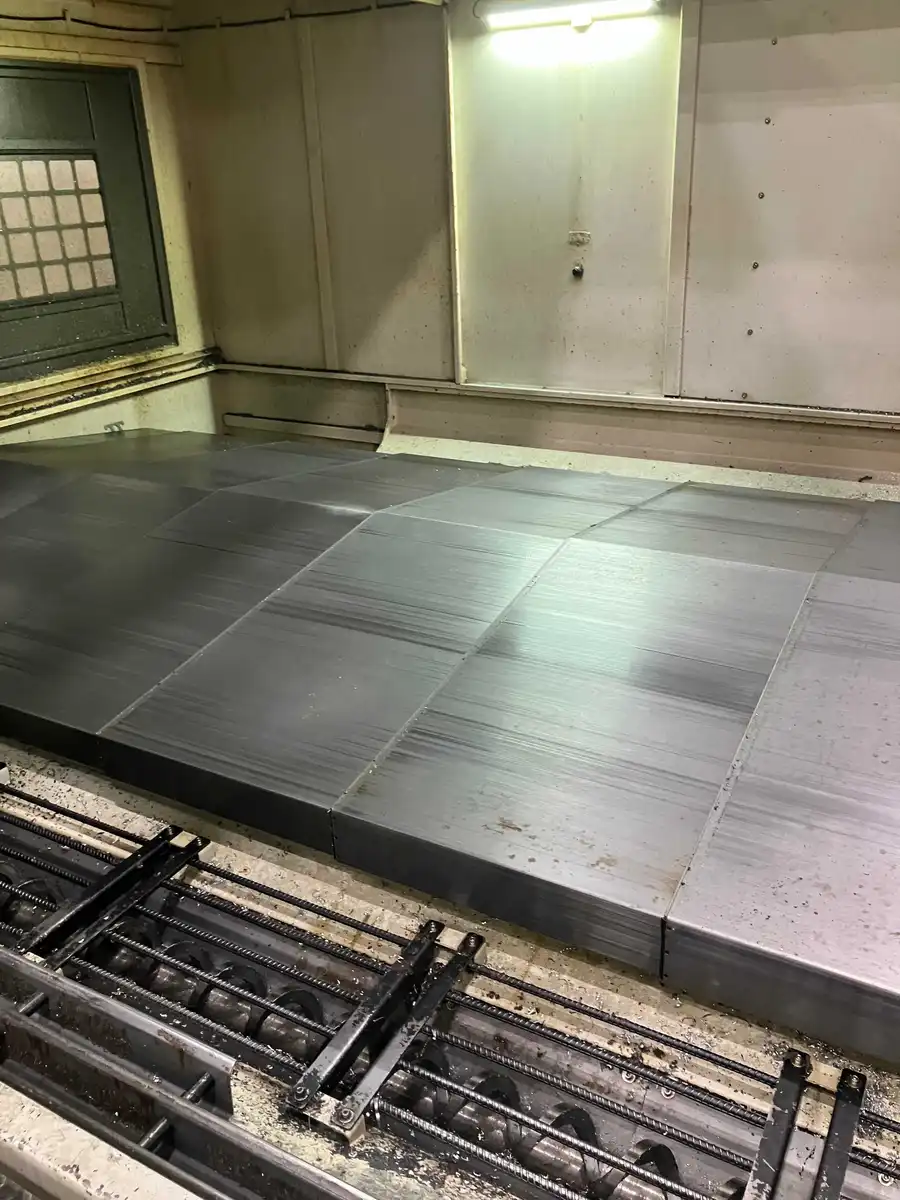

TABLE SIZE.................................: 158" x 94.5"
TABLE WEIGHT CAPACITY .....................: 44,092 LBS.
LONGITUDINAL TRAVEL (X)....................: 160"
CROSS TRAVEL (Y)....................: 98"
VERTICAL TRAVEL (Z)....................: 40"
FEED RATE X, Y, Z .........................: 472/591/591 IPM
CUTTING FEED RATE .........................: 0.04~394 IPM
SPINDLE SPEEDS.............................: TO 4500 RPM
SPINDLE DRIVE..............................: 25/30 HP (18.5/22 kw)
SPINDLE TAPER..............................: CAT 50

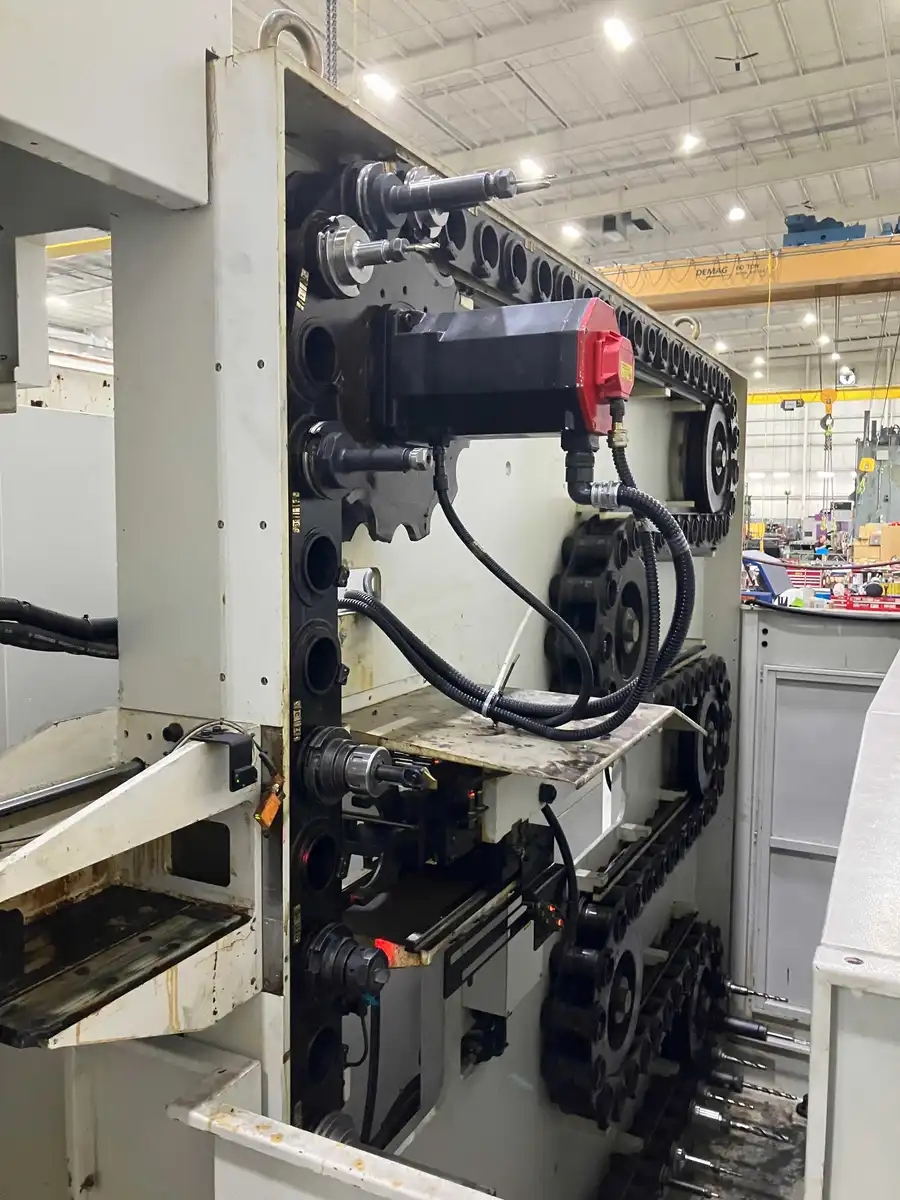

TOOL CHANGER ..............................: 120 ATC
DISTANCE BETWEENS COLUMNS..................: 107.9"
MAX. TOOL WEIGHT ..........................: 44.1 Lbs.
MAX. TOOL DIMEMSIONS ......................: 4.92" x 13.78"
DISTANCE BETWEEN SPINDLE NOSE & TABLE TOP..: 7.87~47.87"
GROSS MACHINE..............................: 101,412 Lbs.

EQUIPPED WITH:
ELECTRICS-220/480
COOLANT THROUGH SPINDLE

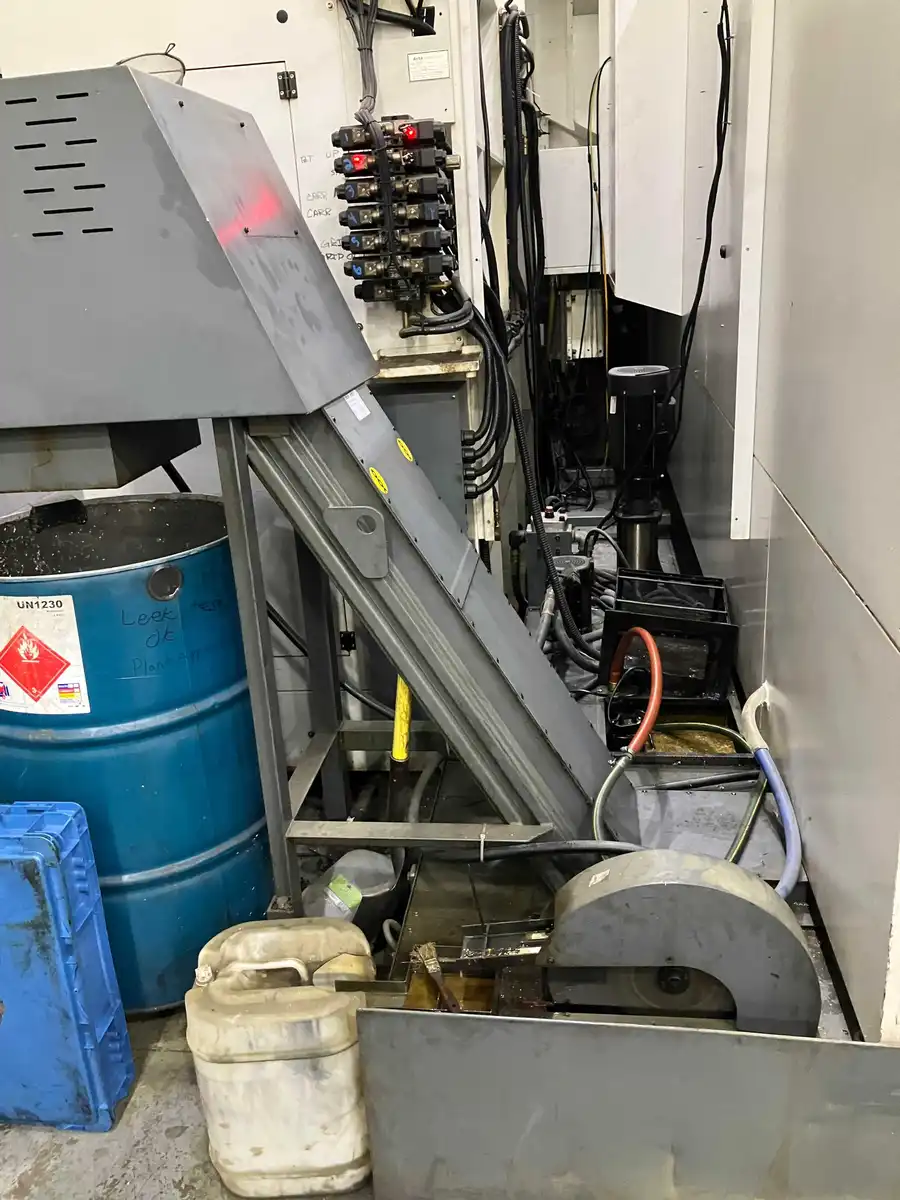

CHIP CONVEYOR
CHILLER UNIT
ETHERNET
HIGH SPEED MACHINING
DATA SERVER
SPINDLE THERMAL COMPENSATION
3 ROLLER TYPE GUIDE WAY FOR Y AXIS
HARDENED AND GROUND BOX WAY Z AXIS
TOOL SELECTION RANDOM METHOD
