FETURES:

Fanuc 200FB CNC Controls60-Station Automatic ToolchangerAutomatic Attachment Changer90 Degree Auto Indexing Right Angle Head (Rebuilt Recently)High Torque SpindleFull Chip Enclosure with Roof2GB Data ServerHigh Speed Skip Function250 MM Additional Column HeightHeidenhain Scales on X, Y & ZThrough Spindle Coolant with FiltrationSpindle Load CompensationMarposs Gauge Tool Laser MeasurementRenishaw Touch ProbeChip ConveyorSpindle ChillerSteel Sliding Way CoversSpecifications:

Table Travel, X-Axis 220"
Ram Cross Travel, Y-Axis 120"
Ram Stroke, Z-Axis 40"

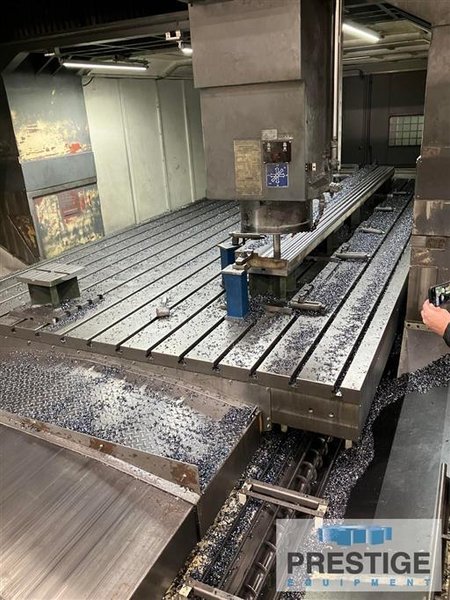

Table Size 236.22" X 118.11"
Distance Between Columns 122"
Spidnle Nose to Table, Max 50.63"
Spindel Nose to Table, Min 20.63"
Spindle Speeds, Max 6000 RPM
Spindle Ranges, Geared 2
Spindle Taper CAT #50
Feed Rates X,Y,Z AXES .04-394 IPM
Table Load Capacity 55,110 LBS
Machine Weight 153,000 LBS

Equipped With:

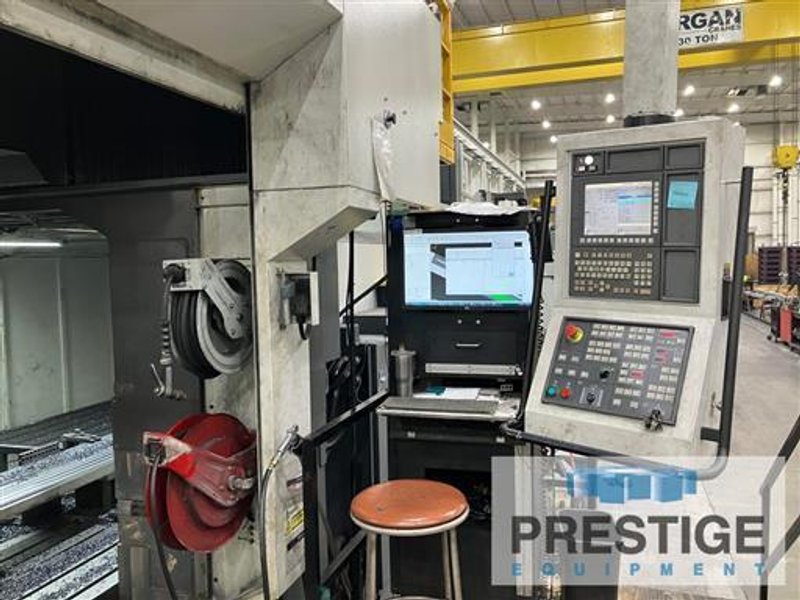

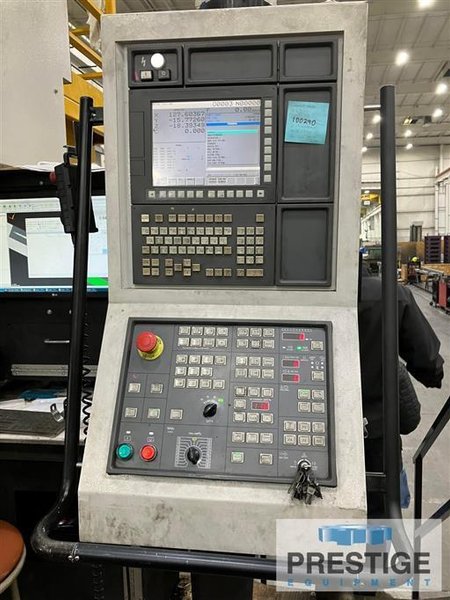

Fanuc 200FB CNC Controls
60-Station Automatic Toolchanger
Automatic Attachment Changer

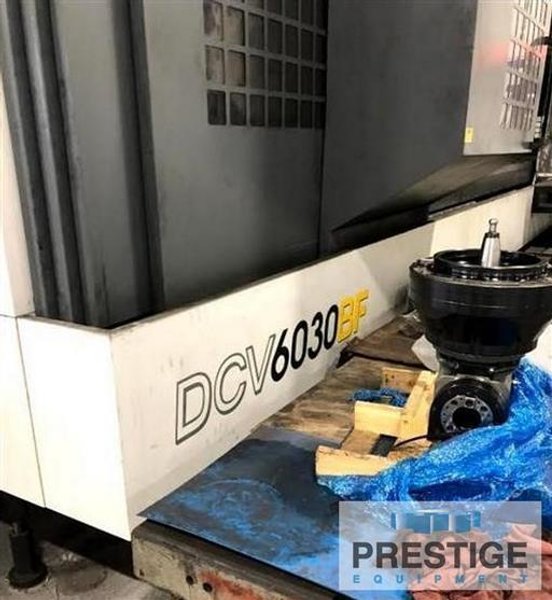

90 Degree Auto Indexing Right Angle Head (Rebuilt Recently)
High Torque Spindle
Full Chip Enclosure with Roof
2GB Data Server
High Speed Skip Function
250 MM Additional Column Height
Heidenhain Scales on X, Y & Z
Through Spindle Coolant with Filtration
Spindle Load Compensation
Marposs Gauge Tool Laser Measurement
Renishaw Touch Probe
Chip Conveyor
Spindle Chiller
Steel Sliding Way Covers


Note:

Under Power In Midwest Plant!
