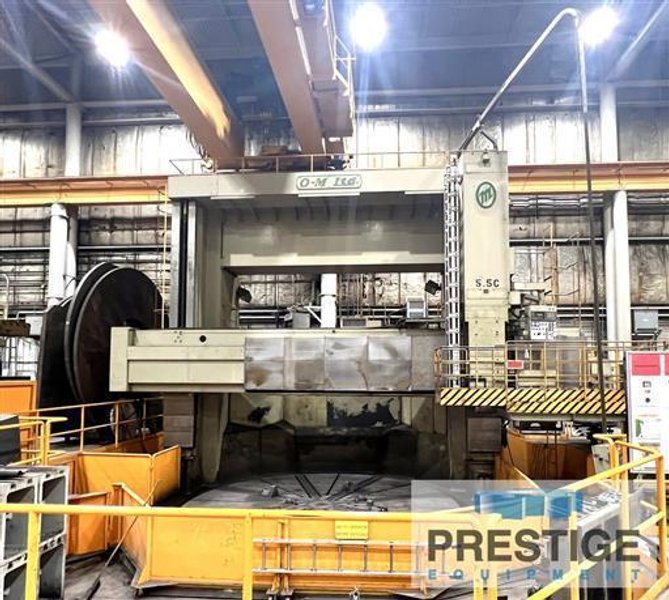

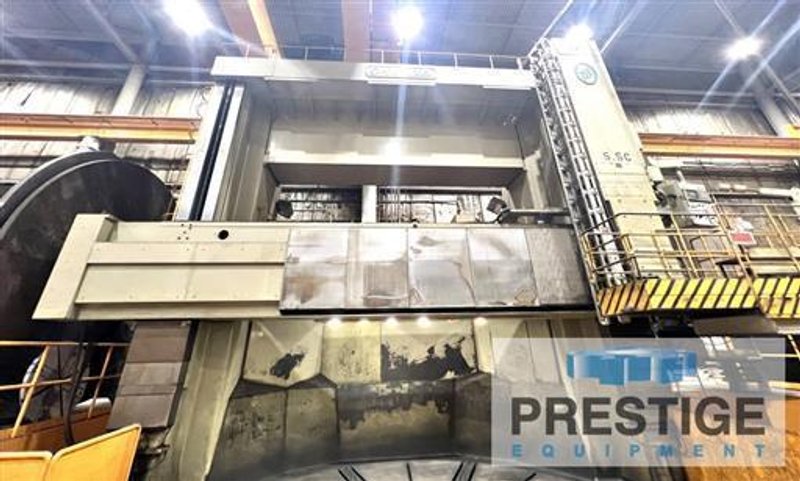

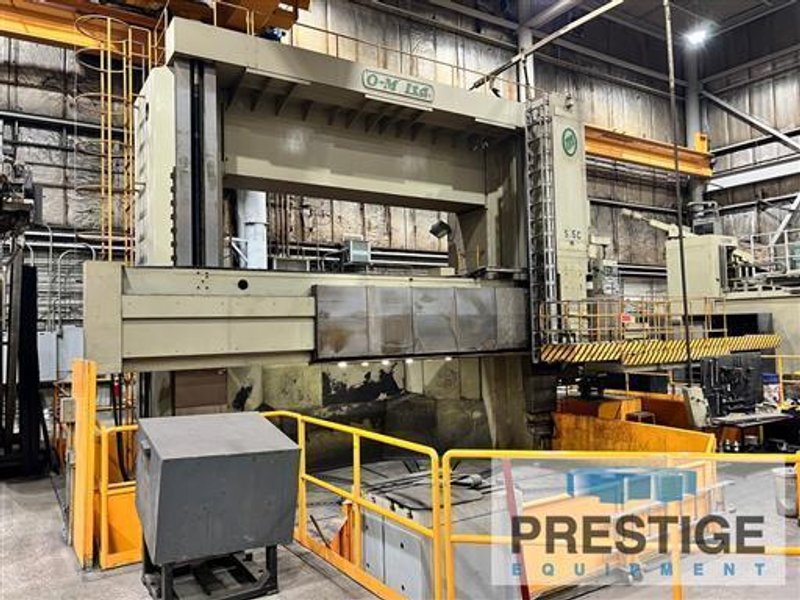

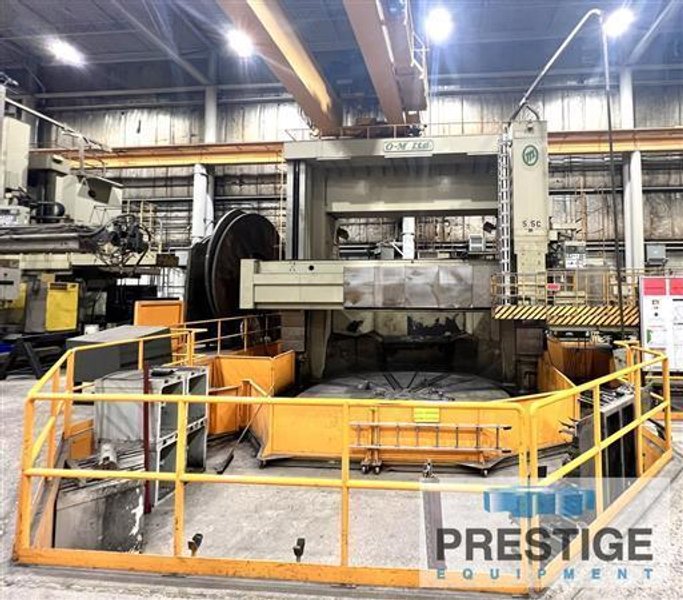

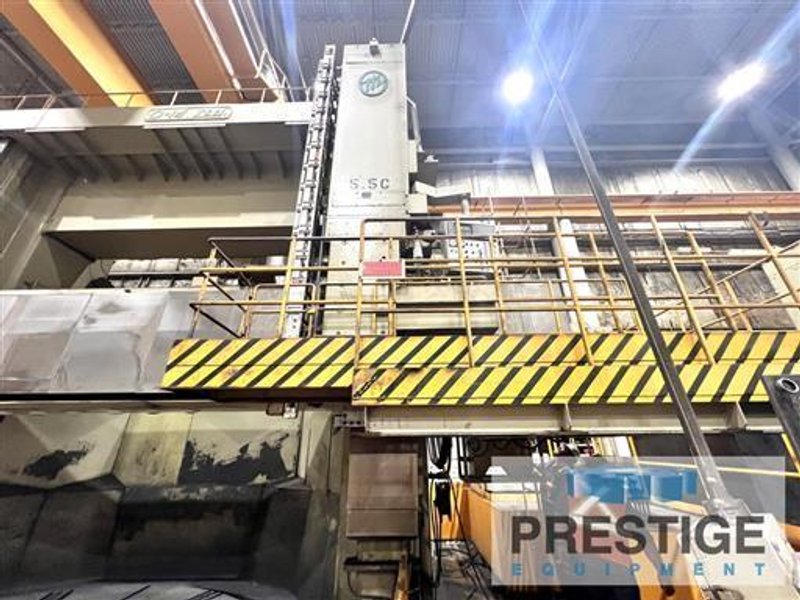

216" O-M Ltd. TMD 55/60 Vertical Boring Mill

CAPACITY:
Table Diameter 216.53"
Maximum Turning Diameter 236.22"
Maximum Turning Height 145.66"
Horizontal Travel of Rail Head 175.19"
Vertical Travel of Cross Rail 125.98"
Ram Stroke 82.67"
Ram Cross Section 11.02" x 11.02"
Table Speed (3- Ranges) .3-45 RPM
Table T-Slots (Nominal)................ 1.65" 1.65"
Table Weight Capacity 132,277 Lbs
Table Motor 80 HP / 100 HP



Equipped With:

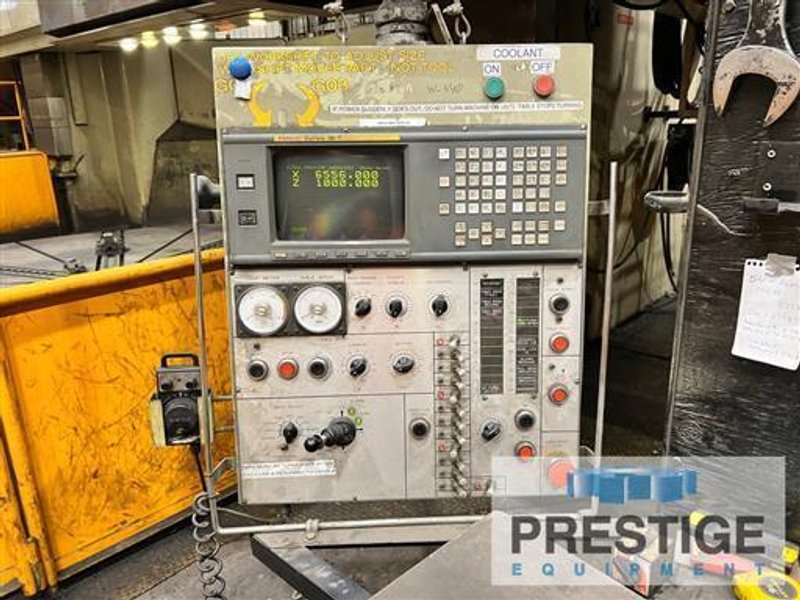

Fanuc 18-TB CNC Control
Dual Operator Controls

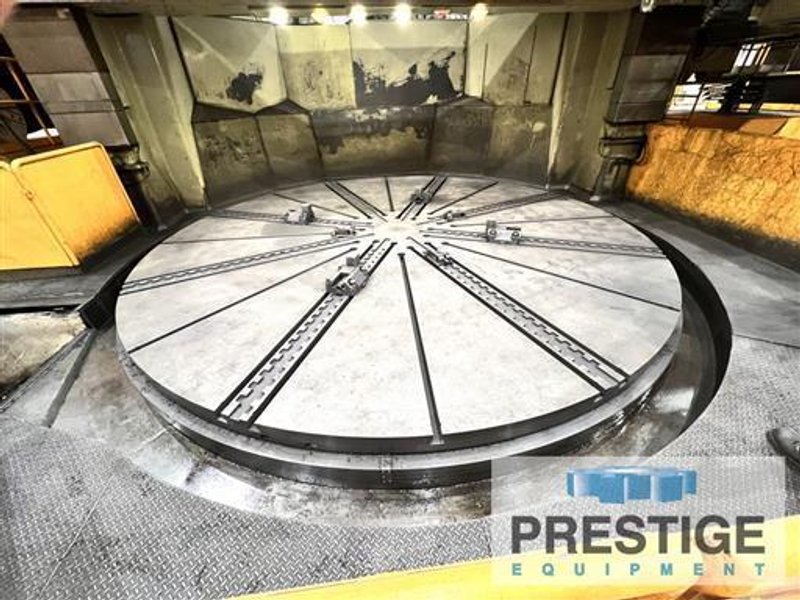

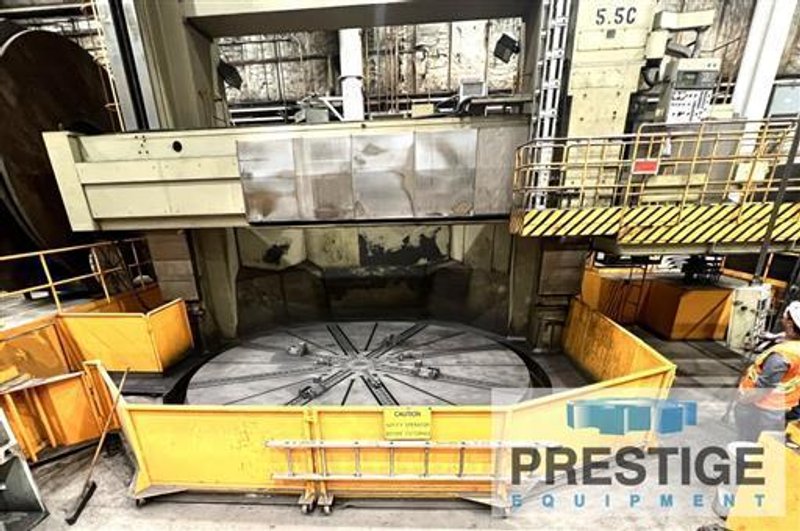

T-Slotted Table with (4) Face Plate Type Jaws
Vertical Ram with Tool Block Holder
Thread Cutting Cycle Retract
Constant Surface Speed Control
Inch / Metric Conversion
Chamfering / Corner Rounding
Tool Nose Radius Compensation
Tool Geometry / Wear Compensation
Stored Pitch Error Compensation
Independent Operator Platform and Lift
Steel Sliding Way Covers
100 HP Table Drive


NOTE: Excellent Condition, Inspect Under Power in Turbine Mfg Facility
