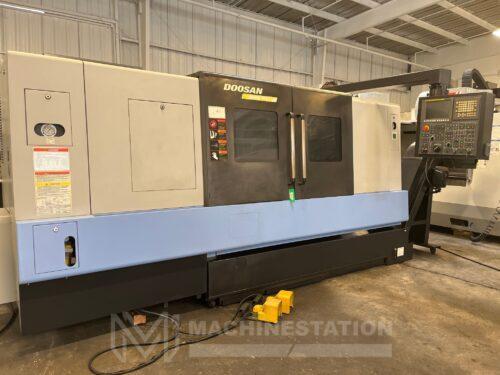

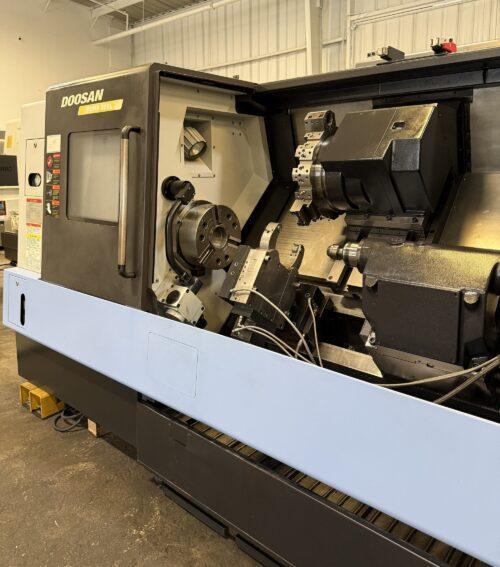

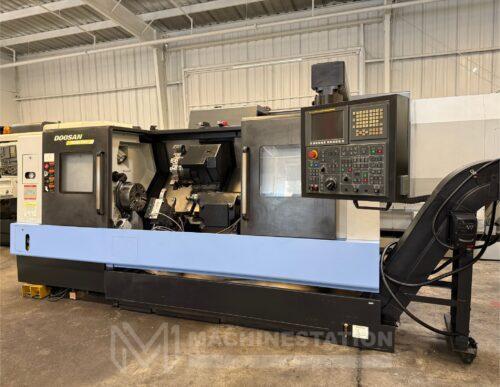

Doosan Puma 300LC CNC Turning Center – 12″ Chuck Long Bed Lathe

Doosan Puma 300LC CNC Turning Center – 12″ Chuck Long Bed Lathe

Name: Used DOOSAN Puma 300LC For Sale 112800
Brand: DOOSAN
SKU: 112800

Brand

DOOSAN

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU:	112800
Make:	Doosan
Model:	Puma 300LC
Year:	2011
Condition:	Used – Good

Equipped With:
Doosan-Fanuc i-series CNC Control
Heavy Duty Box Way Construction

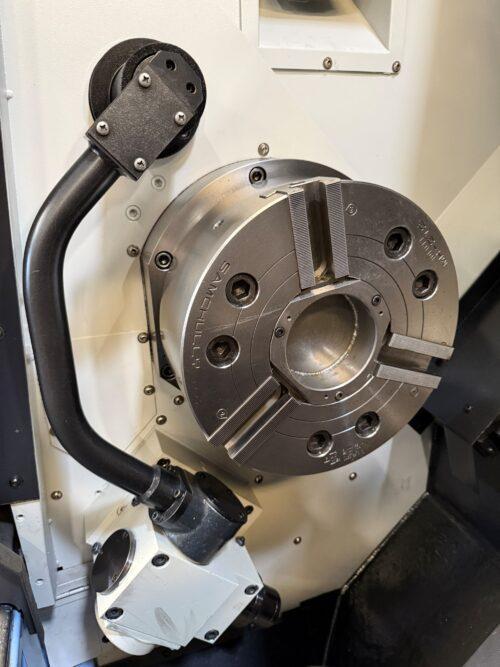

12″ 3-Jaw Hydraulic Chuck
4.52″ Bore A2-11 Spindle
12 Station Automatic Turret
Hydraulic Steady Rest
Tool Presetter
Tailstock
PCMCIA Card Interface
Coolant System
Chip Conveyor
Foot Switch
(2) Boring Tool Holders & (1) Turning Tool Holder Mounted on Turret (As shown in the images)

Specifications:
Max Turning Diameter: 15.74″
Max Turning Length: 50.39″
Swing Over Bed: 22.44″
Swing Over Saddle: 14.56″
Max Bar Capacity: 4.01″

Travel:
X Axis Travel: 11.10″
Z Axis Travel: 52.36″
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM

Spindle:
Spindle Nose: A2-11
Spindle Bore: 4.52″
Spindle Speed: 2800 RPM
Spindle Motor: 35 HP

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.15 Second
OD Tool Size: 1.0″
Boring Bar Diameter: 1.57″
Tool Holders Type: BMT

Tailstock:
Tailstock Taper: MT-4
Tailstock Quill Dia.: 3.93″
Tailstock Quill Travel: 3.93″

General:
Power: 200v – 220v / 3-Phase / 45.14 kva / 50/60 Hz
Overall Dimensions: 160″ x 75″ x 82″ High Approx.
Weight: 14,506 lbs Approx.
