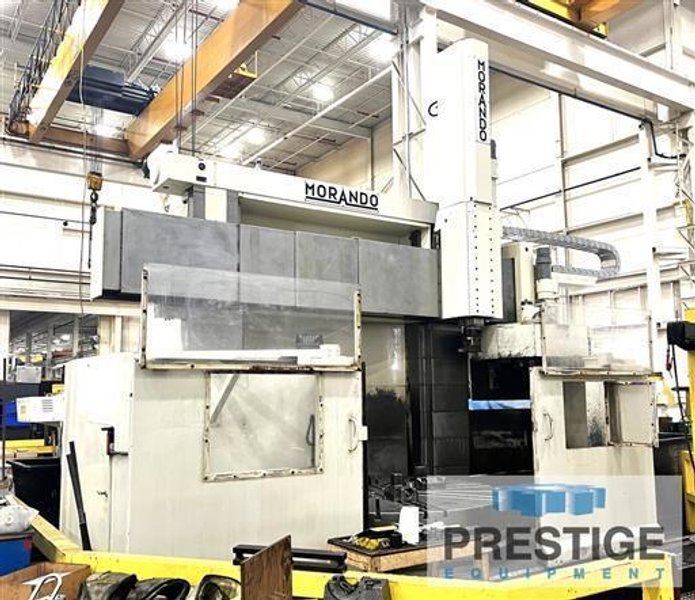

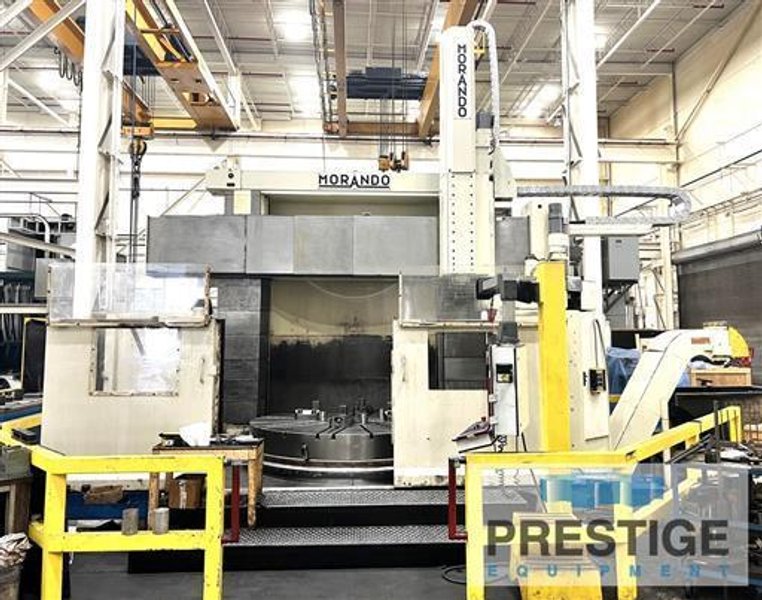

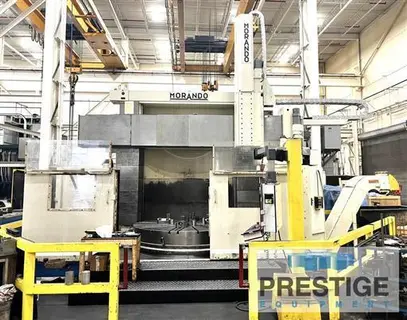

98" Morando CNC Vertical Boring Mill

Brand
Not specified
Category
Boring Mills
Type
Boring Mills, Vertical, CNC (Including VTL)
Model
VHN-25
Stock #
44171
Year
2014
Condition
Not specified

Location

Not specified
REQUEST FINANCING
Specifications:

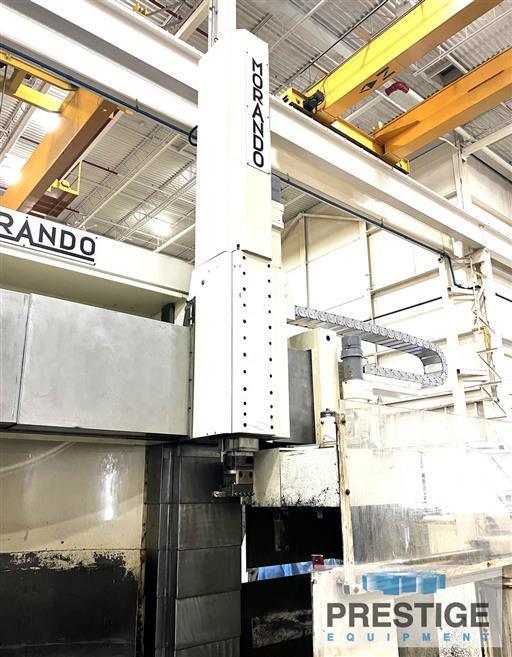

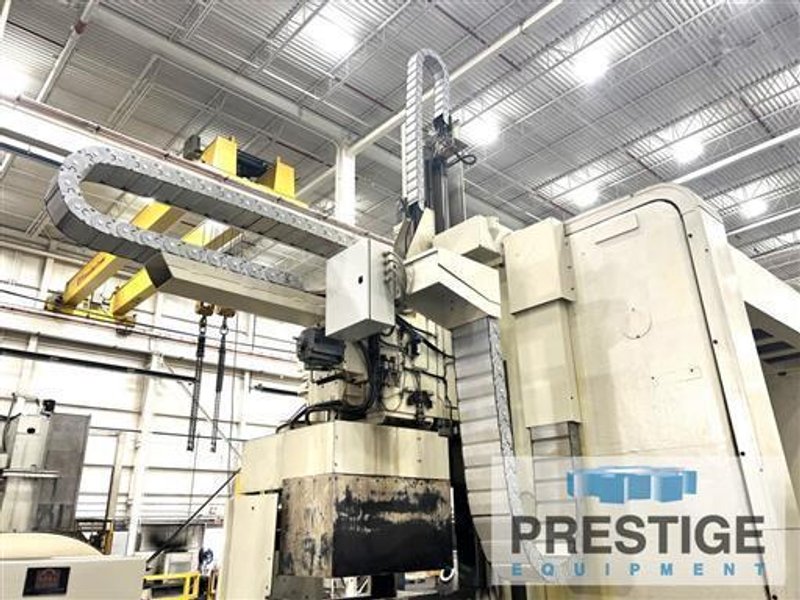

Ram with 12 Station Automatic Tool Changer
Table Diameter 98"
Maximum Swing 108"
Maximum Height Under Cross Rail 84"
Maximum Turning Height 74.8"
Ram Stroke 46"
Table Speeds (3-Ranges) 1.5 -112 RPM
Table Capacity at 50 RPM 80,000 lbs
Electrics 440/3/60



Equipped With:

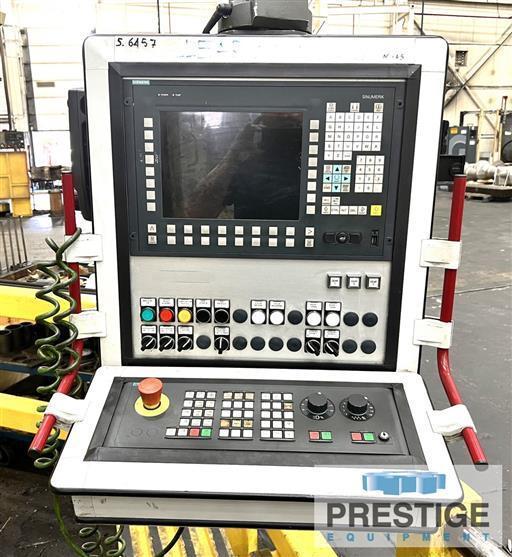

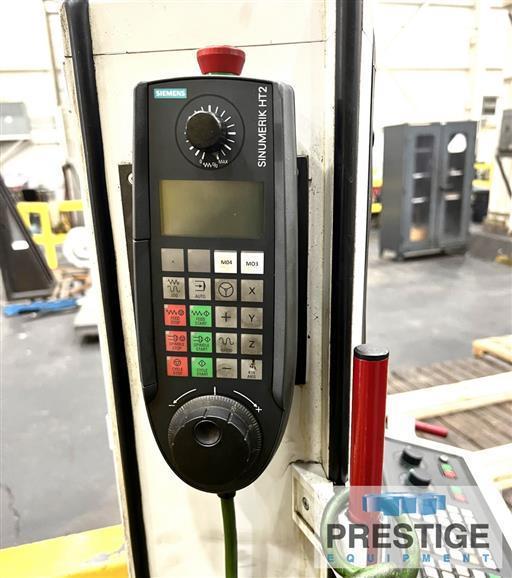

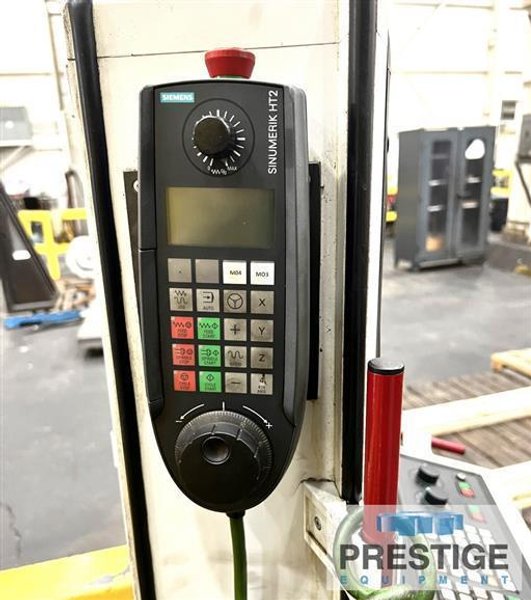

Siemens Sinumerik 840D SL CNC Control, Retrofit in 2014
All New Siemens Motors and Drives in 2014
12-Station Automatic Tool Changer

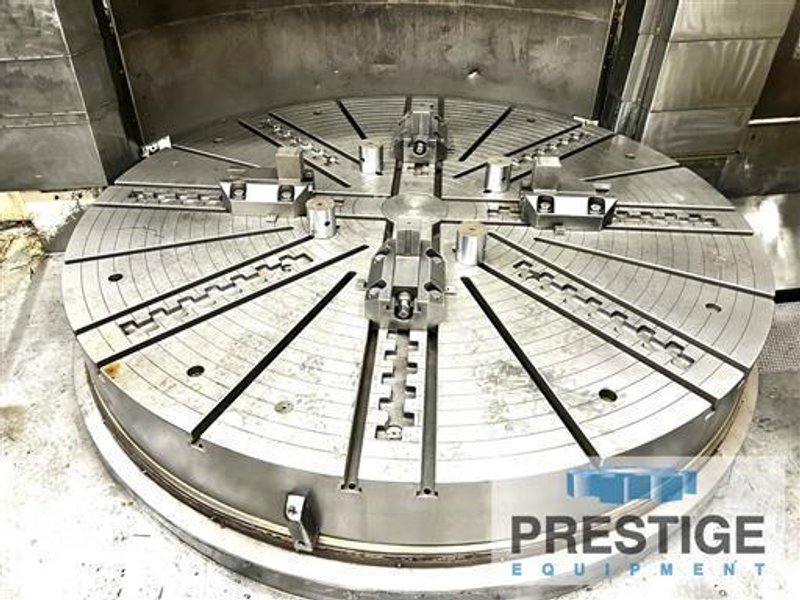

98" Dia. T-Slotted Face Plate

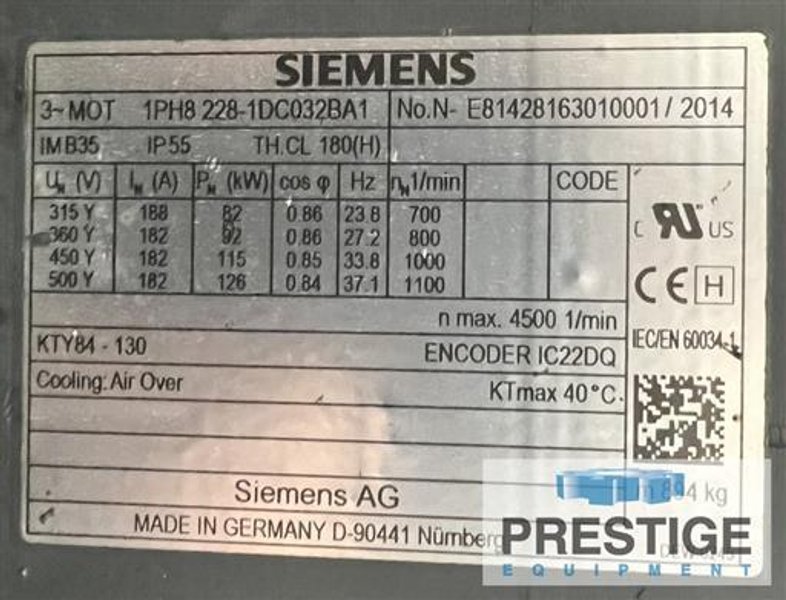

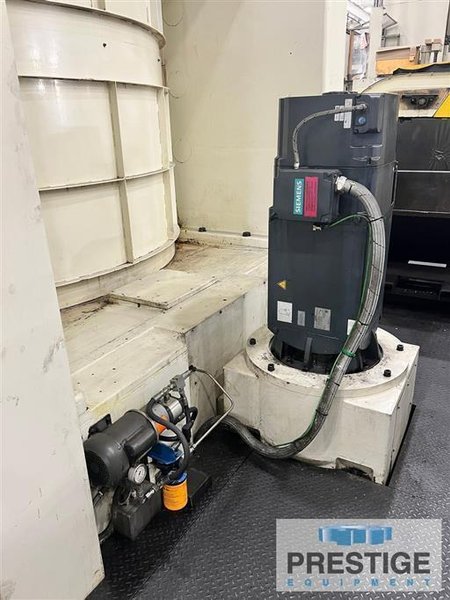

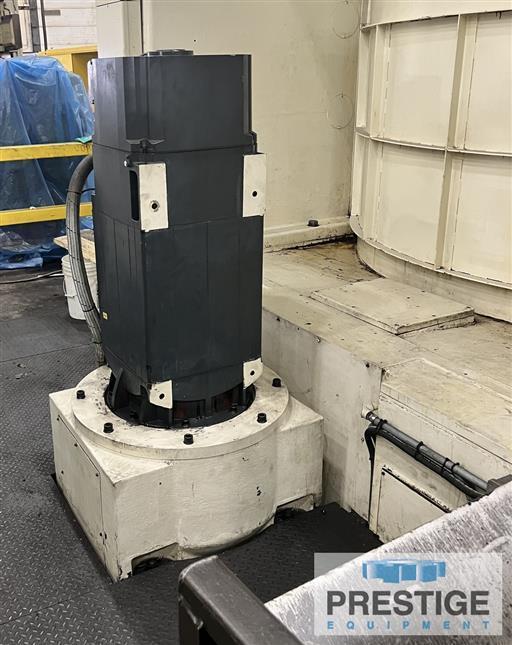

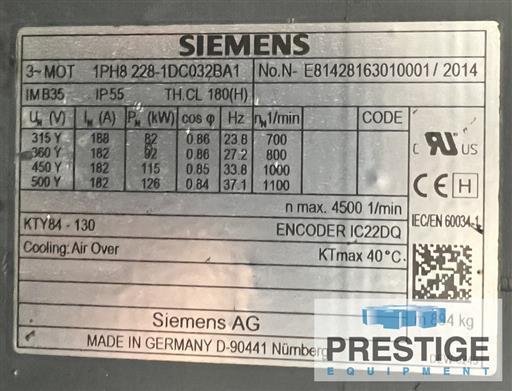

154 HP (115 KW)Siemens Table Drive new in 2014
Turbo Chip Conveyor


Floor Space: 192" L x 144" W x 258" High
Weight: 110,000 Lbs
