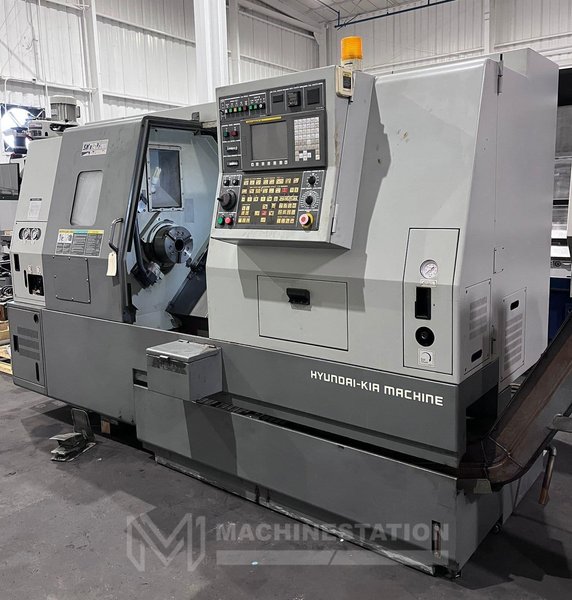

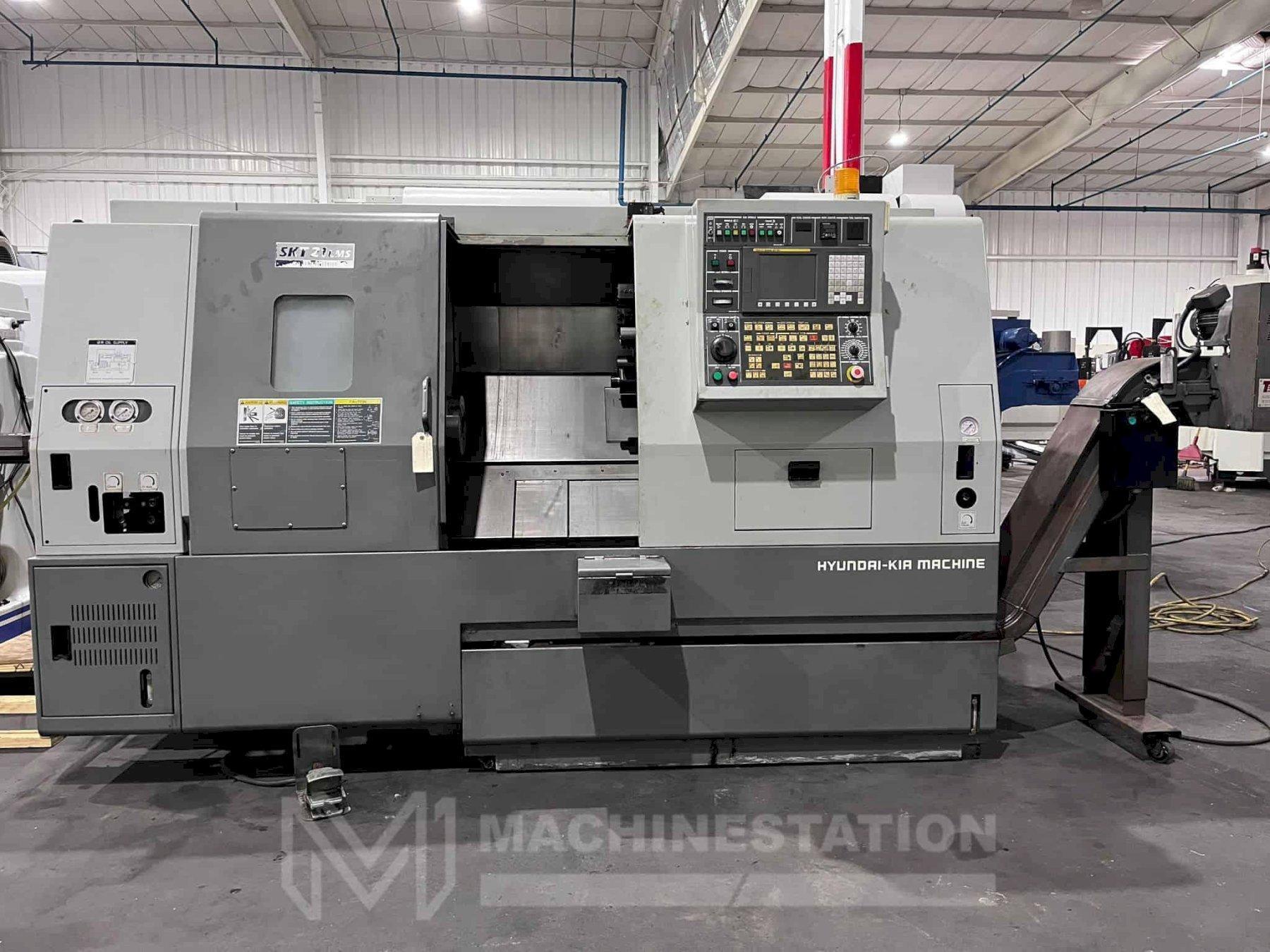

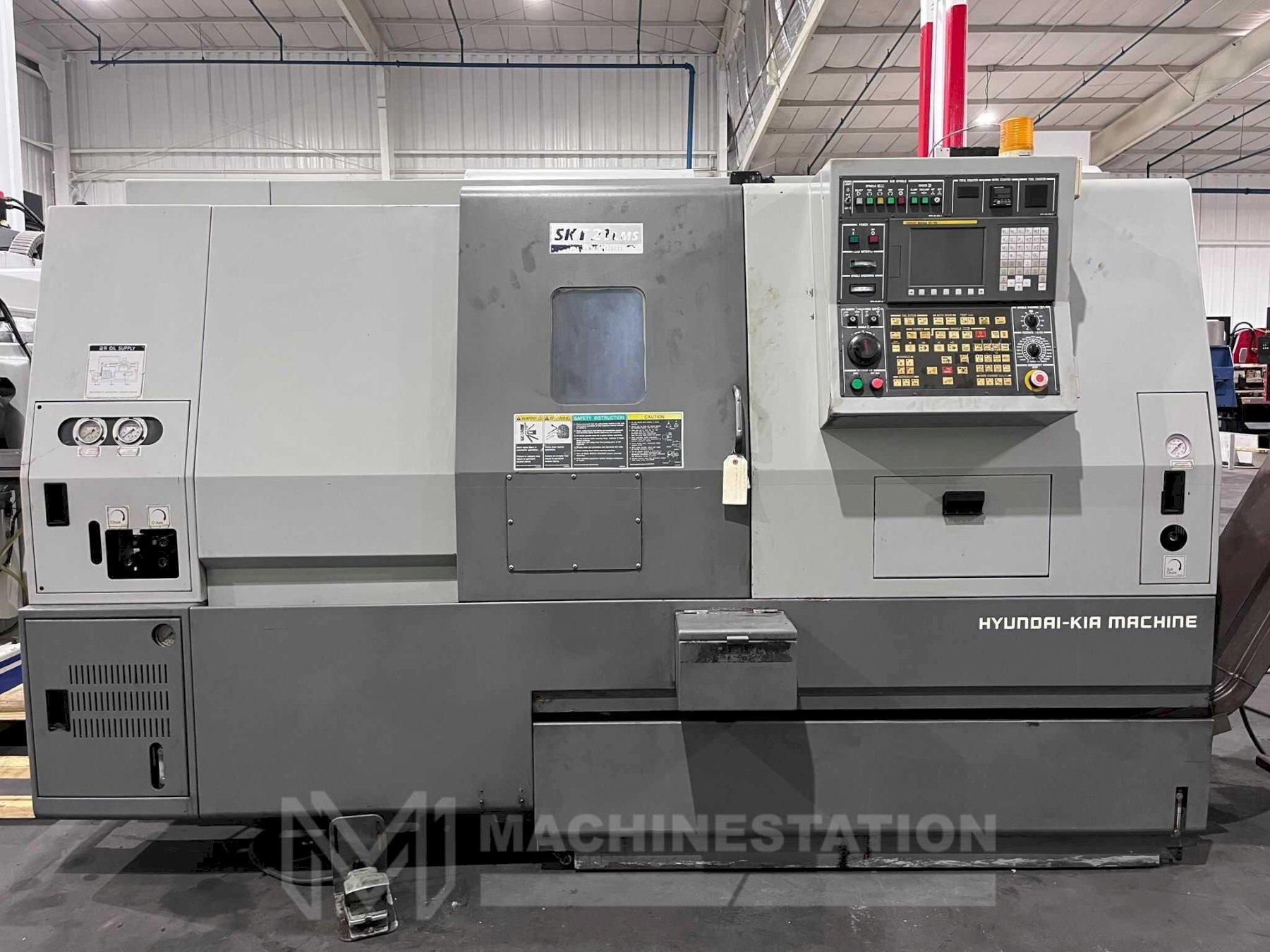

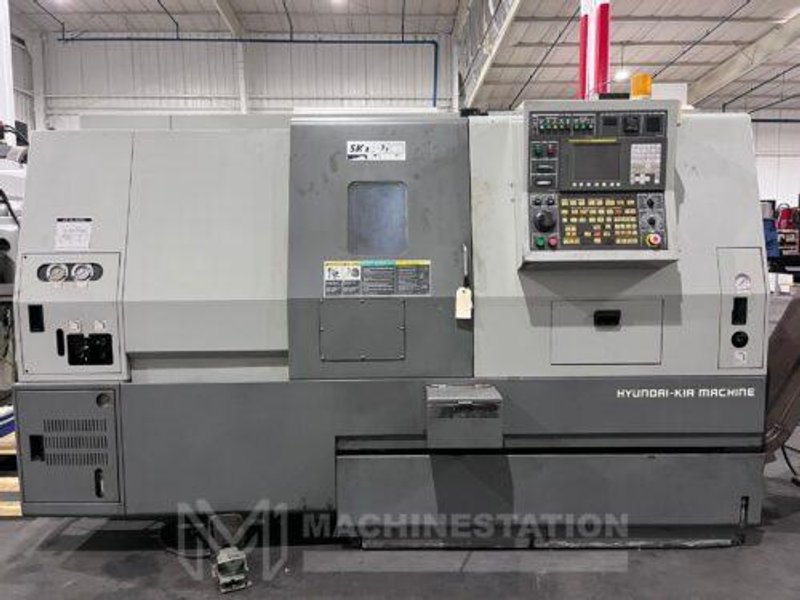

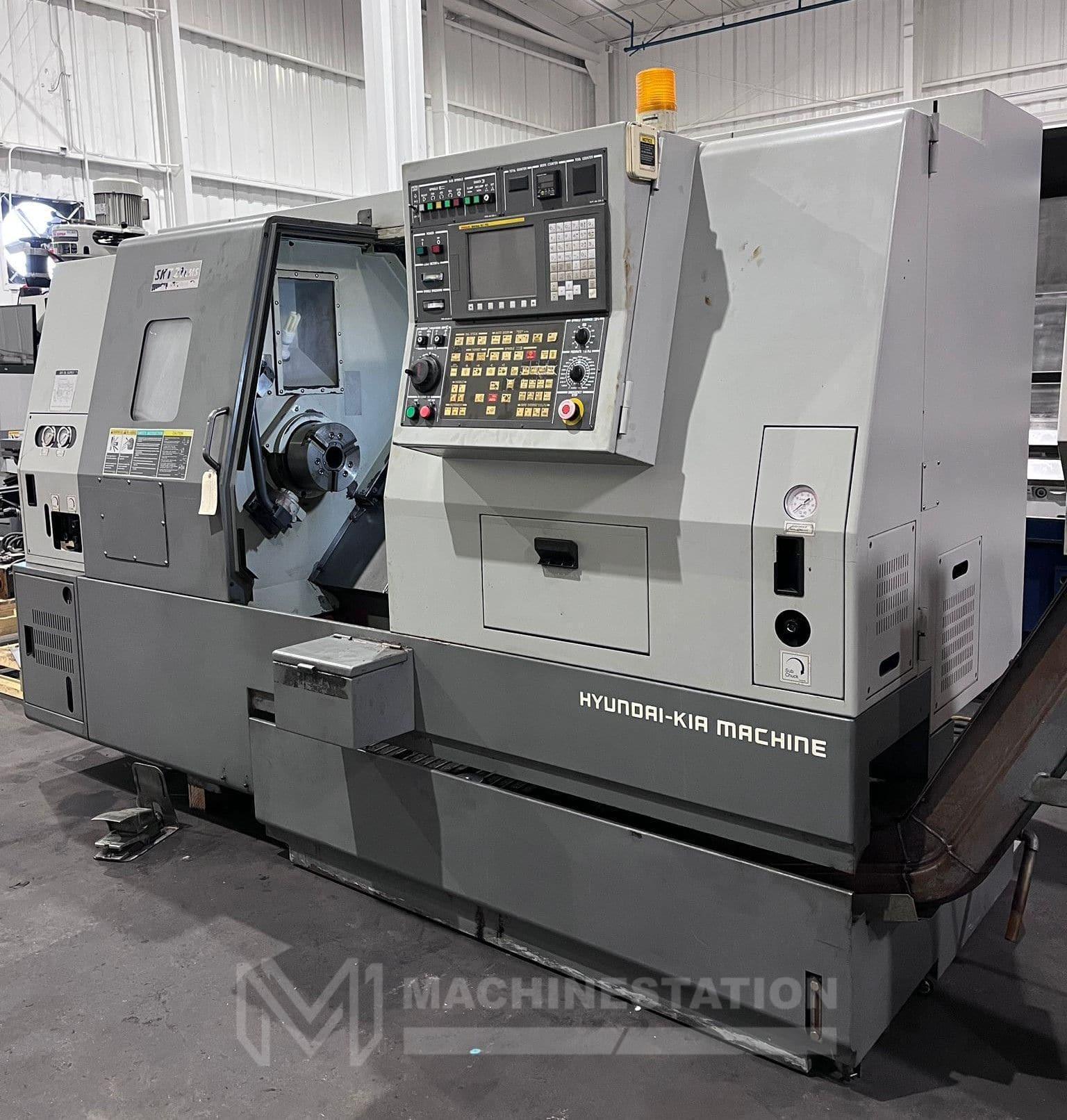

Hyundai Kia SKT-21LMS CNC Lathe – C Axis Live Tool Sub Spindle

Brand
HYUNDAI
Category
Lathes & Turning Machines
Type
Turning Centers
Model
Hyundai Kia SKT-21LMS
Stock #
112747
Year
2007
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

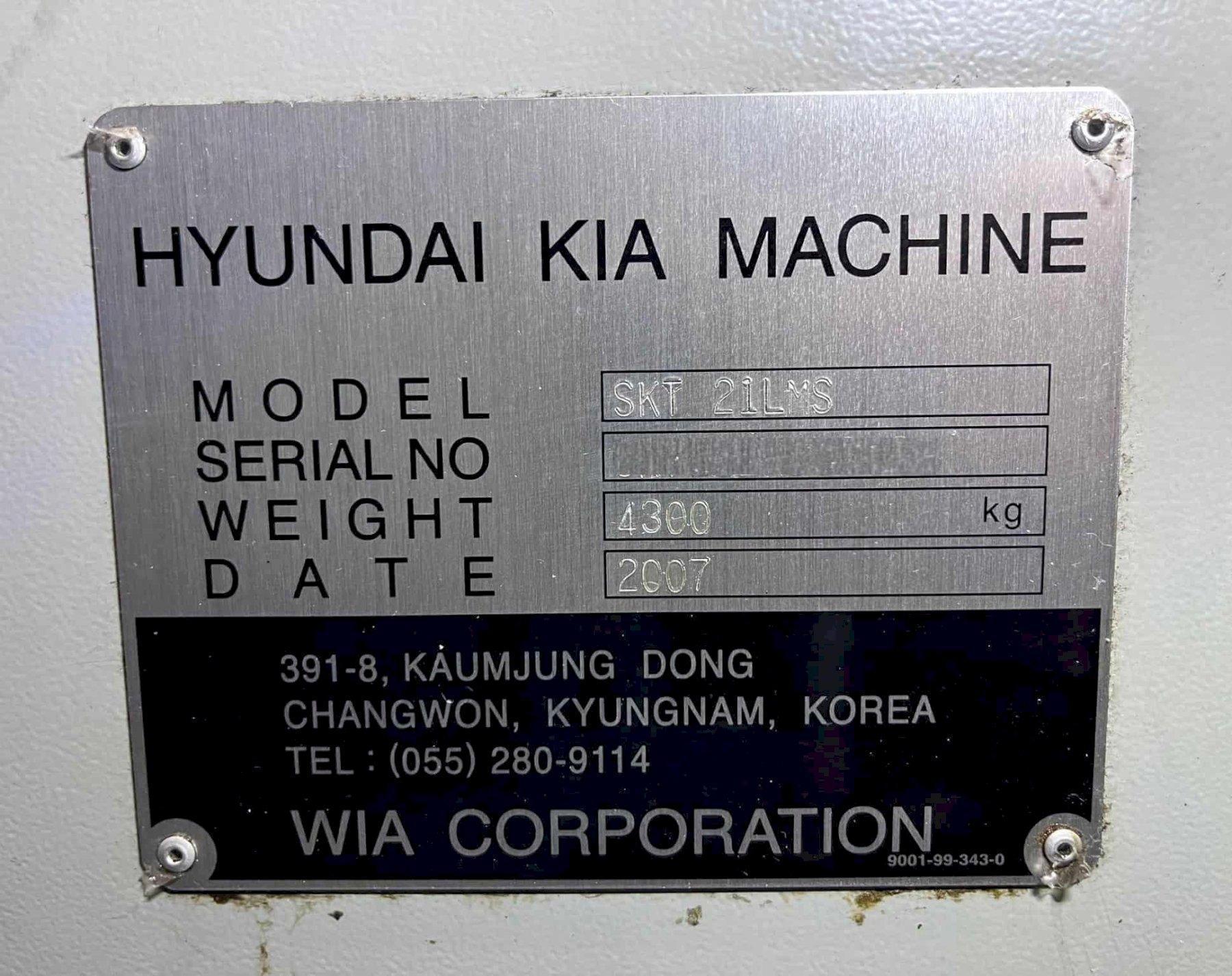

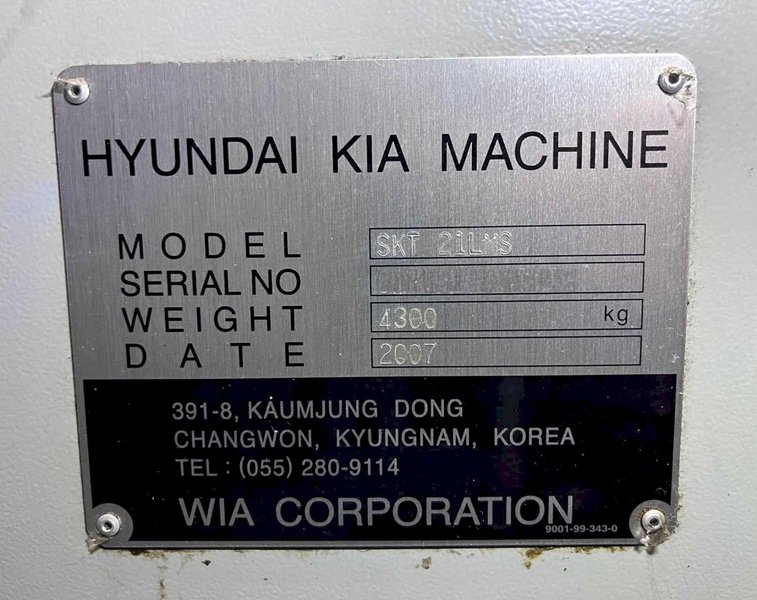

Make: Hyundai Kia
Model: SKT21LMS
Year: 2007
Condition: Used – Good
Equipped With:

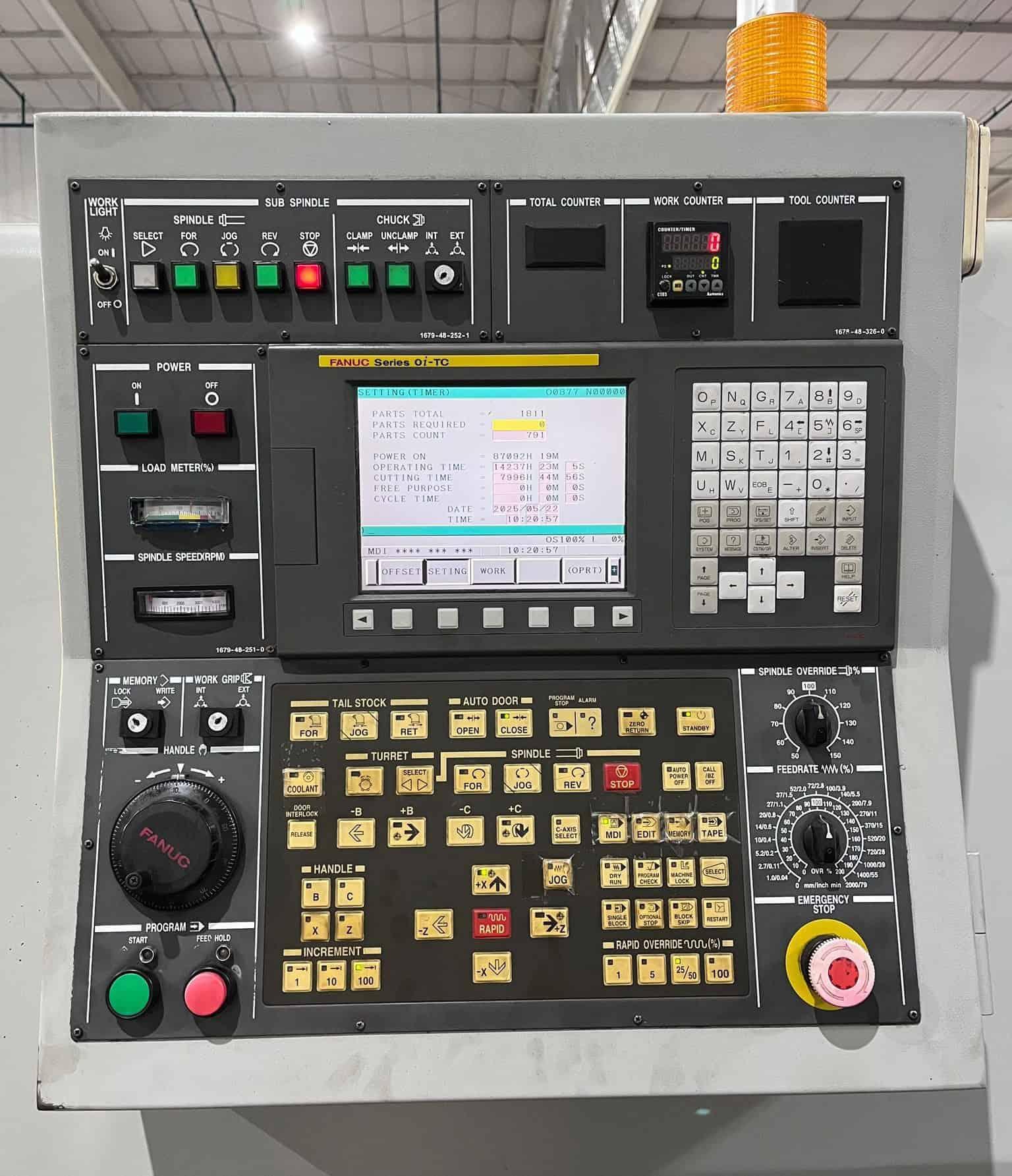

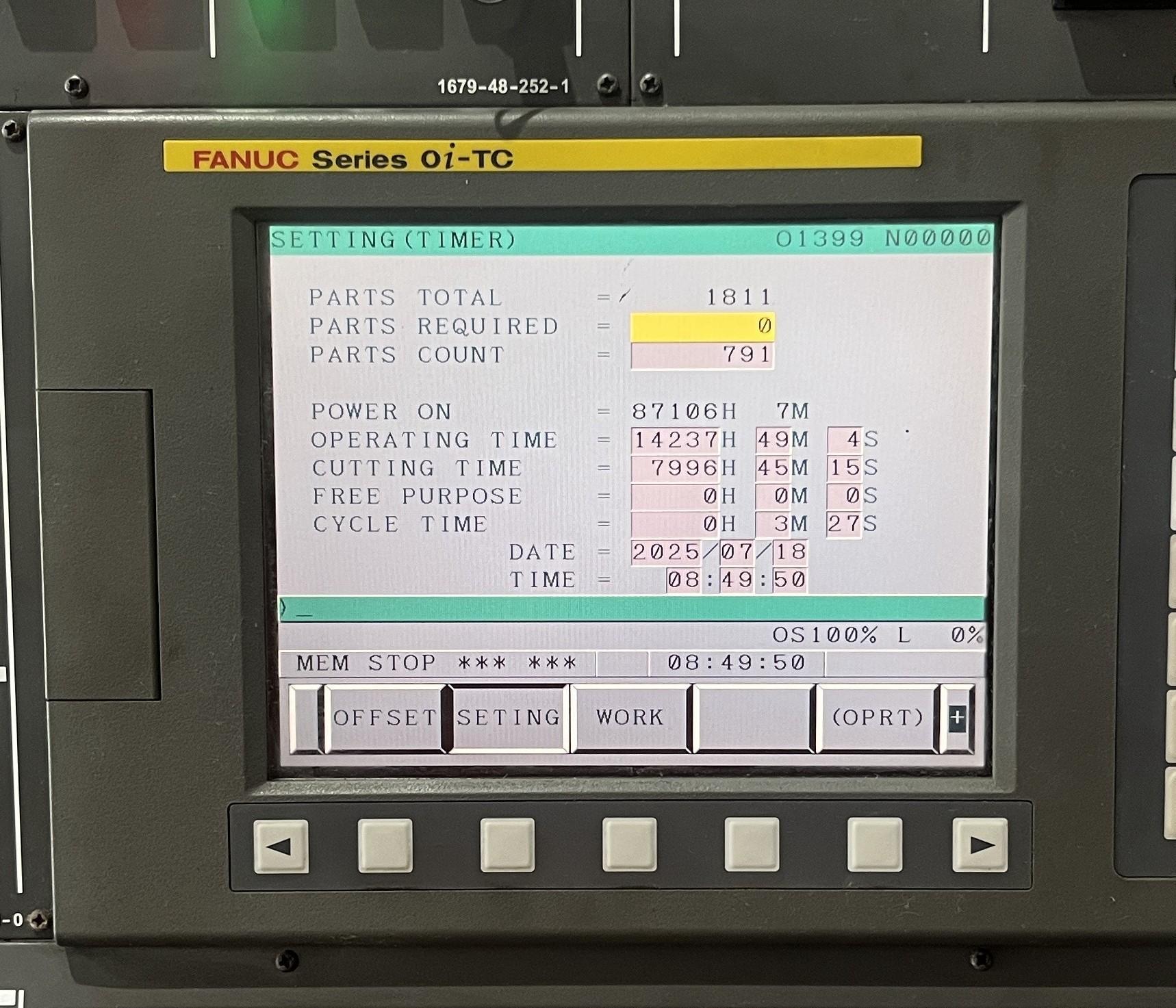

Fanuc 0i-TC CNC Control

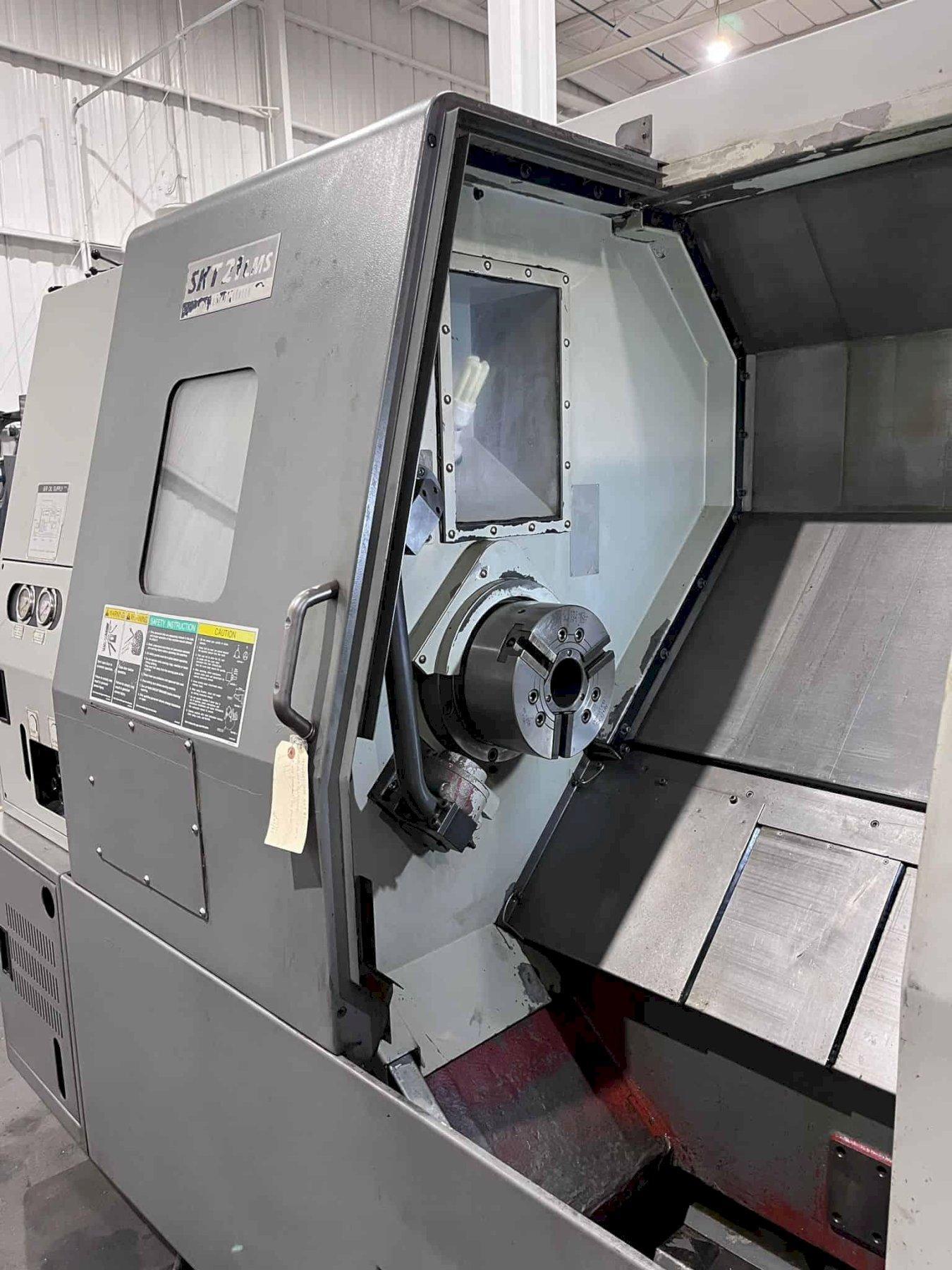

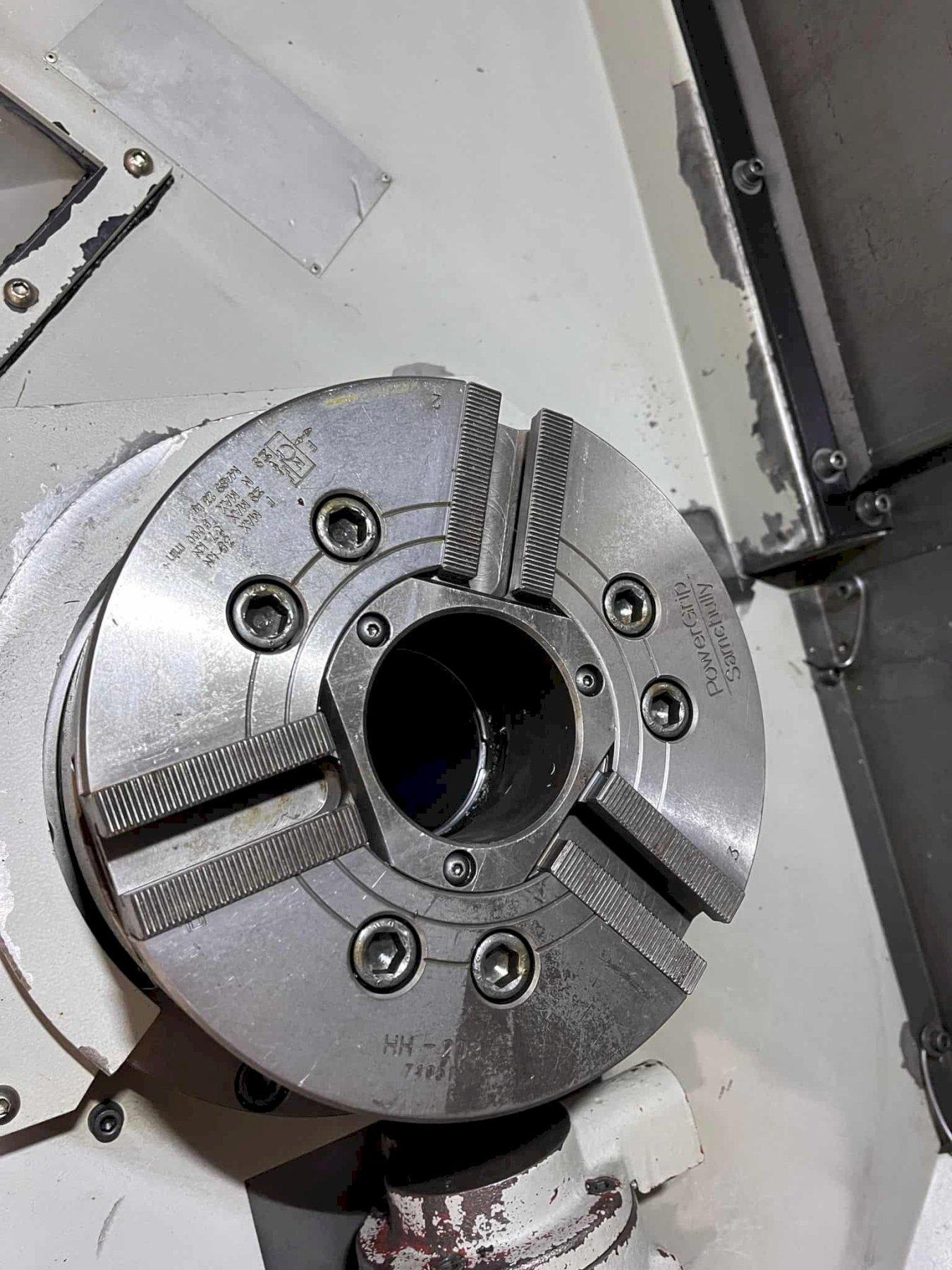

8″ 3-Jaw Chuck on Main Spindle

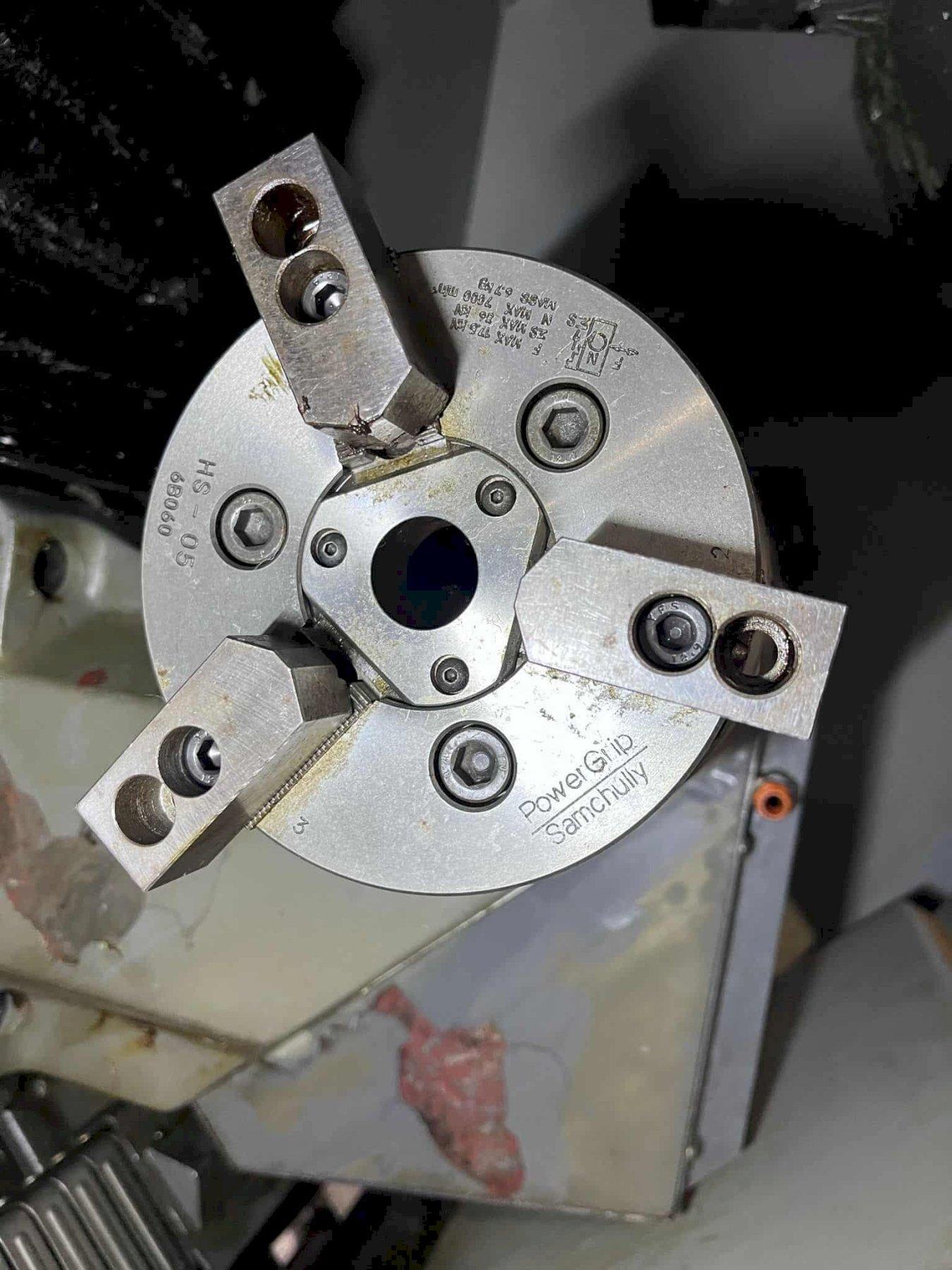

5″ 3-Jaw Chuck on Sub Spindle
Servo Controlled C Axis on Both Spindles
Sub Spindle

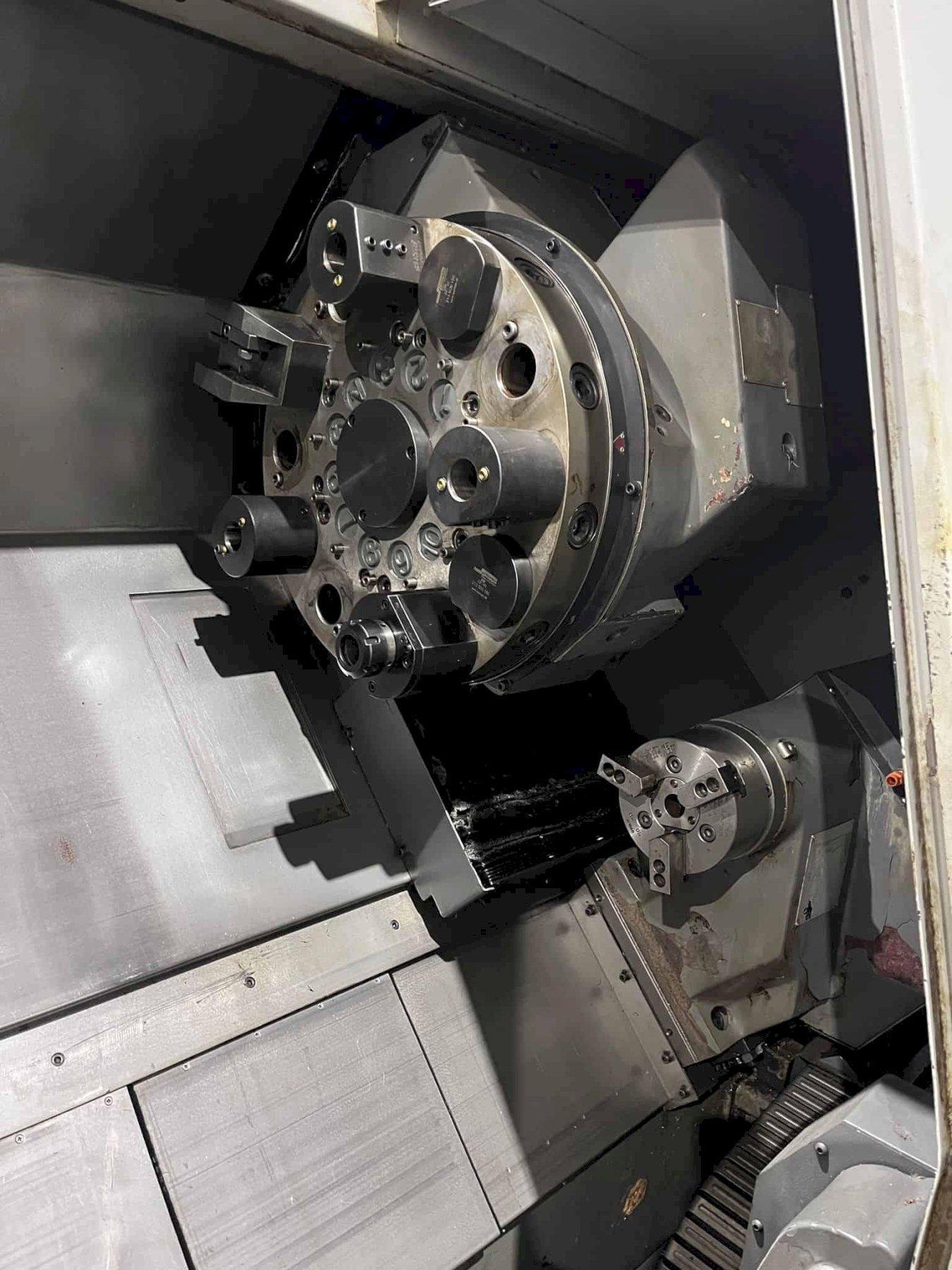

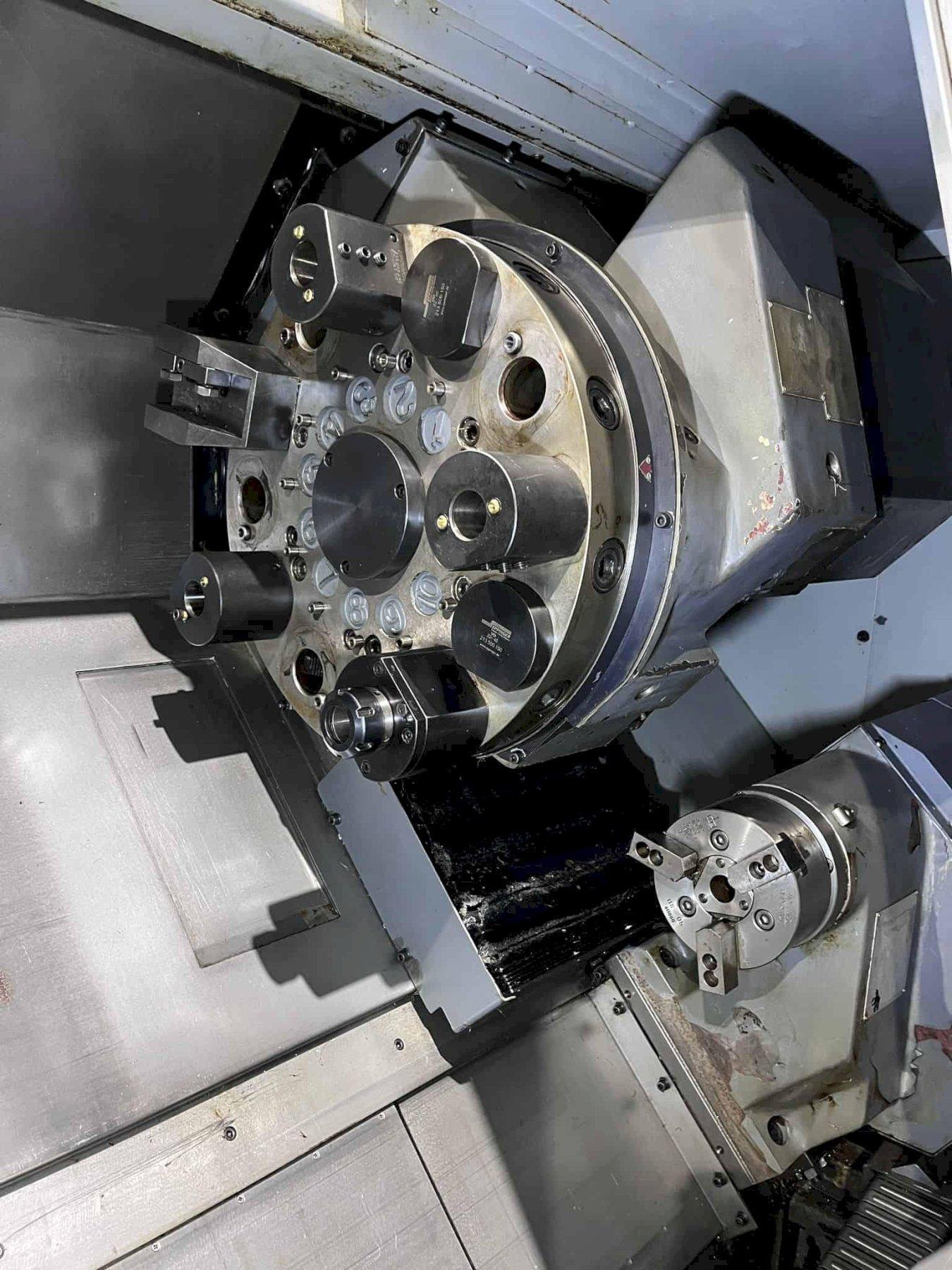

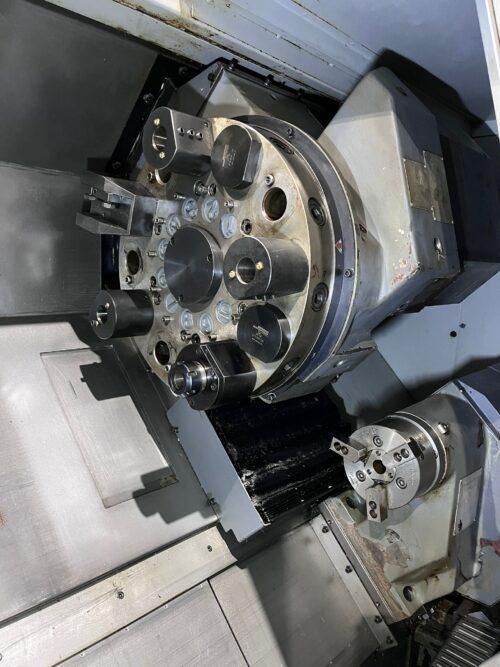

12 Station Live Tool Turret
Tool Presetter
Part Catcher
PCMCIA Card Interface
RS-232 Port
USB Port

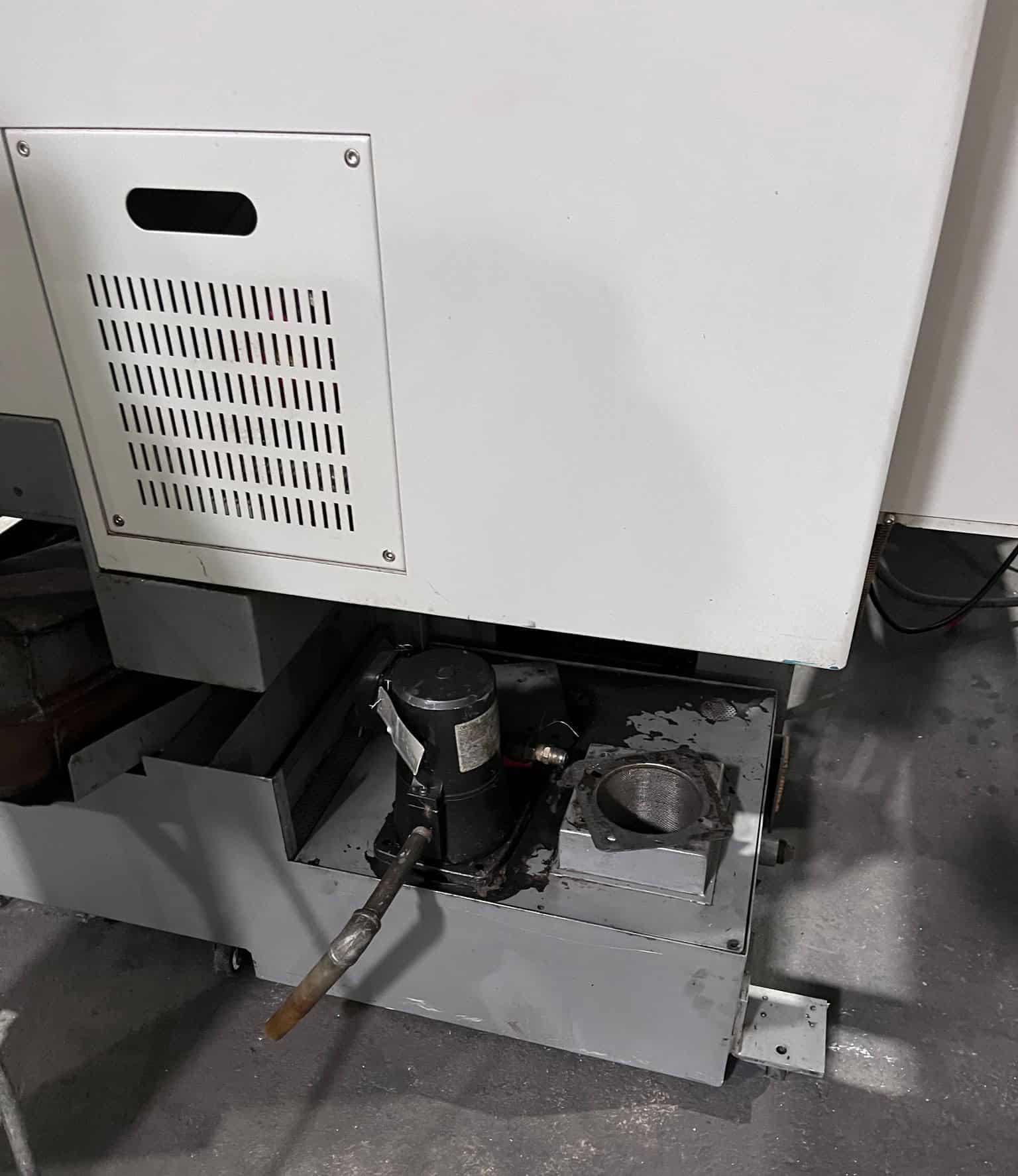

Coolant System
Chip Conveyor
Levelling Pads
Foot Switch

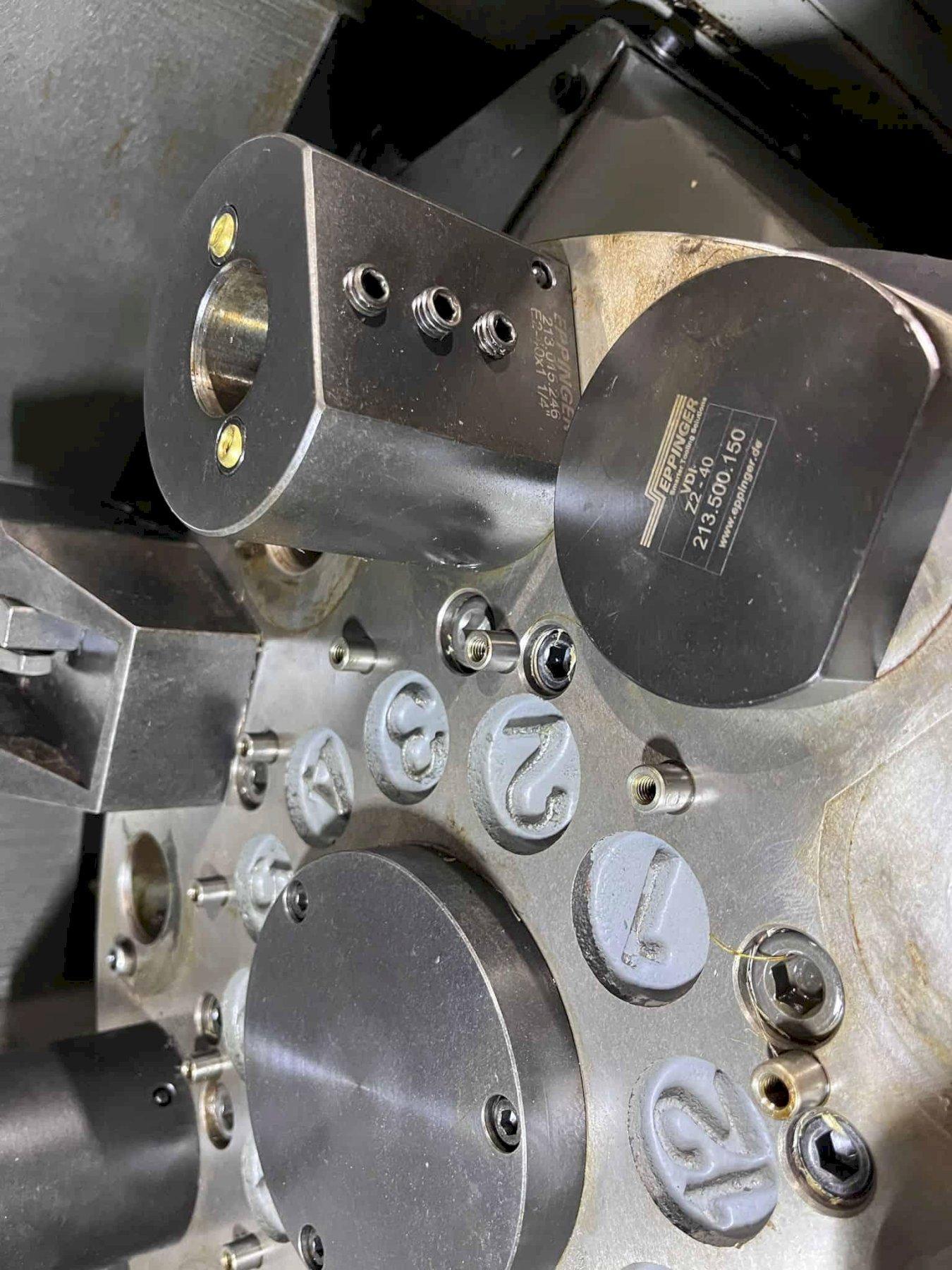

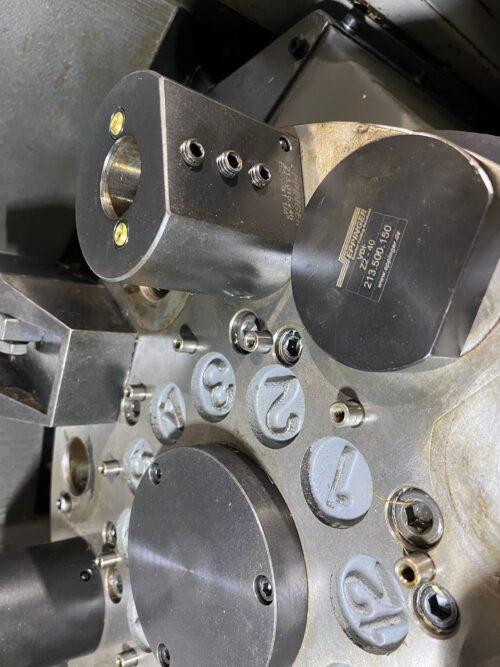

(1) Live Tool Holder (4) Statics Tool Holders Mounted on Turret (As shown in the images)
Capacity:
Max Turning Diameter: 10.0″
Max Turning Length: 20.9″
Max Swing Over Bed: 21.7″
Max Swing Over Cross Slide: 13.8″
Max Bar Capacity: 2.56″
Travels:
X Axis Travel: 8.3″
Z Axis Travel: 21.7″
B Axis Travel (Sub Spindle): 29.5″
C Axis Indexing: 360 Degree (0.001)
Rapid Traverse Rate X & Z Axis: 1417 IPM
Rapid Traverse Rate B Axis: 1181 IPM
Main Spindle:
Main Spindle Nose: A2-6
Main Spindle Bore: 3.07″
Main Spindle Bar Capacity: 2.56″
Main Spindle Speed: 4000 RPM
Man Spindle Motor: 20 HP
Sub Spindle:
Sub Spindle Nose: Flat (115)
Sub Spindle Bore: 1.69″
Sub Spindle Bar Capacity: 1.3″
Sub Spindle Speed: 6000 RPM
Sub Spindle Motor: 5 HP
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.2 Second
Rotary Tool Speed: 4,000 RPM
Rotary Tool Motor: 5 HP
Tool Holders Type: VDI-40
General:

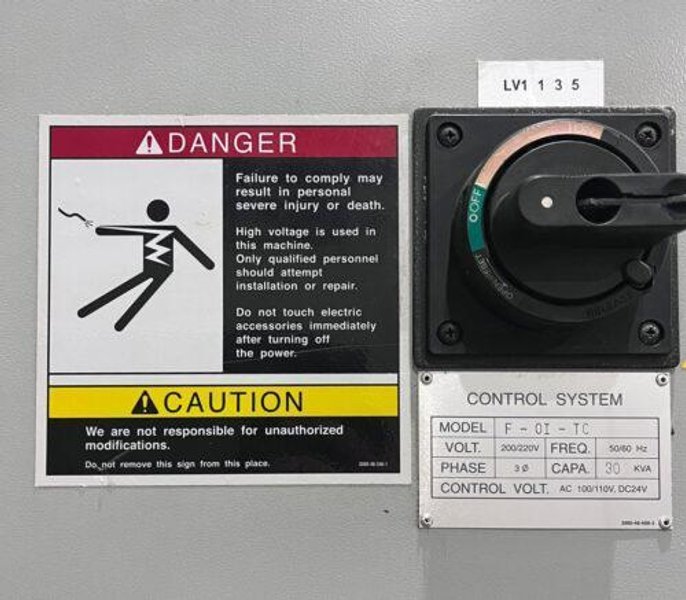

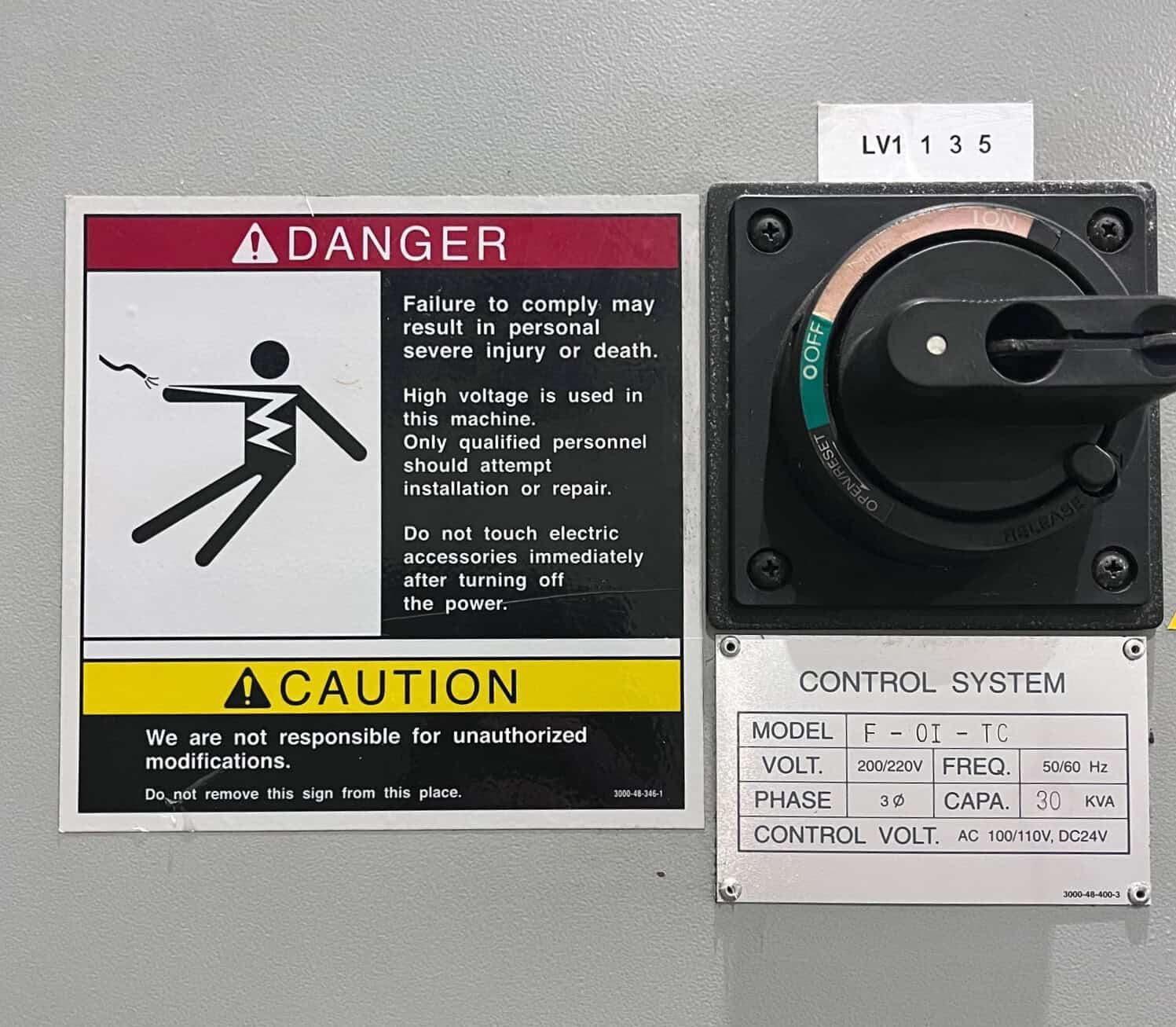

Power Source: AC 220 V / Three Phase / 60 Hz
Power Requirement: 30 kva
Overall Dimensions: 120″ x 65″ x 83″ High Approx.
Weight : 9,500 bs Approx.
