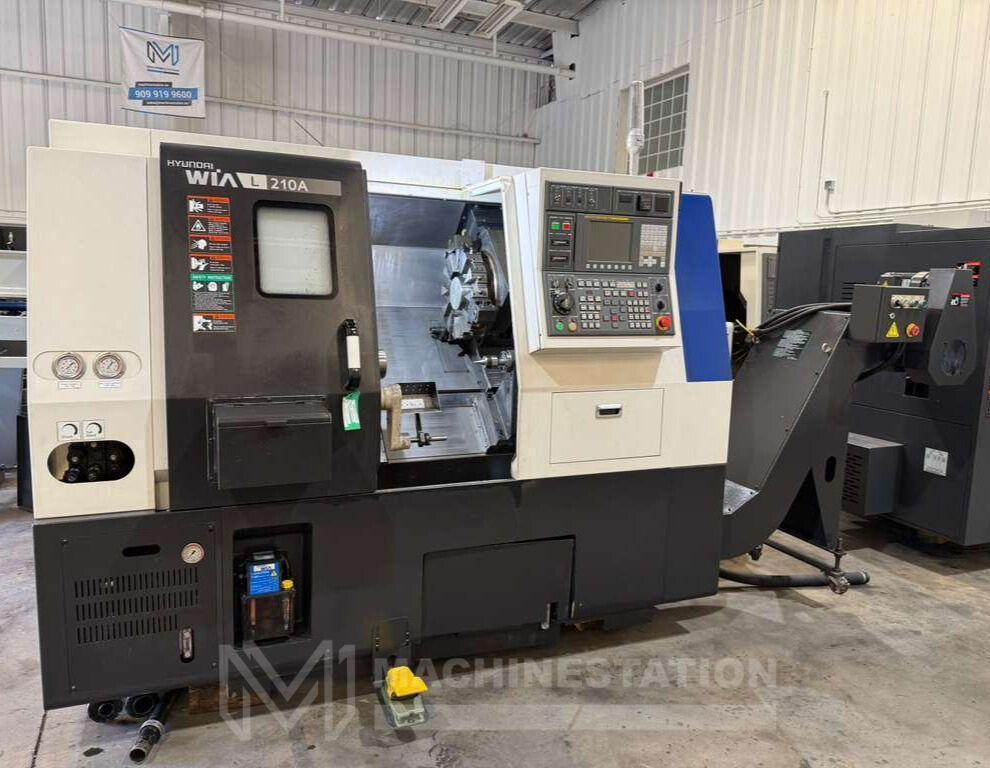

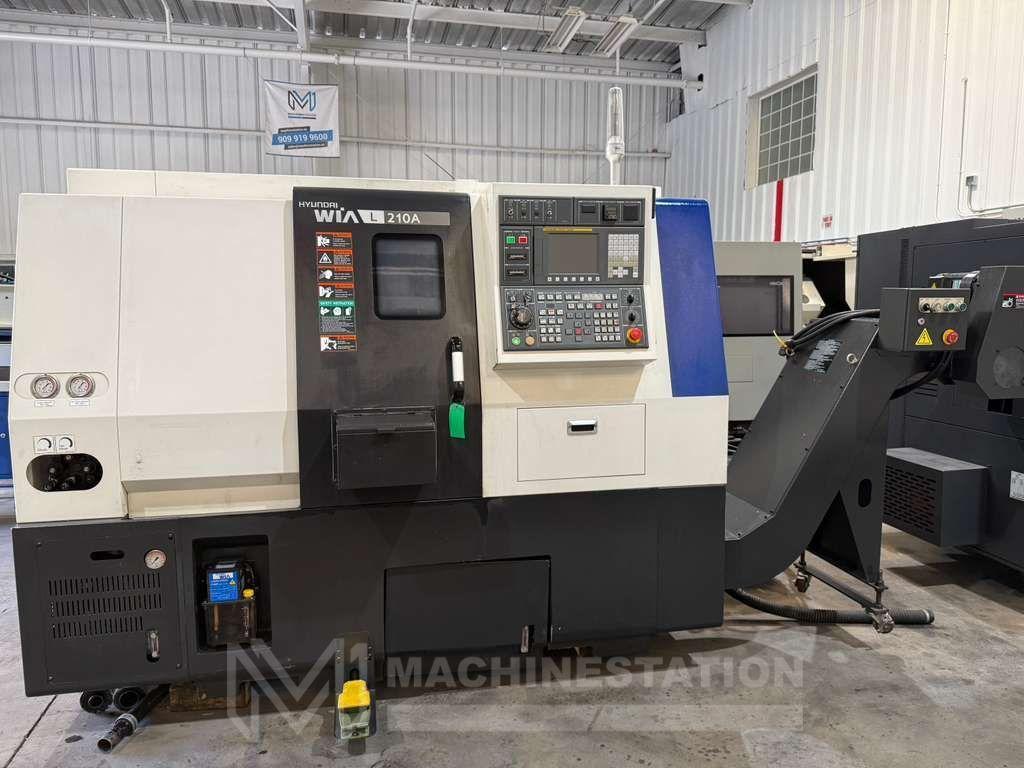

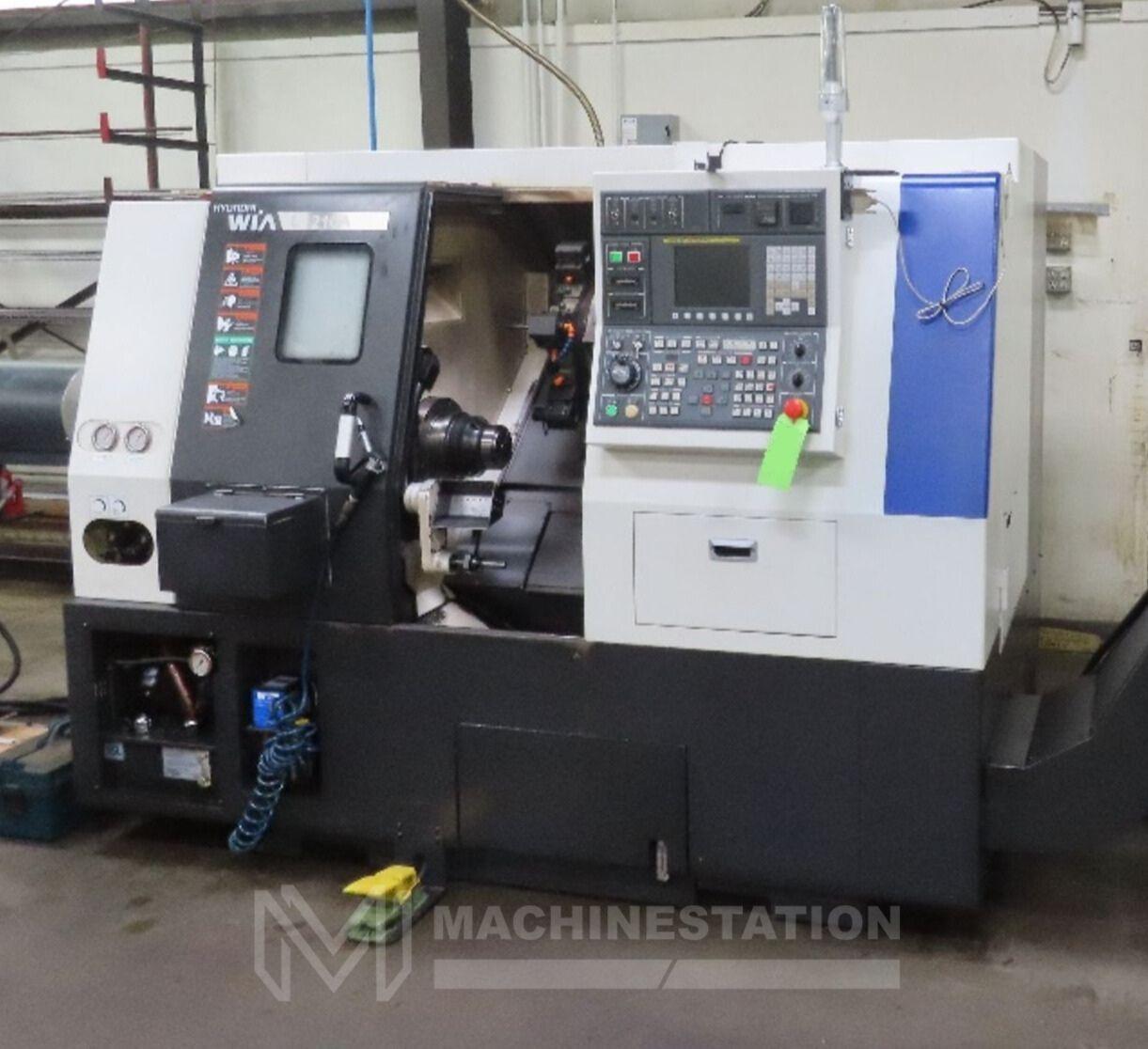

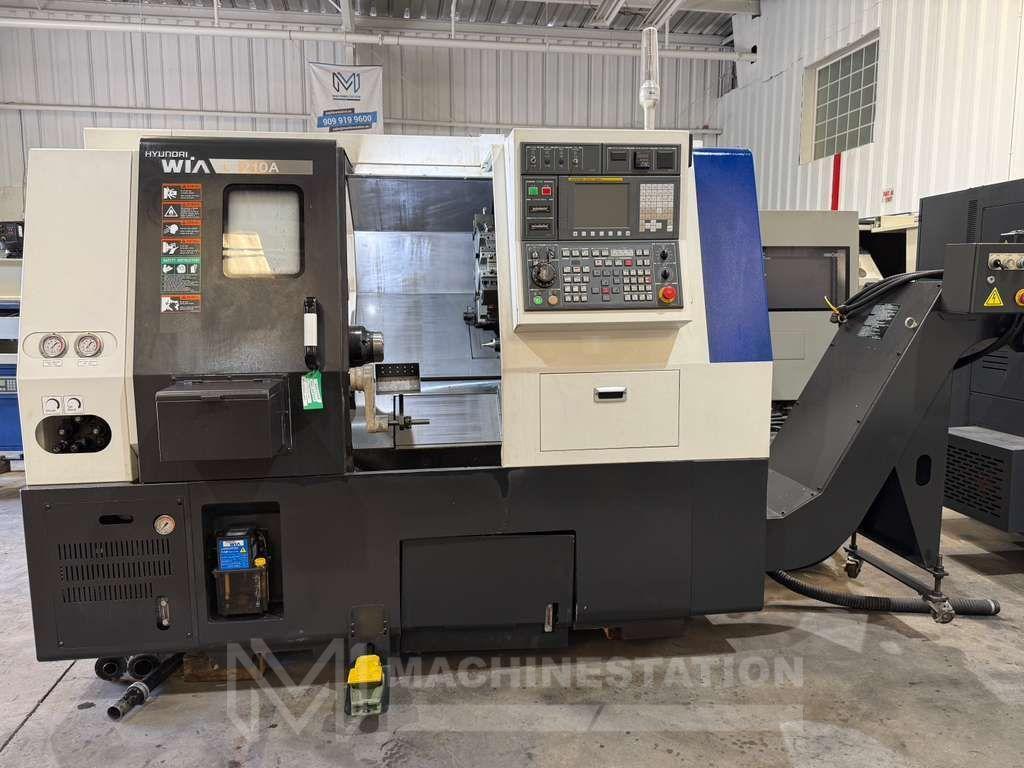

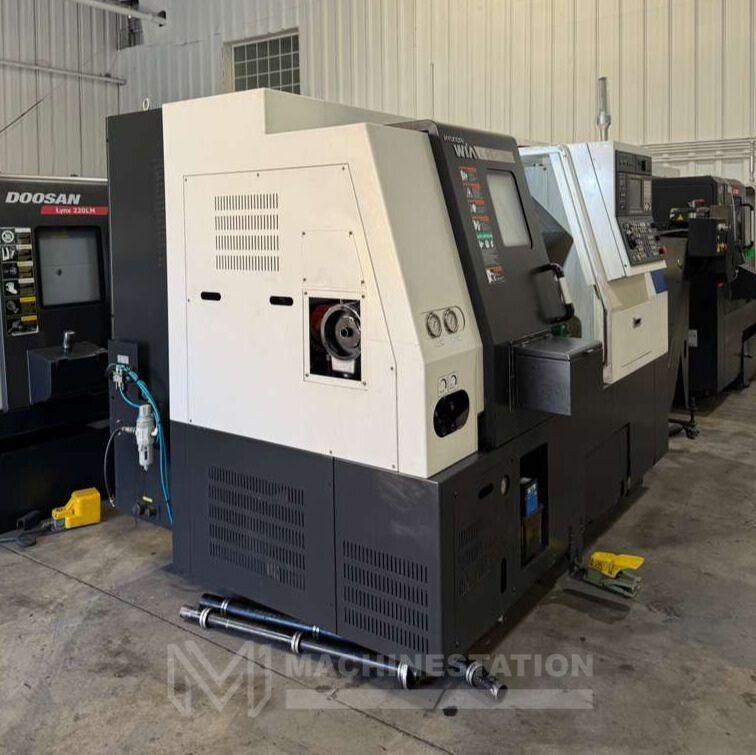

Hyundai WIA L210A CNC Turning Center – Bar Feeder Lathe

Brand
Model
Hyundai WIA L210A
Stock #
112984
Year
Not specified
Condition
Not specified

Location

Not specified

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: Hyundai WIA
Model: L210A
Condition: Used – Good
Equipped With:

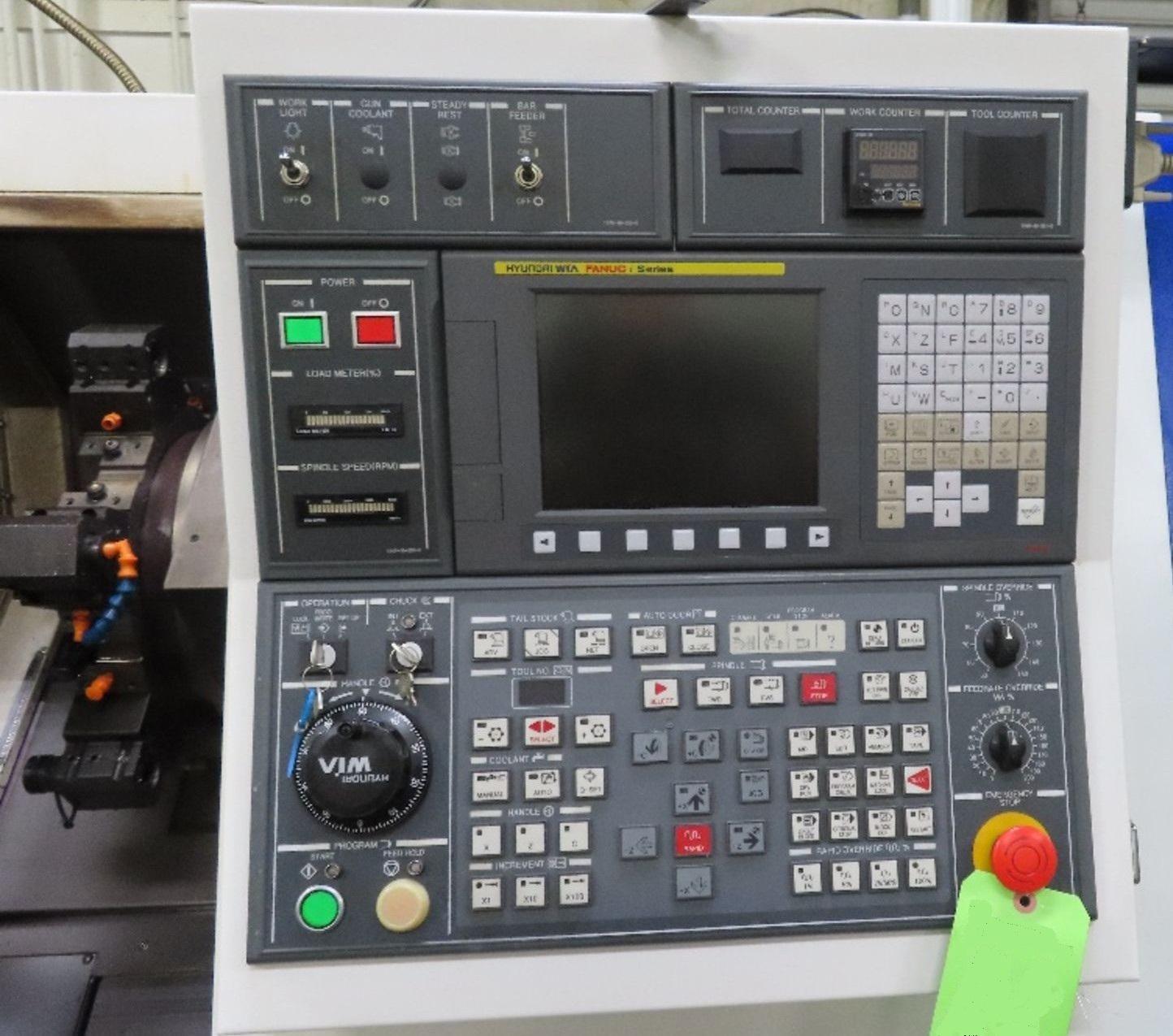

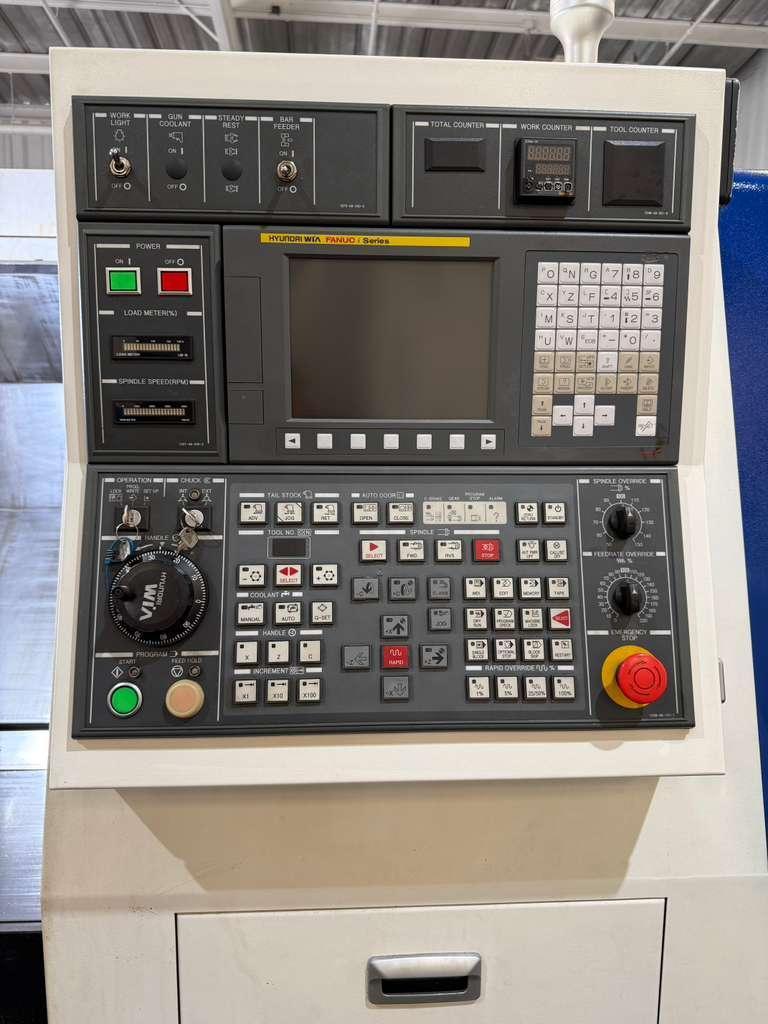

  • Hyundai WIA Fanuc i Series CNC Control
  • Linear Ways Construction

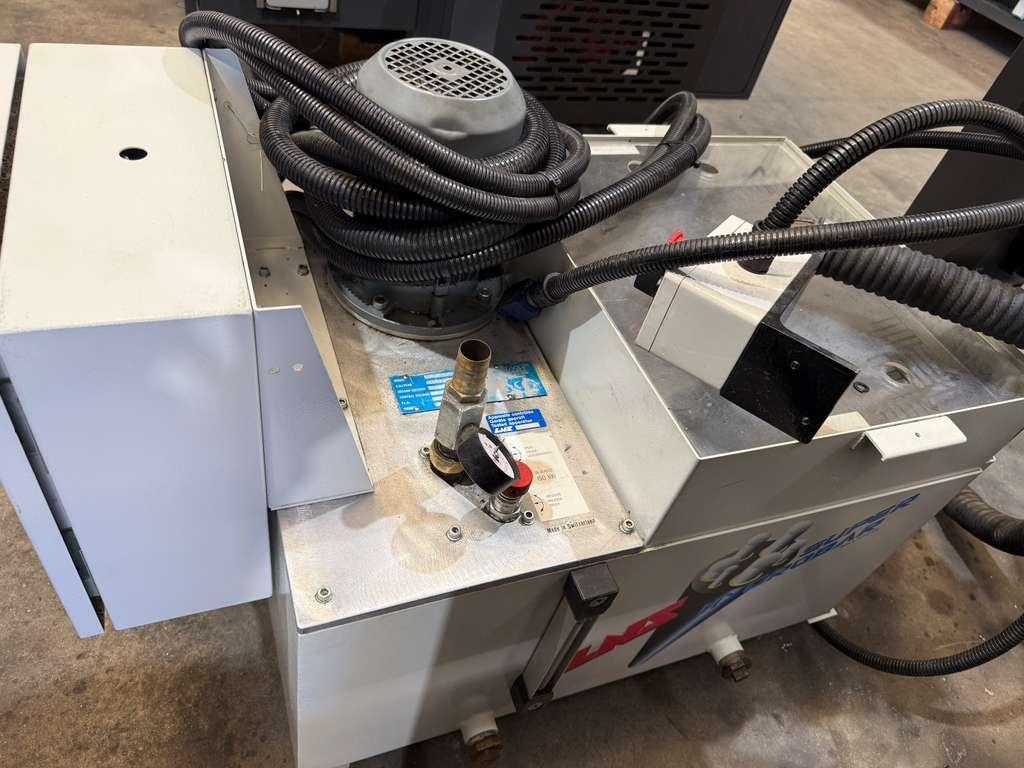

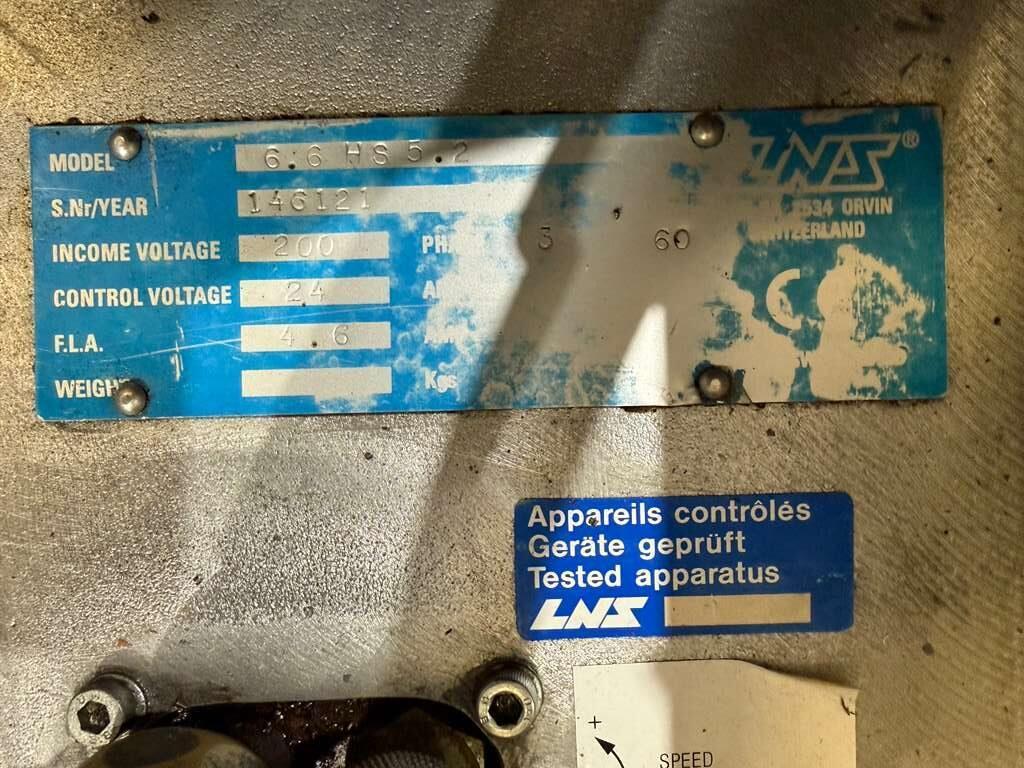

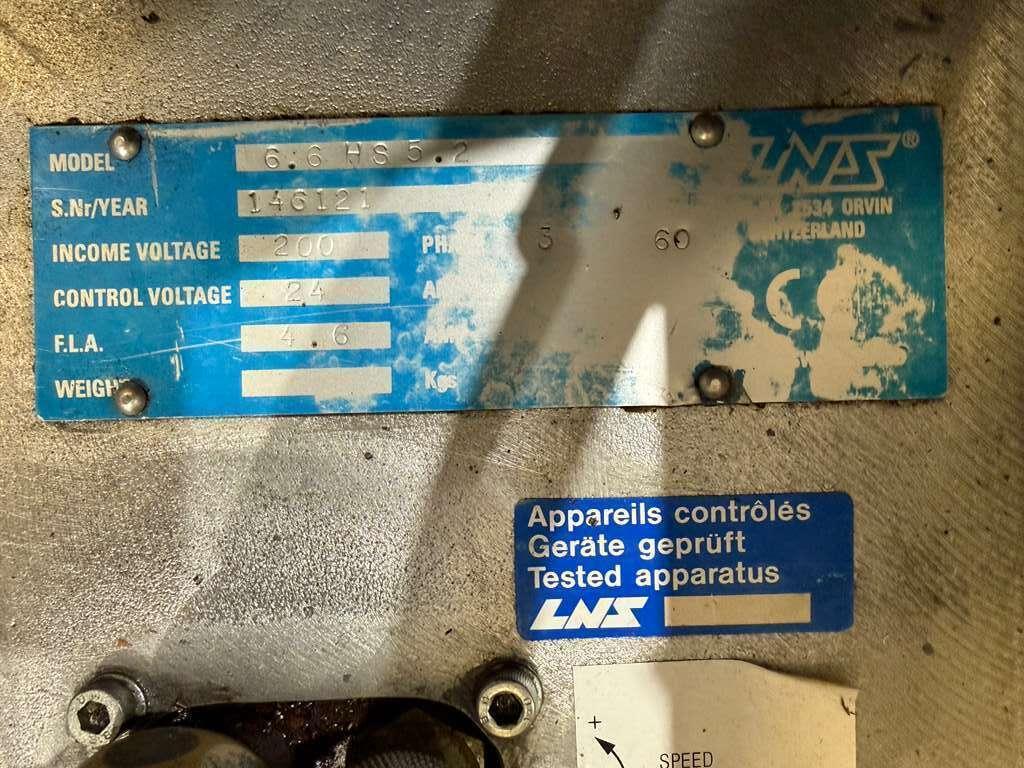

  • LNS Super Hydrobar Bar Feeder

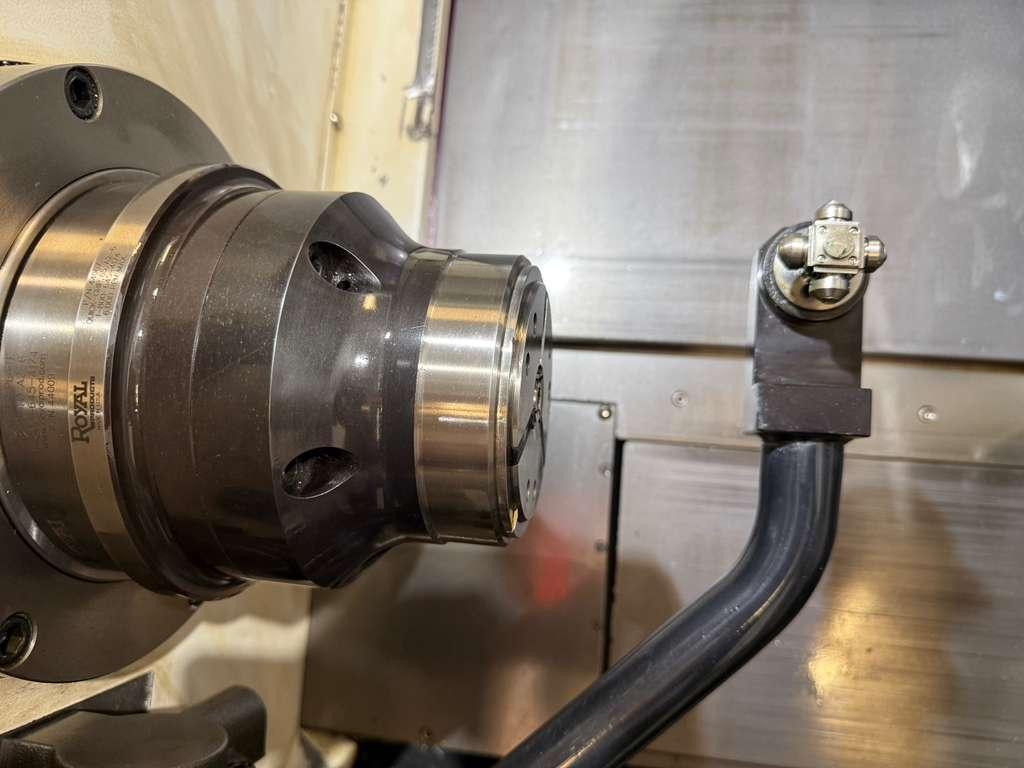

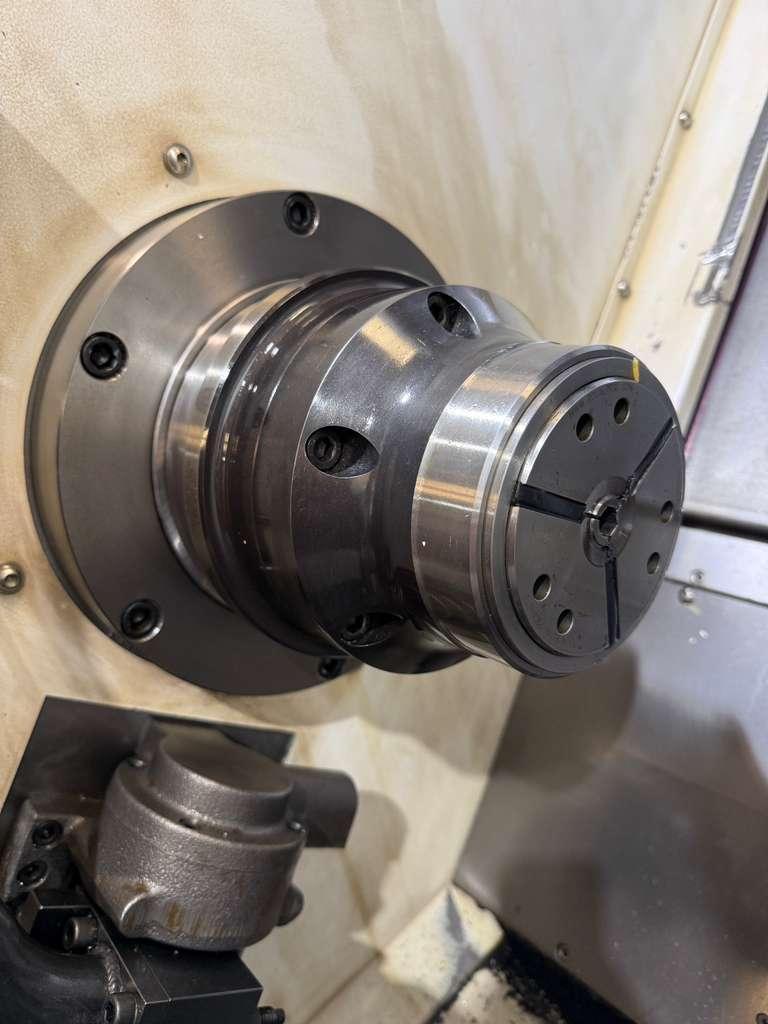

  • Royal Quick Grip 65 Collet Chuck (8″ Chuck Capable)

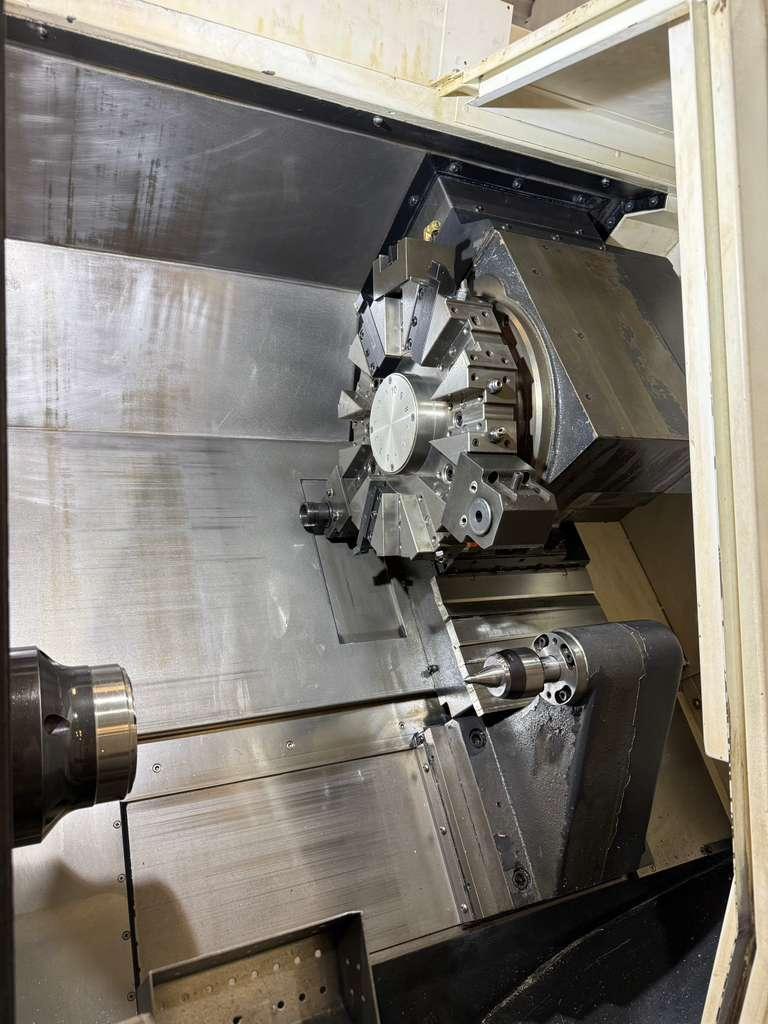

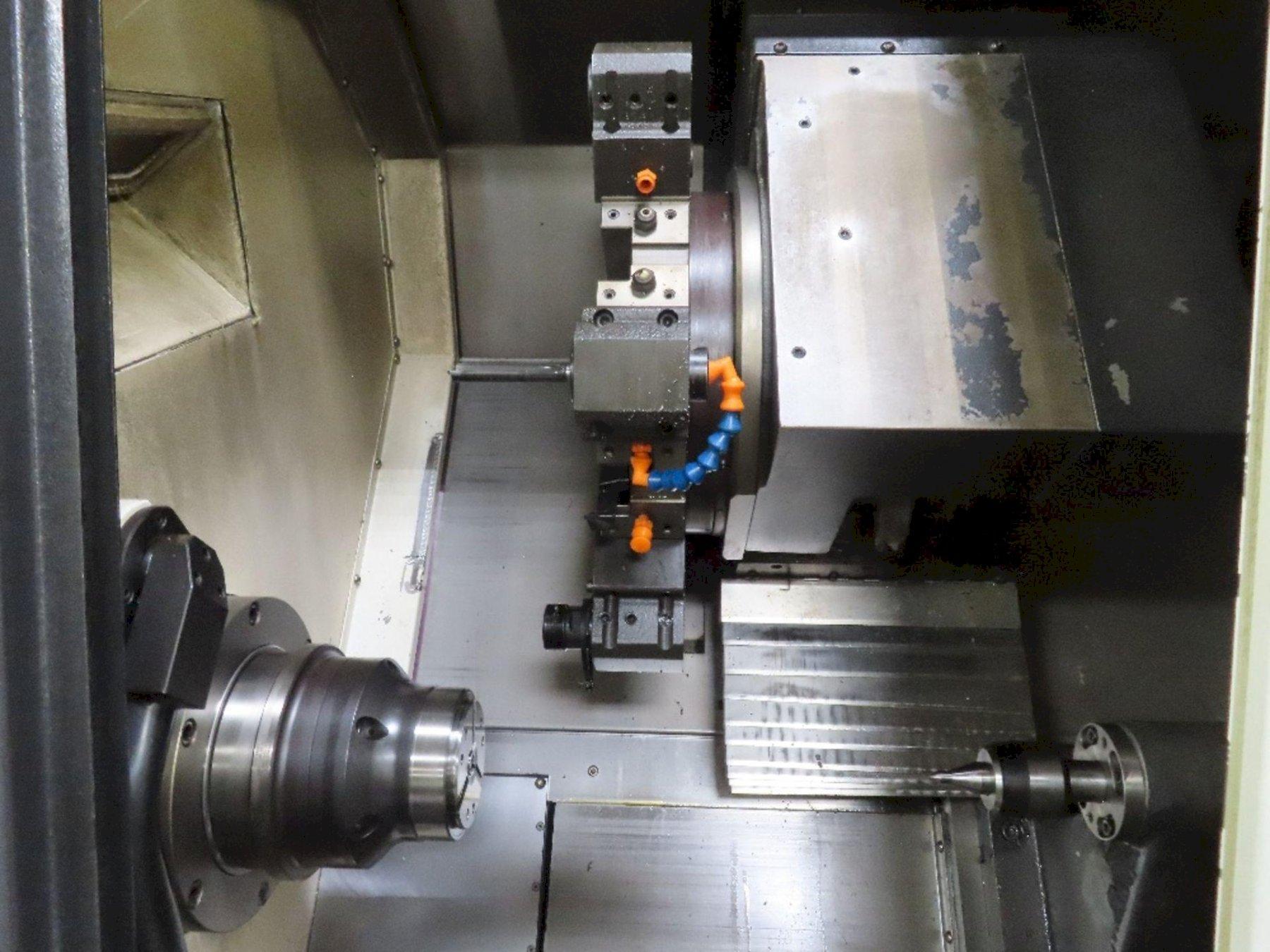

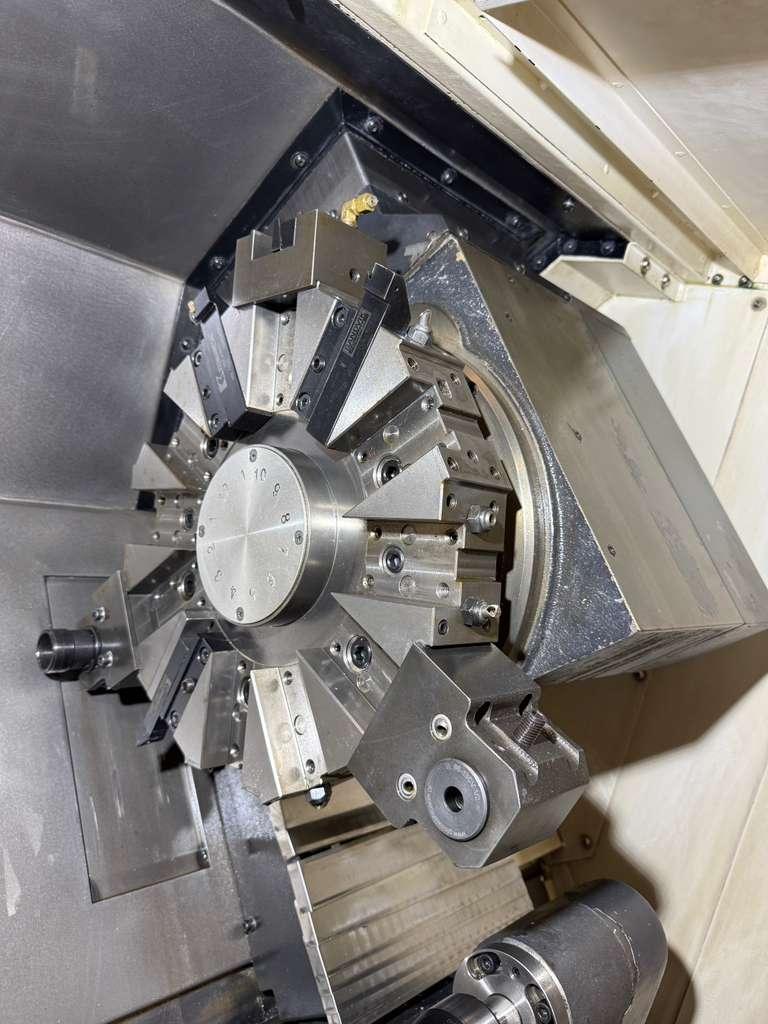

  • 12 Station Automatic Turret
  • Tool Presetter
  • Parts Catcher

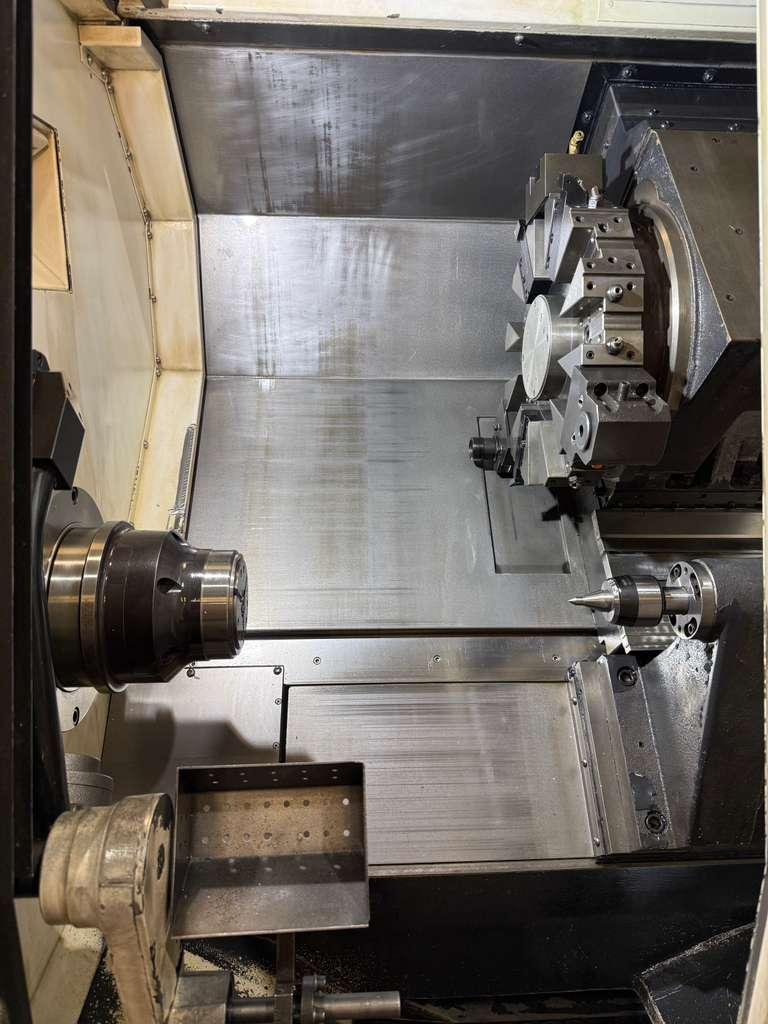

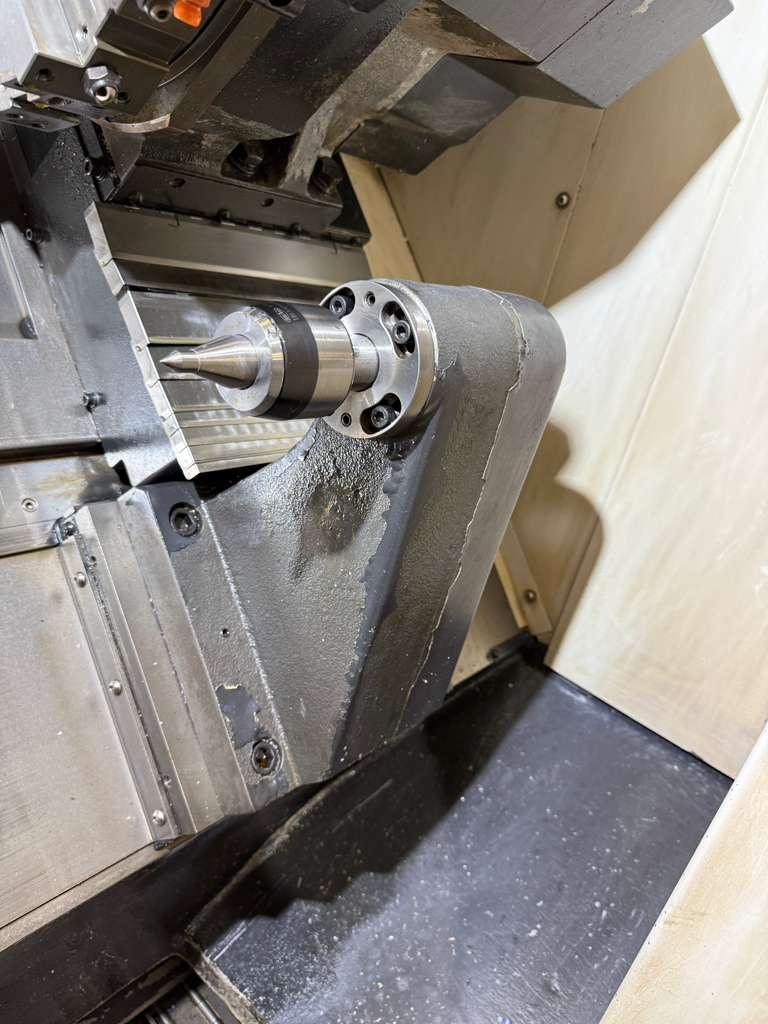

  • Programmable Tailstock

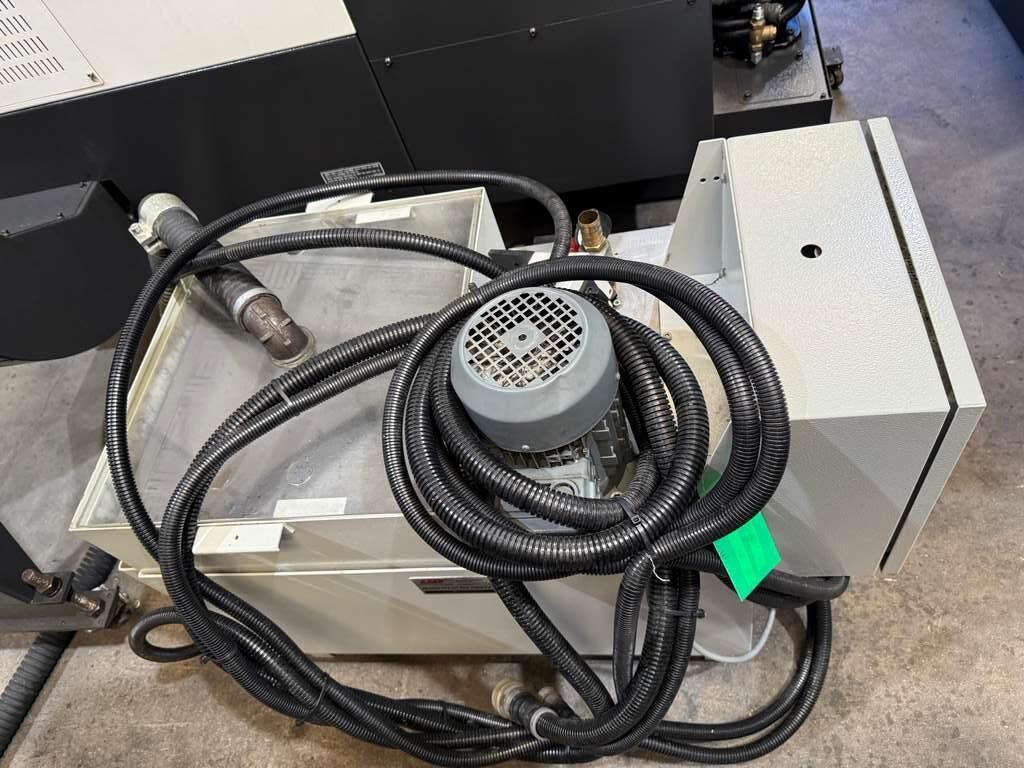

  • Coolant System

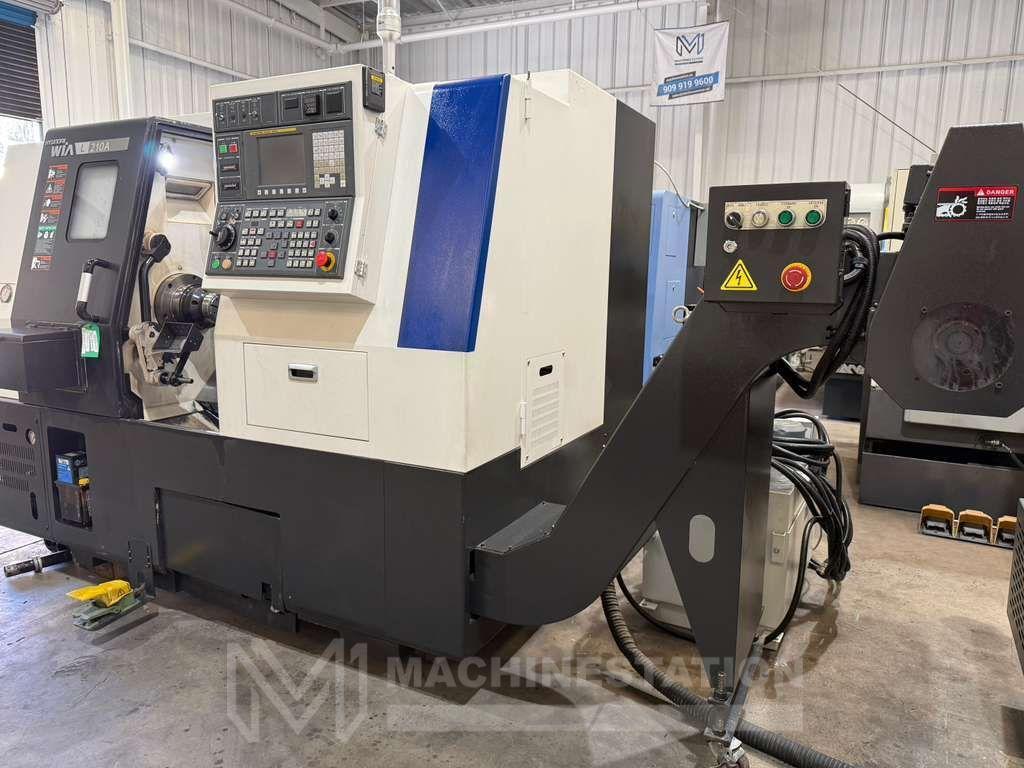

  • Chip Conveyor
  • Foot Switch

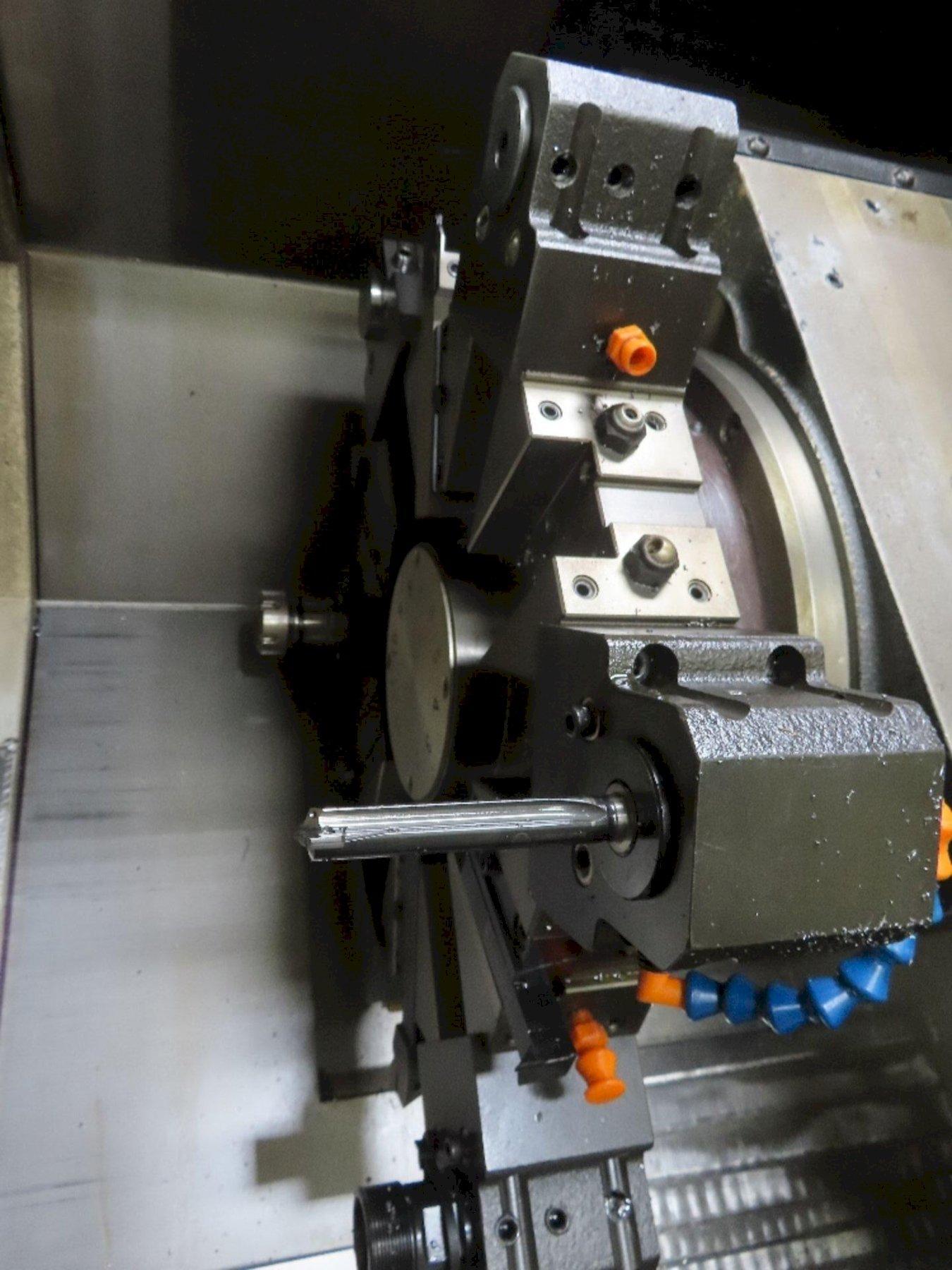

  • (2) Boring Tool Holders (1) Turning Tool Holder Are Mounted on Turret (As shown in the images)
Capacity:
  • Max Turning Diameter: 13.8″
  • Max Turning Length: 16.1″
  • Swing Over Bed: 21.7″
  • Swing Over Carriage: 13.8″
  • Max Bar Capacity: 2.6″
Travels:
  • X Axis Travel: 8.3″
  • Z Axis Travel: 17″
  • Rapid Traverse X Axis: 1,417 IPM
  • Rapid Traverse Z Axis: 1,417 IPM
Spindle:
  • Spindle Nose: A2-6
  • Spindle Bore: 3.0″
  • Spindle Speed: 4,000 RPM
  • Spindle Motor: 20 HP
Turret:
  • Turret Capacity: 12 Stations
  • Turret Index Time: 0.12 Second
  • Tool Size: 1″ OD / 1.3″ ID
Tailstock:
  • Tailstock Taper: MT4
  • Tailstock Quill Diameter: 2.2″
  • Tailstock Travel: 15.7″
General:
  • Power: 21 kVA, 220v / 3-Phase / 60 Hz
  • Overall Dimensions: 94.7″ x 65″ x 73.6″ High
  • Weight: 9,039 lbs
