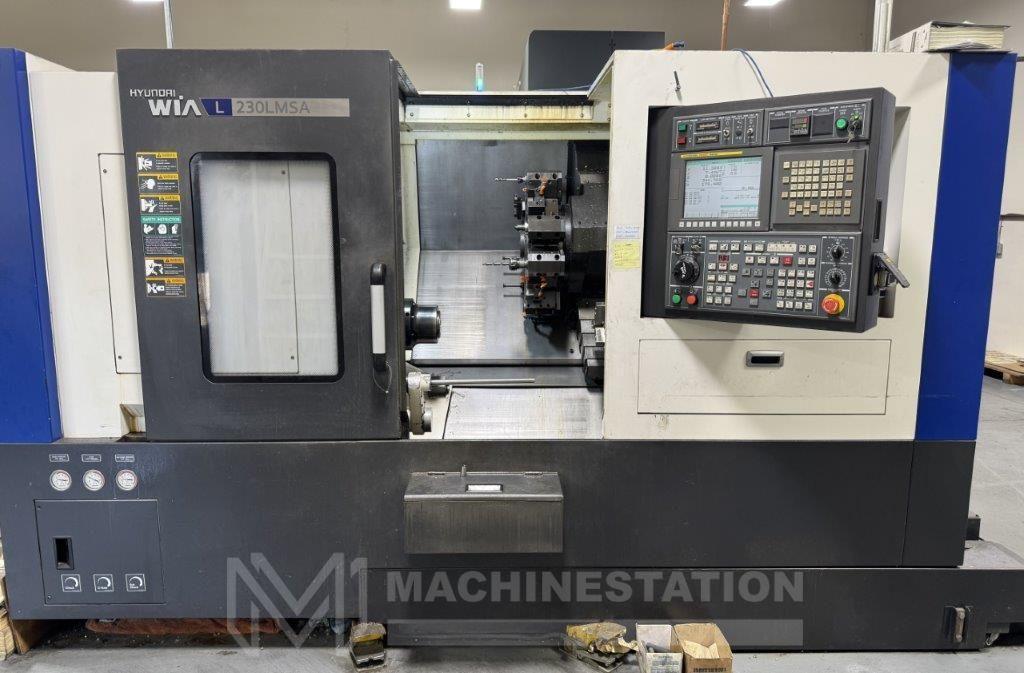

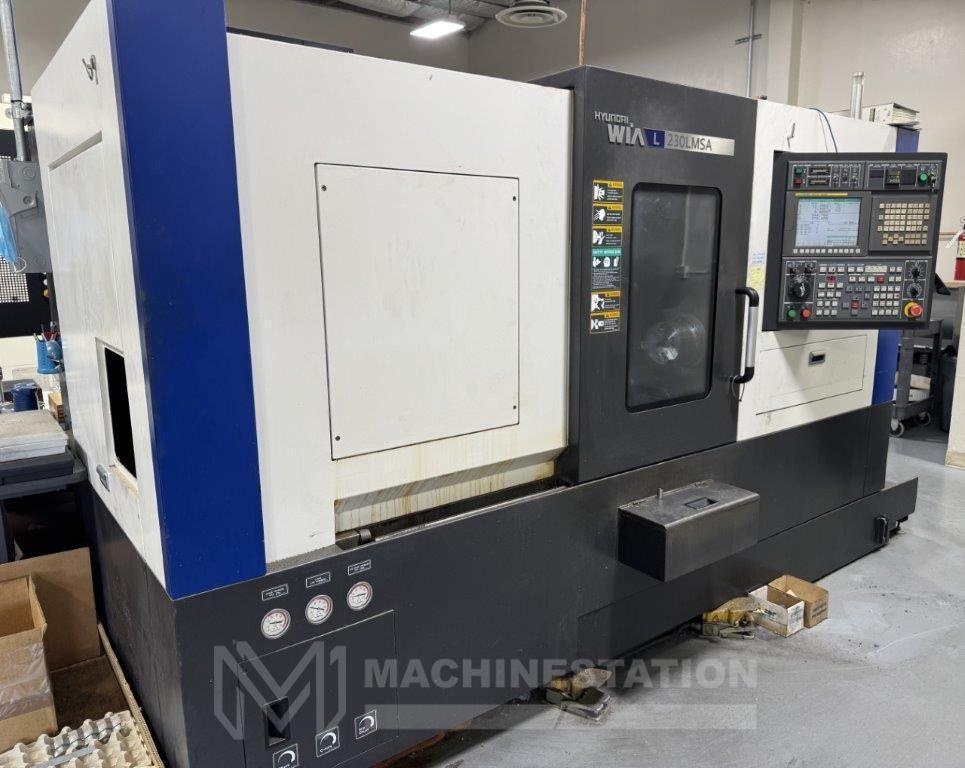

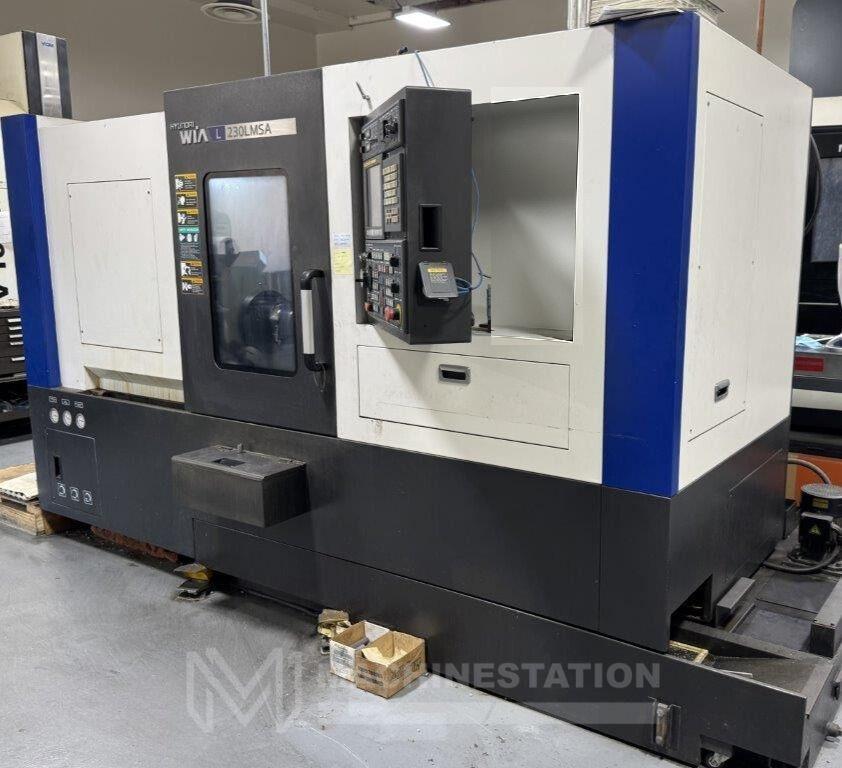

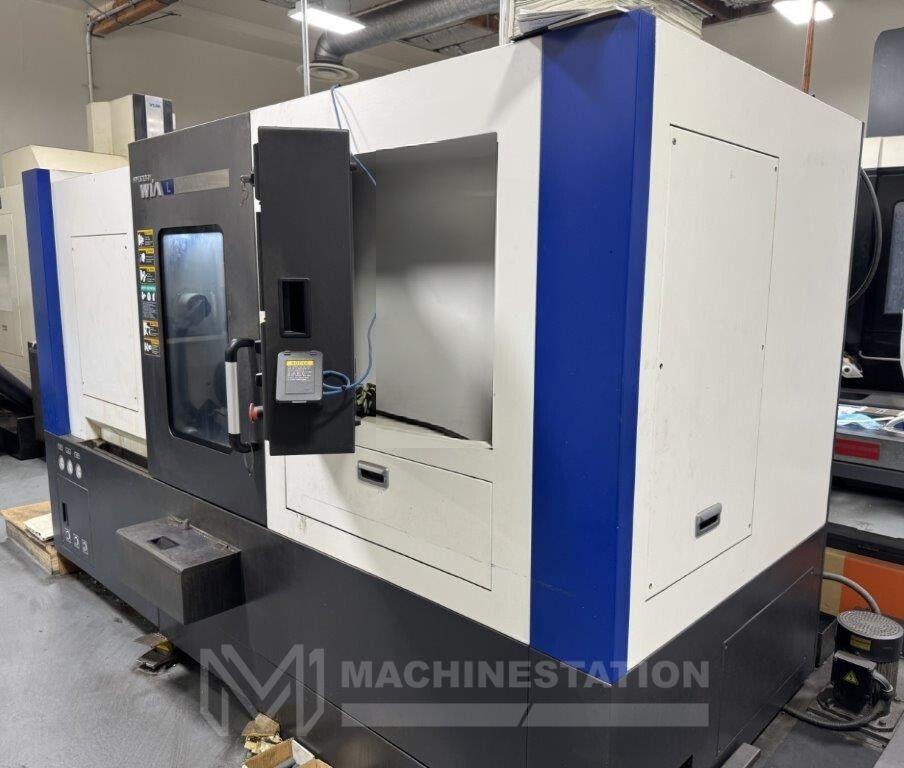

Hyundai WIA L230LMSA CNC Turning Center – Sub Spindle Live Tool Lathe

Hyundai WIA L230LMSA CNC Turning Center – Sub Spindle Live Tool Lathe

Name: Hyundai WIA L230LMSA CNC Turning Center – Sub Spindle Live Tool Lathe
Brand: HYUNDAI
SKU: 115109
Availability: InStock

Brand

HYUNDAI

Location

Not specified

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	Hyundai WIA
Model:	L230LMSA

Equipped With:

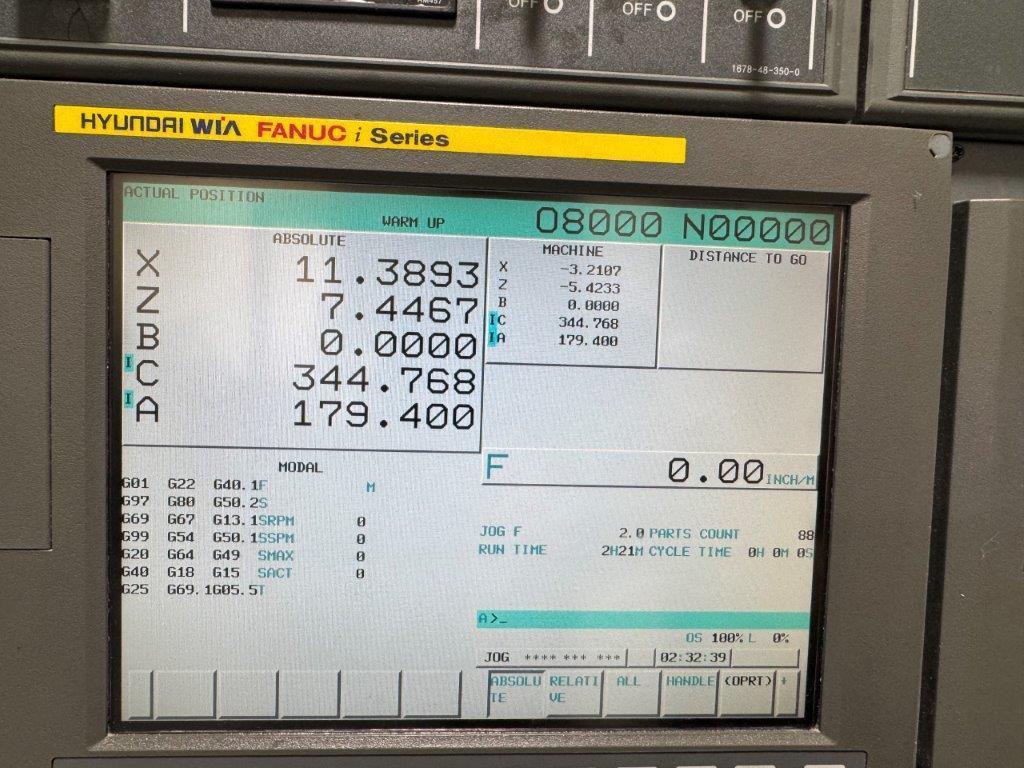

Fanuc i Series CNC Control

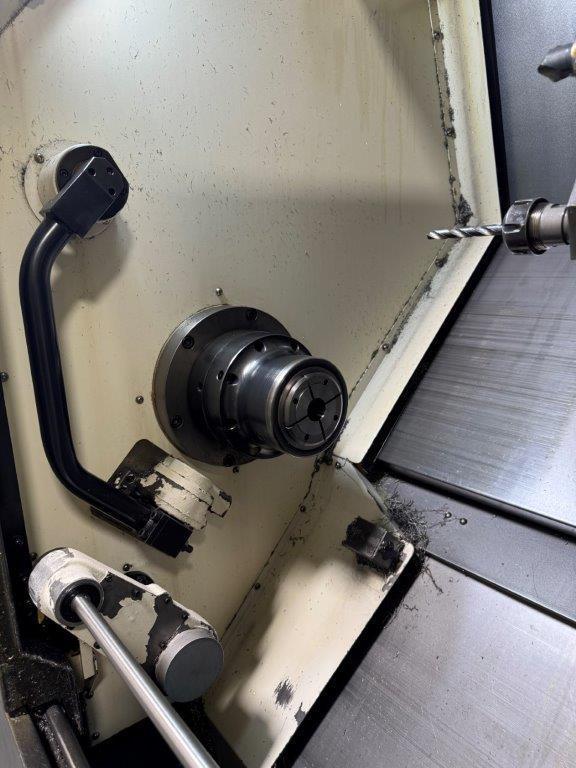

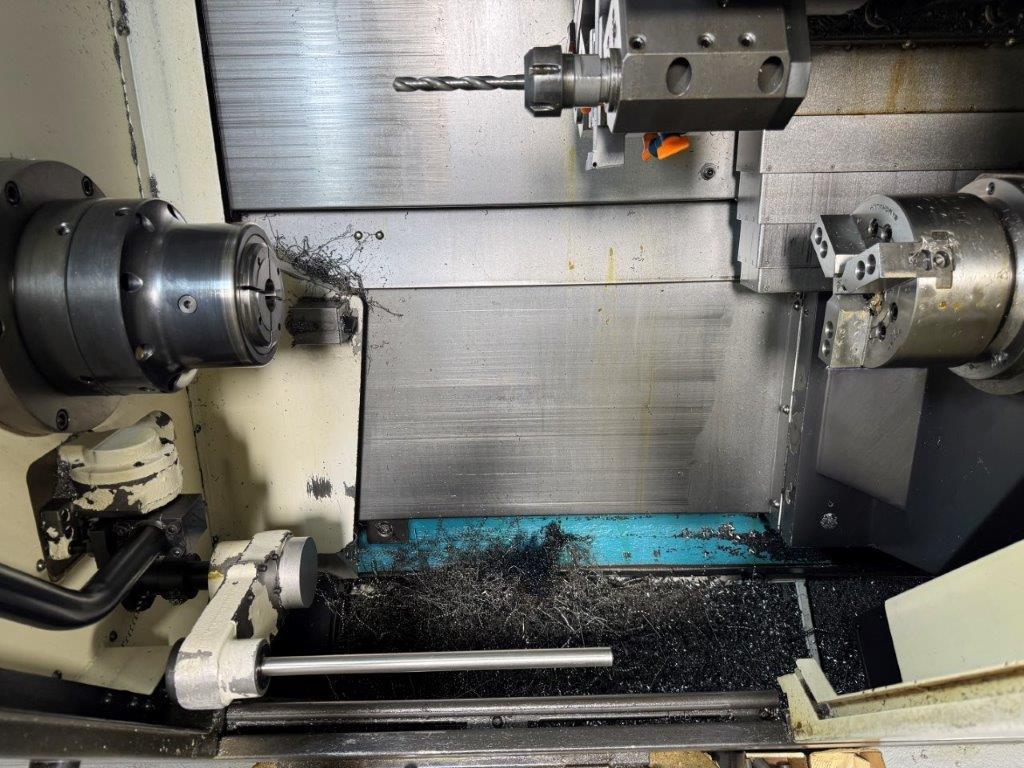

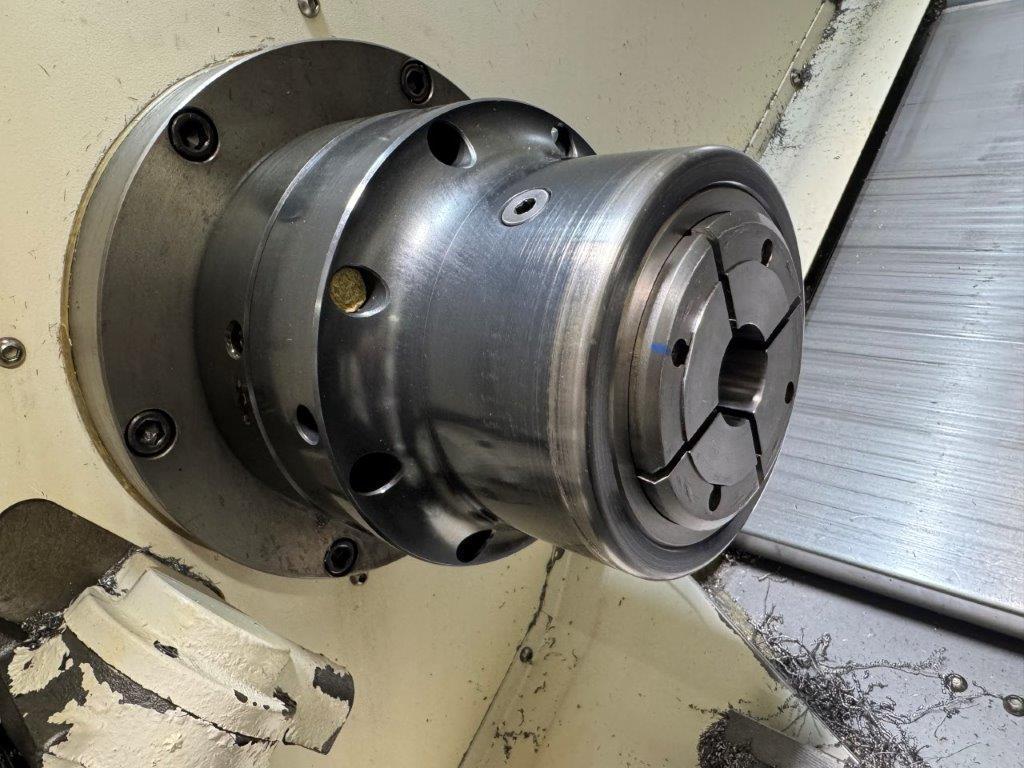

S26 Collet Chuck Equipped on Main Spindle

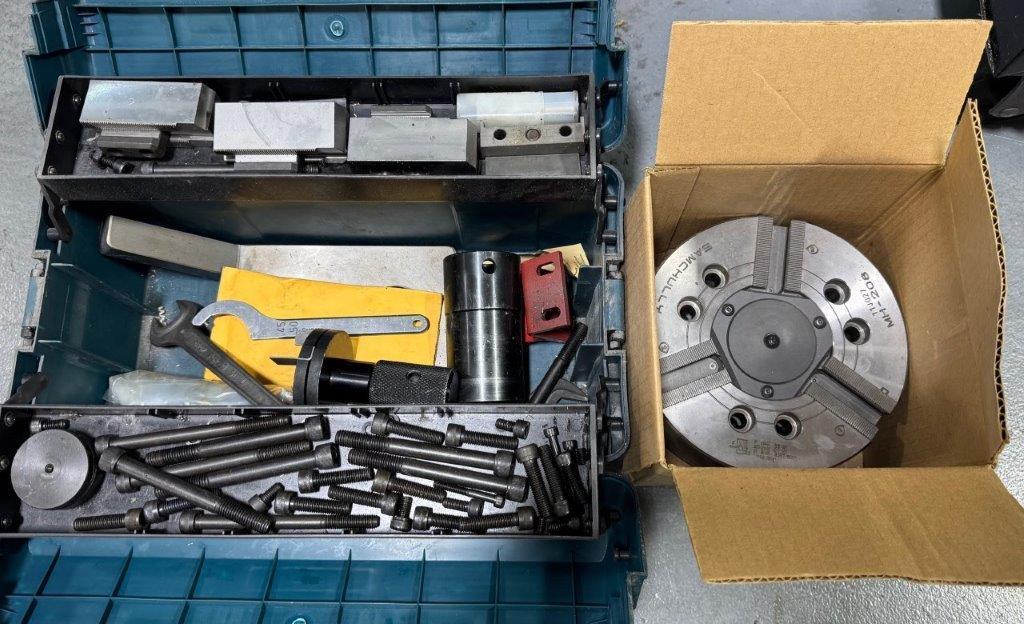

8 inch 3-Jaw Samchully MH-208 Chuck For Main Spindle (Extra Chuck)

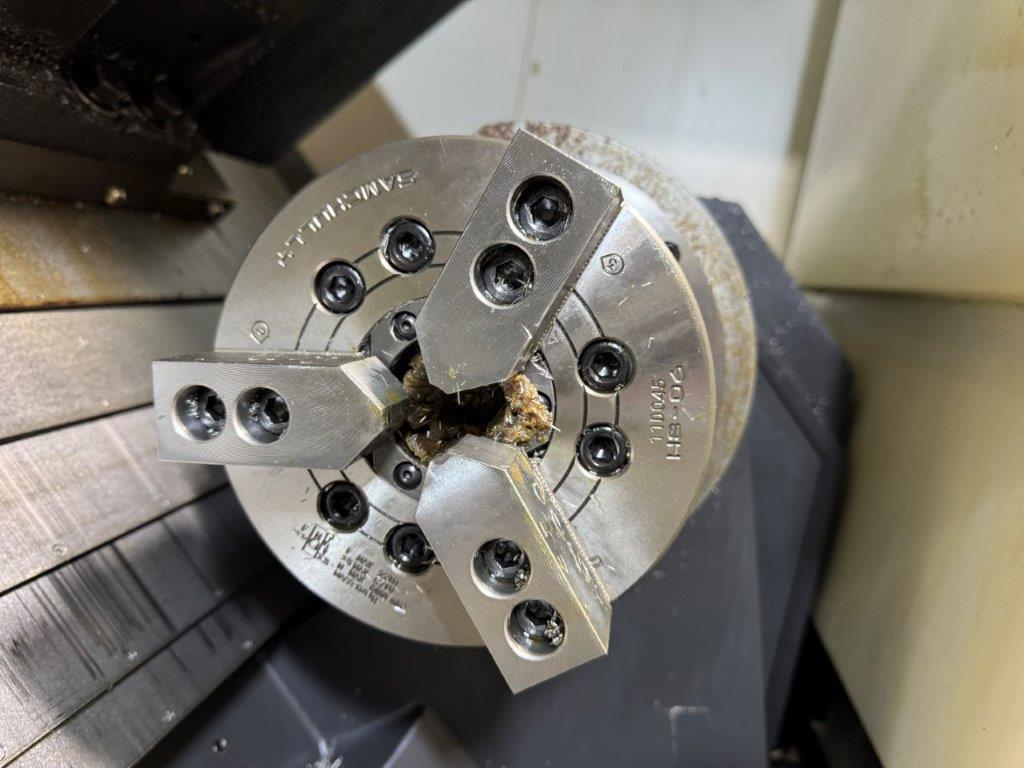

6 inch 3-Jaw Samchully HS-06 Chuck Equipped on Sub Spindle
16C Collet Chuck For Sub Spindle (Extra Chuck)
Servo Controlled C Axis on Both Spindles

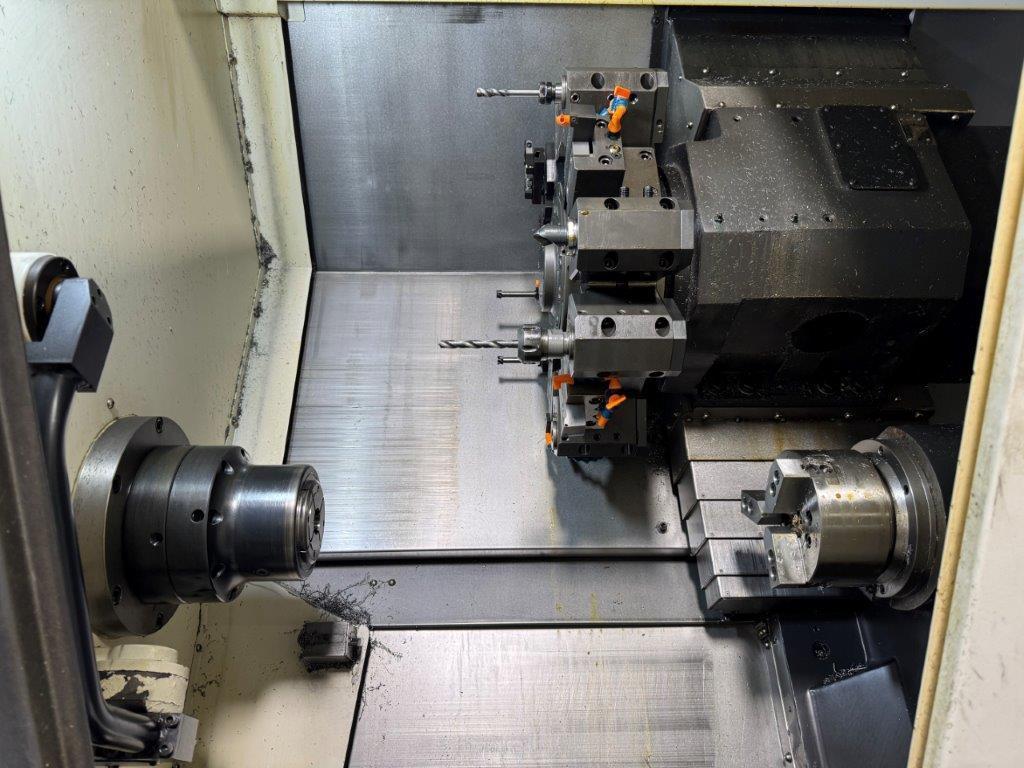

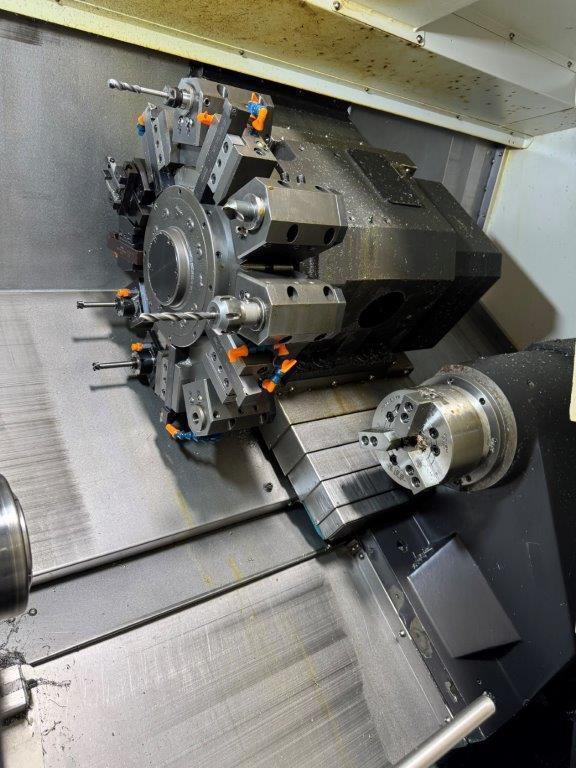

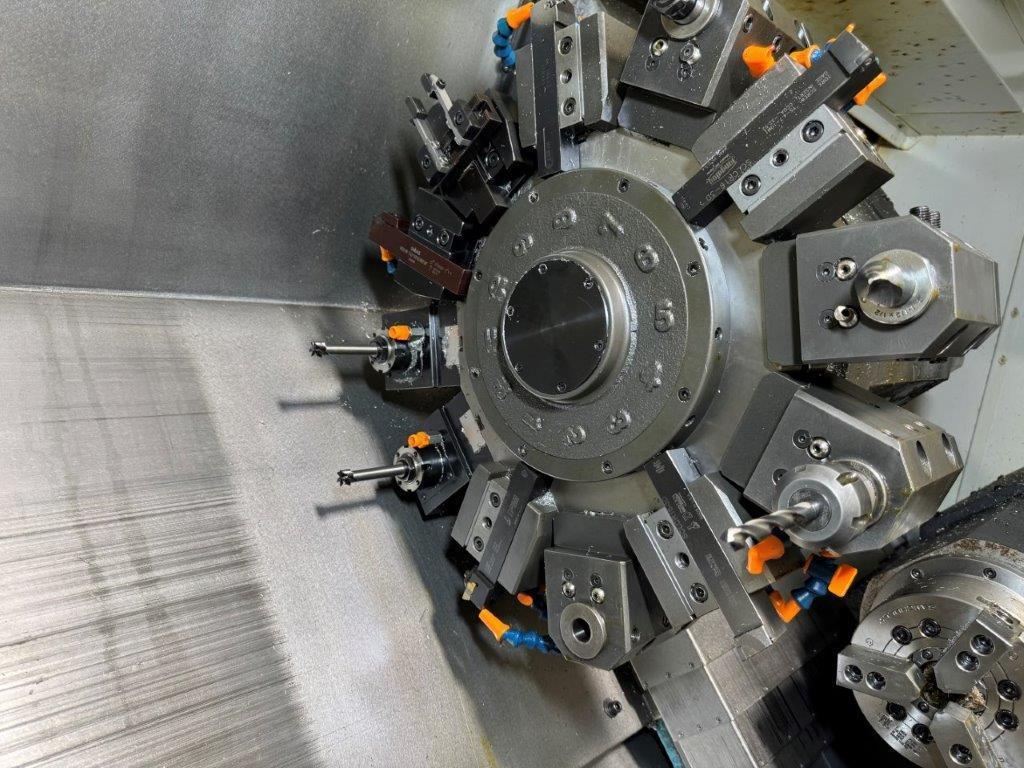

12 Station Live Tool Turret
Tool Presetter
Rigid Tapping
Coolant Tank
Foot Switches
(5) Live Tool Holders

Capacity:
Max Turning Diameter: 12.2 inch
Max Turning Length: 20.5 inch
Swing Over Cross Slide: 14.0 inch
Swing Over Bed: 23.6 inch
Max Bar Capacity: 2.6 inch (Main) / 1.7 inch (Sub)

Travels:
X Axis Travel: 8.7 inch
Z Axis Travel: 22.0 inch
ZB Axis Travel (Sub Spindle): 23.2 inch
C Axis (Both Spindles): 360 Degree (0.001)
Rapid Traverse Rate X / Z / ZB Axis: 1417 / 1417 / 1181 IPM

Main Spindle:
Spindle Nose: A2-6
Spindle Bore: 3.1 inch
Spindle Speed: 4000 RPM
Spindle Motor: 20 HP

Sub Spindle:
Spindle Nose: A2-5
Spindle Bore: 2.1 inch
Spindle Speed: 5000 RPM
Spindle Motor: 7.5 HP

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.2 Second
Rotary Tool Speed: 5000 RPM
Rotary Tool Motor: 5 HP
Turret Type: BMT55

General:
Power Source: AC 220 V / Three Phase / 60 Hz
Power Requirement: 27 kva
Overall Dimensions: 133.5 inch x 66.3 inch x 73.3 inch High
Weight: 10,360 lbs Approx.
