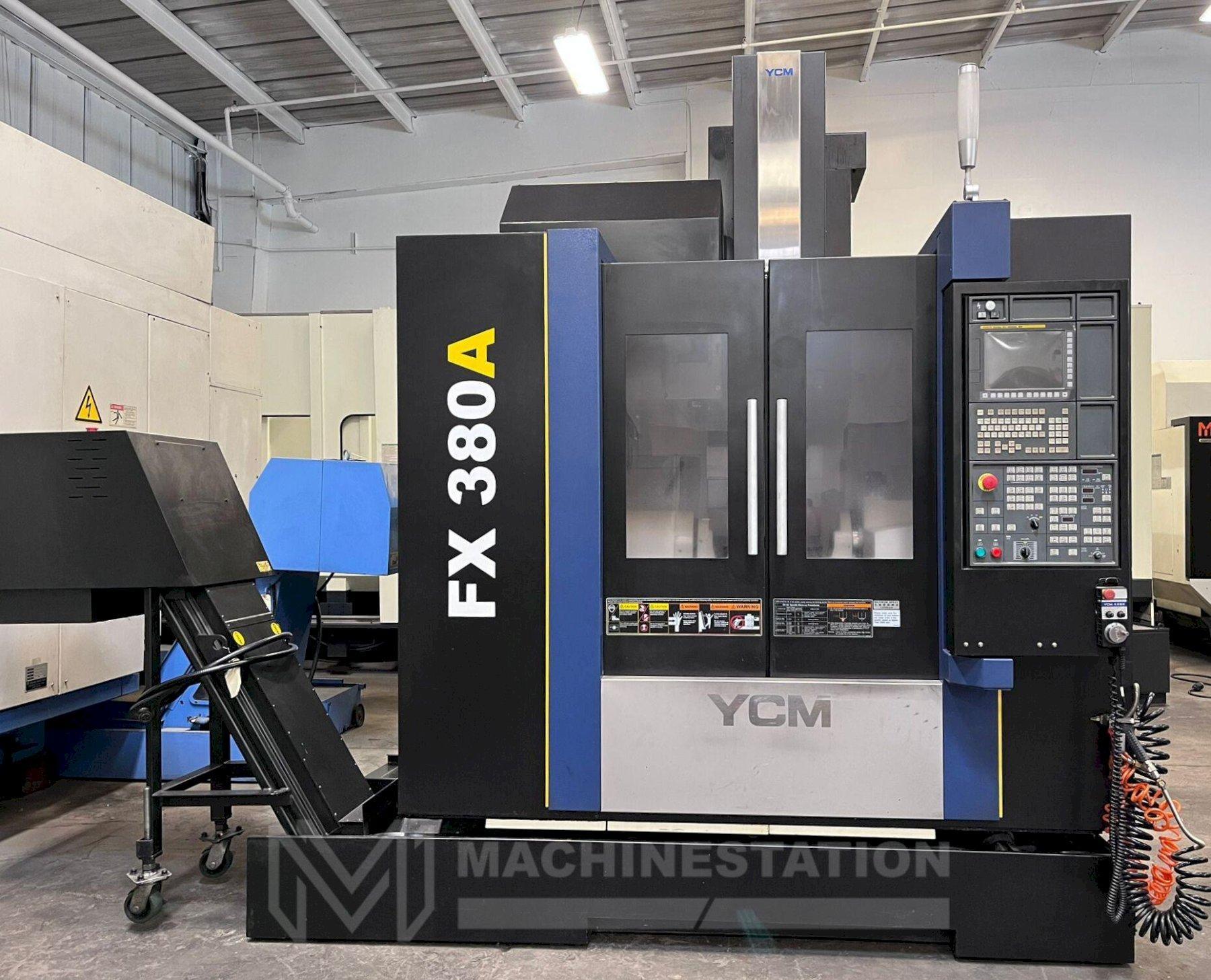

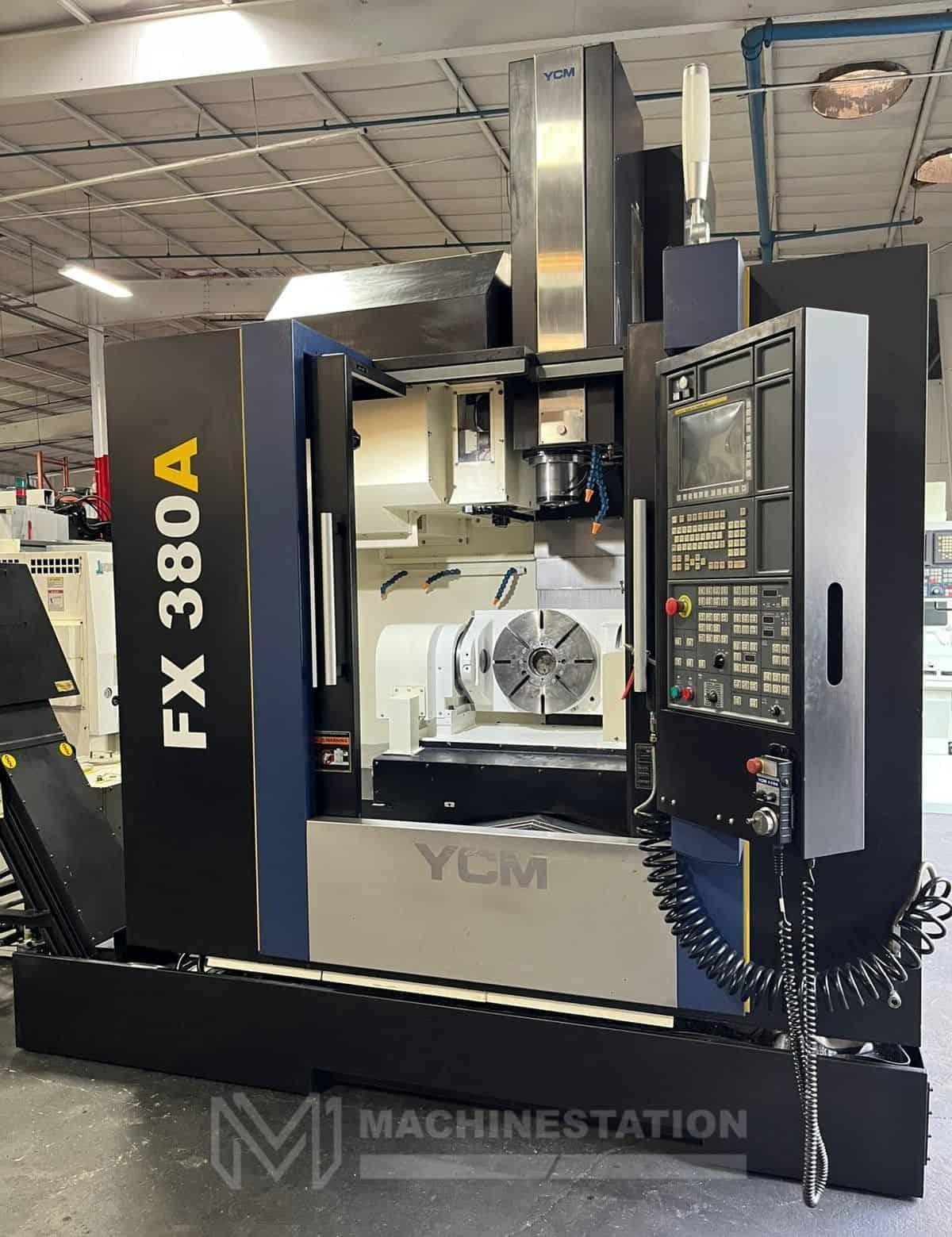

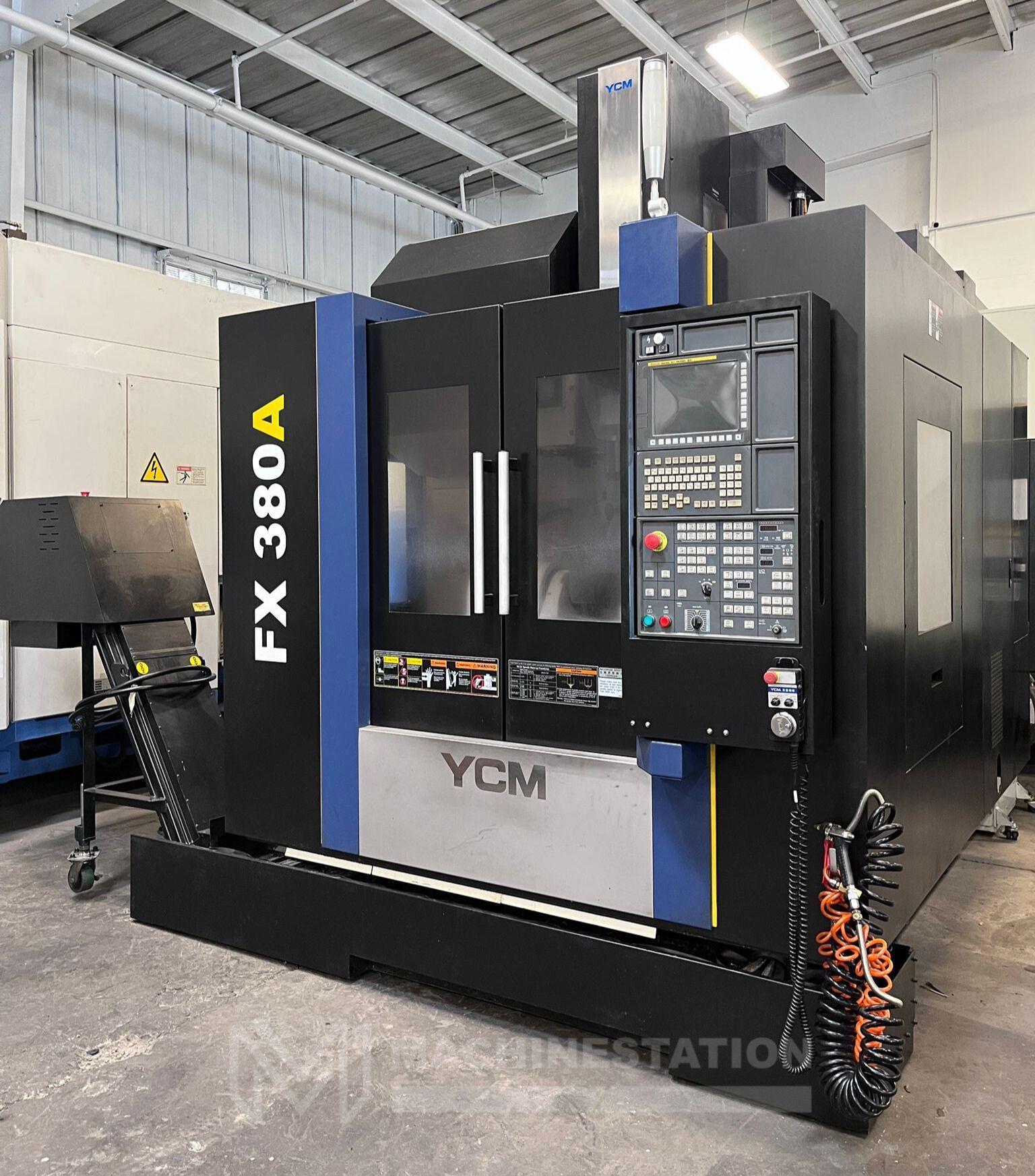

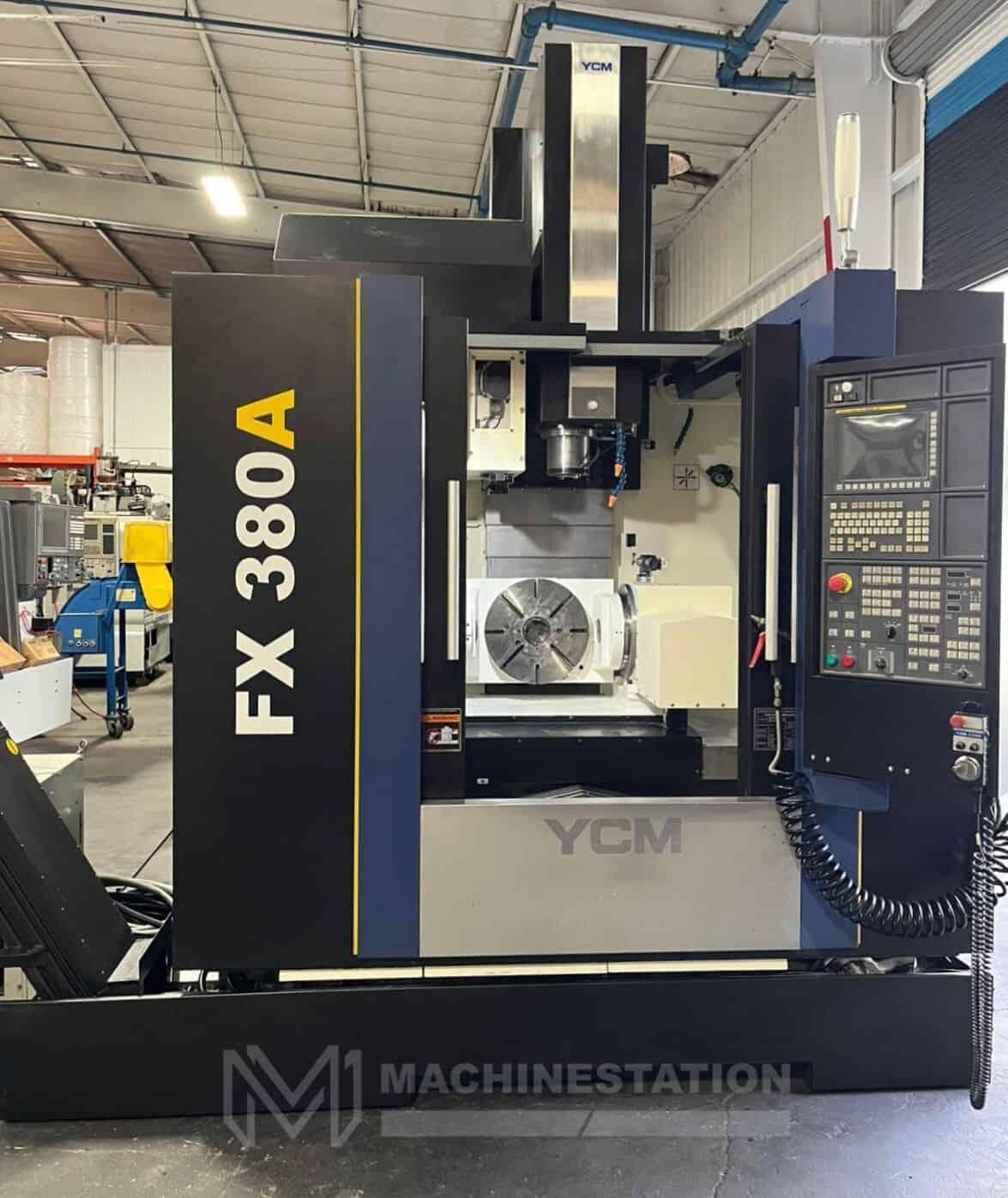

YCM FX-380A 5 Axis CNC Vertical Machining Center – Mill

YCM FX-380A 5 Axis CNC Vertical Machining Center – Mill

Name: Used YCM FX-380A For Sale 112613
Brand: YCM
SKU: 112613

Brand

YCM

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	YCM
Model:	FX-380A
Year:	2017
Condition:	Used – Good

Features:

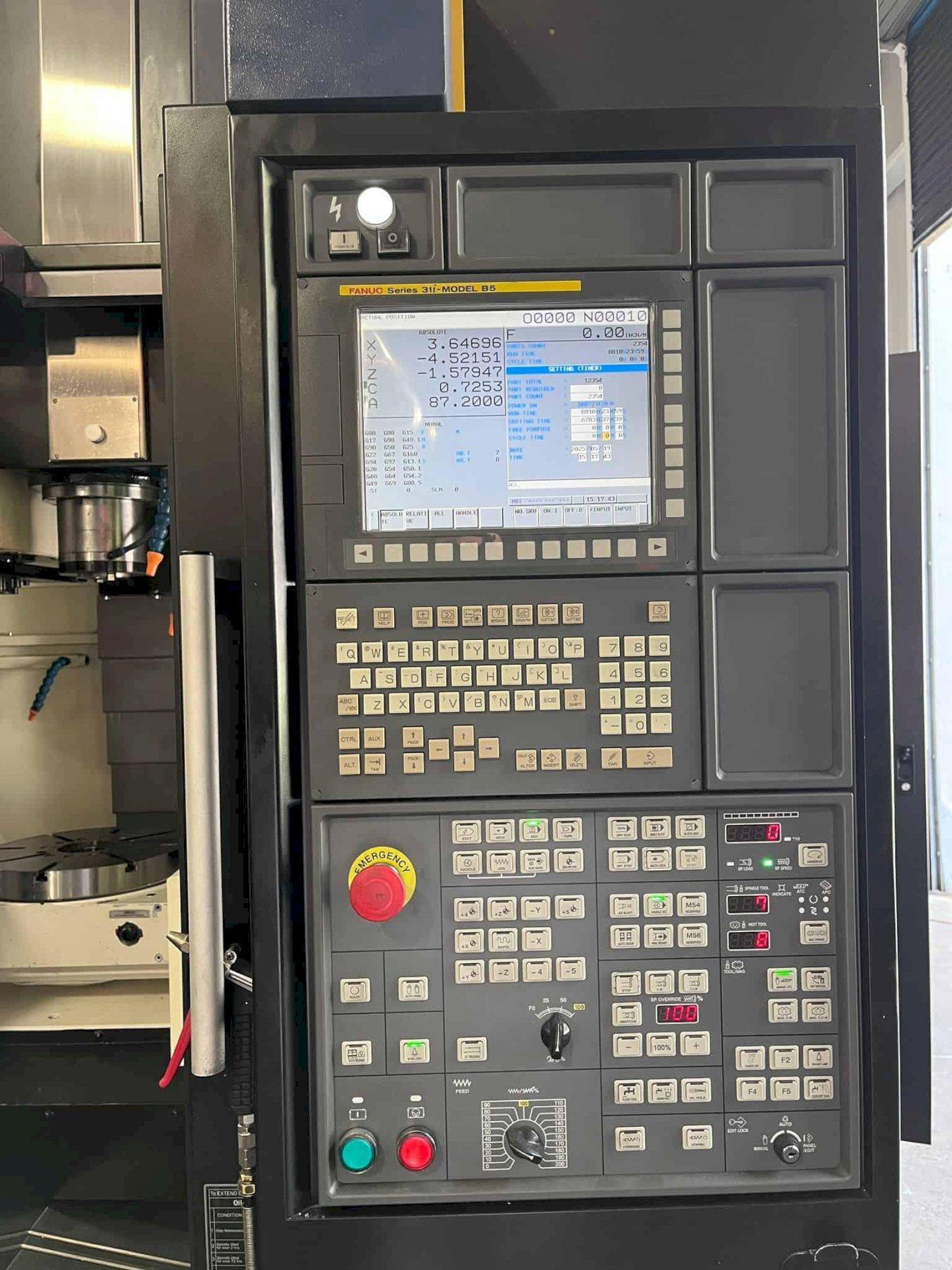

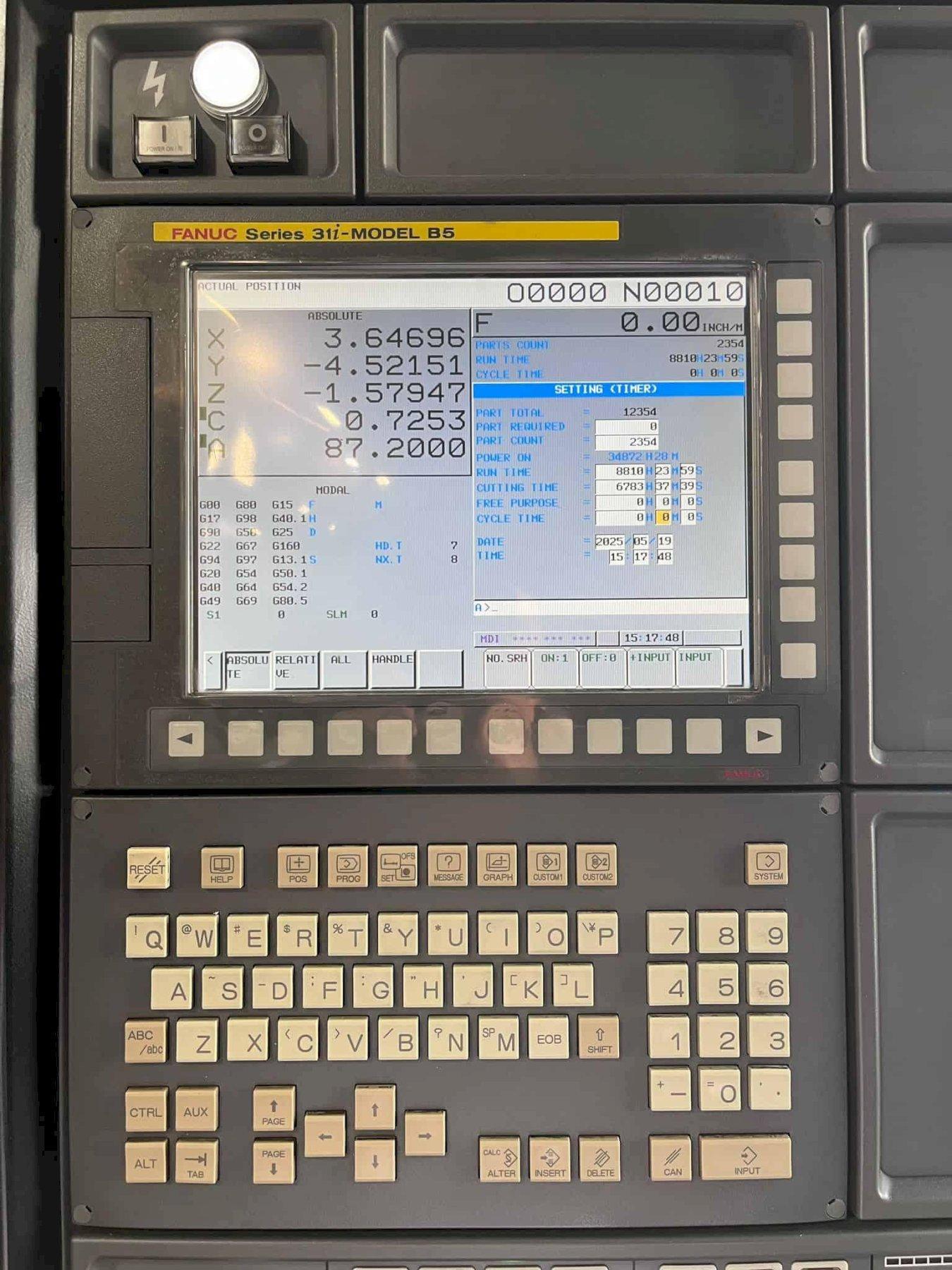

Fanuc 31i-B5 Series CNC Control
Simultaneous 5-Axis Cutting

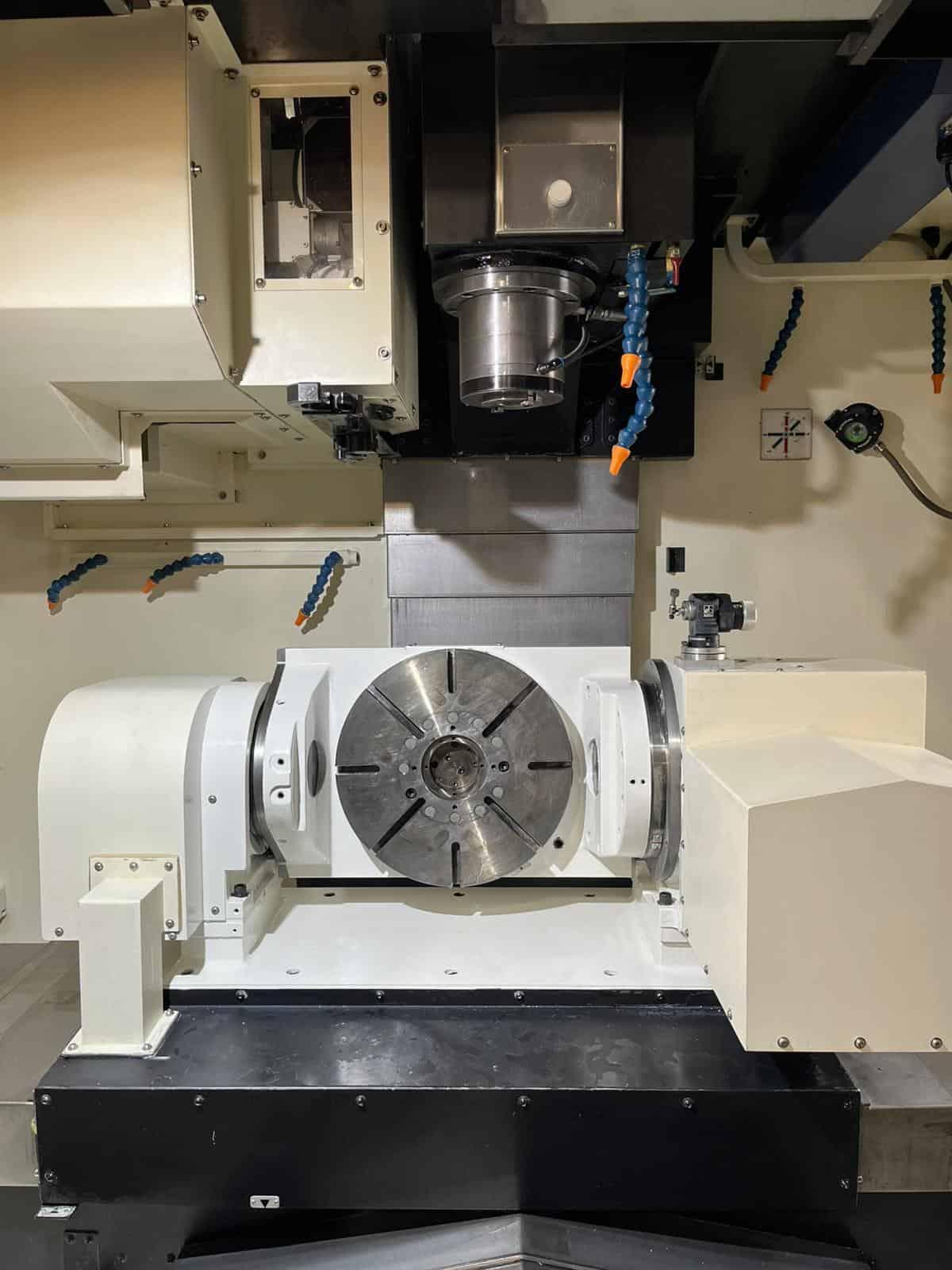

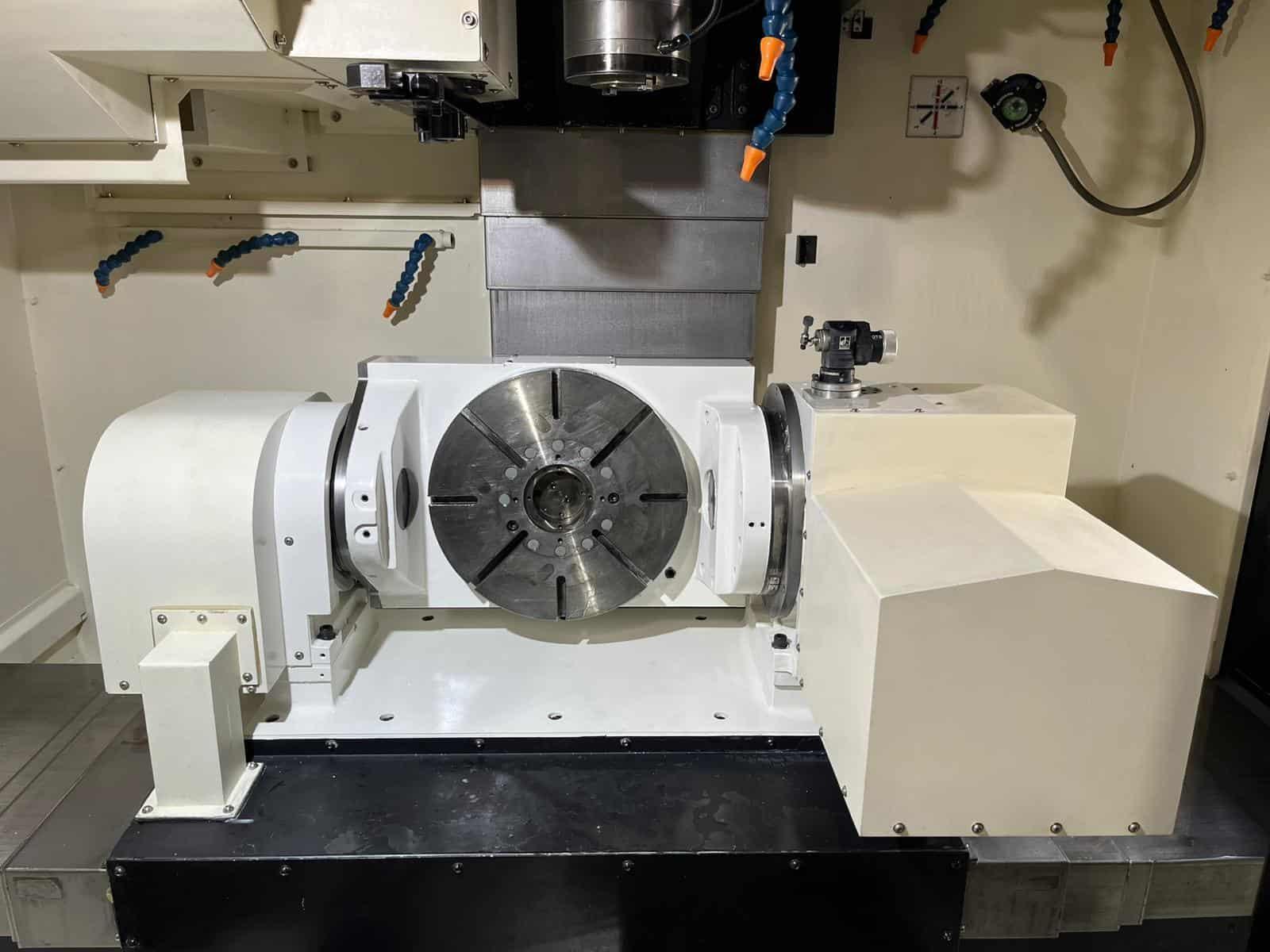

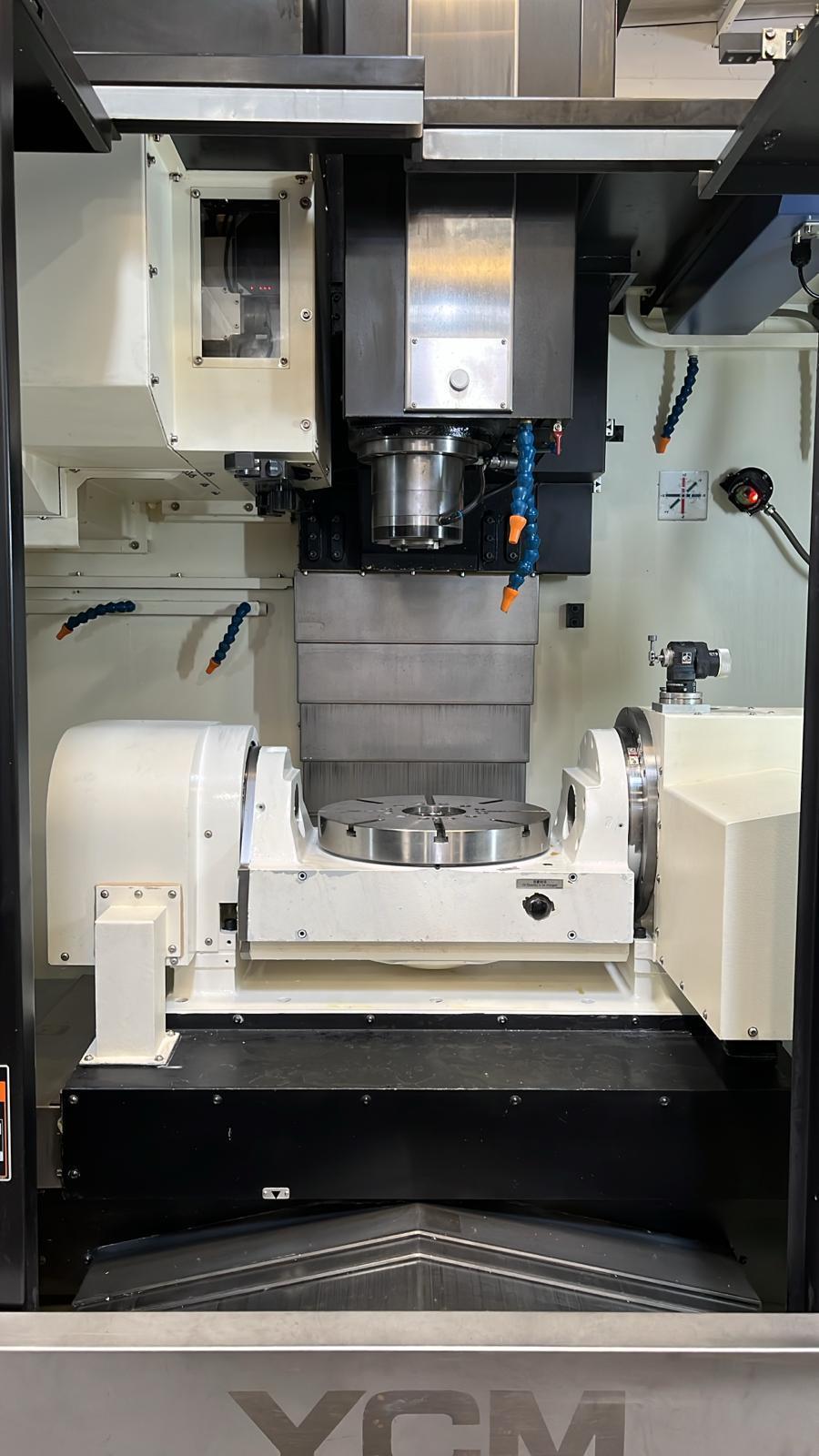

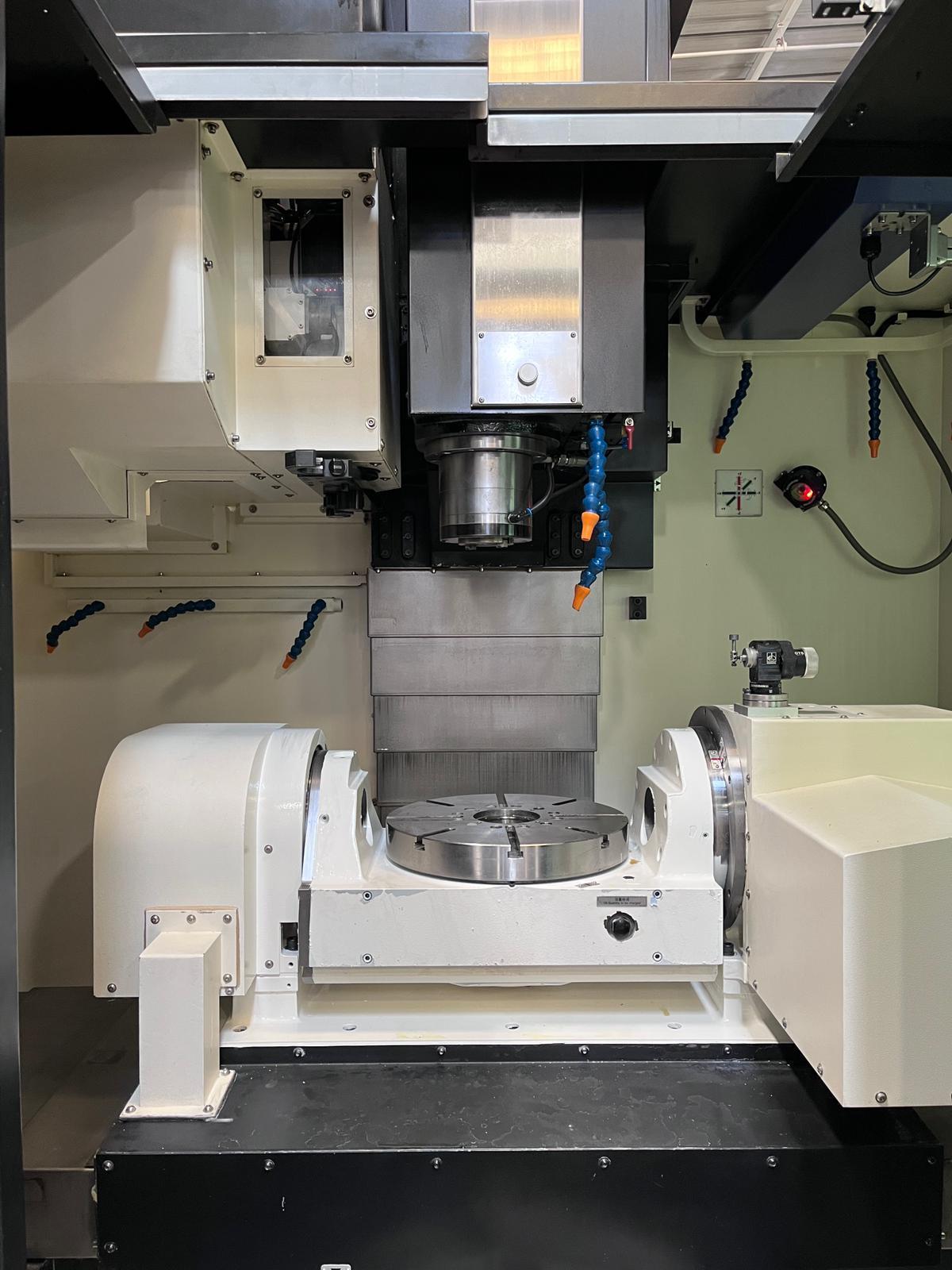

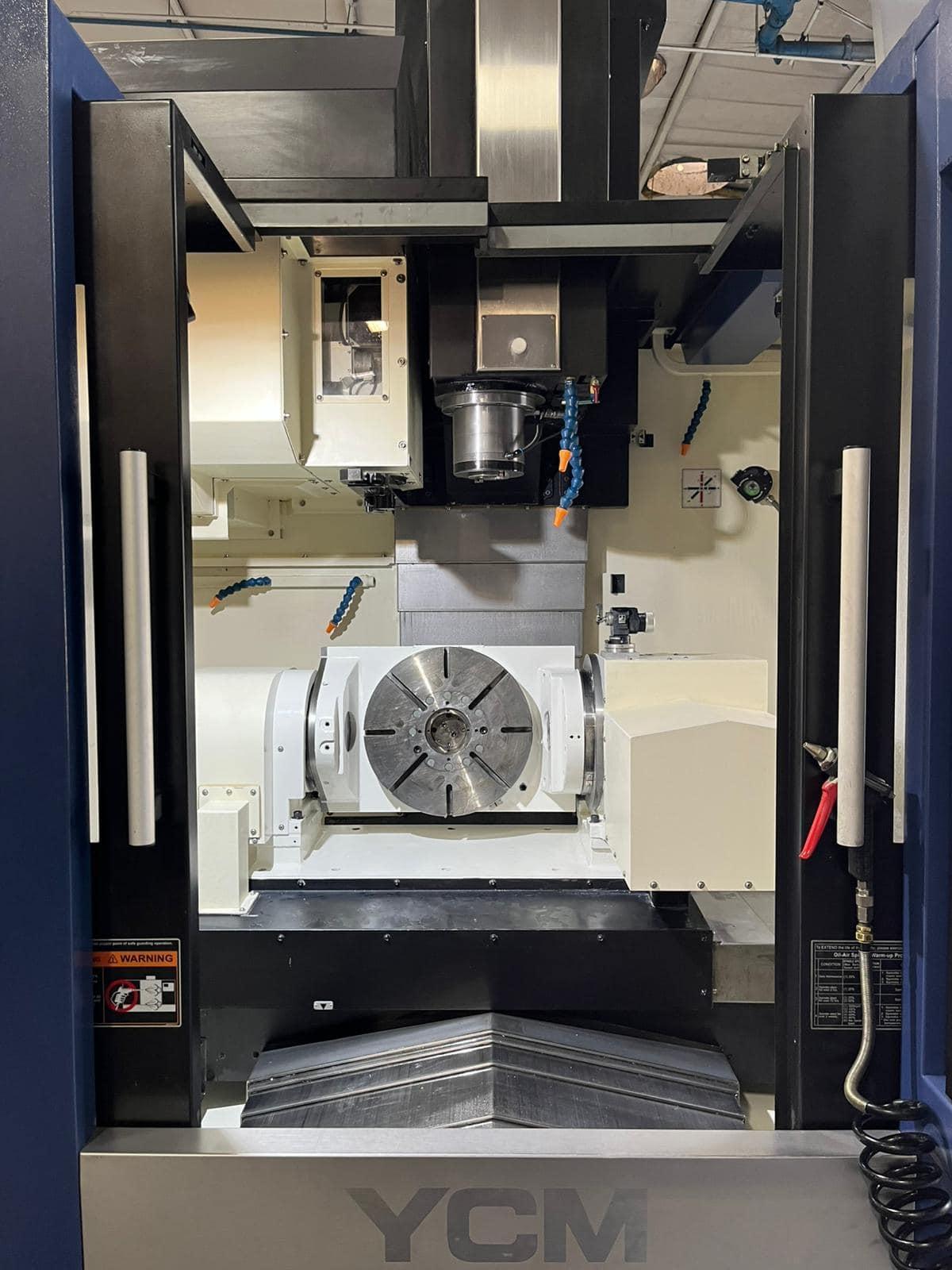

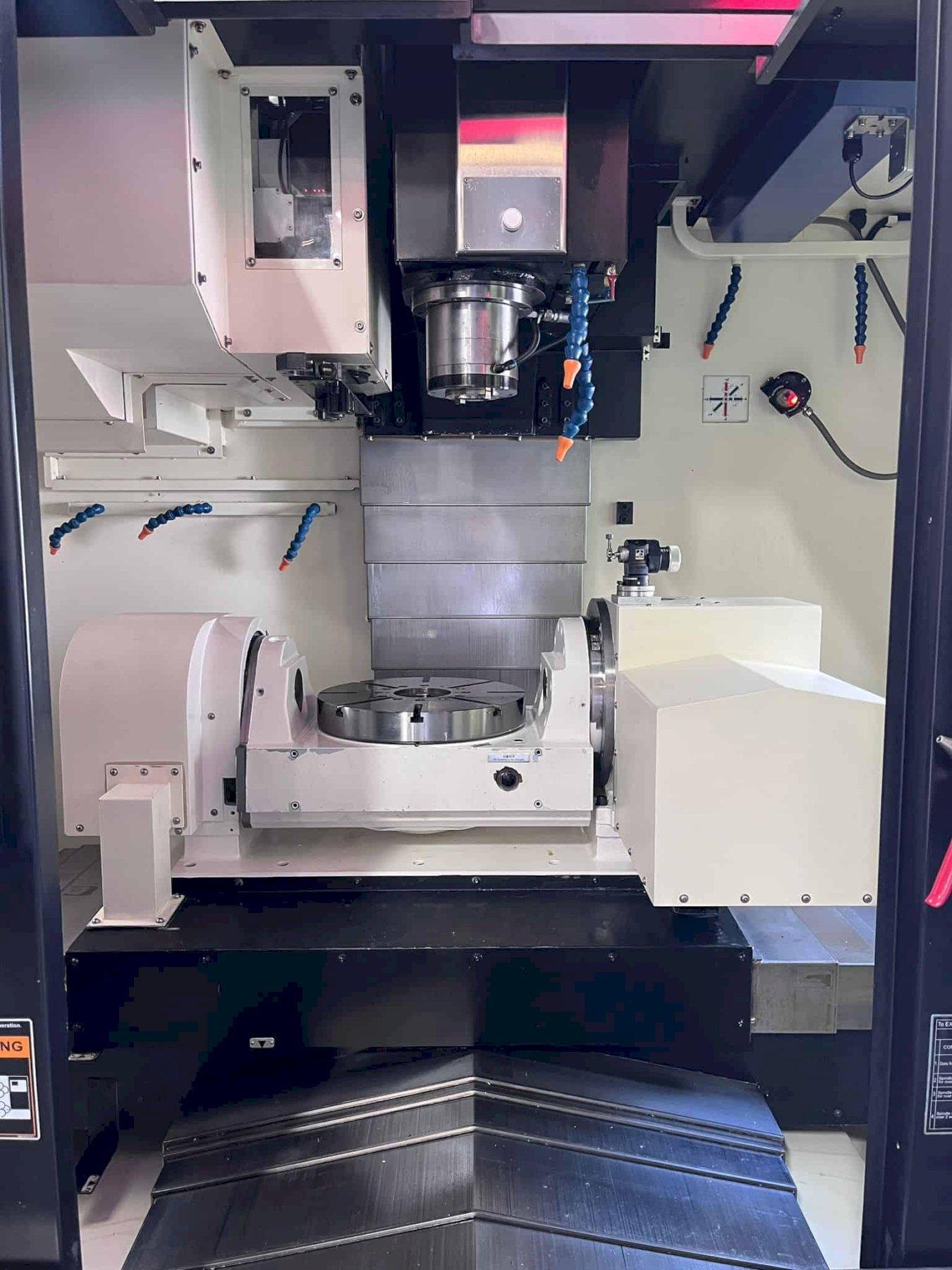

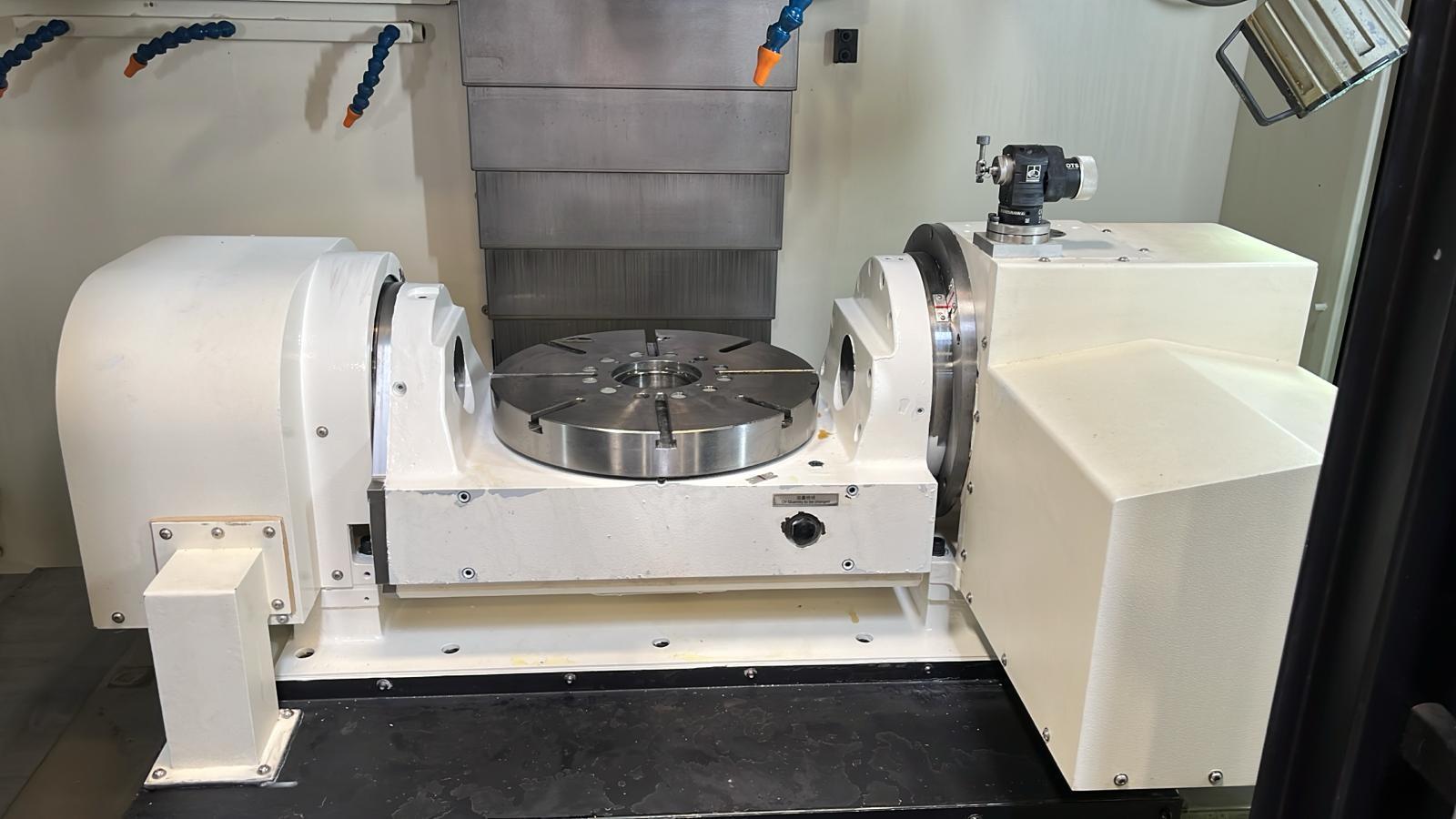

NC Programmable Swiveling Trunnion Table 14.96” Diameter
12,000 RPM High Precision Spindle
Through Spindle Coolant
30 Station Automatic Tool Changer
Renishaw Probing System (Probe Included)

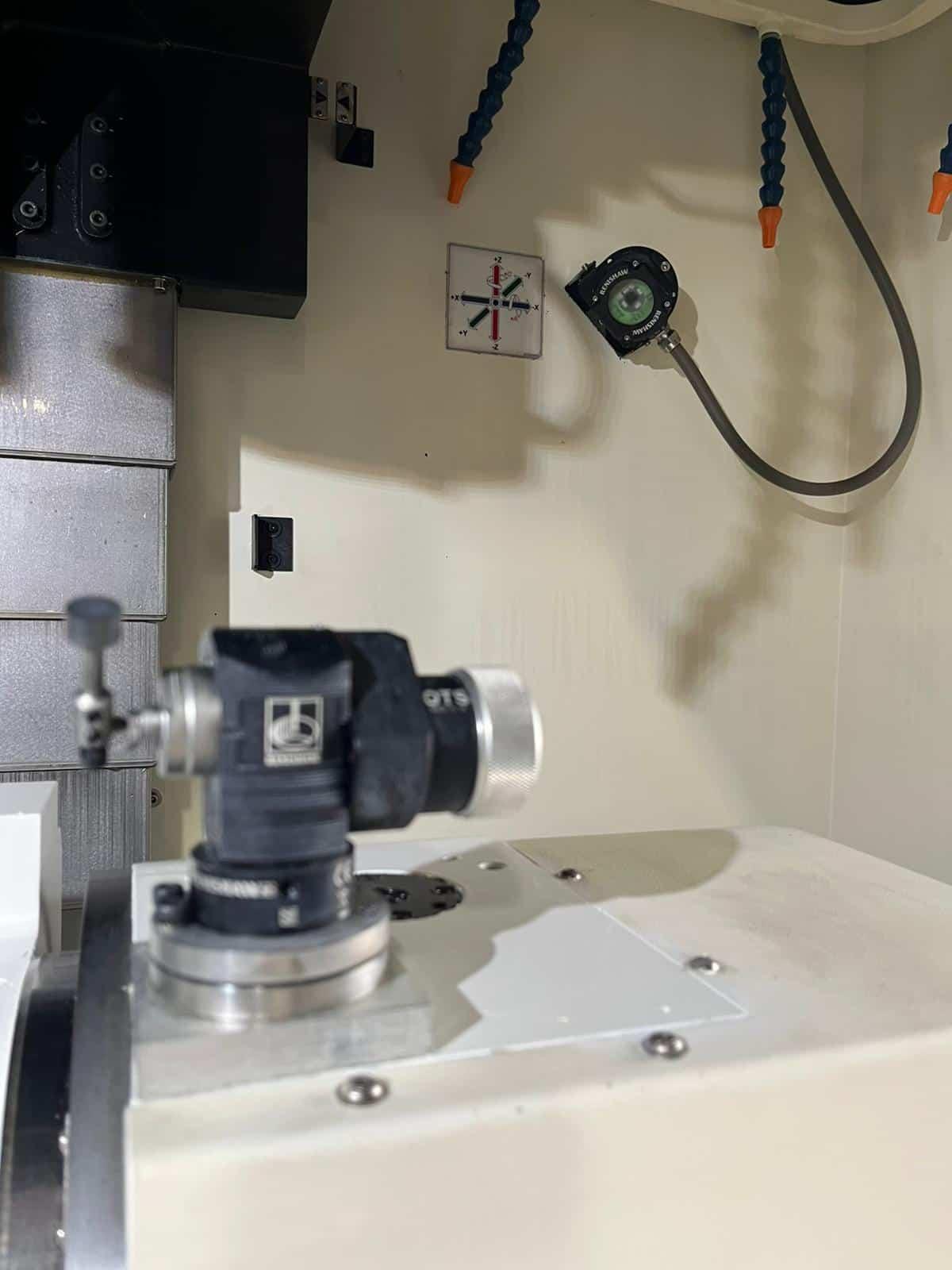

Tool Presetter
Hand Wheel MPG Control
Spindle Chiller
USB, PCMCIA Ports
Spindle Orientation
Rigid Tapping
Absolute Incremental Programming
Fast Rapid Traverse Rate
Chip Conveyor
Work light

Travels:

X Axis: 27.56″
Y Axis: 20.47″
Z Axis: 18.90″
A Axis: 150° (+30°/– 120°) ( Table Tilt )
C Axis: 360° ( Table Rotate )
Rapid Traverse Rates X & Y Axis: 1417 Inch Per Minute
Rapid Traverse Rates Z Axis: 944 Inch Per Minute
Cutting Feed Rates: 393 Inch Per Minute

Table:

Table Diameter: 14.96″
T-Slots: 0.47″ Radial
Max Weight on Table: 441 lbs

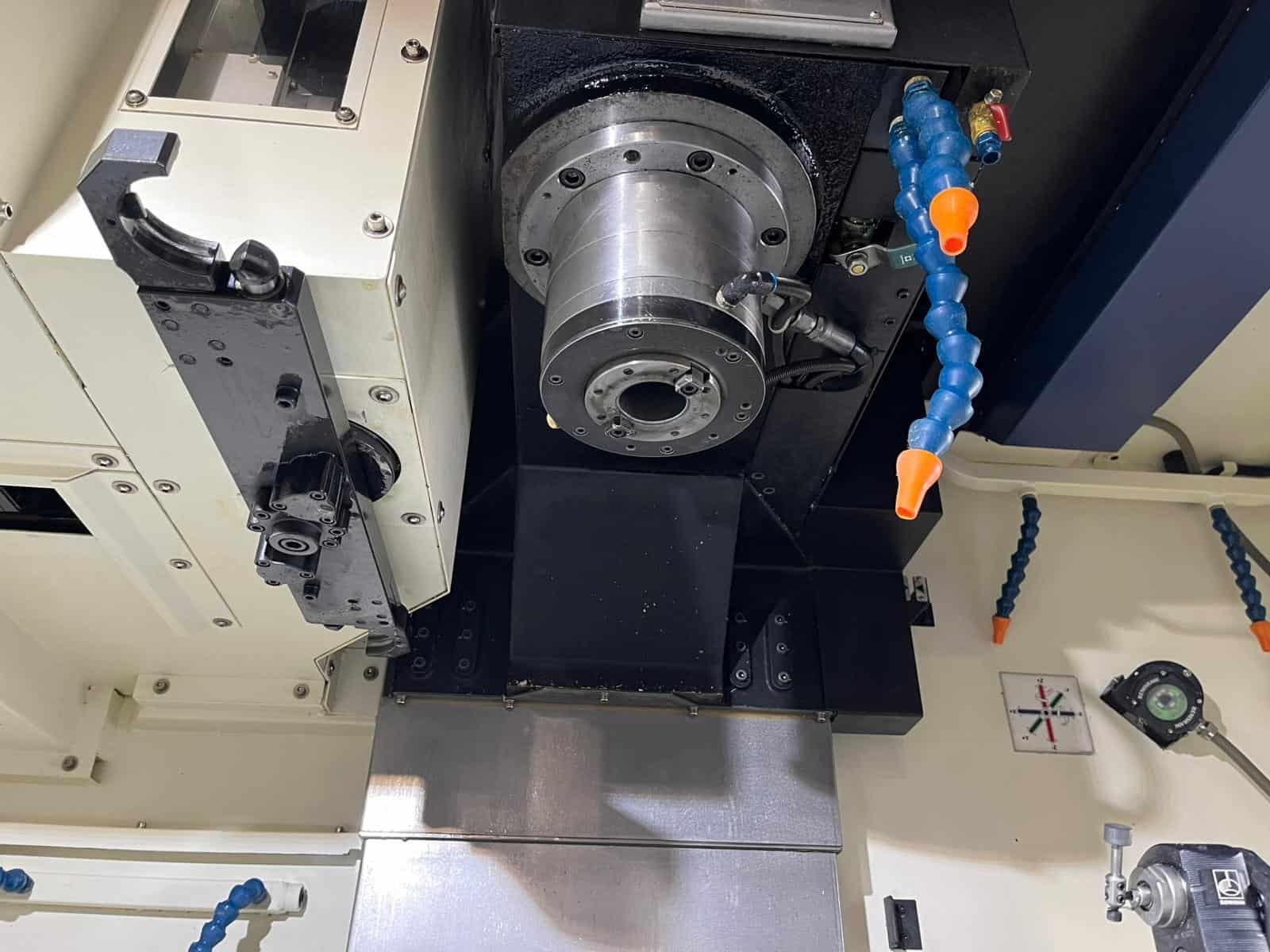

Spindle:

Taper Size: 40
Speed Range: 12,000 RPM
Spindle Power: 30 HP

Automatic Tool Changer:

Capacity: 30 Tools
Taper: 40
Max Tool Size: 3″ X 11.2″
Max Tool Weight: 13.2 lbs.
Tool Change Time: 5.5 Second

General:

Air Required: 80 psi 4 scfm
Power: 200v – 220v / 50 Hz/60Hz / 3-Phase / 40 kva
Overall Dimensions: 103″ X 98″ X 120″ High Approx.
Weight: 13,690 lbs Approx.
