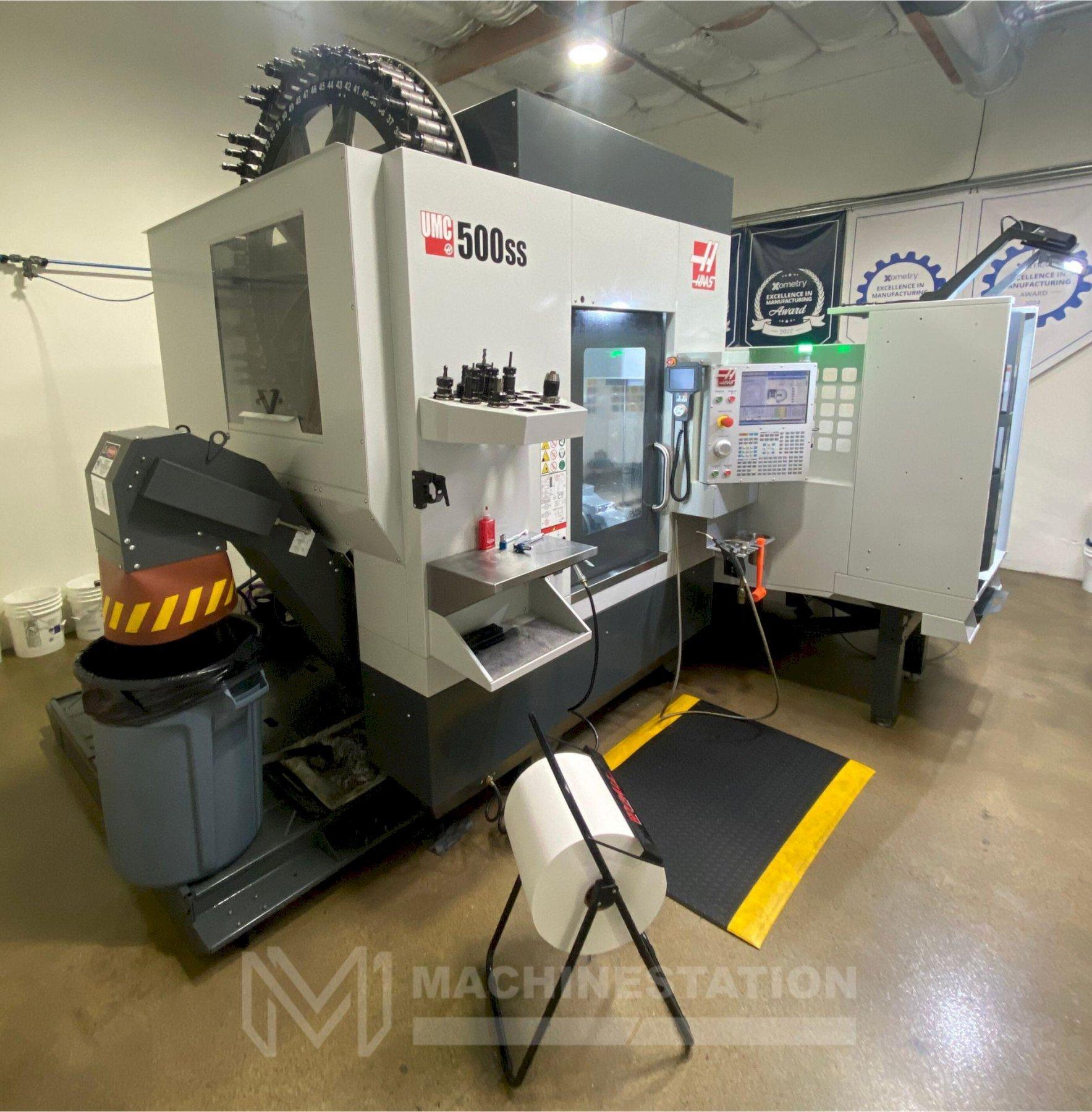

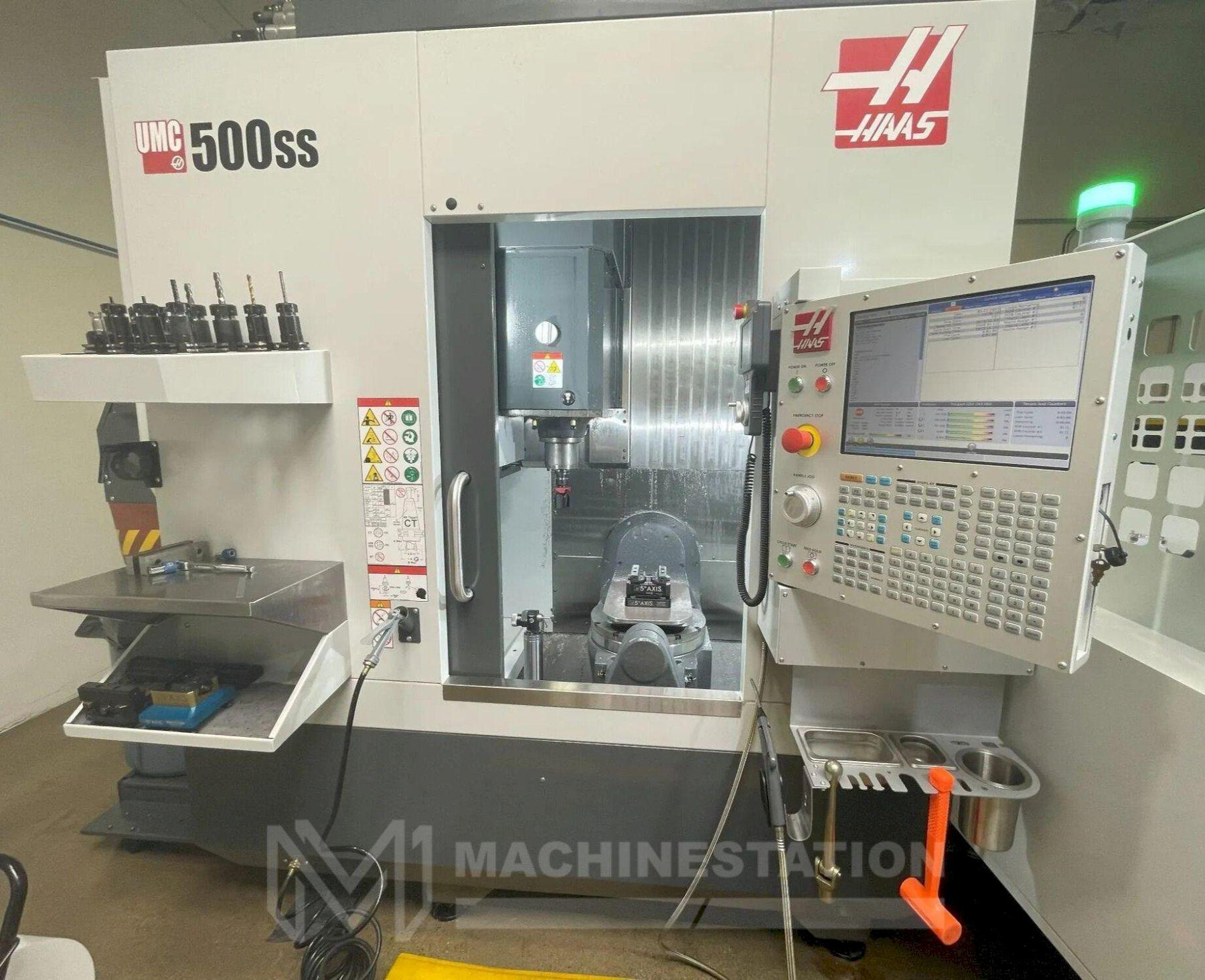

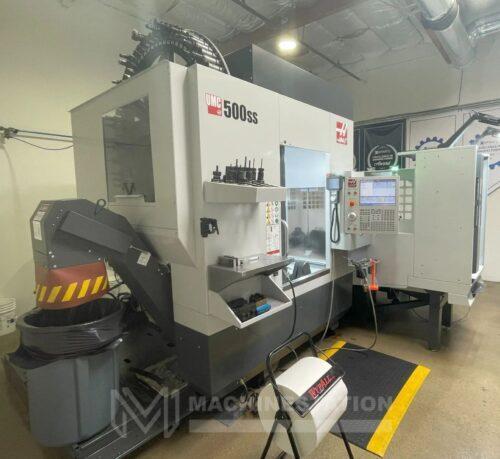

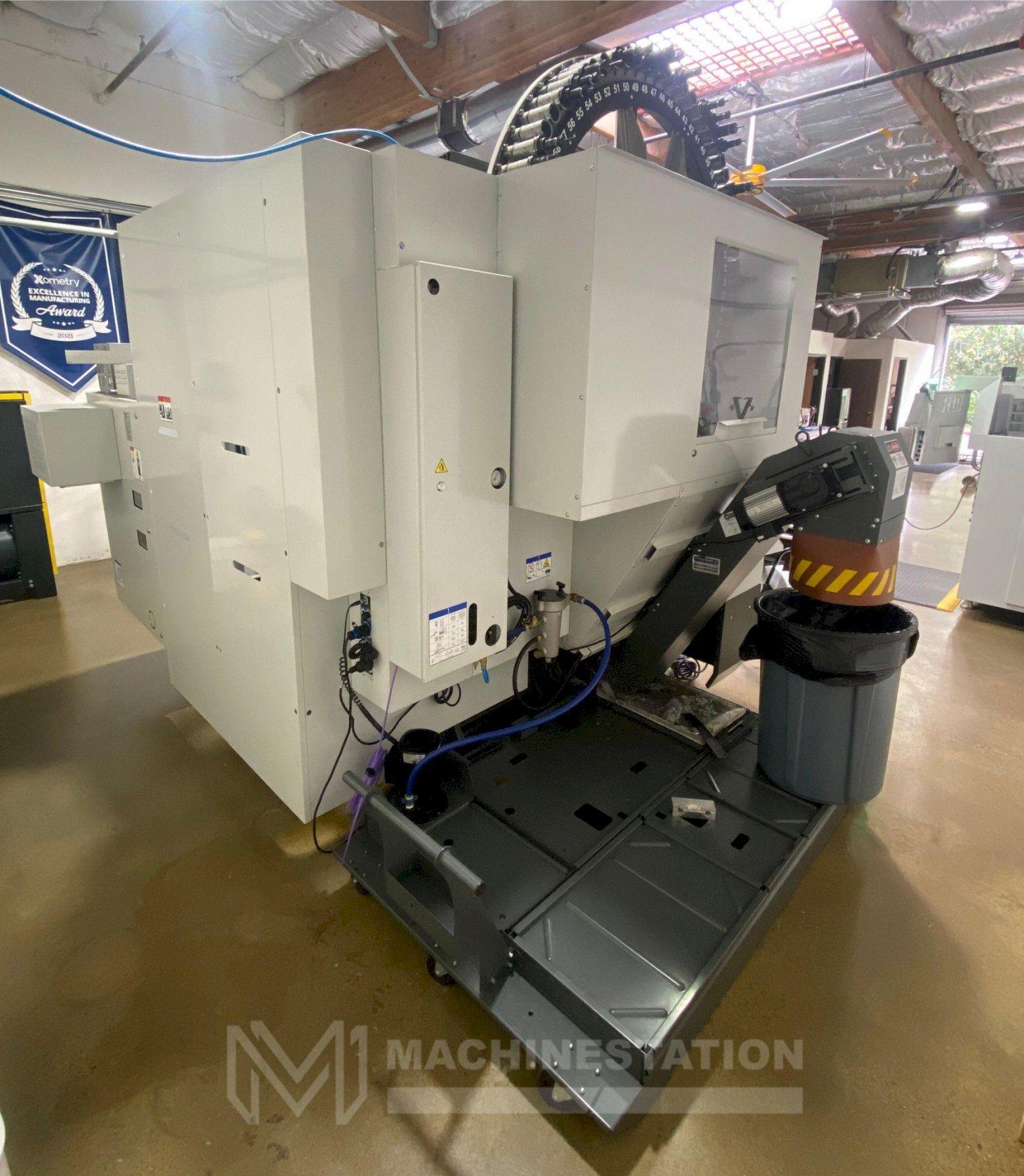

Haas UMC-500SS 5-Axis CNC Universal Machining Center – 10 Pallet Pool Mill 2022

Haas UMC-500SS 5-Axis CNC Universal Machining Center – 10 Pallet Pool Mill 2022

Name: Used HAAS UMC-500SS For Sale 115083
Brand: HAAS
SKU: 115083

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Haas
Model:	UMC-500SS
Year:	2022
Condition:	Used – Excellent

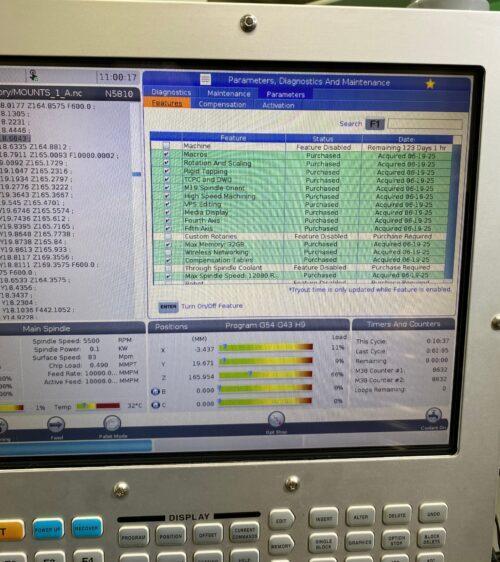

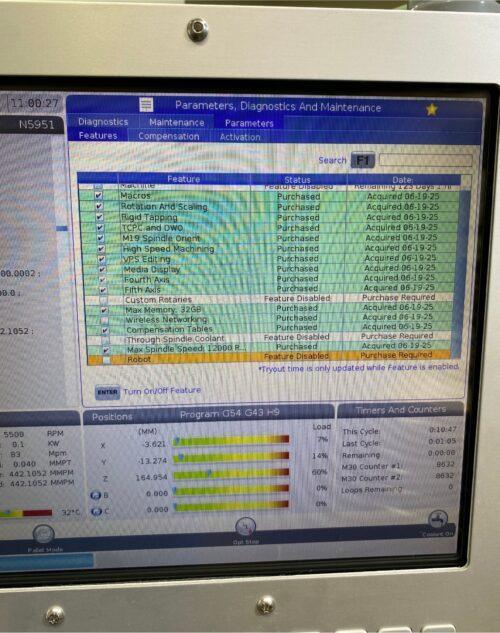

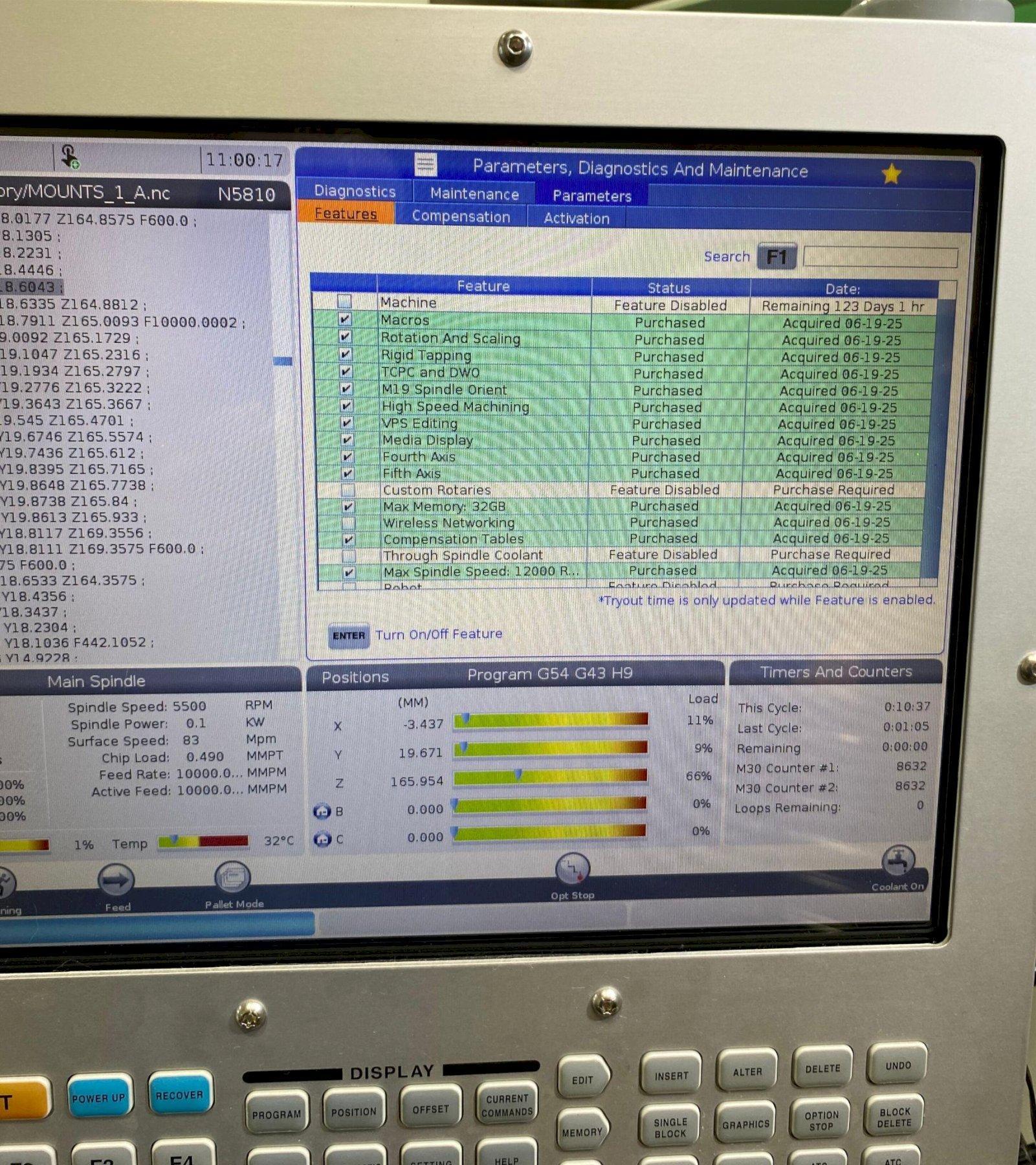

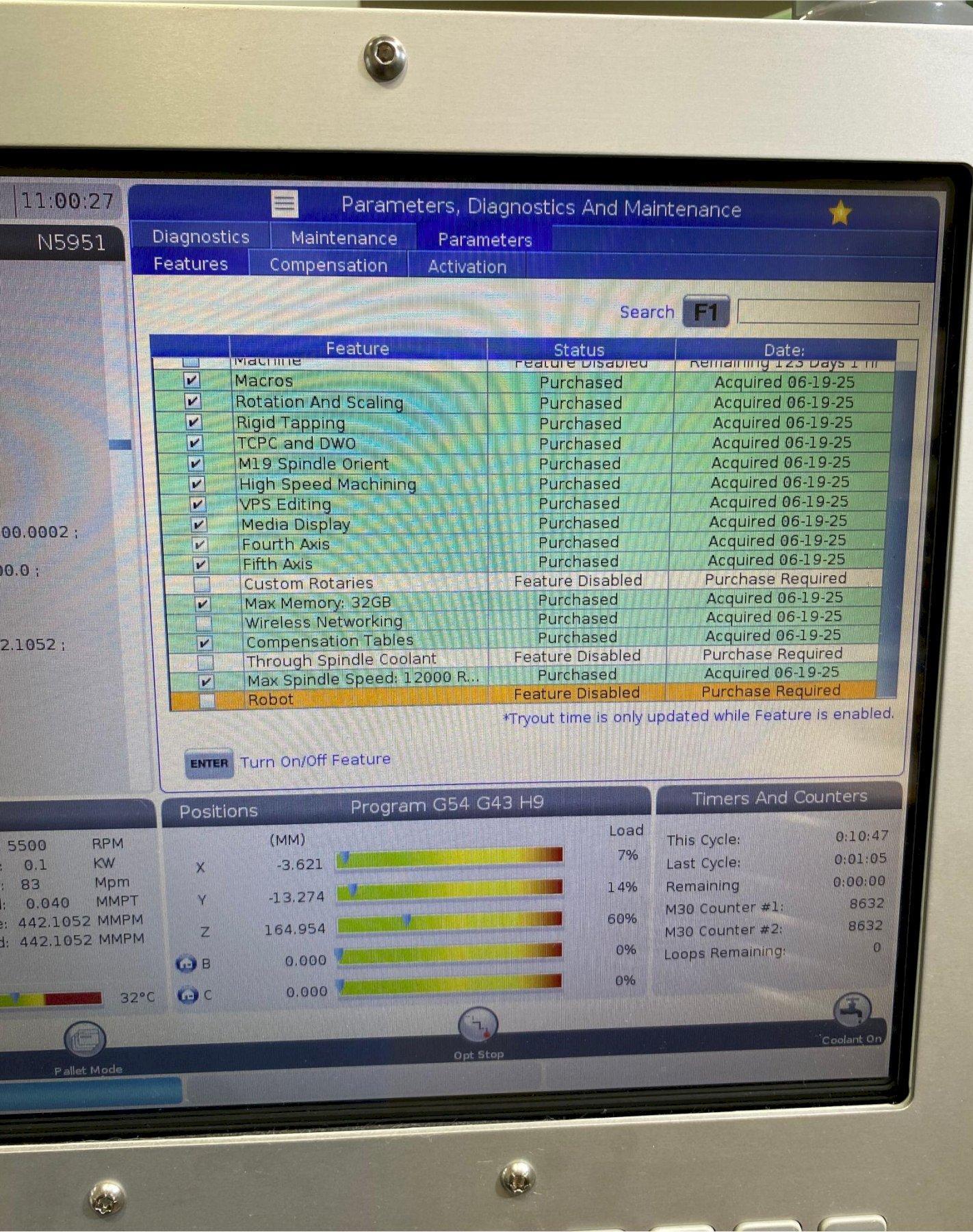

Features:

Haas CNC Control
Haas Trunnion Table

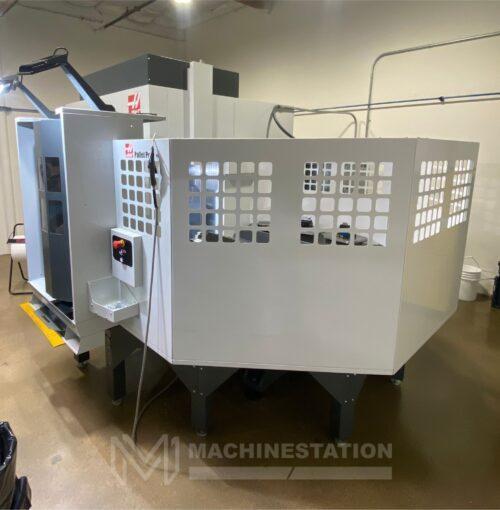

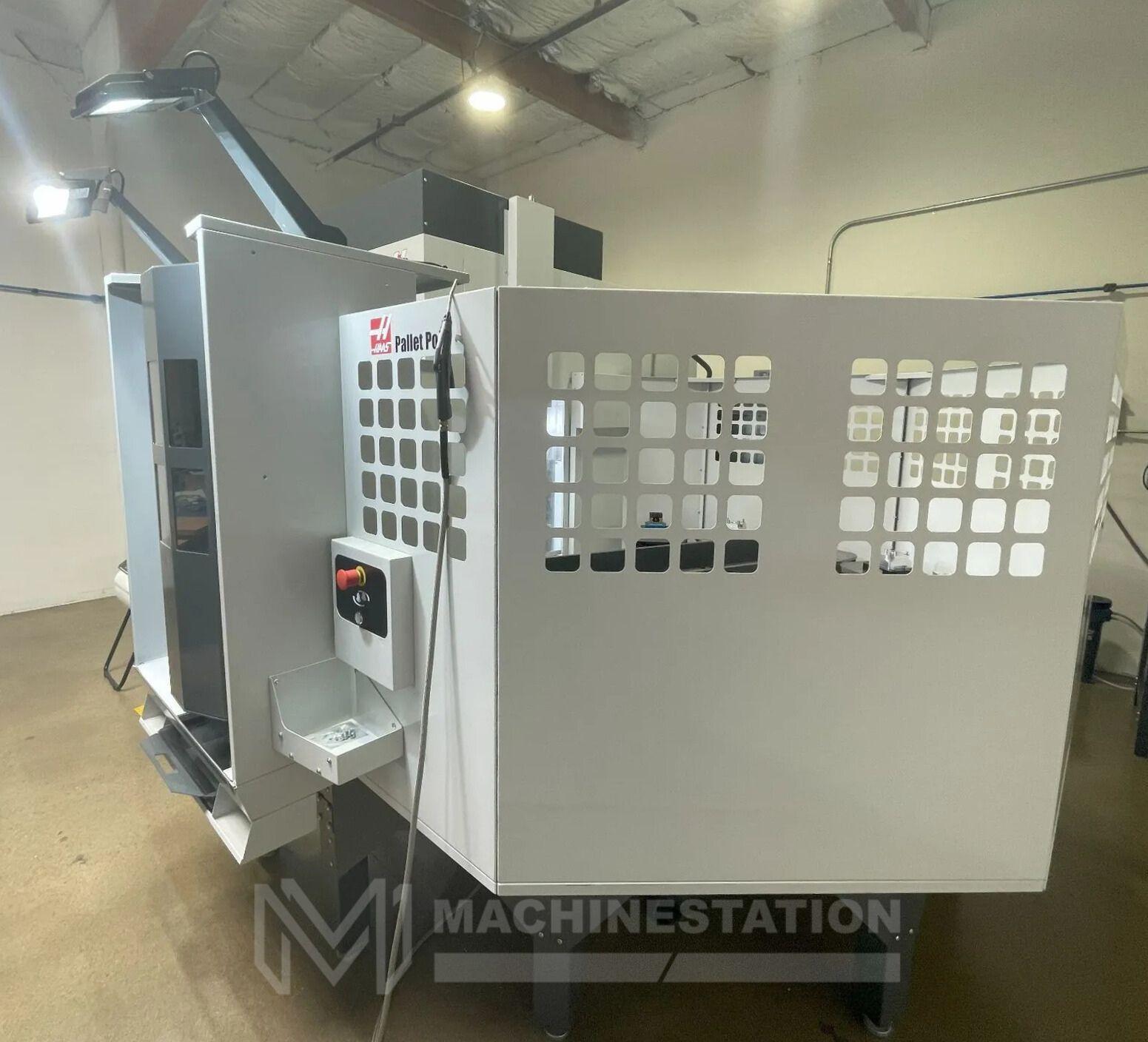

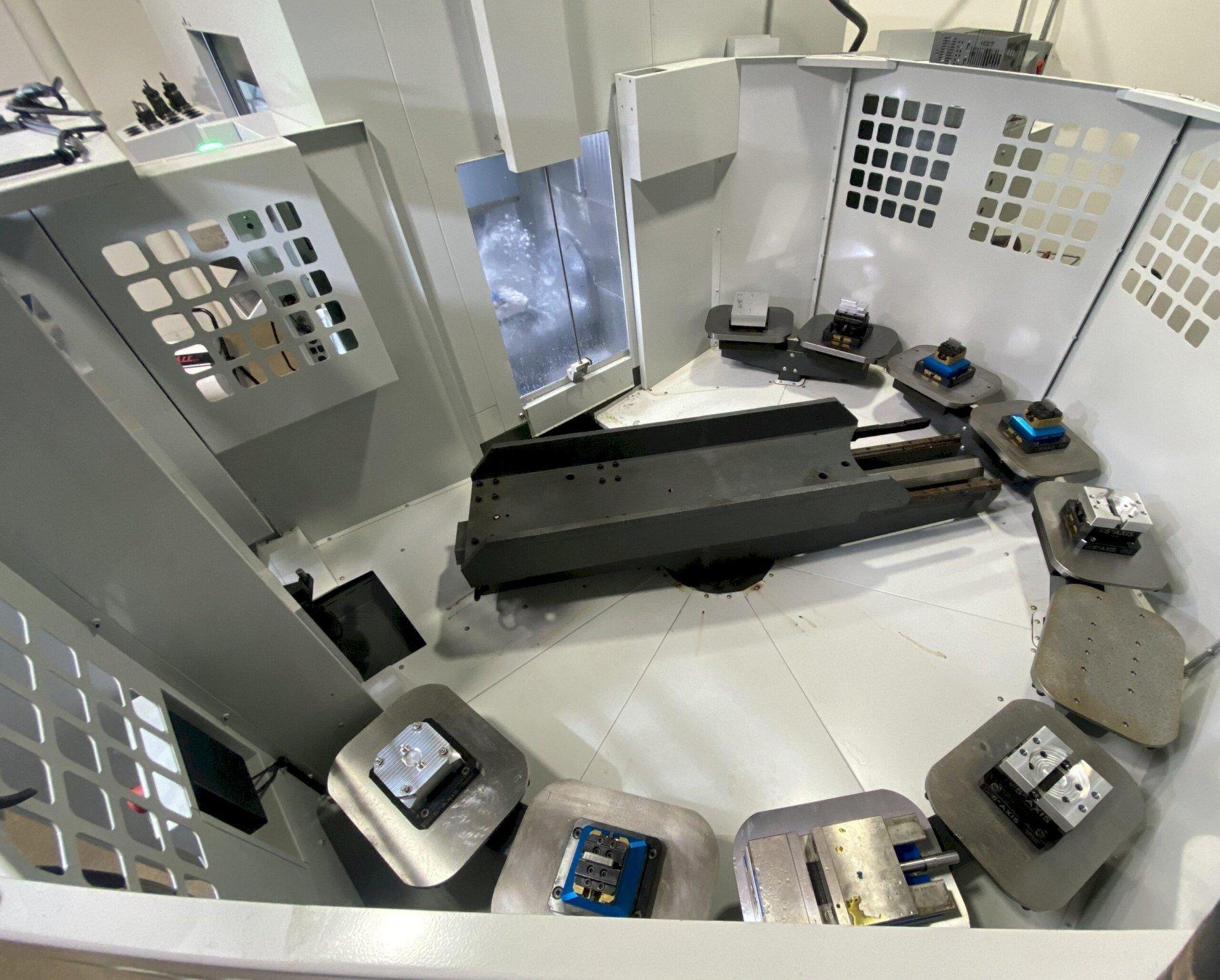

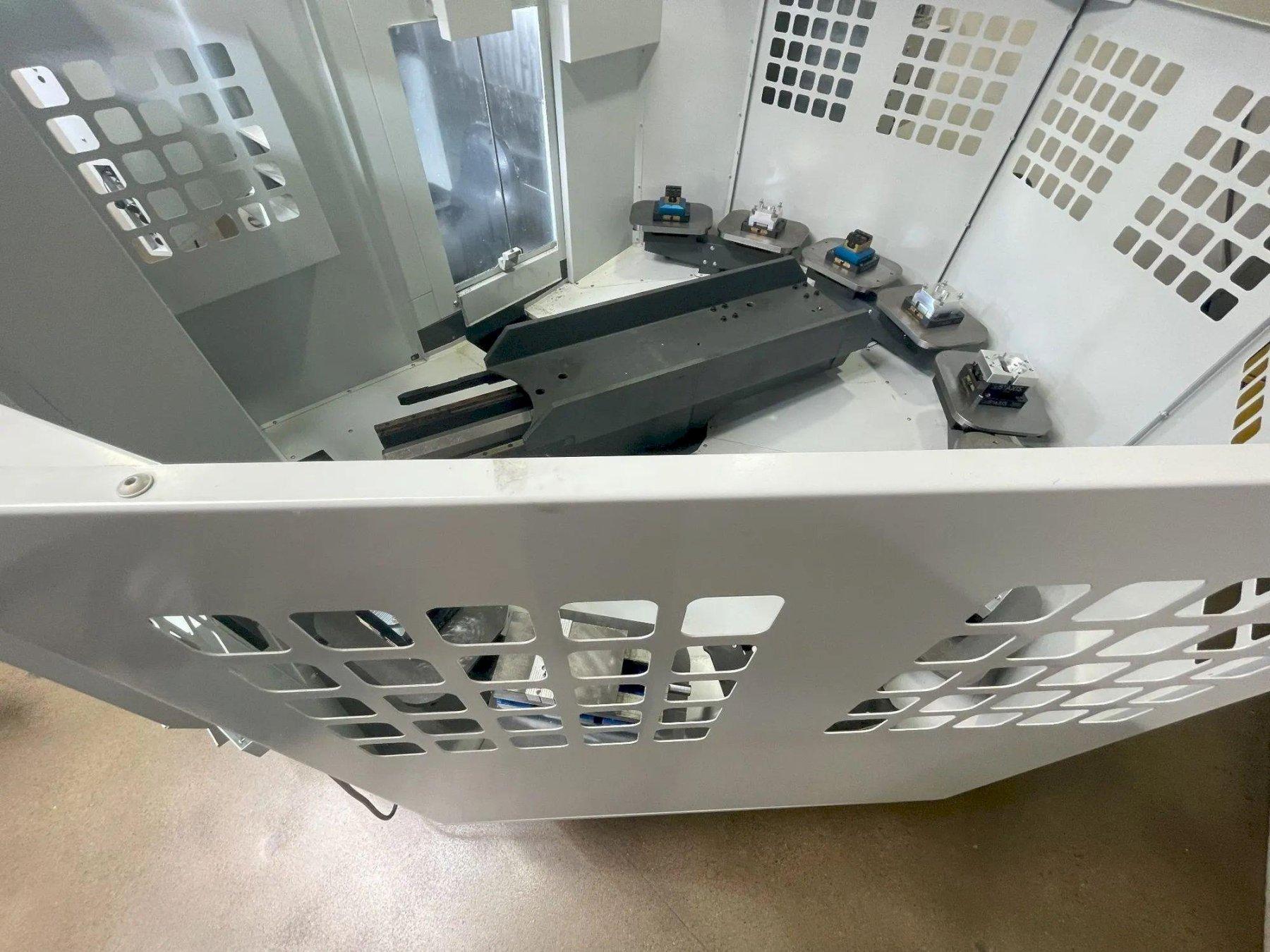

10 Pallet Pool (Upgraded $115,895 value Included)
12,000 RPM High Speed Spindle
70 Station Super Speed Automatic Tool Changer (Upgraded $34,795 value Included)
Through Spindle Coolant Ready (Pump Needed) (Upgraded $1,395 value Included)
High Speed Machining
Tool Presetter
30 HP High Torque Spindle
Large Remote Jog Handle
Spindle Orientation
Rigid Tapping
Macros
Rotation and Scaling
VPS Editing
Media Display
32 GB Expanded Memory (Upgraded $1,695 value Included)
95 Gallon Coolant Tank

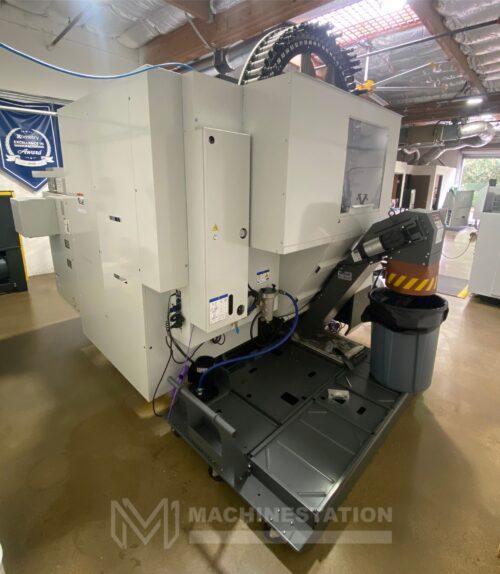

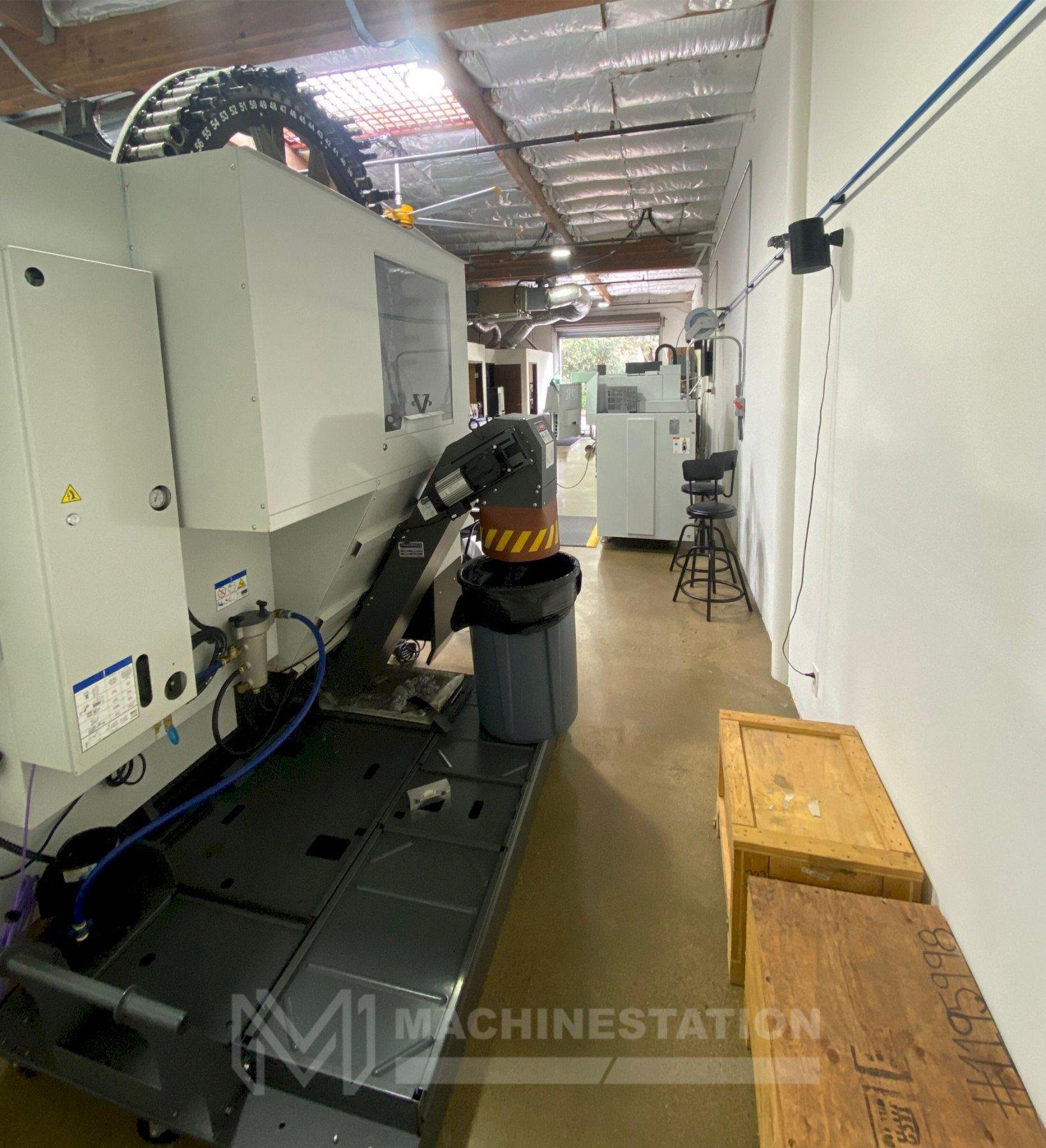

Belt-Type Chip Conveyor (Upgraded $7,995 value Included)

Travels:

X-Axis: 24″
Y Axis: 16″
Z Axis: 16″
B-Axis (Table Tilt): + 120° – 35°
C Axis: 360° ( Table Rotate )
Rapid Traverse Rates: 1200 Inch Per Minute
Cutting Feed Rates: 650 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 20″

Trunnion Table:

Platter Diameter: 15.70″
Max Weight on Platter: 500 lbs
T-Slot Width: 0.625″ to 0.630″
Number of Std T-Slots: 5

Spindle:

Taper Size: 40
Speed Range: 12,000 RPM
Spindle Power: 30 HP
Vector Drive Max Torque: 90ft-lb @ 2000 RPM

Automatic Tool Changer:

Capacity: 70 Station Side Mounted
Max Tool Weight: 12 lbs
Max Tool Diameter (Full): 2.5″
Max Tool Diameter (adjacent empty): 5″
Max Tool Length: 12″
Tool-to-Tool Changing Time: 1.8 Seconds

General:

Air Required: 100 psi 4 scfm

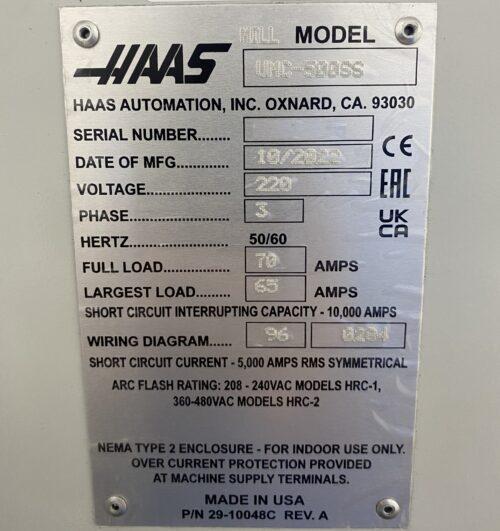

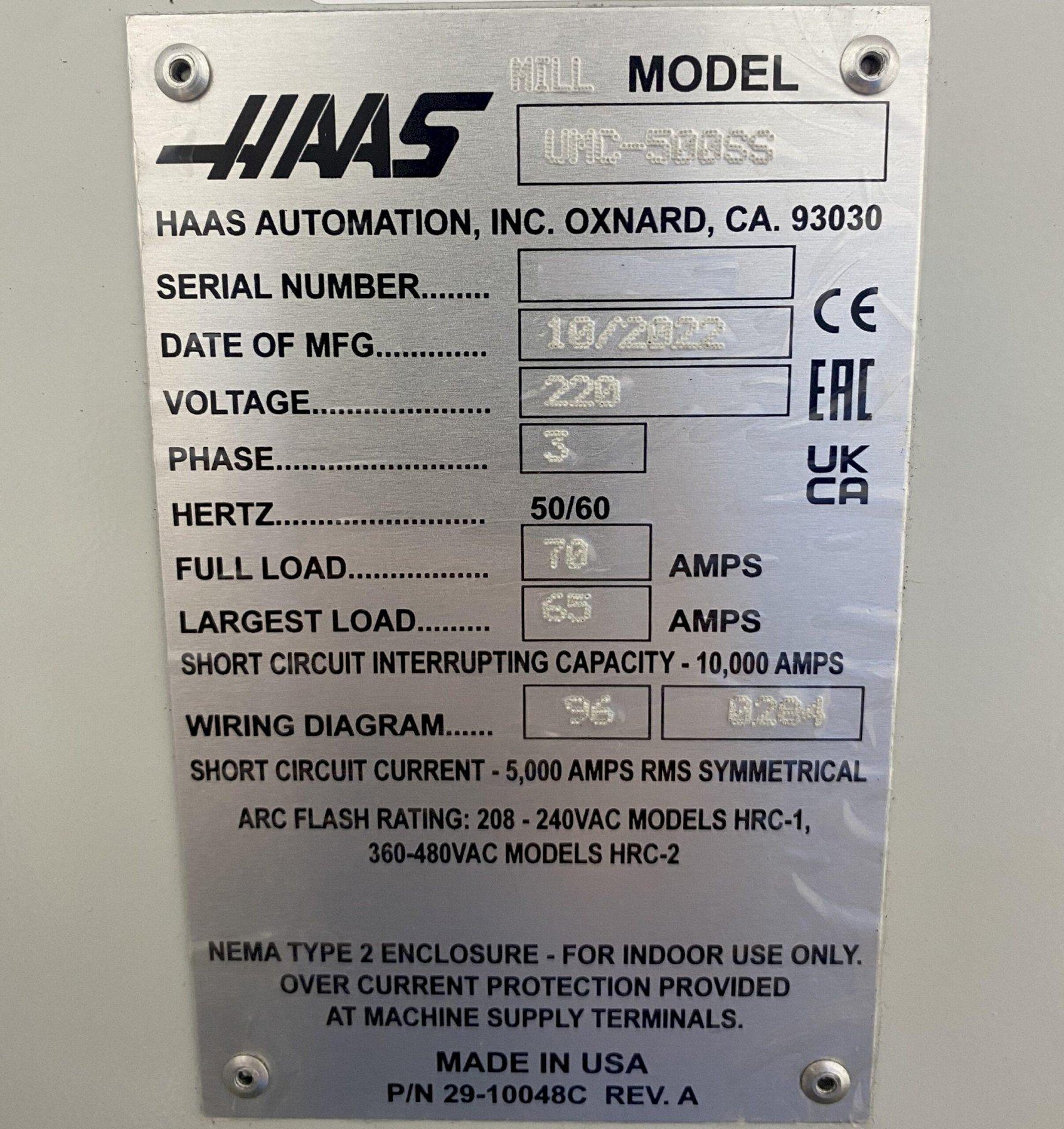

Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 128″ x 101″ x 120″ High (Only Machine)
Weight: 13,320 lbs. (Only Machine)
