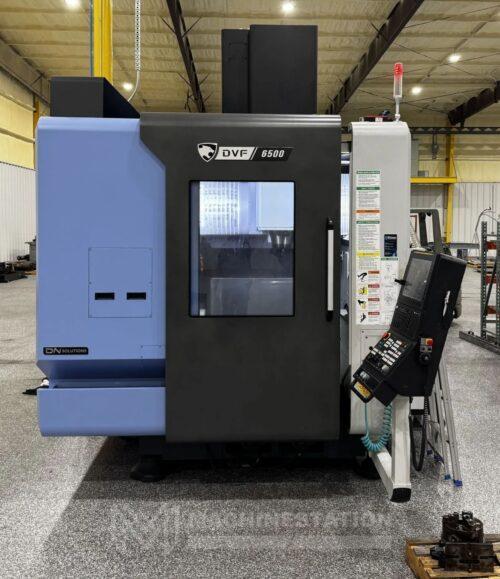

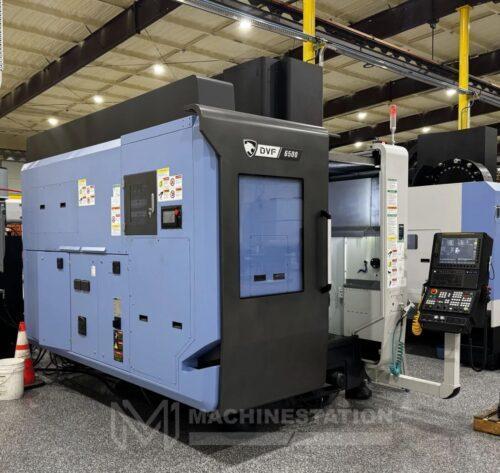

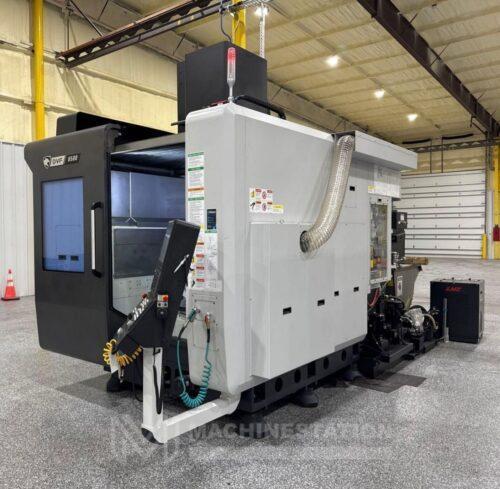

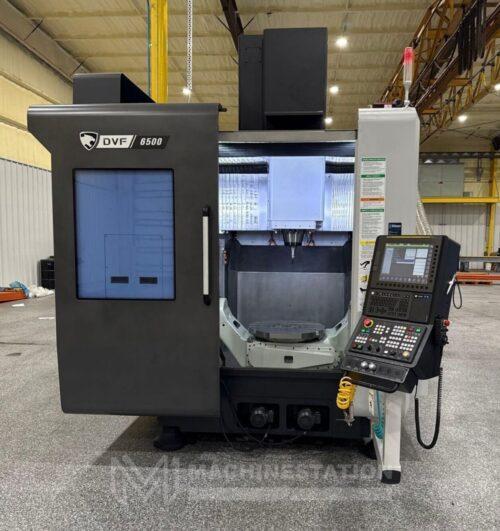

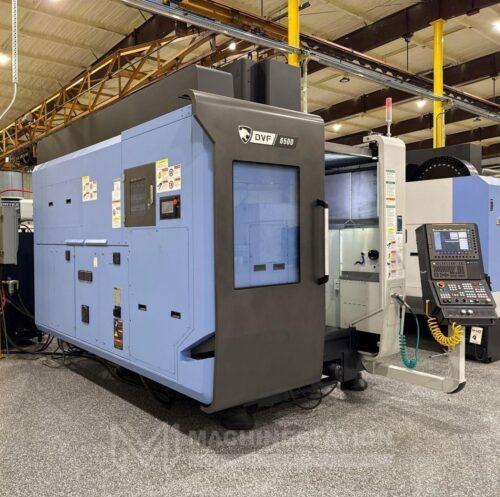

Doosan DVF-6500 5 Axis CNC Vertical Machining Center – 2023 Mill

Doosan DVF-6500 5 Axis CNC Vertical Machining Center – 2023 Mill

Name: Used DOOSAN DVF-6500 For Sale 115080
Brand: DOOSAN
SKU: 115080

Brand

DOOSAN

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Doosan
Model:	DVF-6500
Year:	2023
Condition:	Used – Excellent (Almost New)

Features:

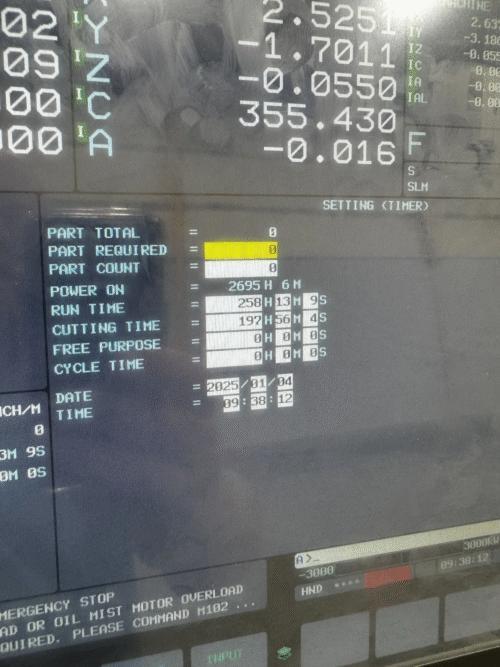

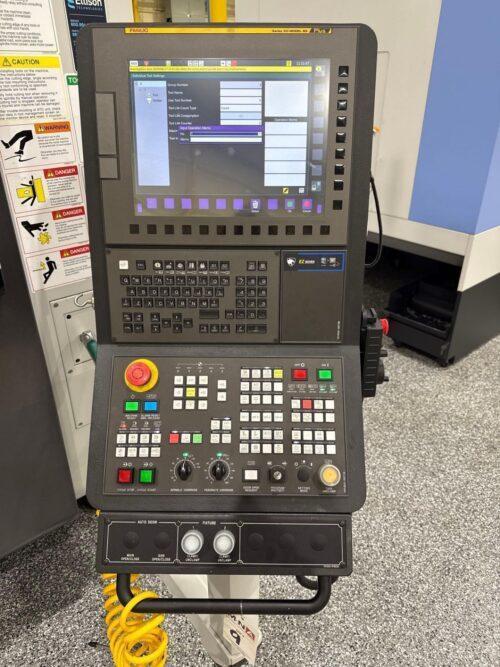

Fanuc 31i Model B5 Series CNC Control
5 Axis Simultaneous Machining

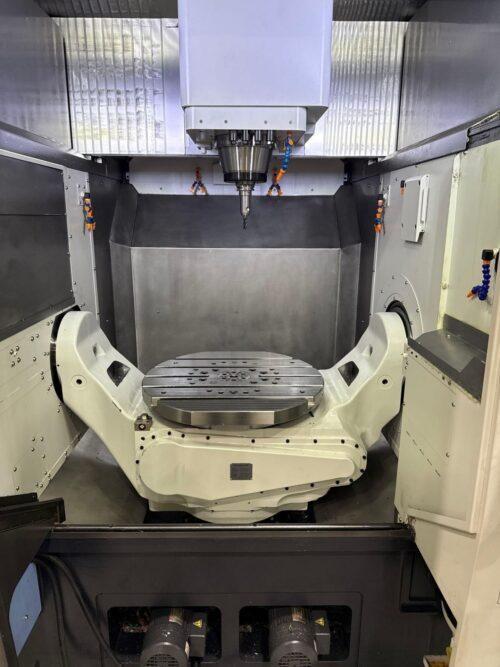

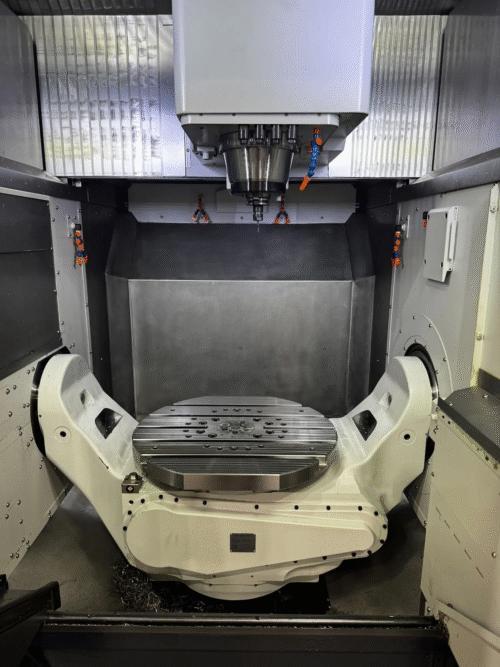

ø 25.6″ Trunnion Table
60 Station Automatic Tool Changer
12,000 RPM High Speed Spindle
Through Spindle Coolant
Spindle Orientation
Helical Interpolation
Rigid Tapping

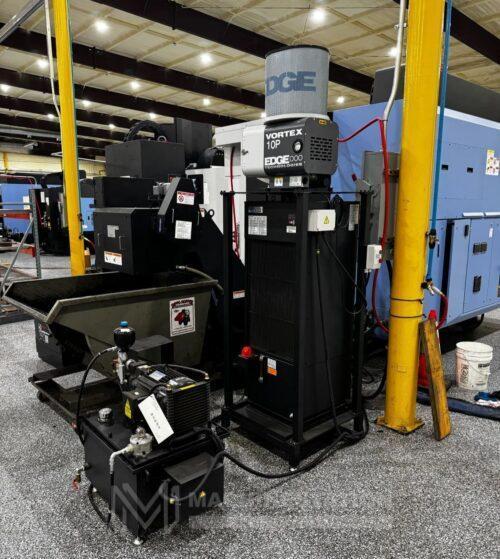

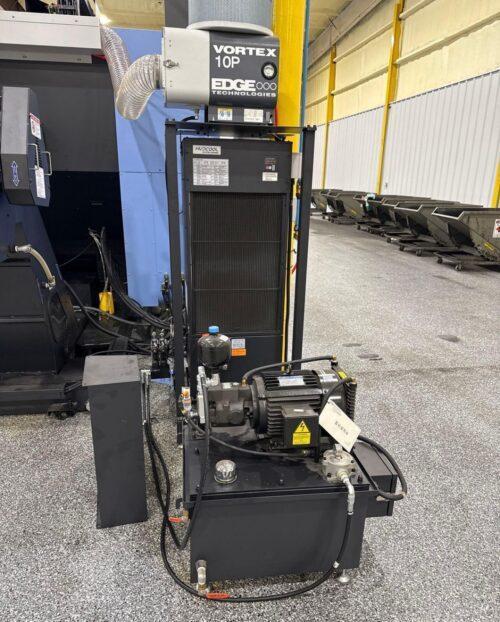

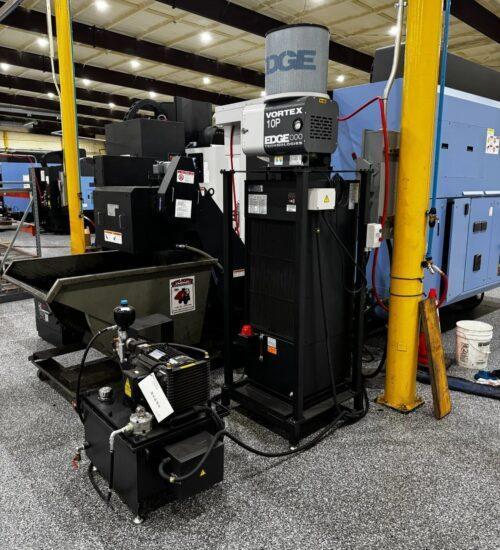

Coolant System

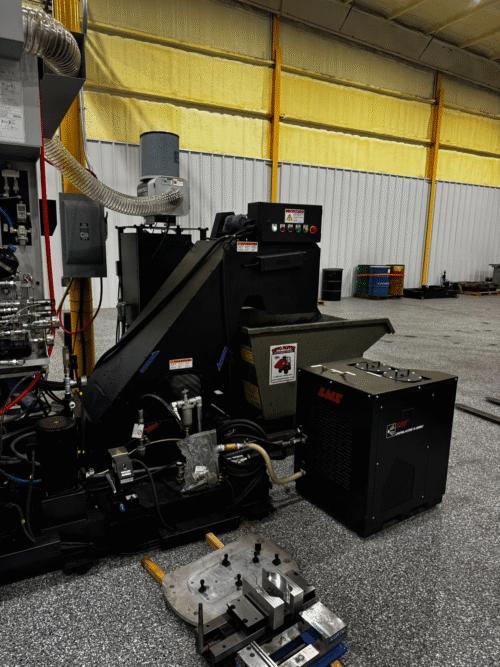

LNS Chip Conveyor

Table:
Table size: ø 25.6″
Max Part Diameter: 33.0″
Max Part Height: 19.7″
Max Weight on Table: 1322 lbs

Travel:
X Axis: 29.5″
Y Axis: 30.9″
Z Axis: 23.6″
B Axis: ±120° ( Table Tilt )
C Axis: 360° ( Table Rotate )

Feed Rates:
Rapid X, Y, Z Axis: 1771.6 Inch Per Minute
Rapid B Axis : 25/50 RPM
Rapid C Axis : 25/50 RPM

Spindle:
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 30 HP

Tool Changer:
Capacity: 60 Tools
Taper: CAT-40
Max Tool Diameter: 4.9″
Max Tool Height: 11.8″

General:
Air Required: 100 psi, 4 scfm
Power: 220v / 60 Hz / 3-Phase
Machine Dimensions: 145.7″ x 96.5″ x 145.7″ High
Weight: 32,000 lbs

No files or videos to display
