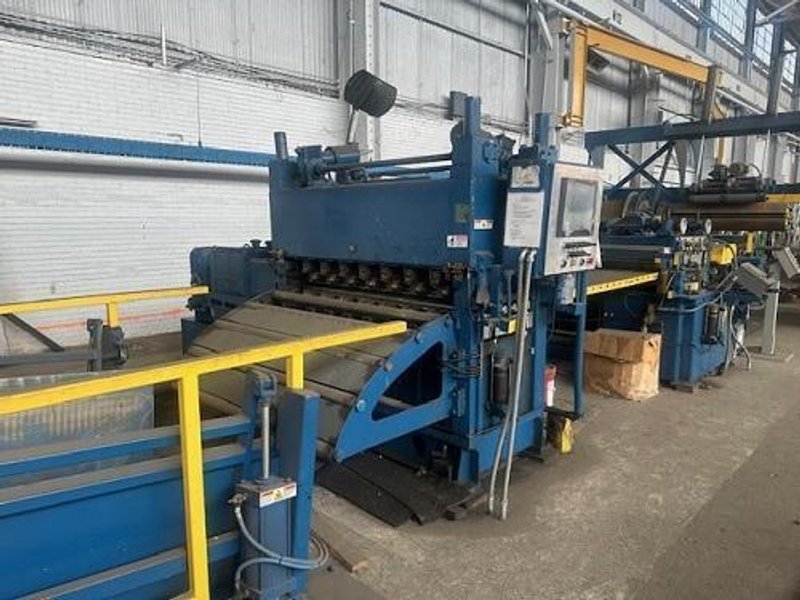

60” x .125” x 40,000# ROWE / HERR VOSS ROLL FEED CTL LINE

60” x .125” x 40,000# ROWE / HERR VOSS ROLL FEED CTL LINE

GENERAL SPECIFICATIONS:

MANUFACTURER – ROWE / HERR VOSS EQUIPMENT

LINE DIRECTION – RIGHT TO LEFT

MATERIALS – SURFACE CRITICAL CARBON, STAINLESS & ALUMINUM

THICKNESS – .125” MAX., .025” MIN. (CARBON), .030” MIN. (STAINLESS & ALUMINUM)

COIL WIDTH – 60” MAX., 18” MIN.

COIL WEIGHT – 40,000# MAX.

COIL OUTSIDE DIAMETER – 72” MAX.

COIL INSIDE DIAMETER – 18” TO 23”

SHEET LENGTH – 18” MIN., 228” (19’-0”) MAX.

SHEET WIDTH – 60” MAX.

PACK HEIGHT – 24” MAX. INCLUDING SKID

PACK WEIGHT – 10,000# MAX.

STRAIGHTENER TYPE – SEVEN (7) ROLL MECHANICAL

LEVELER TYPE – NINETEEN (19) ROLL MECHANICAL

LINE SPEED – 160 FPM MAX.

UNCOILER DRIVE – AC MOTOR FEEDUP DRIVE w/ WATER-COOLED BRAKES

STRAIGHTENER DRIVE – 125 HP, DC

LEVELER DRIVE – _7.5__ HP, DC

ROLL FEEDER DRIVE – _10__ HP, AC Servo Motor

MAIN SHEAR DRIVE – _20__ HP, AC

LINE COMPONENTS:

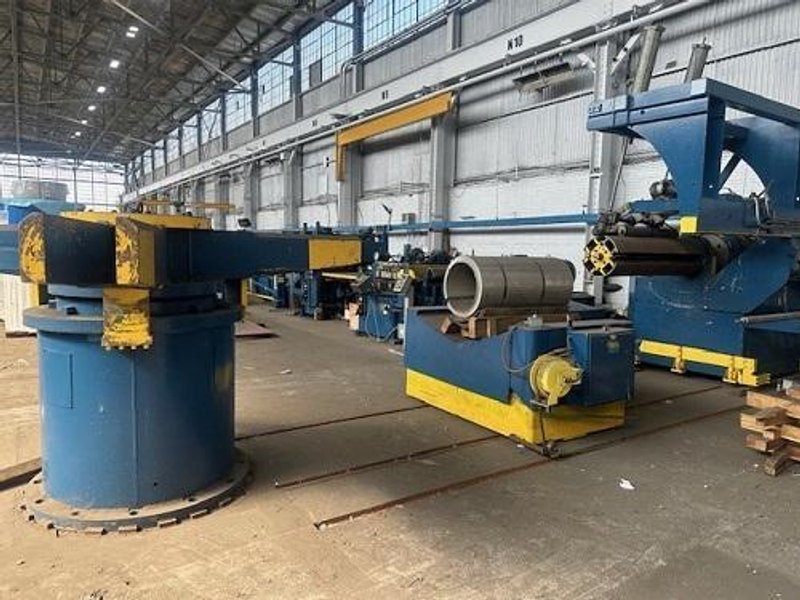

THREE (3) ARM COIL Storage TURNSTILE

Floor Level Coil Loading Car

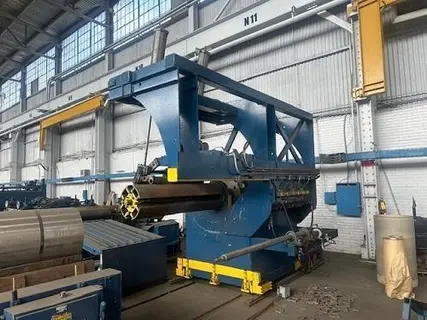

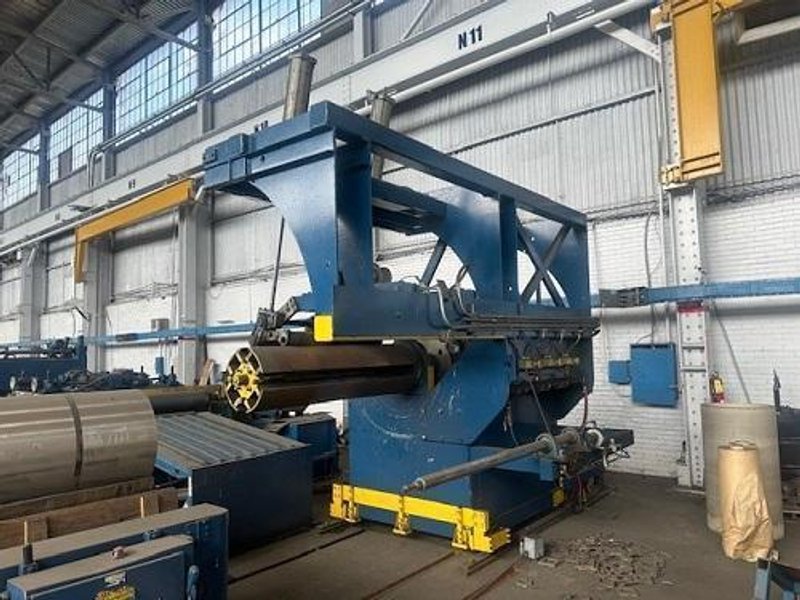

CANTILEVERED MANDREL UNCOILER w/ ELECTRIC FEEDUP DRIVE, WATER-COOLED BRAKES & PIVOTING HOLD DOWN ROLL

PIVOTING AND TELESCOPING PEELER BLADE

ENTRY PINCH ROLLS

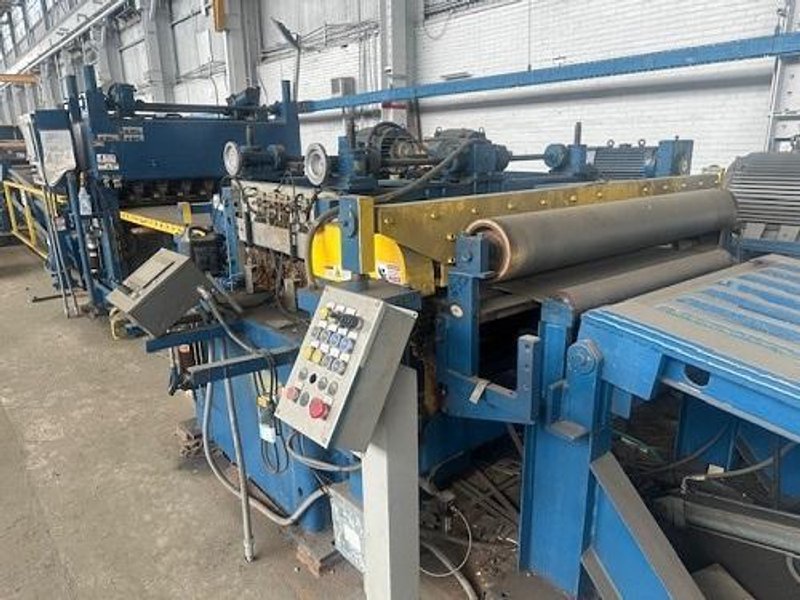

SEVEN (7) ROLL, 7” DIAMETER STRAIGHTENER w/ EXIT PINCH ROLLS

ROLLER TYPE STRIP INSPECTION AND CARRYOVER TABLE

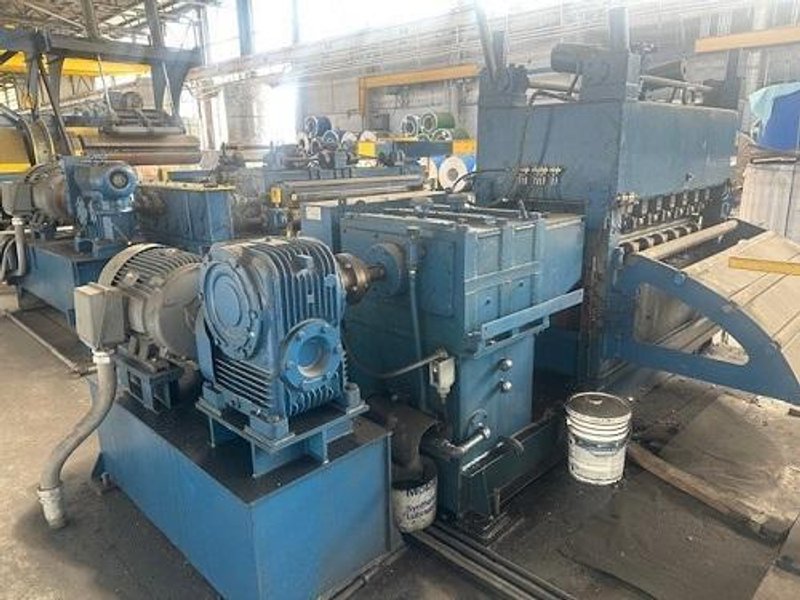

NINETEEN (19) HERR VOSS ROLL, 1.750” DIAMETER, SIX (6) HIGH MECHANICAL LEVELER w/ SEVEN (7) BACKUP FLIGHTS

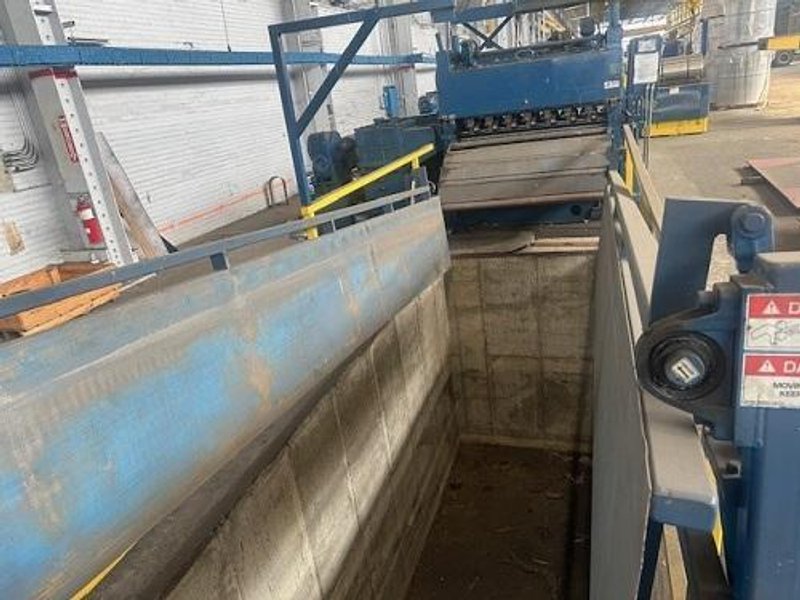

LOOPING PIT QUADRANT TABLES w/ SIDE PIVOTING PIT THREADING TABLES

ROLLER TYPE STRIP SQUARING ROLLS

PRECISION ROLL FEEDER

TOP AND BOTTOM SIDE PAPER / PVC APPLICATOR

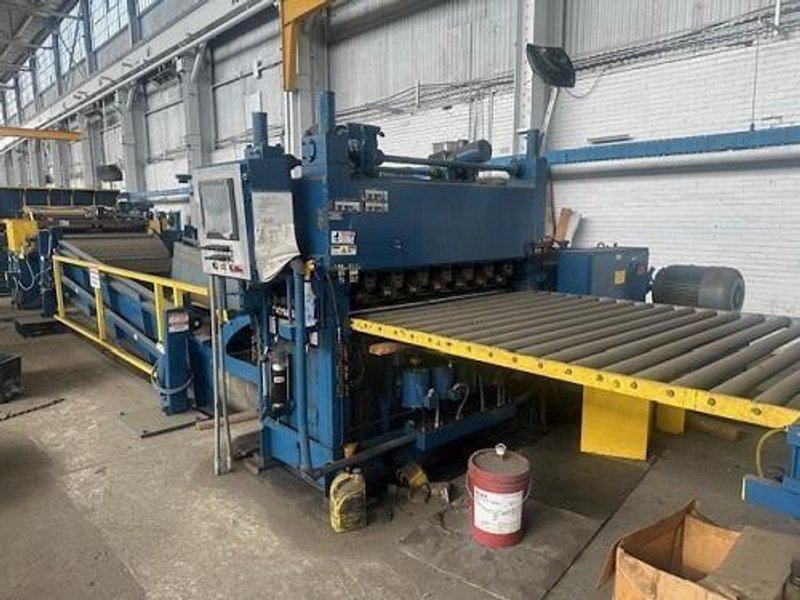

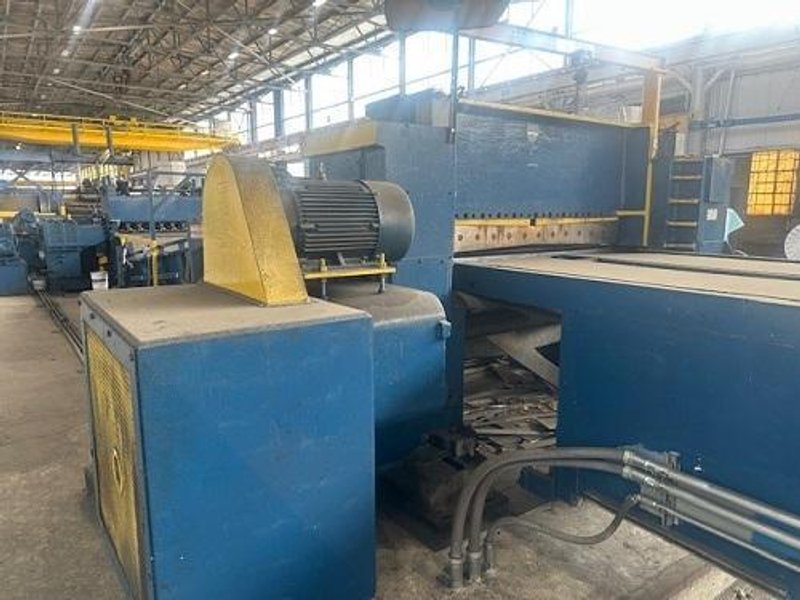

HIGH SPEED MECHANICAL CUT OFF SHEAR w/ BOW-TIE TOP KNIFE

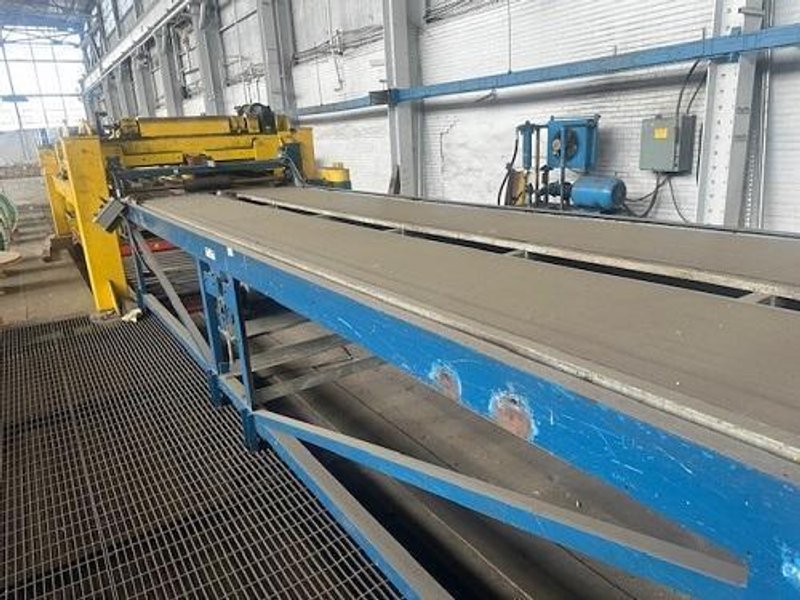

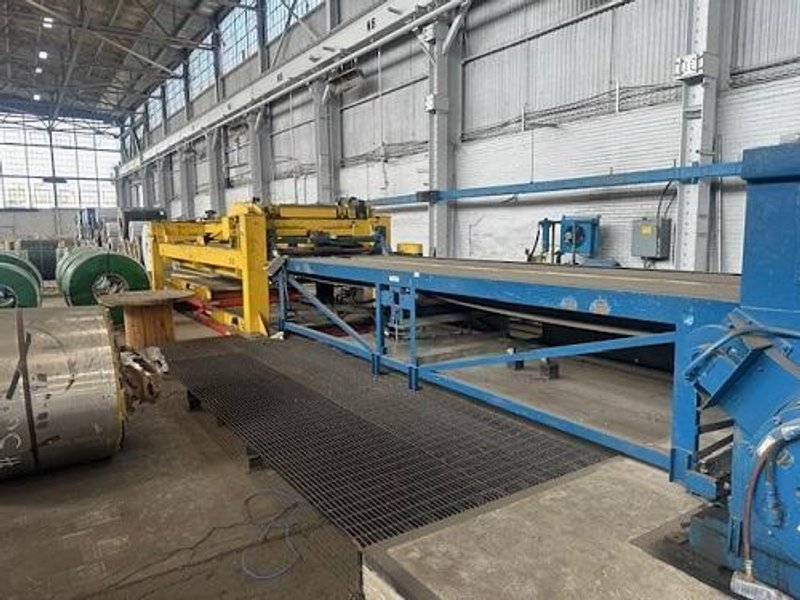

23 FOOT CUT SHEET INSPECTION CONVEYOR w/ NON-MARKING BELTS

STACKER ENTRY PINCH ROLLS

19 FOOT SHEET STACKER w/ FLIPPER SUPPORTS & ADJUSTABLE END STOP

20 FOOT ELEVATING STACKER LIFT CONVEYOR w/ END DISCHARGE ROLLERS

24 FOOT STACKER RUNOUT CONVEYOR w/ END DISCHARGE ROLLERS

OPERATOR CONTROL STATIONS

AC CONTROLS

VARIABLE SPEED DRIVE CONTROLS

CLOSED LOOP HYDRAULIC SYSTEM

CLOSED LOOP WATER COOLING SYSTEM?  NO
