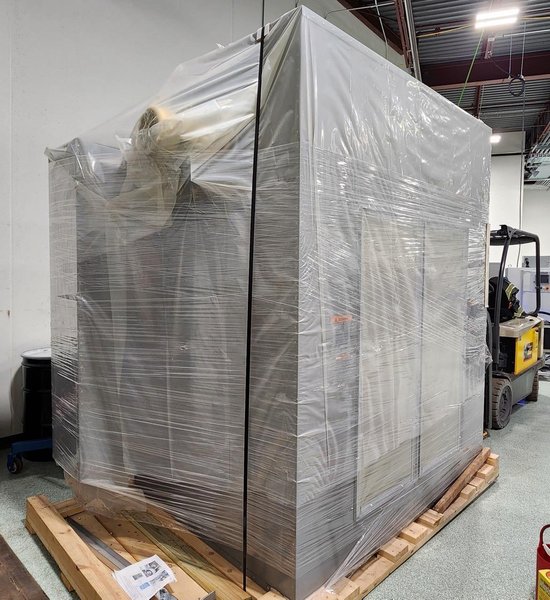

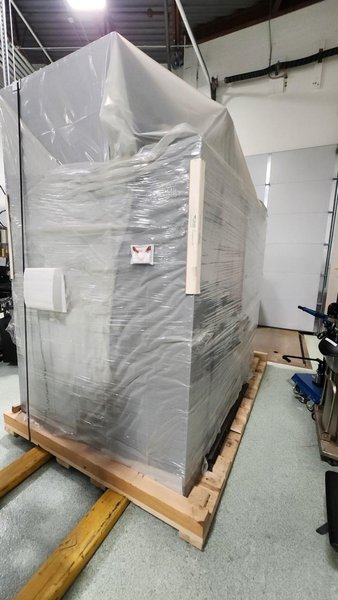

2023 Despatch TFD3‑10 – 104 cu ft Class A Walk-In/Truck-In Industrial Oven (Never Used)

Specs Make: Despatch Model: TFD3‑10 Year: 2023

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Condition: Never used

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Work chamber dimensions: 48″ W × 52″ D × 72″ H

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Chamber capacity: 104 cu ft (2,945 liters)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Heater capacity: 48 kW

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Operating temperature: 93°F to 650°F (34°C to 343°C)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Temperature uniformity: ± 1.5% after stabilization

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Recirculation: 5 HP fan delivering ~3,800 CFM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Power requirement: 480 V, 3‑phase, 60 Hz, 66 A max draw

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,External dimensions: 100.5″ × 62.5″ × 102″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Construction: 5″ fiberglass insulated walls, aluminized steel interior, mild steel enamel exterior

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Weight: ~3,070 lb (shipping: ~3,270 lb)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Installed Options Class A flammable solvent handling package (NFPA 86 compliant) Protocol 3™ programmable controller with Ethernet/Modbus and USB data logging Truck with one shelf 12 additional removable truck shelves 2″ test port with pipe cap Door switch interlock for heater deactivation when open Exhaust fan and pressure relief system

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Feature Spotlight UL/C-UL certified panel, Protocol 3™ control system, and high-limit alarm for maximum process safety Pre-assembled and factory-tested, ensuring turnkey setup with full compliance to Class A standards Flexible racking with shelf spacing and high airflow for load versatility and thermal consistency

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Overview The 2023 Despatch TFD3‑10 is a state-of-the-art Class A walk-in/truck-in oven designed for curing, drying, or heat-treating solvent-bearing materials up to 650°F. It features a spacious 104 cu ft chamber, 48 kW of heating power, and precision airflow driven by a 5 HP recirculation motor. The included Protocol 3™ controller offers Ethernet/Modbus connectivity and USB data logging. Built with robust insulation and safety systems, this unit is suitable for demanding industrial environments. This specific build includes a cart with 13-shelf capability and upgraded safety/compliance features. It has never been used and remains in original packaging, offering buyers a like-new machine at a post-production discount.
