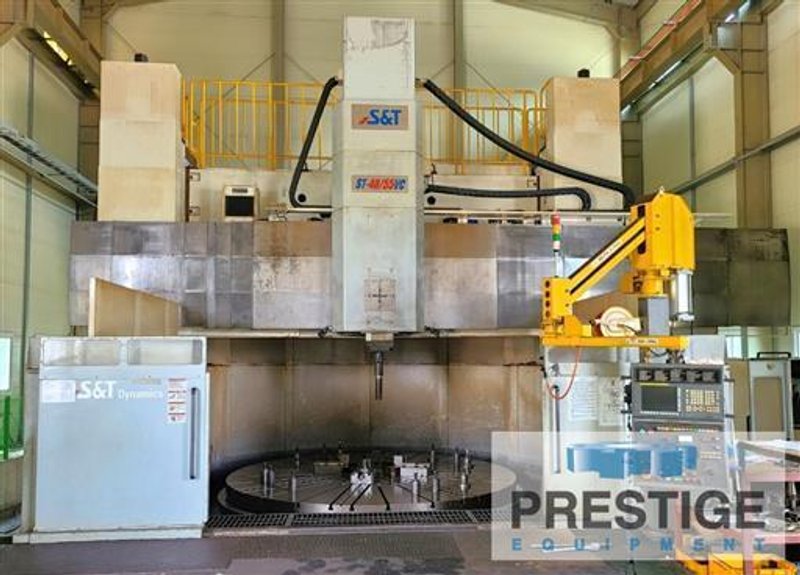

S&T ST-40/55VC CNC Vertical Milling & Turning Center

SPECIFICATIONS:
Table Diameter 157.48"
Maximum Swing 216.53"
Height Under Rail 102.36"
X-Axis Travel of Ram 114.17"
Z-Axis Ram Stroke 59.05"
Ram Cross Section, Square 15.74" x 15.74"
Milling Spindle Speed 15 - 1,500 RPM
Taper in Ram #50
Milling Spindle Motor 30 HP/34 HP
Table Speeds, Max 60 RPM
Table Roation, C-Axis .001°
Table Table Capacity 45 TON
Table Motor 80 HP / 100 HP
Machine Footprint 439" x 390"
Machine Height 350"
Machine Weight, Approx. 308,000 lbs



Equipped With:

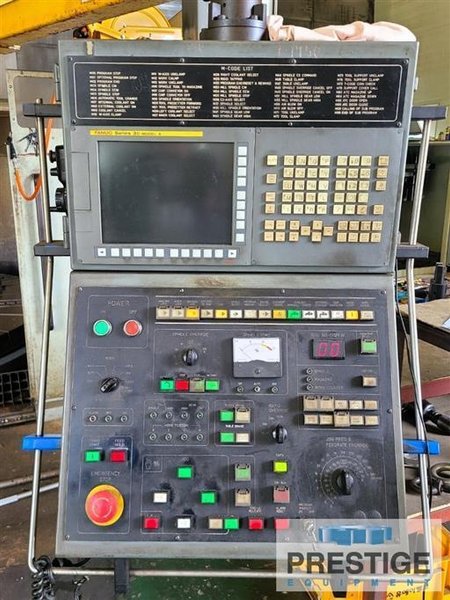

Fanuc 31i-A CNC Control
Ram With Live Milling

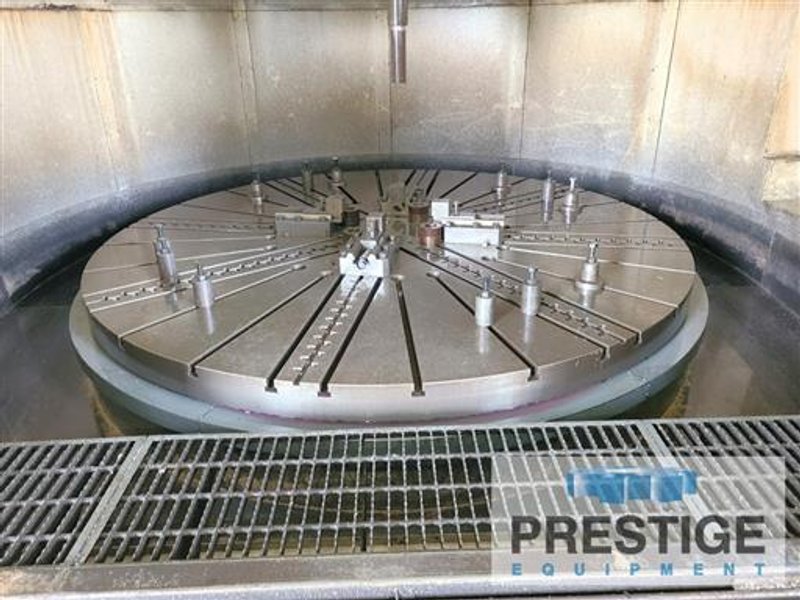

C-Axis Table

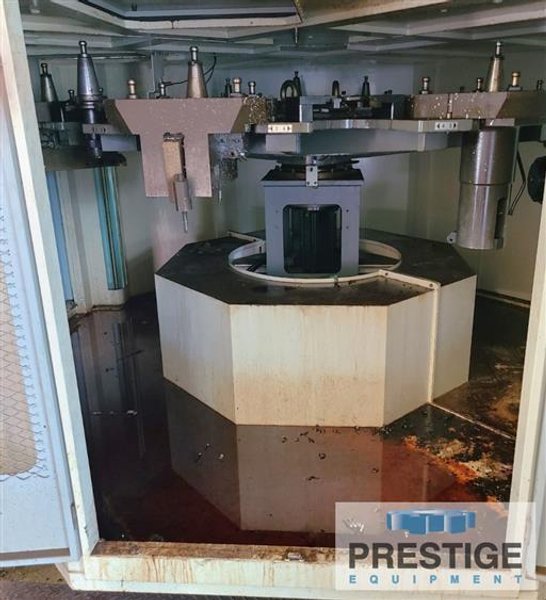

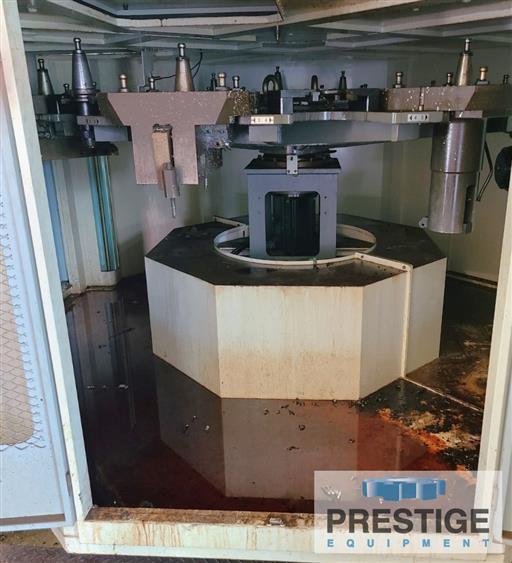

16-Station Automatic Tool Changer
Through Spindle & Flood Coolant
Fanuc Servo Motors & Drives on All Axis
Chip Conveyor
80/100 HP Fanuc AC Digital Spindle Drive Motor
