52" x 6.50" x 40,000# Stamco Slitting Line

YEAR: 1980's

SLITTING CAPACITY: 0.125" MILD STEEL

LINE DIRECTION: LEFT TO RIGHT

CONSISTING OF THE FOLLOWING:

-ENTRY COIL CAR: LOOPCO
40,000# CAPACITY
SELF CONTAINED HYDRAULICS
48" BED WIDTH
APPROX. 13" FROM FLOOR TO BOTTOM OF "V" CRADLE

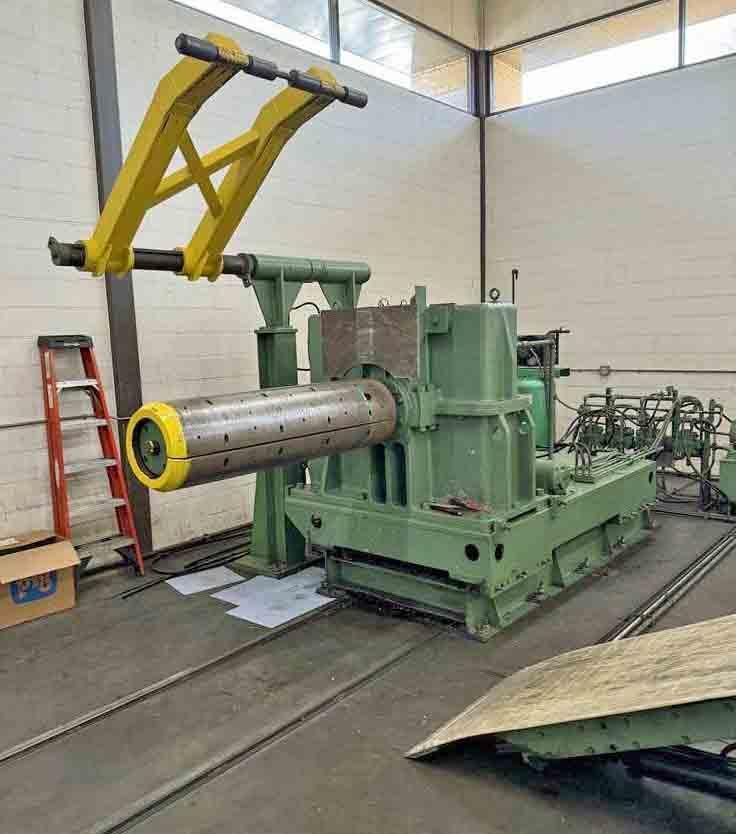

-UNCOILER: LOOPCO
16" - 20" ID CAPACITY
24" BOLT ON PADS
HYDRAULIC EXPANSION
59" FACE MANDREL
4 SEGMENT MANDREL
SLIDING BASE
AC MOTOR THREADING DRIVE
WICHITA WATER COOLED BRAKE
APPROX. 48" PASSLINE FROM FLOOR TO CENTER OF MANDREL

-COMBINATION PEELER / HOLDDOWN UNIT
URETHANE COVERED ROLL W/BANDING SLOT

-ENTRY CROP SHEAR: ROYALTON
58" LONG BLADE
HYD. DOWN CUT TYPE

-X-RAY GAUGE

-ENTRY SIDE GUIDES

-ENTRY DRIVEN PINCH ROLLS

-SLITTER HEAD: STAMCO
6.5" DIAMETER ARBORS
FIXED BASE HEAD DESIGN
DOUBLE ECCENTRIC ADJUSTMENT
15 HP AC MOTOR THREADING DRIVE, 1165 RPM, 230 / 460 V
(2) SETS OF KNIVES, 0.250" AND 0.500" WIDE x 9.5" OD
STEEL SPACERS AND RUBBERS INCLUDED

-(1) SCRAP WINDER:
OSCILLATE WIND

-RECOILER: STAMCO
20" DIA. x 56" FACE DRUM
MECHANICAL CLAMP & EXPANSION
24" DIA. BOLT ON PADS
HYDRAULIC PUSHOFF
60 HP RELIANCE DC MOTOR
850 RPM, 240 V
SELF CONTAINED HYDRAULIC POWER UNIT
APPROX. 35" FROM FLOOR TO CENTER OF DRUM

-FREE STANDING OVERARM SEPARATOR

-EXIT TURNSTILE:
2 ARMS
60" ARM LENGTH
C-HOOK TYPE ARMS
HYDRAULIC POWERED ROTATION
POWERED PUSHOFF
APPROX. 43" PASSLINE, FLOOR TO TOP OF ARMS

-HYDRAULIC POWER UNIT

-COOLING UNIT FOR WATER COOLED BRAKE

-MAIN OPERATORS CONTROL PANEL

-DOWNLAYER:
PICK AND PLACE TYPE
6,000# CAPACITY
SIDE DISCHARGE

-APPROX. 30' POWERED CONVEYOR

-LINE IS INSTALLED AND UNDER POWER
