60" x 7.00" x 40,000# Stamco Slitting Line

YEAR: 1984

60" x 7" x 40,000# Stamco Slitting Line

Material Thickness: 0.015" - 0.187" Mild Steel
Coil O.D.: 72"
Line Speed: 500/1000 FPM
Line Direction: Right to Left

Consisting of the following:

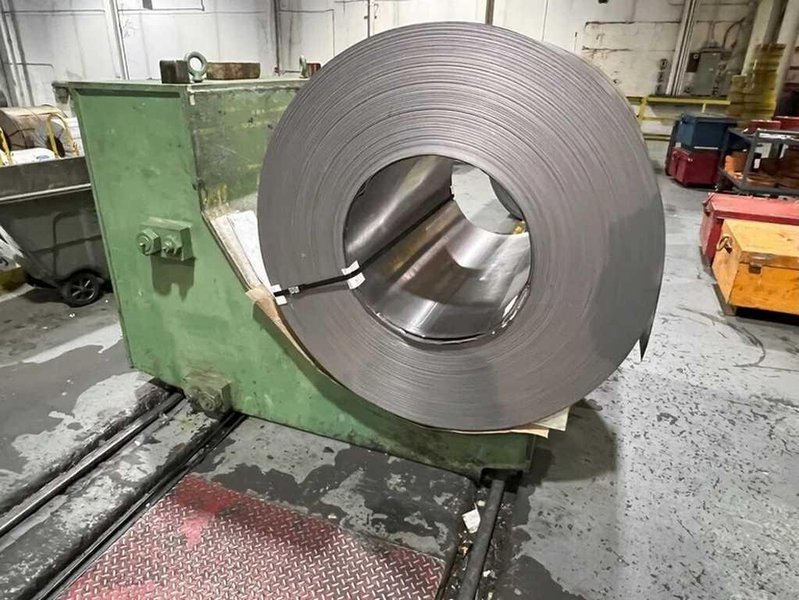

-Entry Coil Car:
Above Floor V-Deck
Self-Contained Hydraulics

-Uncoiler:
16" - 20" ID with Pads for 24"
Hydraulic Expansion
Hydraulic Slide Base
Holddown Roll
60 HP DC Motor, 500/2300 RPM, 500 V, W/Blower

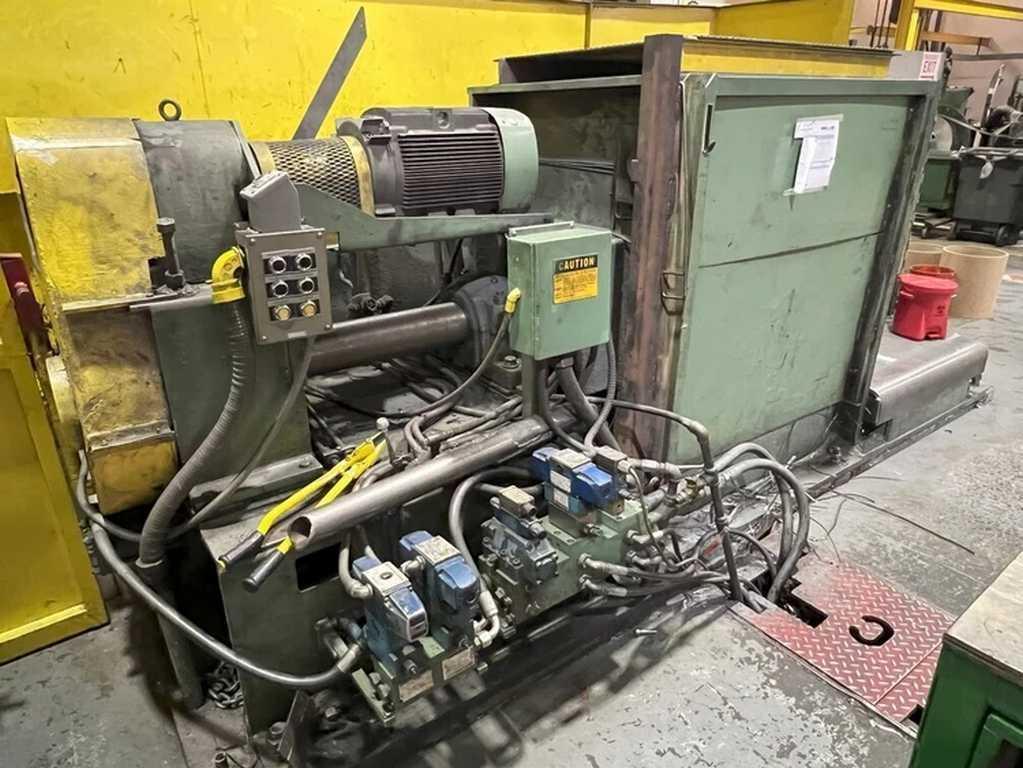

-Entry Unit:
Peeler Table (Hydraulic)
Driven Pinch Roll, 20 HP DC Motor w/Blower
3 Roll Coil Breaker, 30 HP DC Motor w/Blower
Crop Shear

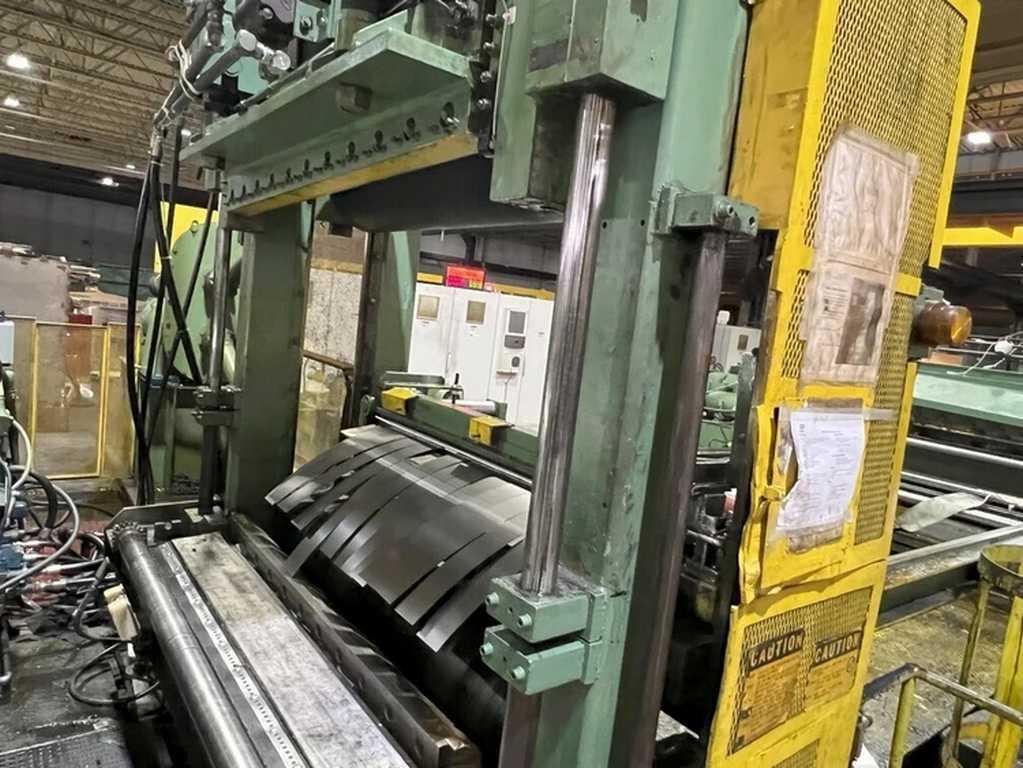

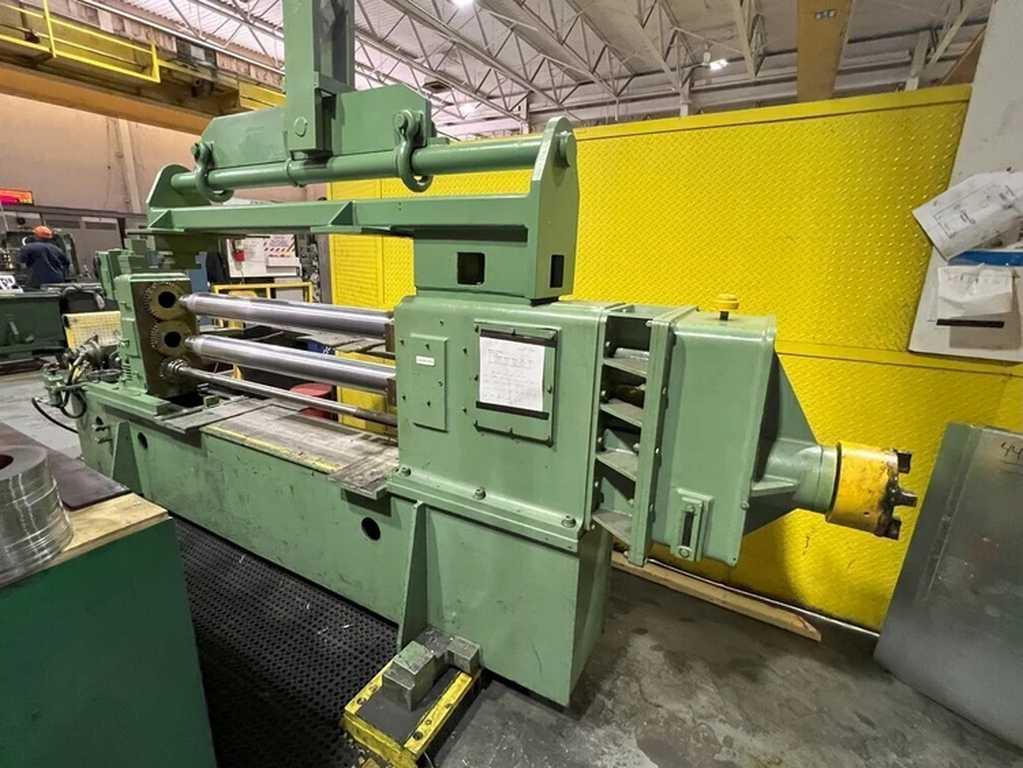

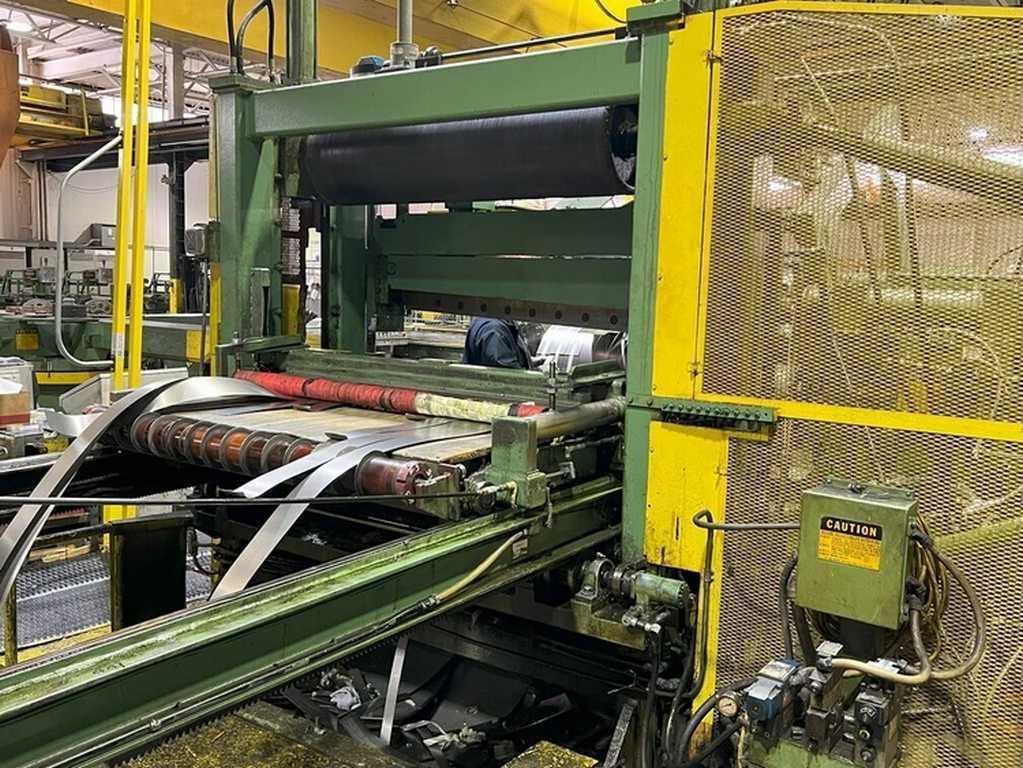

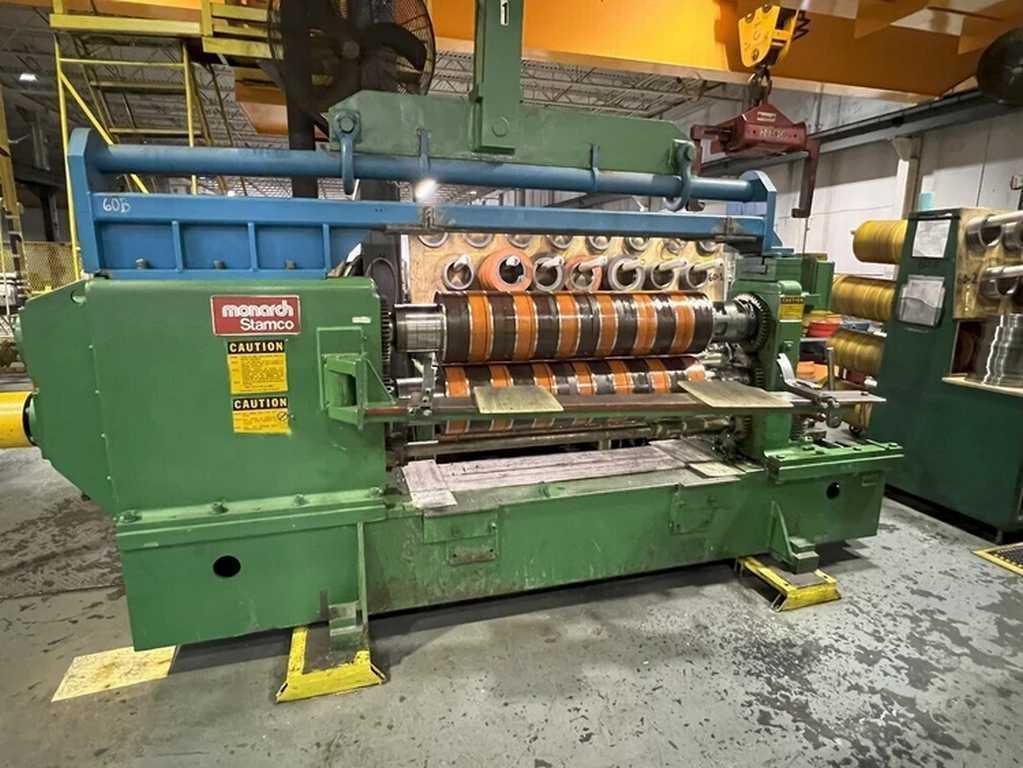

-Slitting Station:
(2) - 7" Dia. x 60" Face Heads
(1) - 5" Dia. x 48" Face Head
Crane Removable Design
100 HP DC Motor, 650/1950 RPM, 500 V, W/Blower
Entry Edge Guides

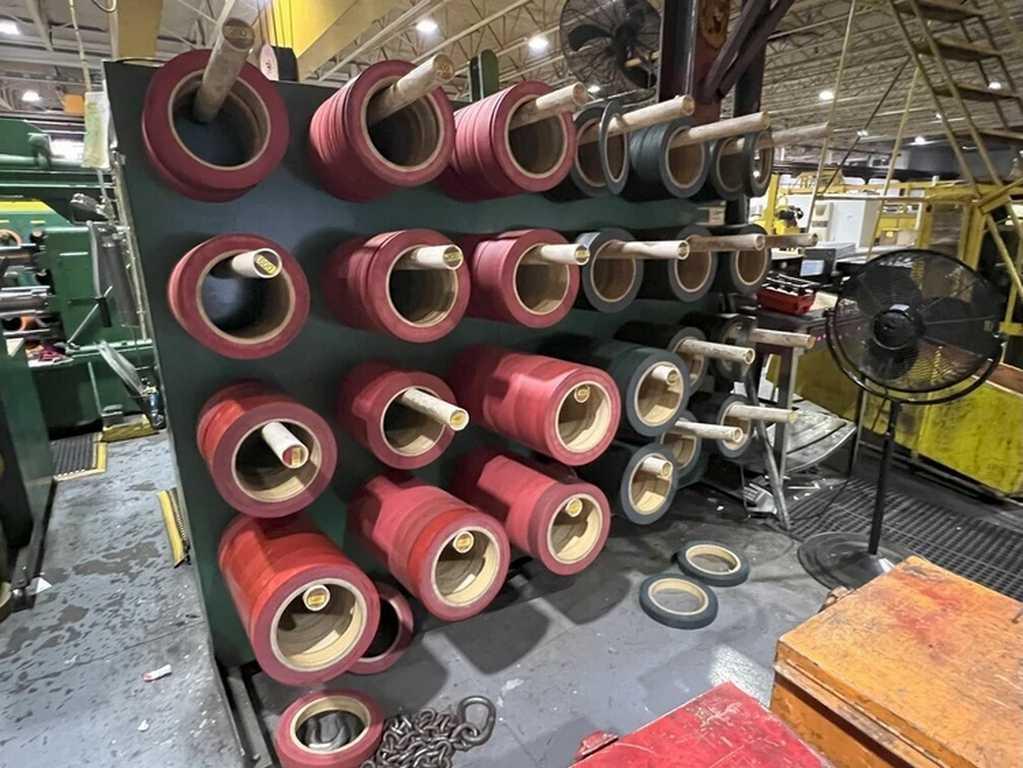

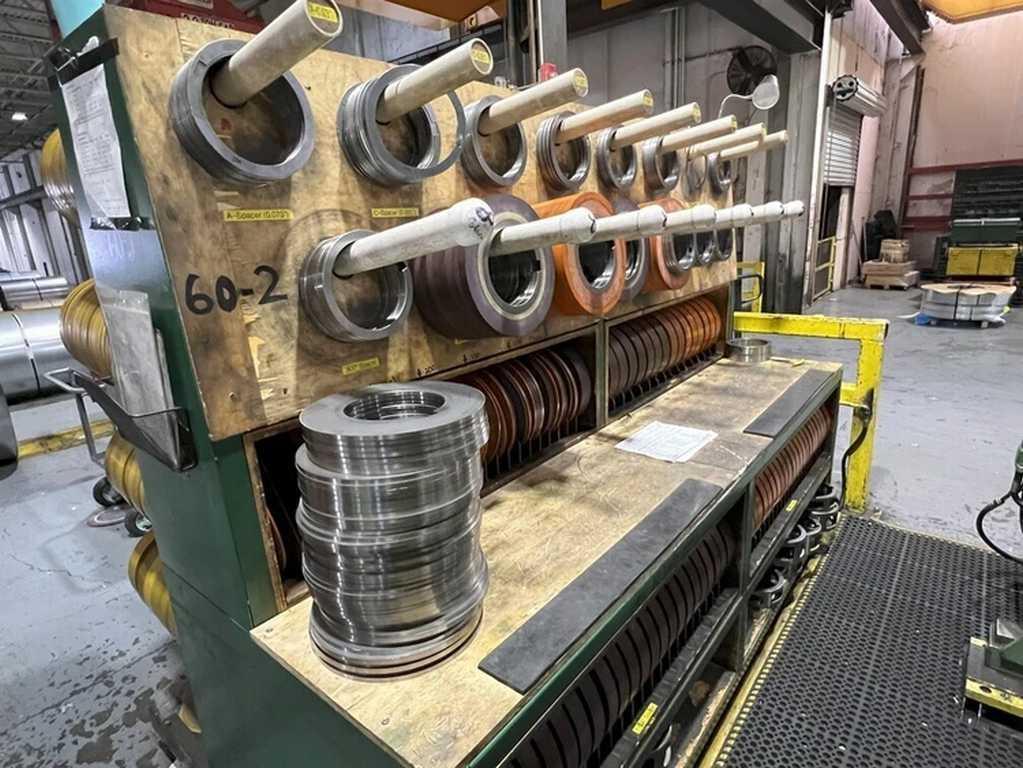

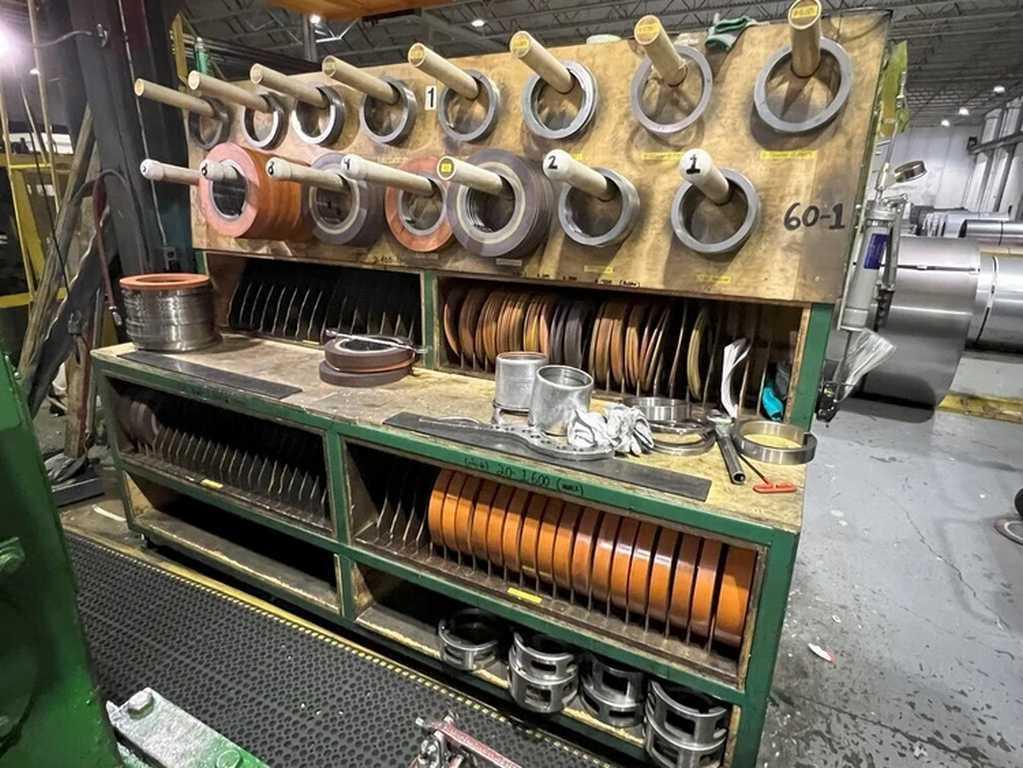

Extensive Amount of Knives, Spacers & Rubbers

-Pit Entry Unit:
Passline Roll

-Looping Pit:

-Pit Exit Unit:

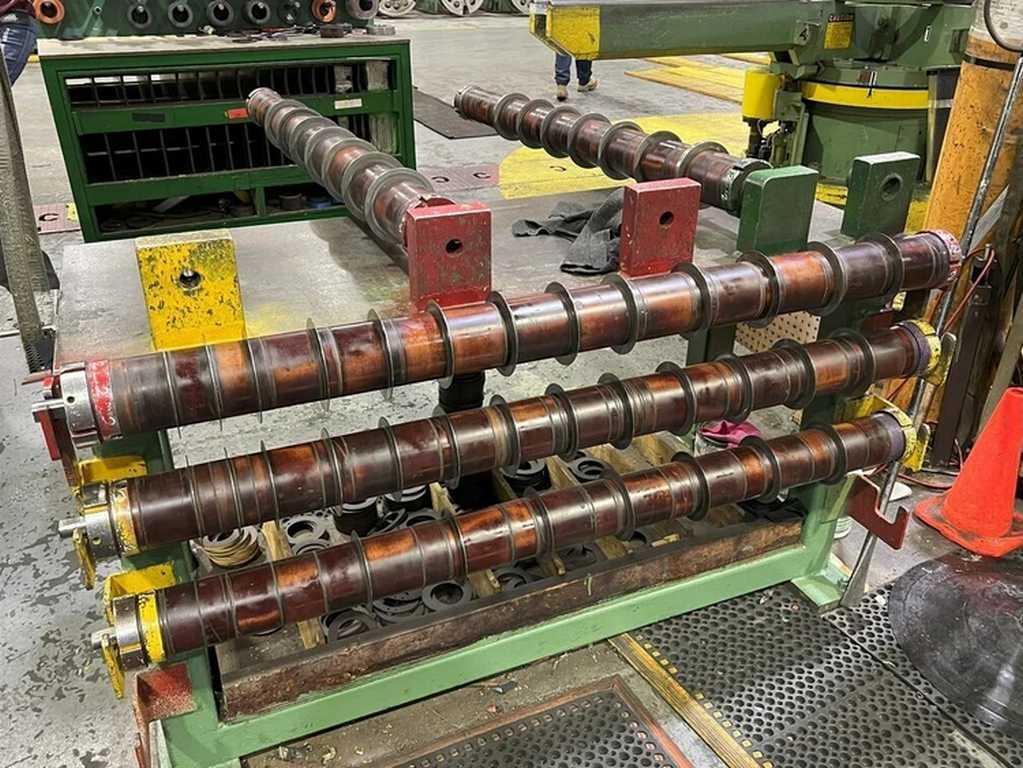

Entry Separator Tooling Bar
Drag Tension Pads
Adjustable Roll Type Tension Stand
100 HP DC Motor, 650/1950 RPM, 500 V
Crop Shear

-Scrap Baller:

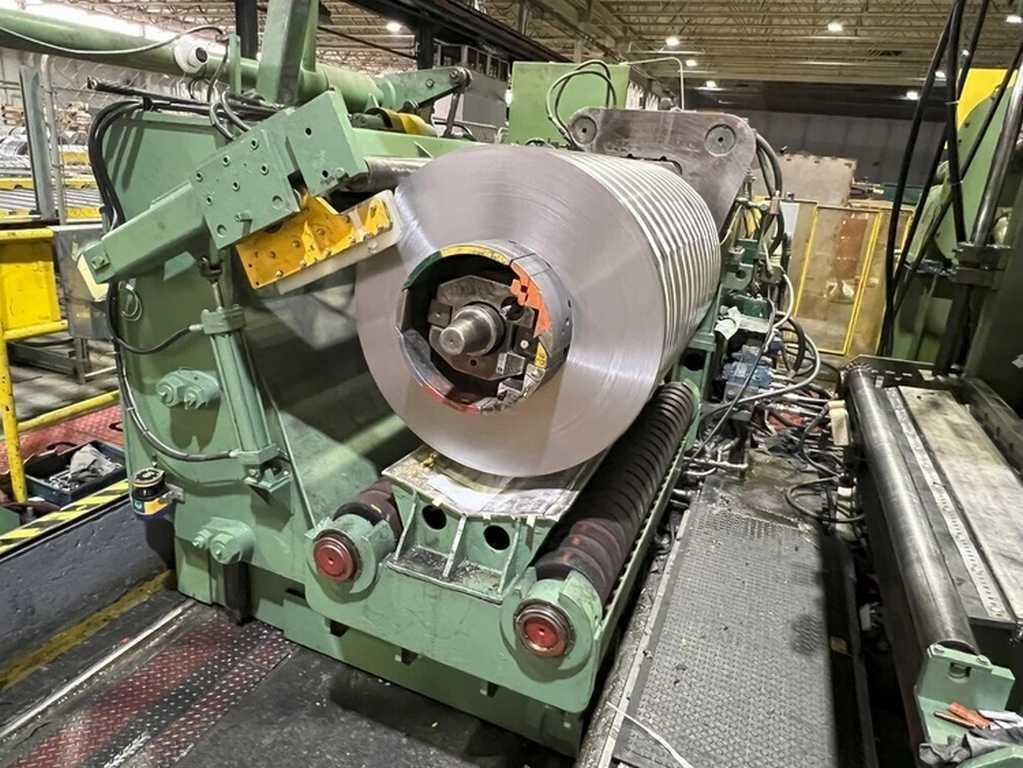

-Recoiler:
16" Dia. Drum, Pads for 20" & 24"
Hydraulic Gripper & Expansion
Hydraulic Pushoff
150 HP DC Motor, 500/2000 RPM, 500 V

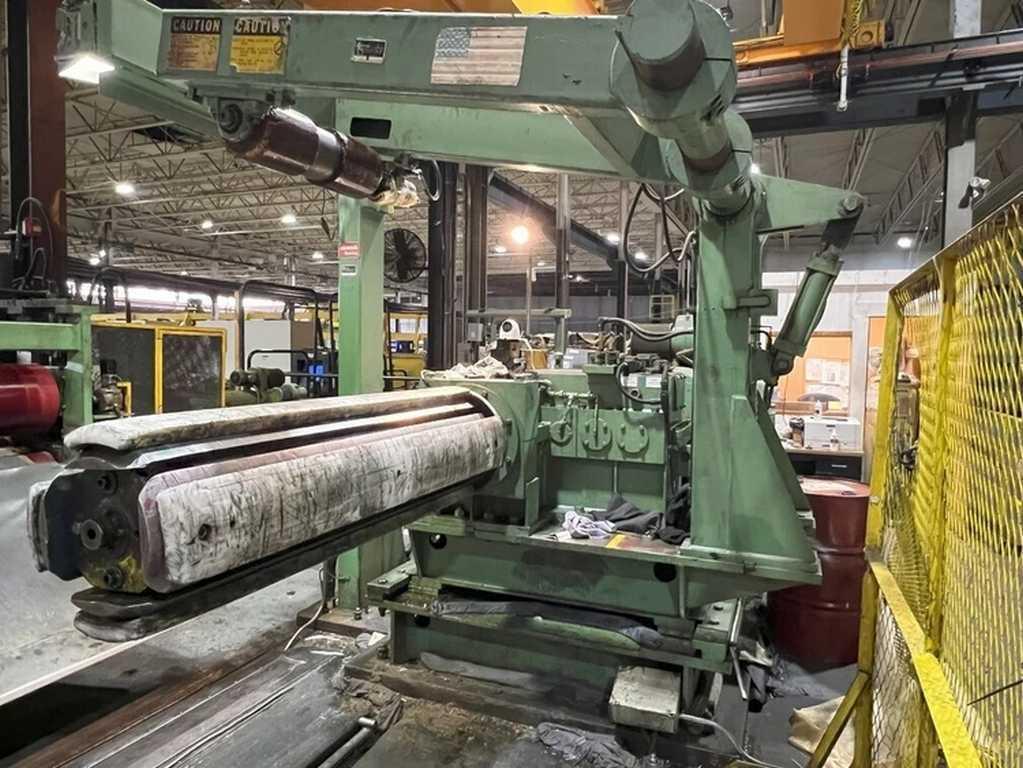

-Free Standing Overarm Separator:

-Exit Coil Car:
Above Floor V-Shaped Design
Coil Holddown Arm w/Adjustable Side Retainers
Self-Contained Hydraulics

-Removed and in storage
