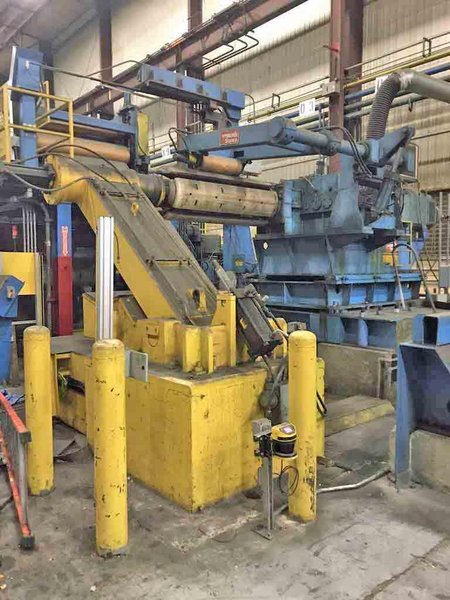

60" x 6.50" x 40,000# Stamco Slitting Line

-Capacity: 0.0065" - 0.080" Alum. & Alloy
-30" to 103" O.D. Entry (80" O.D. Exit)
-500 and 1000 FPM
-Coil Width: 24" to 62"
-40,000 lb. Entry
-Line Direction: Right to Left

Consisting of the following:

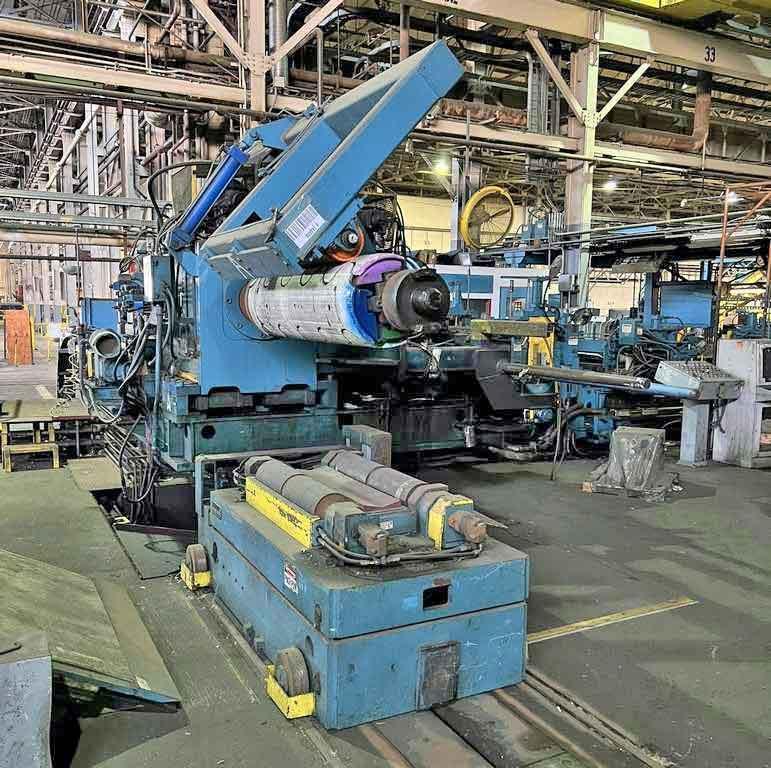

-Southworth Coil Car:
40,000 lb. Capacity
Self-Contained

-Uncoiler:
Hydraulic Expansion: 16" - 20" expansion plates to 24"
Overarm Holddown
Slide Base
100 HP DC Motor, 500 - 2000 RPM
2 Speed Reducer
Outboard Support Arm

-North American Edge Control:
36" Centering Guide

-Entry Peeler Table:
Hydraulic Vertical Lift and Horizontal Extend

-Driven Pinch Roll:

-Hydraulic Downcut Crop Shear:

-Driven Slitter Head: Horizontal Configuration
6.5" Arbor Diameter
74" Face Arbors
30 HP DC Motor Drive 850/2250 RPM
Entry Side Guides - Roller Type
20" Dia. Deflector Roll with Nip Roll
Slit Metal Guide
20" Dia. Exit Deflector Roll / R & L
Exit Scrap Guide

-Scrap Chute:
Side Guides & Roller Deflector

-Scrap Winder Baller:
28" Max. Scrap Ball OD
Hydraulic Ball Eject Cylinder
16" Dia. Weighted Scrap Masher
25 HP AC Drive Motor
2 Speed Reducer - Baller Speed 100 & 500 FPM

-Dual Recoilers:
One Right Hand and One Left Hand
25,000 lb. Capacity Each
16" ID with 20" Riser Plates
Coil OD limits: 2-3" mults 36" OD
3-6" mults 40" OD
6-12" mults 48"
12" and up, 75" Coil OD Max.
Hydraulic Pushoff
Hydraulic Grip and Expand
57" Floor to Mandrel C-Line
2 Speed Gearbox 10.4 and 20.3:1 Ratio
Over and Underwind capable

-Free Standing Overarm Separator

-Southworth Coil Car: (2)
20,000 lb. 24" Lift Height
Self-Contained

-Main Hydraulic Power Unit:
Dual 20 HP AC Motors
Dual Vickers PVB45A Pumps
600 Gal Reservoir

-Asko Tooling

-Floor Space Requirement: 38' Long x 29' Wide x 17' High

-COntrol system: GE 90-30 PLC

-Removed from Service
