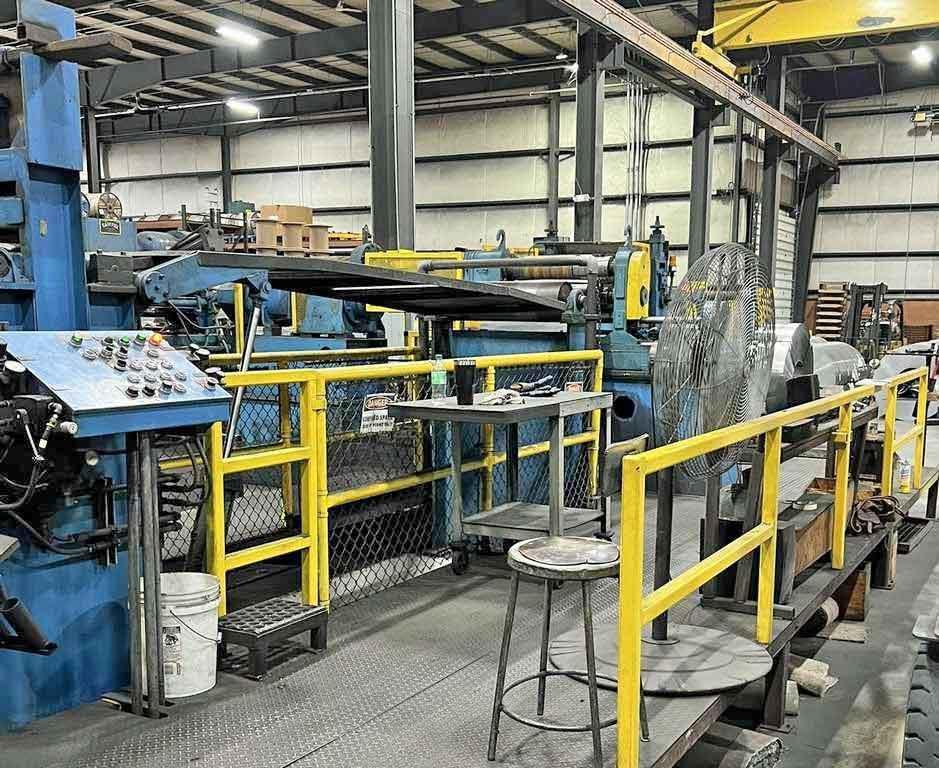

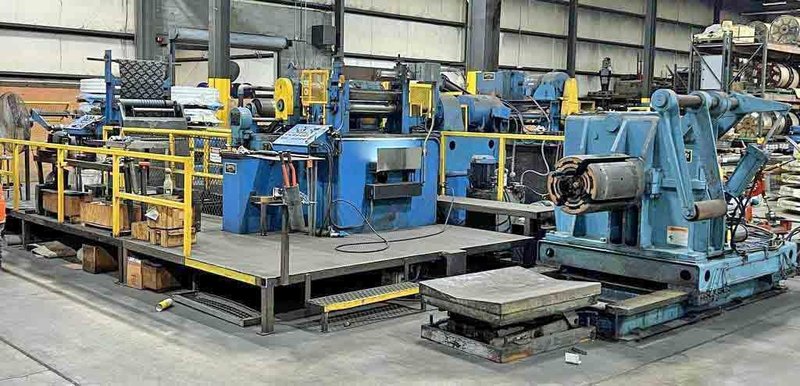

24" x 5.00" x 12,000# Stamco Slitting Line

Width: 24"
Weight Capacity: 12,000 lbs.
Coil ID: 10" - 20" Entry
16" Exit
Coil OD: 60"
Line Direction: Right to Left

Consisting of the following:

-Entry Coil Lift: American Lift
Stationary Lift
48" Bed Width
12.5" from Floor to bottom of "V" Cradle
Hydraulic Scissor Lift
Overall Size: 48" L x 35" W x 14" High

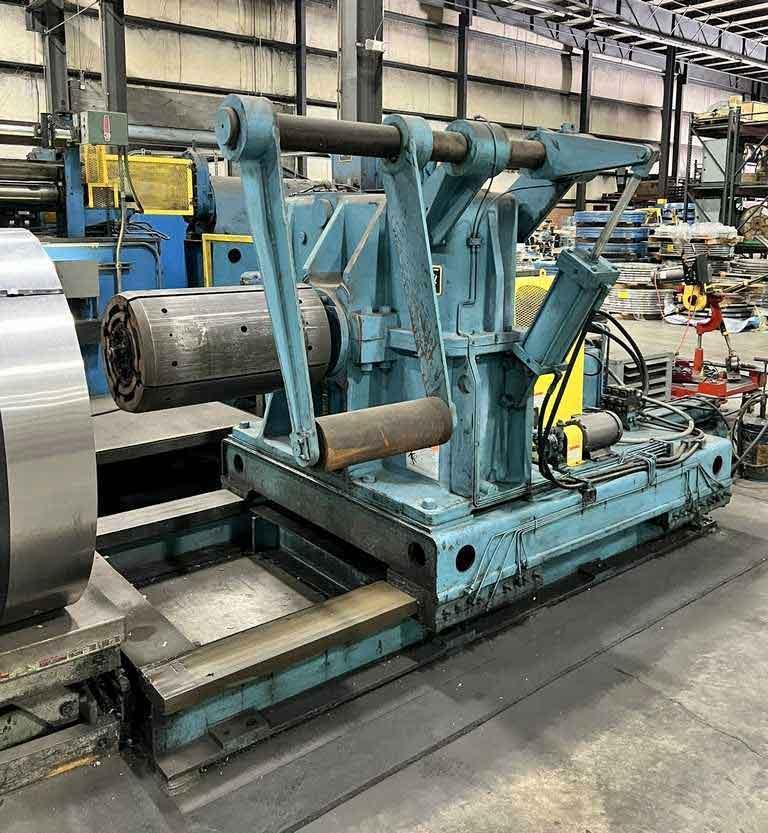

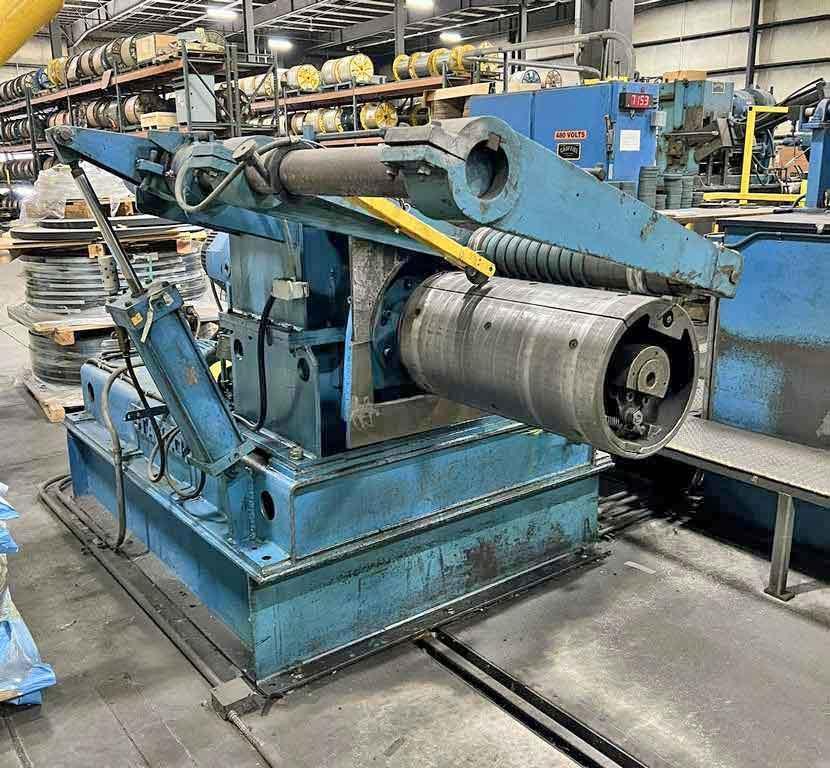

-Mandrel Uncoiler: Stamco
28.5" Face Mandrel
Hydraulic Expansion, 10" - 20" I.D. range w/Pads
Hydraulic Feedup Motor
Wichita Water Cooled Brake
Hydraulic Slide Base
Overarm Holddown Roll
Overall Size: 180" L x 87" W x 83" High

-Water Cooler:

-Hydraulic Power Unit:

-North America Edge Control:
Photo Electric

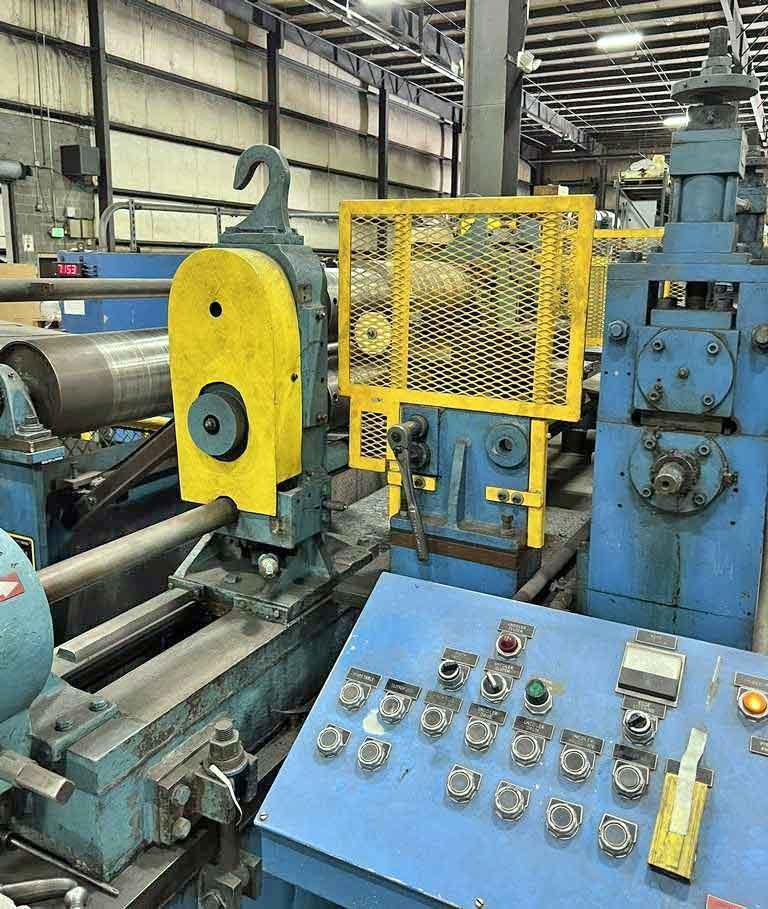

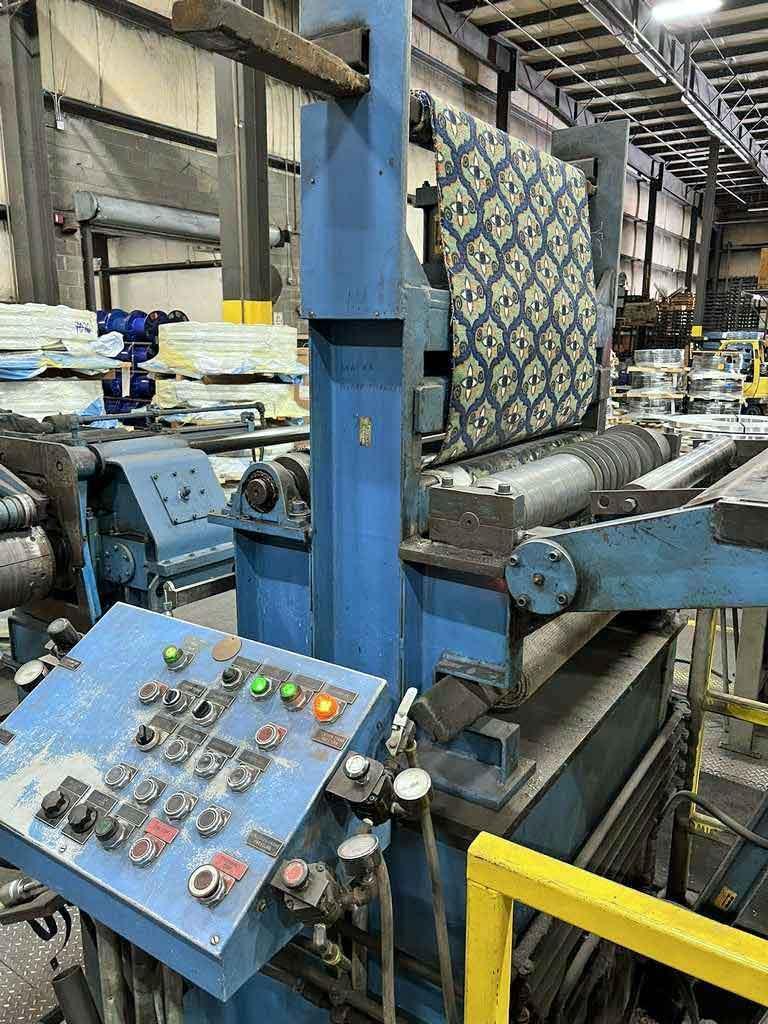

-Slitter Head: Stamco
Removable Head (1 Head)
Eccentric Arbor Adjustment
Entry Driven Pinch Rolls
Entry Side Guides with Center Holddown
25 HP DC Motor Drive
Integrated Pinion Stand Reducer
Overall Size: 184" L x 58" W x 100" High

-Exit Passline Roll:
11" Dia. x 36" Face Roll
Overall Size: 46" L x 38" W x 80" High

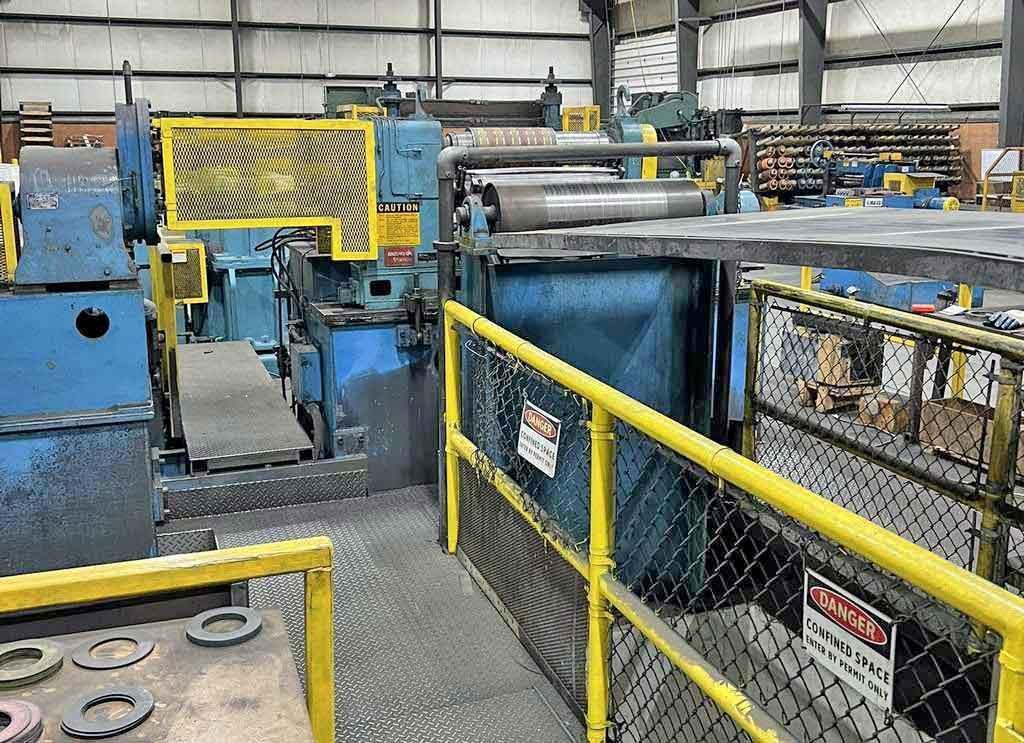

-Pit Cross Over Table:
Attached to Tension Stand

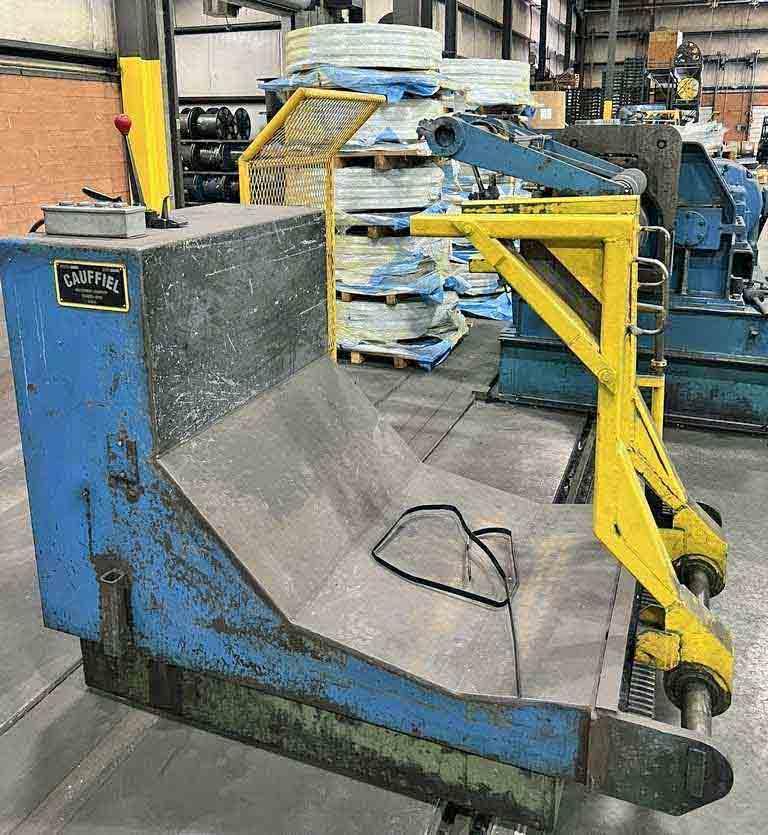

-Scrap Winder Baller:
AC Motor Driven
Hydraulic Cylinder Ball Dump
Overall Size: 88" L x 76" W x 99" High

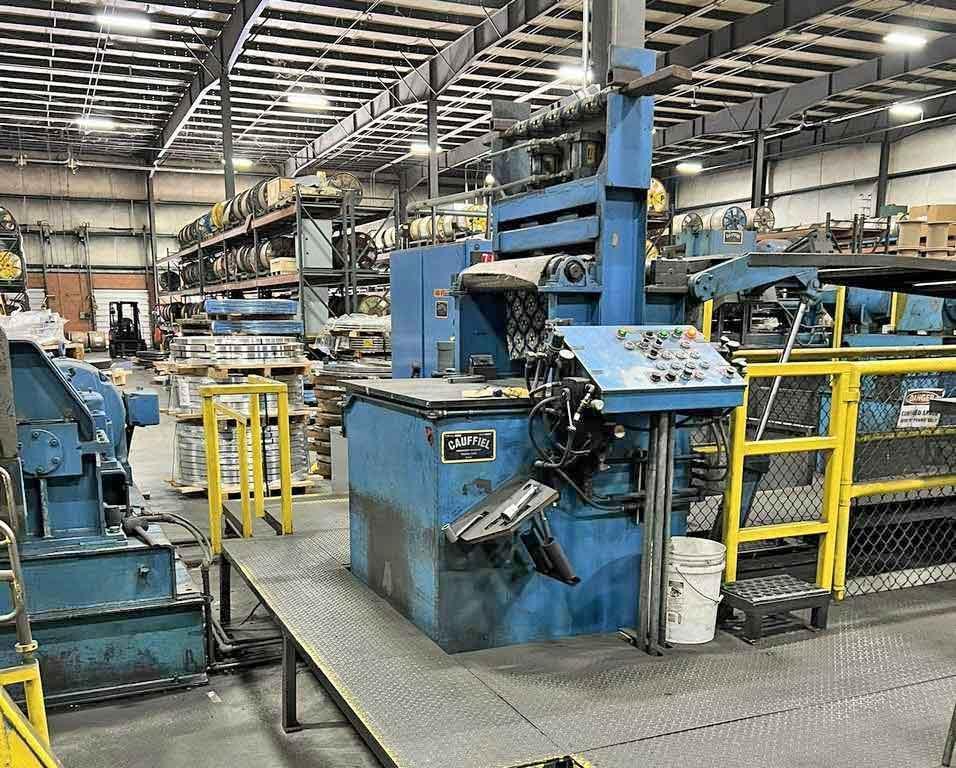

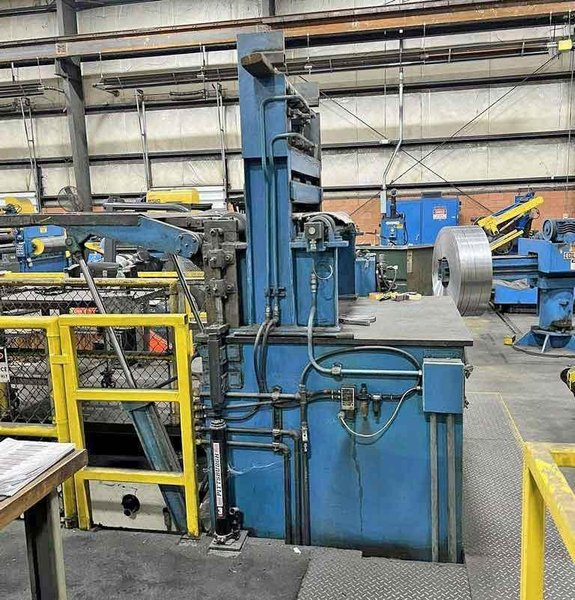

-Tension Stand: Cauffiel
Air Cylinder Pad Tension Operation
Entry and Exit Separator Bars
Overall Size: 72" L x 58" W x 108" High

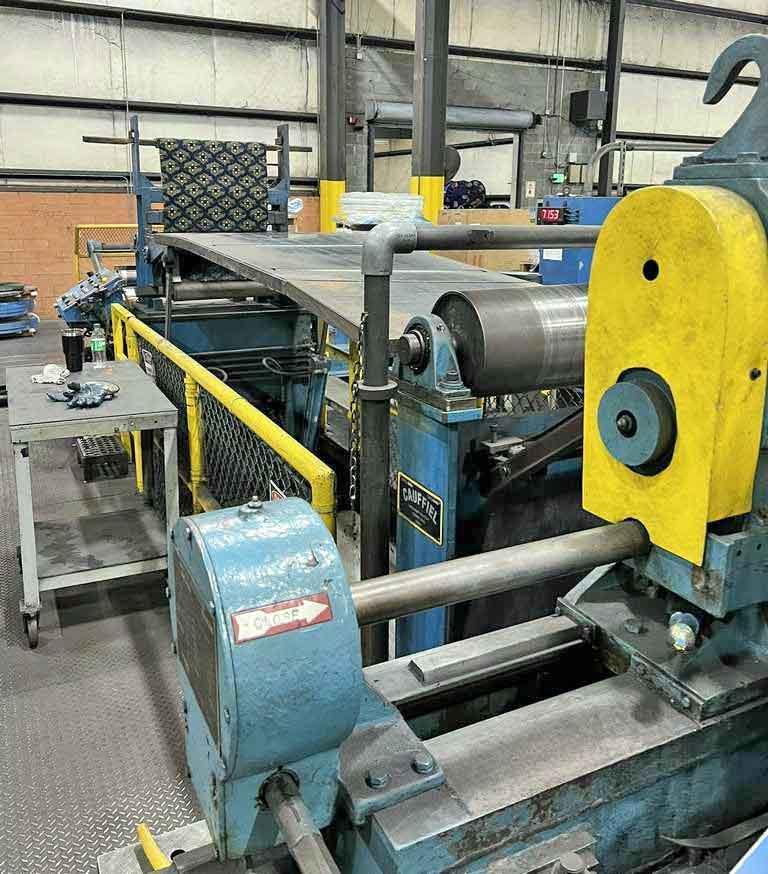

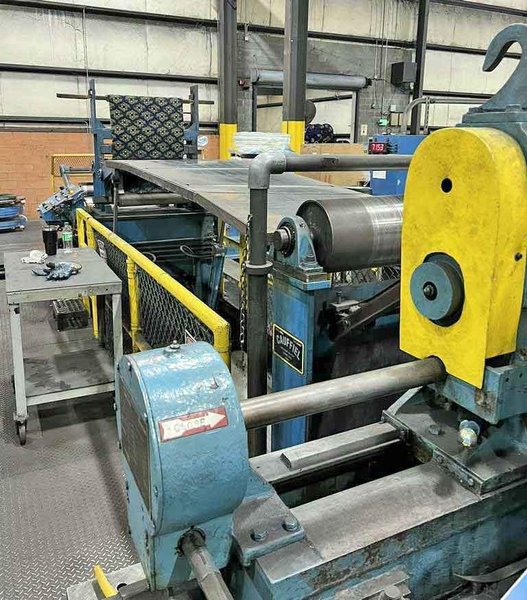

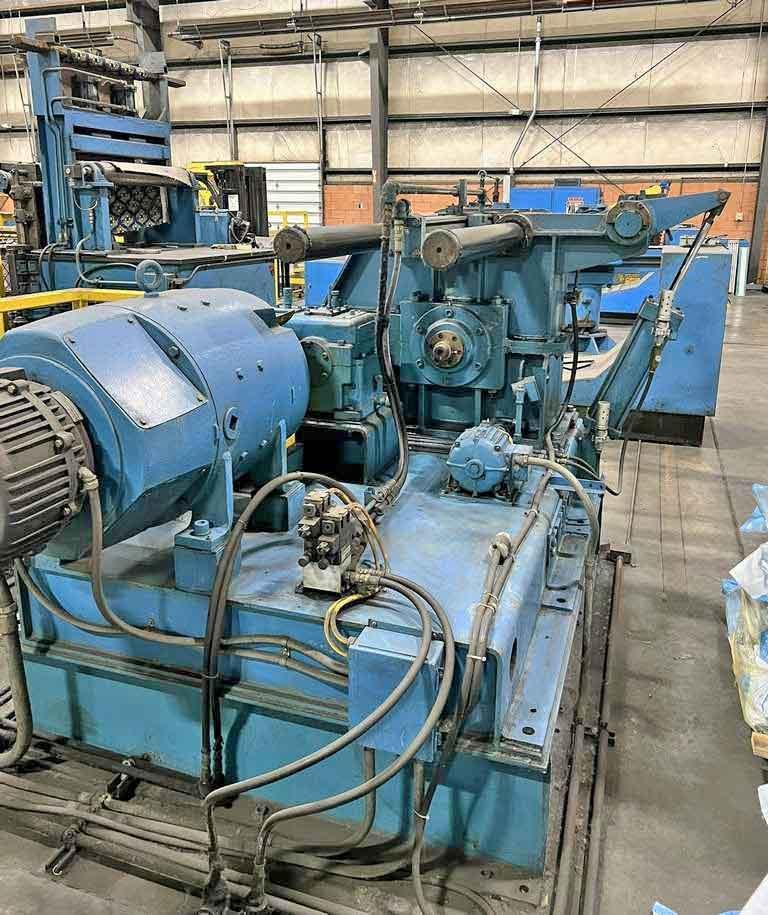

-Recoiler: Stamco
16" Diameter x 31" Face Drum
Manual Grip and Expand
Overarm Separator
25 HP GE DC Motor, 400/2400 RPM, 240 V
2 Speed Reducer
Overall Size: 152" L x 81" W x 68" High

-Exit Coil Car:
Hydraulic Lift and Travel
40" Wide Bed
9" from Floor to bottom of "V" Cradle
Self-Contained Hydraulic Unit
Coil Keeper Bars
Overall Size: 76" L x 46" W x 52" High

-Removed and in storage: Toledo, OH.
