60" x 0.140" x 30,000# Rowe/Voss Cut-to-Length Line

60" x 0.140" x 30,000# Rowe/Voss Cut-to-Length Line

Material Thickness: 0.020" - 0.140" Mild Steel
Coil Weight Capacity: 30,000#
Coil Width: 60"
Coil O.D.: 80"
Line Direction: Left to Right

Consisting of:

-Entry Coil Car:
AC Motor Powered

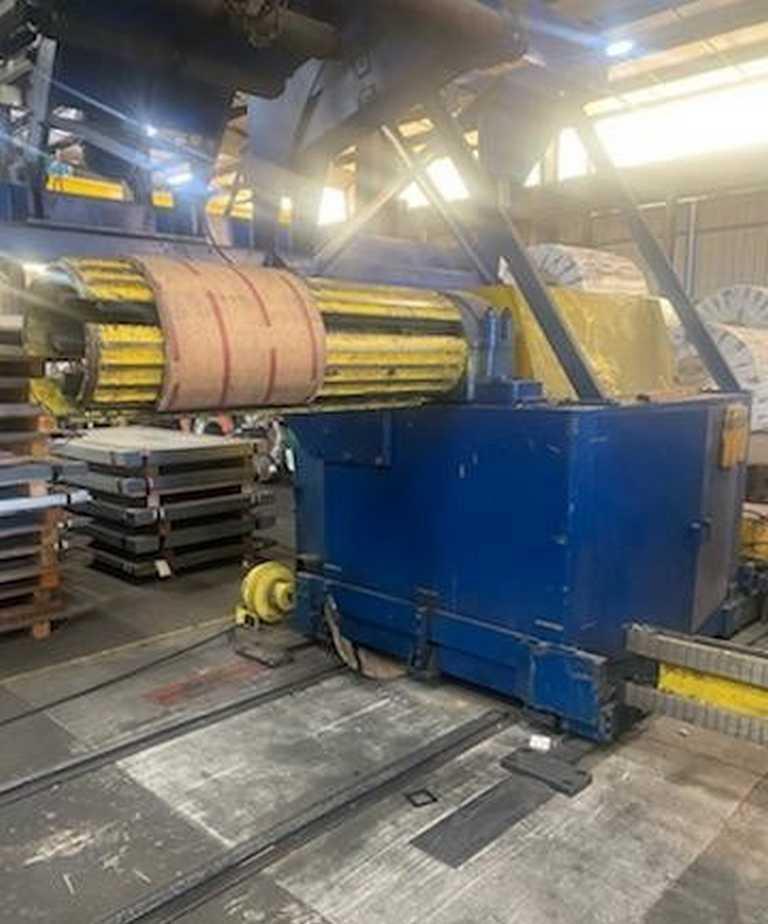

-Uncoiler:
Model: 30060 DSV
Powered Expansion
Threading Drive
Brake
Sliding Base
Holddown Roll
Sabina DC Drive

-Threading Table:

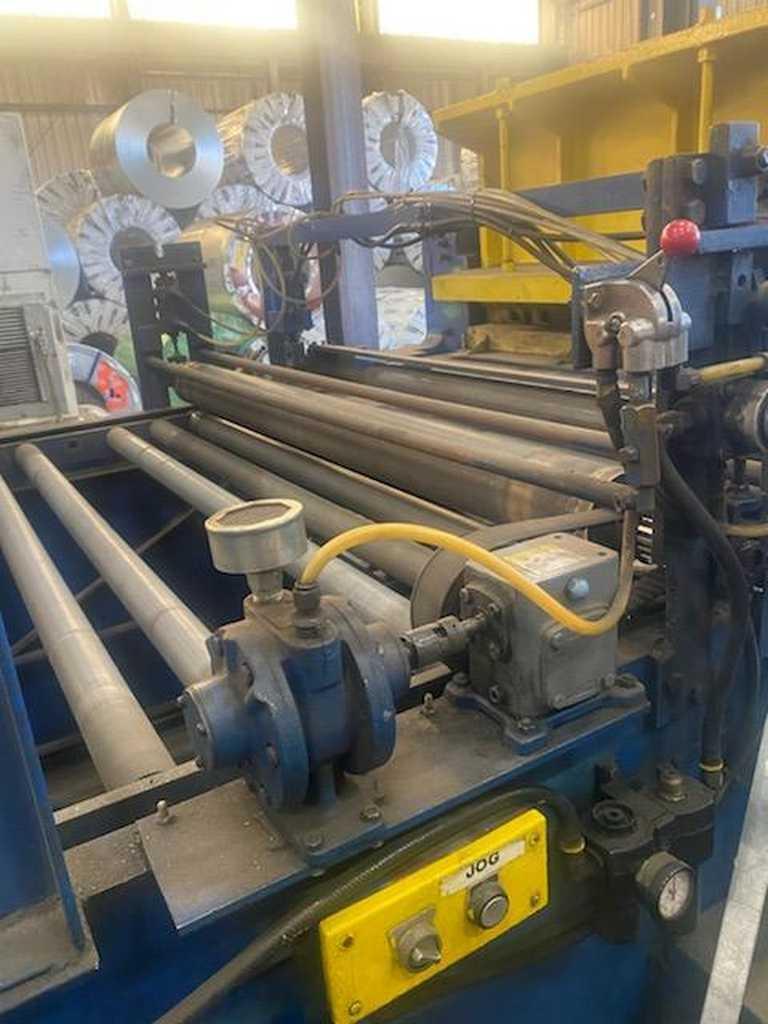

-Straightener:
Model: VET 60-12-5
Entry Side Guides
Entry Coil Breaker
Entry Pinch Rolls
Straightening Rolls
Exit Pinch Rolls

-Double-Stub Edge Trimmer:
(2) Adjustable Heads
Scrap Chopper

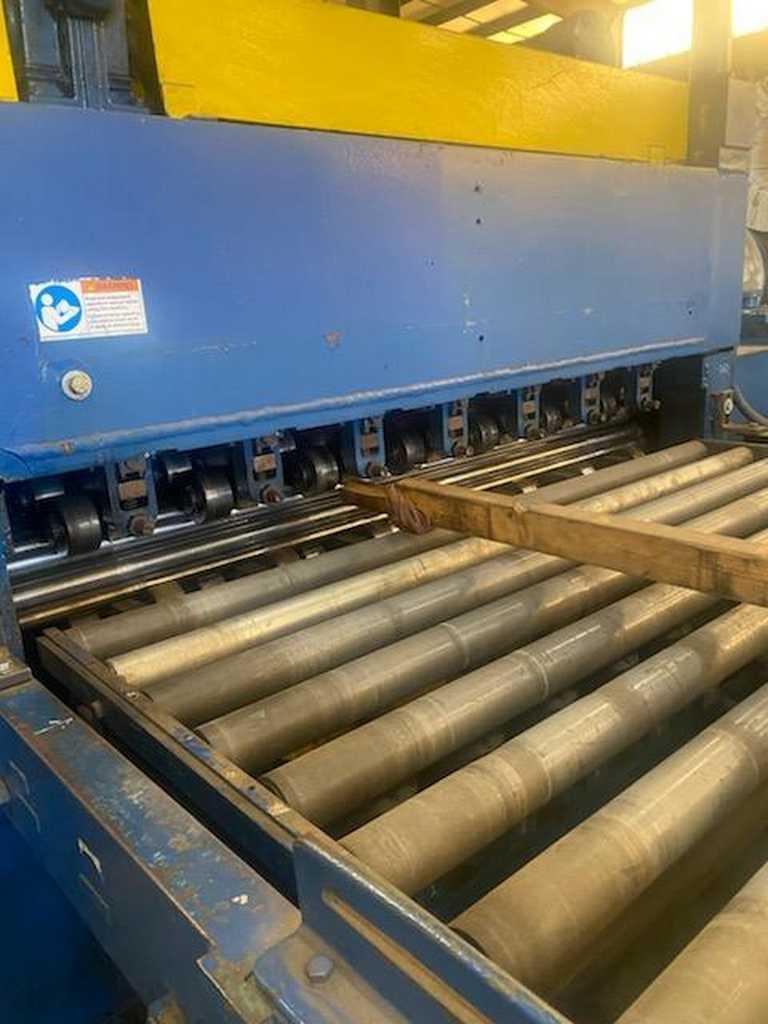

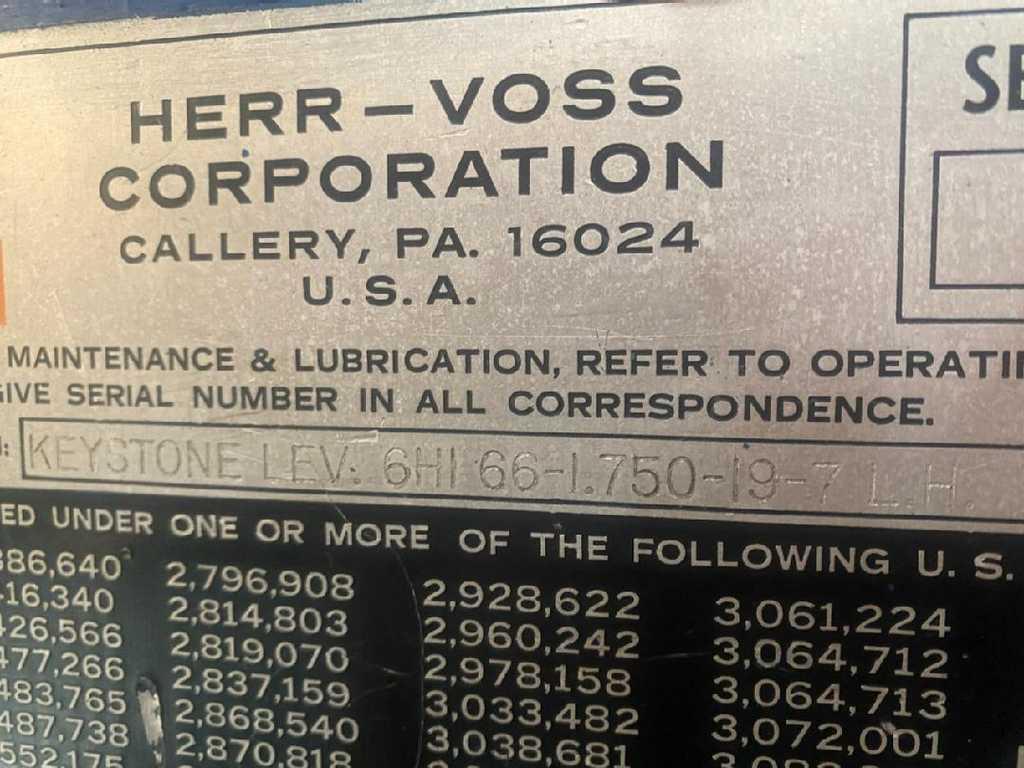

-Herr Voss Precision Leveler: 6 HI
Model: Keystone 66-1.750-19-7 LH
19 Work Rolls, 9 over 10
1.75" Dia. x 66" Face
7 Flights of Backups, 5 Flights Motorized

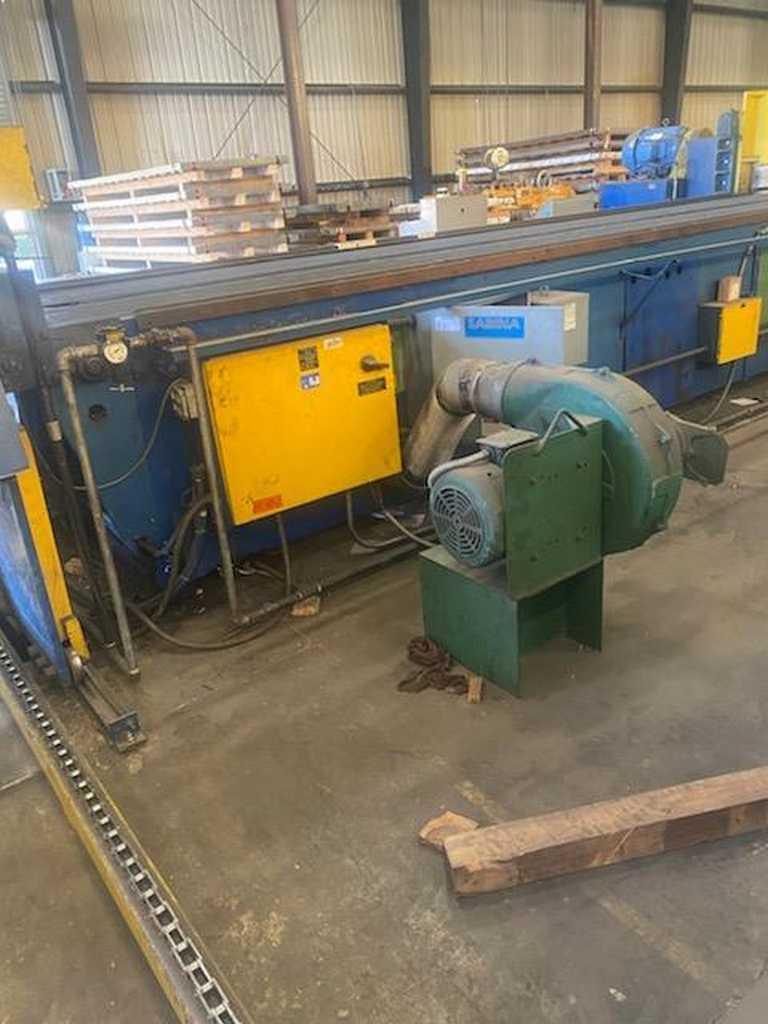

DC Drive Motor w/Blower
Common Drive with Straightener

-Conveyor Section:
Driven Pinch Rolls
Air Motor drive thru Reducer

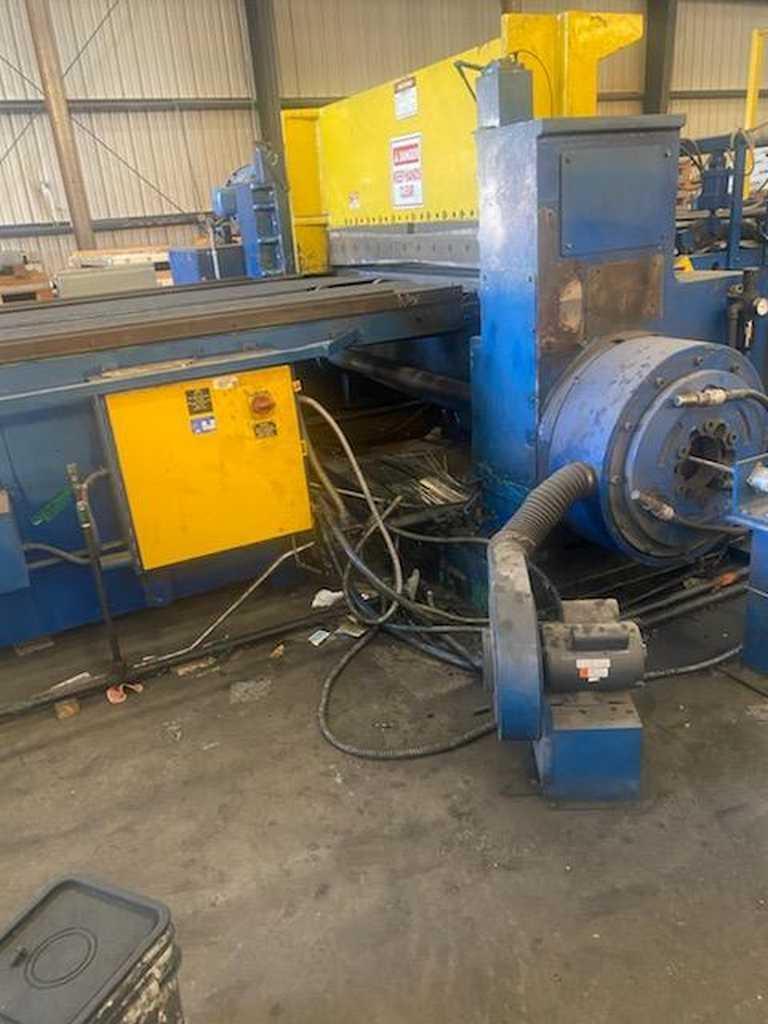

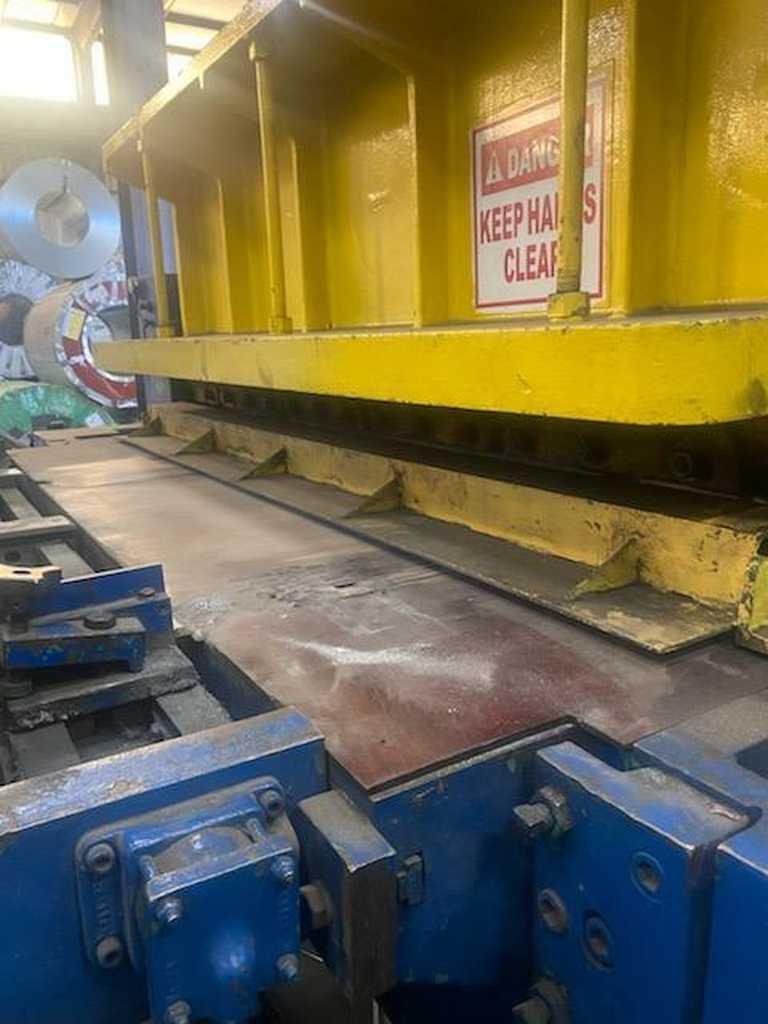

-High Speed Shear: Wysong
Model: HS625-RKB
Capacity: 72" x 0.250" (Mild Steel)
Bow-Tie Top Blade
300 Strokes/Min.
45 Cuts/Min.
40 HP AC Motor
Air Clutch/Brake
Weight: 20,600 lbs.
Shear Rebuilt in 2023

-Belt Runout Conveyor:
Twin Driven Belts

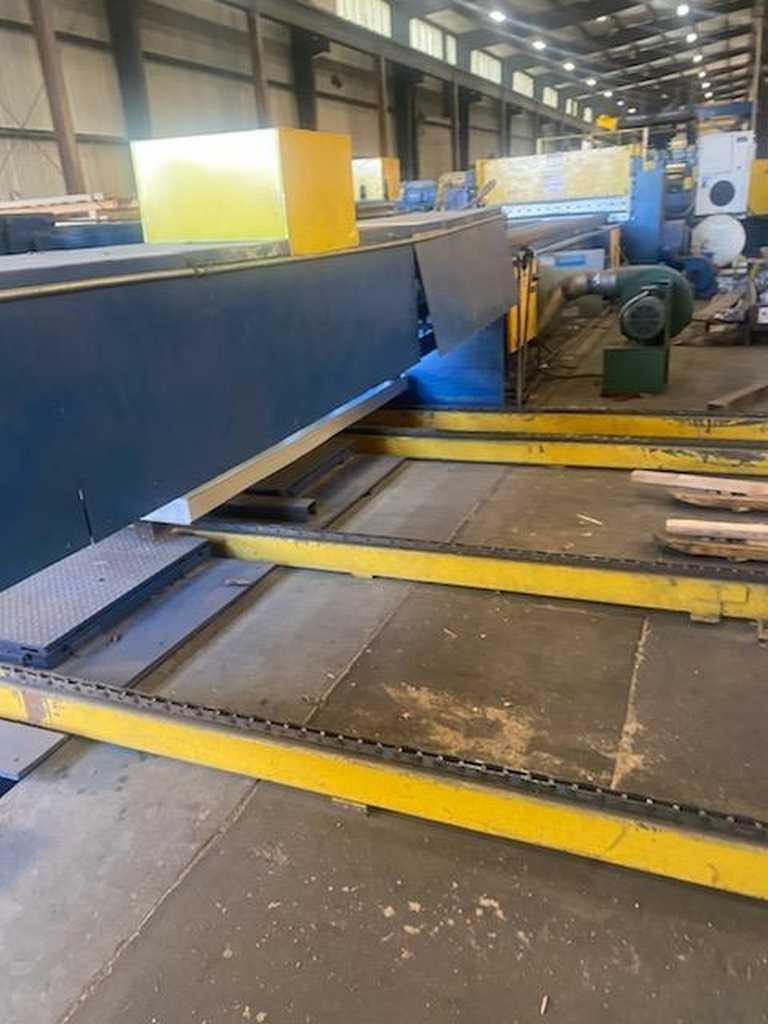

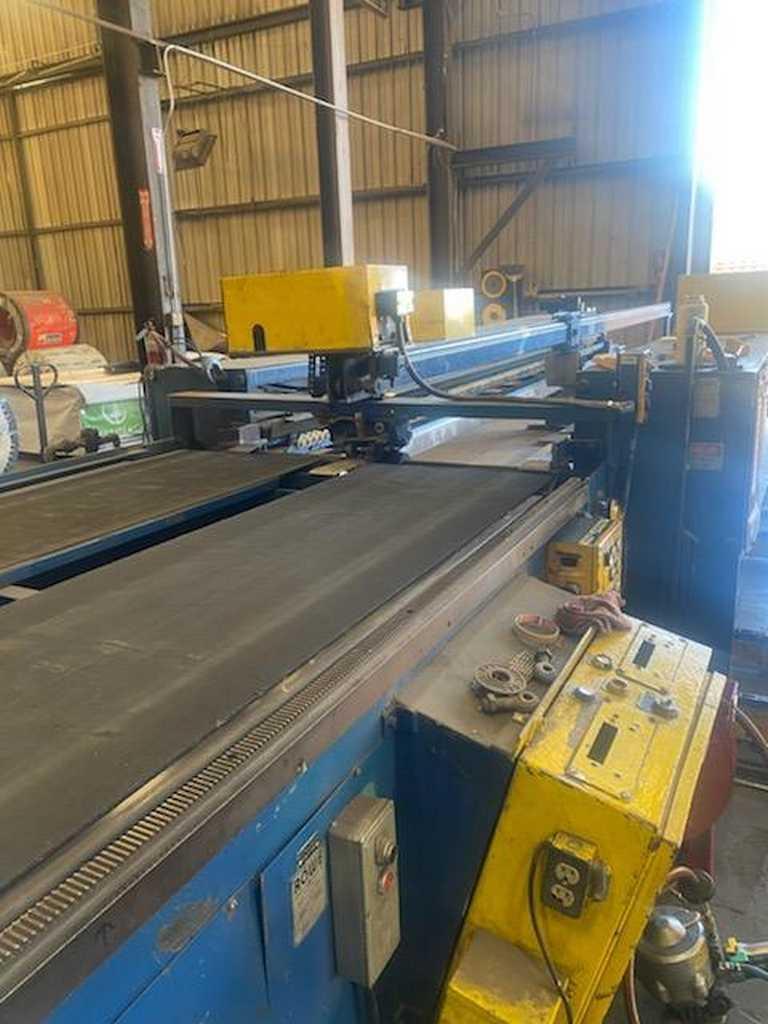

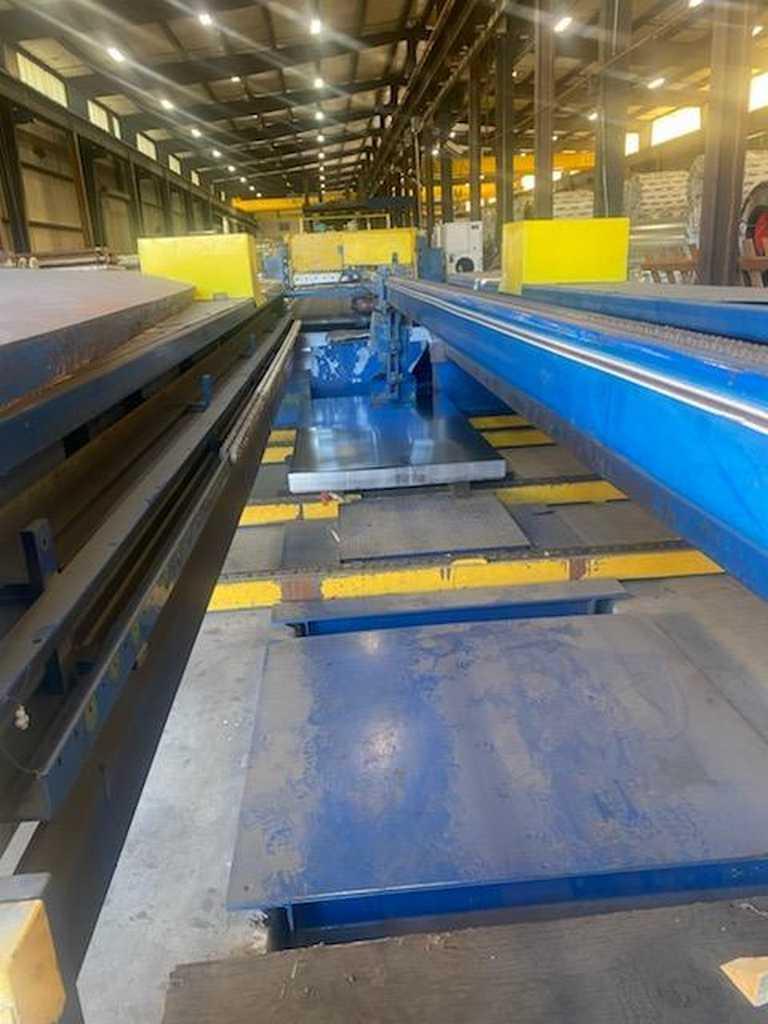

-Stacker:
Powered Length Adjustment
Powered Width Adjustment
Side Discharge Chain Conveyor
Air Blower

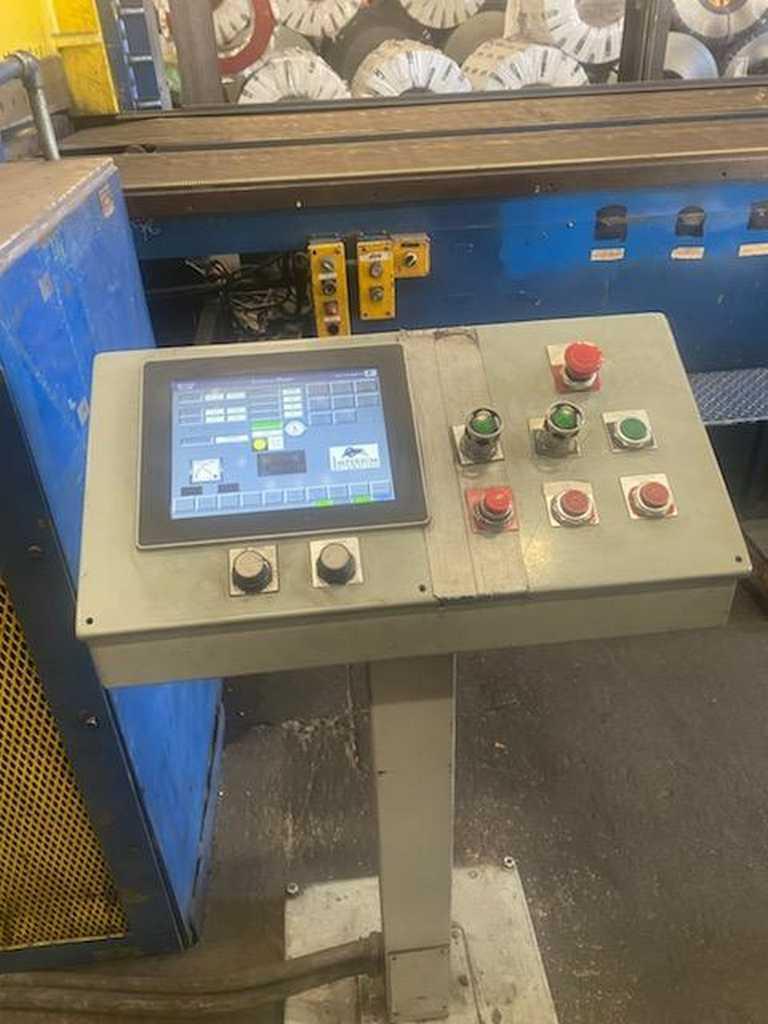

-Operators Control Panel:
Touch Screen Panel

-New Electrics added in 2024

-Line is Removed and in Storage
