Haas VF-2SS CNC Vertical Machining Center With Robot Package – 2022

Brand
HAAS
Category
Machining Centers
Type
Machining Centers, Vertical
Model
VF-2SS
Stock #
115056
Year
2022
Condition
Not specified
Location
Not specified
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU: 115056
Make: Haas
Model: VF-2SS
Year of Manufacture: 2022
Condition: Used – Excellent



Equipped With:
Haas CNC Control

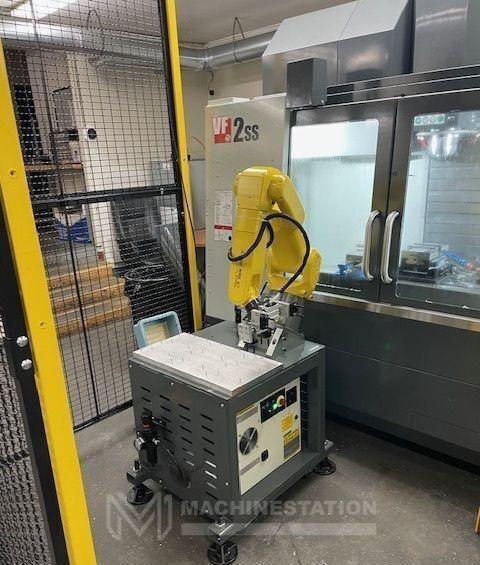

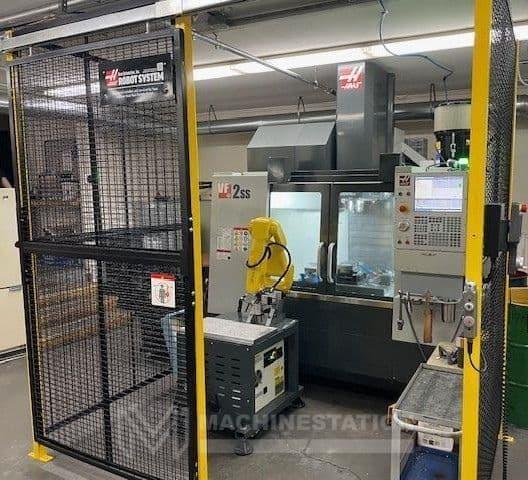

Haas Robot Package 1 (Upgraded $52,495 value Included)
Through Spindle Coolant (Upgraded $7,095 value Included)
Wireless Intuitive Probing System Ready (Probe Needed) (Upgraded $3,995 value Included)
Probe Riser Block (Upgraded $695 value Included)
12000 RPM High Speed Inline Direct Drive Spindle
30 Station Super Speed Side Mount Automatic tool changer
1400 IPM Fast Rapid
High Speed Machining (Upgraded $3,895 value Included)
Auxiliary Coolant Filter (Upgraded $3,195 value Included)
Programmable Air (Upgraded $1,395 value Included)
Rigid Tapping
Spindle Orientation
Coordination Rotation and Scaling
Haas Visual Programming System
User-Definable Macros
Remote Jog Handle – Touch Screen
Coolant System
Royal 30115 FX-575 Filtermist Unit (Upgraded $3,795 value Included)
Filtermist Motor Starter Kit (208/230V) (Upgraded $717 value Included)
Filtermist FX-575 After Filter (Upgraded $355 value Included)
Chip Auger (Upgraded $4,095 value Included)
Chip Strainer
Chip Deflector (Upgraded $105 value Included)
Note: Vice Is Not Included With The Machine



Table:
Length: 36.0″
Width: 14.0″
Number of Std T-Slots: 3
T-Slot Width: 5/8″
Max Weight on Table: 1500 lbs



Travels:
X-Axis: 30″
Y-Axis: 16″
Z-Axis: 20″
Rapid Traverse Rates: 1400 Inch Per Minute
Cutting Feed Rates: 833 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 24″



Spindle:
Taper Size: 40
Speed Range: 12000 RPM
Spindle Power: 30 HP
Max Torque: 90 ft-lb @ 2000 RPM



Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 12 lbs
Max Tool Diameter (Full): 2.5″
Max Tool Diameter (Adjacent empty): 5.0″
Max Tool Length: 11″
Tool Changing Time: 1.8 Seconds



General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 101″ x 99″ x 101″ High
Weight: 9200 lbs
No files or videos to display
