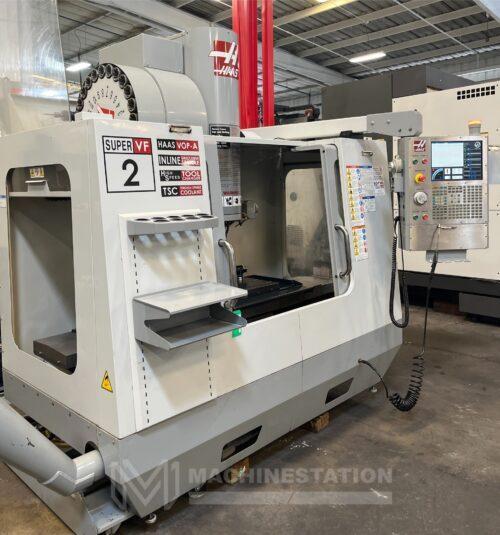

Haas VF-2SS CNC Vertical Machining Center – Mill

Haas VF-2SS CNC Vertical Machining Center – Mill

Name: Used HAAS VF-2SS For Sale 112798
Brand: HAAS
SKU: 112798

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU:	112798
Make:	Haas
Model No.:	VF-2SS
Year of Manufacture:	2007
Condition	Used – Good

Equipped With:

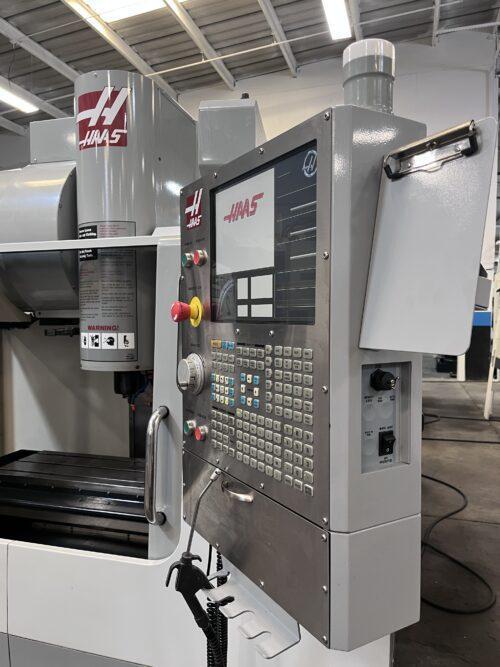

Haas CNC Control
Haas VOP-A Package
12000 RPM High Speed Inline Direct Drive Spindle
Through Spindle Coolant
40 HP High Torque Spindle Drive
24 Station Super Speed Side Mount Automatic tool changer
1400 IPM Fast Rapid

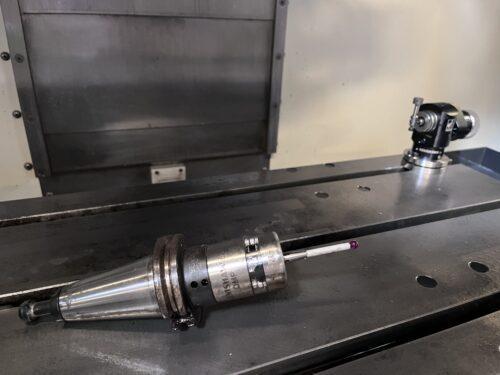

Renishaw Probing System (Probe Included)
Tool Presetter
Programmable Coolant Nozzle
MPG Handwheel Control

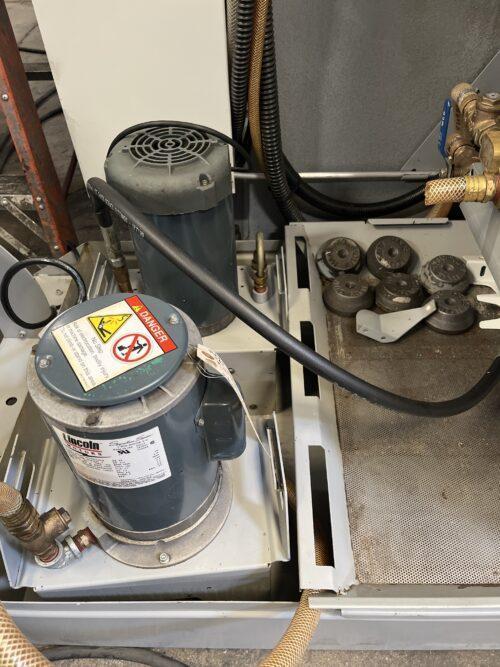

Coolant System
Chip Auger
Levelling Pads

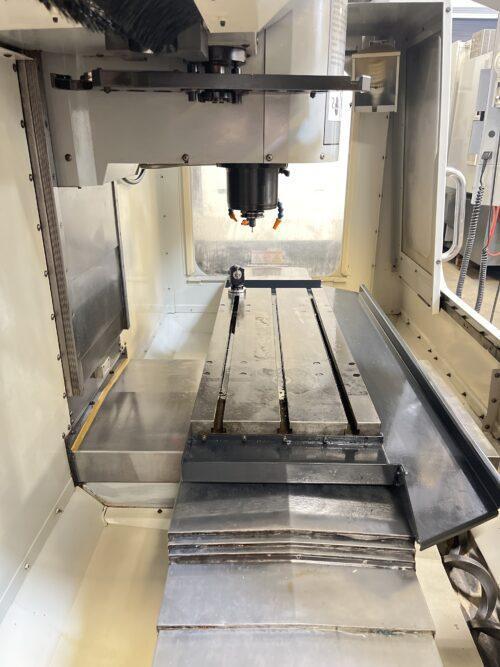

Table:
Length: 36.0″
Width: 14.0″
Number of Std T-Slots: 3
T-Slot Width: 5/8″
Max Weight on Table: 1500 lbs

Travel:
X-Axis: 30″
Y-Axis: 16″
Z-Axis: 20″
Rapid Traverse Rates: 1400 Inch Per Minute
Cutting Feed Rates: 883 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 24″

Automatic Tool Changer:
Capacity: 24 Station
Max Tool Weight: 12 lbs
Max Tool Diameter (full): 2.5″
Max Tool Diameter (adjacent empty): 5″
Max Tool Length: 11″
Tool Changing Time: 1.8 Seconds
