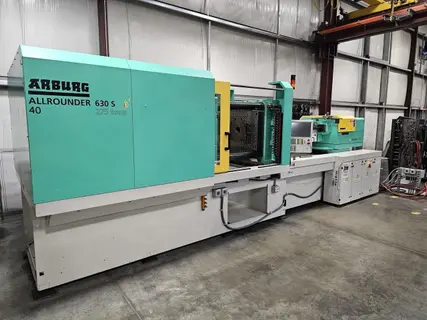

2013 Arburg ALLROUNDER 630 S – 275 Ton Servo-Hydraulic Molding Machine with 70mm Screw

Equipment Overview This 2013 Arburg 630 S is a premium European-built injection molding machine with 275 tons clamping force, a 70 mm screw, and advanced SeLOGICA controller. The configuration, build quality, and output capacity align well with PET preform production targets. With sufficient screw volume (~28–30 oz estimated), this machine can support up to 24-cavity preform molds at 7.8 g each, making it capable of reaching or exceeding 460,000 preforms/week output at standard PET cycle times.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features and Specifications Clamping Force: 275 tons

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Size: 2500-1300

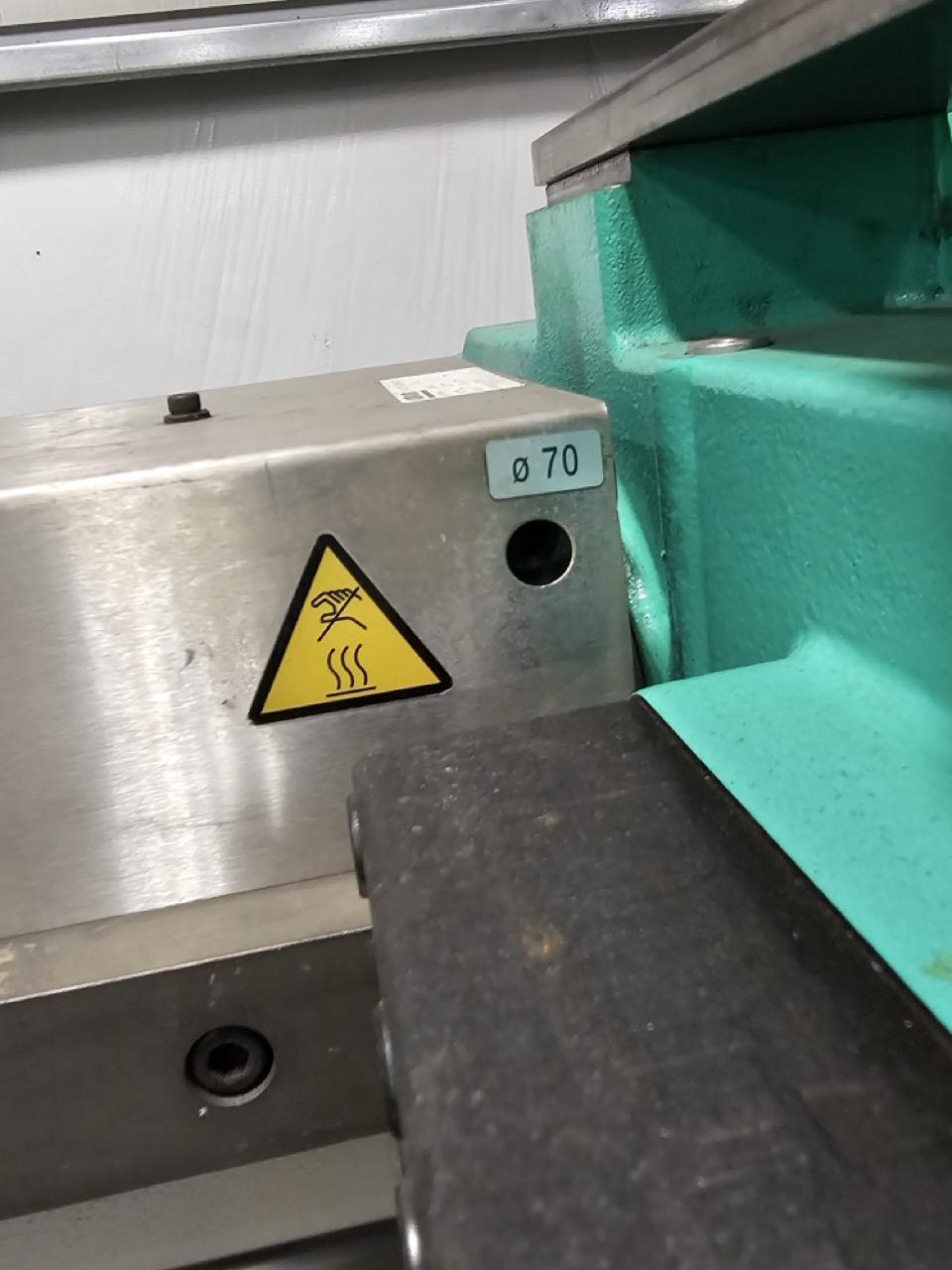

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Screw Diameter: 70 mm (labeled)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Estimated Shot Capacity: ~28–30 oz (PET ~795–850 g)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Operating Voltage: 460/230V 3~ 60 Hz

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Control Voltage: 120V / 24V

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Controller: Arburg SeLOGICA

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Cycle Count: 9,751,690

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Operating Hours (Auto): 58,579 h

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Operating Hours (Pump): 68,327 h

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
