KAFO BMC-4127 Double Column Machining Center

Brand
KAFO
Category
Machining Centers
Type
Machining Centers, Gantry (incld. Bridge & Double Column)
Model
BMC-4127
Stock #
44099
Year
2021
Condition
Not specified

Location

Not specified
REQUEST FINANCING
SPECIFICATIONS:
Table Size 157.48" x 102.36"
Table Capacity 39,600 Lbs
Distance Between Columns 110.23"
X-Axis Travel (Table Longitudinal) 161.41"
Y-Axis Travel (Head) 106.29"
Z-Axis Travel (Spindle) 35.43"
Distance From Spindle Nose to Table 7.87"-43.30"
Spindle Speeds (Gear Driven)........... 6000 RPM 6000 RPM
Spindle Taper #50
Spindle Drive Motor 29.33 HP
Rapid Traverse (X,Z) 590.55 IPM
Rapid Traverse (Y) 787.40 IPM



Equipped With:

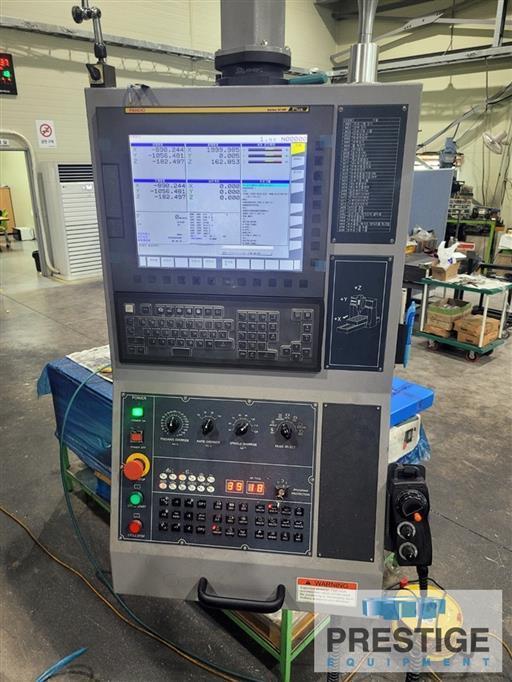

Fanuc Oi MF Plus CNC Control
40-Position Automatic Tool Changer
Right Angle Head (Manual)
Centralized Lubrication System
Coolant System
Chip Conveyor


NOTE: Inspect In Plant Under Power
