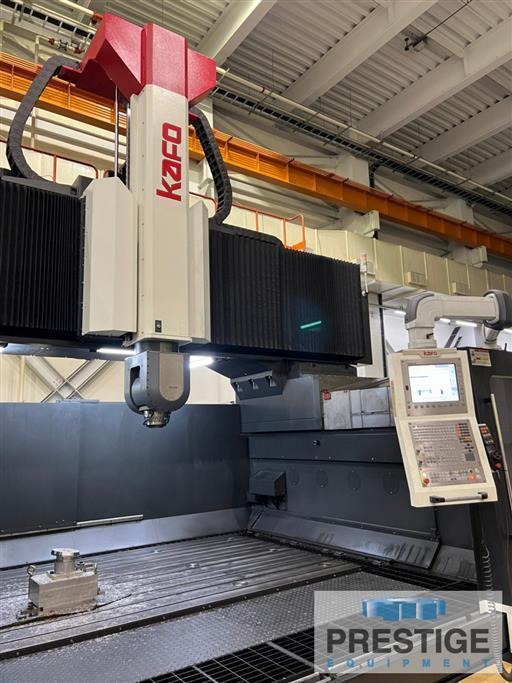

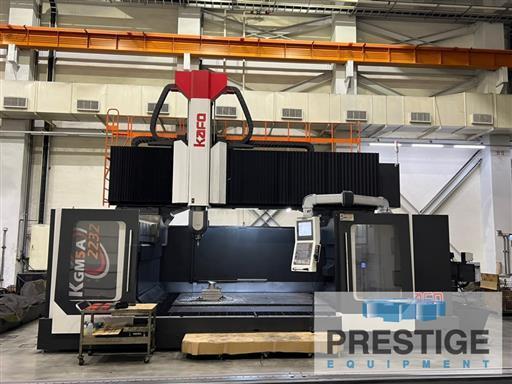

Kafo KG5A-2232 5-Axis CNC Double Column Vertical Machining Center
Brand
Category
Model
KG5A-2232
Stock #
43439
Year
2019
Condition
Not specified
Location
Not specified
|
SPECIFICATIONS:

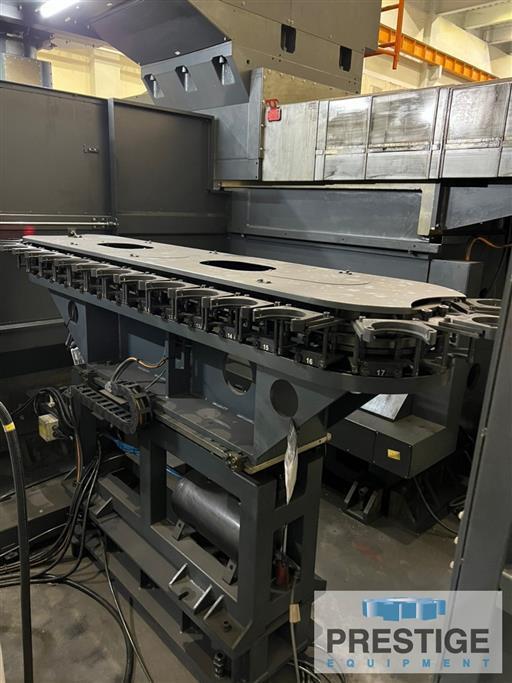

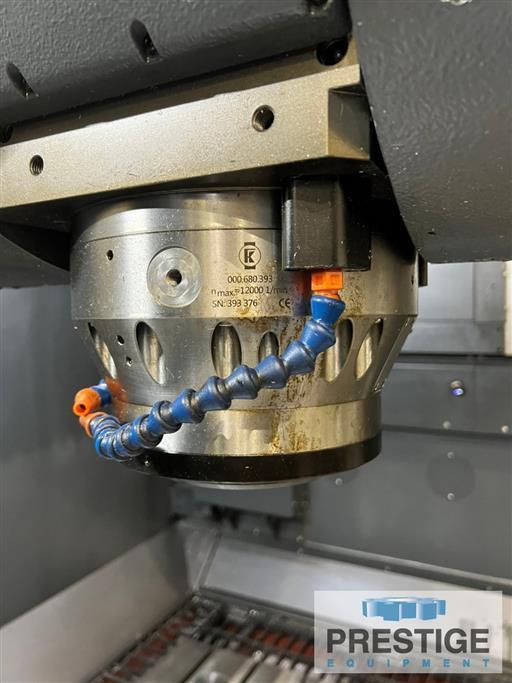

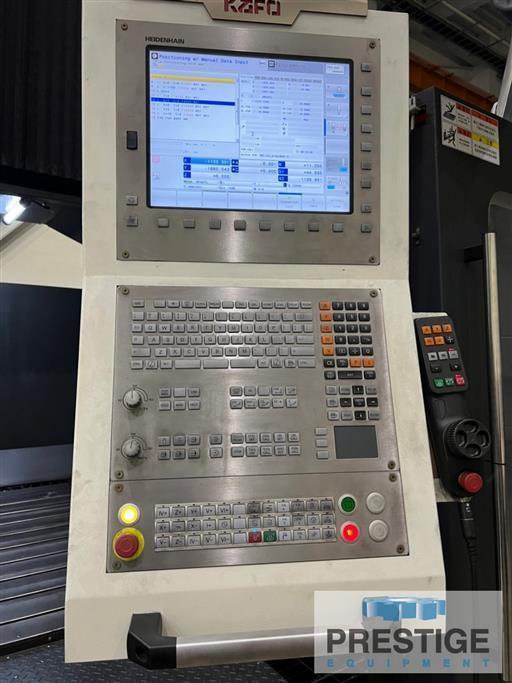

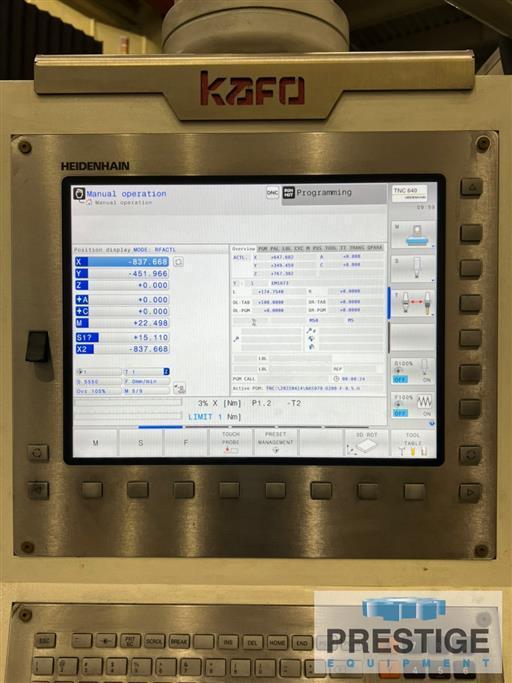

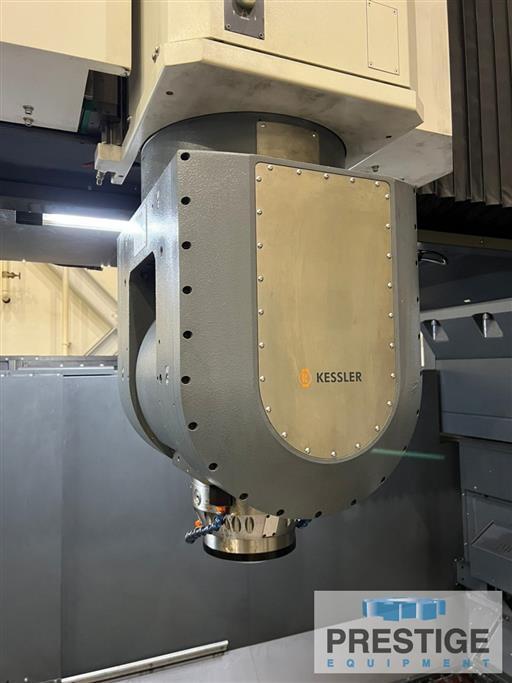

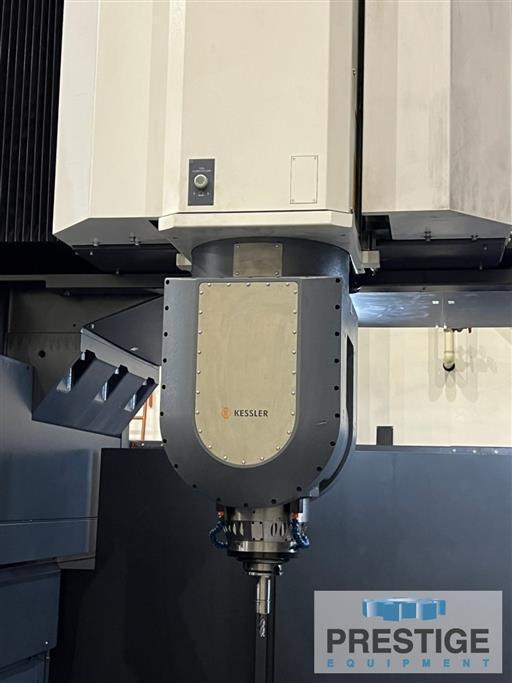

X-Axis Travel 86.61" Y-Axis Travel 125.98" Z-Axis Travel 43.30" A-Axis Travel +/-105 Degrees C-Axis Travel +/-200 Degrees Distance Between Columns 157.48" Table Size 82.67" x 122.04" Max. Load on Table 5,500 Lbs. Spindle Speed 12,000 RPM Spindle Drive Motor.................... 40 HP 40 HP Spindle Taper HSKA 100 Rapid Traverse (X,Y,Z) 787.40 IPM Cutting Feed Rate (X,Y,Z) 393.70 IPM Machine Dimensions 324" x 320" x 230" Approx. Machine Weight 150,000 Lbs. Equipped With: Heidenhain TNC-640 5-Axis CNC Controls Kessle A/C Head (A-Axis, +/-105, C-Axis +/-200) 32 Station Automatic Tool Changer 3-Axis Linear Roller Guide Ways |
