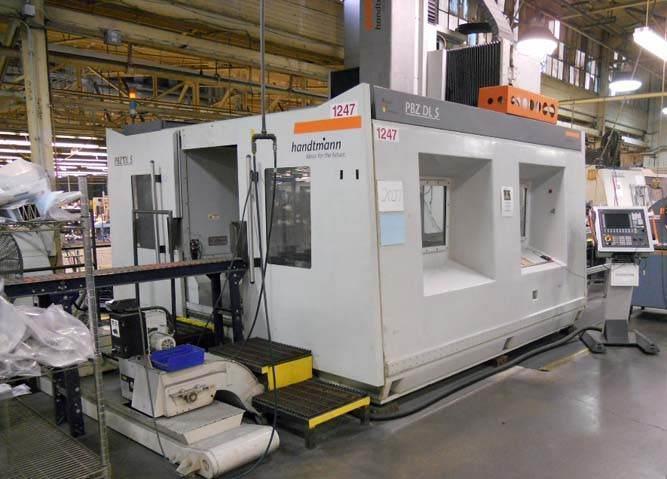

Handtmann PBZ DL5 5-Axis CNC Profile Machining Center

Brand
HANDTMANN
Category
Machining Centers
Type
Machining Centers, Gantry (incld. Bridge & Double Column)
Model
PBZ DL 5
Stock #
24617
Year
2007
Condition
Not specified
Location
Not specified
SPECIFICATIONS:

X-Axis Travel 78"
Y-Axis Travel 43"
Z-Axis Travel 27"
A-Axis, Head Swivel +/- 120 Degrees
C-Axis, Head Rotation +/- 200 Degrees
Work Piece Length 300"
Profile Width 7.5"
Profile Height 12.5"
Spindle Speeds to 28,000 RPM
Rapid Traverse, Max 2,150 IPM
Spindle Taper HSK 53-F
Spindle Output 19 HP
Tool Length, Max 8"
Tool Weight, Max 11 Lbs.
Saw Blade Max. Diameter 20"
Approx. Machine Weight 70,000 Lbs.

Equipped With:

Siemens 840D CNC Control

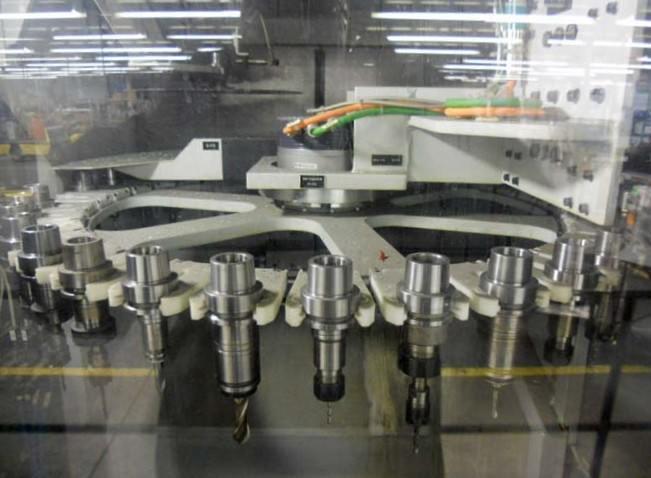

36-Station Automatic Tool Changer
Integrated Sawing Unit for Spatial Cuts

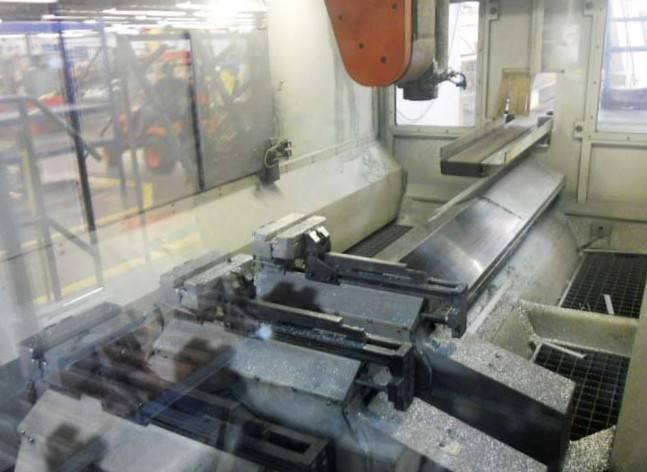

(4) Clamping Jaws
Chip Conveyor

Note:


Machine can be inspected in plant under power
