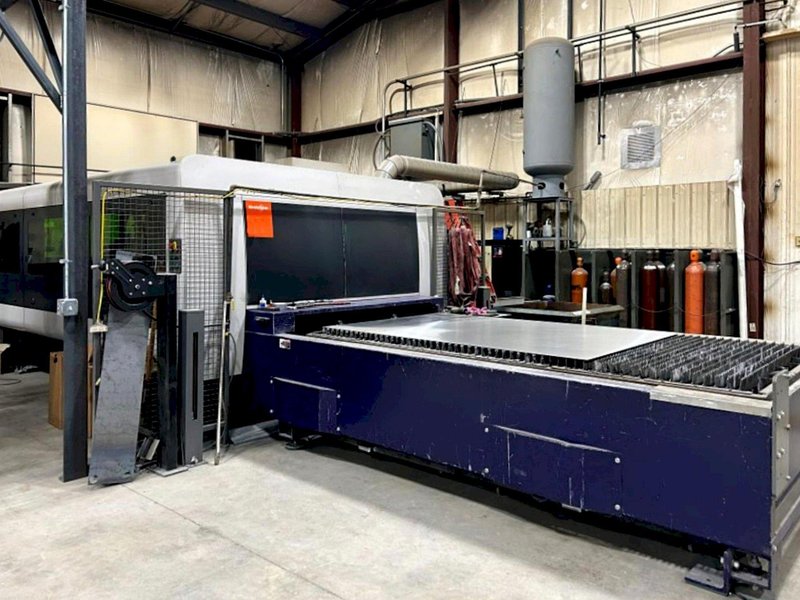

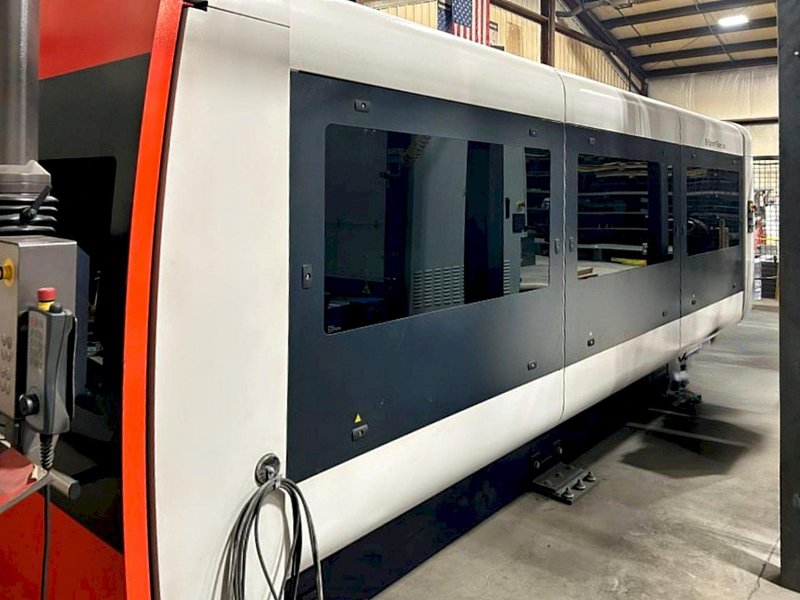

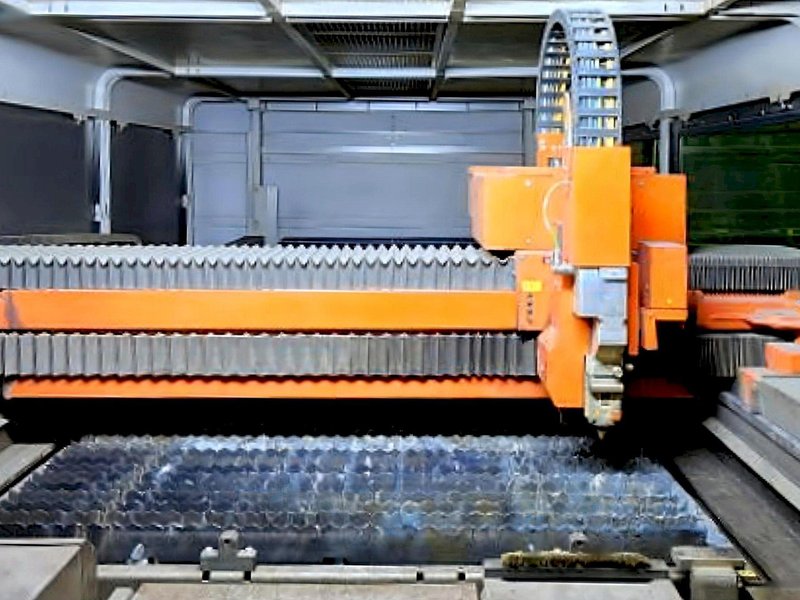

Bystronic BySprint Fiber 3015 6KW Laser
Brand
Category
Type
Model
BySprint Fiber 3015
Stock #
100574
Year
2015
Condition
Very Good
Location
Not specified

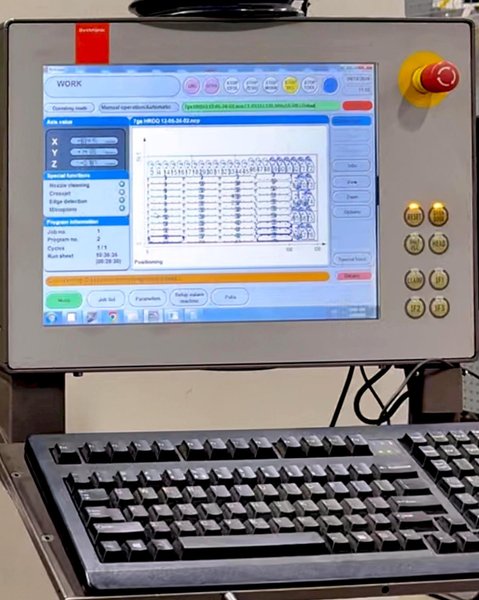

| Control | ByVision Touchscreen |
| Laser Type | Fiber |

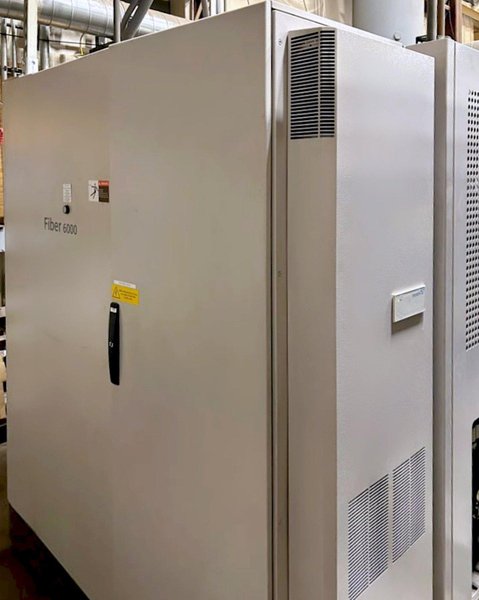

| Resonator | Fiber 6000 |
| Power Output | 6,000 Watt |
| Max. Sheet Size | 5’ x 10’ |
| Travels X-Axis | 120" |
| Travels Y-Axis | 60" |
| Travels Z-Axis | 2.75" |
| Max Workpiece Weight | 1,653 Lbs. |
| Max Speed | 5,511 IPM |
| Positioning Accuracy Pa | ± .0039” |
| Repeatability Ps | ± .0019” |
| Edge Detection Accuracy | ± .0196” |
| Table Access | Front |
| Max Cut Steel | .98” |
| Max Cut Stainless Steel | .98” |
| Max Cut Aluminum | .98” |
| Rated Voltage | 480 V |
| Machine Dimensions | L 433.8″ x W. 238.8″ x H 98” |
| Machine Weight | 26,455 Lbs. |
|

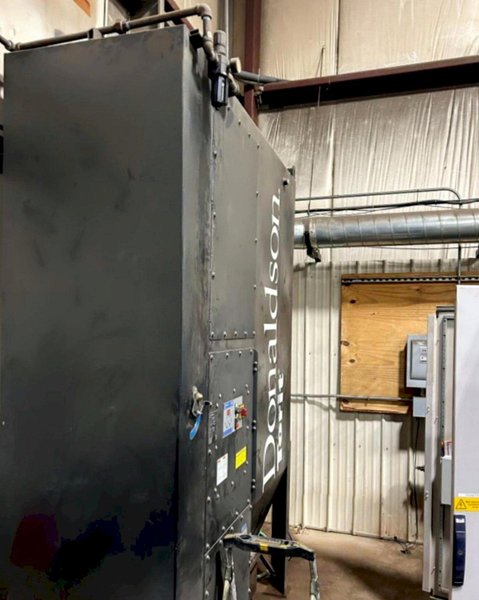

Equipped With: Byvision Control w/ 15″ Touch Screen Fiber 6000 Power Source (6kW) Automatic Nozzle Changer High-Speed Cutting Capabilities Donaldson Torit Dust Collector Chiller Unit
|
|
