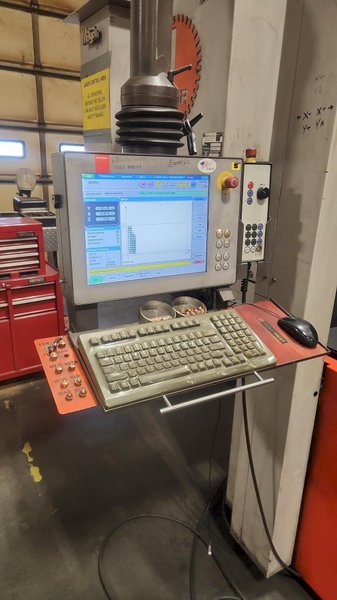

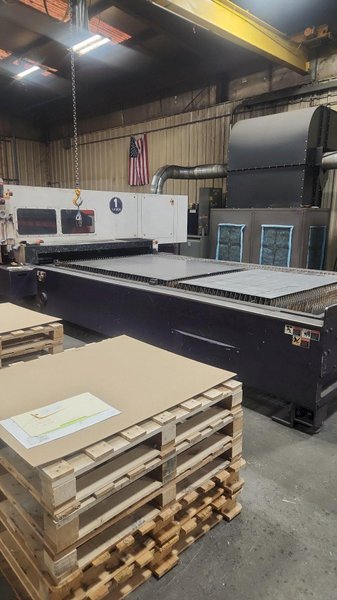

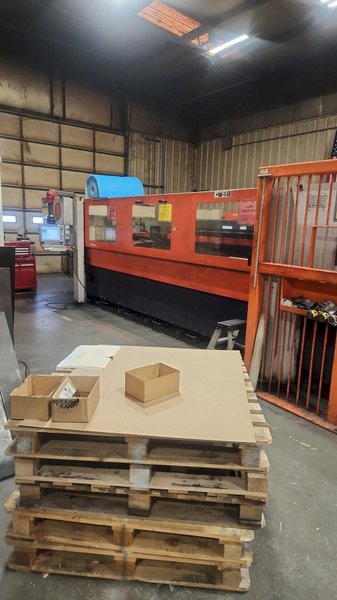

6’ X 12’ Laser Cutting System with 4400 Watt Resonator, Bystronic Vision Control and a Dust Collector.

GENERAL SPECIFICATIONS
X - Axis Travel:                        160”
Y - Axis Travel:                        80”
Z - Axis Travel:                        2.75”
Nominal Sheet Size:                        157” X 78”
Max. Positioning Speed Parallel Axis (X, Y):        3,937”/Min
Max. Simultaneous Positioning Speed:            5,511”/Min
Max. Steel Thickness:                    0.75”
Max. Stainless Steel Thickness:                0.62”
Max. Brass Thickness:                    0.312”
Max. Copper Thickness:                    0.312”
Machine Dimensions:                    541” X 262” X 101” H
Machine Weight:                        33,069 Lbs

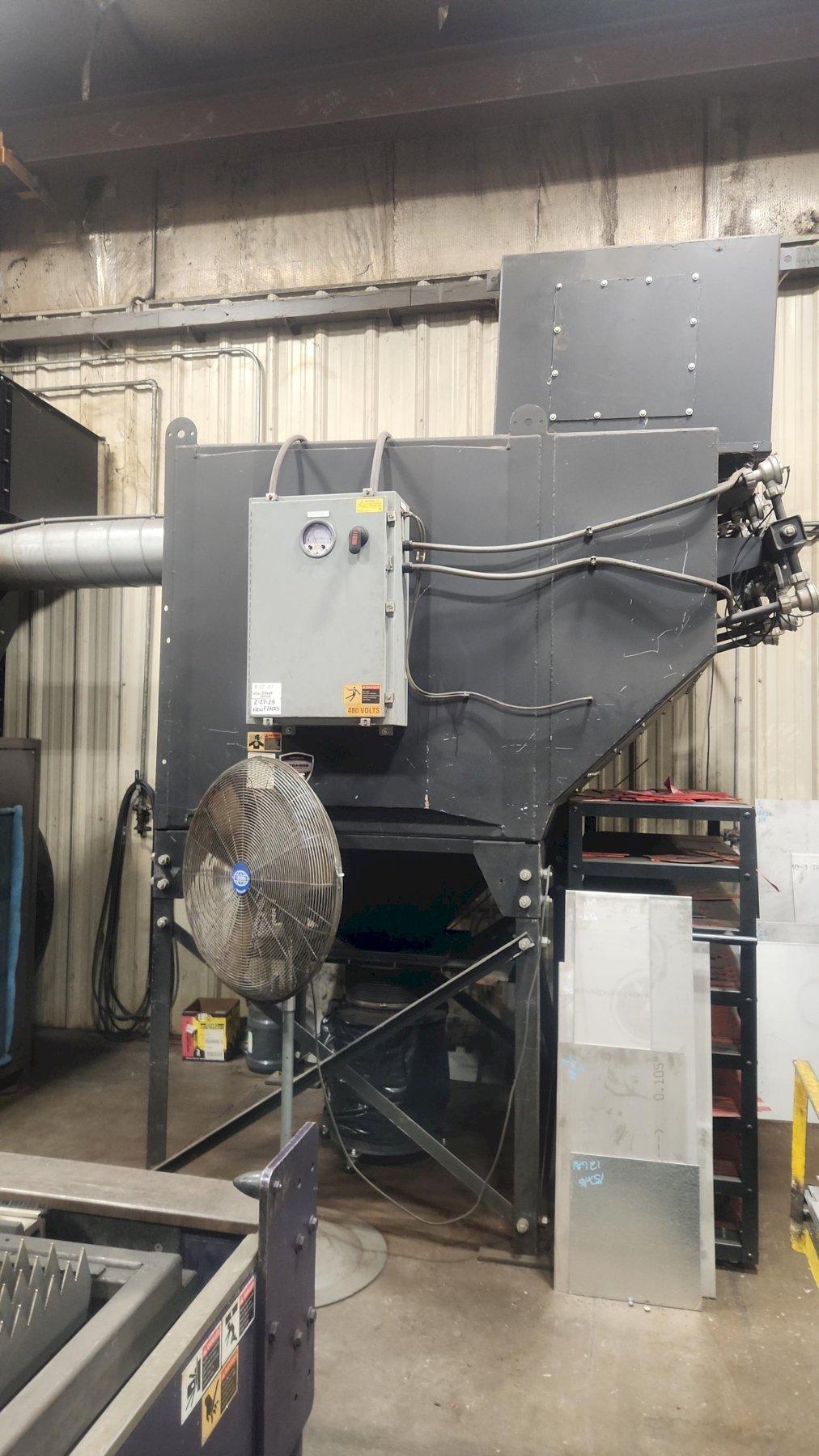

INCLUDES: 4400 Watt Resonator, Bystronic Vision Control and a Dust Collector.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
