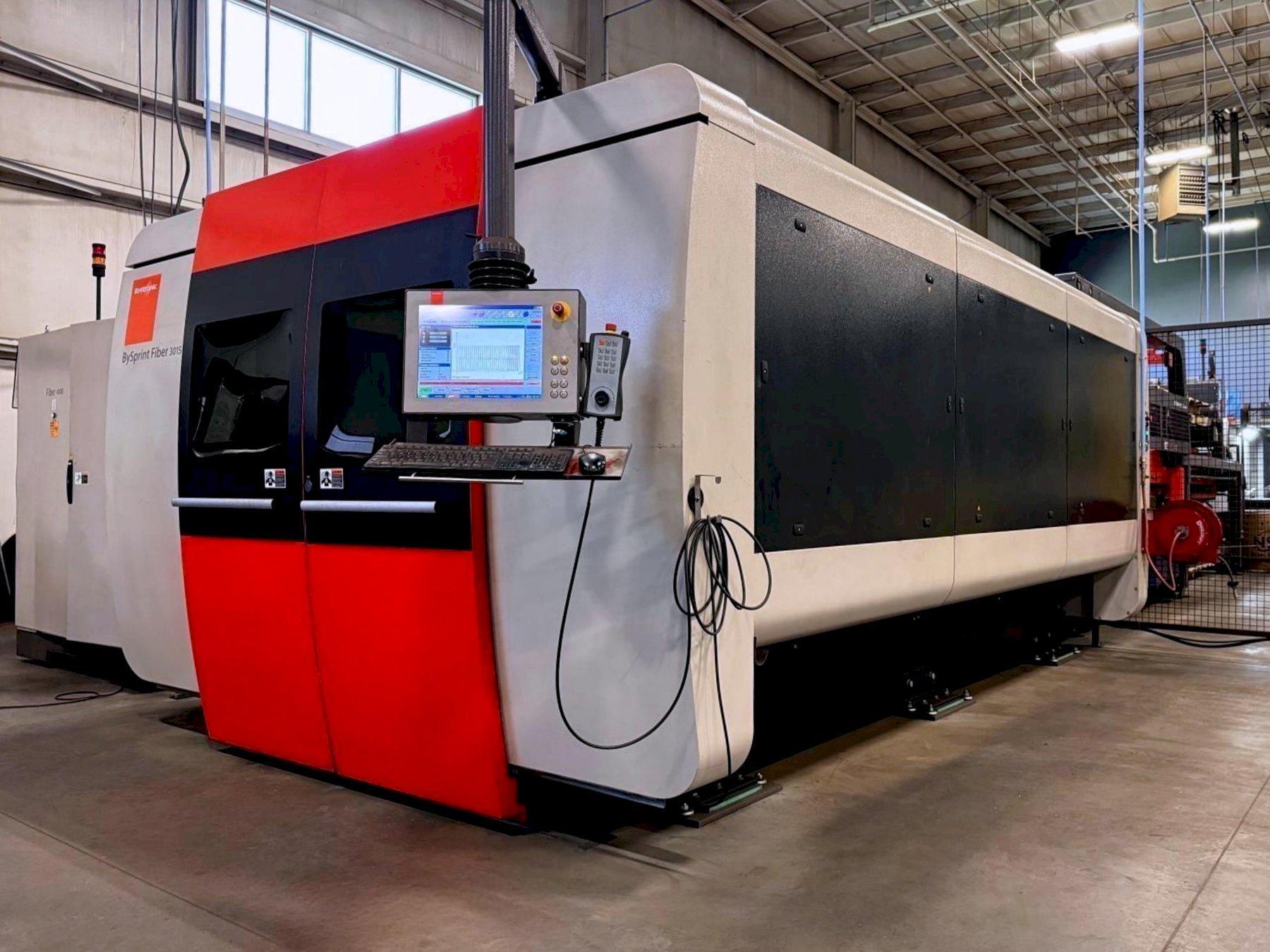

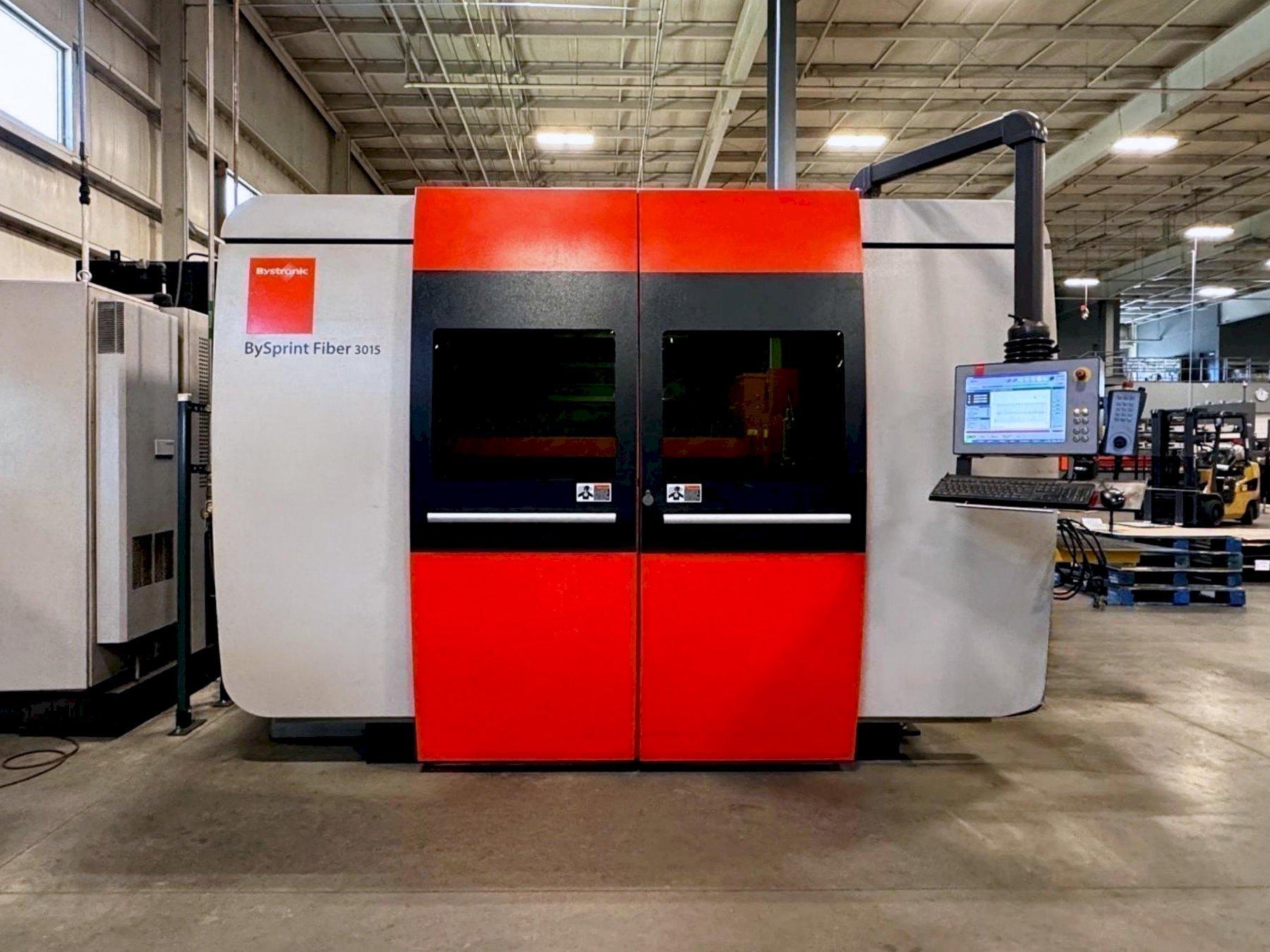

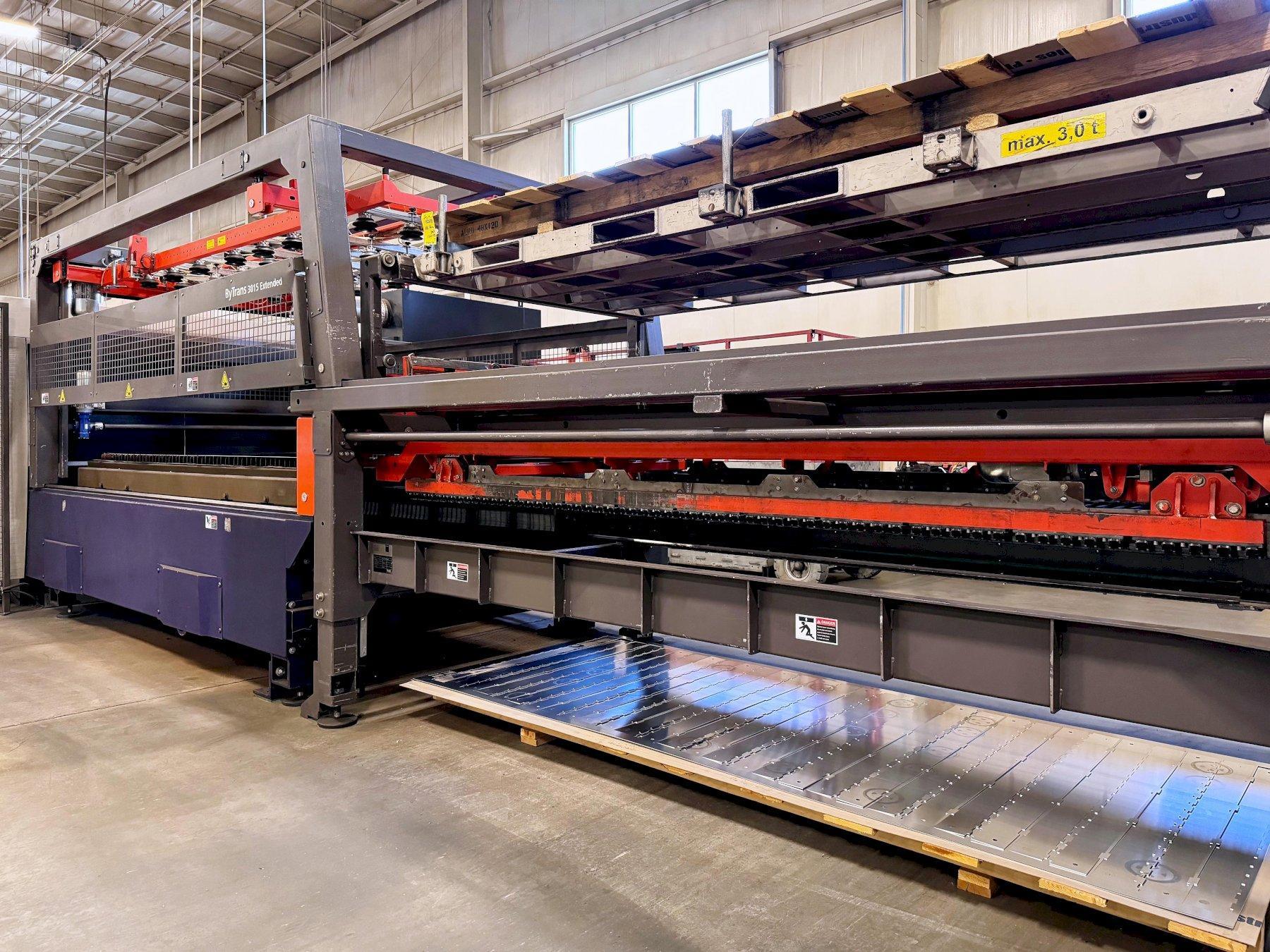

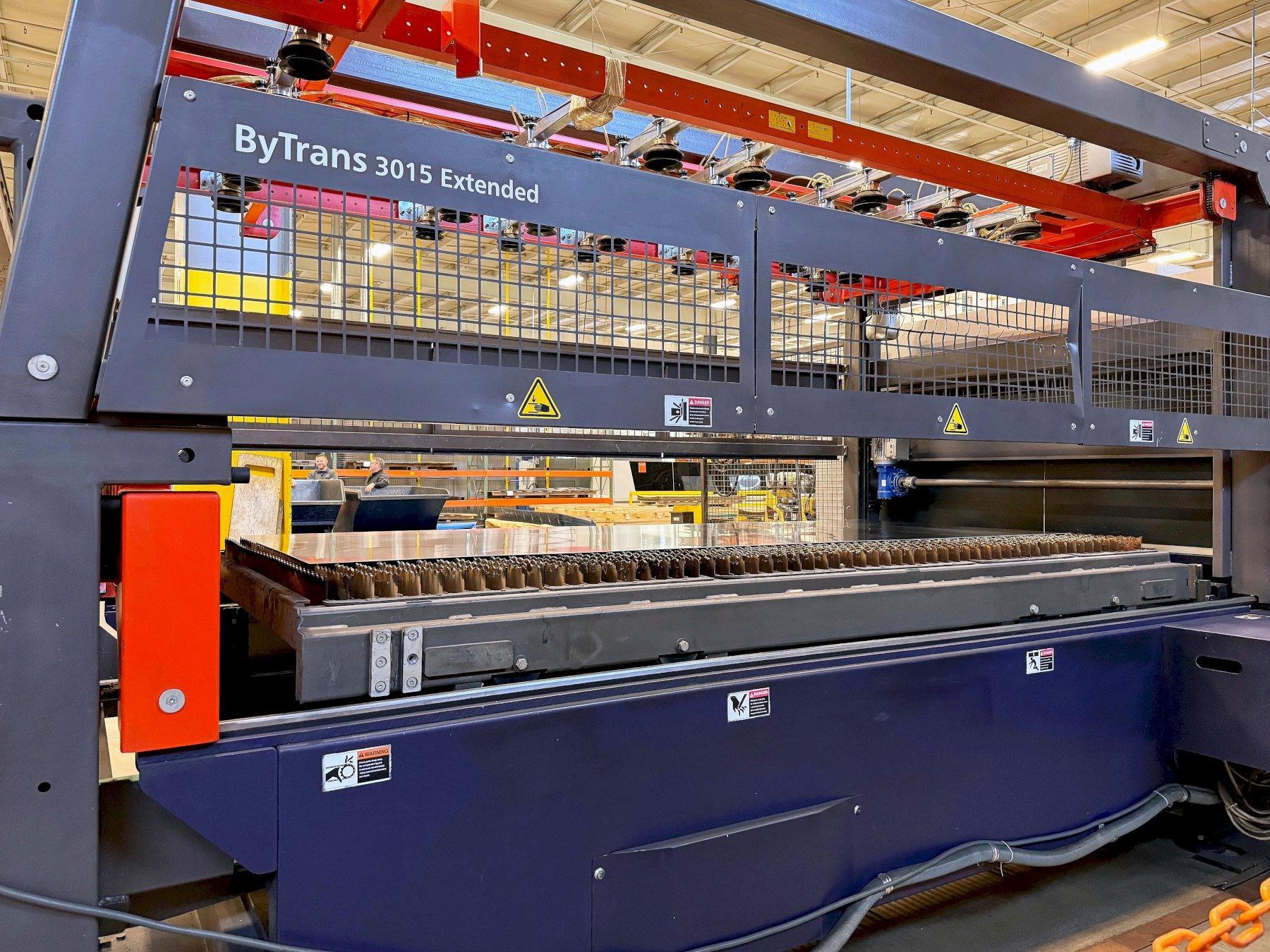

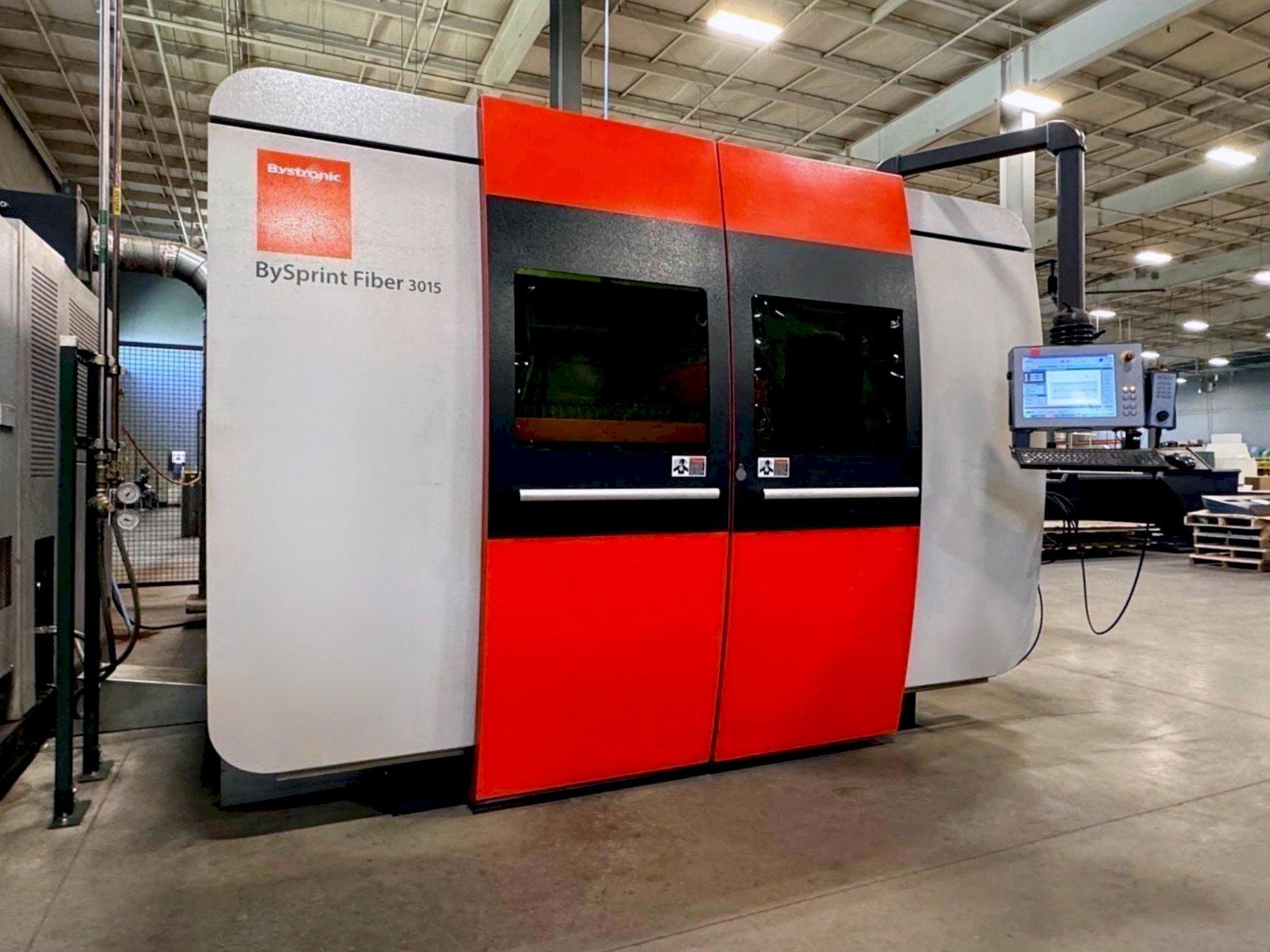

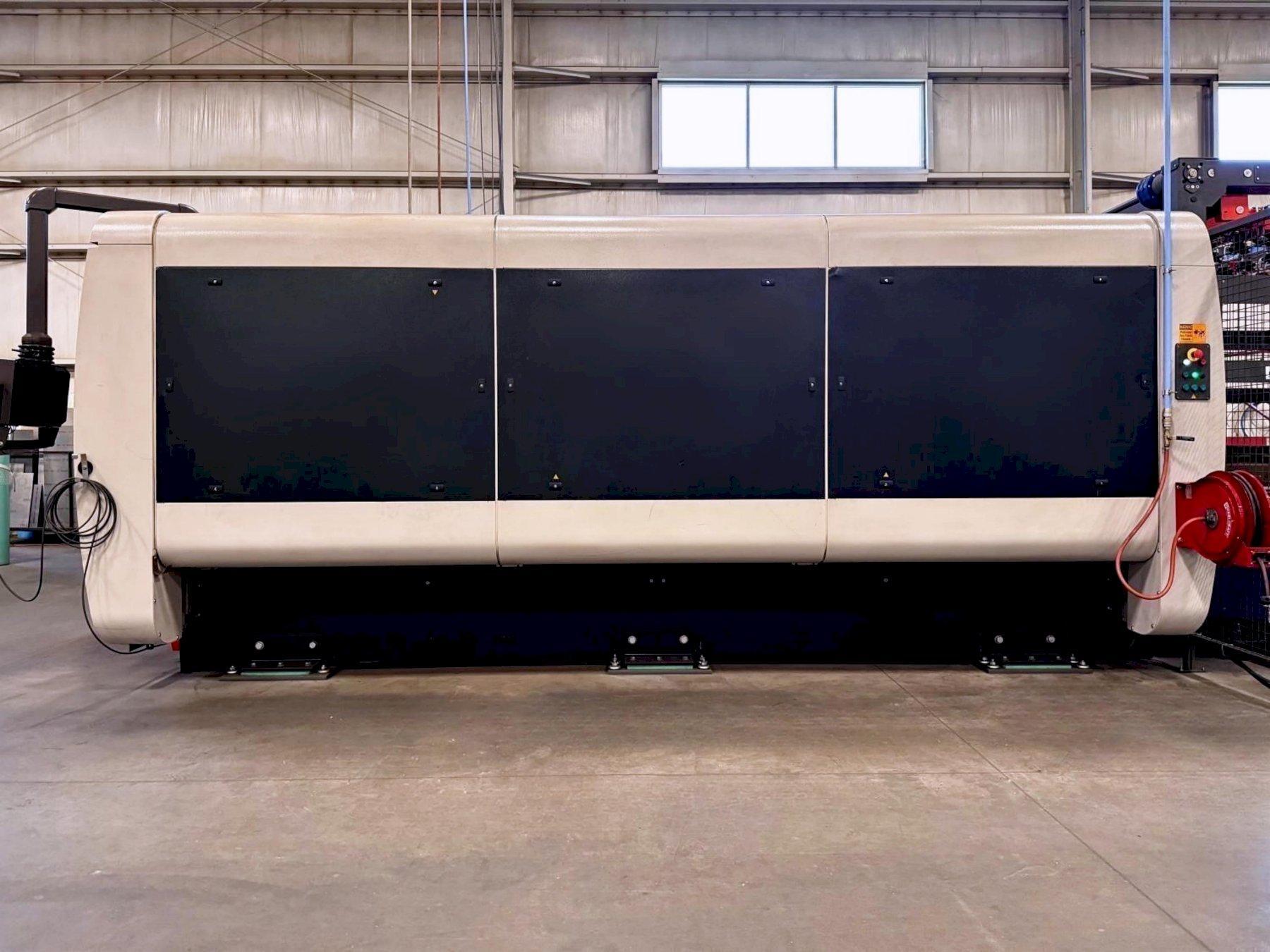

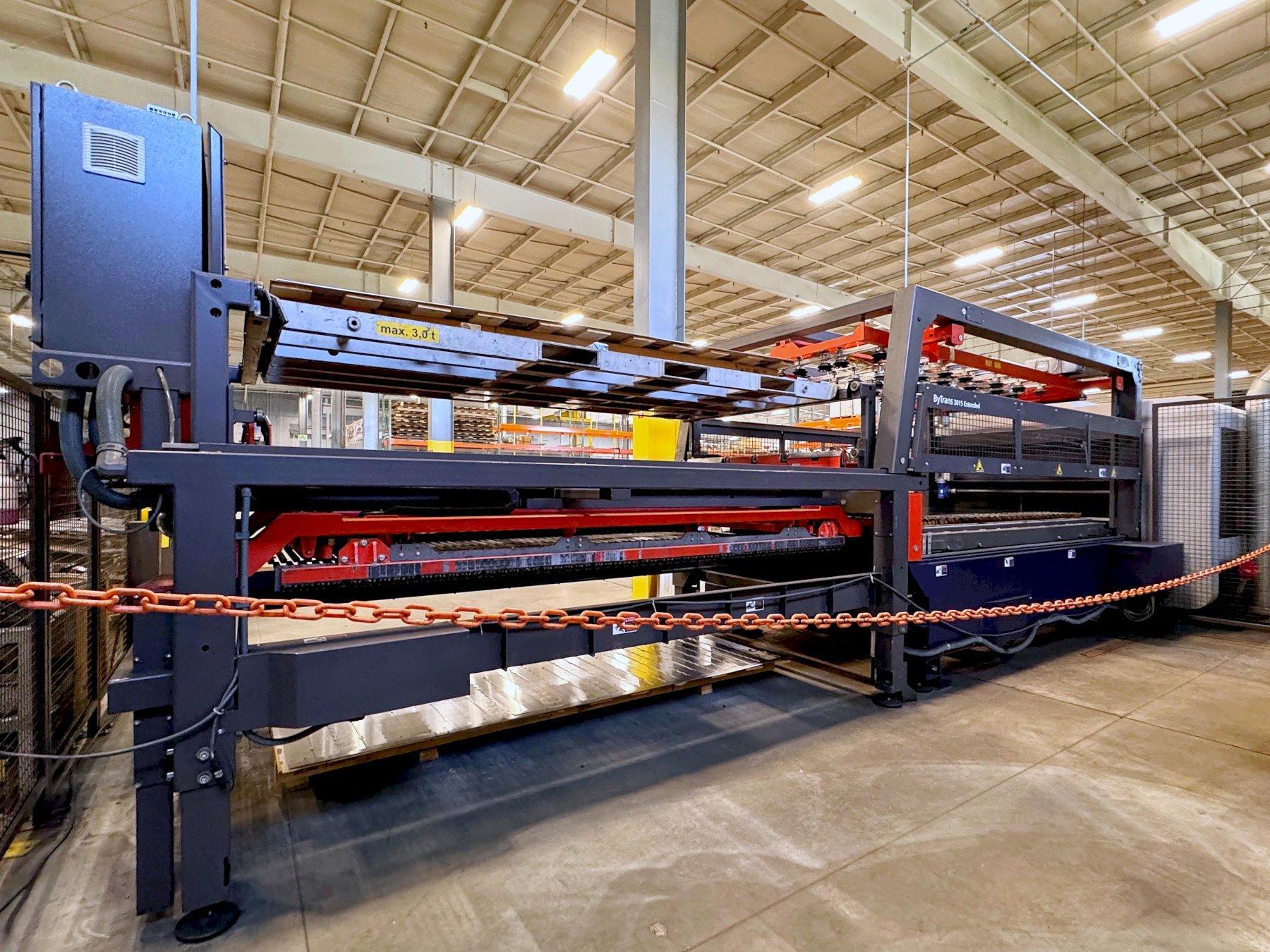

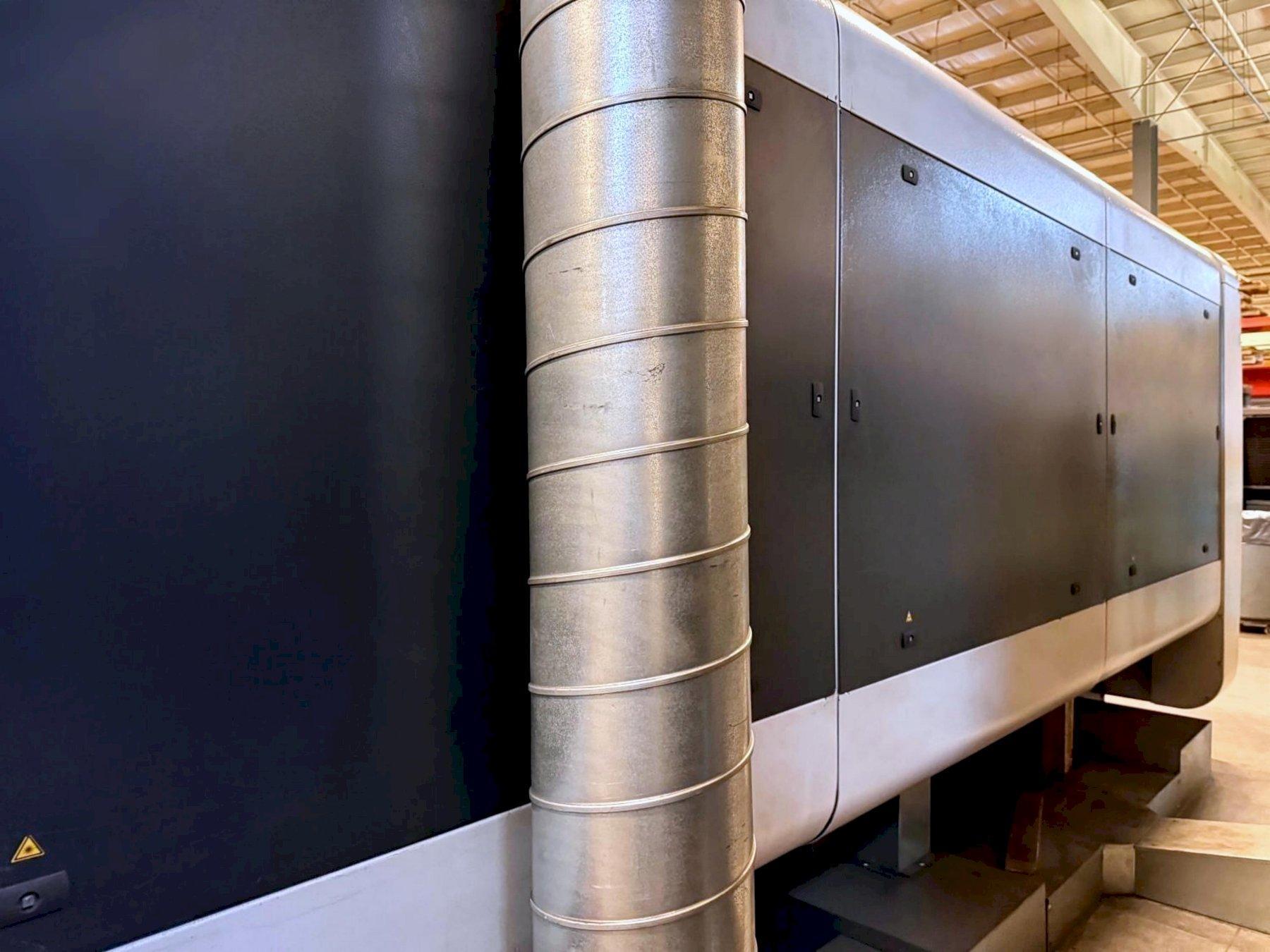

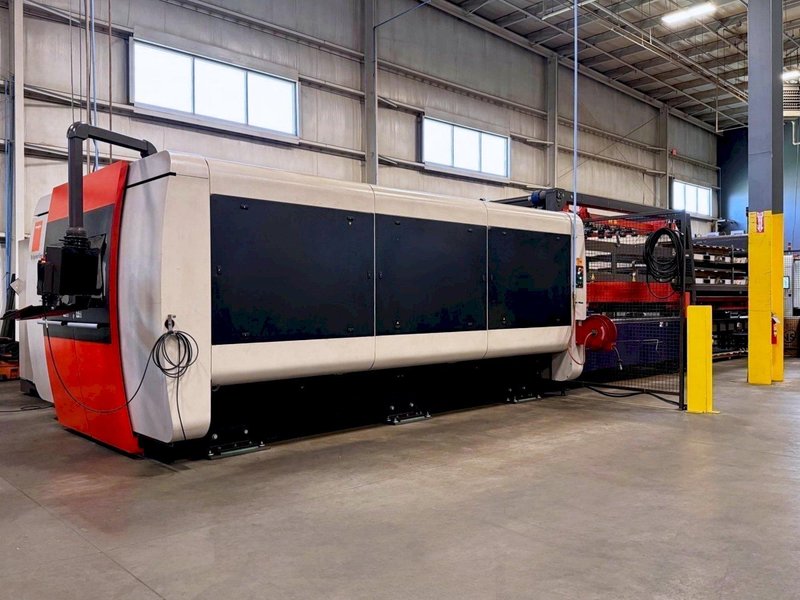

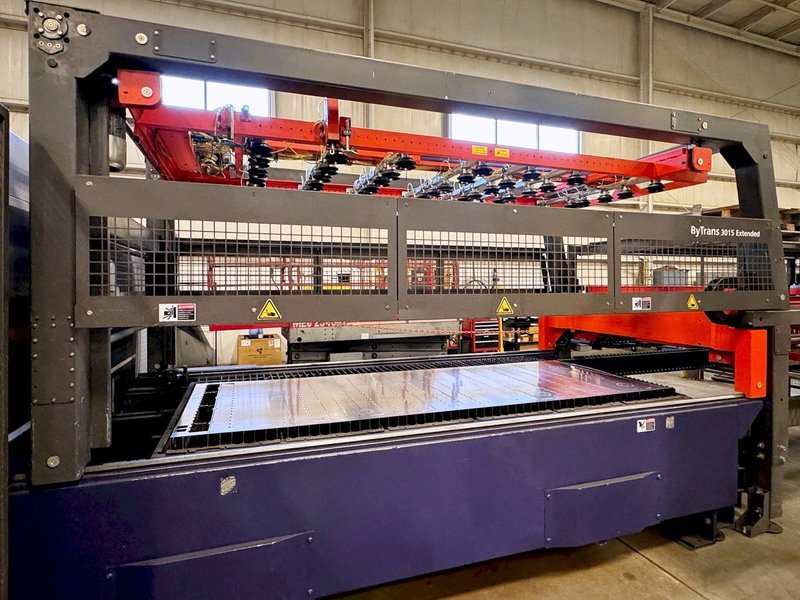

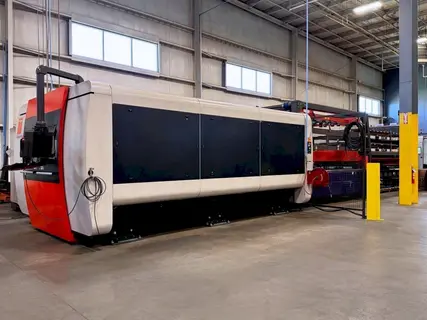

Bystronic BySprint Fiber 3015 w/ Bytrans Extended Load/Unload
Brand
Category
Type
Model
BySprint Fiber 3015
Stock #
100510
Year
2013
Condition
Excellent
Location
Not specified

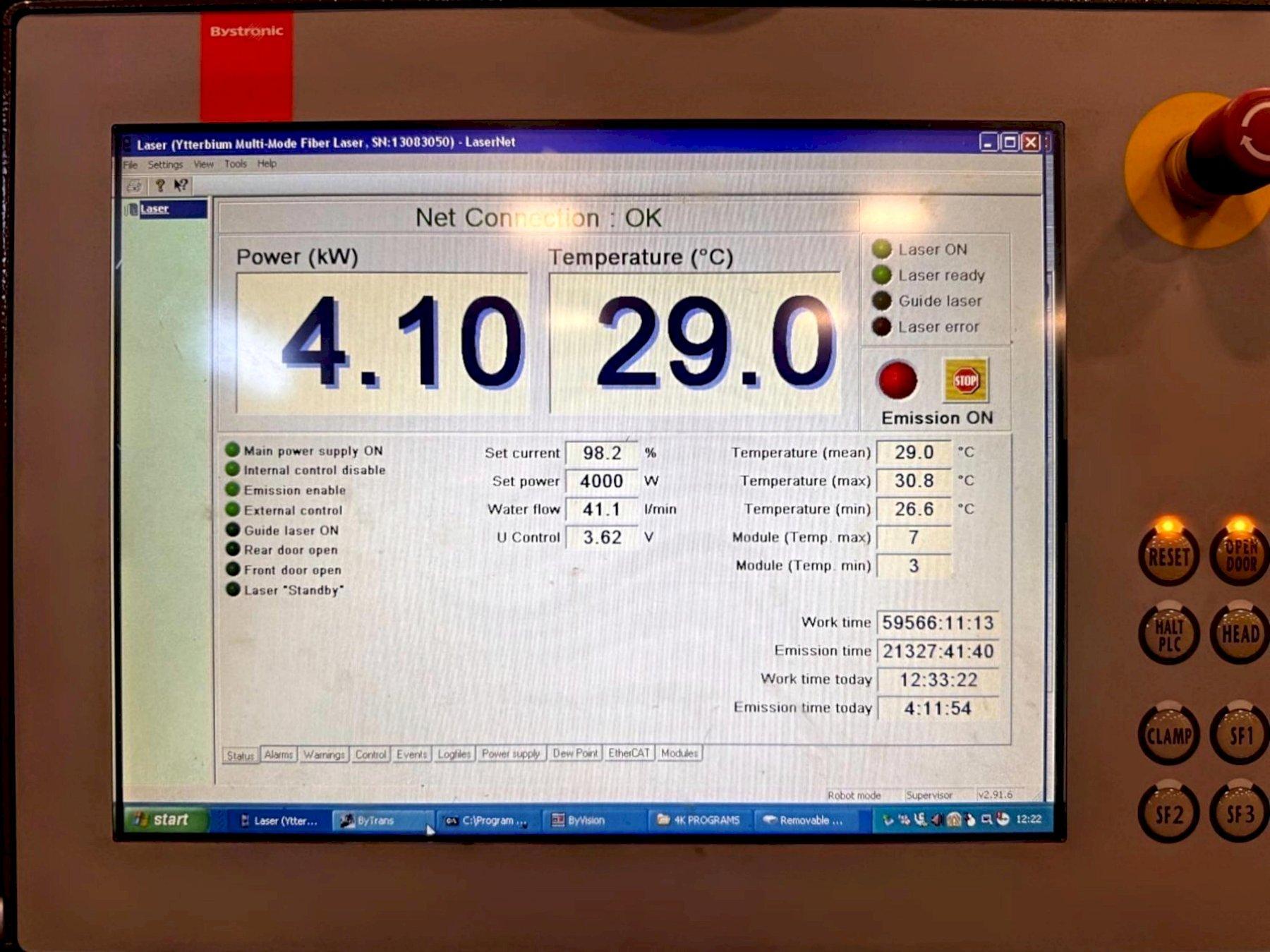

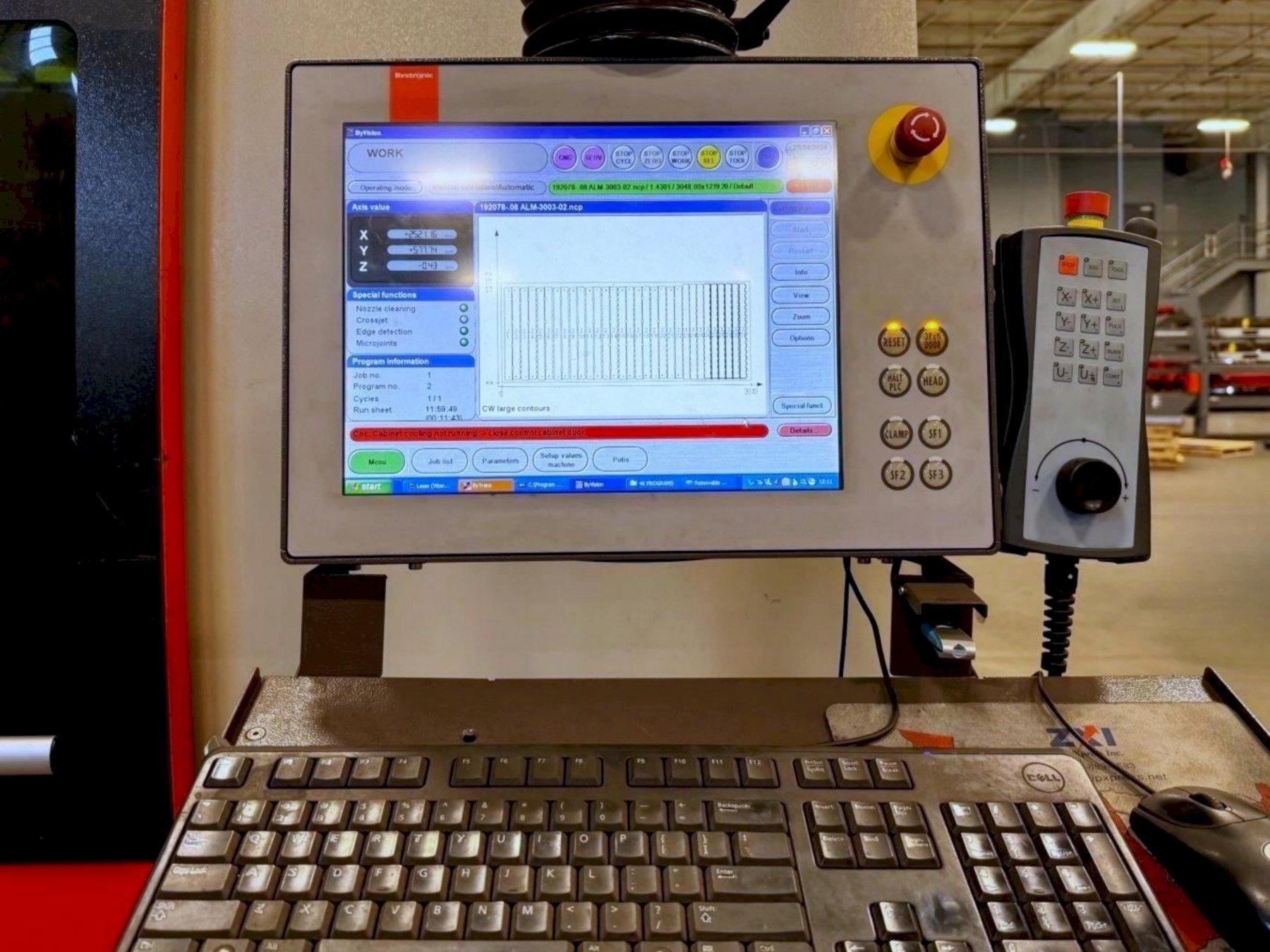

| Control | ByVision Touchscreen |
| Laser Type | Fiber |

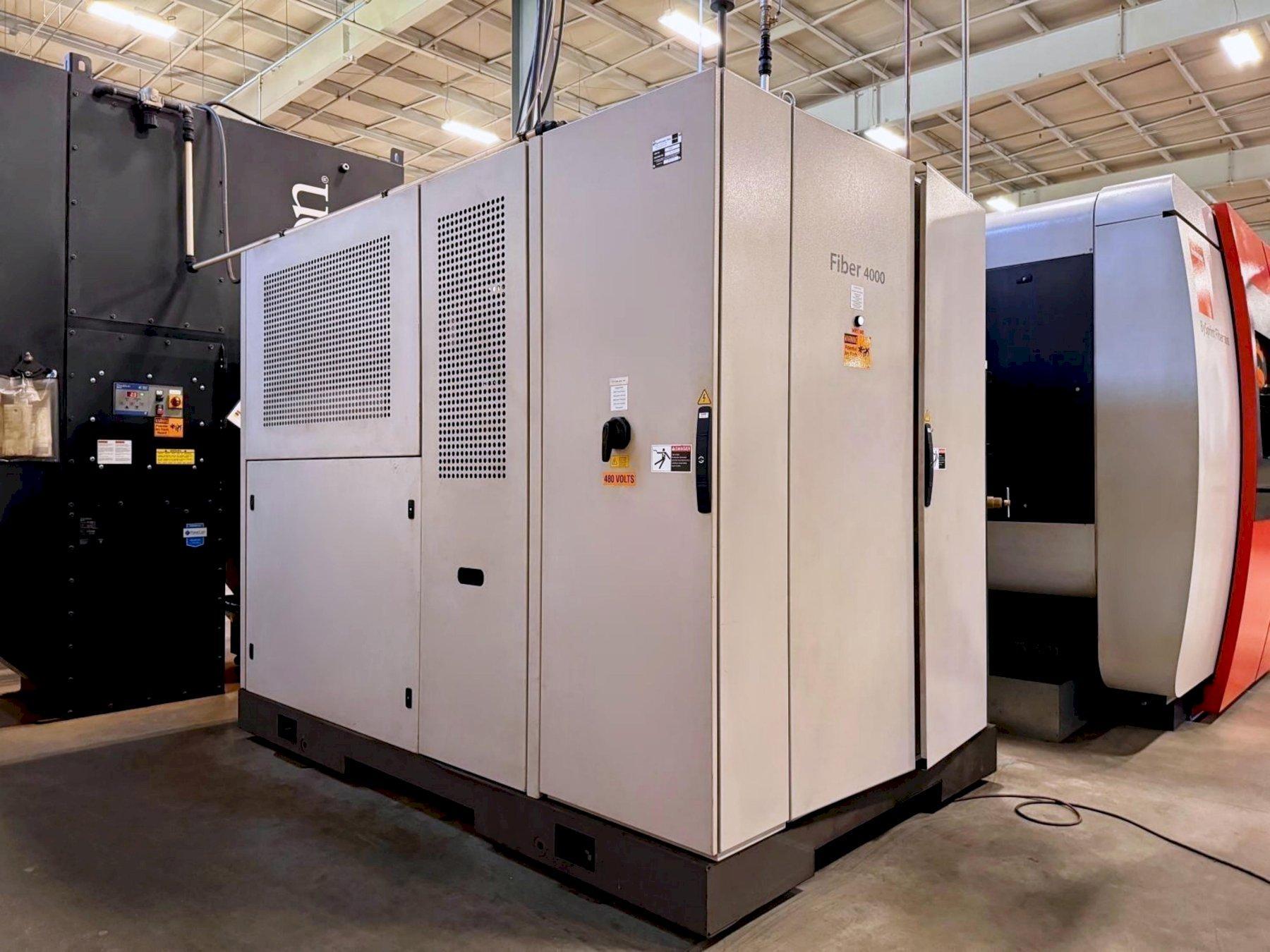

| Resonator | Fiber 4000 |
| Power Output | 4,000 Watt |
| Max. Sheet Size | 5’ x 10’ |
| Travels X-Axis | 120" |
| Travels Y-Axis | 60" |
| Travels Z-Axis | 2.75" |
| Max Workpiece Weight | 1,653 Lbs. |
| Max Speed | 5,511 IPM |
| Positioning Accuracy Pa | ± .0039” |
| Repeatability Ps | ± .0019” |
| Edge Detection Accuracy | ± .0196” |
| Table Access | Front |
| Max Cut Steel | .78” |
| Max Cut Stainless Steel | .59” |
| Max Cut Aluminum | .59” |
| Machine Dimensions | L 399” x W 244” x H 98” |
| Machine Weight | 26,455 Lbs. |
|

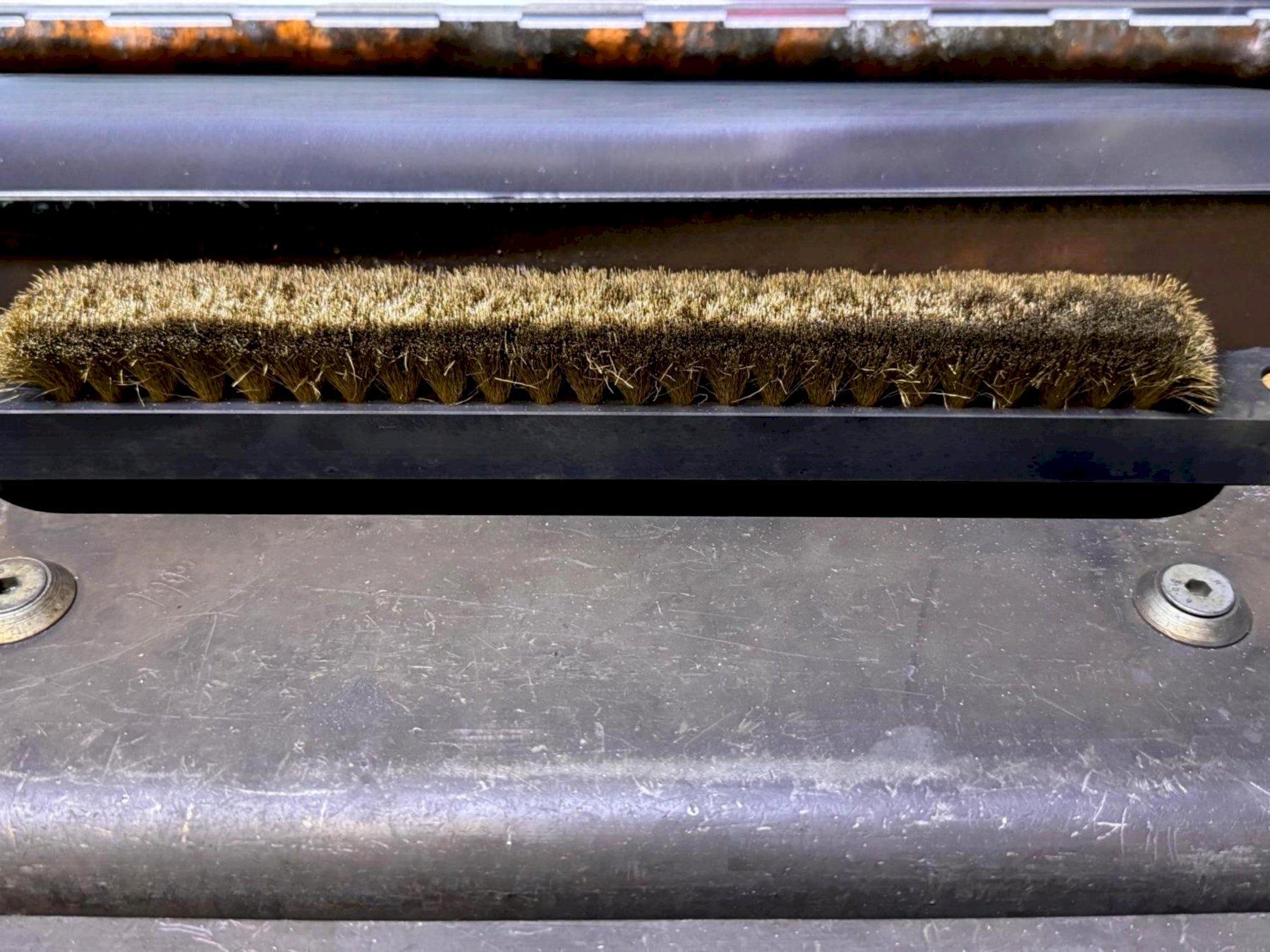

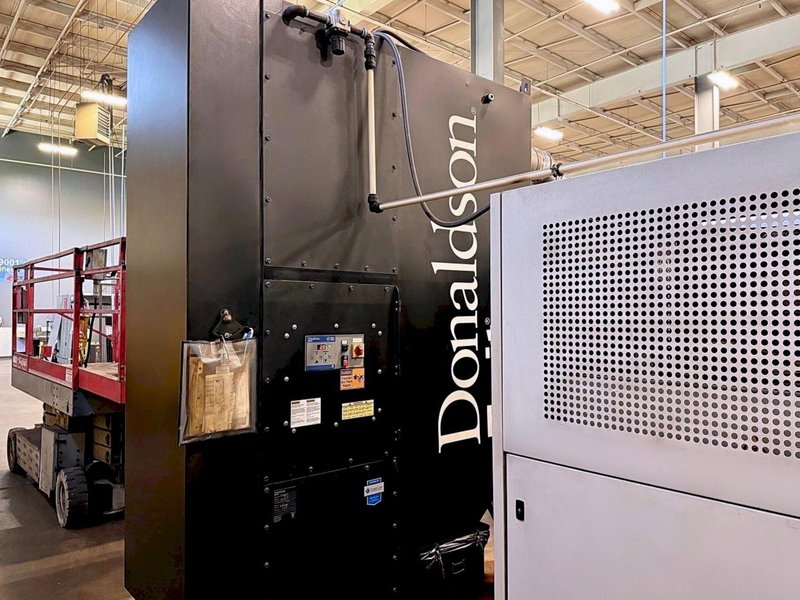

Equipped With: Fiber 4000 Resonator Automatic Nozzle Cleaning Chiller Unit |
|
