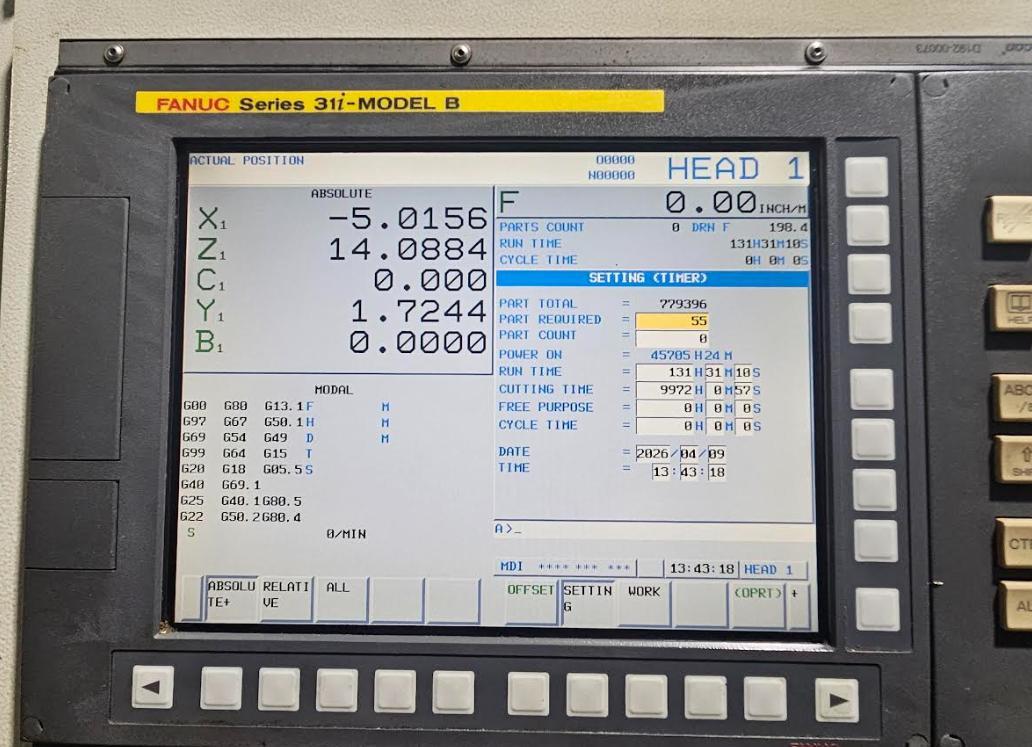

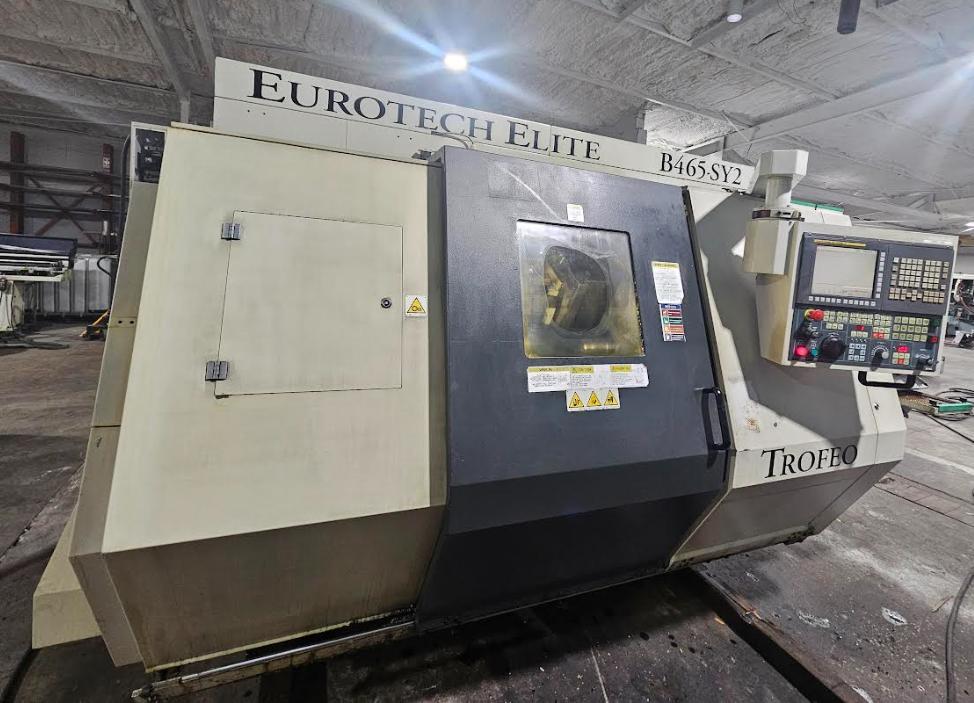

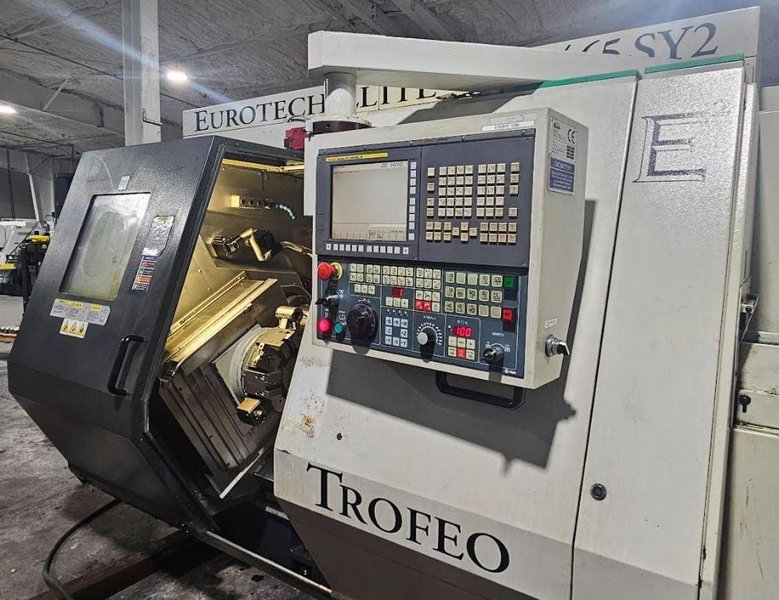

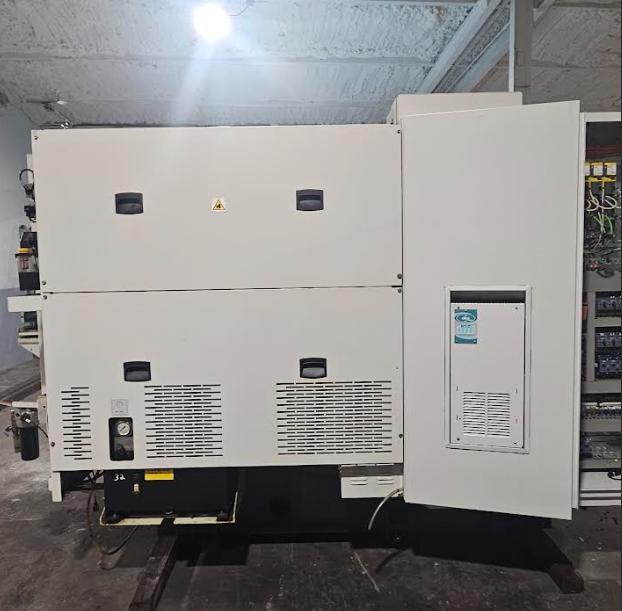

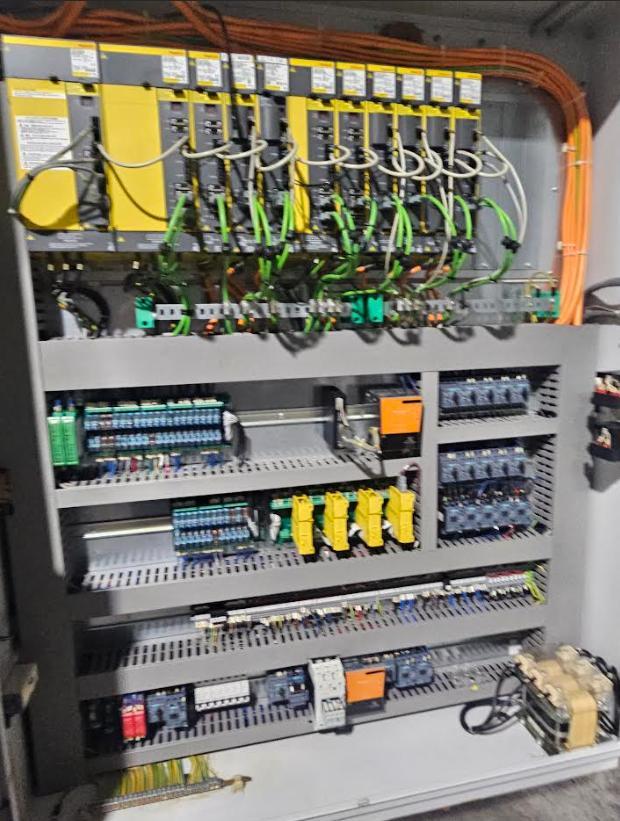

8” X 24.8” CNC Turning Center with Fanuc 3Li Multi-Channel Control, 30° Slant Bed Design, (2) Spindles & (2) Turrets, E - Axis Clear Shift Back Spindle, 11 - Axis Simultaneous Machining + 2 - Axis For CNC Controlled Gantry Parts Catcher, Parts Conveyor, Rigid Tapping, Sub - Spindle Ejector with Air Blow, 12 - Station Upper Turret, 12 - Station Lower Turret, Eurotech Tool Monitoring System, Double Tool Probe, Air Conditioned Electronics Cabinet and 3 - Months Parts Warranty.

GENERAL SPECIFICATIONS
Machining Capacity
Max. Bar Capacity:                        2.75”
Max. Turning Diameter:                    8”
Max. Swing Y - Axis (Both):                3.8”

Chuck Work
Main Spindle Chuck Diameter:                8”
Sub -  Spindle Chuck Diameter:                8”
Type:                                Hydraulic
Max. Speed:                            4,000 RPM

Main Spindle
Draw Tube Capacity:                    2.75”
Spindle Through Bore Capacity:                3.03”
Spindle Speed Range (Infinitely Variable):        4,000
Spindle Motor:                        35 HP
Spindle Nose:                        A2-6

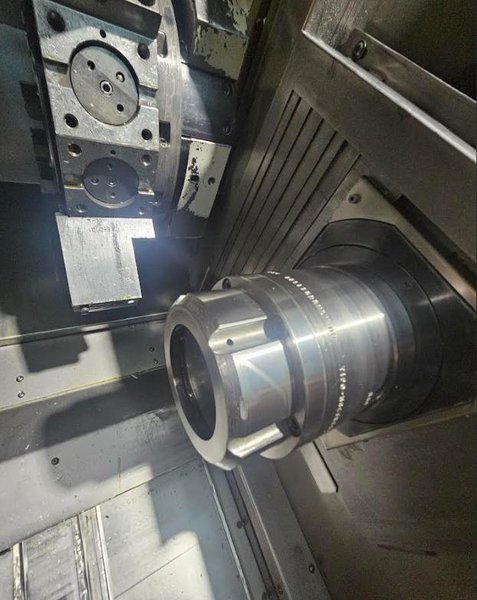

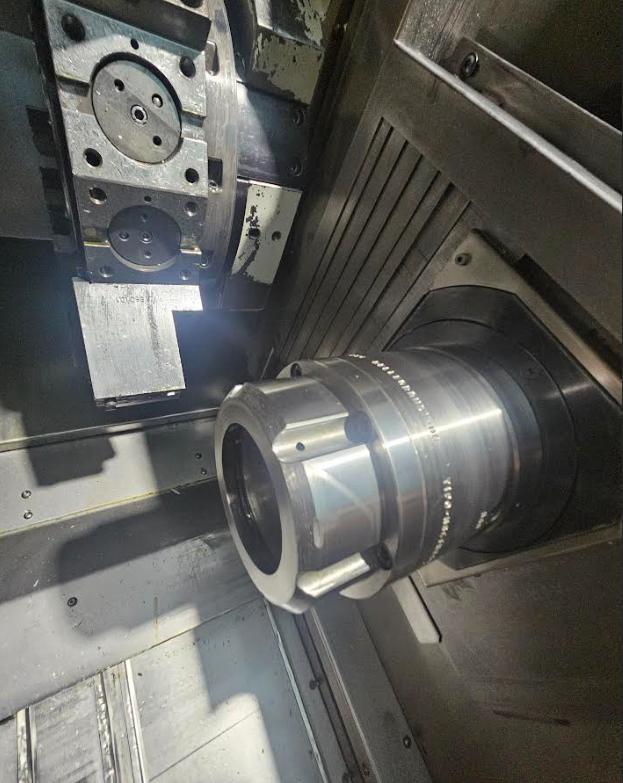

Sub - Spindle
Drawtube Capacity:                        1.77”
Spindle Through Bore Capacity:                2.17”
Spindle Speed Range (Infinitely Variable):        5,000
Spindle Drive Motor:                    15 HP
Spindle Nose:                        A2-5
Slide Stroke:                            26.37”

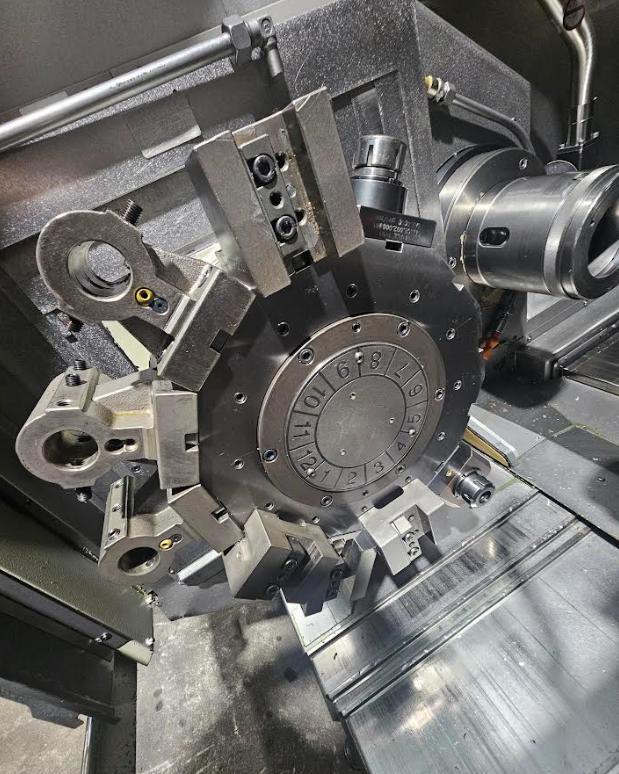

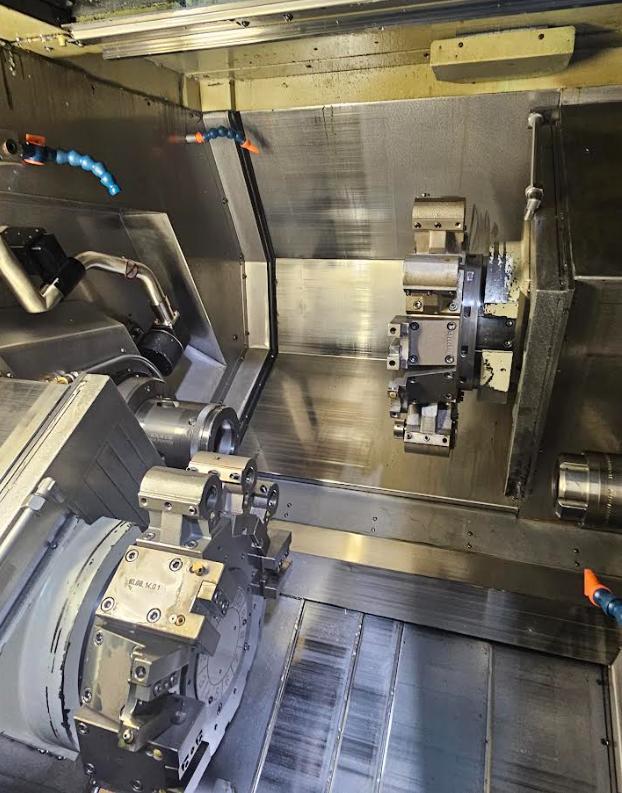

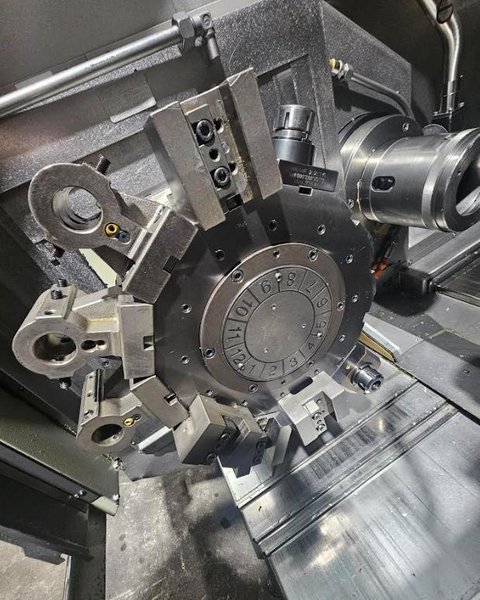

Upper Turret
Number of Tool Stations (Main Spindle):             12
Z- Axis:                            24.8”
X - Axis:                            6.7”

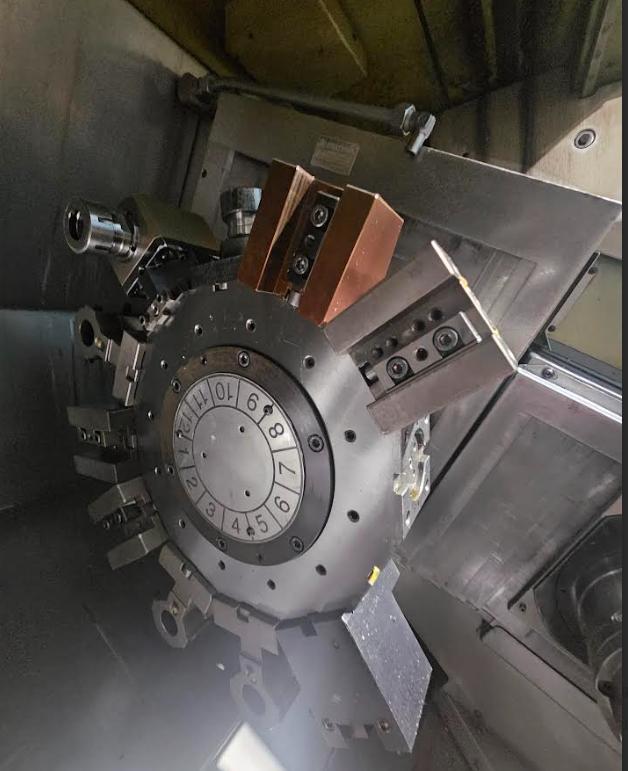

Lower Turret
Number of Tools (Main Spindle):                12
Z - Axis:                            21.26”
X - Axis:                            6.7”

Revolving Tool Attachment Upper / Lower Turret
Number of Upper Turret Positions:            12 Max
Number of Lower Turret Positions:            12 Max
Drive Motor (Upper & Lower Turrets):            AC HP 5
Speed Range (Infinitely Variable):                4000
Revolving Tool Axis:                        X, C, Z & Y
Y - Axis Strokes (Both):                    +1.97” / -1.57”

General Information
Voltage:                            400 V AC, 3 Ph
Air Supply:                            80 PSI @ 4CFM
Amperage Draw:                        120 Amp

Machine Dimensions
Width:                                85”
Height:                            87”
Length with Chip Conveyor:                179”
Machine Weight w/ Chip Conveyor:            16,314 Lbs

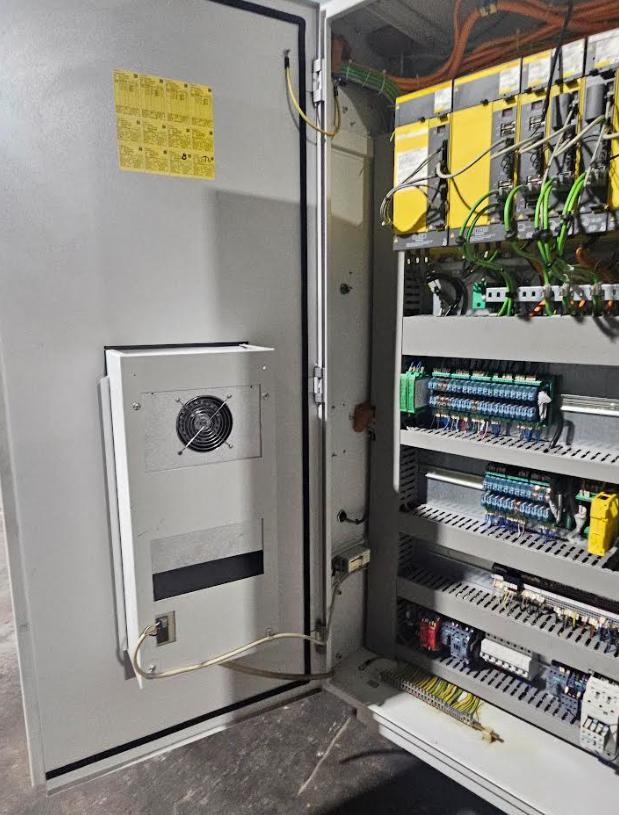

INCLUDES: Fanuc 3Li Multi-Channel Control, 30° Slant Bed Design, (2) Spindles & (2) Turrets, E - Axis Clear Shift Back Spindle, 11 - Axis Simultaneous Machining + 2 - Axis For CNC Controlled Gantry Parts Catcher, Parts Conveyor, Rigid Tapping, Sub - Spindle Ejector with Air Blow, 12 - Station Upper Turret, 12 - Station Lower Turret, Eurotech Tool Monitoring System, Double Tool Probe, Air Conditioned Electronics Cabinet and 3 - Months Parts Warranty.
