72" x .250" x 70,000# PRO-ECO SINGLE LOOP INJECTOR HEAD SLITTING & PACKAGING LINE
Brand
Category
Model
Not specified
Stock #
116804
Year
Not specified
Condition
Used
Location
Not specified
|
72” x .250” x 70,000# PRO-ECO SINGLE LOOP INJECTOR HEAD SLITTING & PACKAGING LINE
SLITTING LINE SPECIFICATIONS:
MANUFACTURER – PRO-ECO
YEAR – 2004
LINE DIRECTION – RIGHT TO LEFT
UNCOILING DIRECTION – OVERWIND
RECOILING DIRECTION – OVERWIND OR UNDERWIND
MATERIALS – COLD ROLLED AND HOT ROLLED STEEL (PICKLED OR BLACK)
THICKNESS – .010” (0.25 mm) MIN., .250” (6.35 mm) MAX.
COIL WIDTH – 72” (1,829 mm) MAX.
COIL WEIGHT – 70,000# (31,751 Kg) MAX. (ENTRY & EXIT)
COIL OUTSIDE DIAMETER – 72” (1,829 mm) MAX. (ENTRY & EXIT)
COIL INSIDE DIAMETER (ENTRY) – 20” (508 mm) TO 32” (813 mm)
COIL INSIDE DIAMETER (EXIT) – 20” (508 mm) OR 24” (610 mm)
SLITTER ARBOR DIAMETER – 9” (228 mm)
NUMBER OF SLITTER HEADS – TWO (2) 72” (1,829 mm) HEADS
SLITTER HEAD EXCHANGE STYLE – POWERED INJECTOR WITH CAROUSEL
LINE SPEED – 450 – 950 FPM (137 MPM – 274 MPM)
UNCOILER DRIVE – ELECTRIC FEED-UP w/ WATER-COOLED BRAKE
SLITTER DRIVE – 150 HP
SCRAP CHOPPER – BUTECH 251 CHOPPERS
RECOILER DRIVE – 300 HP
SLITTING LINE COMPONENTS:
FOUR (4) ARM ENTRY STORAGE TURNSTILE
FLOOR LEVEL COIL LOADING CAR

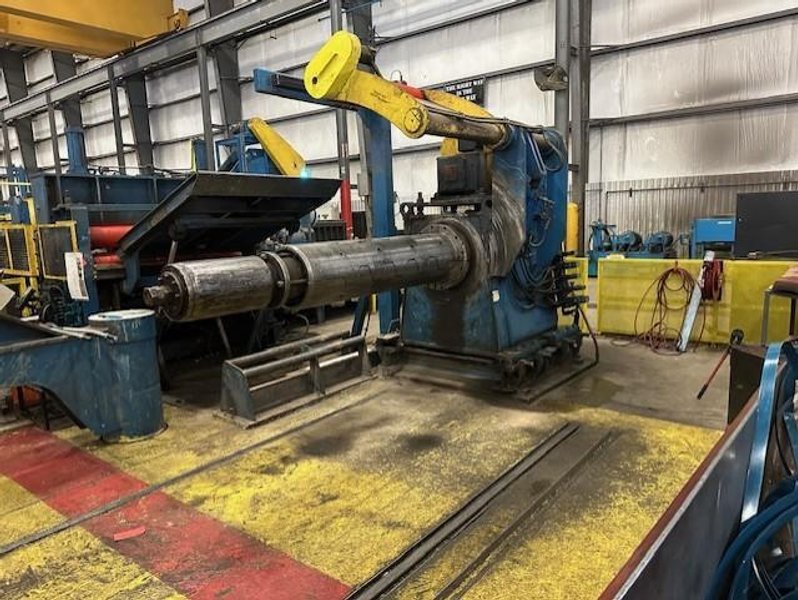

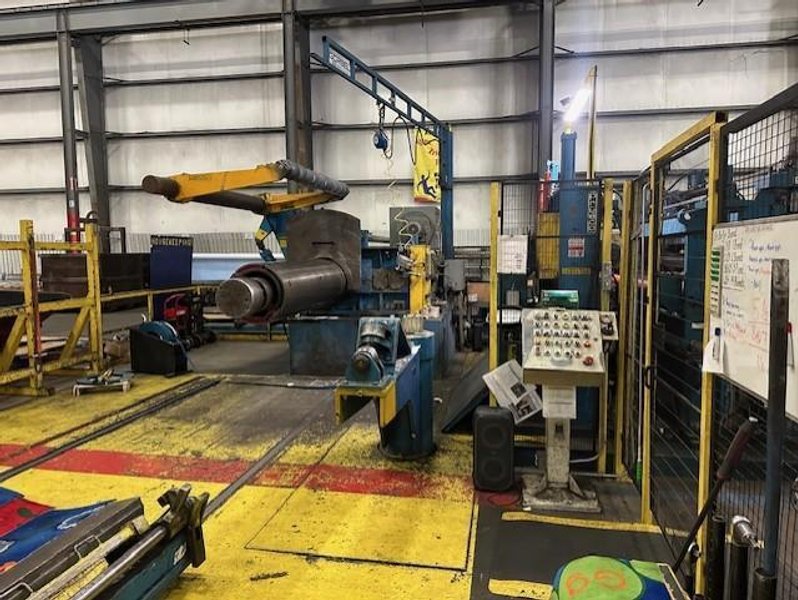

CANTILEVERED MANDREL UNCOILER w/ HOLD DOWN ROLL & WATER-COOLED BRAKE
UNCOILER OUTBOARD SUPPORT
UNCOILER FILLER PLATES FOR LARGER COIL ID
PIVOTING AND TELESCOPING PEELER BLADE
ENTRY PINCH ROLLS
ENTRY CROP SHEAR
STEEL REINFORCED BELT SCRAP CONVEYOR
THICKNESS GAUGE
HEAVY-DUTY SIDE GUIDES
VARIABLE SPEED SLITTER DRIVE BASE
SLITTING LINE COMPONENTS (CONTINUED):

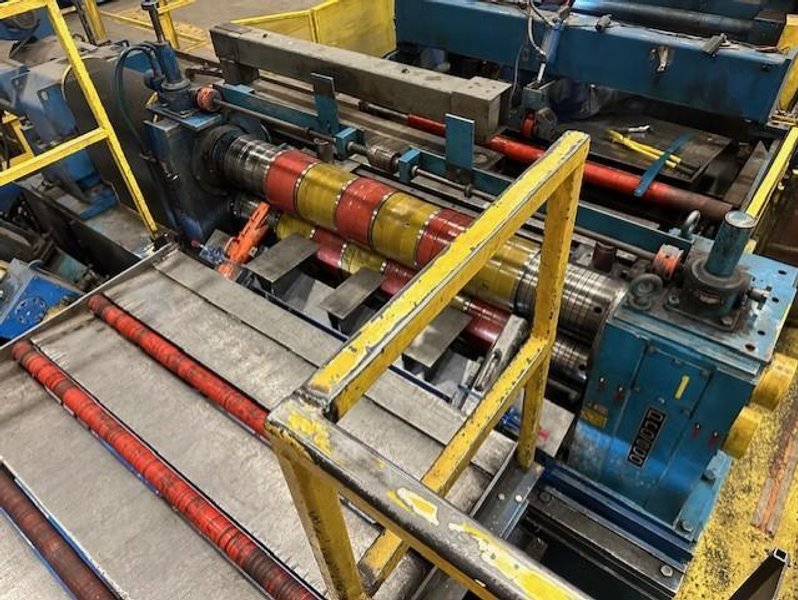

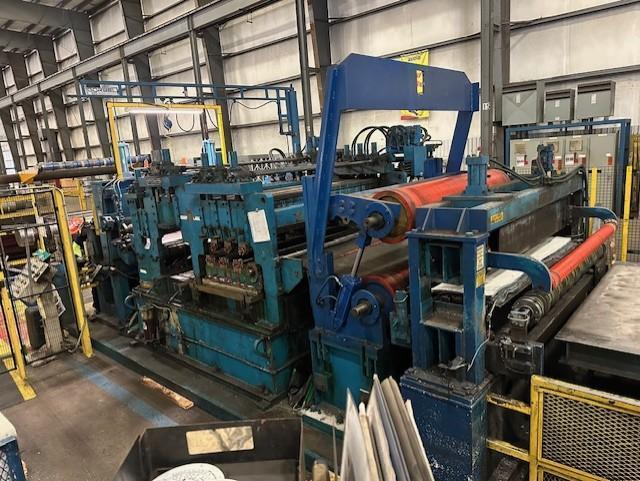

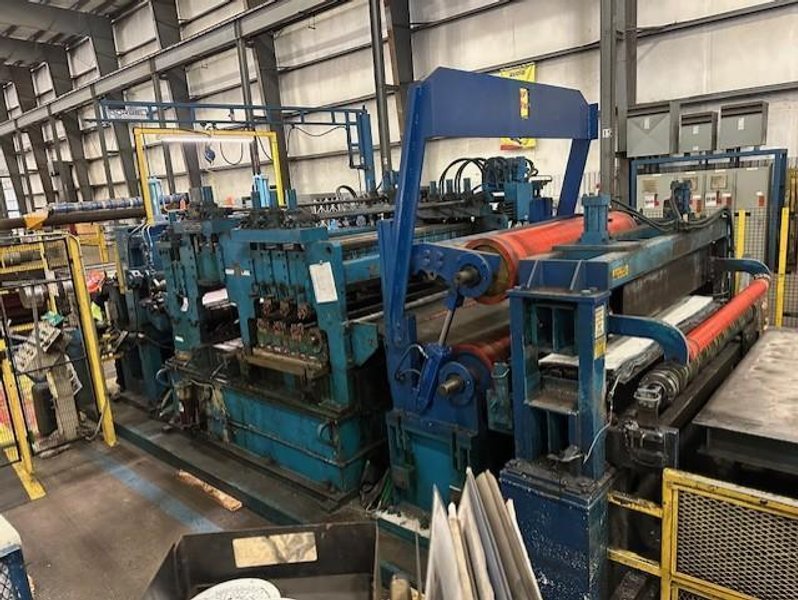

TWO (2) INJECTOR STYLE SLITTER HEADS w/ 9” (228mm) ARBORS

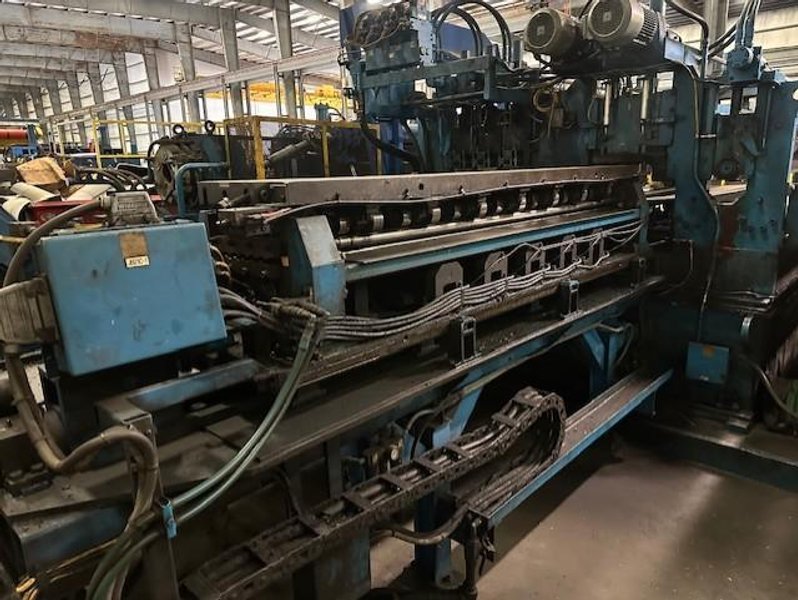

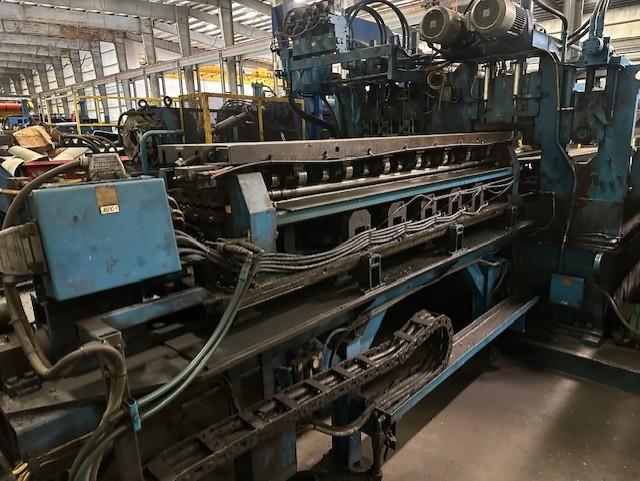

SLITTER HEAD CHANGE SYSTEM w/ STORAGE CAROUSEL
ONE (1) LOT OF SLITTER & SEPARATOR TOOLING w/ CABINETS & BOXES

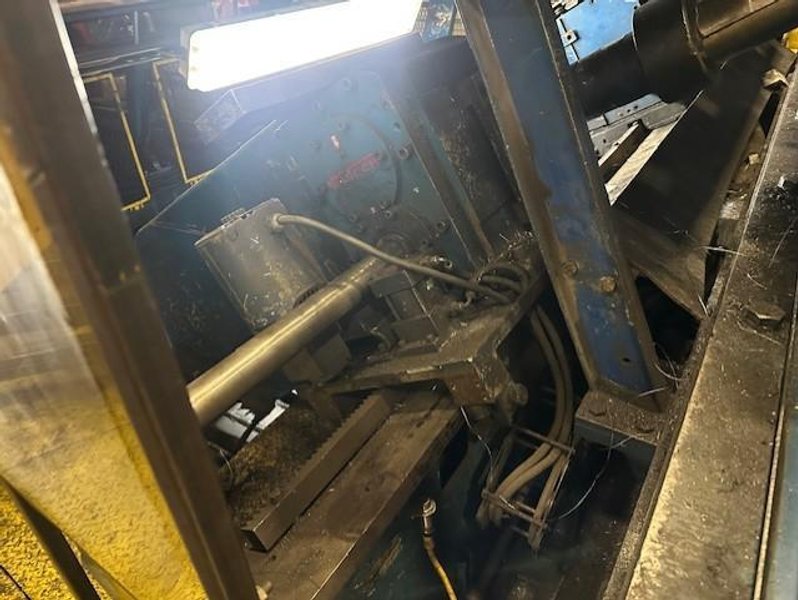

DUAL ARBOR ROTARY SCRAP CHOPPERS w/ VARIABLE SPEED DRIVE
HINGED STEEL BELT SCRAP CONVEYOR
SCRAP CHOPPER CARRY OVER TABLE
PIVOTING PIT THREADING TABLE

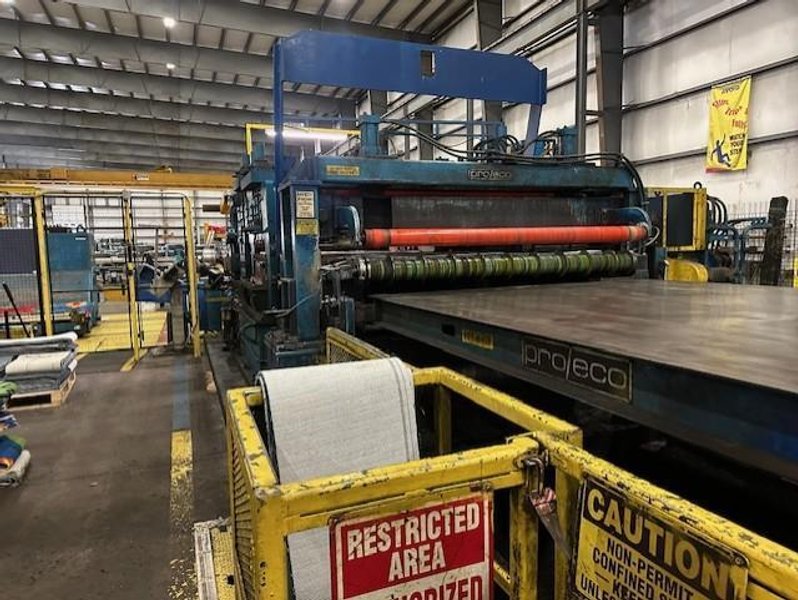

PAD TYPE TENSION STAND w/ ENTRY AND EXIT SEPARATOR SPINDLES
ROLL TYPE TENSION STAND

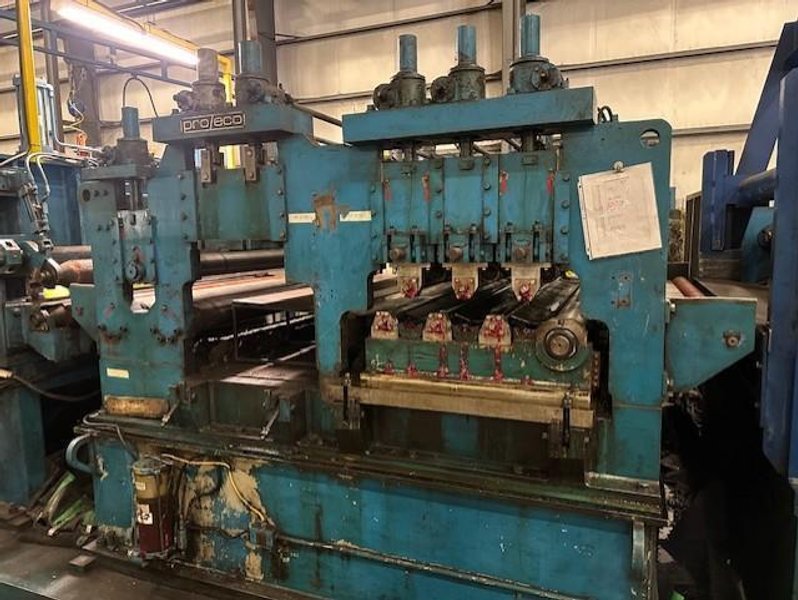

SEVEN (7) ROLL “KORFLEX” LEVELER FOR .075” (1.91 mm) TO .150” (3.81 mm)
TWELVE (12) ROLL “KORFLEX” LEVELER FOR .010” (0.25 mm) TO .075” (1.91 mm)
THREE (3) ROLL FLATTENER
EXIT CROP SHEAR w/ TAIL FEED ROLLS
EXIT PASS LINE ROLL

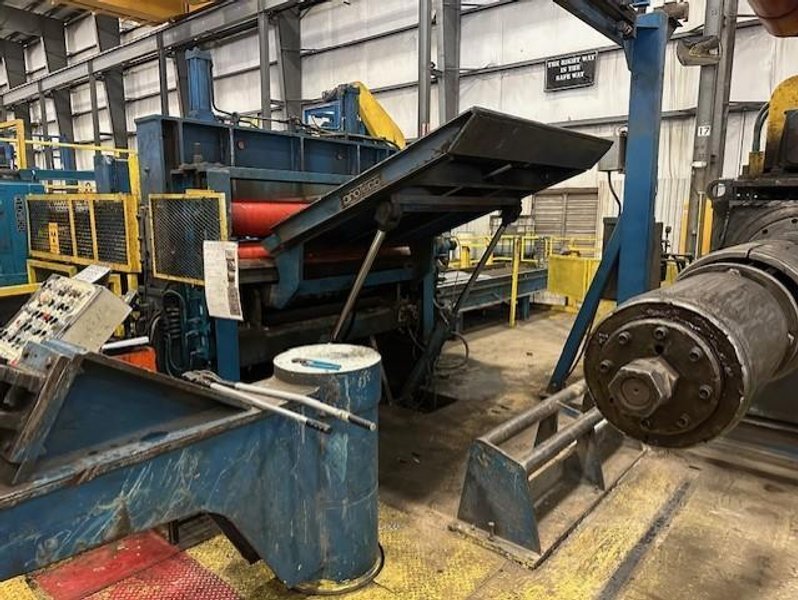

PIVOTING RECOILER THREADING TABLE

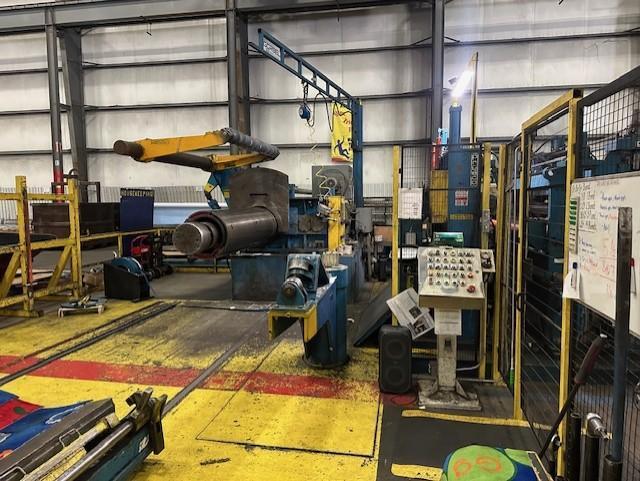

CANTILEVERED MANDREL RECOILER w/ 20” (508 mm) DRUM, VARIABLE SPEED DRIVE, COIL PUSHER, & PIVOTING OVERARM SEPARATOR
RECOILER OUTBOARD SUPPORT
HARDENED STEEL RECOILER FILLER PLATES FOR 24” (610 mm) ID
FLOOR LEVEL COIL UNLOADING CAR w/ NARROW COIL SUPPORT STANCHIONS
FOUR (4) ARM EXIT STORAGE TURNSTILE w/ HYDRAULIC COIL PUSHER
OPERATOR CONTROL STATIONS
AC CONTROLS
VARIABLE SPEED DRIVE CONTROLS
CLOSED LOOP HYDRAULIC SYSTEM
CLOSED LOOP WATER COOLING SYSTEM
PACKAGING LINE SPECIFICATIONS: MANUFACTURER – PRO-ECO
YEAR – 2004
LINE DIRECTION –RIGHT TO LEFT
SLIT COIL WEIGHT – 10,000# (4,536 Kg) MAX.
SLIT COIL WIDTH – 24” (610 mm) MAX.
SLIT COIL OUTSIDE DIAMETER – 72” (1,829 mm) MAX.
SLIT COIL INSIDE DIAMETER – 20” (508 mm) OR 24” (610 mm)
PACKAGE WEIGHT – NOT LIMITED BY QUOTED EQUIPMENT
PACKAGE HEIGHT – NOT LIMITED BY QUOTED EQUIPMENT
COIL SPACER THICKNESS – 1” MIN. (SPACER BLOCKS REQUIRED BETWEEN SLIT COILS)
DOWNENDER STYLE – STATIONARY
BANDER STYLE – POWERED COIL ROTATION TABLE w/ MANUAL TOOLS
STACKER STYLE – MONO-RAIL & HOIST w/ MANUAL ID GRAB
PACKAGING LINE COMPONENTS: SLIT COIL DOWNENDER
SEVEN (7) FOOT COIL STORAGE CONVEYOR
POWERED COIL MANIPULATING TABLE w/ DRIVEN COIL ROTATION ROLLERS
MANUAL BANDING TOOLS
FOURTEEN (14) FOOT COIL CONVEYOR w/ ID GRAB ACCESS CHANNEL
MONO-RAIL & HOIST w/ MANUAL ID GRAB
OPERATOR CONTROL STATIONS
AC CONTROL PANELS
CLOSED LOOP HYDRAULIC SYSTEM |
