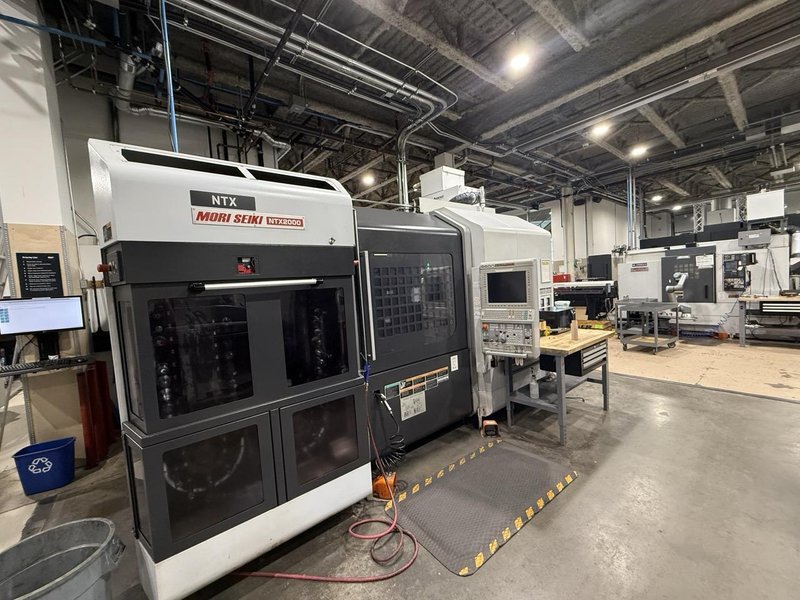

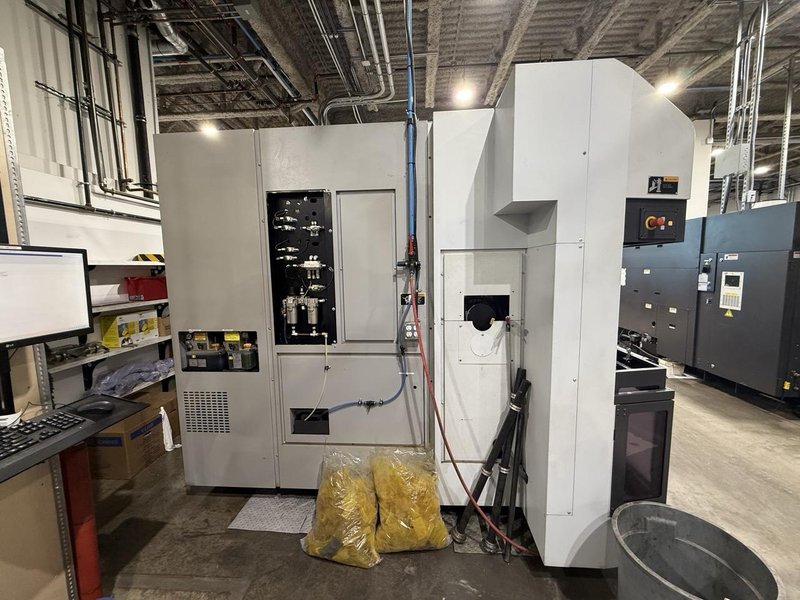

Mori Seiki NTX2000/1500SZ Mill Turn Center, 2011 – Sub Spindle, Lower Turret, High Pressure Coolant

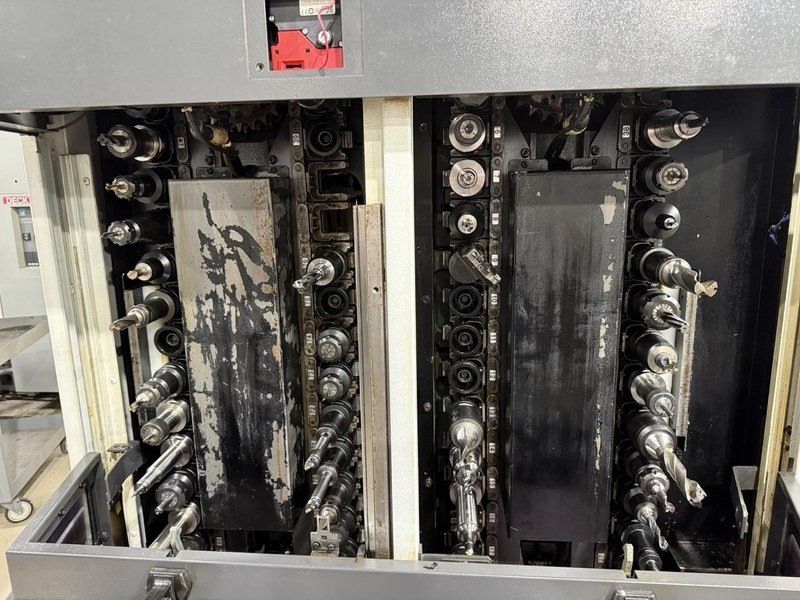

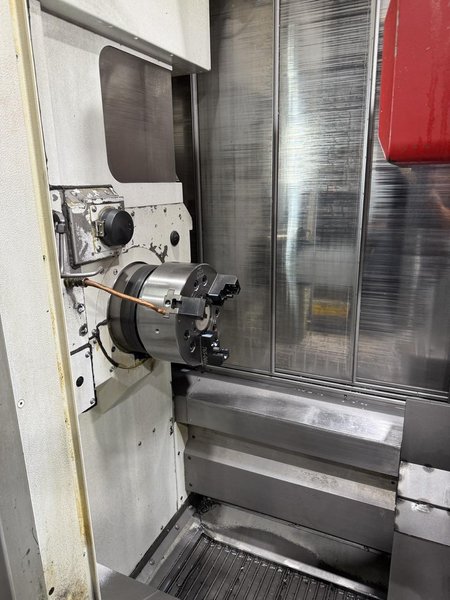

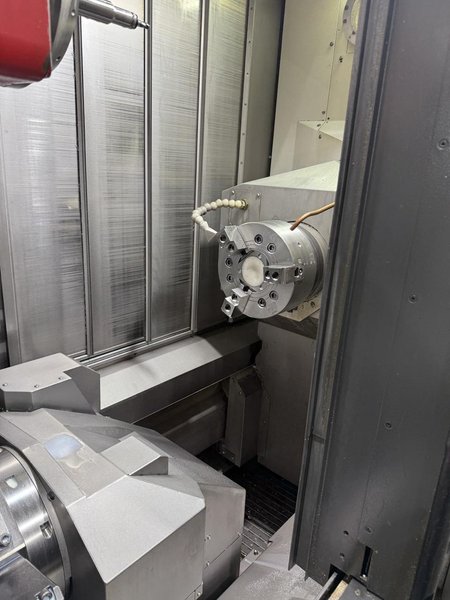

Tool Magazine: Number of tools: 76 Tool holder: Capto C6 Maximum tool length: 15.7” Maximum tool diameter: 5.1” Maximum tool weight: 17.6 lbs Axes Travel: X-axis: 26.6” Y-axis: ±5.9” Z-axis: 61.5” B-axis: ±120º Rapid Traverse Rate: X-axis: 1,575”/min Y-axis: 1,575”min Z-axis: 1,575”min Spindle Speed: Main spindle: 5,000 rpm (22/18.5 kw) Spindle Bore: 2.9” Chuck Size: 10″ Sub Spindle- 5,000 rpm (22/18.5 kw) Sub Spindle Chuck Size: 10″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Dimensions: Width: 157.5” Depth: 98.4” Height: 106.3” Weight: Approximately 33,000 lbs

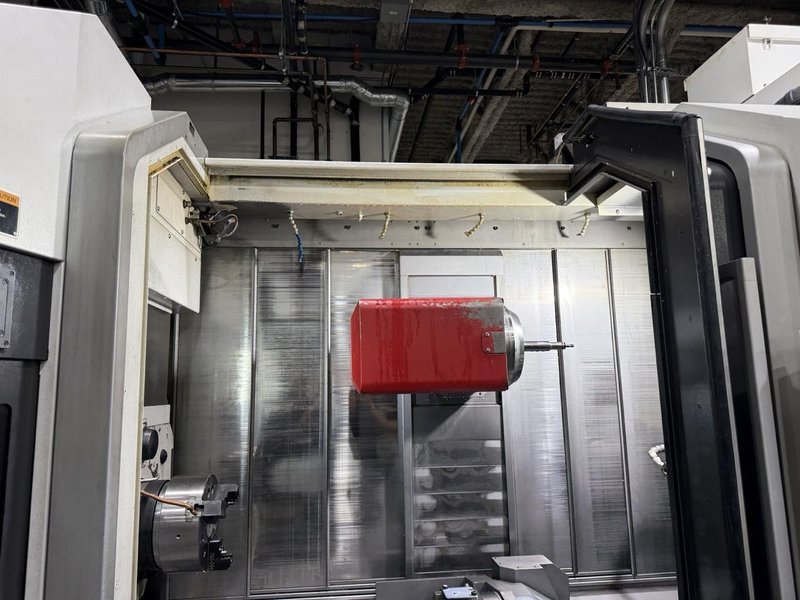

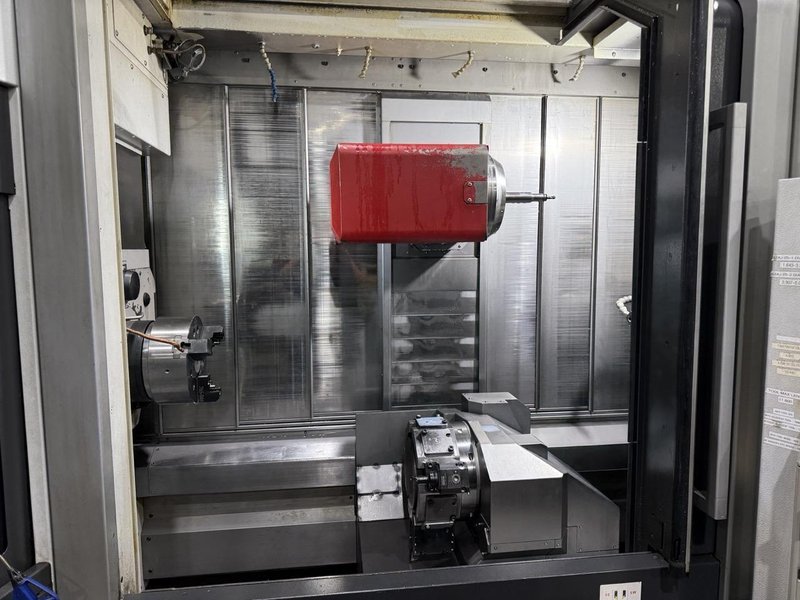

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with: 12,000 RPM B-Axis Milling Head Lower Turret (10 Station) High Pressure Coolant Thru Spindle coolant Automatic Door DDM (Direct Drive Motor) ORC (Octagonal Ram Construction) BMT (Built-in Motor Turret) MAPPS IV + ESPRIT Control System Tool Spindle Three-Point Support Structure Thermal Displacement Measures Coolant Gun Bar Feed Interface Simultaneous 5-axis Control Tool Center Point Control Workpiece Setting Error Compensation ATA Flash MEmory Card

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
