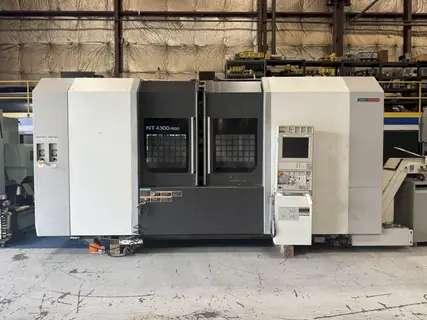

2013 Mori Seiki NT4300DCG/1500SZ CNC Lathe Mill-Turn For Sale

Name: 2013 Mori Seiki NT4300DCG/1500SZ CNC Lathe Mill-Turn For Sale
Brand: MORI SEIKI
SKU: 15076
Availability: PreOrder

Brand

MORI SEIKI

Not specified

CNC Control	yes

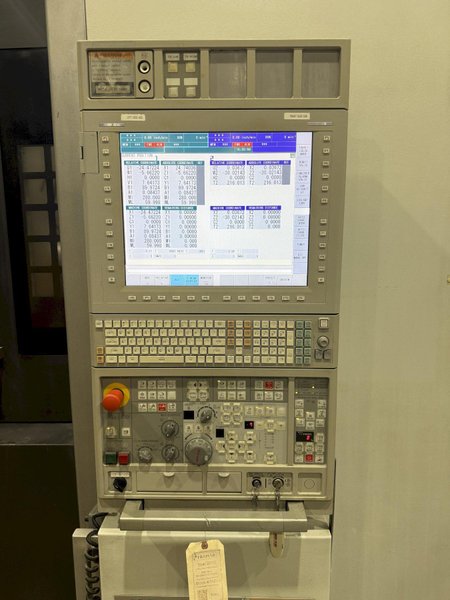

Type Of CNC Control	Fanuc 31iA
# Axis	9
Swing	28.7 inches
Turning Diameter	25.9 inches
Turning Diameter Lower Turret	13.78 inches
Sub Spindle Motor (HP)	30/25 hp inches
Chuck Size	15 inches
Bar Capacity	3.54 inches
X Axis Travel	29.53 inches
X2 Axis Travel	7.68 inches
Y Axis Travel	8.27 inches
Z Axis Travel	61.02 inches
Z2 Axis Travel	60.04 inches
B Axis Rotation Range	+/- 120°
B Axis Indexing	0.0001°
C1/C2 Axis Index	0.001°
Spindle Speed	4,000 rpm
Main Motor	30 hp
Sub Spindle	yes
Sub Spindle Chuck	15 inches
Sub Spindle Speed	4,000 rpm
Milling Spindle Taper	Capto C6
Milling Spindle Speed	12,000 rpm
Turret Capacity	10 Stations - Lower Turret
Tailstock	no
Y Axis	yes
Machine Weight	59000 pounds
- Fanuc 31iA CNC Control - Full B Axis Milling Head - Renishaw Probing (Receiver) - Scale Feedback on X - Chip Blaster High Pressure Coolant Unit - Chip Conveyor - Tool Presetter - 100 Station Automatic Tool Changer ATC (Option) - Assorted Capto Tools - Hobbing Function Software ($$ OPTION) - Transformer - Chiller
