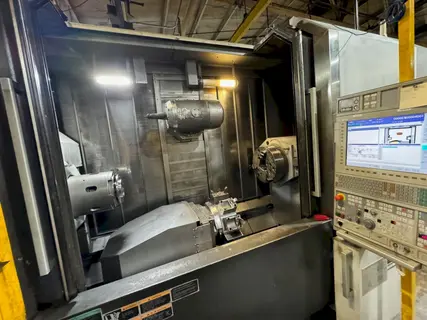

2012 Mori Seiki NT4300DCG/1500 SZ CNC Mill-Turn Lathe For Sale
Brand
Category
Model
NT4300DCG/1500 SZ
Stock #
15075
Year
2012
Condition
Used
Location
Not specified
| CNC Control | yes |
| Type Of CNC Control | Fanuc 31iA |
| # Axis | 9 |
| Swing | 28.7 inches |
| Turning Diameter | 25.9 inches |
| Max Machining Length | 59" |
| Chuck Size | 15 inches |
| Bar Capacity | 3.15 inches |
| X Axis Travel | 29.53 inches |
| Y Axis Travel | 8.27 inches |
| Z Axis Travel | 61.02 inches |
| B Axis Rotation Range | +/- 120° Degrees |
| B Axis Indexing | 1° Indexing |
| X2 Axis Travel | 7.7 inches |
| Z2 Axis Travel | 60 inches |
| C Axis Index | 0.0001° |
| Spindle Speed | 3,000 rpm |
| Main Motor | 30 hp |
| Tailstock | no |
| Y Axis | yes |
| Sub Spindle | yes |
| Sub Spindle Chuck | 15 inches |
| Sub Spindle Speed | 3,000 rpm |
| Milling Spindle Taper | Capto 6 |
| Milling Spindle Speed | 12,000 RPM |
| ATC Stations | 100 Stations |
| Turret Capacity | 12 |
| Machine Weight | 59000 pounds |
|
- Fanuc 31iA
- B Axis Milling Head - Probing - Scale Feedback on X - Chip Blaster High Pressure Coolant Unit - Chip Conveyor - Tool Presetter - 100 Tool ATC - Assorted Capto Tools - Hobbing Software - Chiller |
|
