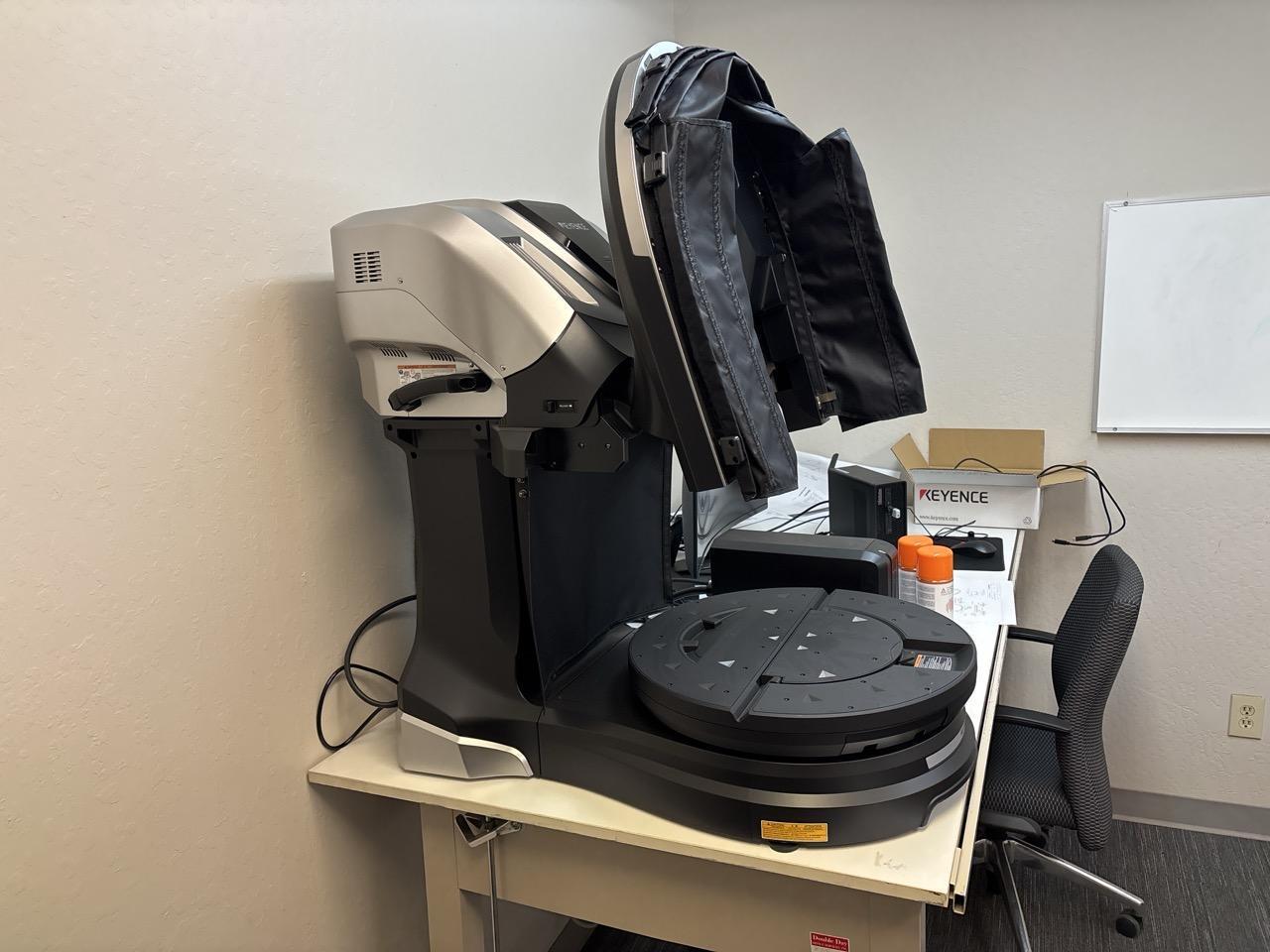

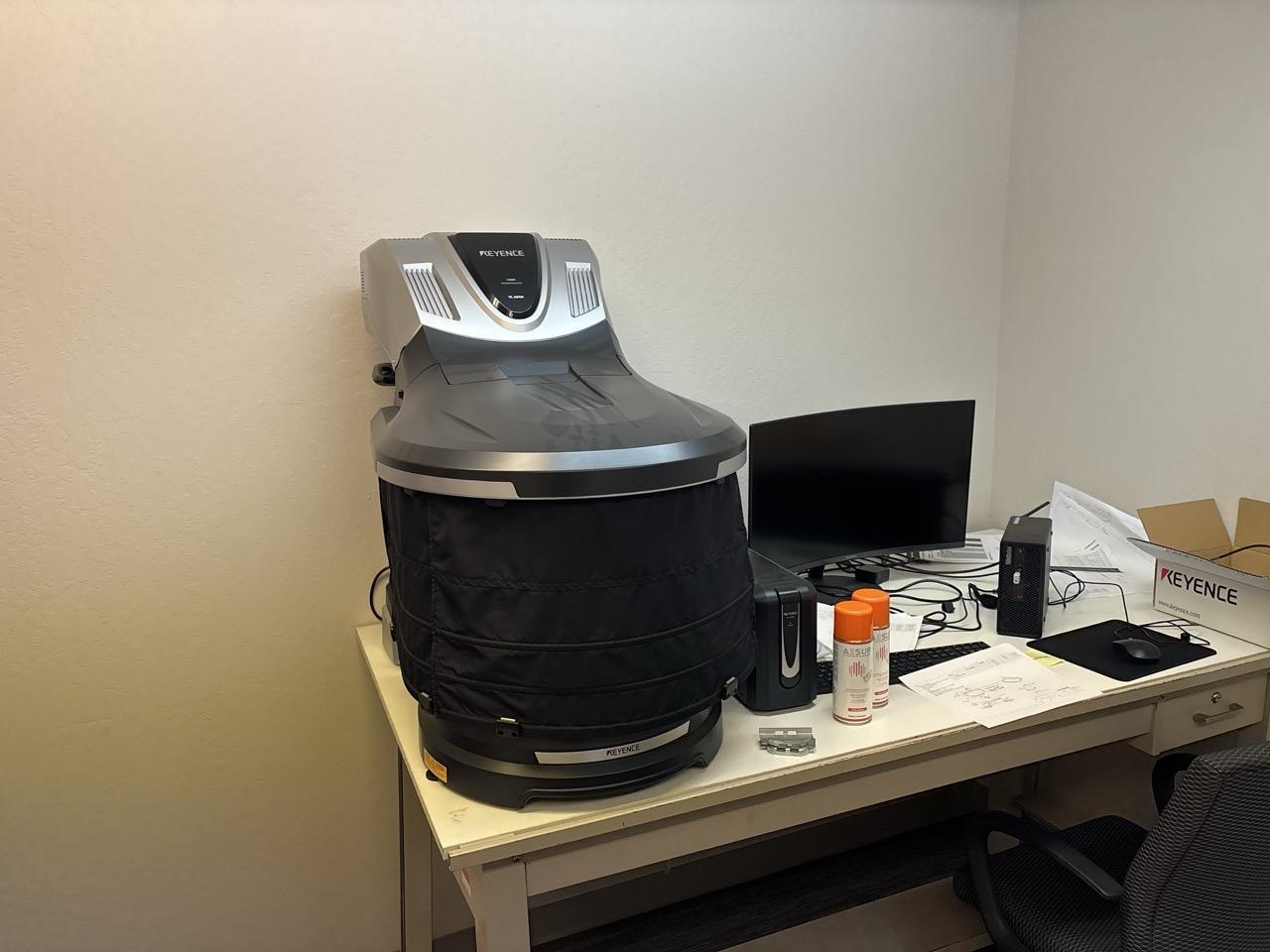

Keyence VL 770 3D Scanner CMM, 2023 – Low Hours, Available Immediately

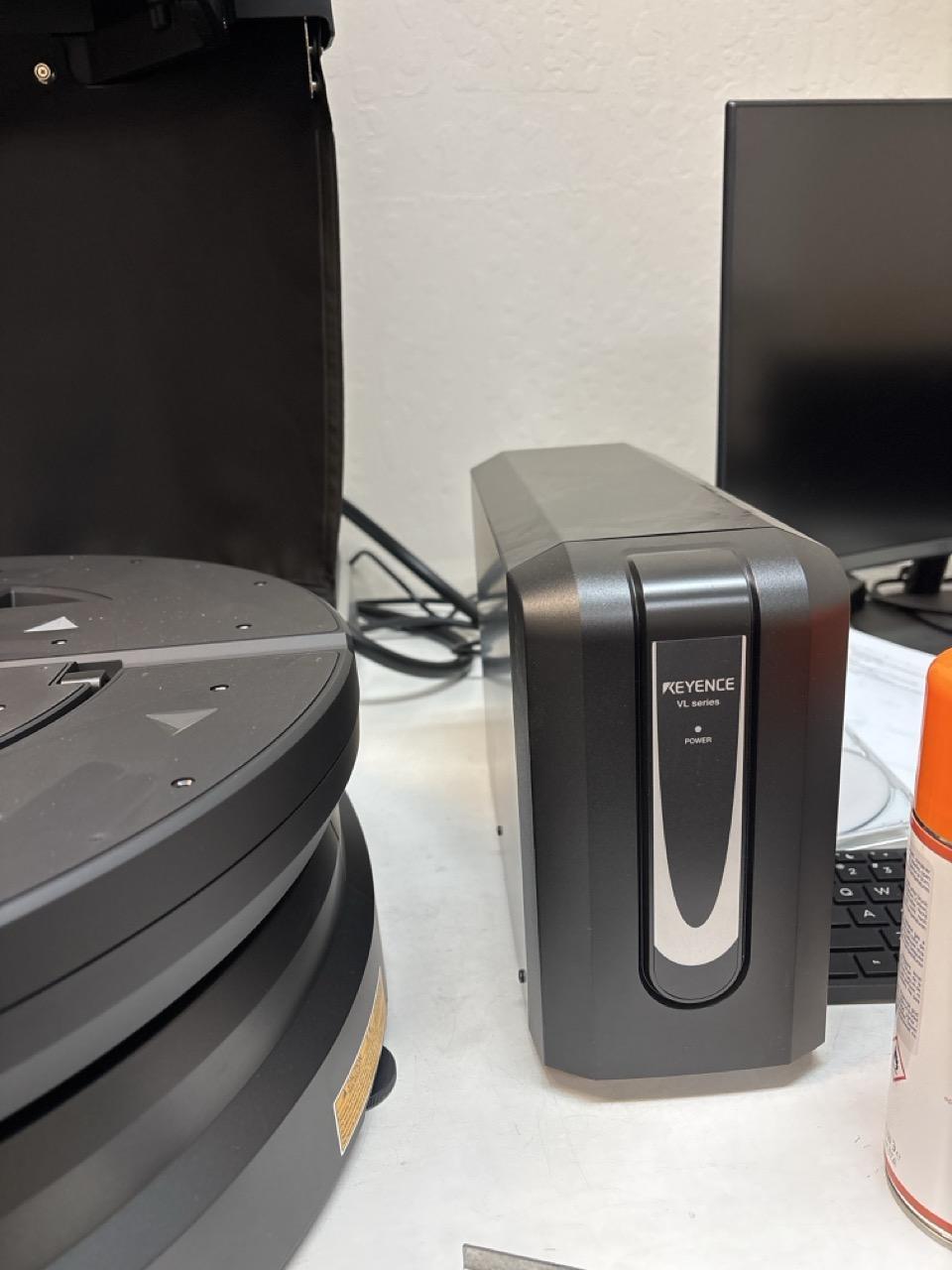

Measurement Unit: VL-770 Controller: VL-700 Stage: VL-750, VL-730 Optical Transmitter System: High-brightness dual projector module Optical Receiver System: Low/high magnification offset dual optical module with wide dynamic range Light Sources: Blue LED for measurement, RGB LEDs for color texture Captured Data Format: Full-color textured 3D mesh data Repeatability (σ): 2 μm Measurement Accuracy: ±10 μm Measurement Resolution: 9 million points Measurement Modes: Low magnification (High speed, Normal, Fine), High magnification (Normal, Fine)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Measurement Range: Low magnification: ø11.81″ × H 7.87″ (wide field) High magnification: ø2.76″ × H 1.97″ (high resolution)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Stage Configuration: VL-750: Motorized XYθ stage mechanism VL-730: Motorized θ stage mechanism Stage Top Panel Size: ø19.69″ Stage Rotation: 360° (infinite rotation) Stage Movement Range: VL-750: ø7.87″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tilt Mechanism: Up to 45° Load Capacity: 110.23 lbs Control PC: Dedicated PC specified by Keyence Power Supply: 100 to 240 VAC ±10%, 50/60 Hz Power Consumption: Controller/Measurement unit: 320 VA, Stage: 80 VA

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Environmental Resistance: Ambient Temperature Range: 59.0 to 86.0°F Ambient Humidity Range: 20 to 80% RH (no condensation)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Weight: Controller: 8.16 lbs Stage: 57.32 lbs (VL-750), 47.84 lbs (VL-730) Light-blocking cover: 12.13 lbs (VL-750), 10.80 lbs (VL-730)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,VL700 Measurement Controller VL Support Package VL 730 Measurement Stand VL-C33 Light Blocking Curtain VL-H3G Software

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
