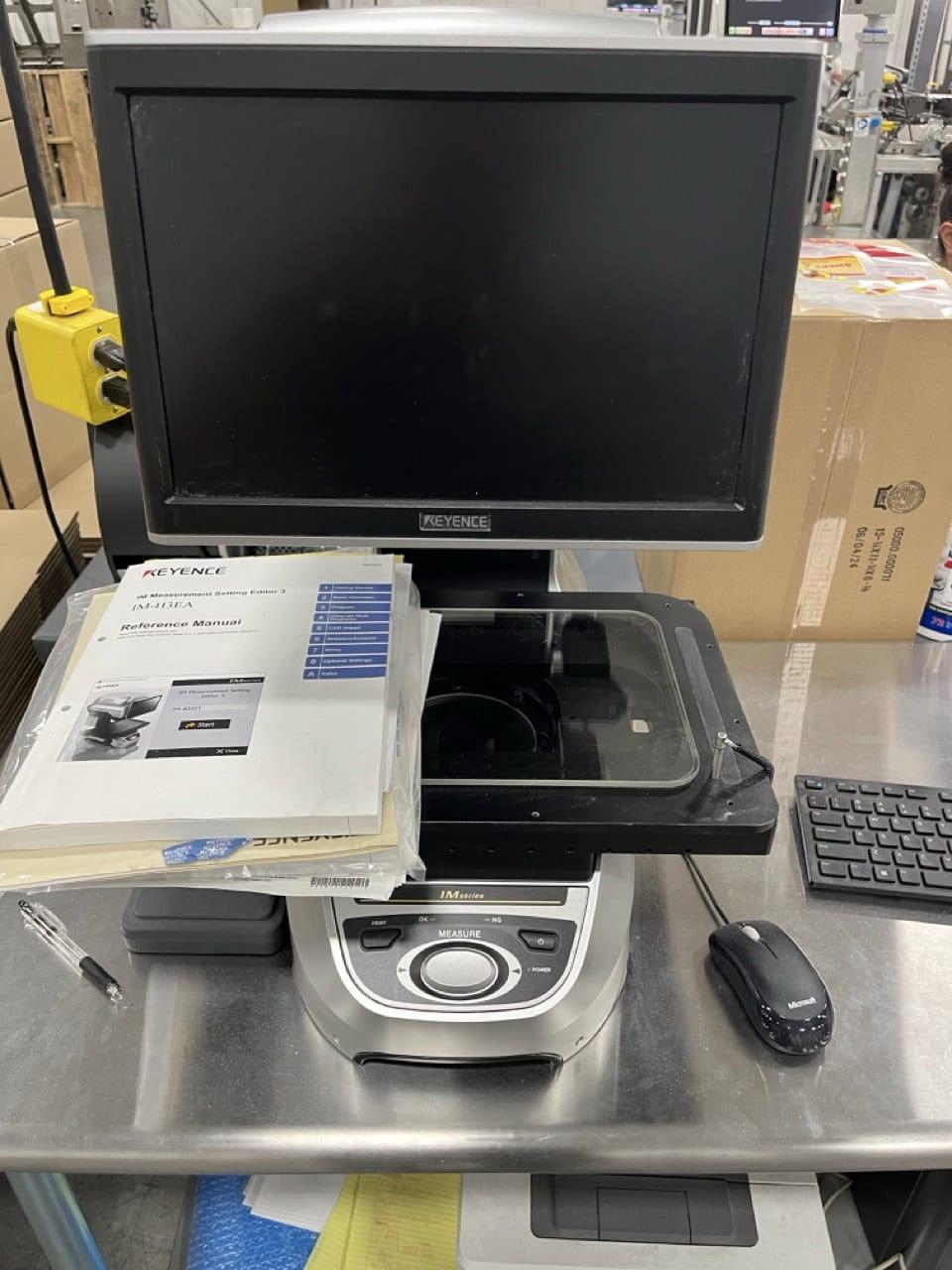

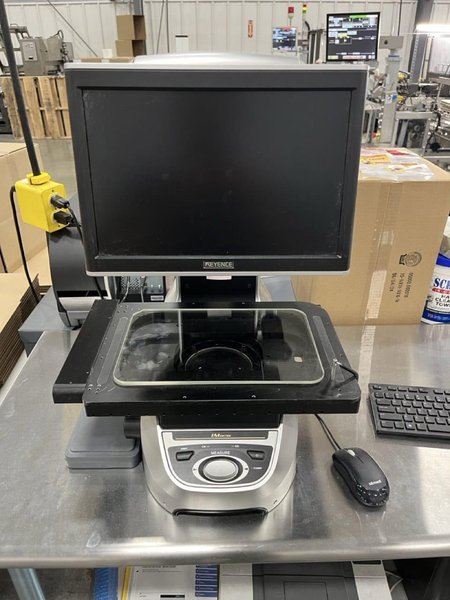

Keyence IM-8030 Image Dimension Measurement System, 2023
Brand
Category
Model
IM-8030
Stock #
486192
Year
2023
Condition
Not specified
Location
Not specified
|
Field Of View (Wide Field): 11.81″ × 7.87″
Field Of View (High Precision): 8.86″ × 4.92″
Minimum Display Unit: 0.1 µm
Repeatability (Wide Field): ±1 µm
Repeatability (High Precision): ±0.5 µm
XY Stage Travel: 7.87″ × 3.94″
Z Stage Travel: 2.95″
Weight: 72.8 lbs
Power Supply: 100–240 VAC, 50/60 Hz
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: All specifications are assumed to be correct but must be confirmed by the purchasing entity.,CNC Control Double Telecentric Lens 12.1″ LCD Monitor 1″ 20-Megapixel Monochrome CMOS Sensor Transparent Telecentric Illumination System Ring & Slit Ring Multi-Angle Illumination All Available Manuals All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
